01

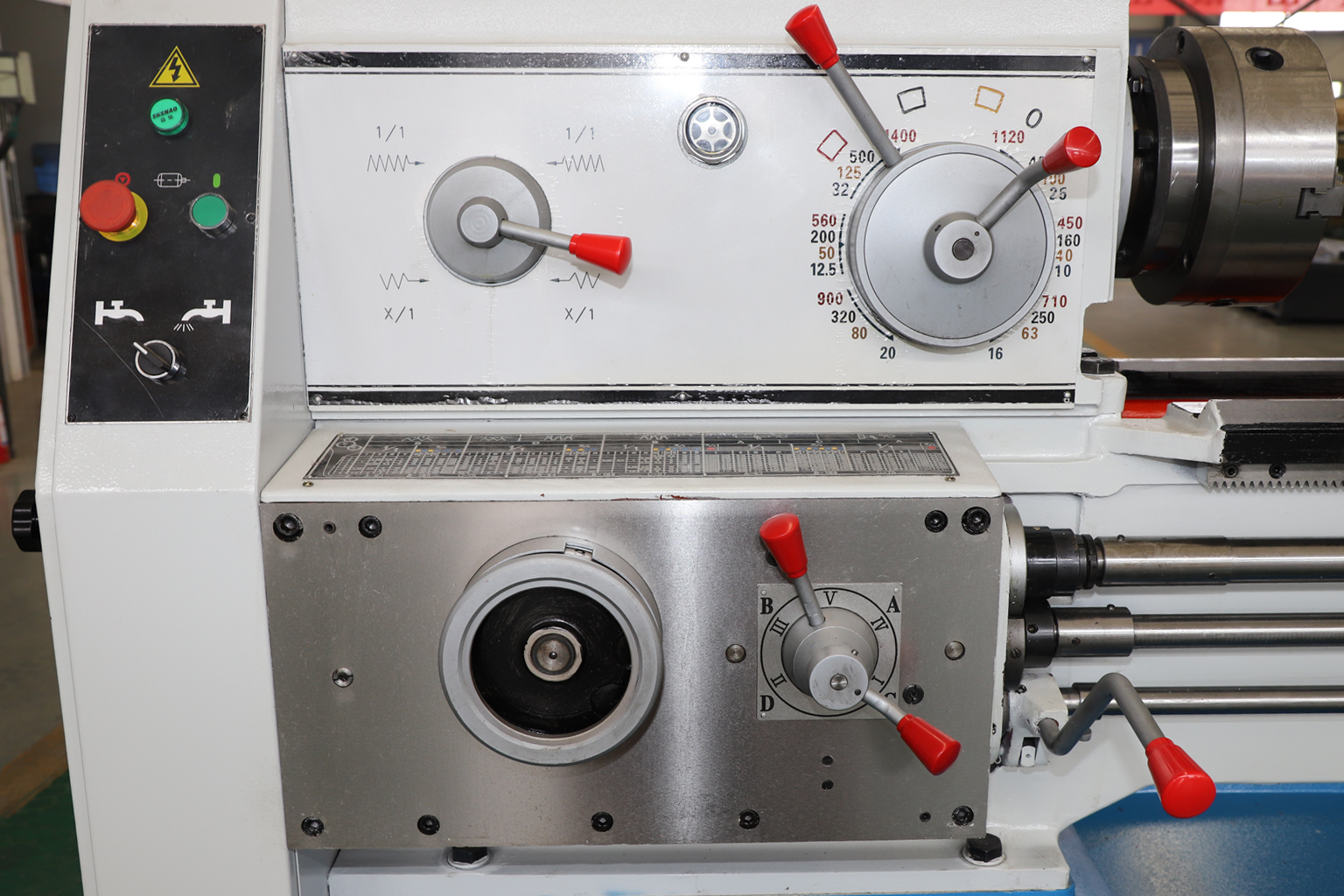

Headstock
● High rigidity and high rotational accuracy. Automatic transmission control unit.
Horizontal lathe is suitable for internal and external turning. tapering. and other rotating faces, metric. module and inch threads,as well as drilling and pull oil slot. The lathe bed is wider than normal machine, owns high rigidity, guide face after high frequency quenching. with high durability.Easy operated, one handle to operate quite convenient.Own high rigidity in both structure and transfer parts, high percent the use of power make the machine cutting easily.
1.CA6140 Lathe Machine supports metric, inch, module and diametral pitch threads, providing greater flexibility for repair, maintenance and general machining work.

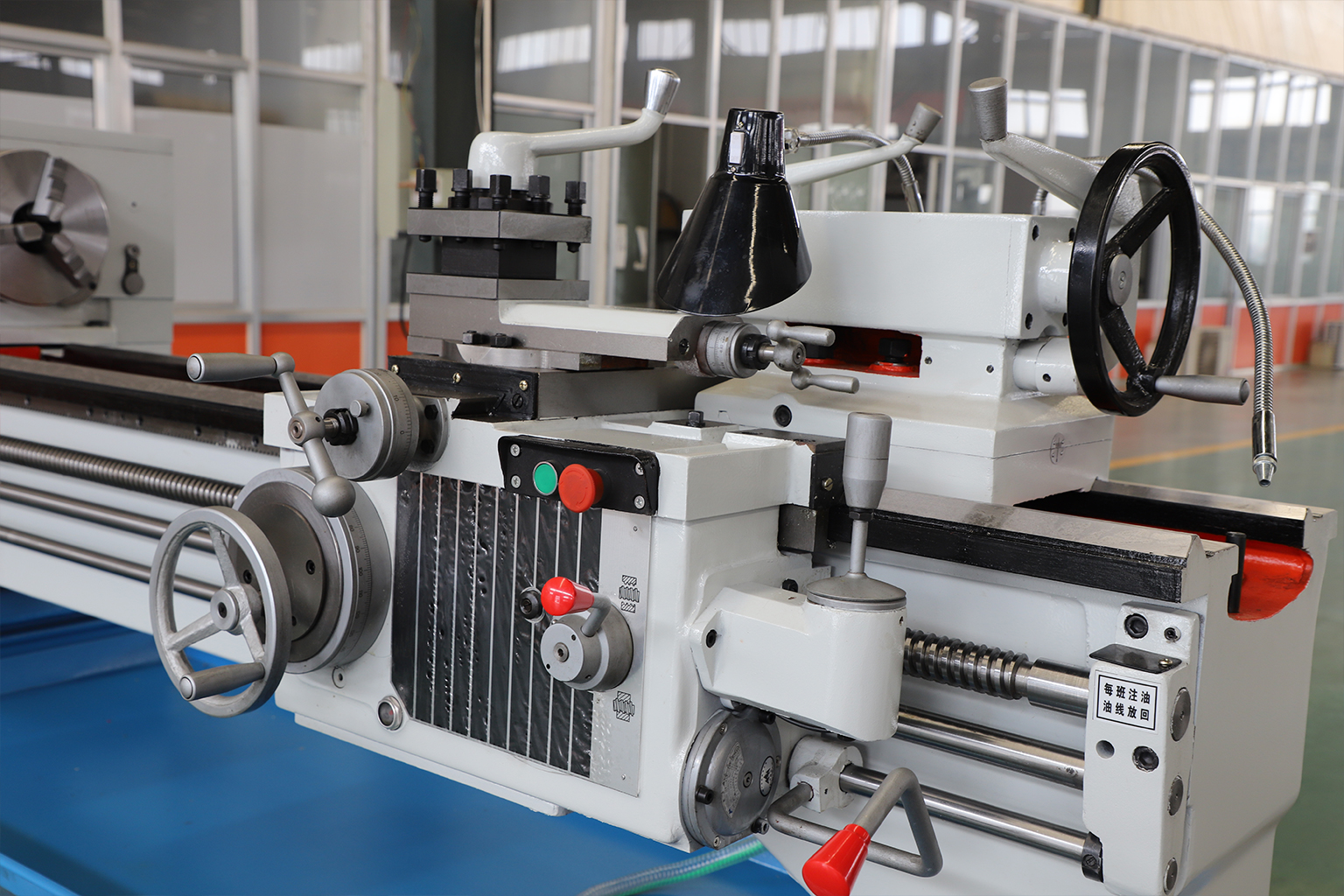

2.The four-station high-strength tool post supports convenient tool positioning and quick tool changes during general machining operations.
3.CA6140 Lathe Machine can be configured for different machining lengths, helping buyers select a machine according to their actual workpiece dimensions and production requirements.
● High rigidity and high rotational accuracy. Automatic transmission control unit.
● Super-audio frequency quenched guideways. Excellent wear resistance.
● The machine tool utilizes a high-strength, four-position tool post.
● Facilitates the clamping of irregular workpieces for rapid production.

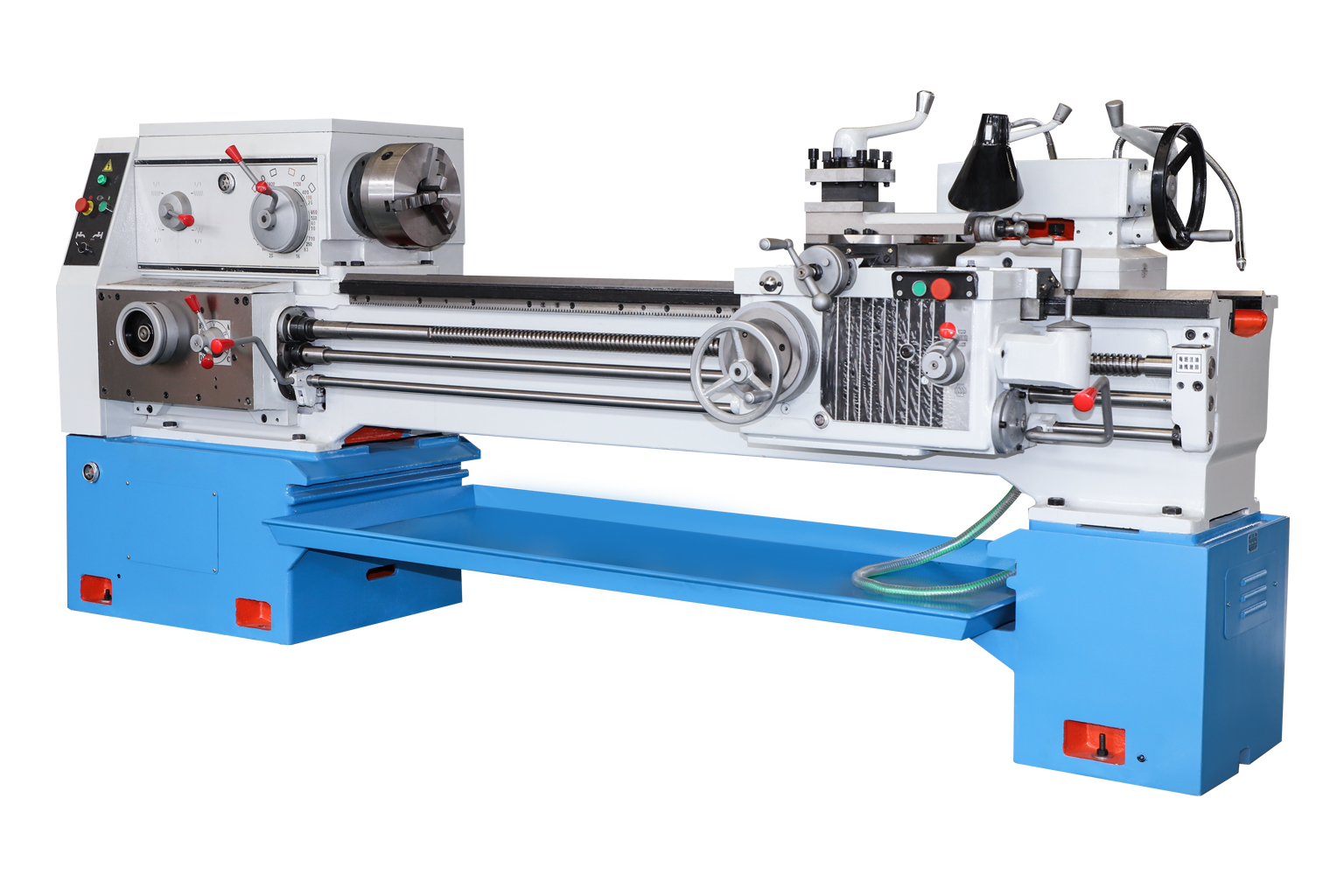

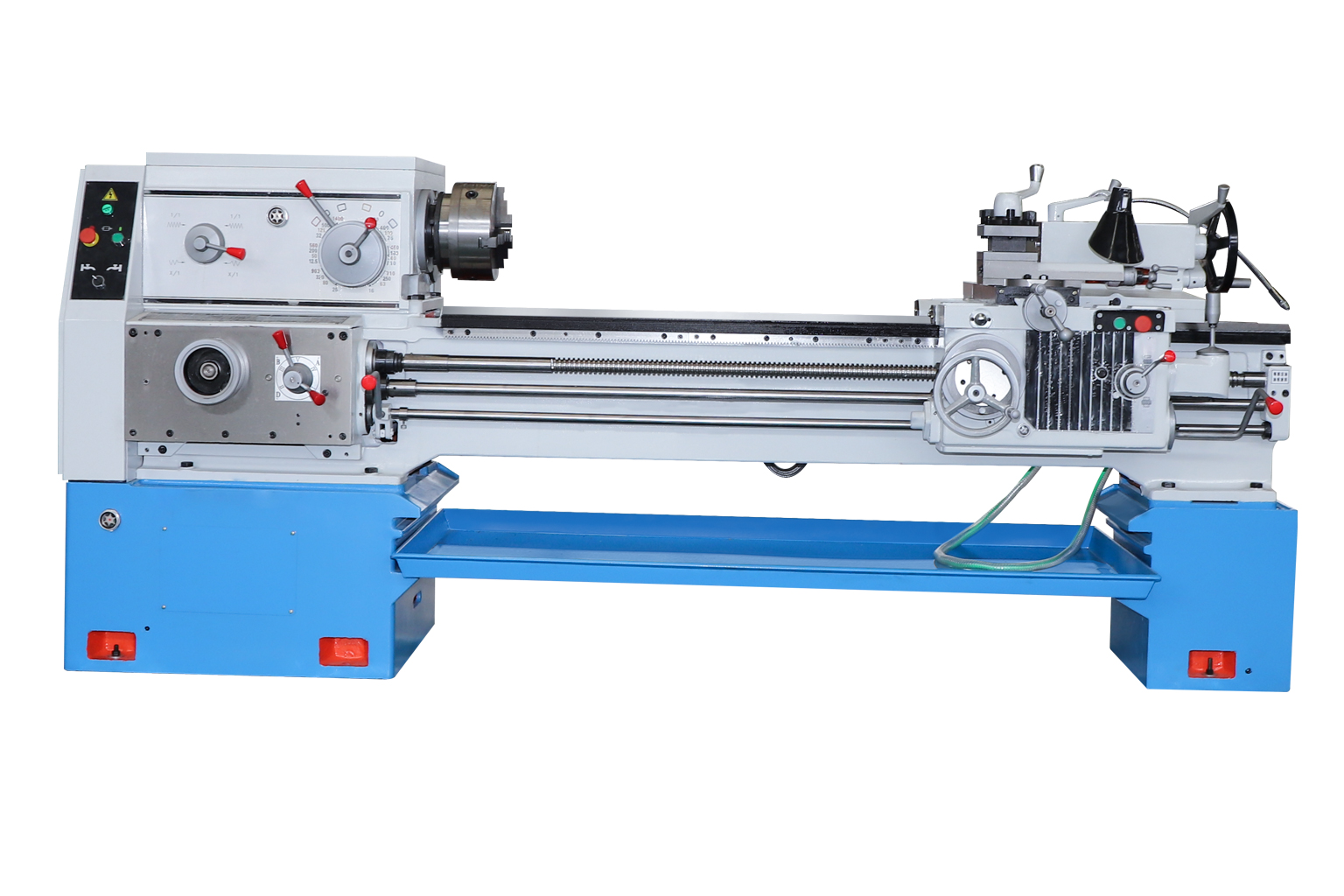

CA6140 Lathe Machine is suitable for general turning of shafts, discs, sleeves and other rotating workpieces. It can perform external and internal turning, taper turning, threading and other common machining operations.
| Specifications | CA6140 | |
| Max. Workpiece Diameter of Bed | 400mm | |
| Max. workpiece diameter of tool holder | 220mm | |
| Max.Workpiece Length | 750/1000/1500/2000/2200/3000/4000mm | |
| width of bed | 400mm | |
| Cutter rod section | 25×25mm | |
| Spindle axis | Spindle speed range | 16-1400rpm(24steps) |
| Spindle bore | 52mm 、(80mm)、[105mm] | |
| Mores | No.6(MT6)(Φ90 1:20)[Φ113:20] | |
| feed | Feed Quantity | (64 kinds)(for each) |
| Metric thread | (1-192mm) (44 kinds) | |
| English thread | (1-24tpi) (21kinds) | |
| Modular thread | 0.25-48(module 39 kinds) | |
| Diameter thread | 1-96DP(37 kinds) | |
| Tailstock | Tailstock spindle travel | 150mm |
| Tailstock spindle diameter | 75mm | |
| Taper of tailstock spindle hole | Morse NO.5 (MT5) | |
| Main motor | 7.5KW(10HP) | |
| Package dimensions | length 750mm | 2440×1140×1750 |
| length 1000mm | 2650×1140×1750 | |
| length 1500mm | 3150×1140×1750 | |
| length 2000mm | 3650×1140×1750 | |
| length 2200mm | 4030×1140×1750 | |
| length 3000mm | 4800×1140×1750 | |
| length 4000mm | 4800×1140×1750 | |
| weight | Length | G.W./N.W.(KG) |
| Length 750mm | 2170 /2060 | |
| Length 1000mm | 2260/ 2140 | |
| Length 1500mm | 2420 /2290 | |
| Length 2000mm | 2790/ 2640 | |
| Length 2200mm | 2940/ 2790 | |
| Length 3000mm | 3450/ 3300 | |
| Length 4000mm | 3750/ 3600 | |
