01

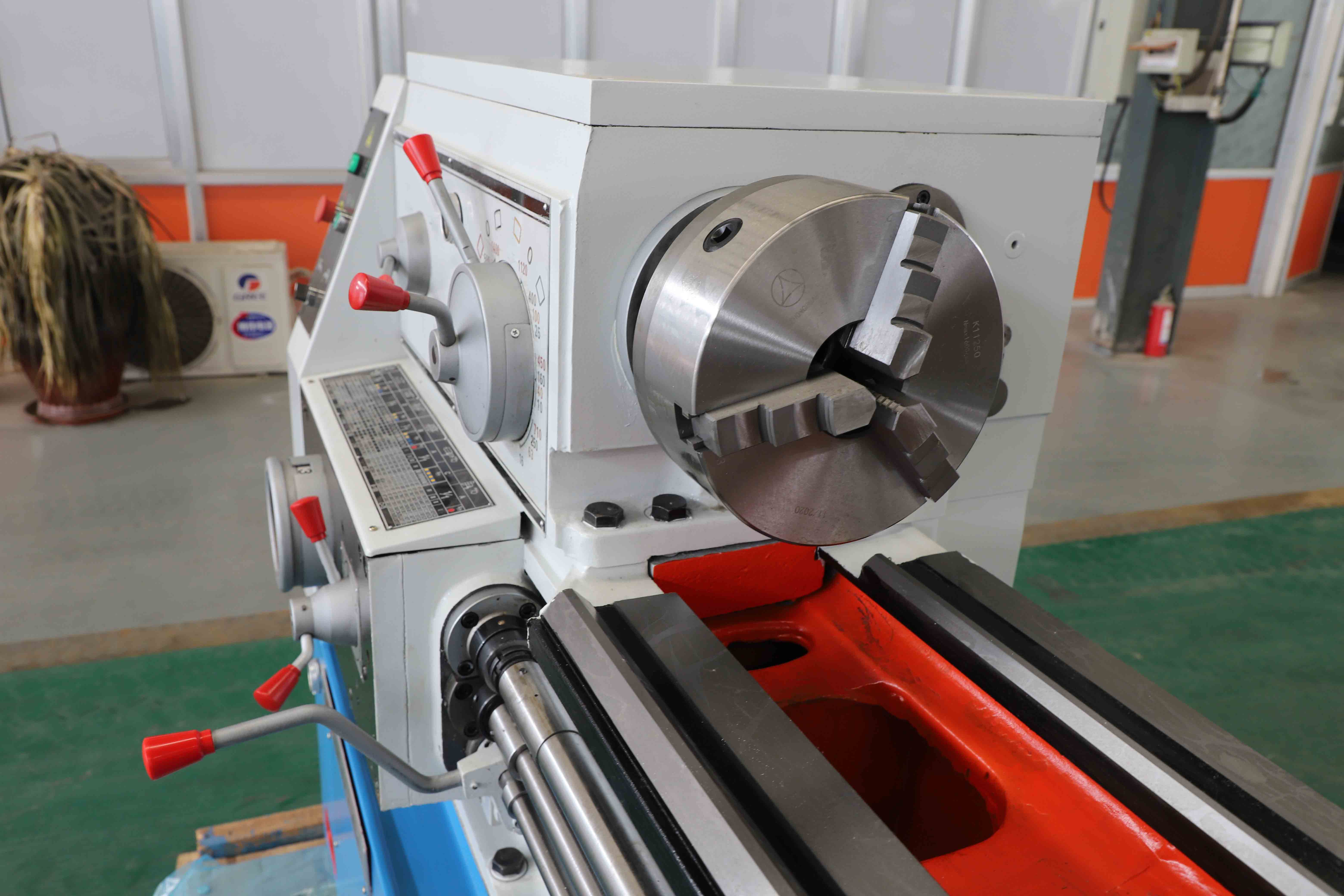

Metal three-jaw chuck
● Facilitates the clamping of irregular workpieces for rapid production.

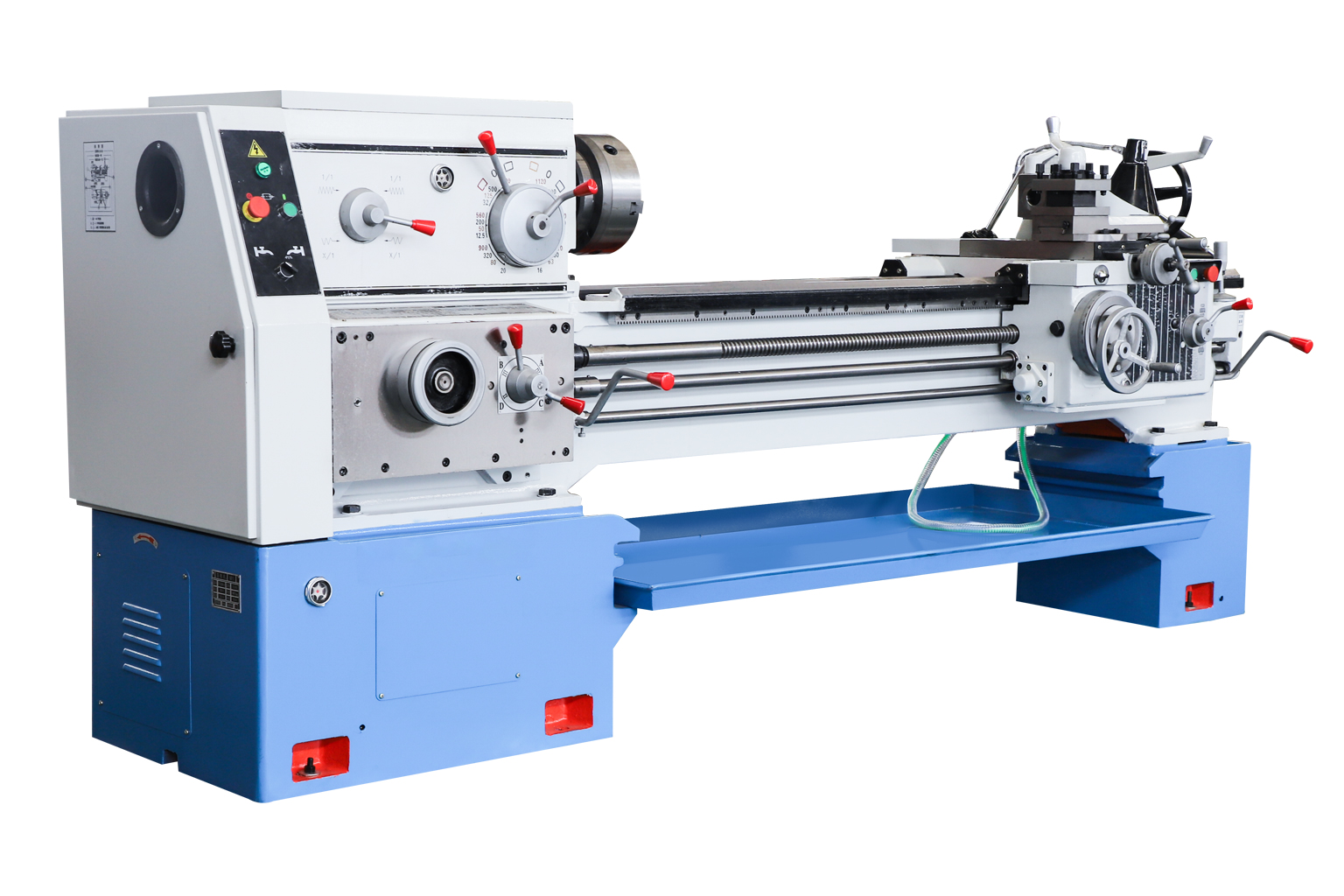

CA6150 Horizontal Lathe Machine is suitable for general machining workshops, maintenance departments, repair shops and manufacturers processing shafts, discs, sleeves and other rotating workpieces. It can perform external and internal turning, taper turning, threading, drilling and related machining operations.
1.CA6150 Horizontal Lathe Machine provides a maximum swing over bed of 500 mm, giving users a practical machining range for shafts, discs, sleeves and other rotating workpieces.
2.The 52 mm spindle bore provides practical flexibility for machining shafts and bar-type workpieces. Larger spindle bore configurations are also available for specific requirements.
3.CA6150 Horizontal Lathe Machine supports metric, inch, module and diametral pitch threads, making it suitable for general machining, repair and replacement-part production.
● Facilitates the clamping of irregular workpieces for rapid production.
● High rigidity and high rotational accuracy. Automatic transmission control unit.

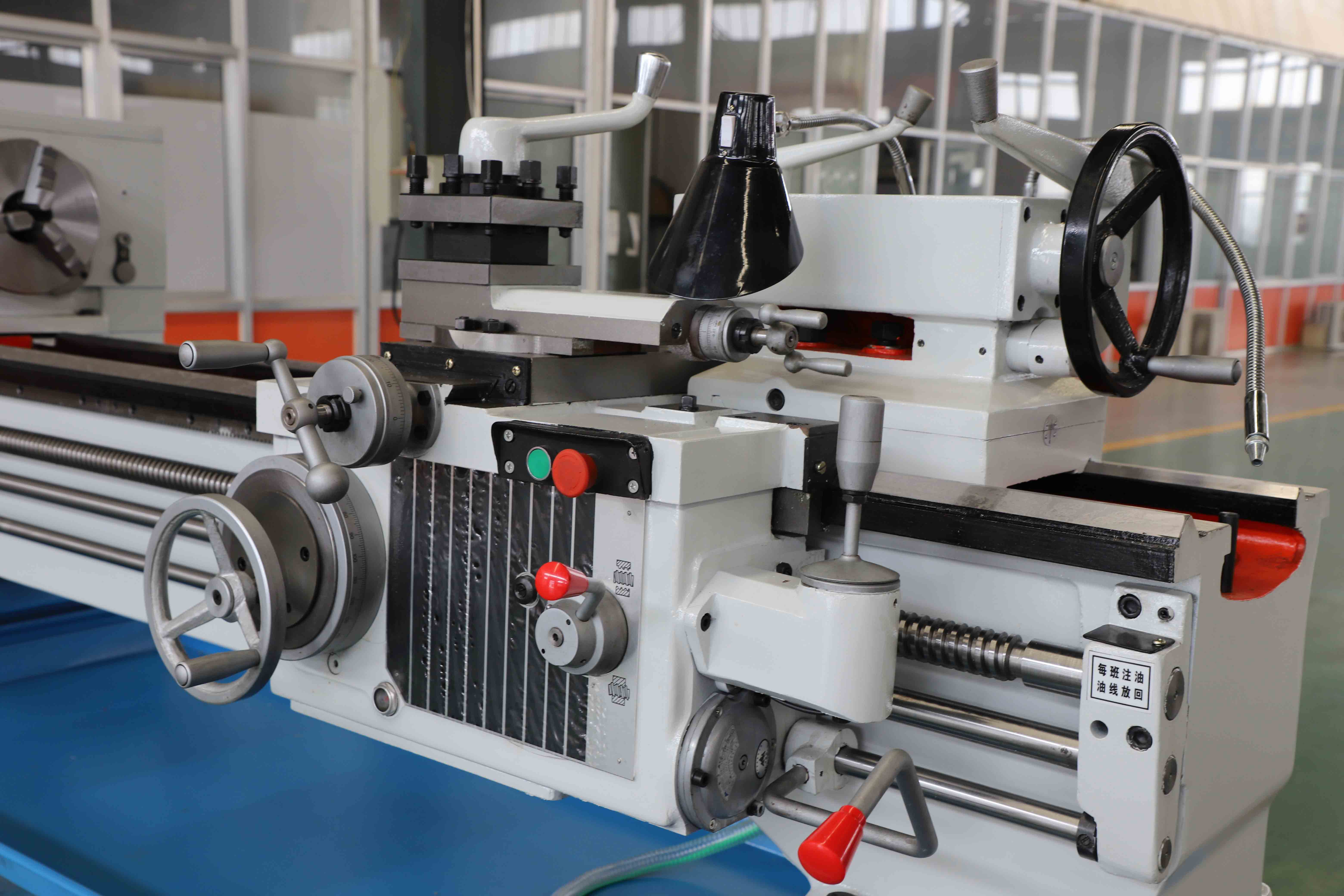

● The machine tool utilizes a high-strength, four-position tool post.

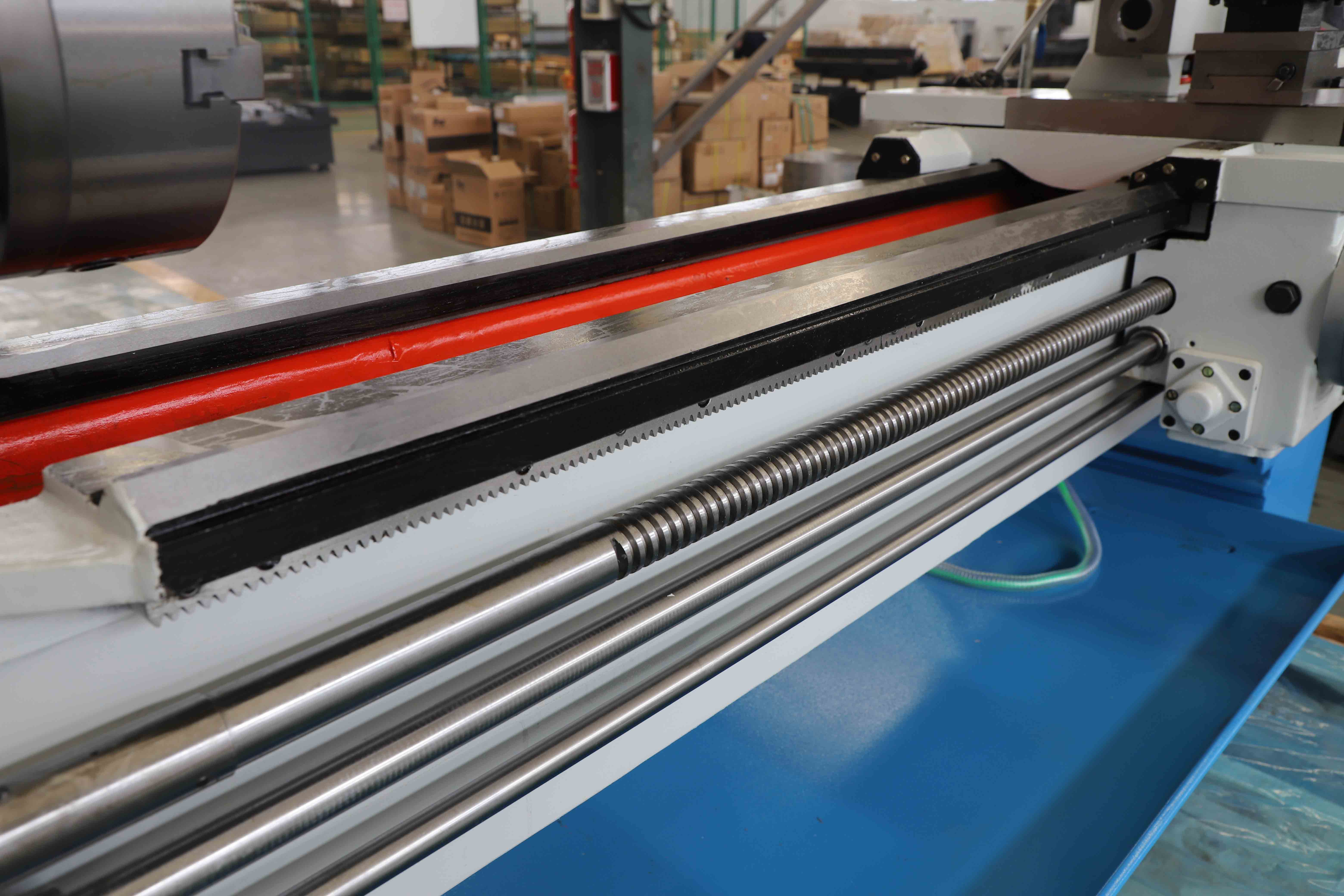

● Super-audio frequency quenched guideways. Excellent wear resistance.
CA6150 Horizontal Lathe Machine is suitable for general machining workshops, maintenance departments, repair shops and manufacturers processing shafts, discs, sleeves and other rotating workpieces. It can perform external and internal turning, taper turning, threading, drilling and related machining operations.
| Specifications | CA6140 | CA6150 | |
| Max. Workpiece Diameter of Bed | 400mm | 500mm | |
| Max. workpiece diameter of tool holder | 220mm | 300mm | |
| Max.Workpiece Length | 750/1000/1500/2000/2200/3000/4000mm | ||
| width of bed | 400mm | ||
| Cutter rod section | 25×25mm | ||
| Spindle axis | Spindle speed range | 16-1400rpm(24steps) | |
| Spindle bore | 52mm 、(80mm)、[105mm] | ||
| Mores | No.6(MT6)(Φ90 1:20)[Φ113:20] | ||
| feed | Feed Quantity | (64 kinds)(for each) | |
| Metric thread | (1-192mm) (44 kinds) | ||
| English thread | (1-24tpi) (21kinds) | ||
| Modular thread | 0.25-48(module 39 kinds) | ||
| Diameter thread | 1-96DP(37 kinds) | ||
| Tailstock | Tailstock spindle travel | 150mm | |
| Tailstock spindle diameter | 75mm | ||
| Taper of tailstock spindle hole | Morse NO.5 (MT5) | ||
| Main motor | 7.5KW(10HP) | ||
| Package dimensions | length 750mm | 2440×1140×1750 | |
| length 1000mm | 2650×1140×1750 | ||
| length 1500mm | 3150×1140×1750 | ||
| length 2000mm | 3650×1140×1750 | ||
| length 2200mm | 4030×1140×1750 | ||
| length 3000mm | 4800×1140×1750 | ||
| length 4000mm | 4800×1140×1750 | ||
| weight | Length | G.W./N.W.(KG) | |
| Length 750mm | 2170 /2060 | ||
| Length 1000mm | 2260/ 2140 | ||
| Length 1500mm | 2420 /2290 | ||
| Length 2000mm | 2790/ 2640 | ||
| Length 2200mm | 2940/ 2790 | ||
| Length 3000mm | 3450/ 3300 | ||
| Length 4000mm | 3750/ 3600 | ||
