01

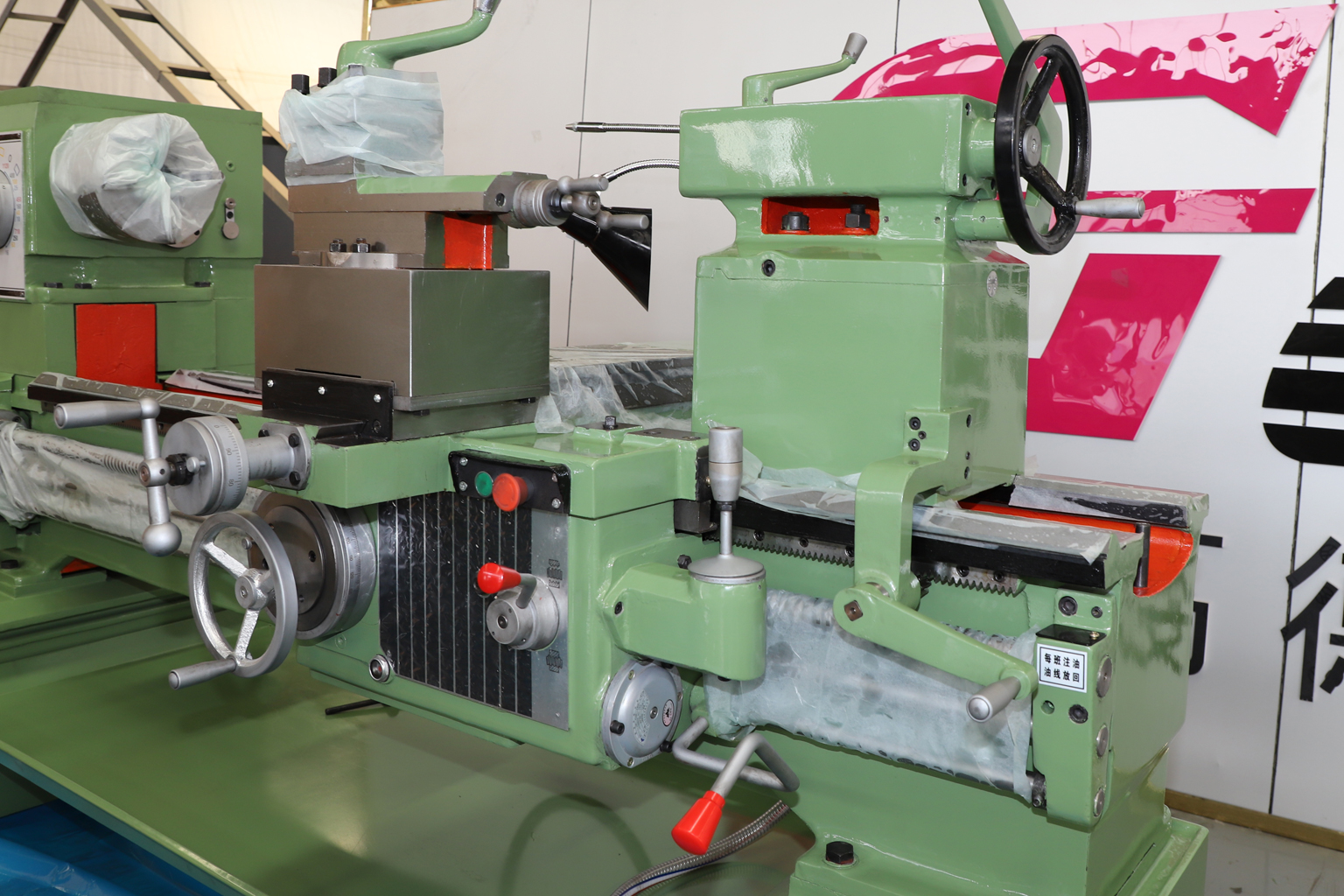

Tool Post
● The machine tool utilizes a high-strength, four-position tool post.

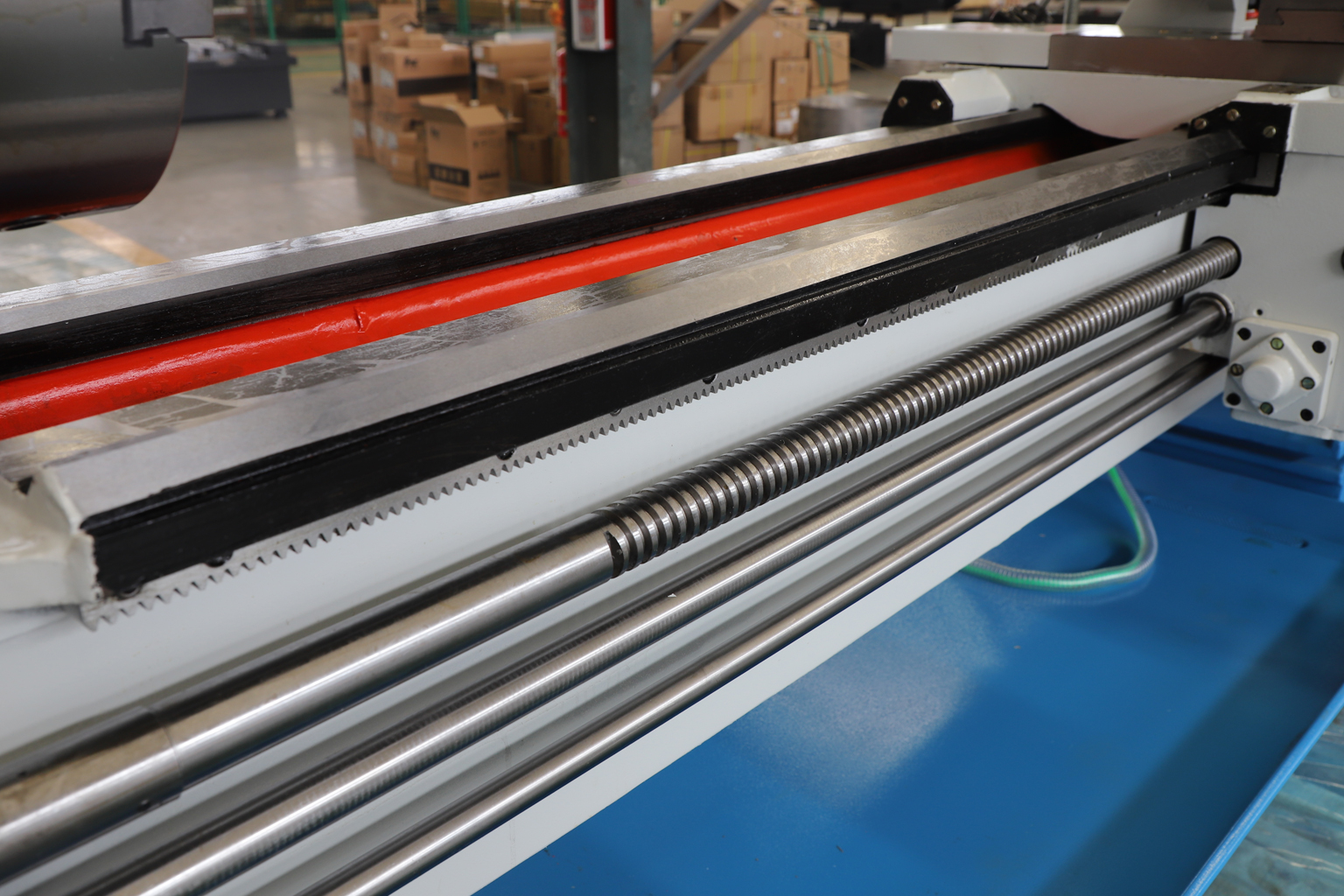

CA6161 lathe machine bed guideways use high-frequency hardening to improve wear resistance, providing a durable foundation for repeated turning operations.

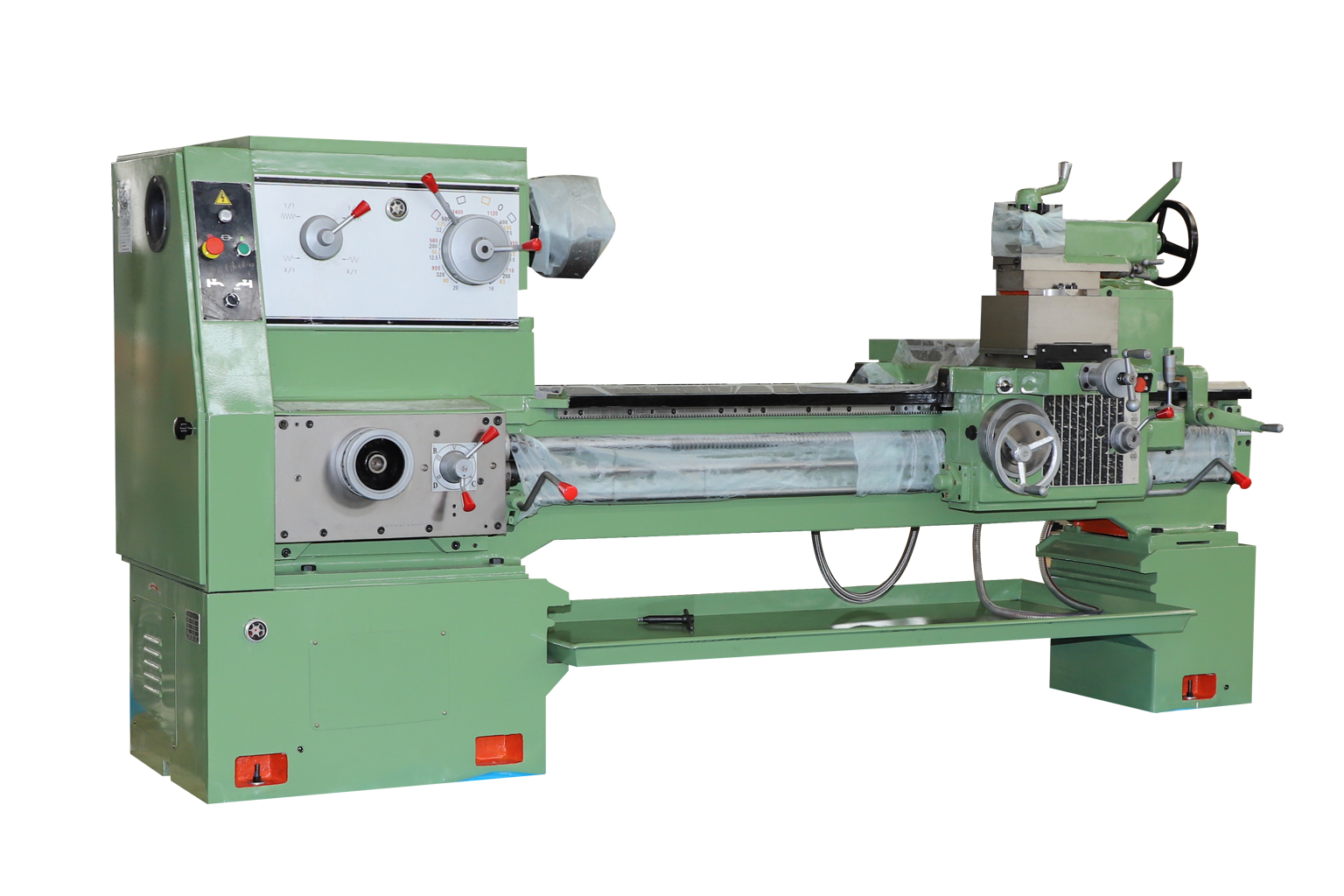

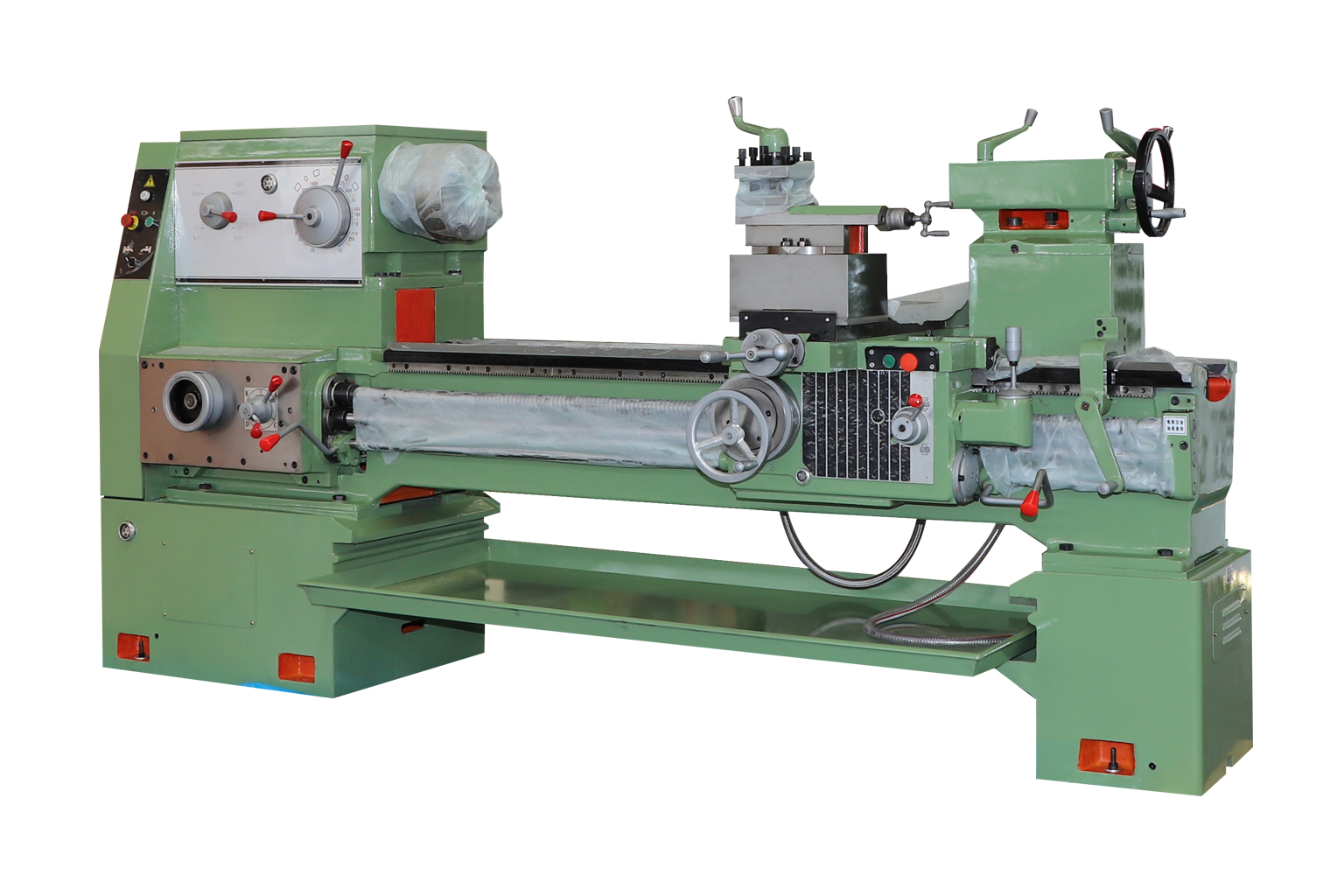

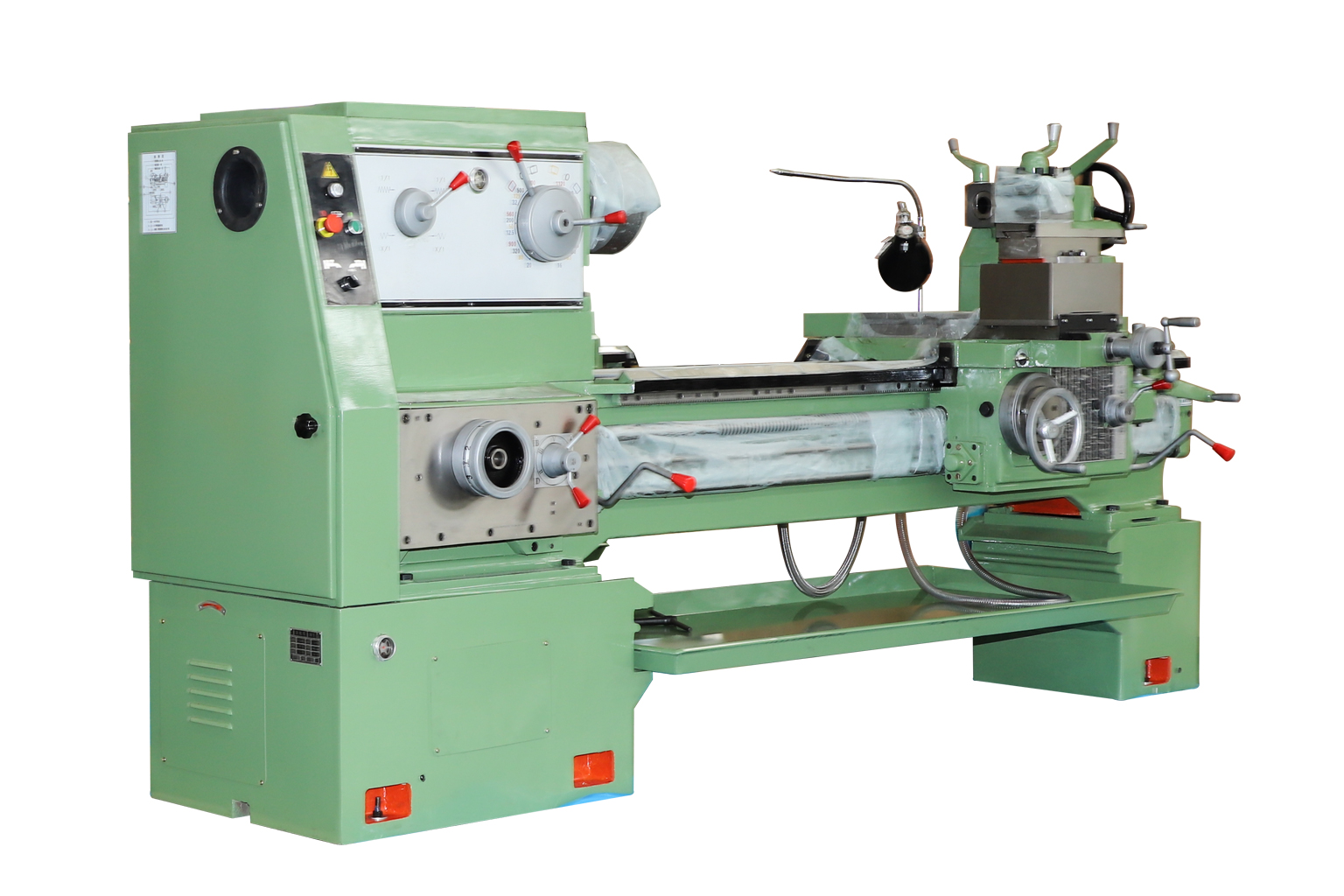

1.CA6161 Horizontal Lathe provides a 610 mm maximum swing over bed and 370 mm swing over carriage, giving distributors a practical option for customers who need more capacity than standard general-purpose lathes.
2.The conventional structure allows operators to control turning operations directly through the machine’s mechanical controls, making CA6161 suitable for repair work, job shops and varied low-volume machining tasks.
3.The standard 52 mm spindle bore can be matched with larger 80 mm or 105 mm configurations when the customer’s workpieces require greater bar or shaft capacity.
● The machine tool utilizes a high-strength, four-position tool post.
● Facilitates the clamping of irregular workpieces for rapid production.
● High rigidity and high rotational accuracy. Automatic transmission control unit.
● Super-audio frequency quenched guideways. Excellent wear resistance.
The CA Metal Lathe Machine is suitable for:

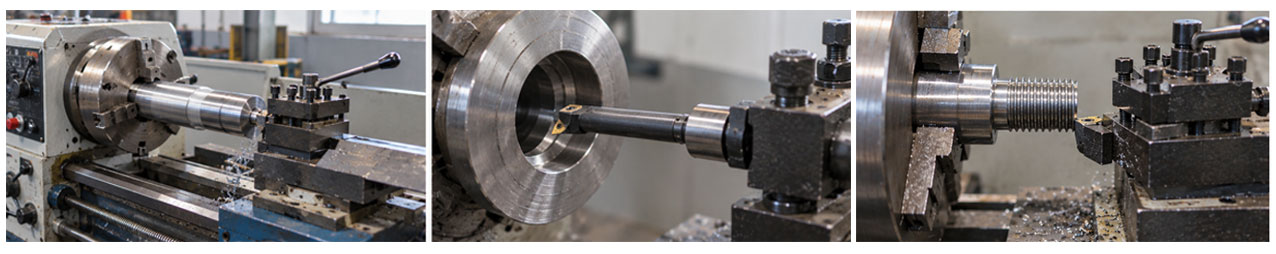

Typical workpieces include drive shafts, stepped shafts, bushings, sleeves, flanges, discs, threaded shafts, pump shafts and various mechanical components.
A CA engine lathe can machine drive shafts, stepped shafts, bushings, sleeves, flanges, discs, threaded shafts, pump shafts and various mechanical components.
| Specifications | CA6140 | CA6161 | |
| Max. Workpiece Diameter of Bed | 400mm | 610mm | |
| Max. workpiece diameter of tool holder | 220mm | 370mm | |
| Max.Workpiece Length | 750/1000/1500/2000/2200/3000/4000mm | ||
| width of bed | 400mm | ||
| Cutter rod section | 25×25mm | ||
| Spindle axis | Spindle speed range | 16-1400rpm(24steps) | |
| Spindle bore | 52mm 、(80mm)、[105mm] | ||
| Mores | No.6(MT6)(Φ90 1:20)[Φ113:20] | ||
| feed | Feed Quantity | (64 kinds)(for each) | |
| Metric thread | (1-192mm) (44 kinds) | ||
| English thread | (1-24tpi) (21kinds) | ||
| Modular thread | 0.25-48(module 39 kinds) | ||
| Diameter thread | 1-96DP(37 kinds) | ||
| Tailstock | Tailstock spindle travel | 150mm | |
| Tailstock spindle diameter | 75mm | ||
| Taper of tailstock spindle hole | Morse NO.5 (MT5) | ||
| Main motor | 7.5KW(10HP) | ||
| Package dimensions | length 750mm | 2440×1140×1750 | |
| length 1000mm | 2650×1140×1750 | ||
| length 1500mm | 3150×1140×1750 | ||
| length 2000mm | 3650×1140×1750 | ||
| length 2200mm | 4030×1140×1750 | ||
| length 3000mm | 4800×1140×1750 | ||
| length 4000mm | 4800×1140×1750 | ||
| weight | Length | G.W./N.W.(KG) | |
| Length 750mm | 2170 /2060 | ||
| Length 1000mm | 2260/ 2140 | ||
| Length 1500mm | 2420 /2290 | ||
| Length 2000mm | 2790/ 2640 | ||
| Length 2200mm | 2940/ 2790 | ||
| Length 3000mm | 3450/ 3300 | ||
| Length 4000mm | 3750/ 3600 | ||
