01

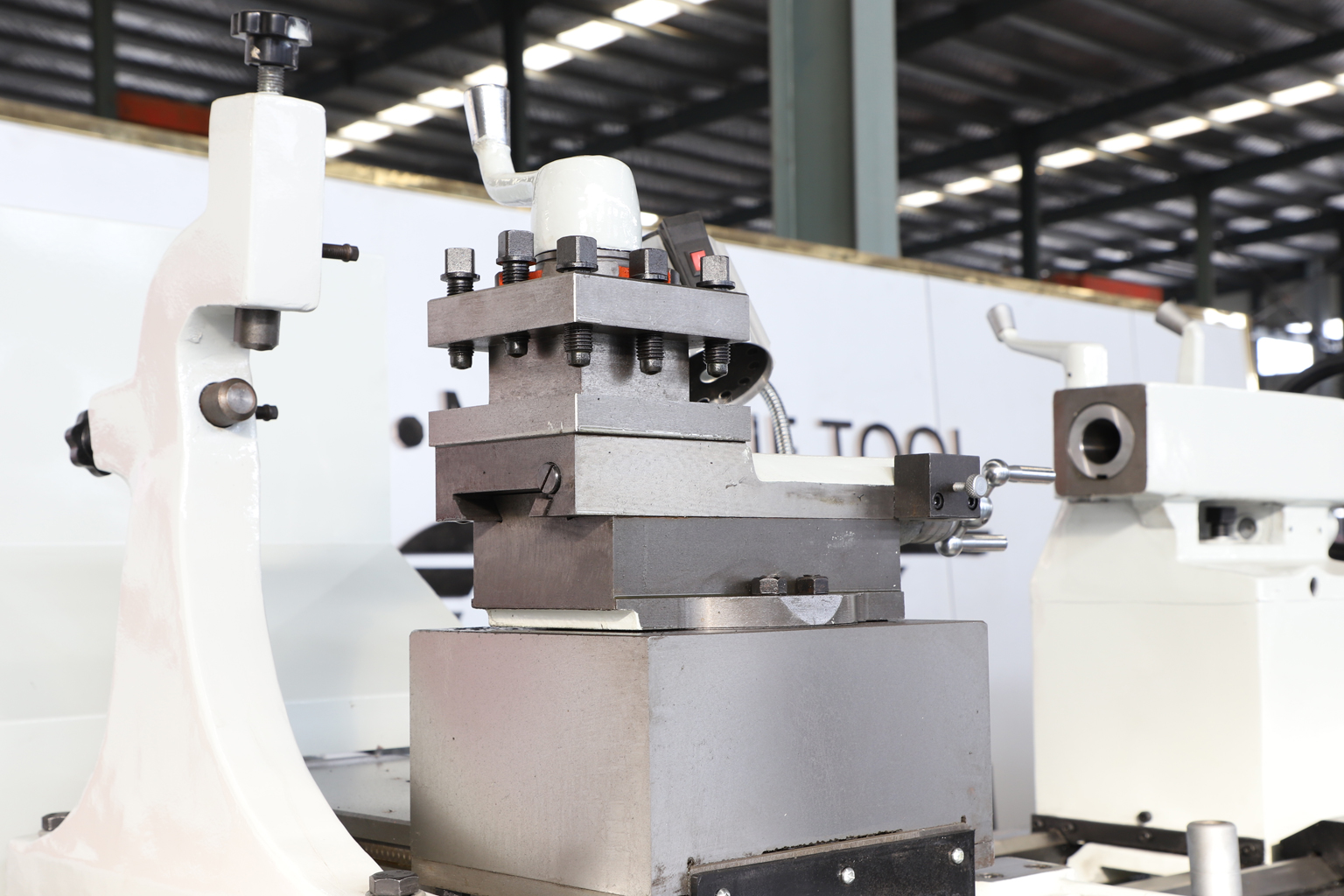

Tool Post
● The machine tool utilizes a high-strength, four-position tool post.

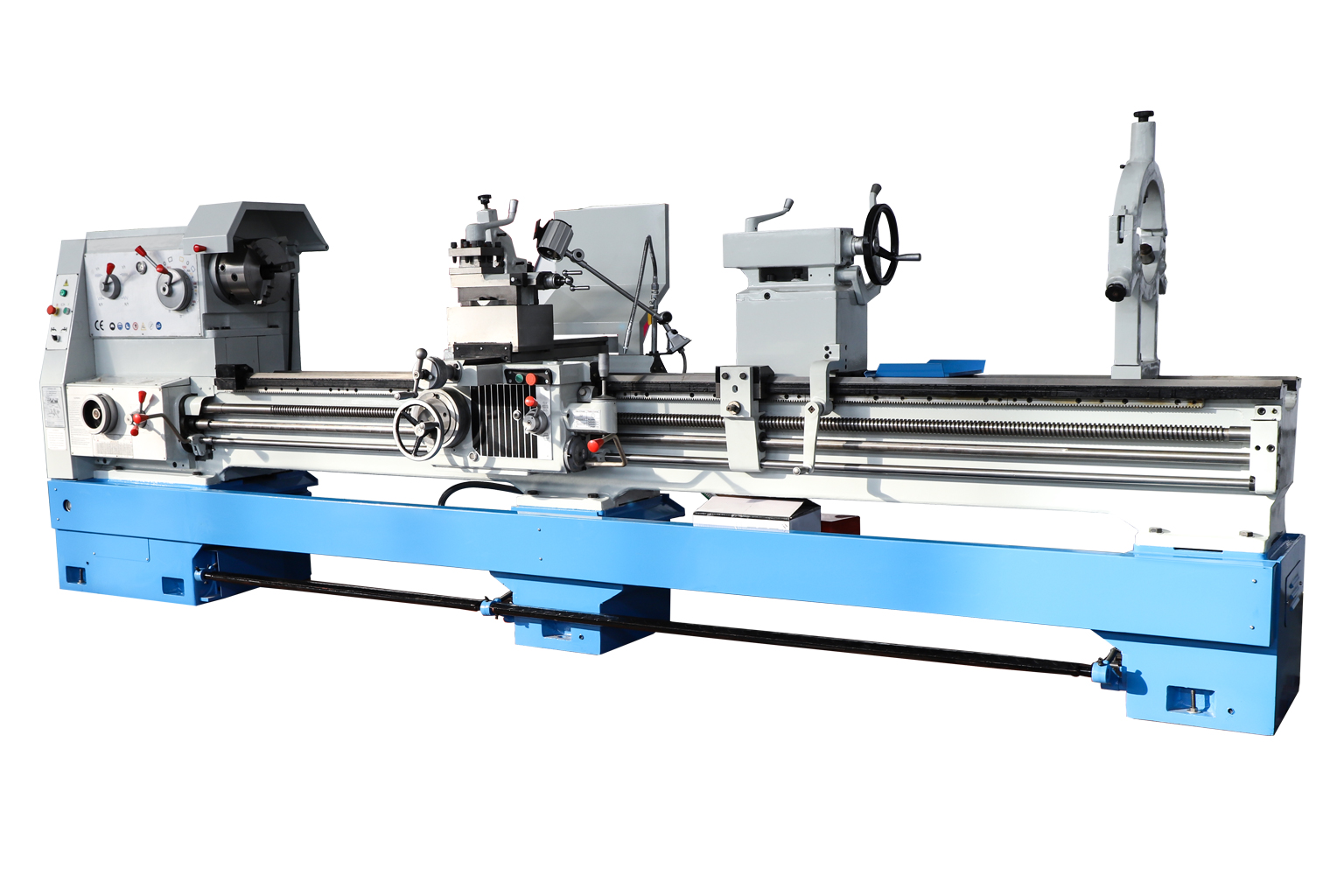

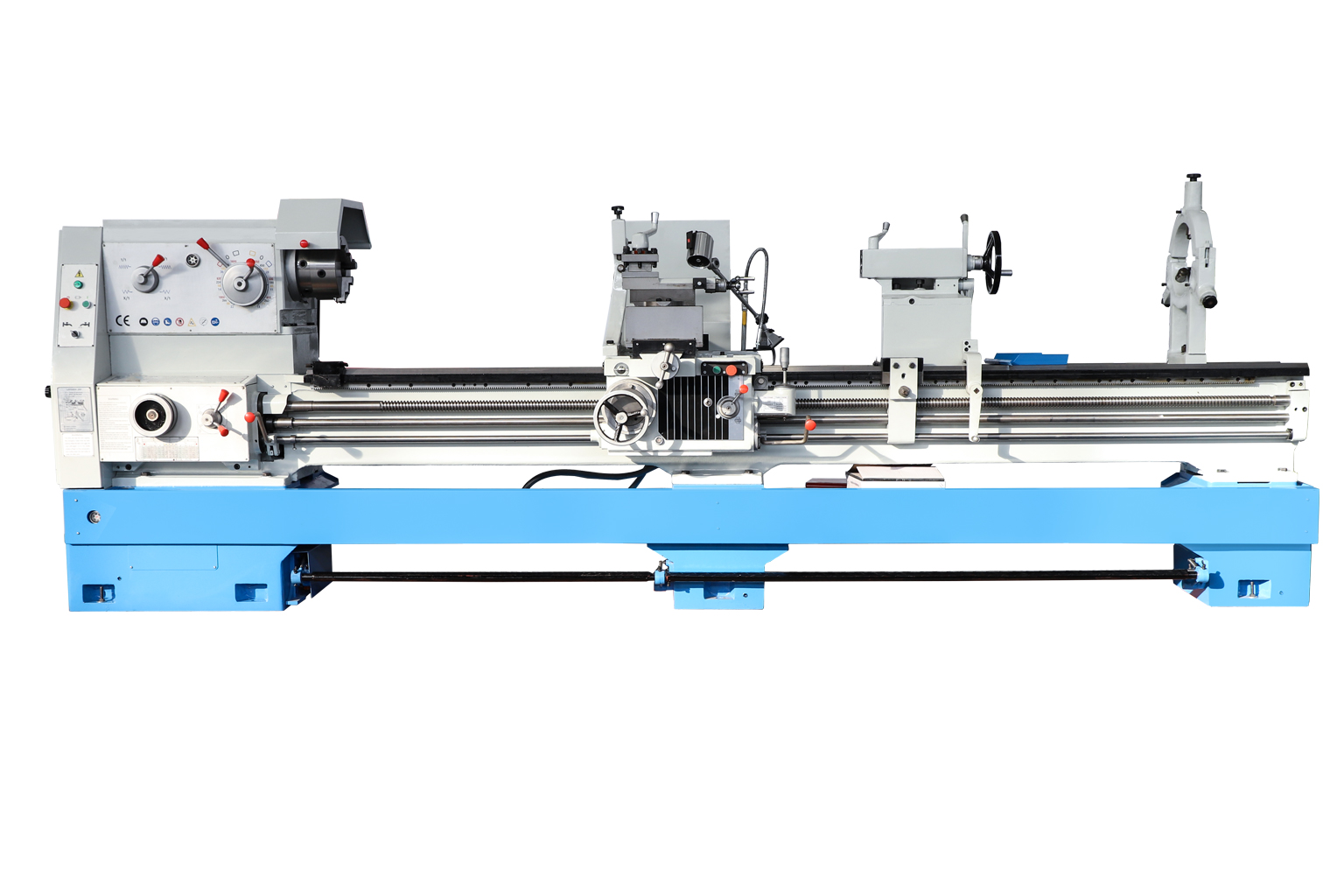

The CA6180 horizontal lathe features a proven, traditional design, making it suitable for maintenance work as well as single-piece and small-batch machining.
1.Hard Guideway Design — Hard guideways provide wear resistance and stable machine movement
2.Flexible Spindle Speeds — Multiple spindle speed settings allow operators to adapt cutting conditions
3.Large Swing Capacity — Up to 800 mm swing over bed for large rotational workpieces
4.Rigid Machine Structure — A rigid bed structure provides stable support for demanding turning work
● The machine tool utilizes a high-strength, four-position tool post.

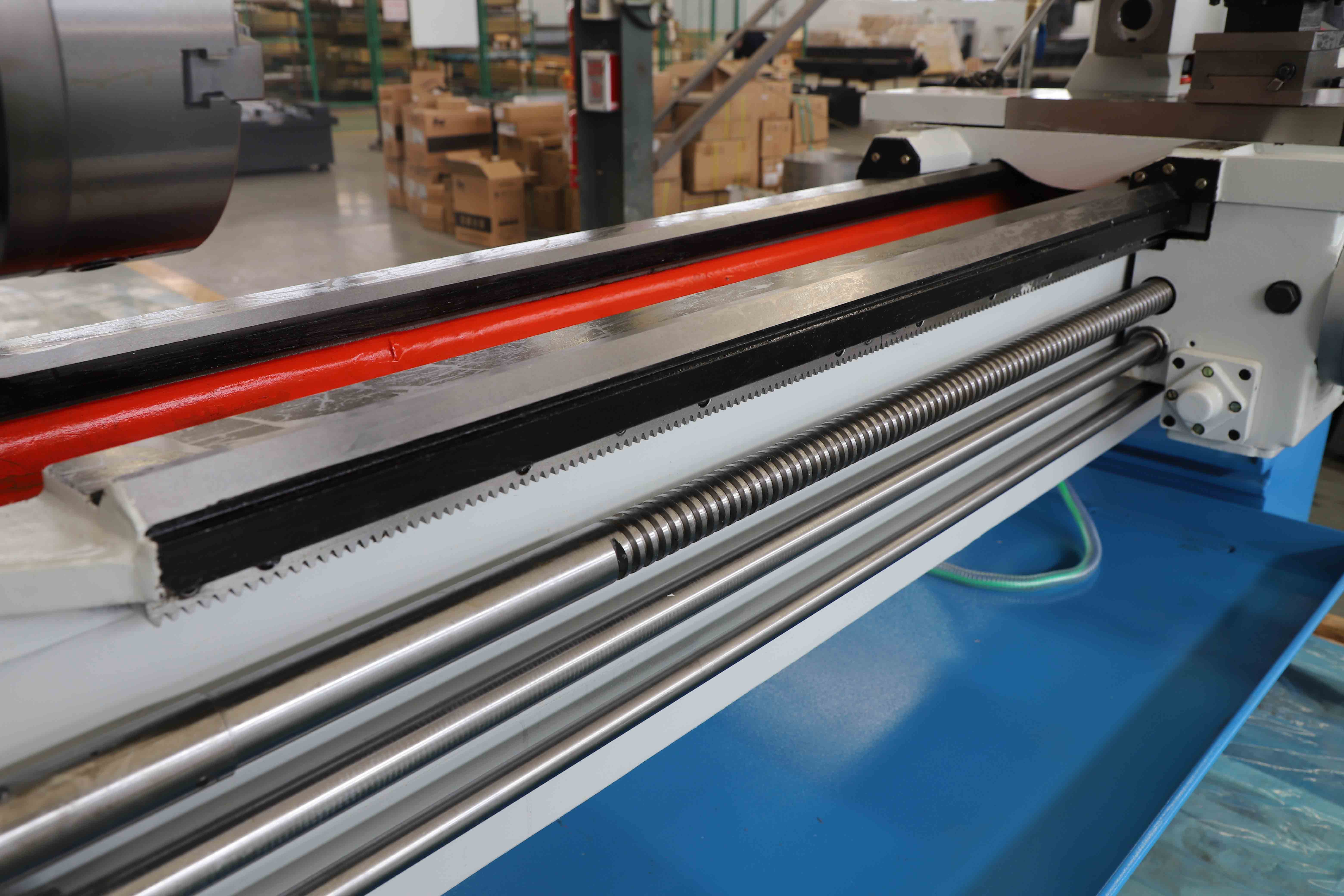

● Super-audio frequency quenched guideways. Excellent wear resistance.

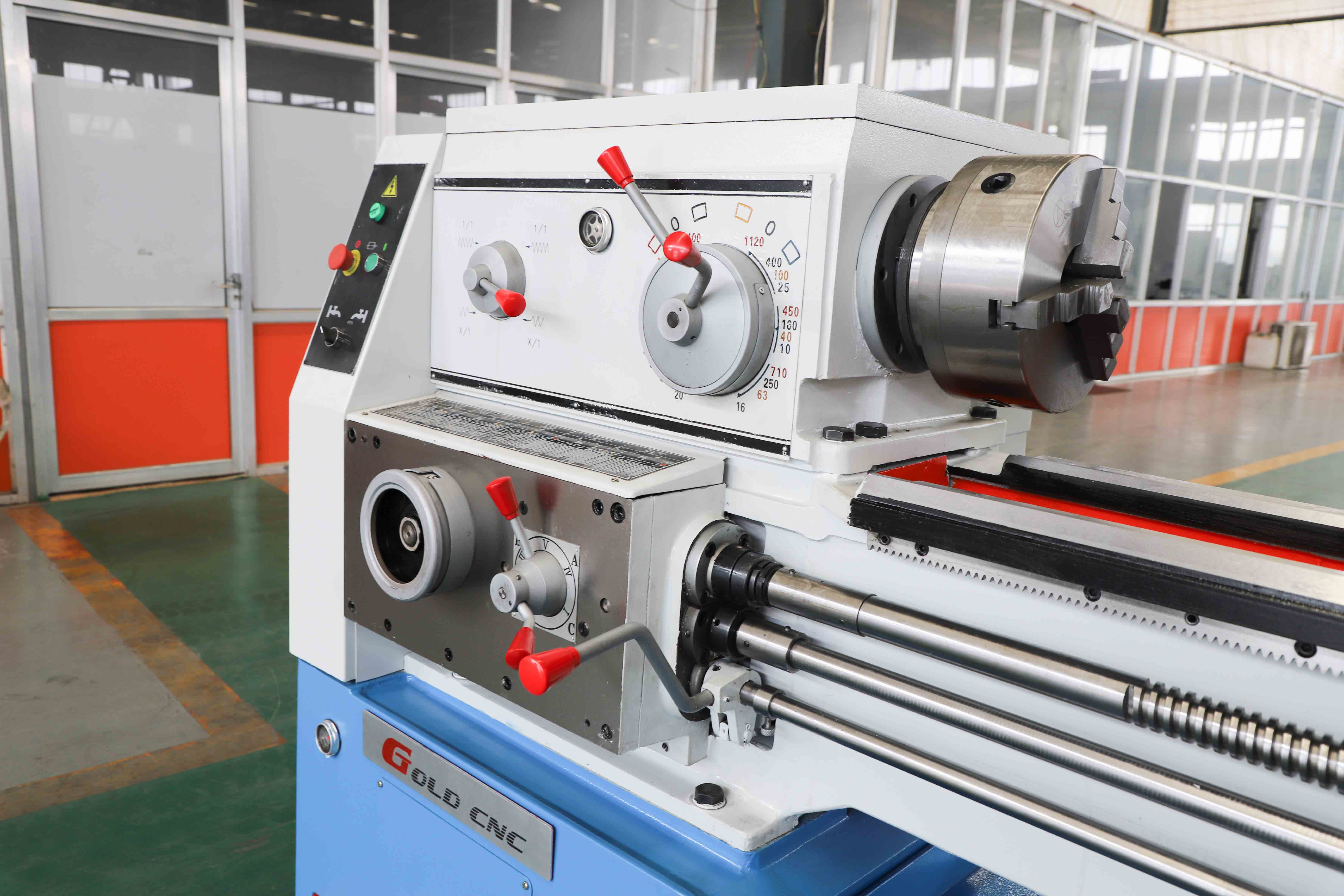

● High rigidity and high rotational accuracy. Automatic transmission control unit.
● Facilitates the clamping of irregular workpieces for rapid production.
The CA6180 Horizontal Lathe is suitable for shafts, discs, sleeves and other rotational components. Typical operations include external and internal turning, facing, taper turning and thread cutting.
|
Specifications |
CA6161 |
CA6166 |
CA6180 |
||
|
Max. Work piece Diameter of Bed |
610mm |
616mm |
800mm |
||
|
Max. Work piece diameter of tool holder |
370mm |
400mm |
540mm |
||
|
Max.Work piece Length |
750/1000/1500/2000/2200/3000/4000mm |
||||
|
width of bed |
400mm |
||||
|
Cutter rod section |
25×25mm |
||||
|
Spindle axis |
Spindle speed range |
16-1400rpm(24steps) |
|||
|
|
Spindle bore |
52mm 、(80mm)、[105mm] |
|||
|
|
Mores |
No.6(MT6)(Φ90 1:20)[Φ113:20] |
|||
|
feed |
Feed Quantity |
(64 kinds)(for each) |
|||
|
|
Metric thread |
(1-192mm) (44 kinds) |
|||
|
|
English thread |
(1-24tpi) (21kinds) |
|||
|
|
Modular thread |
0.25-48(module 39 kinds) |
|||
|
|
Diameter thread |
1-96DP(37 kinds) |
|||
|
Tailstock |
Tailstock spindle travel |
150mm |
|||
|
|
Tailstock spindle diameter |
75mm |
|||
|
|
Taper of tailstock spindle hole |
Morse NO.5 (MT5) |
|||
|
Main motor |
7.5KW/11kw |
||||
|
Package dimensions |
length 750mm |
2440×1140×1750 |
|||
|
|
length 1000mm |
2650×1140×1750 |
|||
|
|
length 1500mm |
3150×1140×1750 |
|||
|
|
length 2000mm |
3650×1140×1750 |
|||
|
|
length 2200mm |
4030×1140×1750 |
|||
|
|
length 3000mm |
4800×1140×1750 |
|||
|
|
length 4000mm |
4800×1140×1750 |
|||
|
weight |
Length |
G.W./N.W.(KG) |
|||
|
|
Length 750mm |
2300 /2180 |
2380/2260 |
2520/2400 |
|
|
|
Length 1000mm |
2380/2250 |
2570/2450 |
2720/2560 |
|
|
|
Length 1500mm |
2577/2437 |
2810/2640 |
2980/2800 |
|
|
|
Length 2000mm |
2940/2787 |
3050/2880 |
3260/3087 |
|
|
|
Length 2200mm |
3120/2970 |
3390/3180 |
3490/3287 |
|
|
|
Length 3000mm |
3600/3450 |
3930/3687 |
4220/3887 |
|
|
|
Length 4000mm |
3950/3800 |
4580/4200 |
4850/4500 |
|
