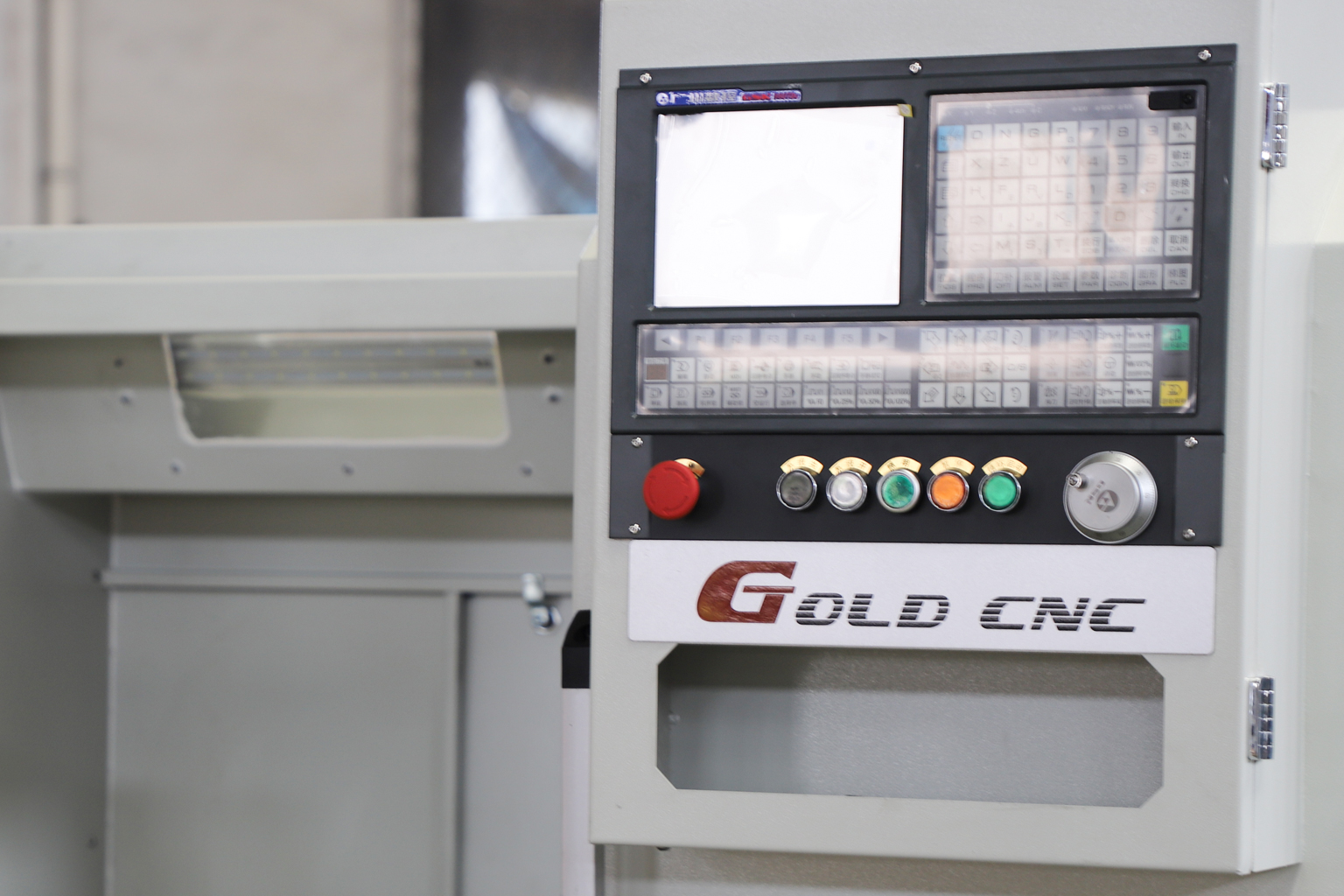

Control Panel
Optional CNC systems include FANUC, GSK, etc., supporting displays in multiple languages such as Chinese, English, Spanish, and Russian.

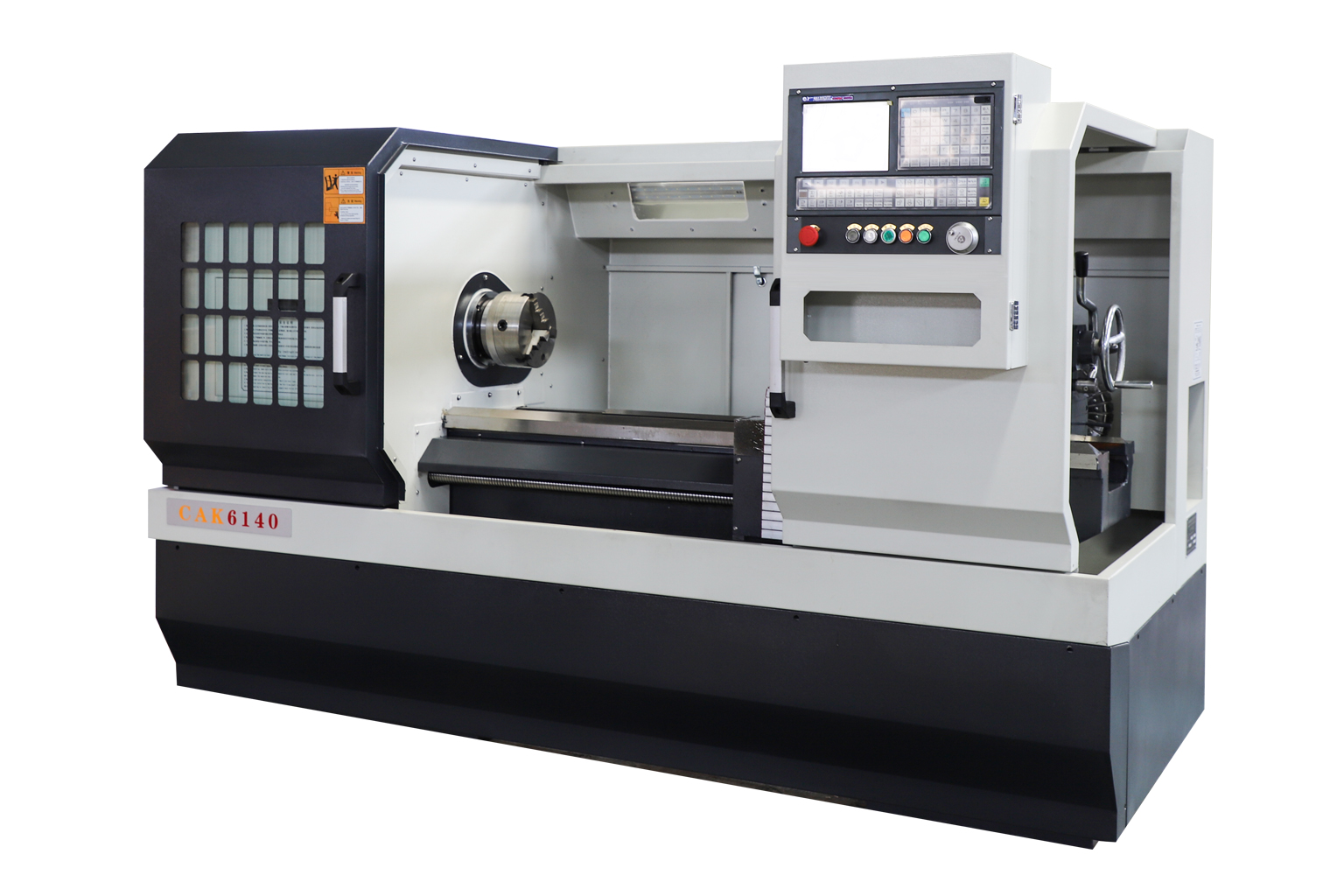

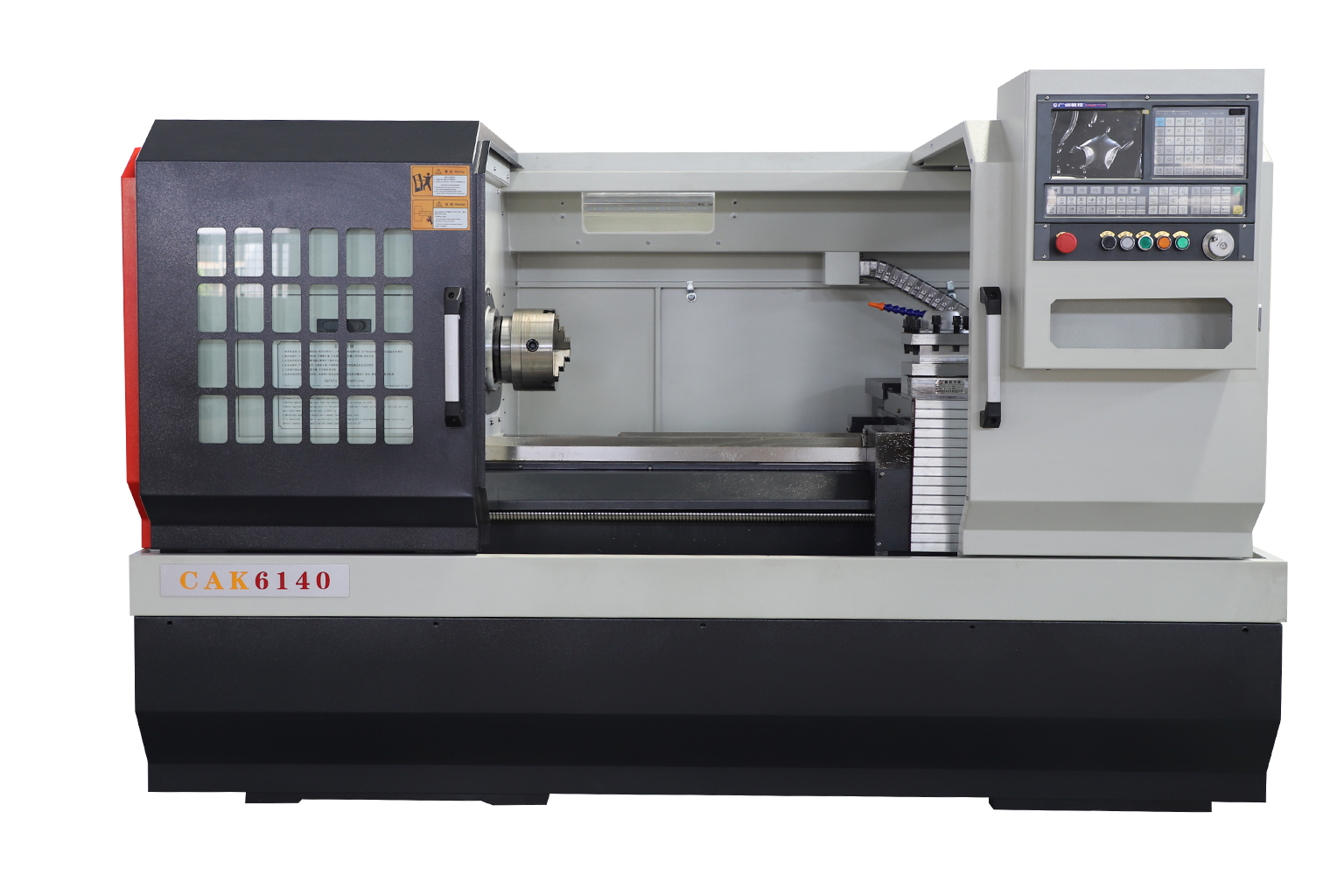

1.CAK6140 CNC Lathe provides a maximum swing over bed of 400 mm, giving manufacturers a practical working range for machining medium-sized shafts, discs, sleeves and similar components.
2.CAK6140 CNC Lathe is available with center distances of 750, 1000, 1500, 2000 and 3000 mm, allowing users to select a machine configuration according to actual workpiece length.
3.CAK6140 CNC Lathe can be equipped with a 4-position electric tool post, enabling programmed tool changes and reducing manual intervention during repetitive machining operations.
4.Depending on the application, CAK6140 CNC Lathe can be configured with different CNC systems, chuck types, tool-post options and other accessories to match specific production requirements.
Optional CNC systems include FANUC, GSK, etc., supporting displays in multiple languages such as Chinese, English, Spanish, and Russian.

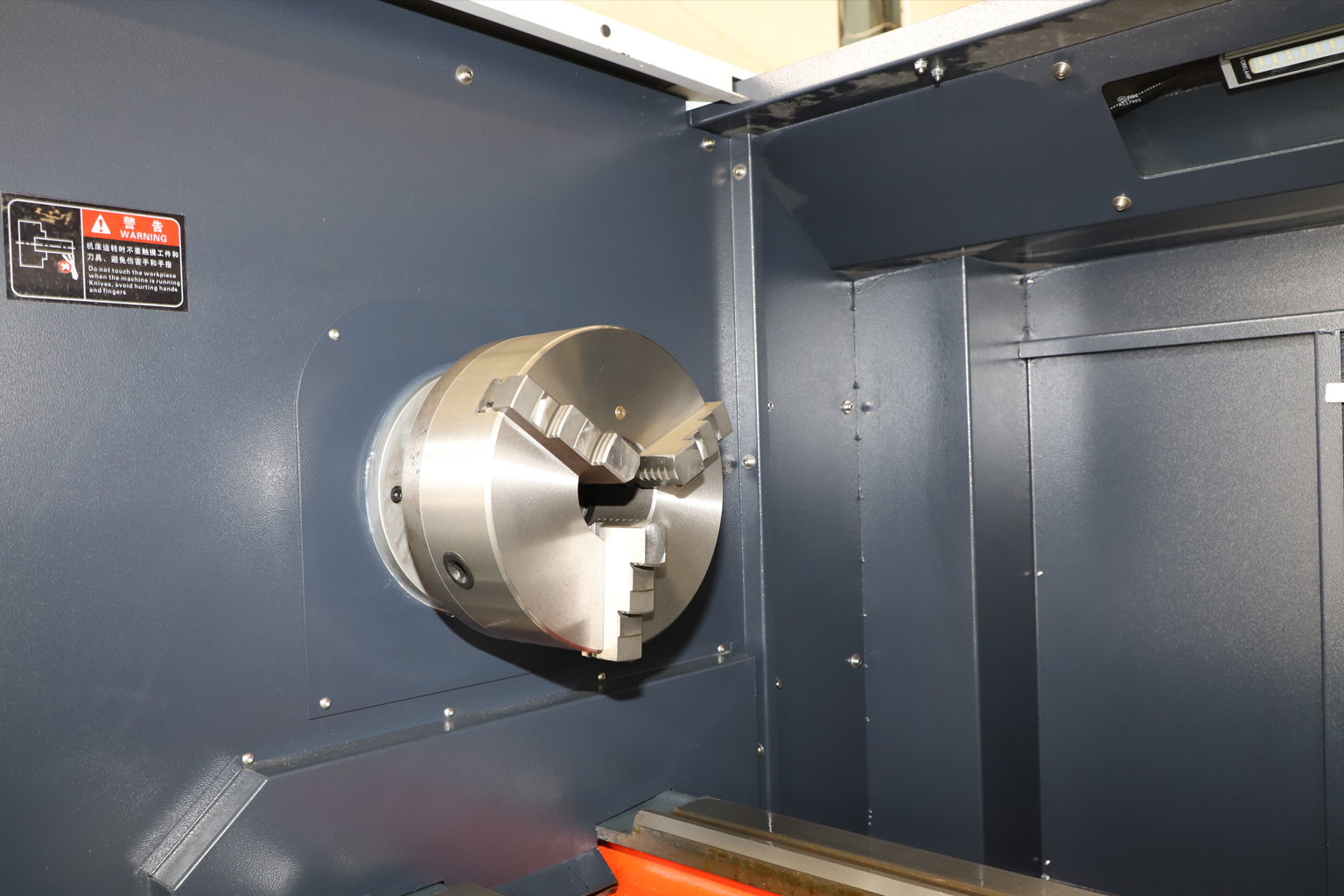

This lathe comes standard with a metal three-jaw chuck. Depending on the type of workpiece to be clamped, other types of chucks can also be installed.

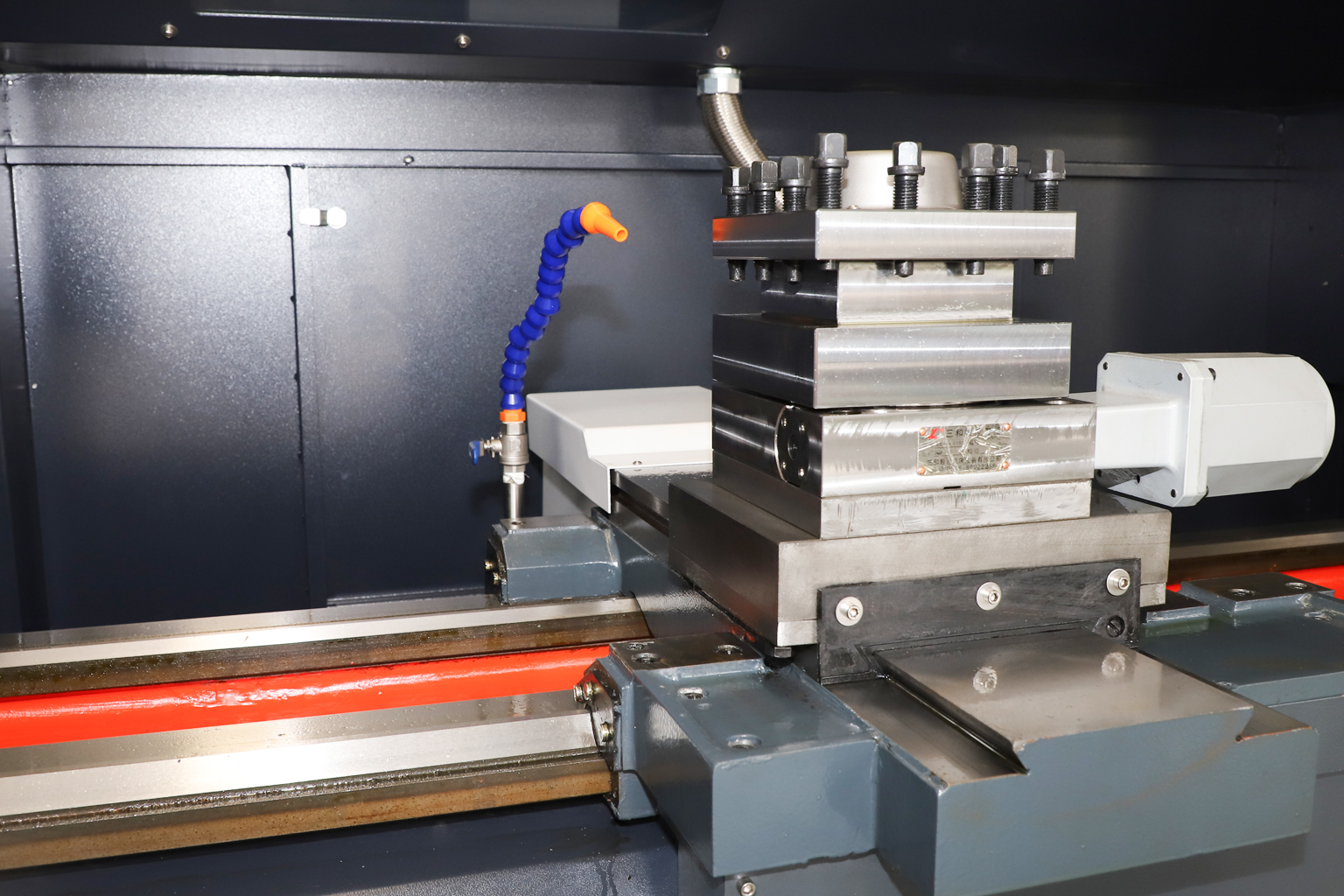

Utilizes a face gear coupling for indexing and precision positioning. This design supports the mounting of multiple tools, bidirectional turret rotation, and rapid tool selection via the shortest path.

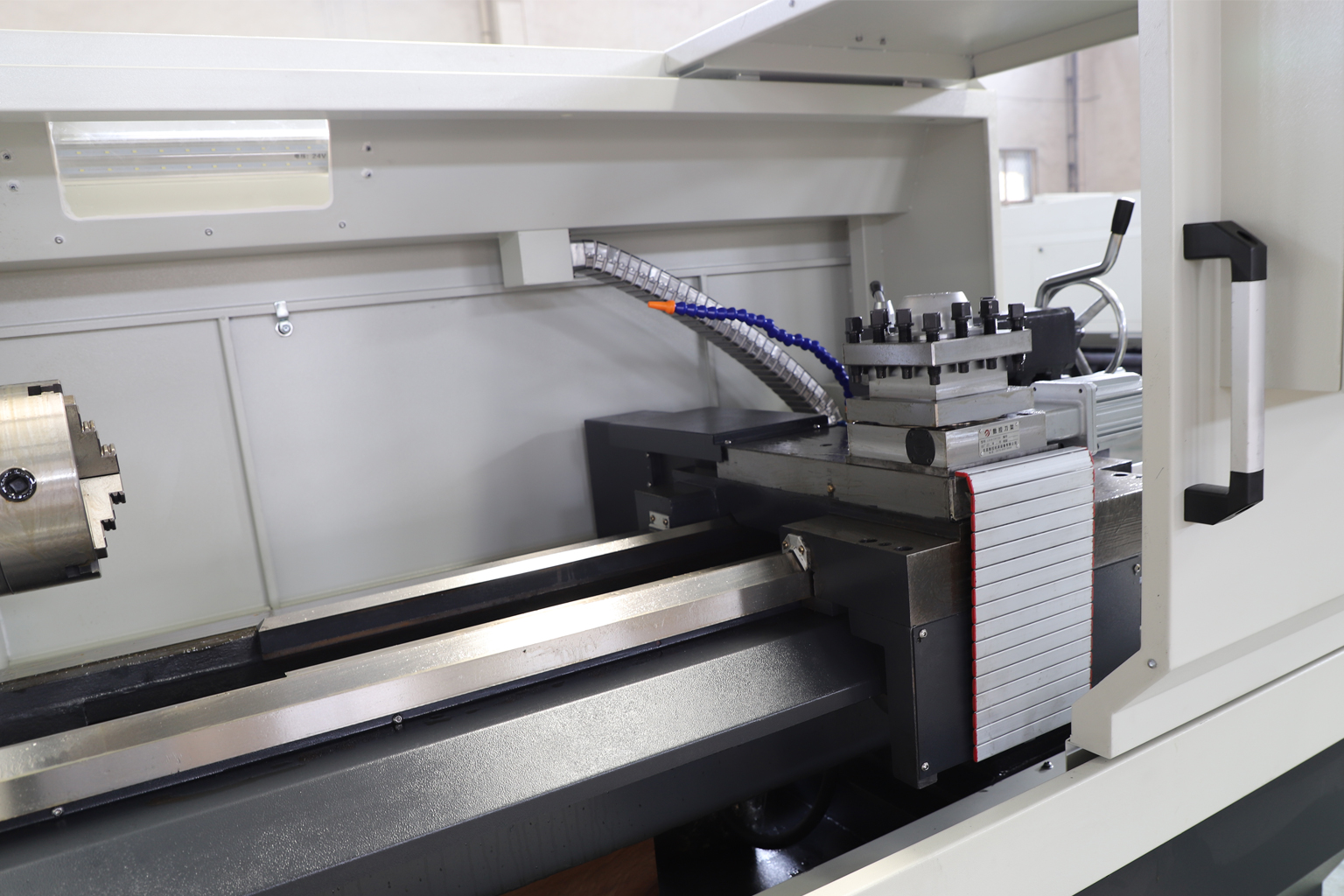

Wear-resistant cast iron and hardened guideways extend the product's service life.
CAK6140 CNC Lathe is suitable for turning shafts, discs, sleeves and other commonly machined components. It can be used for general turning operations in machinery manufacturing and component production.
|
Specifications
|
Unit
|
CAK6140
|
|
Max Swing over bed
|
mm
|
400mm
|
|
Max workpiece length
|
mm
|
750/1000/1500/2000/3000mm
|
|
Chuck size
|
|
C6(D8(B、 C)]
|
|
Spindle bore diameter
|
mm
|
Φ52mm、( Φ80mm ( B) ]
|
|
Ranged spindle speeds 3 steps (Auto.change gear)
|
rmp
|
Independent spindle：100~1600r/min 21—1500r/min( I 162-1500
|
|
Tail stock slaver travel
|
mm
|
150mm
|
|
Tail stock sleeve taper
|
|
MT 5
|
|
Positioning accuracy
|
mm
|
±0.015mm
|
|
Repositioning accuracy
|
mm
|
±0.006mm
|
|
X/Z rapid traverse
|
m/min
|
4/6 m /min
|
|
Spindle Motor
|
kw
|
7.5
|
|
overall dimension for 750(L*W*H)
|
mm
|
2550x1550x1700
|
|
overall dimension for 1000(L*W*H)
|
mm
|
2750x1550x1700
|
|
overall dimension for 1500(L*W*H)
|
mm
|
3250x1550x1700
|
|
overall dimension for 2000(L*W*H)
|
mm
|
3700x1550x1700
|
|
overall dimension for 3000(L*W*H）
|
mm
|
4710x1550x1700
|
|
overall dimension for 750（weight）
|
kg
|
NW 2100/ GW 2800
|
|
overall dimension for 1000（weight）
|
kg
|
NW 2200/ GW 2900
|
|
overall dimension for 1500（weight）
|
kg
|
NW2300/ GW 3150
|
|
overall dimension for 2000（weight）
|
kg
|
NW 2700/ GW 3350
|
|
overall dimension for 3000（weight）
|
kg
|
NW 3500/ GW 4100
|
