01
Three-jaw chuck
This lathe comes standard with a metal three-jaw chuck. Depending on the type of workpiece to be clamped, other types of chucks can also be installed.
CAK6150 CNC lathe machine for precision turning of shafts, discs, sleeves and other metal components, with versatile turning operations and batch-production capability.

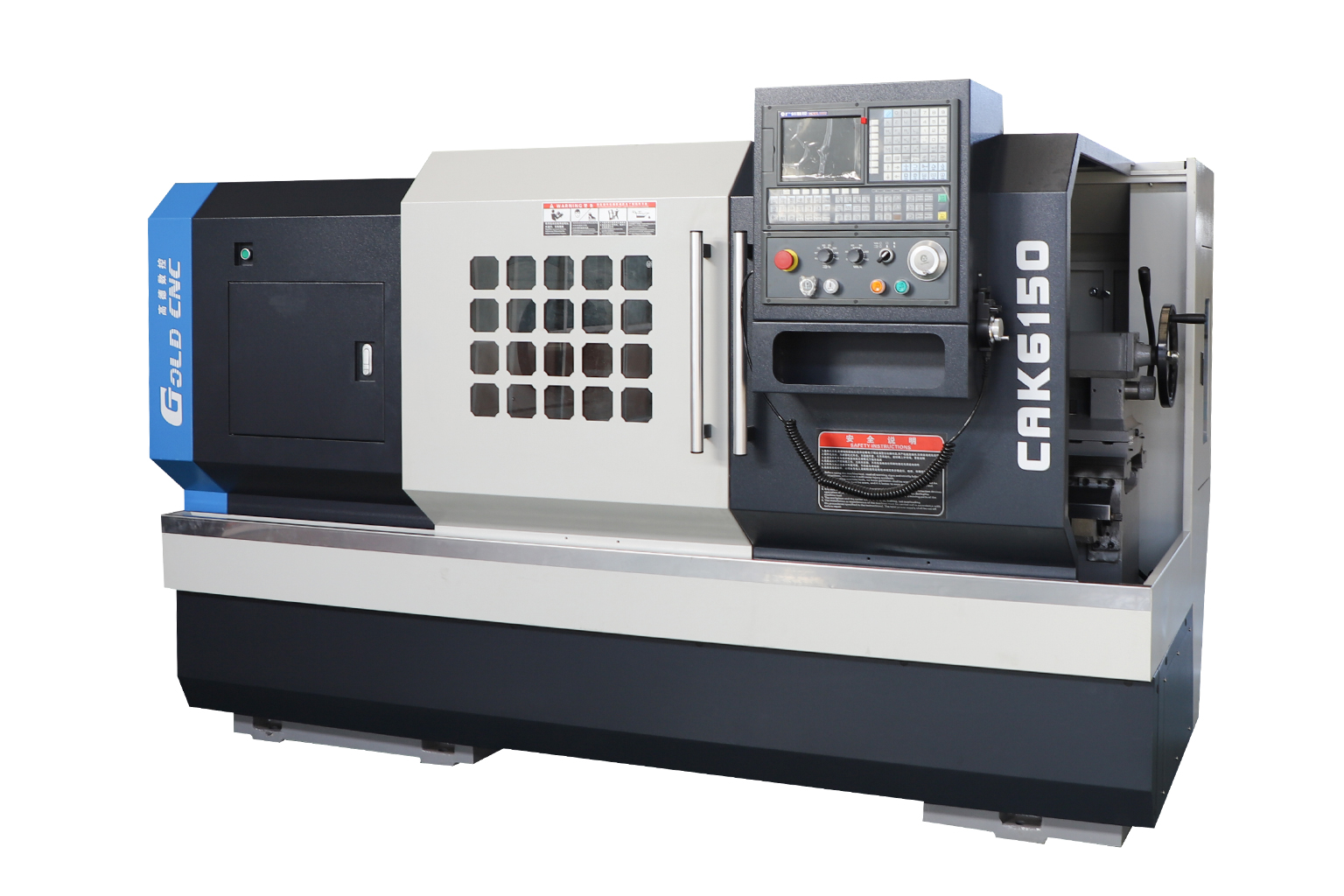

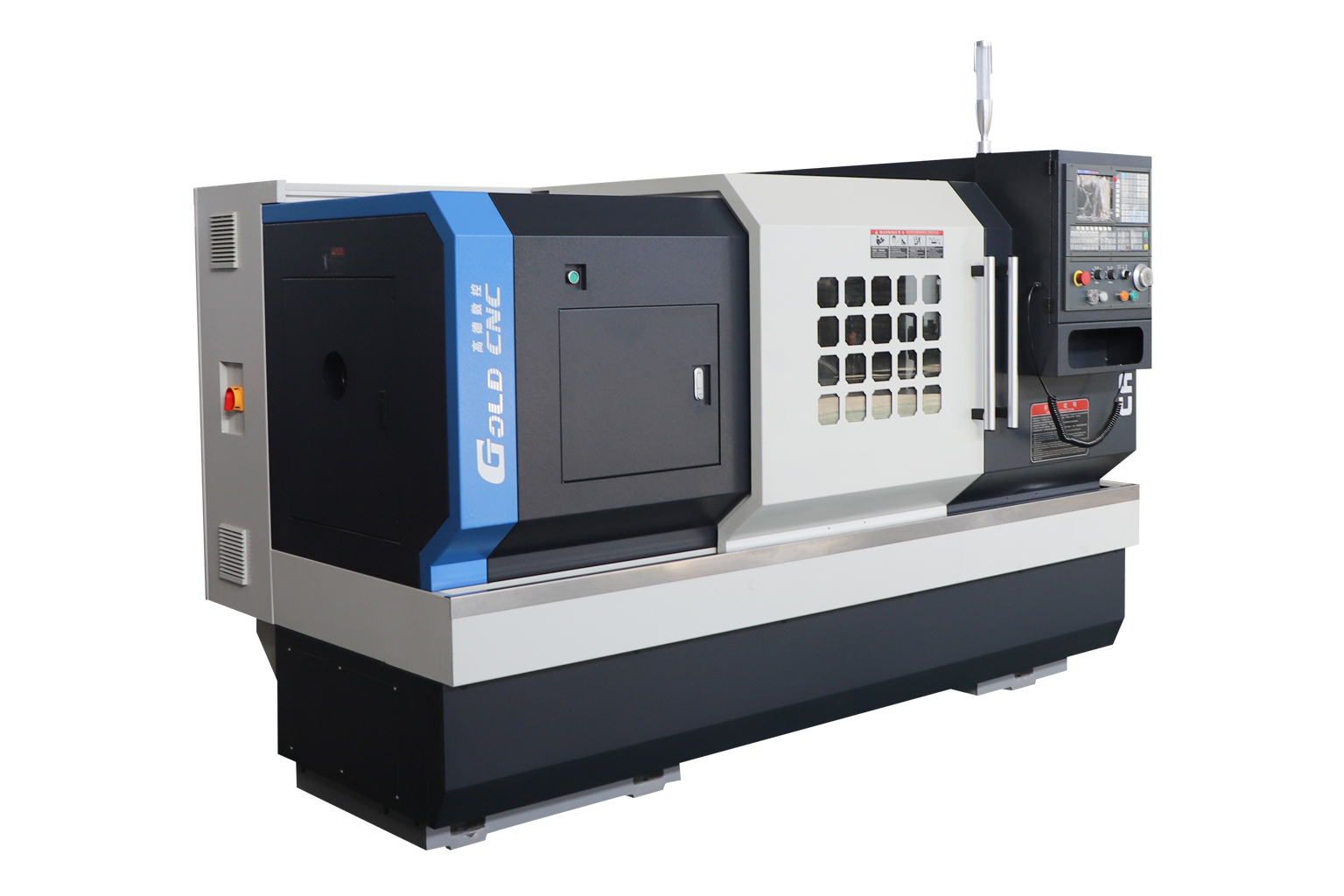

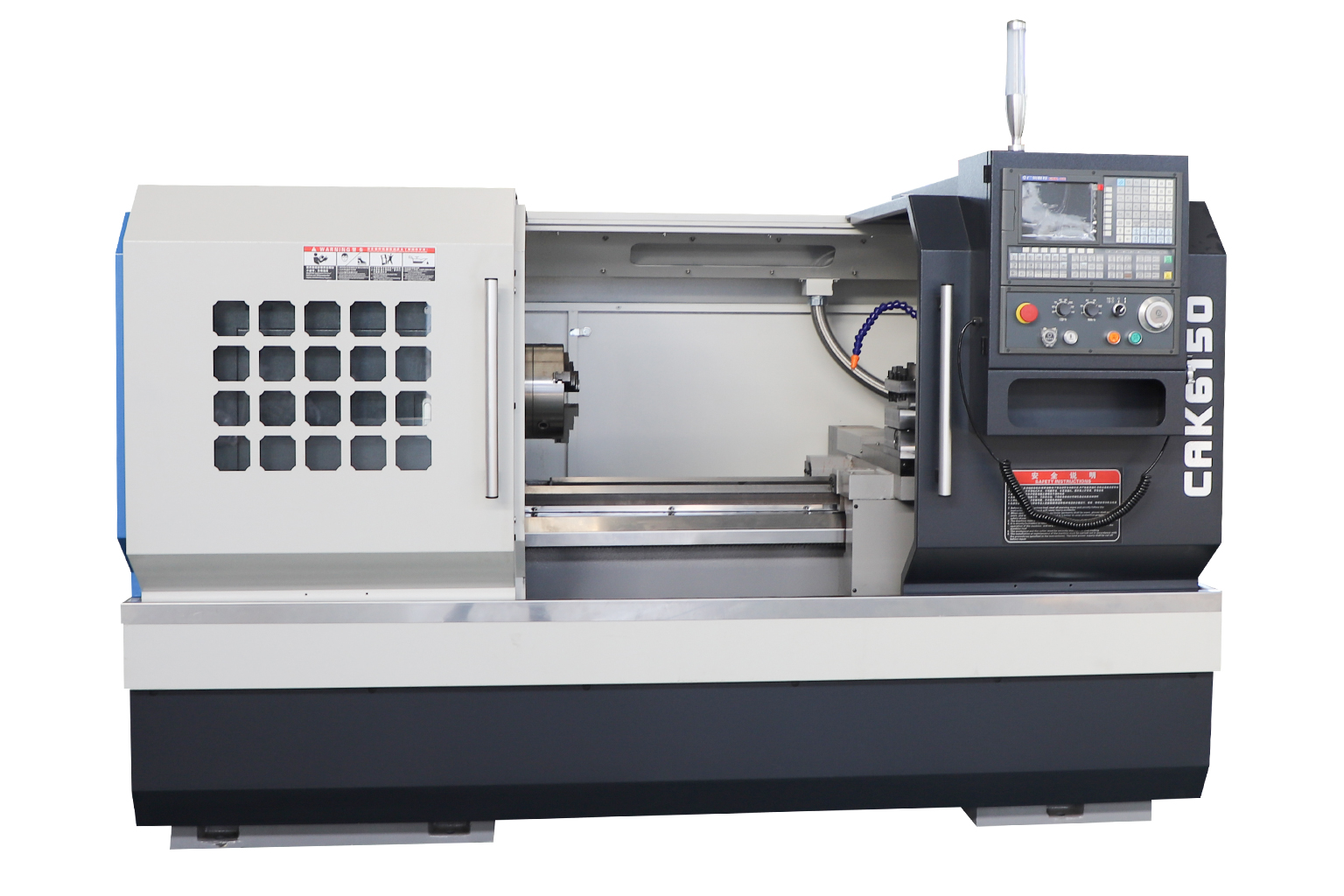

The CAK6150 CNC Lathe Machine features a rigid horizontal machine structure that provides reliable support during cutting. Its rigid construction helps reduce vibration and maintain stable machining performance.
The CAK6150 supports external turning, internal boring, facing, taper turning, grooving and thread cutting, making it suitable for a wide range of metal component machining applications.
With appropriate tooling and cutting parameters, the CAK6150 CNC lathe machine can machine steel, cast iron, non-ferrous metals and other materials suitable for turning.
| Specification | CAK6150 |
|---|---|
| Max. Workpiece Diameter of Bed | Φ500 mm |
| Maximum Turning Diameter Through Sliding Plate | Φ285 mm |
| X-Axis (Lateral) Maximum Stroke | 330 mm |
| Width of Bed Guide Rail | 400 mm |
| Maximum Tip Distance | 1000 / 1500 / 2000 / 3000 mm |
| Spindle Head Model | A2-8 |
| Taper of Spindle Bore | Metric System 90 / 1:20 |
| Spindle Bore | Φ82 / 105 mm |
| Spindle Speed | 2000 rpm |
| Spindle Motor Power | 7.5 kW |
| Manual Three-Jaw Chuck Size | Φ250 |
| X-Axis Screw Rod | 2505 |
| Z-Axis Screw Rod | 4010 |
| Rapid Feed Speed | X Axis: 5 m/min; Z Axis: 8 m/min |
| X-Axis Rapid Feed Speed | 8000 mm/min |
| Z-Axis Rapid Feed Speed | 6000 mm/min |
| X-Axis Positioning Accuracy | 0.01 mm |
| Z-Axis Positioning Accuracy | 0.01 mm |
| X-Axis Repeatability | 0.0075 mm |
| Z-Axis Repeatability | 0.010 mm |
| Roundness | ≤0.007 mm |
| Diameter Consistency | ≤0.03 mm / length 300 mm |
| Flatness | ≤0.02 mm / diameter 300 mm |
| Surface Roughness (Steel Parts) | ≤Ra 1.6 mm |
| Tailstock Sleeve Taper | Φ75 mm |
| Tailstock Quill Stroke (Heavy-Duty Tailstock) | 150 mm |
| Tailstock Taper Hole | MT5 |
This lathe comes standard with a metal three-jaw chuck. Depending on the type of workpiece to be clamped, other types of chucks can also be installed.

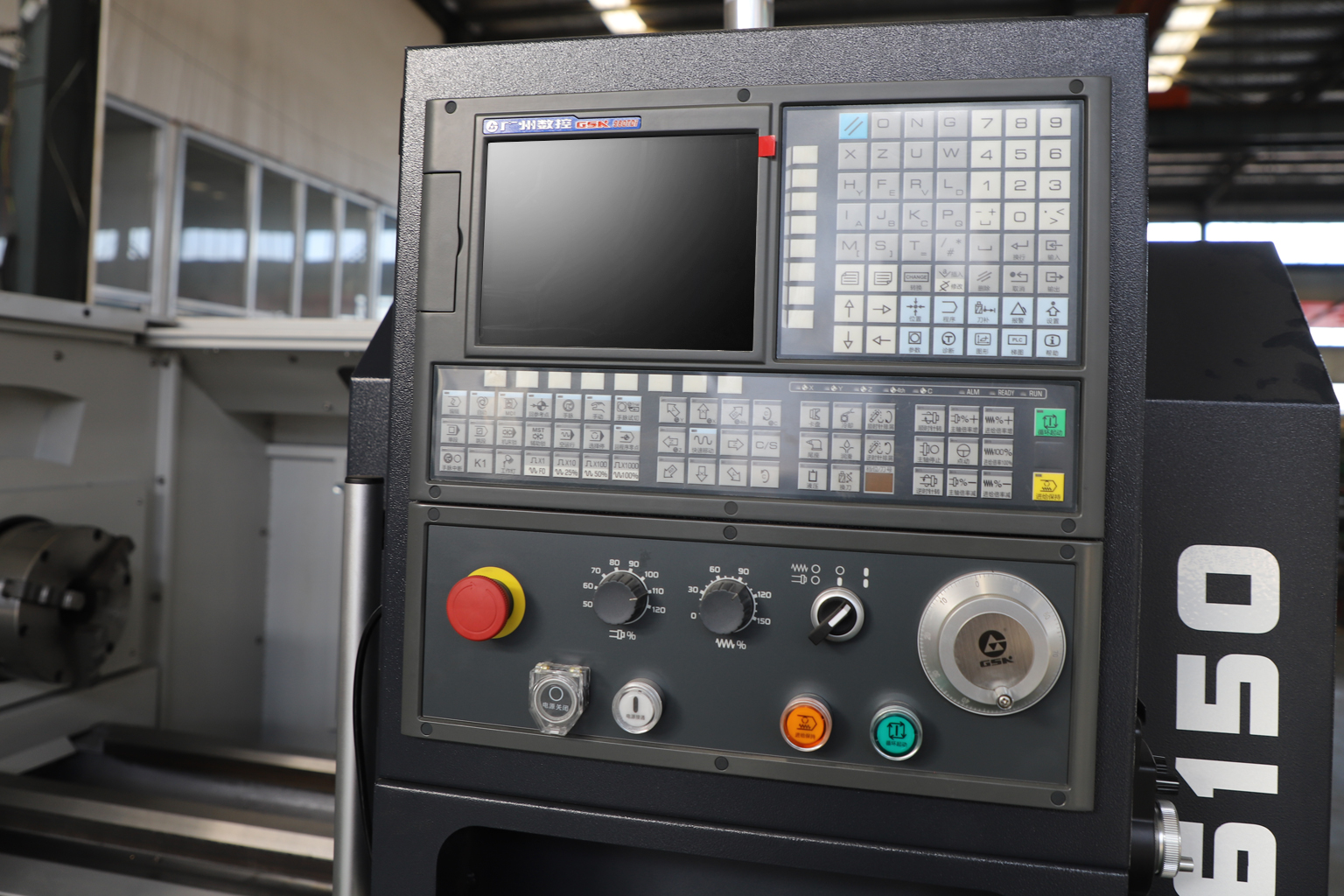

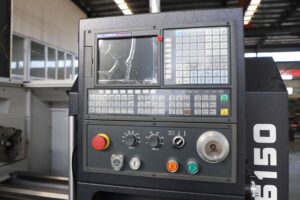

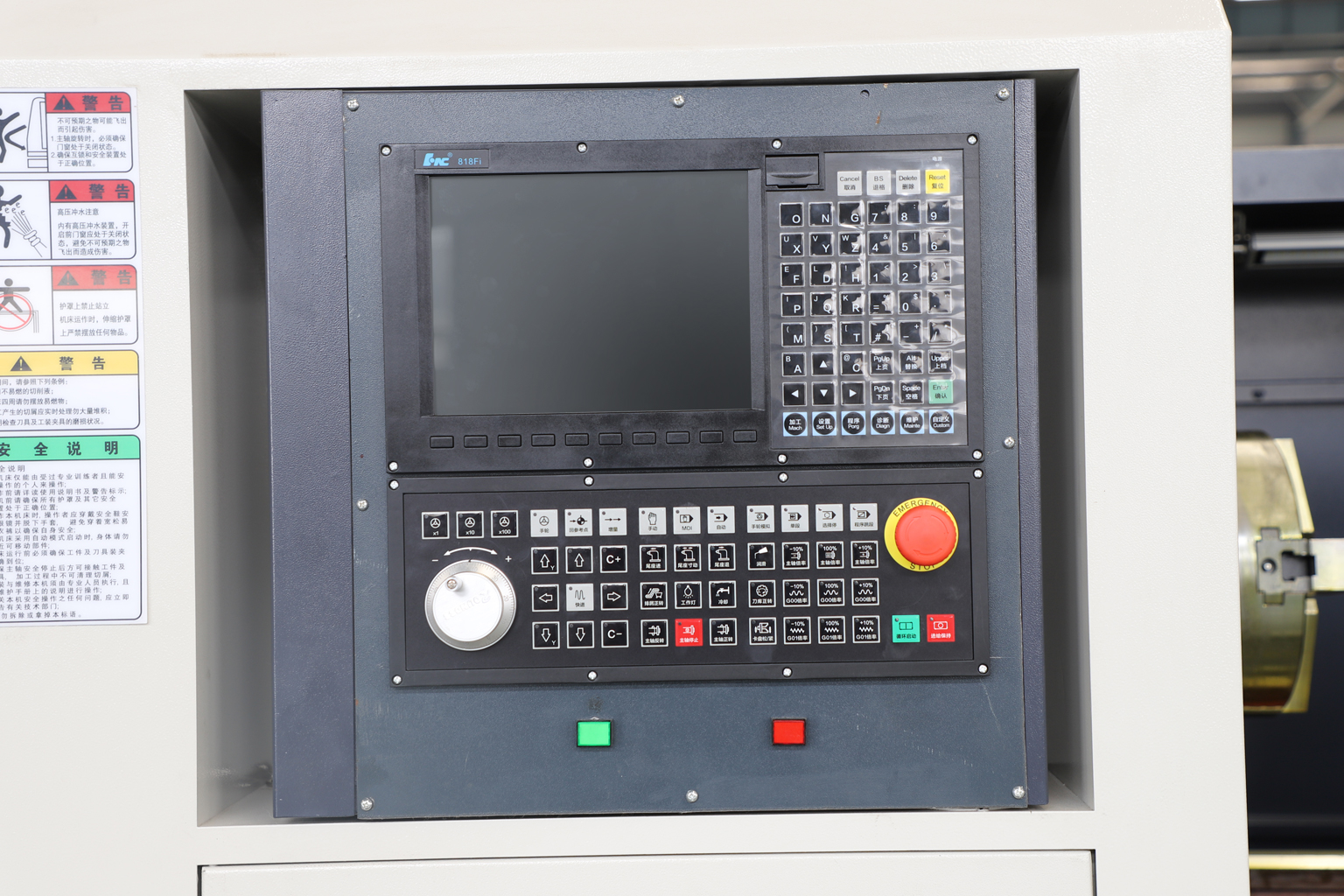

A wide range of CNC system options is available, including FANUC, GSK, and others. Interfaces support Chinese, English, Spanish, Russian, and various other languages.

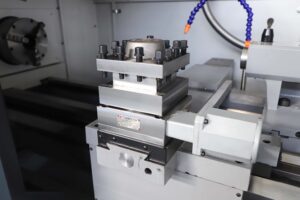

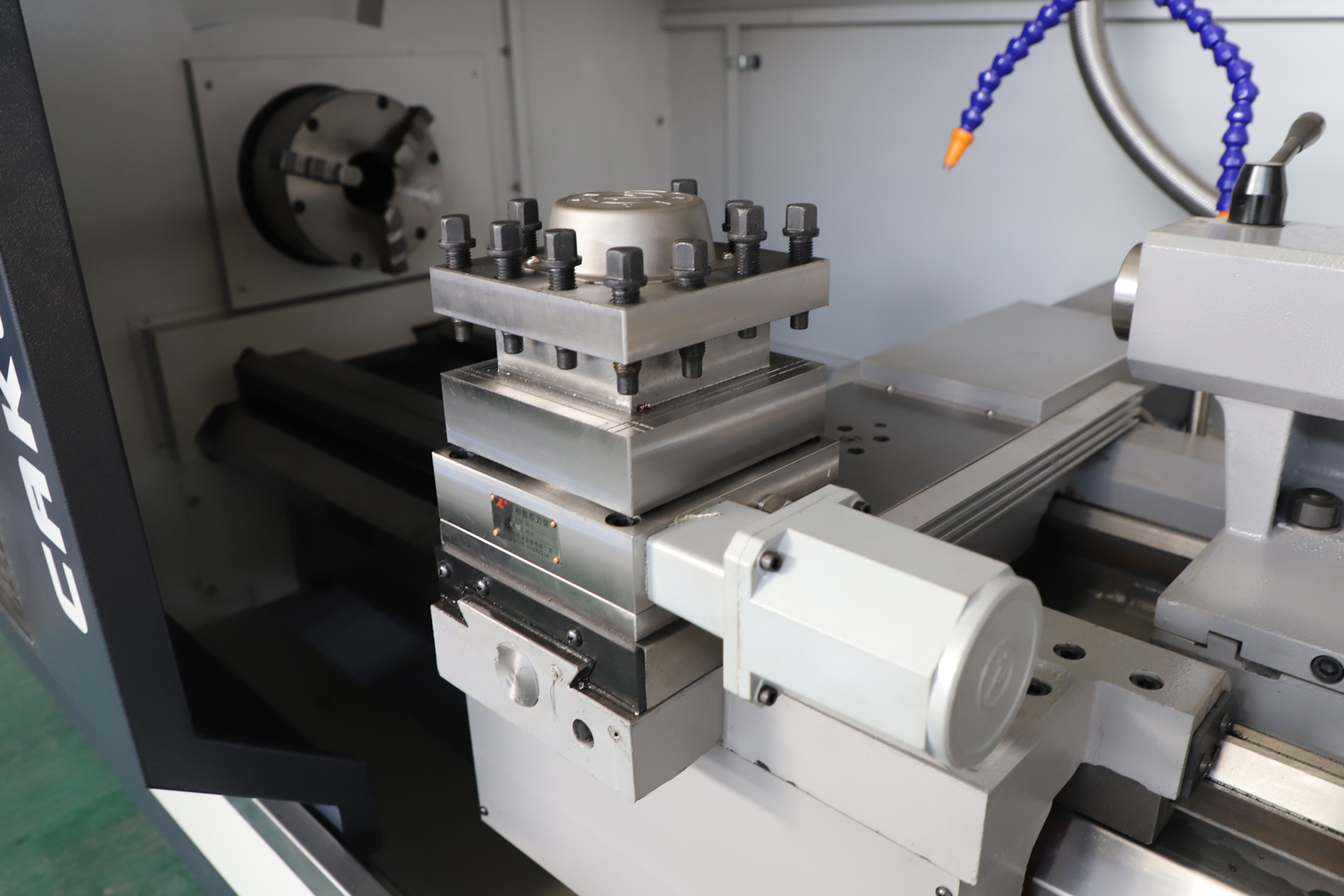

Utilizes a face gear coupling for indexing and precision positioning. This design supports the mounting of multiple tools, bidirectional turret rotation, and rapid tool selection via the shortest path.
High machining precision, high efficiency, and a high degree of automation.
The CAK6150 CNC Lathe Machine is suitable for:
Typical machined components include shafts, discs, sleeves and other metal part
Typical industries include mechanical manufacturing, automotive components, pump and valve manufacturing, agricultural machinery, metalworking, equipment maintenance and general component production.
