01

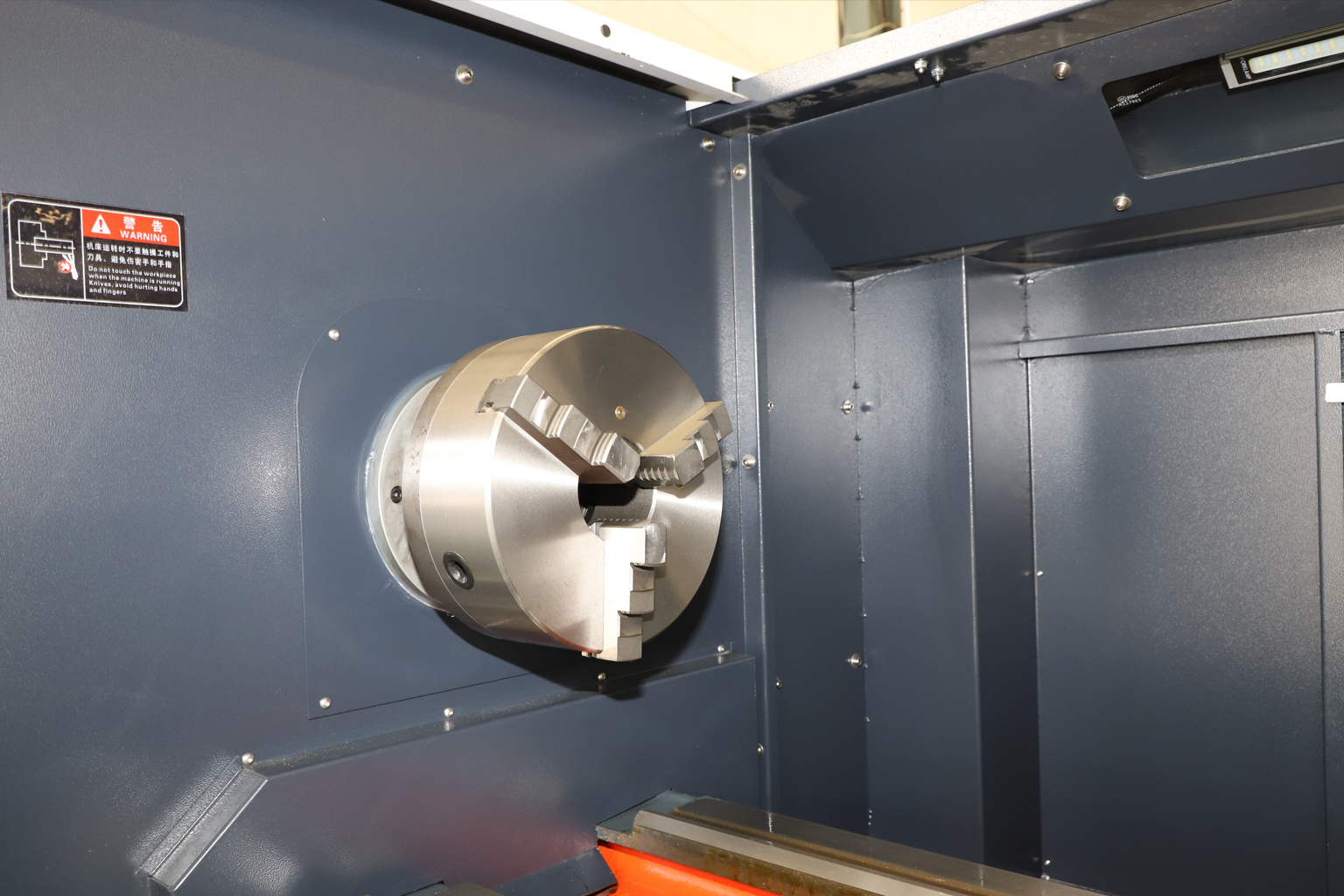

Three-jaw chuck
.Conducive to clamping irregular workpiece for rapid production.

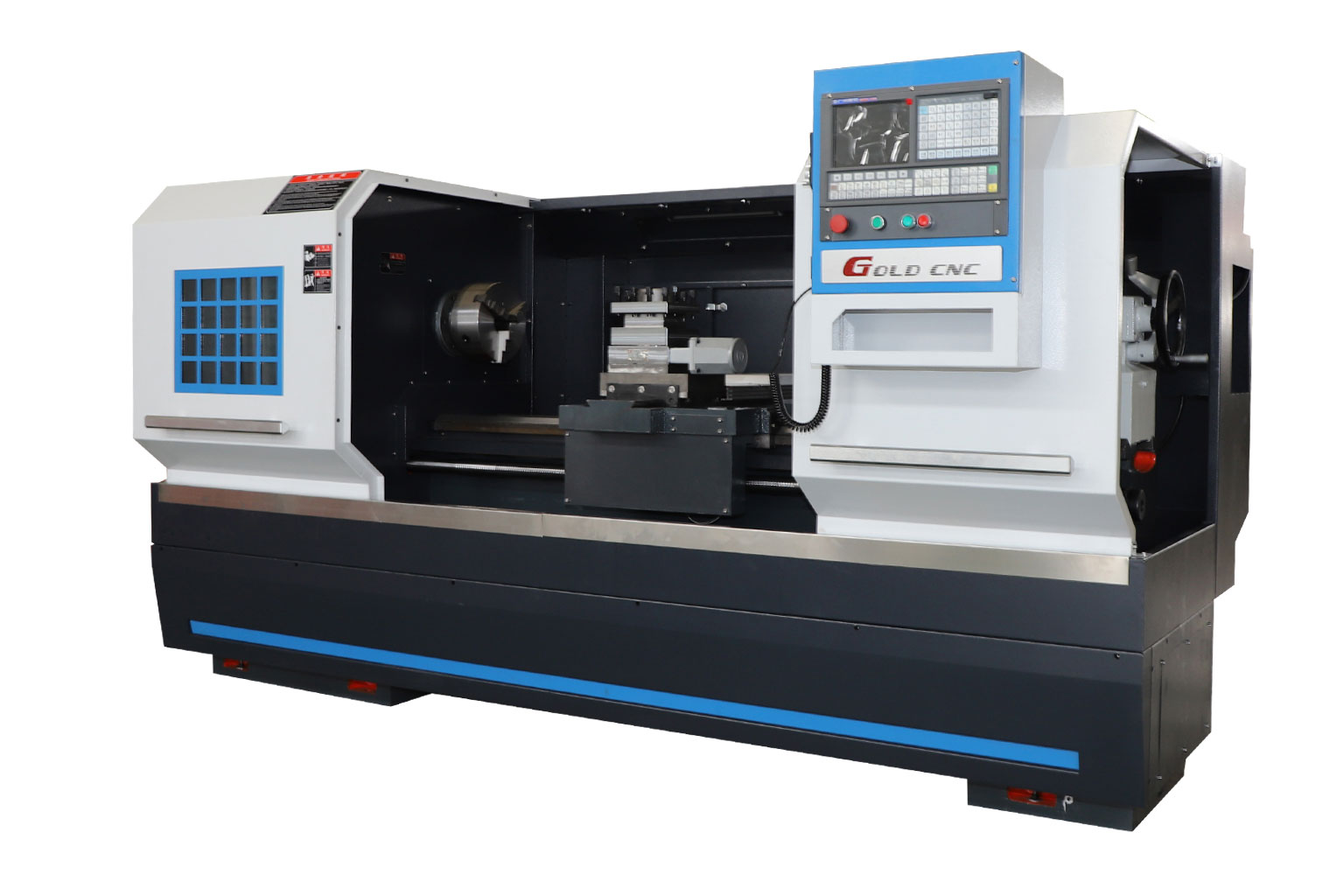

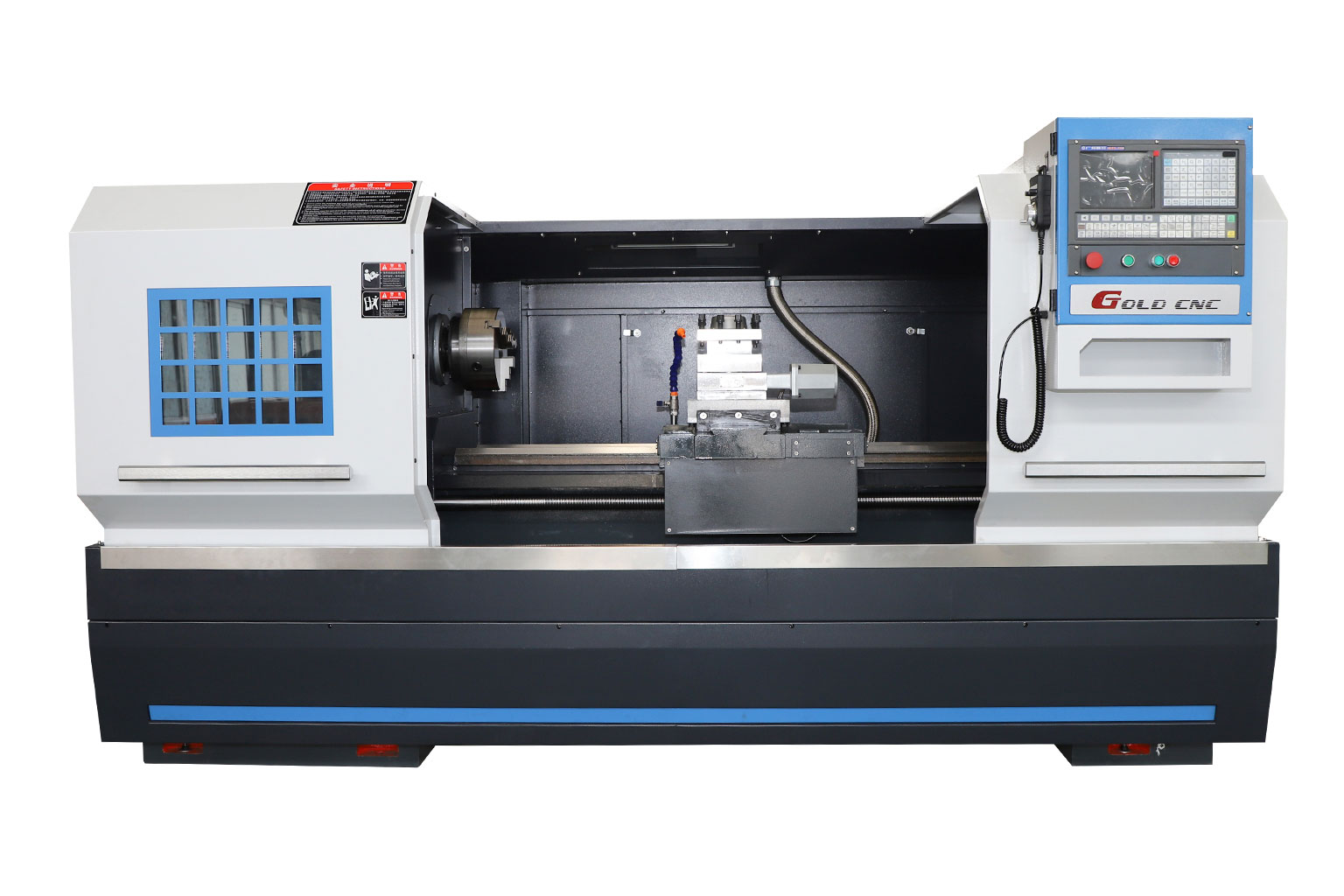

1.CAK6163 CNC Lathe provides a maximum swing over bed of approximately 630 mm, giving users greater working capacity for larger shafts, discs, sleeves and other industrial components.
2.CAK6163 CNC Lathe can be configured for different workpiece lengths, making it suitable for both relatively short components and longer shaft-type workpieces.

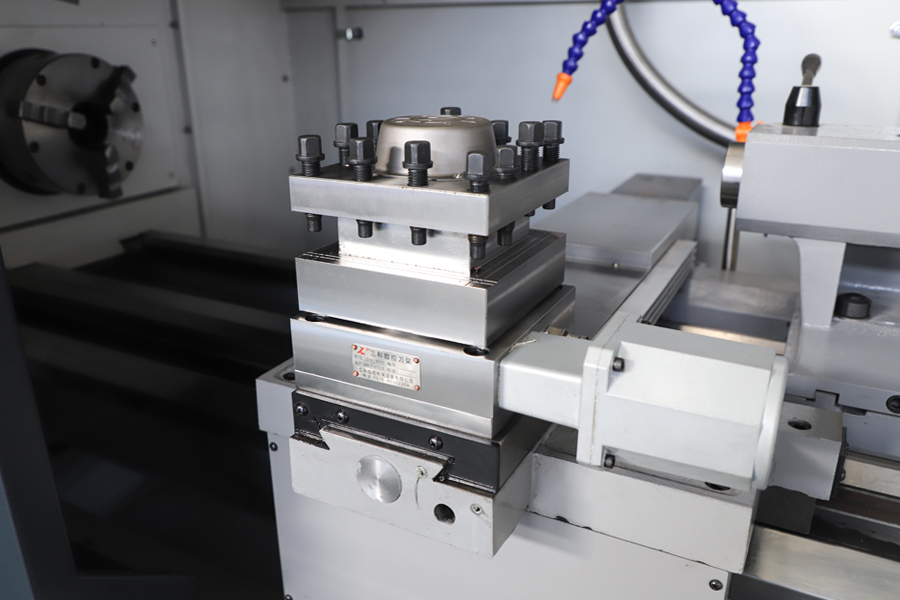

3.The CAK6163 CNC Lathe can be equipped with a four-station electric tool post for programmed tool changes, reducing manual intervention during repetitive machining operations.
4.GOLDCNC provides factory-direct CNC machine tools and can help customers select the appropriate CAK6163 CNC Lathe configuration according to workpiece size, material, machining process and production requirements.
.Conducive to clamping irregular workpiece for rapid production.

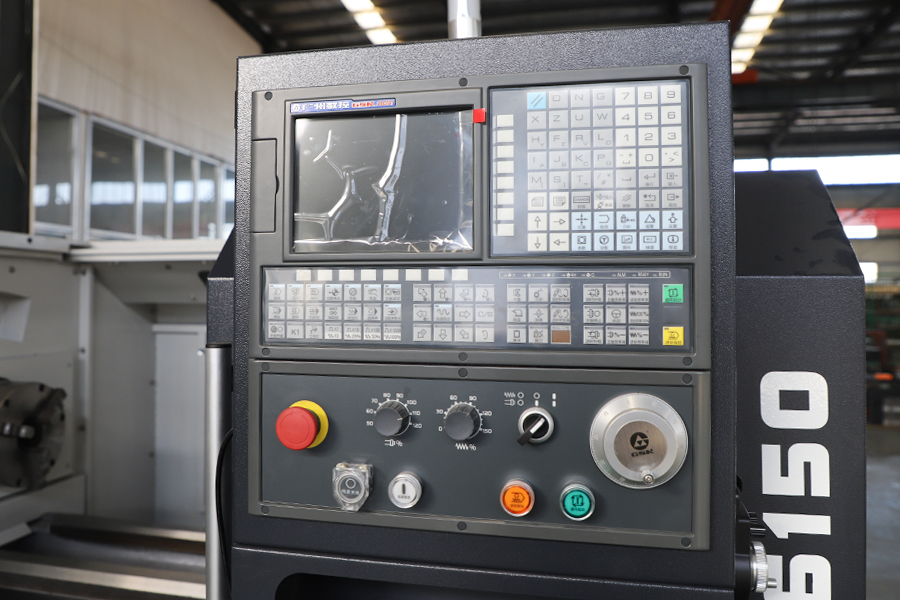

.CNC Systems: FANUC, SIEMENS, MITSUBISHI,SYNTEC,GSK, etc..Beautiful and generous.
.Change knife without lifting knife,Optional six-stations electric tool rest.
Structure of castings is analyzed by FEM finite element method.
The CAK6163 CNC Lathe has a maximum swing over bed of approximately 630 mm. The actual machinable diameter depends on the workpiece shape, tool setup and required machining area.
| Specifications | CAK6150 | CAK6163 | |
| Processing | Max.swing over bed | Φ500 | Φ630 |
| Capacity | |||
| Max.swing over slide | Φ285 | Φ410 | |
| X-axis (lateral) maximum stroke | 330 | ||

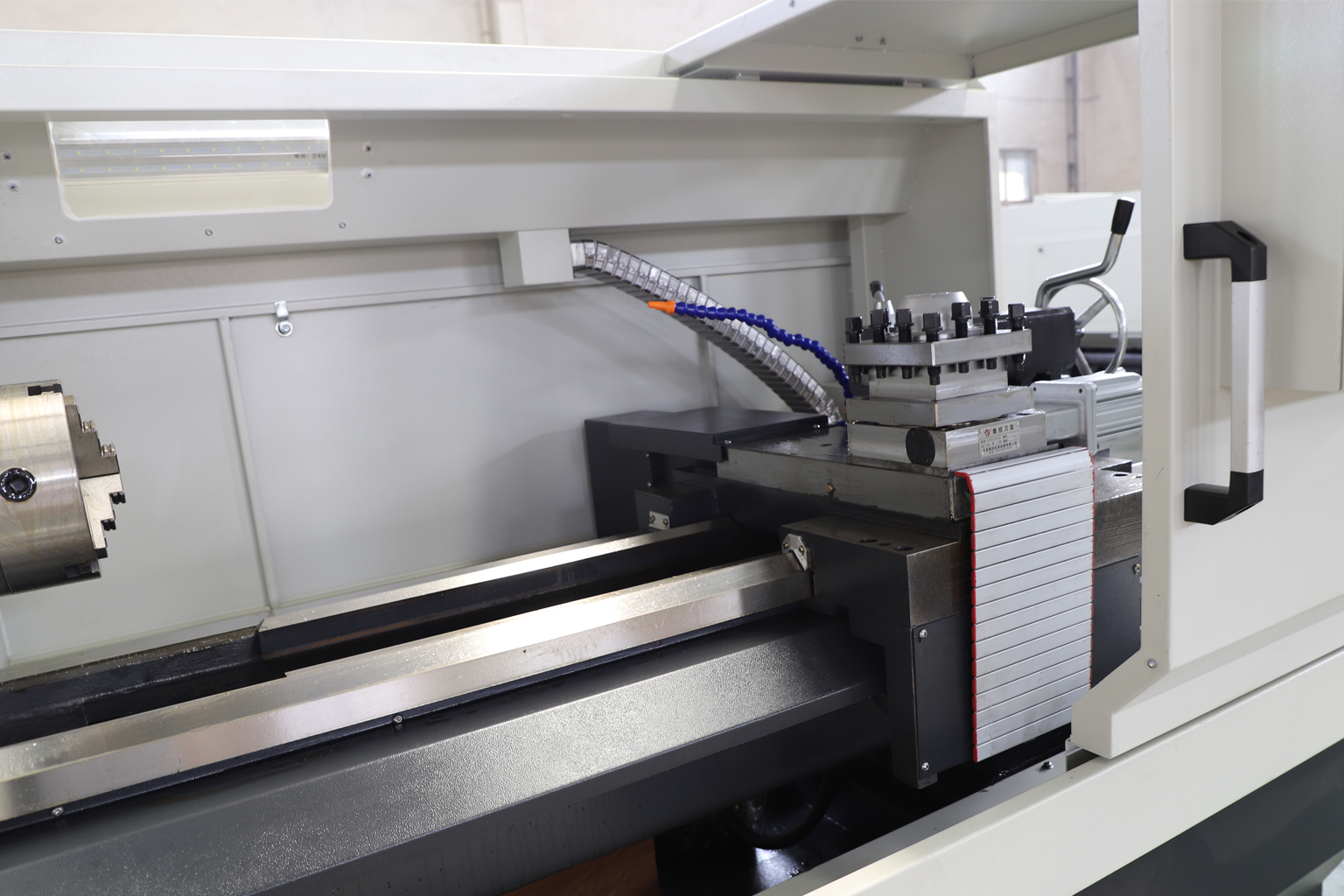

| Bed | Width of bed guideway | 400 | |
| Max.distance between centers | 500/1000/1500/2000/3000 | ||
| Spindle | Spindle Head type | A2-8 | |
| Spindle inner hole taper | Metric90/1:20 | ||
| Spindle bore(mm) | Φ82/105 | ||
| Spindle speed(rpm) | 2000 | 1500 | |
| Spindle motor power(kw) | 7.5 | 11 | |
| Manual three jaw chuck size(mm) | Φ250 | Φ320 | |
| Servo Axes | X axis screw | 2505 | |
| Z axis screw | 4010 | ||
| Working Precision | Rapid feed speed(mm/min) | X：8000 | Z：6000 |
| positioning accuracy (mm) | X：0.01 | Z：0.01 | |
| Repetitive positioning accuracy(mm) | X：0.0075 | Z：0.010 | |
| Roundness(mm) | ≤0.007 | ||
| Diameter consistency | ≤0.03 mm / 300 mm | ||
| Flatness | ≤0.02 mm / Φ300 mm | ||
| Surface roughness (steel parts) | ≤Ra 1.6 mm | ||
| Tail-stock | Tail socket diameter(mm) | Φ75 | |
| Tailstock sleeve stroke (heavy tailstock)(mm) | 150 | ||
| Tailstock center cone hole | MT5 | ||
