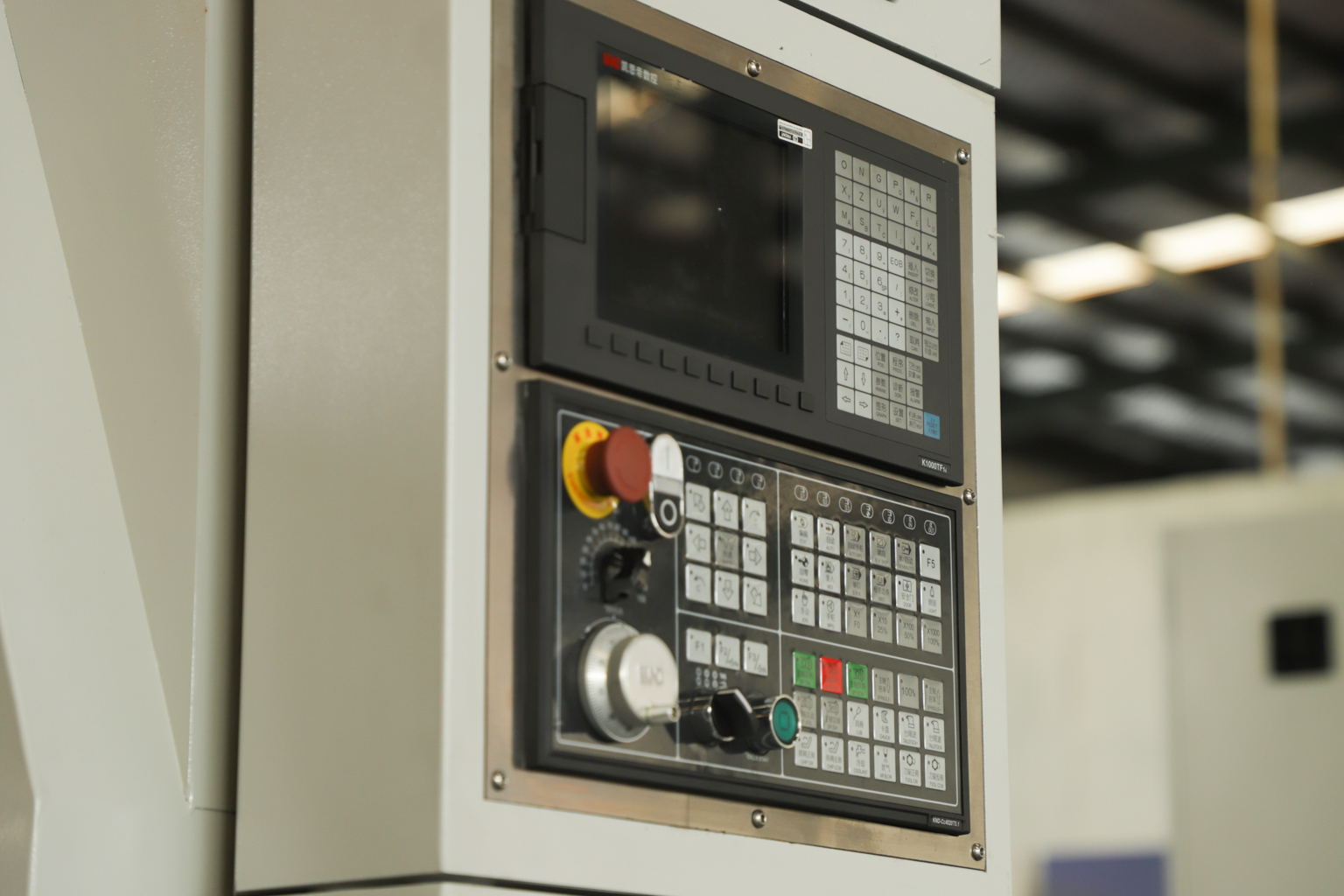

Control System
Taiwan new generation double channel system.FANUC, SIEMENS, MITSUBISHI,SYNTEC,GSK, etc..
GOLDCNC can configure the CAK6180 CNC Lathe according to workpiece diameter, length, weight, material, machining operations and production requirements, helping distributors avoid mismatched machine recommendations.

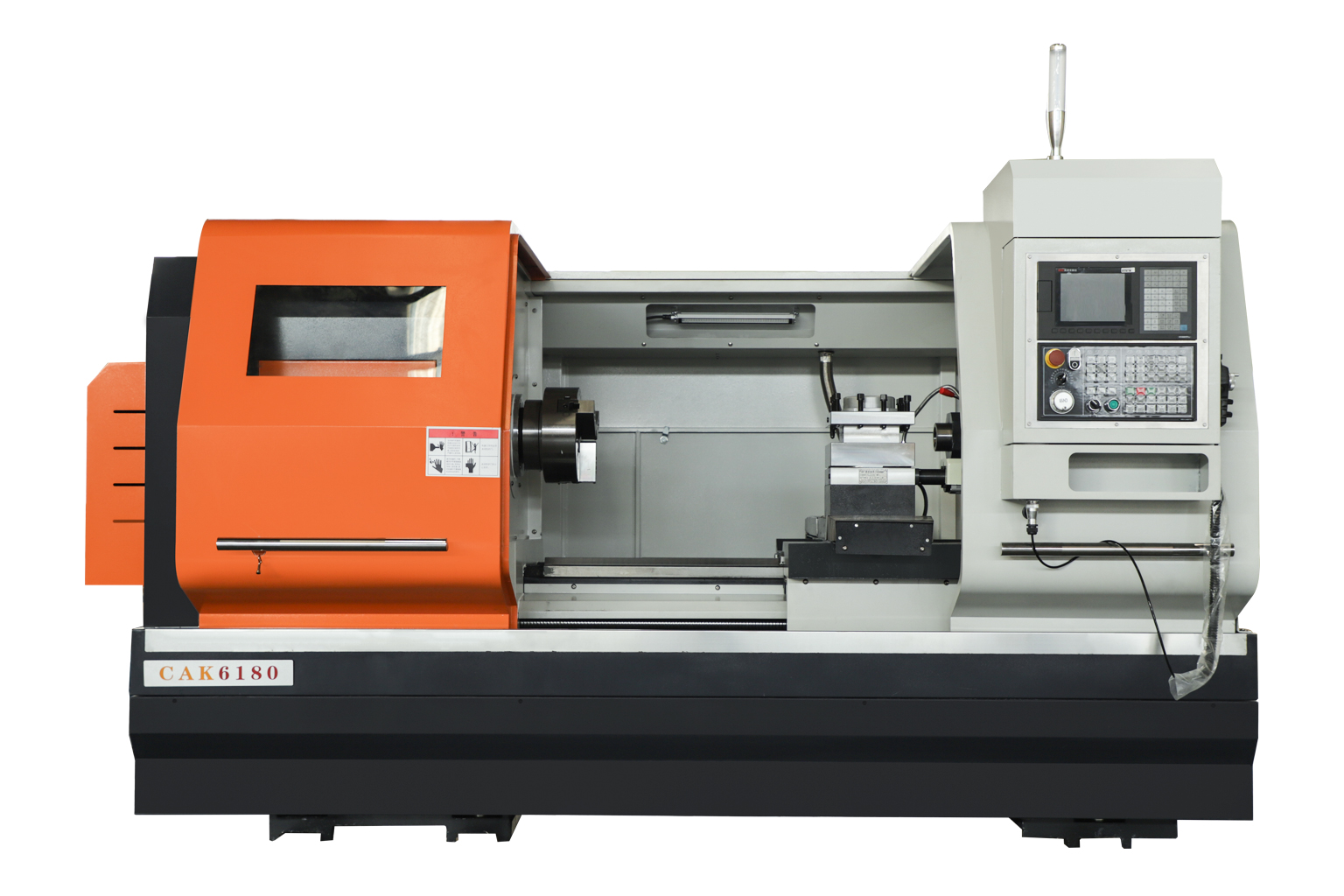

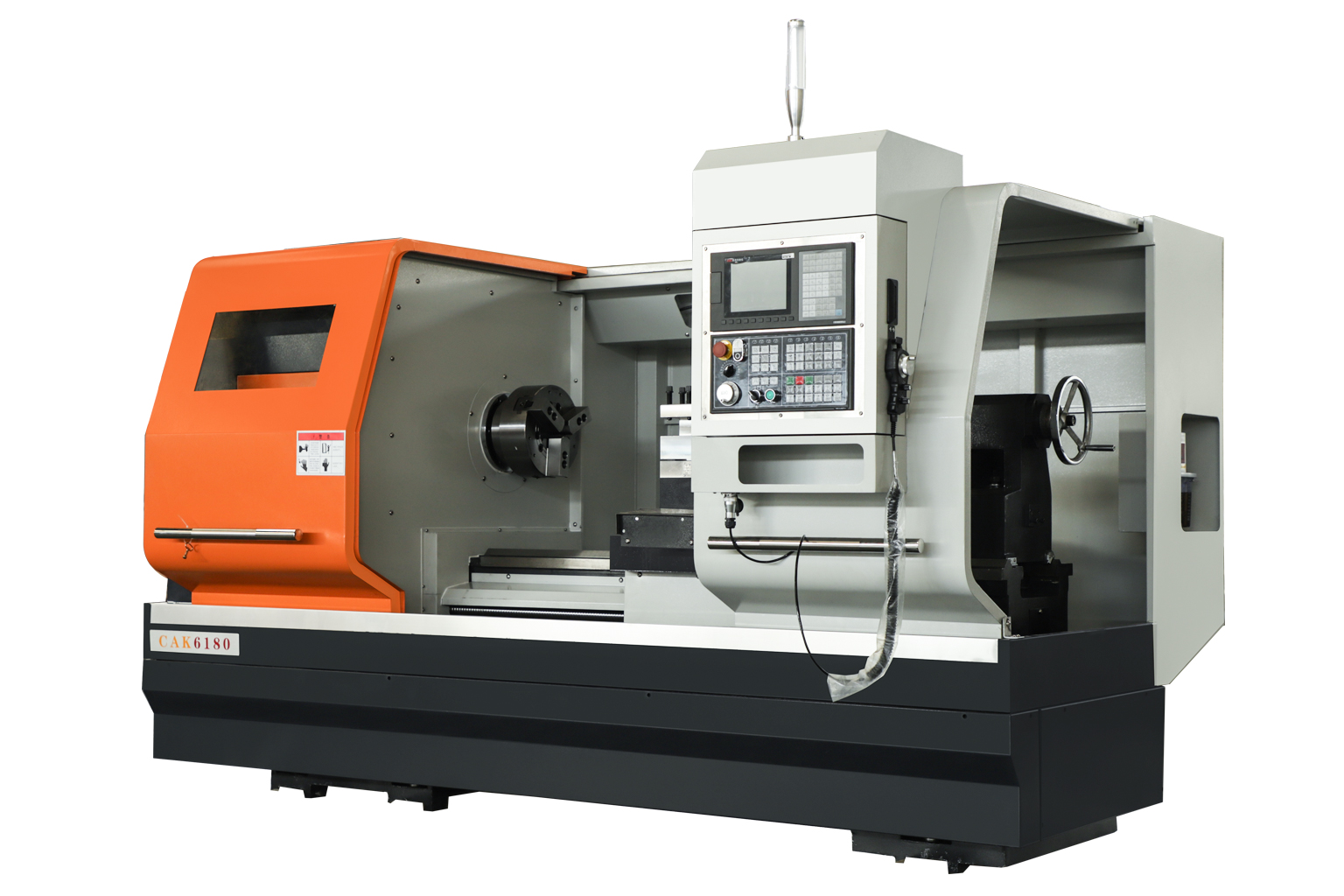

1.The CAK6180 CNC Lathe is designed for machining larger rotating components where workpiece diameter, length and cutting stability are critical considerations.
2.CAK6180 CNC Lathe can be used for large shafts, conveyor components, flanges, hubs, sleeves and other rotational parts used in mining, automotive, energy and general machinery applications.
3.For buyers whose workpieces are too large for standard CNC lathes but do not require a specialized turning center, CAK6180 CNC Lathe provides a larger-capacity horizontal CNC turning platform.
Taiwan new generation double channel system.FANUC, SIEMENS, MITSUBISHI,SYNTEC,GSK, etc..

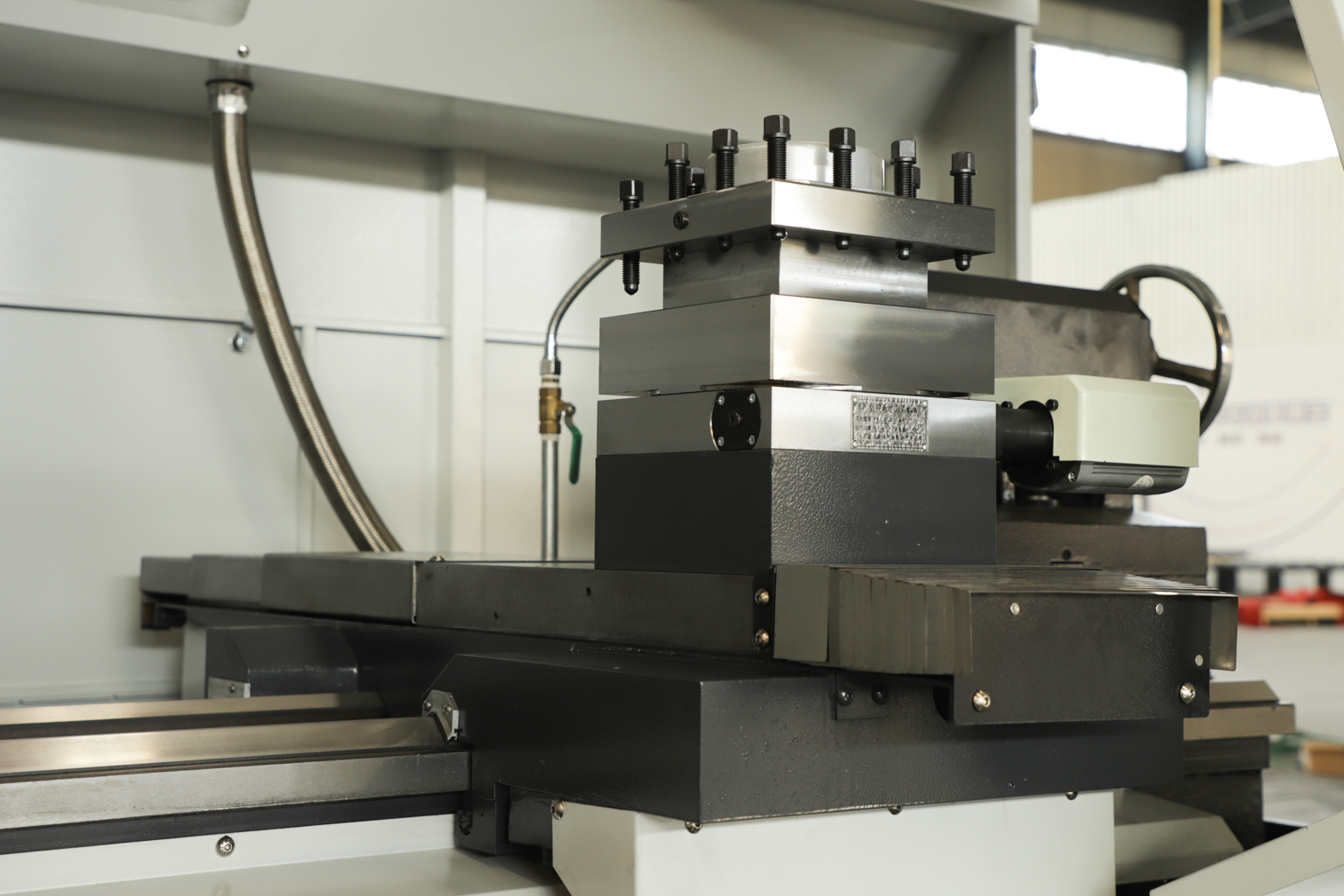

Change knife without lifting knife,Optional six-stations electric tool rest.
Structure of castings is analyzed by FEM finite element method.
Conducive to clamping irregular workpiece for rapid production.
It can be used for suitable large shaft applications within the machine's capacity. However, workpiece weight, diameter, length, material and cutting conditions should be reviewed before confirming the configuration. Proper workholding and support are especially important for heavy or slender shafts.
|
Specifications |
CAK6180 |
||
|
Processing Capacity |
Max.swing over bed |
Φ800 |
|
|
|
Max.swing over slide |
Φ470 |
|
|
|
X-axis (lateral) maximum stroke |
480 |
|
|
Bed |
Width of bed guideway |
600 |
|
|
|
Max.distance between centers |
1500/2000/3000 |
|
|
Spindle |
Spindle Head type |
C11 |
|
|
|
Spindle inner hole taper |
Metric1：20 |
|
|
|
Spindle bore(mm) |
Φ100 |
|
|
|
Spindle speed(rpm) |
Manual 3 gears:40-125；110-350；290-950 |
|
|
|
Spindle motor power(kw) |
11 |
|
|
|
Manual three jaw chuck size(mm) |
Φ400 |
|
|
Servo Axes |
X axis screw |
3206 |
|
|
|
Z axis screw |
6310 |
|
|
Working Precision |
Rapid feed speed(mm/min) |
X：8000 |
Z：6000 |
|
|
positioning accuracy (mm) |
X：0.01 |
Z：0.01 |
|
|
Repetitive positioning accuracy(mm) |
X：0.0075 |
Z：0.010 |
|
|
Roundness(mm) |
≤0.007 |
|
|
|
Diameter consistency |
≤0.03 mm / 300 mm |
|
|
|
Flatness |
≤0.02 mm / Φ300 mm |
|
|
|
Surface roughness (steel parts) |
≤Ra 1.6 mm |
|
|
Tail-stock |
Tail socket diameter(mm) |
Φ100 |
|
|
|
Tailstock sleeve stroke (heavy tailstock)(mm) |
250 |
|
|
|
Tailstock center cone hole |
MT6# |
|
