01

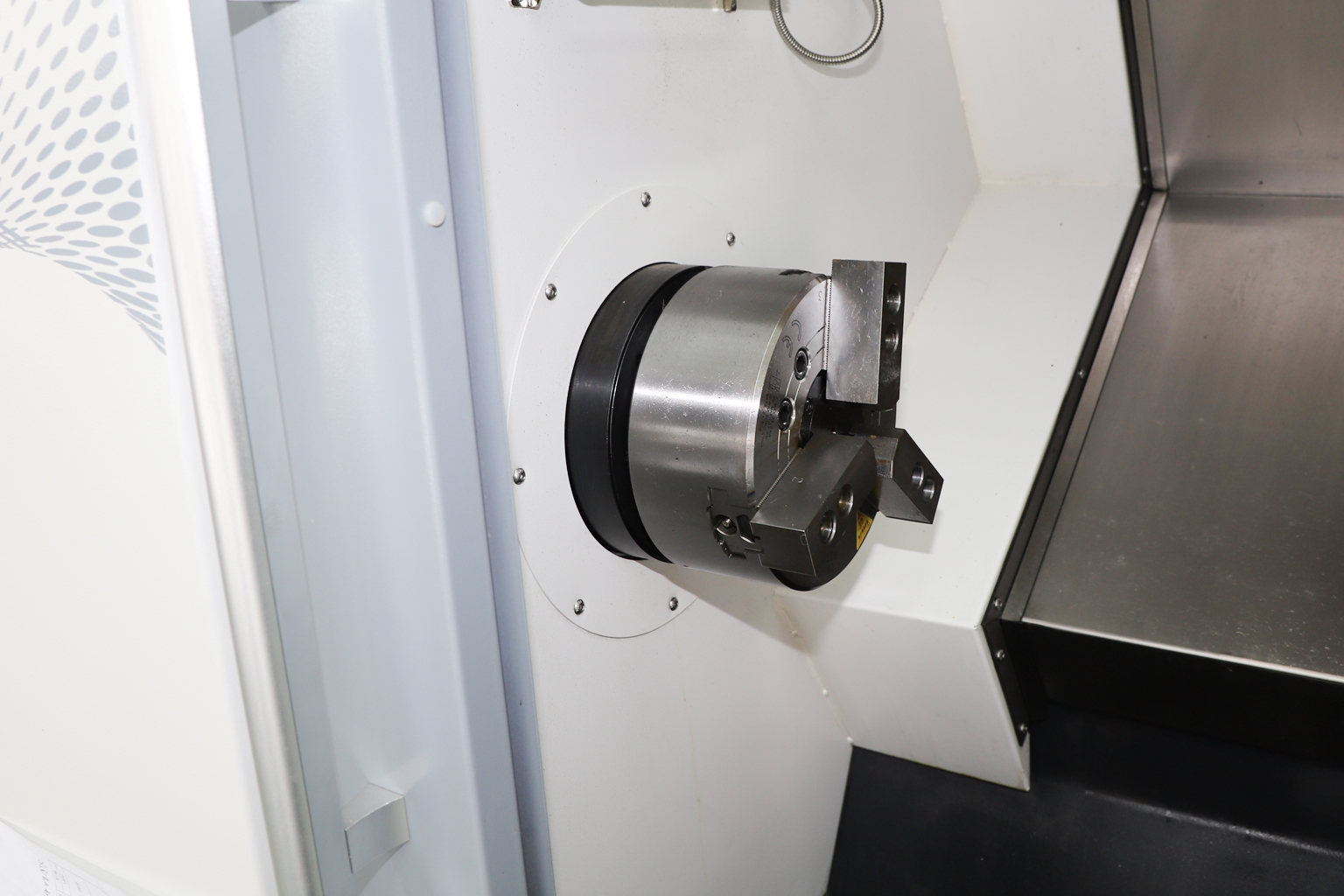

Three-jaw Chuck
Conducive to clamping irregular workpiece for rapid production.
1.For complex parts, conventional production may require a CNC lathe followed by a machining center. Turn-mill machining can complete multiple operations in a single setup, reducing workpiece transfers and helping maintain machining consistency.

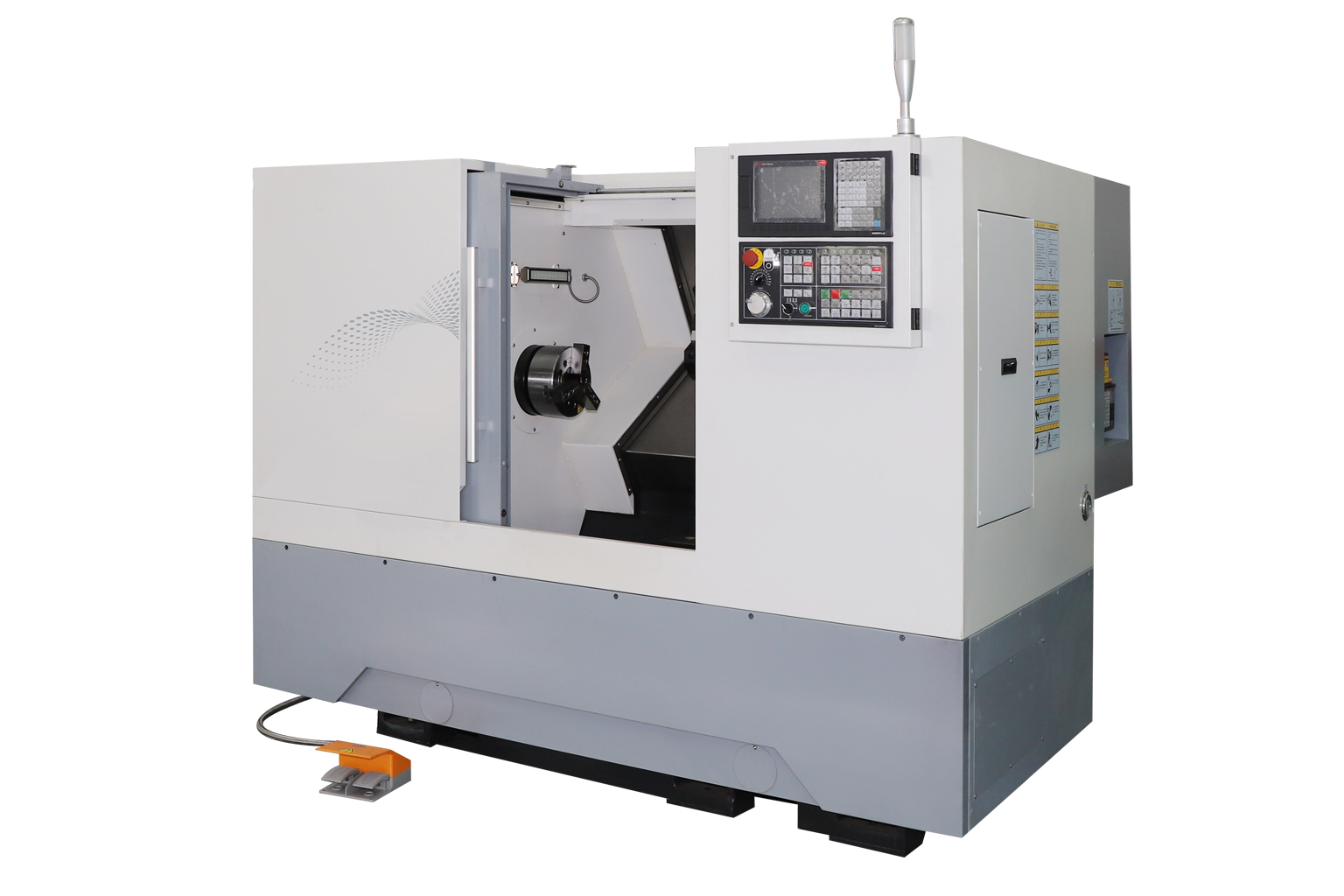

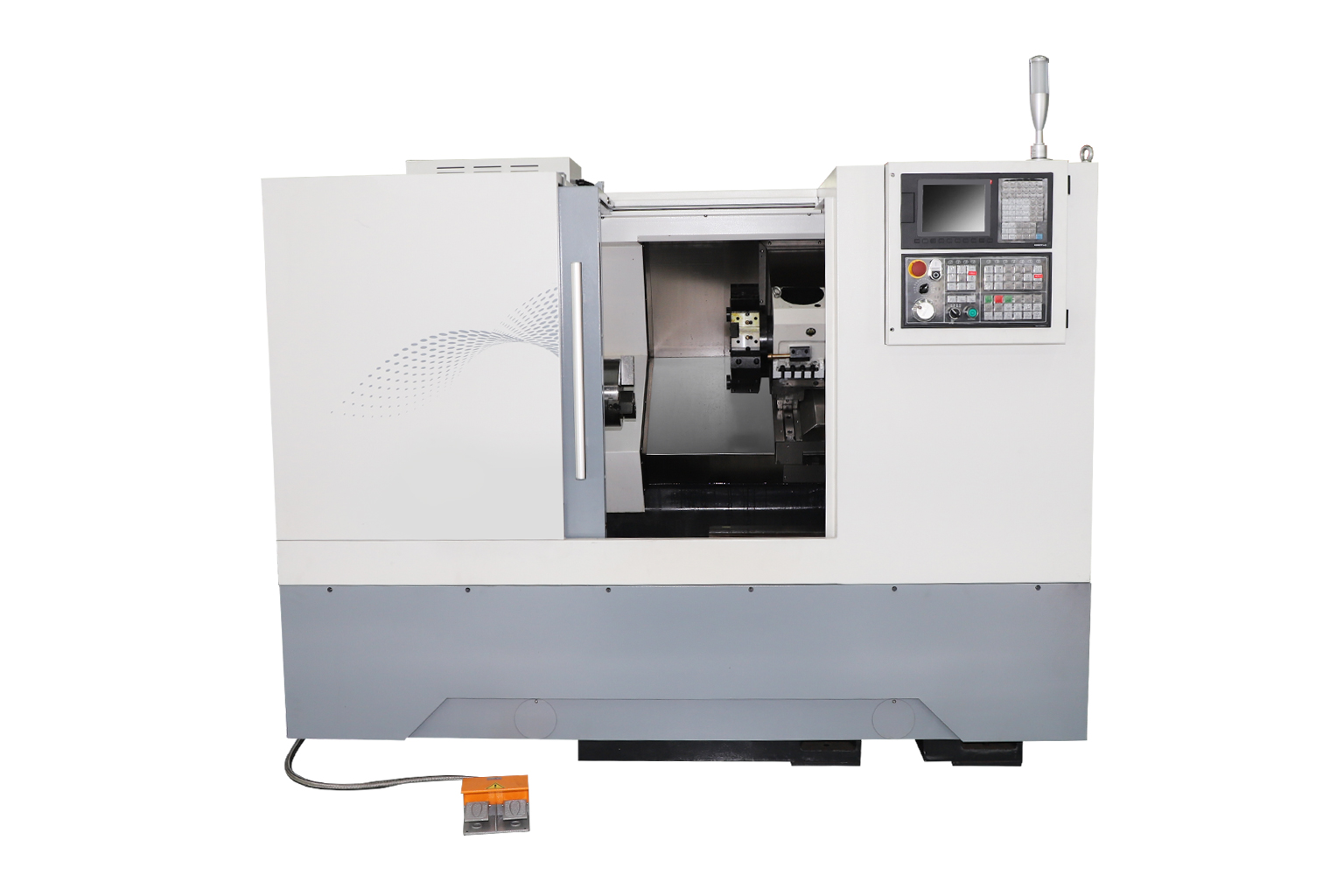

2.The TMC-8Y-8YL reaches spindle speeds of up to 4,200 rpm, supporting efficient machining of components that combine turning with secondary milling and drilling operations.
3.Turn-mill technology is especially useful when a component contains several machining operations that would otherwise require multiple machines or production stages.
Conducive to clamping irregular workpiece for rapid production.
Plunger reciprocating movement,hydraulic transmission mechanism.

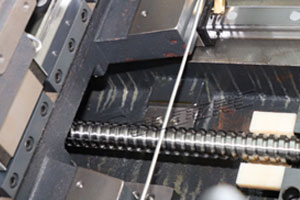

C3 precision ball screw is adopted.

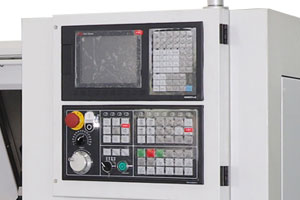

CNC Systems: FANUC, SIEMENS, MITSUBISHI,SYNTEC,GSK, etc..Beautiful and generous.
The provided content does not include a separate detailed Application Industry list for this product.
Based on the supplied description, the TMC-8Y-8YL is intended for complex metal components requiring multiple operations such as:
The machine is particularly suited to parts where multiple machining operations can be completed in a single setup.
The Y-axis allows milling and drilling away from the main spindle centerline. This is useful for off-center holes, side features and other geometries that cannot be efficiently produced by turning alone.
| Specifications | TMC-8Y | TMC-8YL | |
| Bed | Bed form and inclination | Integral/30o | Integral/30o |
| Maximum turning diameter of bed | Φ650 | Φ650 | |
| Max Part Swing | Φ370 | Φ380 | |
| Maximum processing length | 450 | 680 | |
| Spindle | Spindle Nose | A2-6 | A2-6 |
| Chuck Size | 8″（203mm） | 8″（203mm） | |
| Spindle motor power | 11KW | 15KW | |
| Spindle Max Speed | 4200rpm | 4200rpm | |
| Spindle hole diameter | Φ66 | Φ66 | |
| Bar diameter | Φ52 | Φ52 | |
| Feed | X/Z axis screw specification | 3210/4010 | 3210/4010 |
| X-axis travel | 270 | 270 | |
| Shaft motor torque | 11N.M | 11N.M | |
| X/Z axis rail specification | 45/45 | 45/45 | |
| Z axis travel | 610 | 810 | |
| Z axis motor torque | 11 N.M | 11 N.M | |
| X/Z axis connection method | Direct | Direct | |

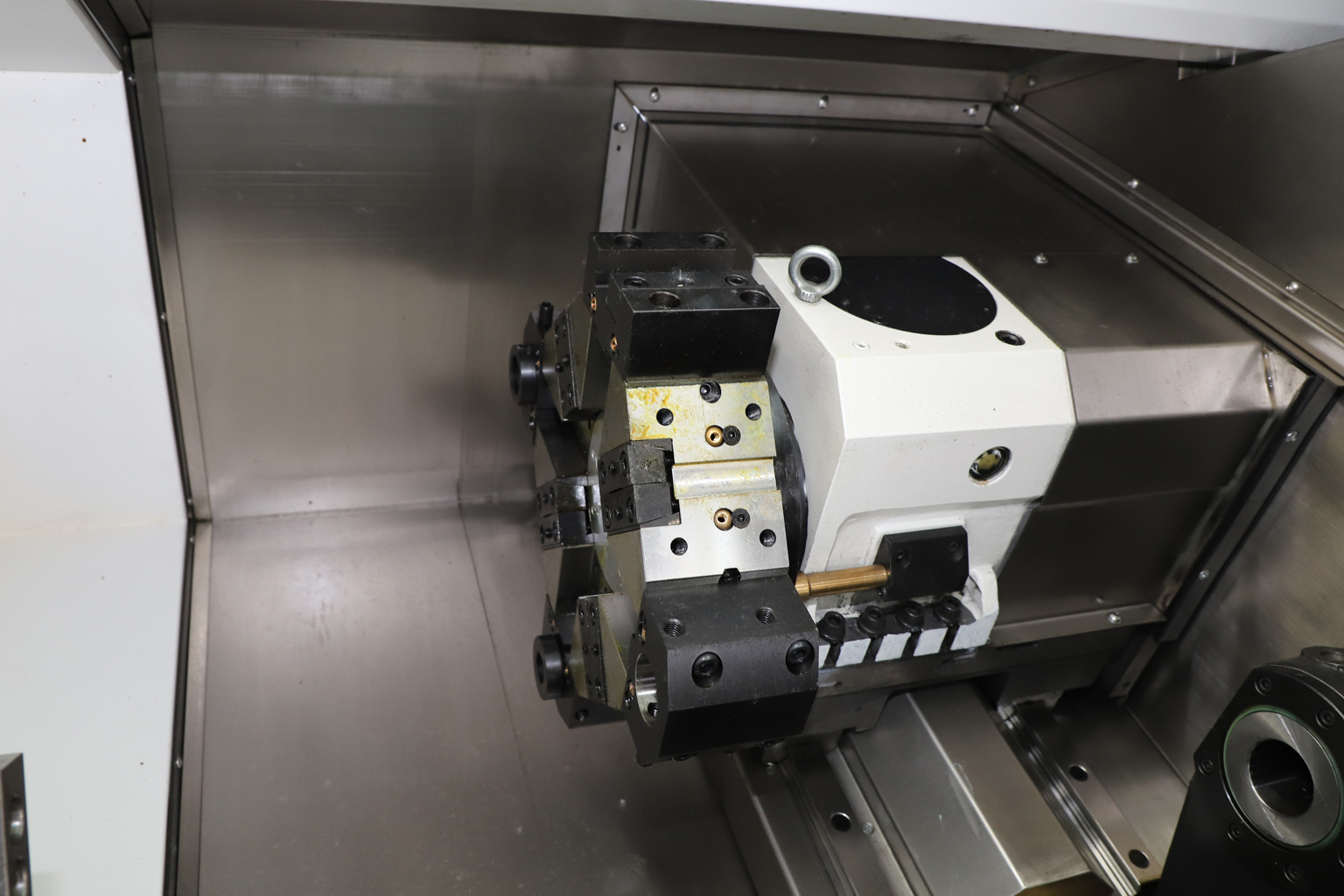

| Y axis | knife tower | BMT55 Power Turret | BMT55 Power Turret |
| Turret Center Height | 160mm | 160mm | |
| Travel | ±40mm | ±40mm | |
| C axis | C axis indexing | 360° | 360° |
| Tailstock | Socket diameter | 80 | 80 |
| Socket travel | 80 | 80 | |
| Maximum stroke | 480 | 720 | |
| Sleeve taper | Morse 5# | Morse 5# | |
| Dimensions | L×W×H | 1800×1320×1438 | 2100×1386×1435 |
| weight | N.W/G.W | 2500/2700kg | 2700/2900kg |
