01

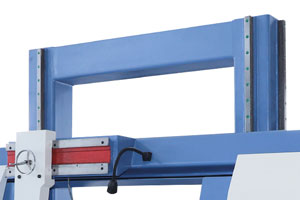

Gantry Double Column Structure
Double column large gantry linear guideway structure;Operation stability and cutting accuracy.

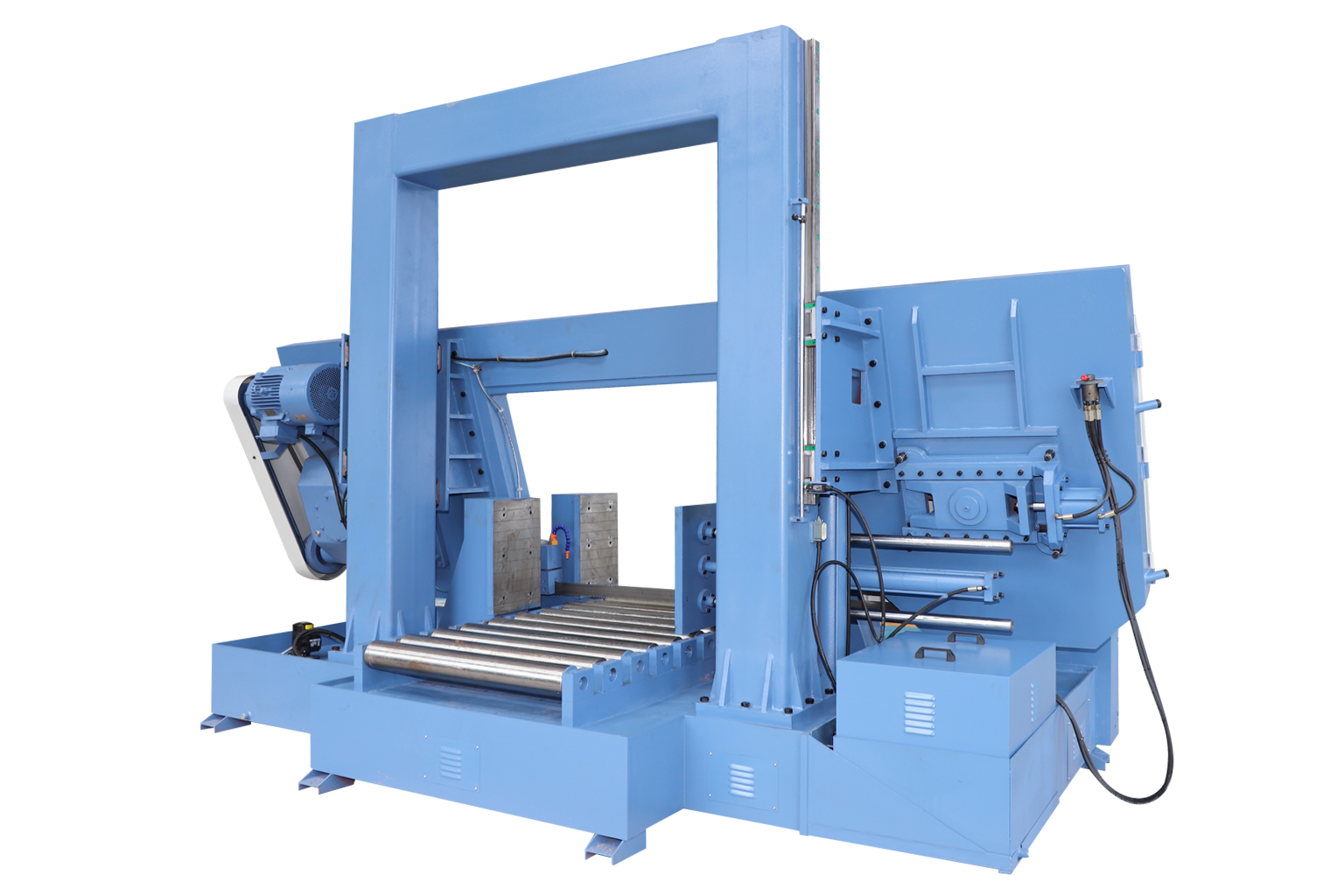

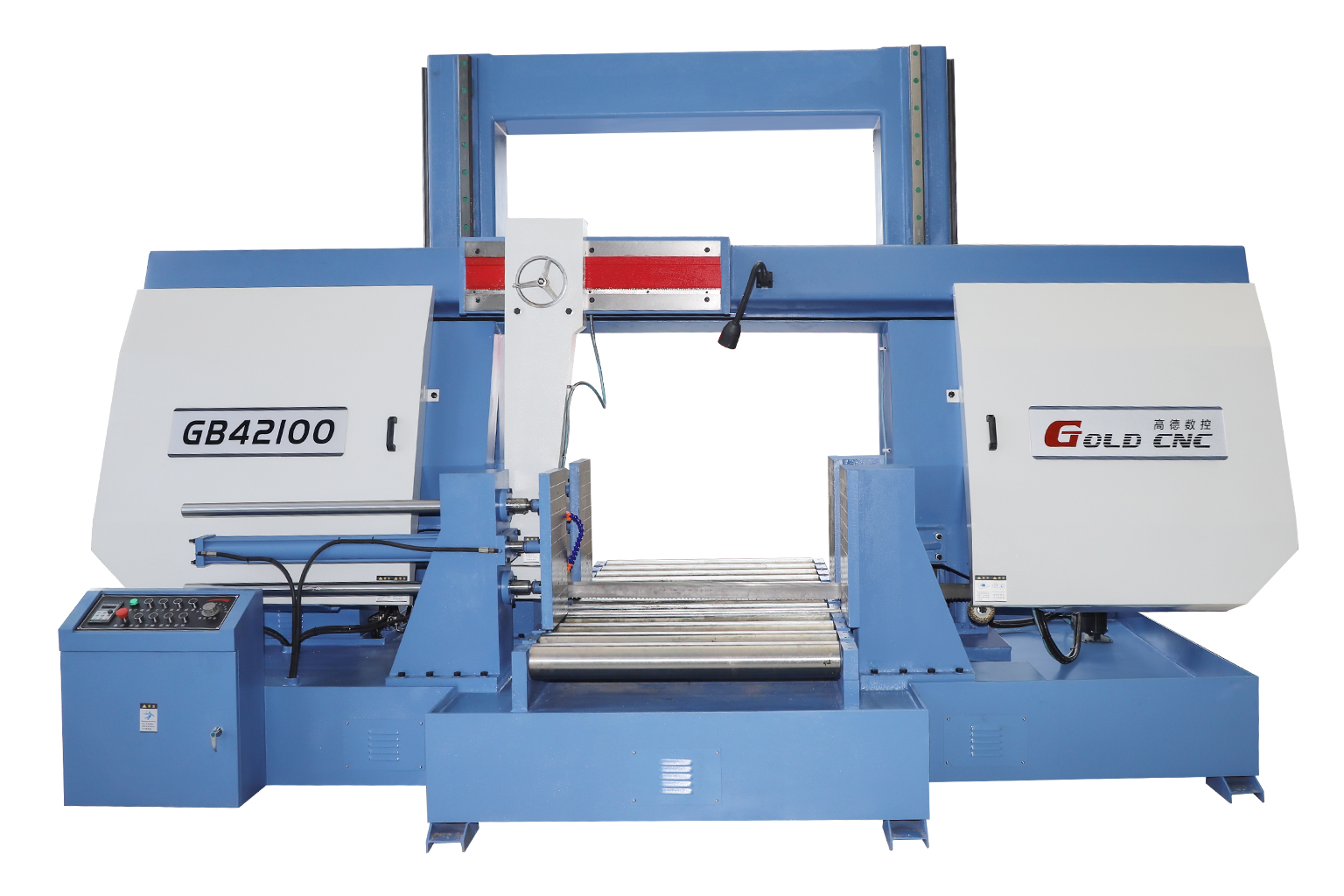

The GB42100 Metal Band Saw is a heavy-duty double-column machine for extra-large metal stock preparation, combining a 1000×1000 mm cutting capacity, 11 kW main motor and hydraulic clamping for stable industrial cutting of large steel sections, pipes, profiles and heavy metal blanks.
1.1000×1000 mm Extra-Large Cutting Capacity — The GB42100 Metal Band Saw handles very large steel sections, pipes, profiles and heavy metal blanks within its specified cutting range.
2.Gantry Double-Column Structure — The double-column design provides stable support and guidance for the saw frame when cutting large and heavy workpieces.
3.Large Blank Preparation — The machine can prepare large metal blanks before CNC turning, milling and machining-center operations.
4.Stable Saw-Frame Movement — The guided double-column structure supports stable saw-frame movement during large-material cutting.
Double column large gantry linear guideway structure;Operation stability and cutting accuracy.

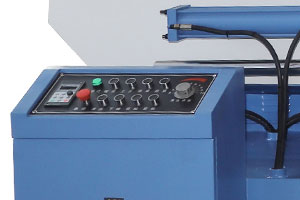

Manual operation panel, simple and efficient;Hydraulic stepless speed regulation.

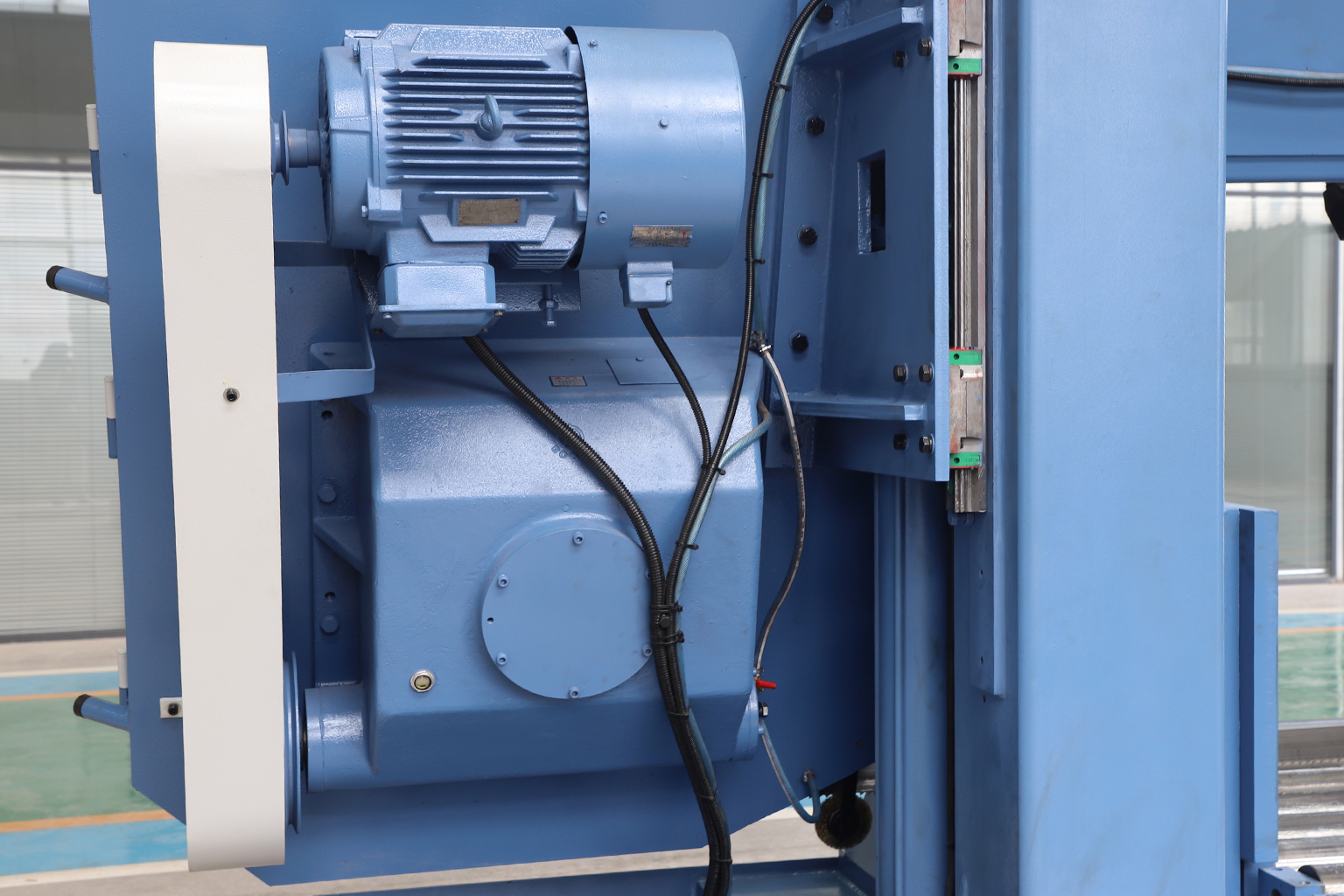

Stable operation;Energy saving and high efficiency.

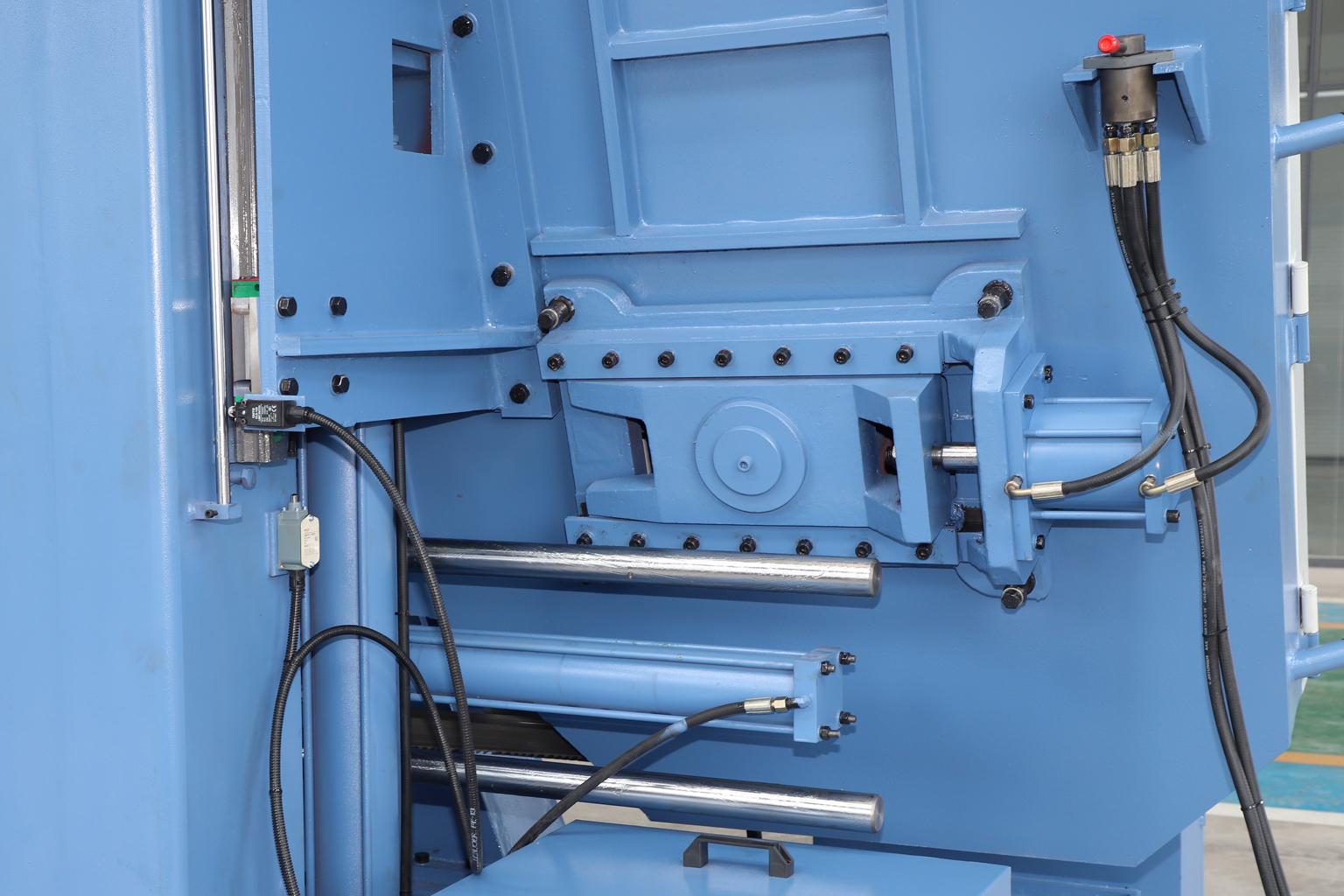

Optional hydraulic tensioning seat;Improve sawing efficiency and accuracy.
Yes. It can be used for large pipes and heavy-wall tubes when their dimensions are within the machine's cutting capacity. After cutting, the sections can be transferred to CNC lathes or machining centers for further processing.
| Specifications | GB42100 | GB42120 |
| Max.cutting（mm） | ●1000■1000W×1000H | ●1200■1200W×1200H |
| Saw blade speed（m/min） | 20-80 Frequency control | 20-80 Frequency control |
| Saw blade size（mm） | 67×1.6×10000 | 67×1.6×10900 |
| Main motor（kw） | 11 | 15 |
| Hydraulic motor（kw） | 3 | 3 |
| Cooling motor power（kw） | 0.125 | 0.125 |
| Main transmission structure | Worm gear transmission | |
| Working clamping mode | Hydraulic vice | |
| Band saw blade tensioning method | Hydraulic | |
| Cleaning | Wire brush & flood coolant | |
| Dimensions(mm) | 4670×1800×2900 | 4950×2200×3150 |
