01
Gantry Double Column Structure
High rigidity, high strength; High precision and good wear resistance; Smooth operation and long service life.

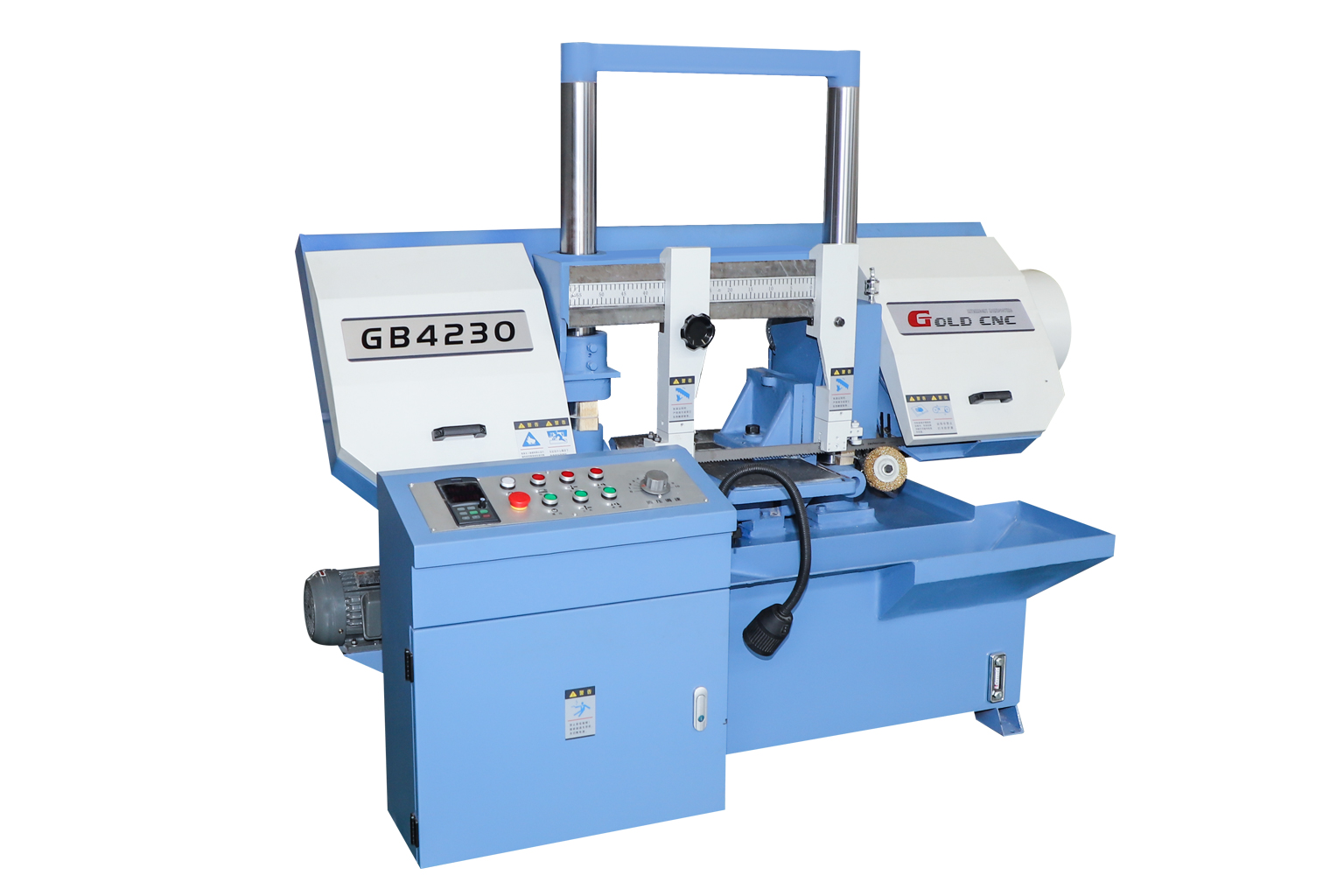

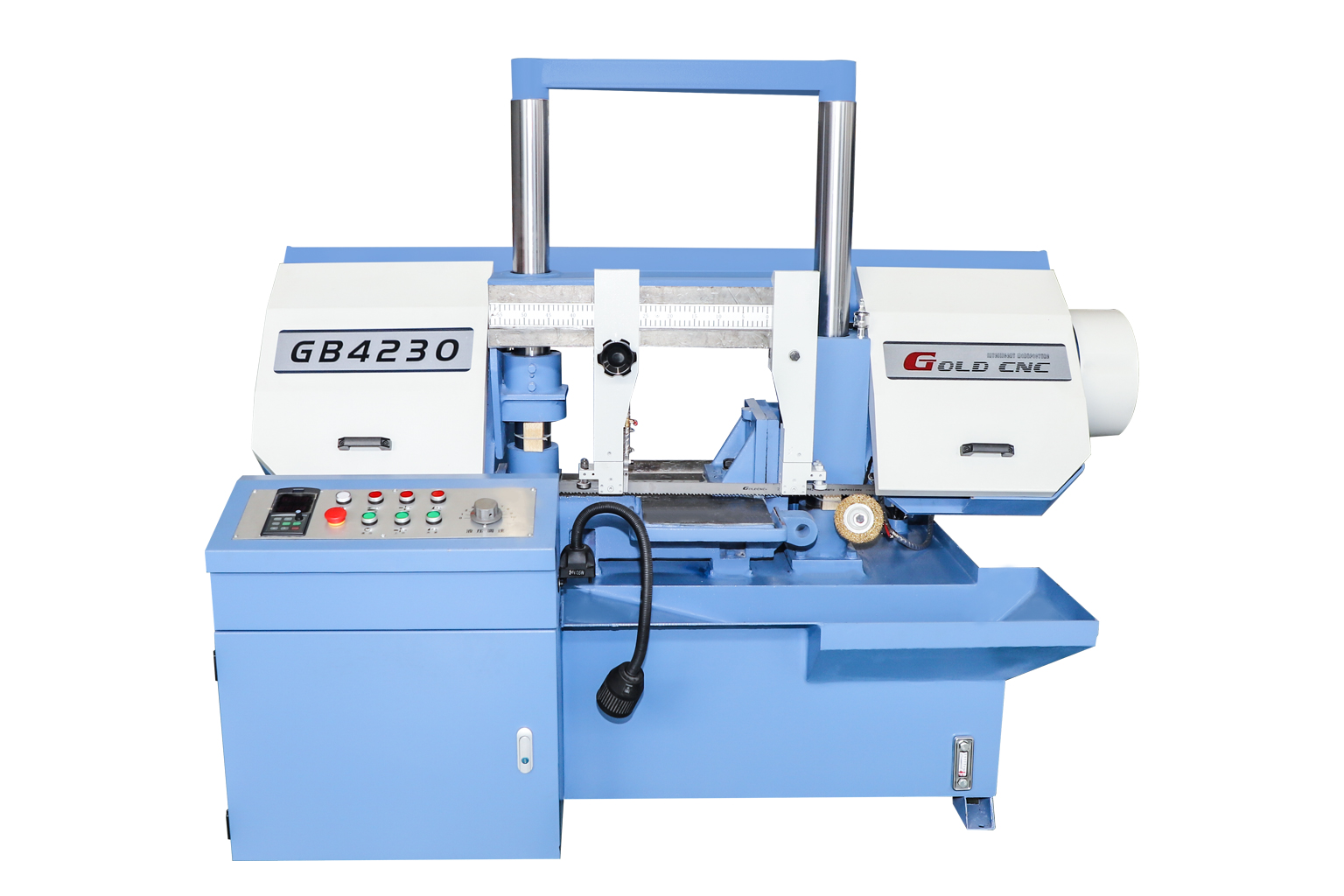

GB4230 Semi-Automatic Horizontal Metal Band Saw Machine for heavy-duty cutting of ferrous and non-ferrous metals, with a rigid double-column structure and 300 mm cutting capacity.
The GB4230 Semi-Automatic Horizontal Metal Band Sawing Machine is a heavy-duty industrial solution specifically engineered for cutting both ferrous and non-ferrous metals.

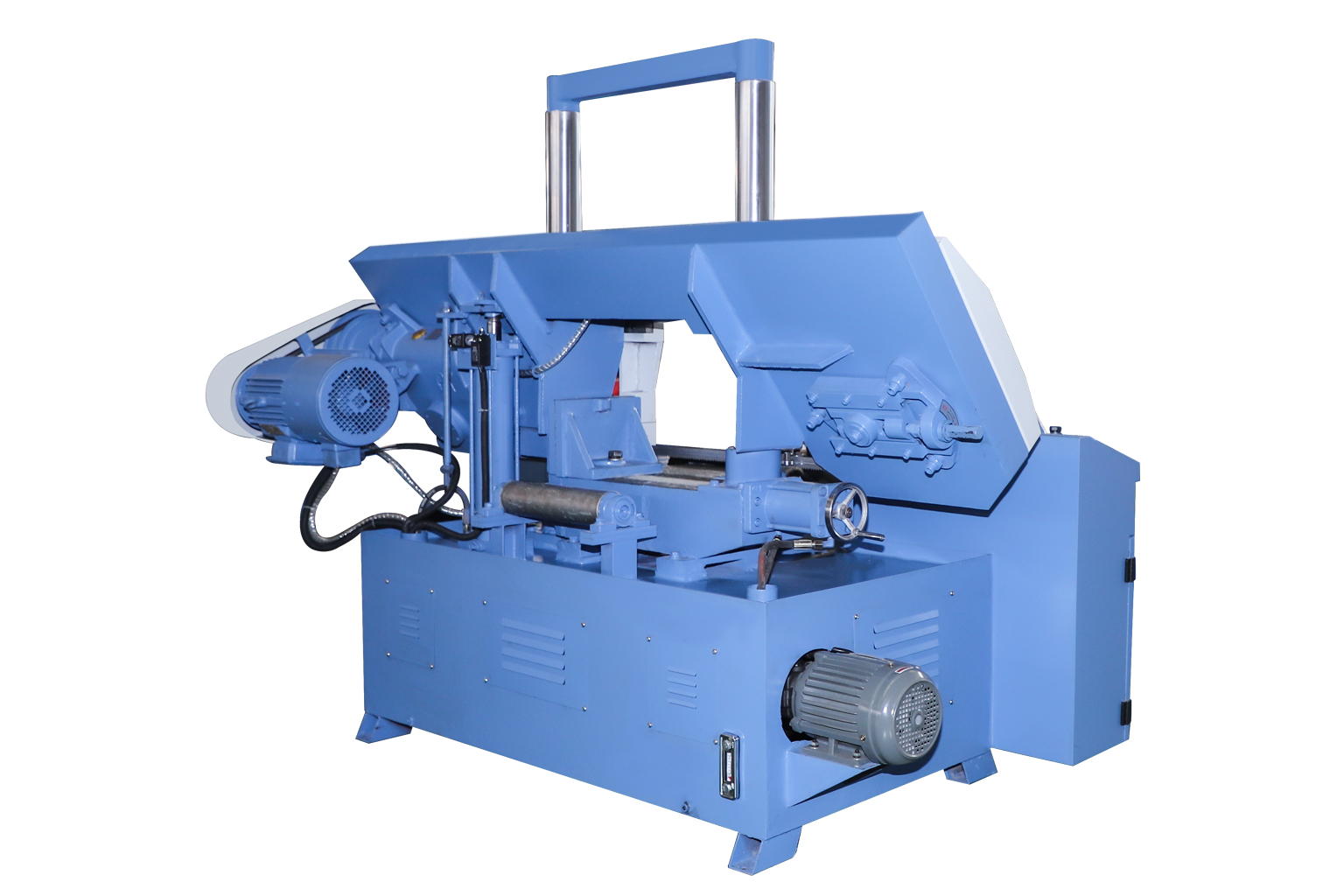

Built with a rigid gantry double-column structure, this horizontal band saw helps eliminate twisting vibrations, ensuring highly accurate cuts and consistent parallelism.
At its core, the machine is driven by a premium industry-brand motor paired with a high-power worm gear reducer, generating exceptional torque and continuous cutting performance for prolonged, heavy-workload environments.
| Specification | GB4230 |
|---|---|
| Max. Cutting (mm) | ●300 ■300W × 300H |
| Saw Blade Speed (m/min) | 27 / 45 / 69 |
| Saw Blade Size (mm) | 27 × 0.9 × 3800 |
| Working Clamping Mode | Hydraulic Vice |
| Main Transmission Structure | Worm Gear Transmission |
| Band Saw Blade Tensioning Method | Manual |
| Cleaning | Wire Brush & Flood Coolant |
| Main Motor (kW) | 3 |
| Hydraulic Motor (kW) | 0.75 |
| Cooling Motor Power (kW) | 0.04 |
| Weight (kg) | 800 |
| Dimensions (mm) | 2000 × 1100 × 1600 |
| Component | Brand | Country |
|---|---|---|
| Electric | SCHNEIDER / DELIXI | Germany |
| Bearings | NSK | Japan |
| Reduction Box | BOXIN | China |
| Hydraulic Pressure System | HANDA / YOUKUN | China |
| Oil Pump | HANDA / YOUKUN | China |
| Motor | NANJING GLOBAL | China |
| Name | Quantity |
|---|---|
| Semi-automatic Band Saw | 1 set |
| Band Saw Blade | 1 piece |
| Toolbox | 1 set |
| Pallet Truck | 1 piece |
| User’s Manual | 1 copy |
High rigidity, high strength; High precision and good wear resistance; Smooth operation and long service life.
Manual operation panel, easy to operate and efficient; Button completed sawing process.

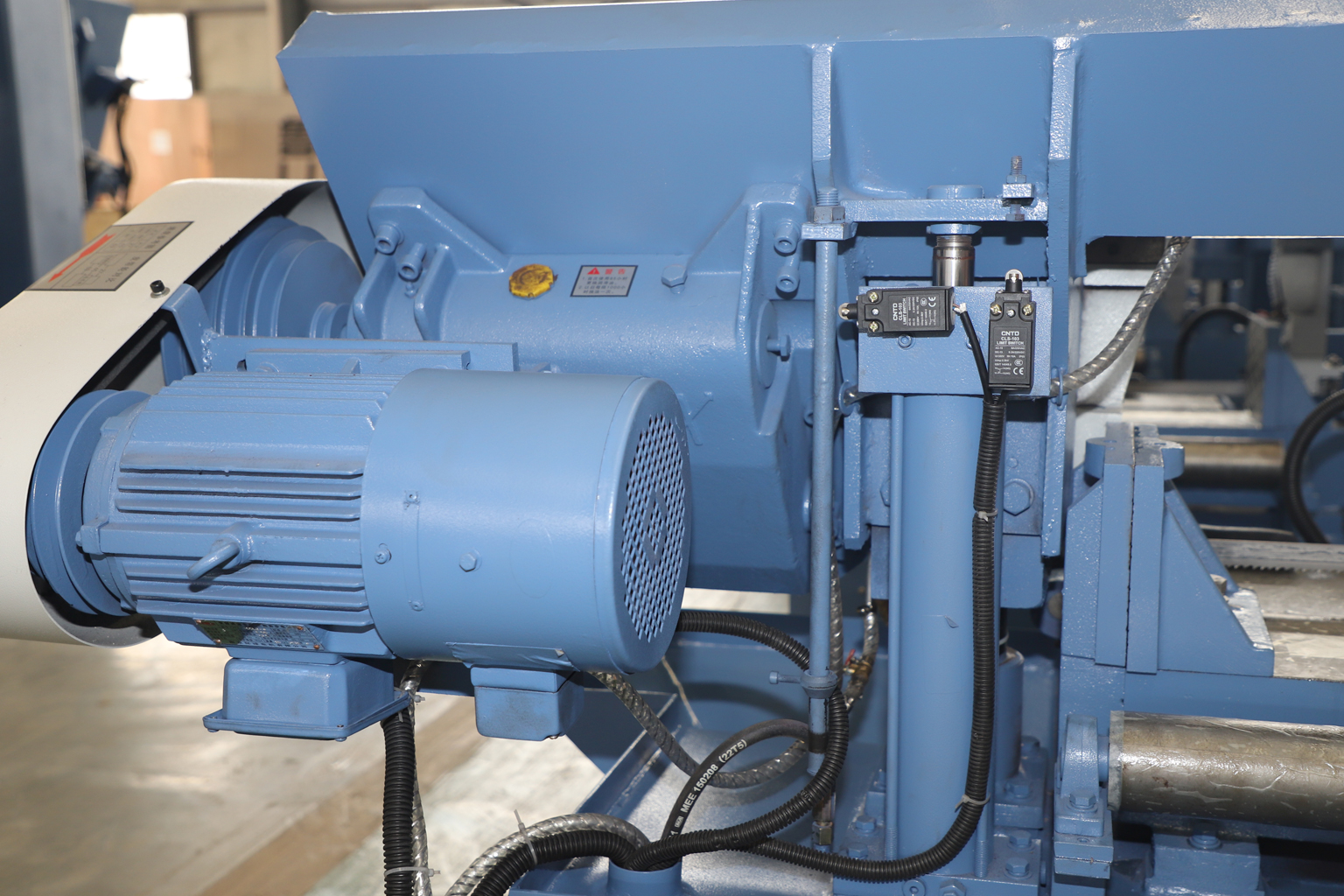

High power and strong power; High power turbine reducer; Low noise, long life.

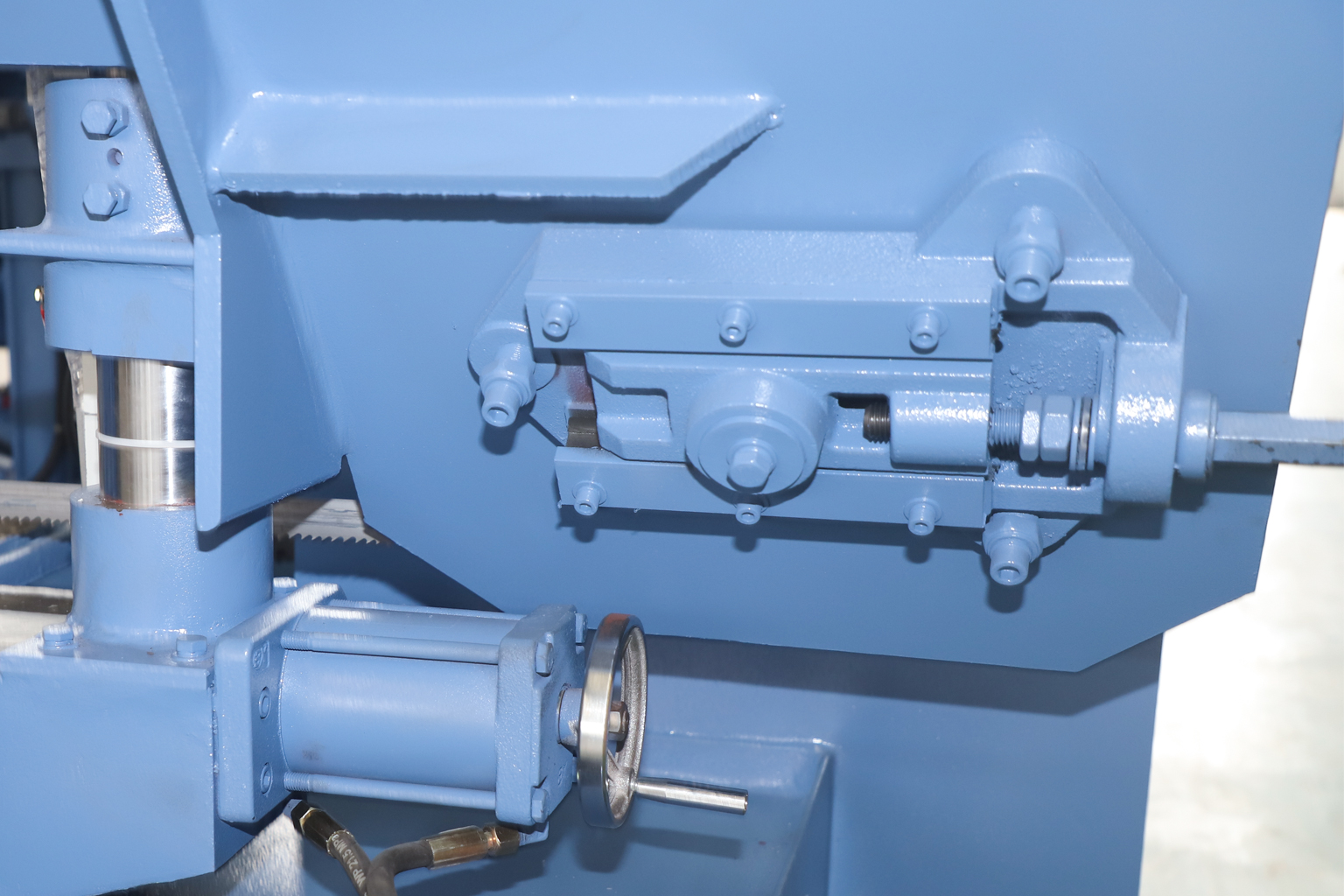

Enhanced stability, reduced friction, improved cutting accuracy.
The provided content specifically describes the GB4230 for steel fabrication and machinery plants, particularly applications involving:
It is designed for continuous heavy-duty metal sawing and industrial blanking applications.
For steel fabrication and machinery plants handling thick solid bars or forgings, blade jamming and motor stalling can disrupt production. GOLDCNC addresses this by integrating an industry-brand high-efficiency motor with a high-power worm gear reducer. This powertrain amplifies cutting torque and, together with the rigid gantry double-column structure, supports continuous high-torque downward feed.
