01
Gantry Double Column Structure
Good guidance and uniform force;High rigidity, high strength.

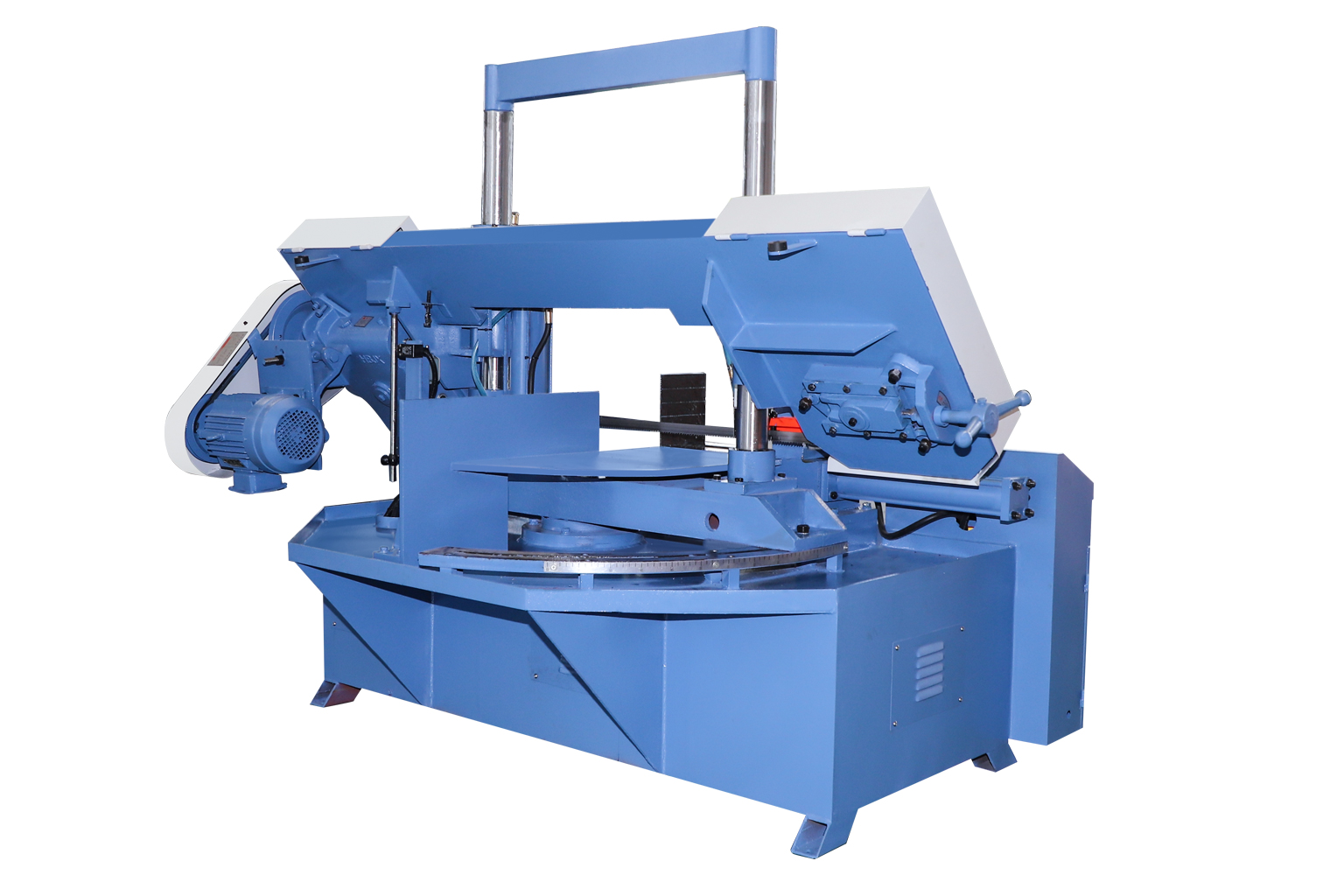

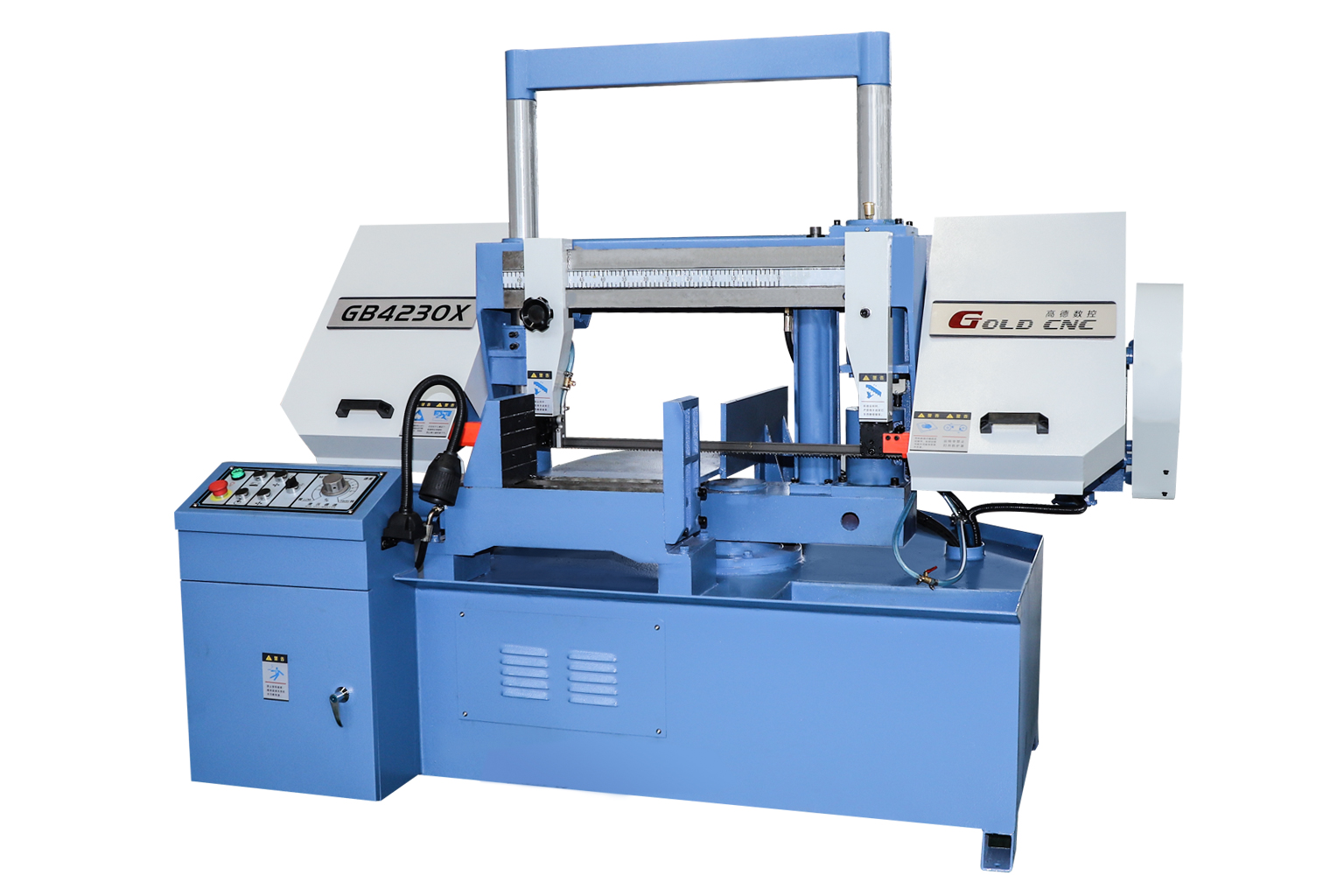

GB4230X is a semi-automatic angle band saw designed for precise 0–45°/60° cutting of metal bars, pipes, profiles and structural sections up to 300×300 mm.
1.GB4230X allows the cutting angle to be adjusted from 0° to 45°, enabling both straight and angled cuts for different fabrication requirements.
2.The semi-automatic design reduces repetitive machine operation while allowing the operator to control material positioning and loading according to different workpieces.
3.GB4230X can process bars, pipes, H-sections, V-sections, plates and other shaped materials within its cutting range.
4.For structural steel fabrication requiring angled joints, GB4230X can cut profiles at adjustable angles before welding and assembly.
Good guidance and uniform force;High rigidity, high strength.
Manual operation of saw frame rotation;Accurate reading on the dial.
Button completed sawing process ;Easy to operate and efficient.
National standard pure copper motor;Low noise, long life.
The distributor should confirm the material type, maximum workpiece dimensions, cross-sectional shape, required cutting length, daily or monthly cutting volume and desired automation level.
| Specifications | GB4230X | GB4235X |
| Max.cutting（mm） | 0°●300■300W×300H | 0°●350■350W×350H |
| 45°●240■240W×240H | 45°●270■270W×270H | |
| 60°●80■80W×80H | 60°●120■120W×120H | |
| Saw blade speed（m/min） | 27/45/69 | 27/45/69 |
| Saw blade size（mm） | 27×0.9×3850 | 34×1.1×4515 |
| Working clamping mode | Hydraulic vice | |
| Main transmission structure | Worm gear transmission | |
| Band saw blade tensioning method | Manual | |
| Cleaning | Wire brush & flood coolant | |
| Main motor（kw） | 3 | 4 |
| Hydraulic motor（kw） | 0.55 | 0.55 |
| Cooling motor power（kw） | 0.04 | 0.04 |
| Dimensions(mm) | 1900×1300×1500 | 2000×1300×1700 |
