01

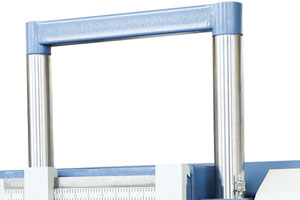

Gantry Double Column Structure
Good guidance and uniform force;High rigidity, high strength.

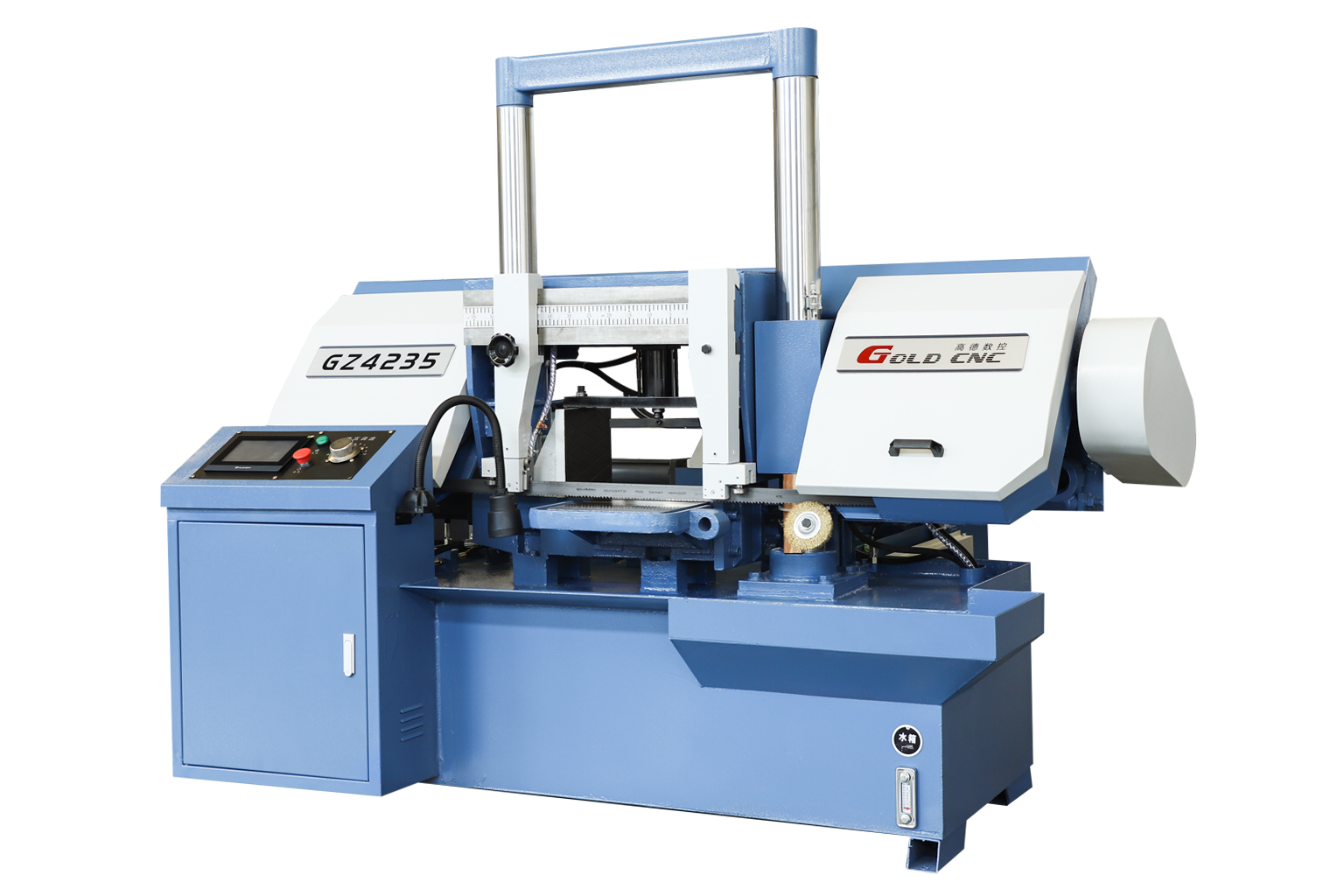

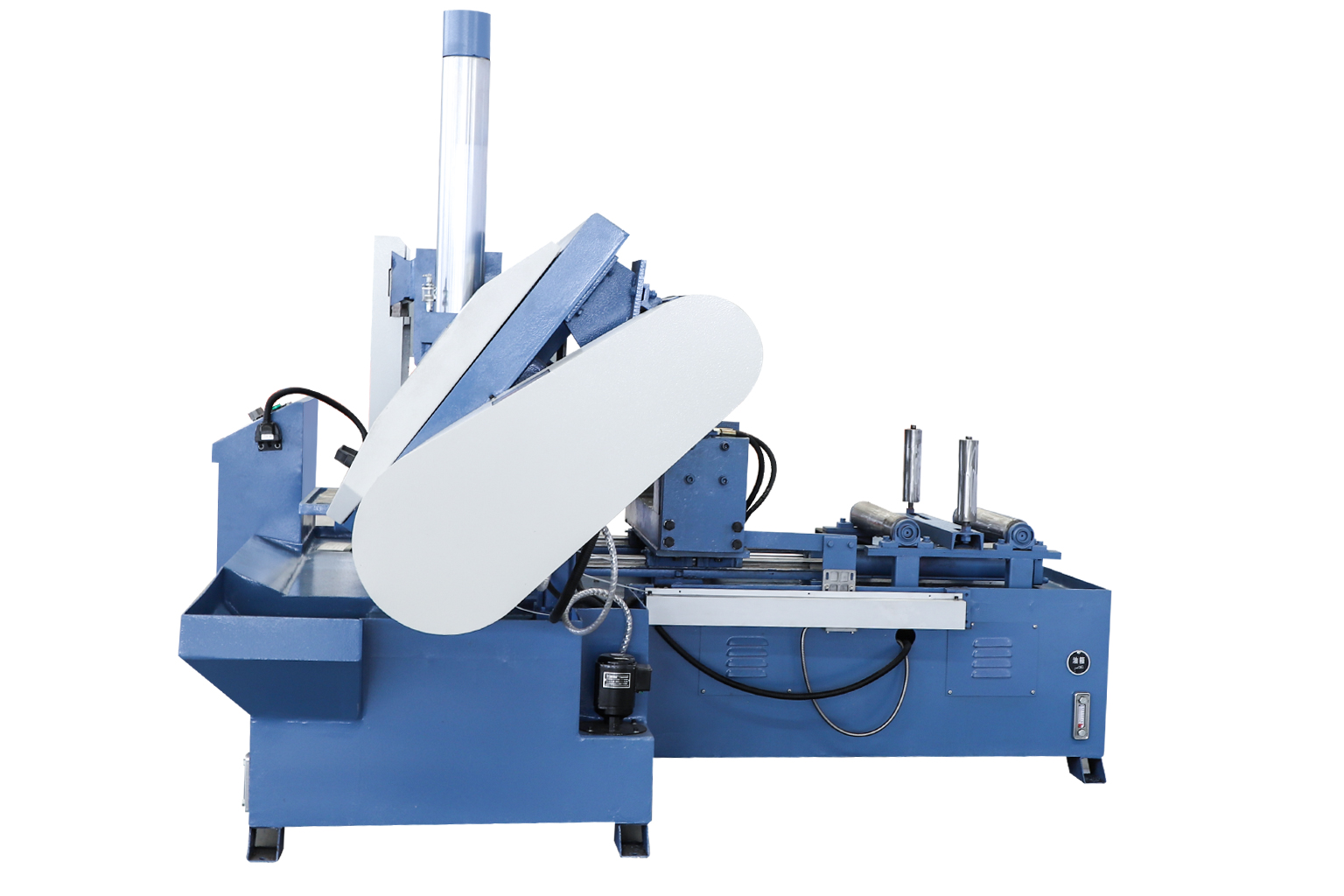

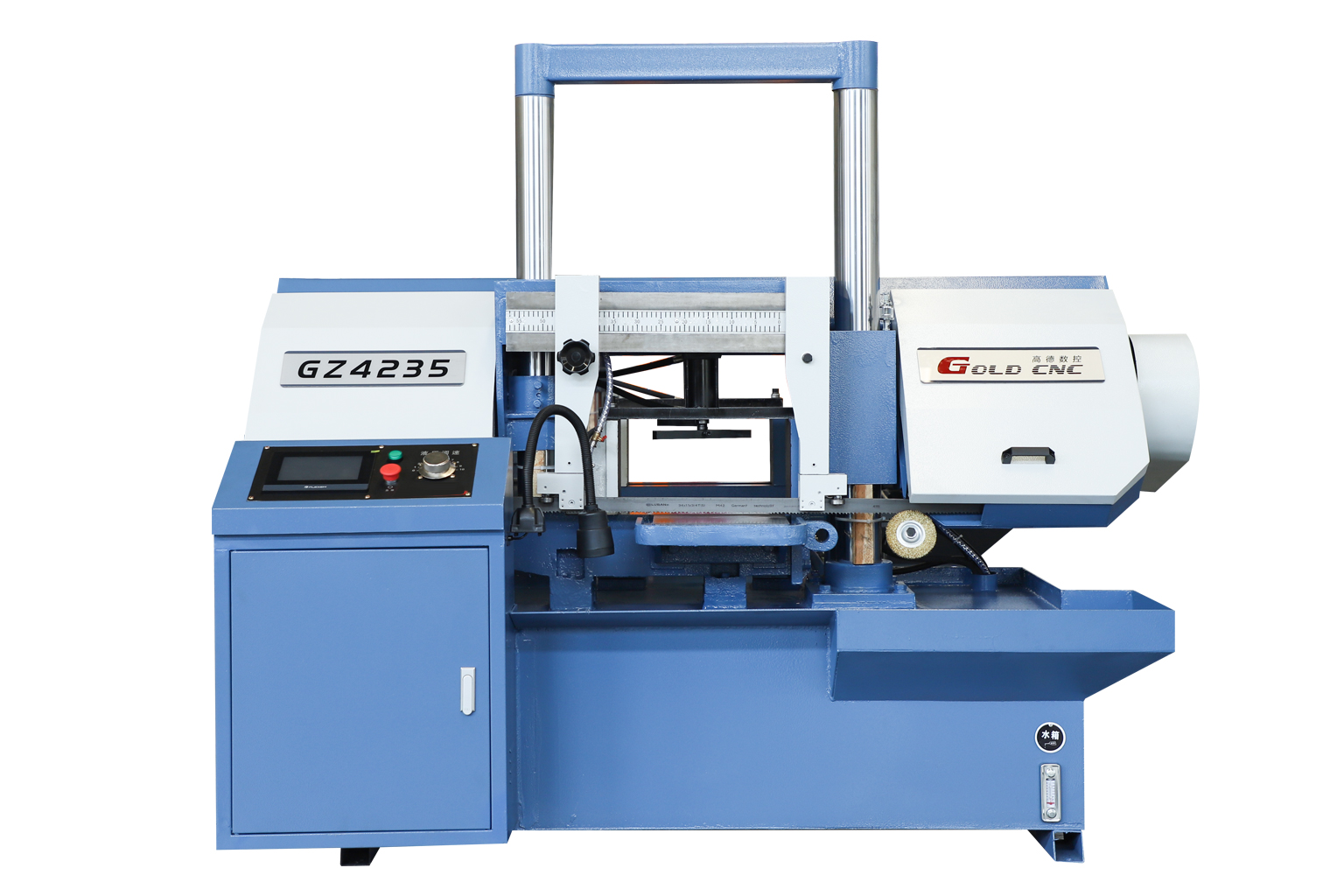

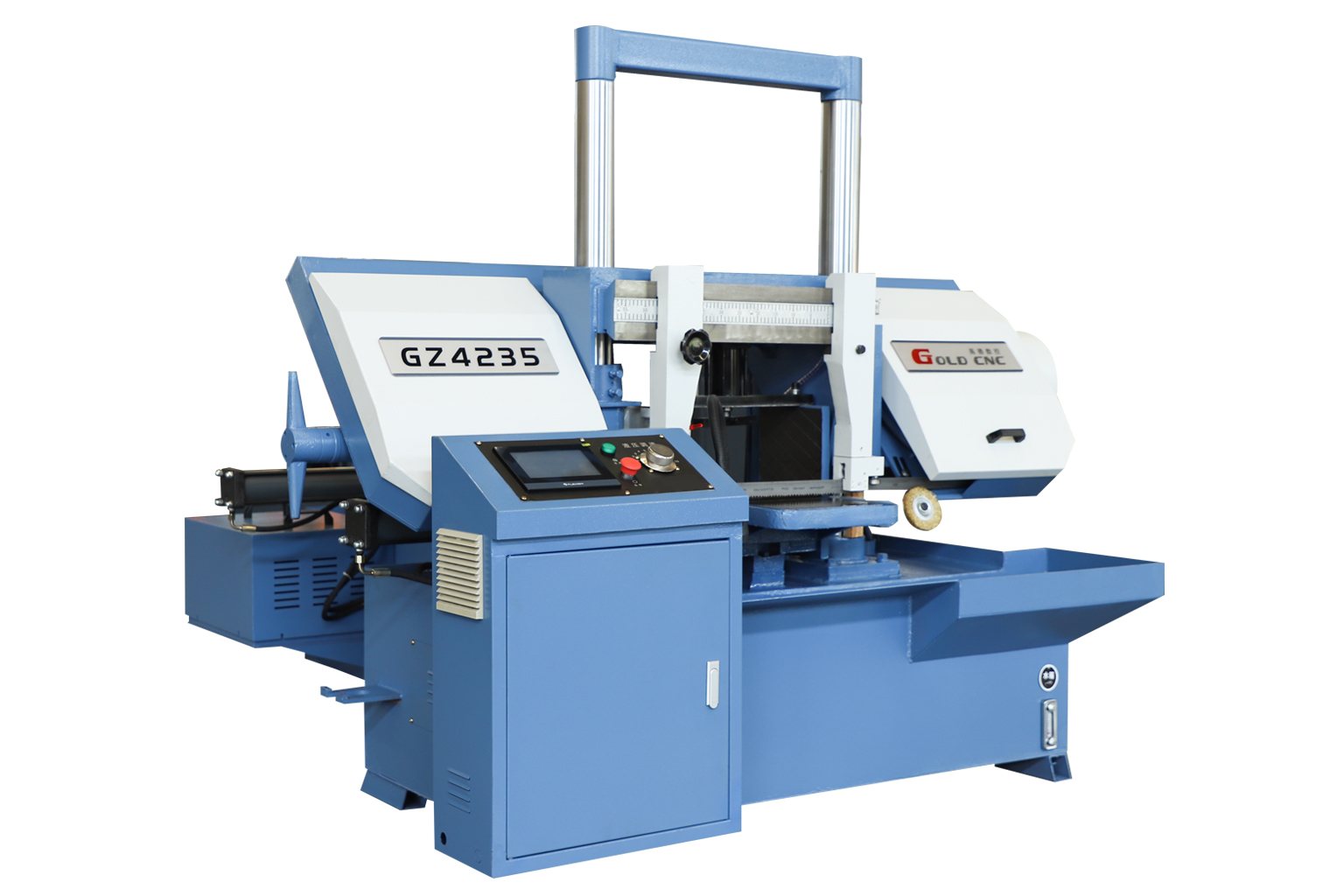

The GZ4235 Metal Band Saw is a fully automatic machine designed for continuous stock preparation and batch production, combining automatic measurement, feeding, sawing and standby operation to reduce manual intervention, with a 350×350 mm cutting capacity for bars, pipes, H-sections, V-sections and other metal profiles.
1.GZ4235 integrates measurement, feeding, sawing and standby into an automatic working cycle, making it suitable for repetitive cutting lengths and batch material preparation.
2.For repeated cutting of the same material, automatic feeding reduces the need for operators to repeatedly position and push stock, allowing them to focus on loading, monitoring and production management.
3.The double-column structure guides the saw frame through two guide columns, providing stable movement for repeated cutting in continuous production environments.
Good guidance and uniform force;High rigidity, high strength.

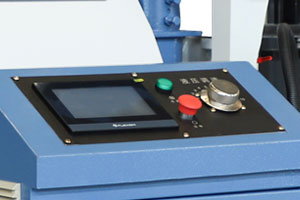

10x999 sets of cutting data can be preset;One click opening, intelligent sawing.

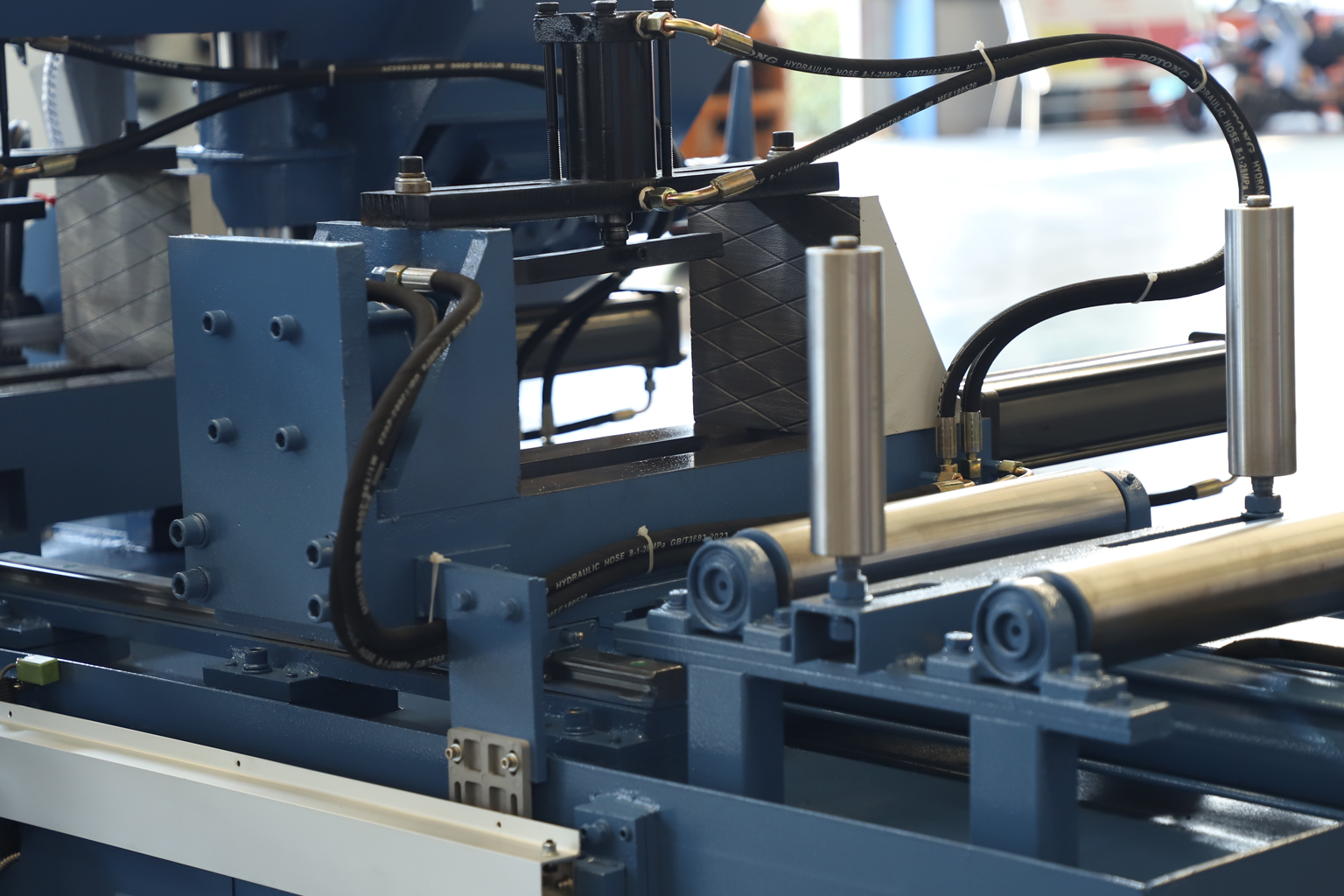

Accurately detects feeding length size;Detection range 500mm.

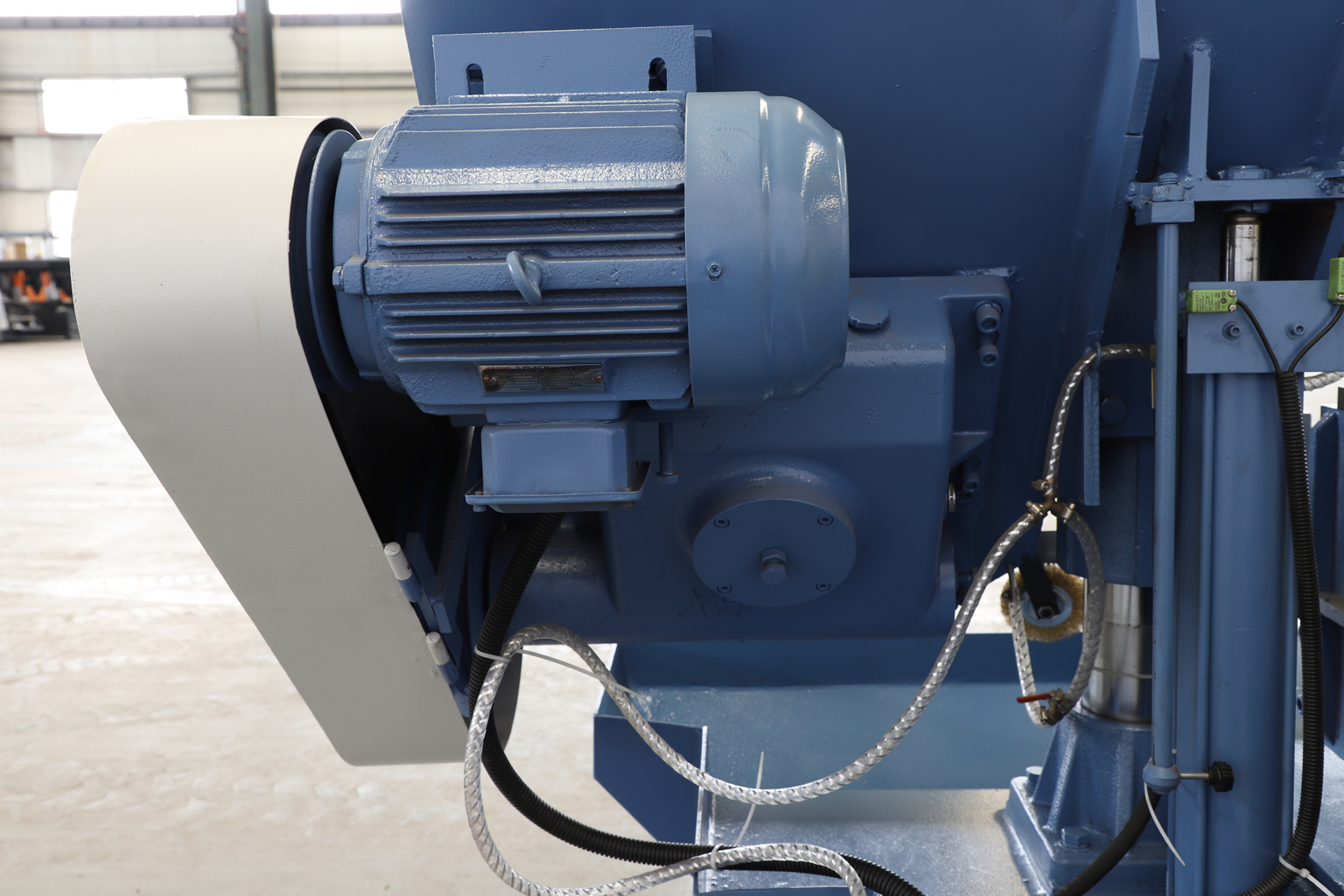

High power and strong power
GZ4235 is particularly suitable for repetitive stock preparation, such as batch cutting of round bars, pipes, profiles and other standard materials. When production repeatedly requires feeding, positioning and cutting, its automatic cycle helps reduce manual intervention.
| Specifications | GZ4235 |
| Max.cutting（mm） | ●350■350W×350H |
| Saw blade speed（m/min） | 27、45、69 |
| Saw blade size（mm） | 34×1.1×4115 |
| Main motor（kw） | 4 |
| Hydraulic motor（kw） | 0.75 |
| Cooling motor power（kw） | 0.04 |
| Single feed length（mm） | 500 |
| Main transmission structure | Worm gear transmission |
| Band saw blade tensioning method | Manual |
| Working clamping mode | Hydraulic vice |
| Cleaning | Wire brush & flood coolant |
| Dimensions(mm) | 2300*2000*1700 |
