01
Gantry Double Column Structure
Stable lifting and longer life;High rigidity, high strength.

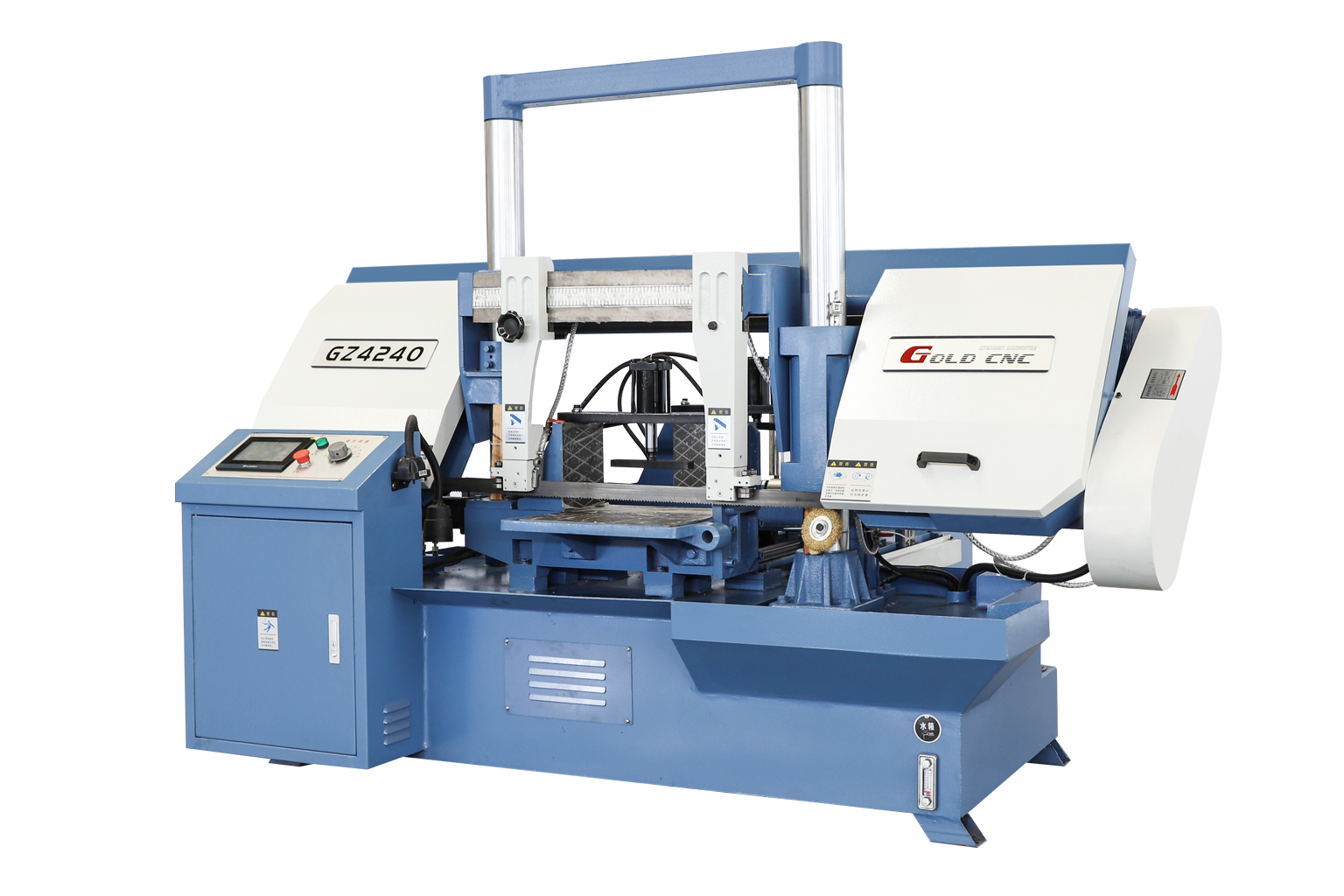

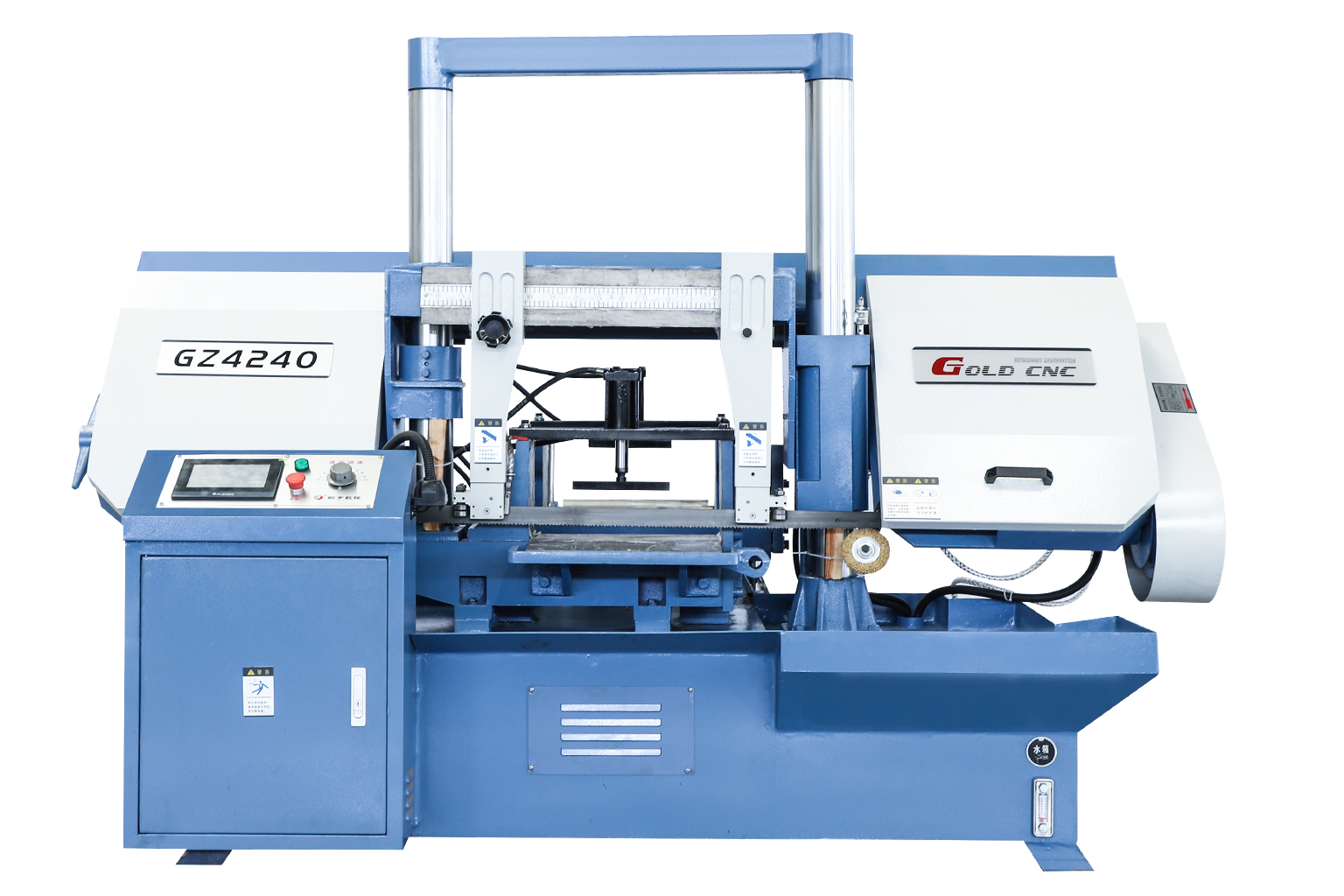

GZ4240 Automatic Band Saw delivers automated, repeatable cutting for workpieces up to 400 mm, combining PLC control, hydraulic clamping and a rigid double-column structure for stable batch production.
1.The PLC control system coordinates feeding, cutting and machine standby, reducing repetitive manual operations and making production easier to standardize.
2.The double-column design supports the saw frame during vertical movement, helping maintain structural stability and cutting accuracy during continuous operation.
3.Automatic feeding helps reduce operator intervention when processing repeated workpieces, making the machine suitable for batch cutting operations.
Stable lifting and longer life;High rigidity, high strength.
PLC control system,Intelligent operation control,saves labor.
Hydraulic electric feeding repeatable feeding;Greatly liberating manpower.
National standard pure copper motor;Low noise, long life.
The PLC system manages the automatic cutting cycle, including material measurement, feeding, sawing and standby operations, helping reduce repetitive manual intervention.
| Specifications | GZ4240 |
| Max.cutting（mm） | ●400■400W×400H |
| Saw blade speed（m/min） | 27、45、69 |
| Saw blade size（mm） | 41×1.3×5000 |
| Main motor（kw） | 4 |
| Hydraulic motor（kw） 1.1 | 1.1 |
| Single feed length（mm） | 500 |
| Main transmission structure | Worm gear transmission |
| Working clamping mode | Hydraulic vice |
| Band saw blade tensioning method | Manual |
| Cleaning | Wire brush & flood coolant |
| Dimensions (mm) | 2400×2380×1800 |
