01
Gantry Double Column Structure
Good guidance and uniform force;High rigidity, high strength.

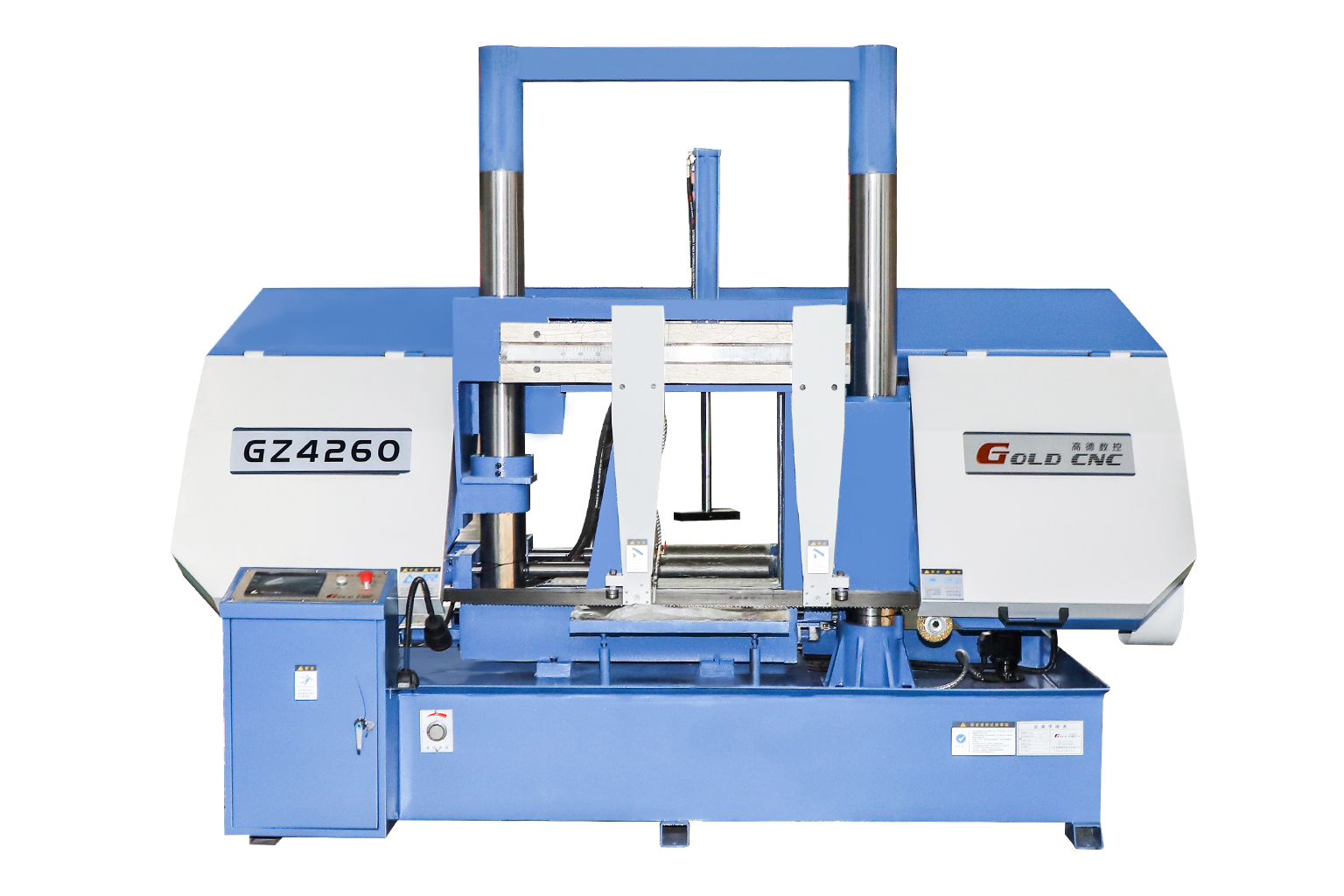

GZ4260 Automatic Heavy-Duty Band Saw combines a 600×600 mm cutting capacity, rigid double-column construction and fully automatic feeding and sawing for continuous processing of large metal stock.
1.GZ4260 provides a maximum cutting range of 600×600 mm, allowing manufacturers to process larger bars, tubes, plates and structural sections than smaller automatic band saw models.
2.The GZ4260 offers saw blade speeds of 27, 45 and 69 m/min, allowing the cutting setup to be adjusted according to material and production requirements.
3.Large-diameter bars can be automatically cut to length before entering heavy-duty lathes for turning, threading, grooving and other machining operations.
Good guidance and uniform force;High rigidity, high strength.
PLC control system;One click opening, intelligent sawing.
Repeat multiple feedings avaliable;Simple and reliable operation.
High power and strong power;Keep a long-term cutting.
It gives the customer more flexibility when handling larger stock sizes and reduces the need to divide oversized materials into smaller sections before sawing.
| Specifications | GZ4260 |
| Max.cutting（mm） | ●600■600W×600H |
| Saw blade speed（m/min） | 27、45、69 |
| Saw blade size（mm） | 54×1.6×6640 |
| Main motor（kw） | 5.5 |
| Hydraulic motor（kw） 1.1 | 1.5 |
| Single feed length（mm） | 500 |
| Main transmission structure | Worm gear transmission |
| Working clamping mode | Hydraulic vice |
| Band saw blade tensioning method | Manual |
| Cleaning | Wire brush & flood coolant |
| Dimensions (mm) | 3100×2500×2100 |
