Ballscrew
The high-precision ballscrew ensures smooth slide movement, minimal backlash, and high positioning accuracy during the machining process.

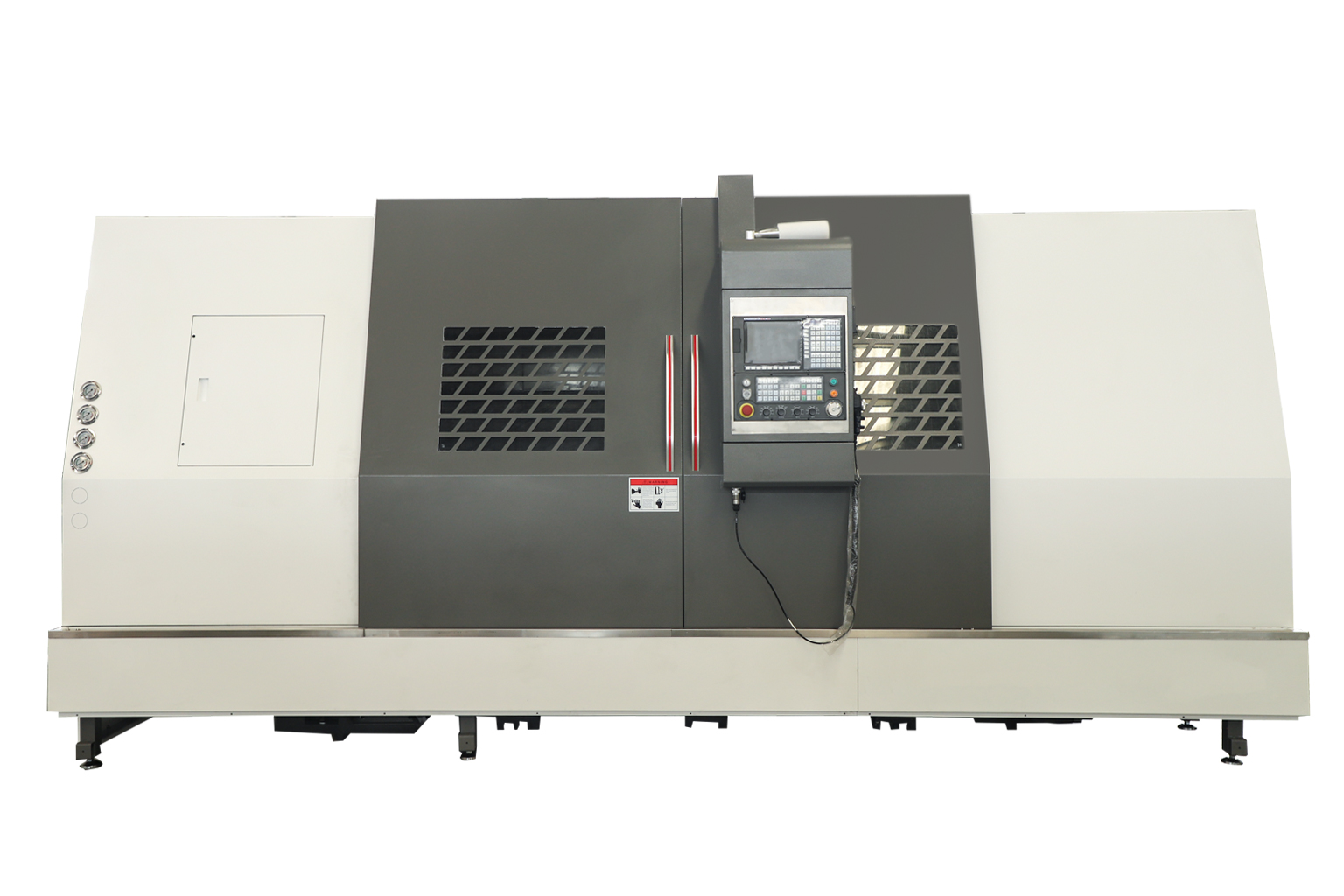

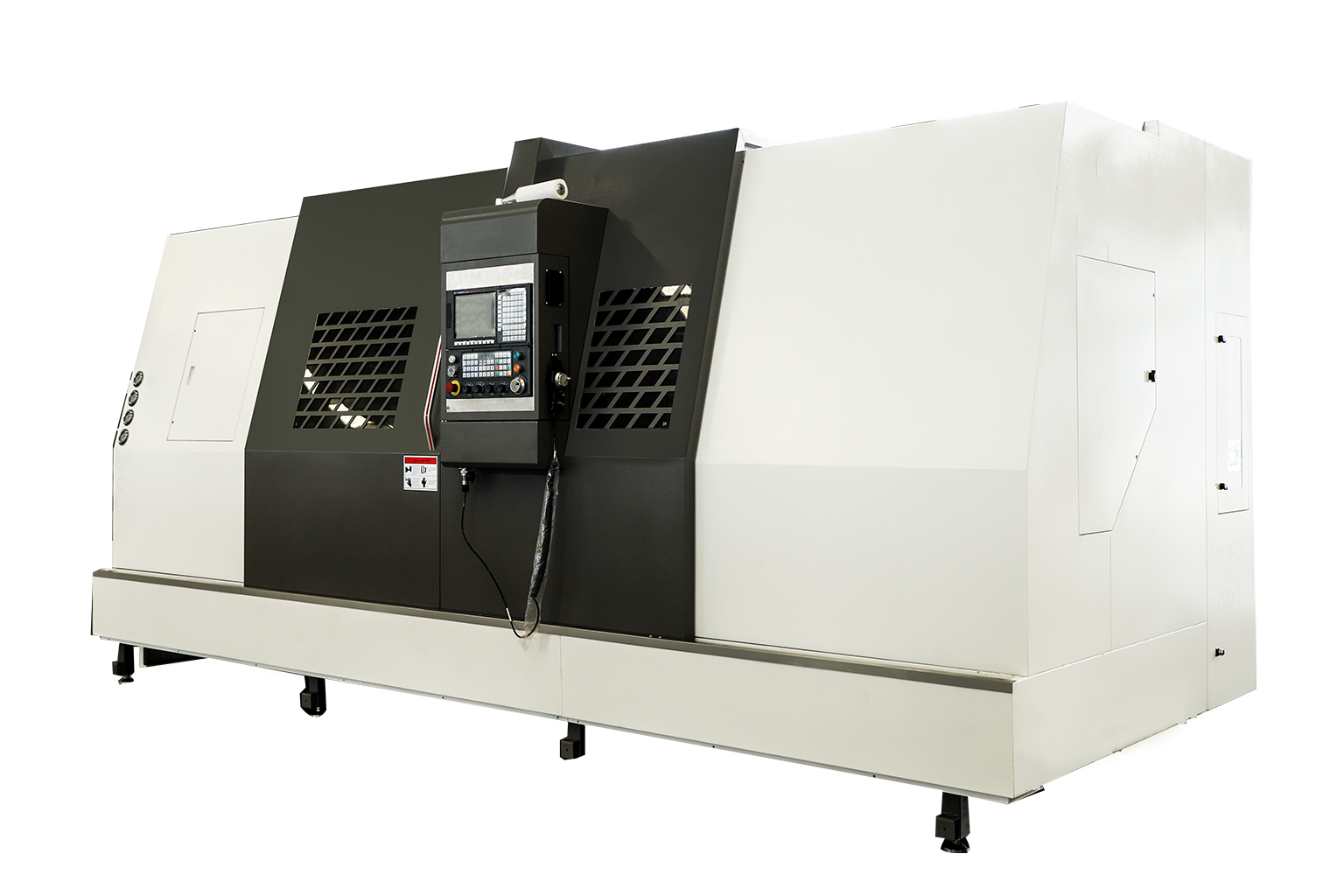

The TCK Series Slant-Bed CNC Lathe is a high-performance metalworking machine designed for high-precision and efficient machining of shafts, discs, sleeves, flanges and other rotational components.
The machine features a high-rigidity, one-piece cast slant bed structure that provides excellent stability and vibration resistance during heavy-duty cutting. The slant bed design enhances overall machine rigidity while facilitating efficient chip evacuation, making the machine suitable for continuous machining and batch production.

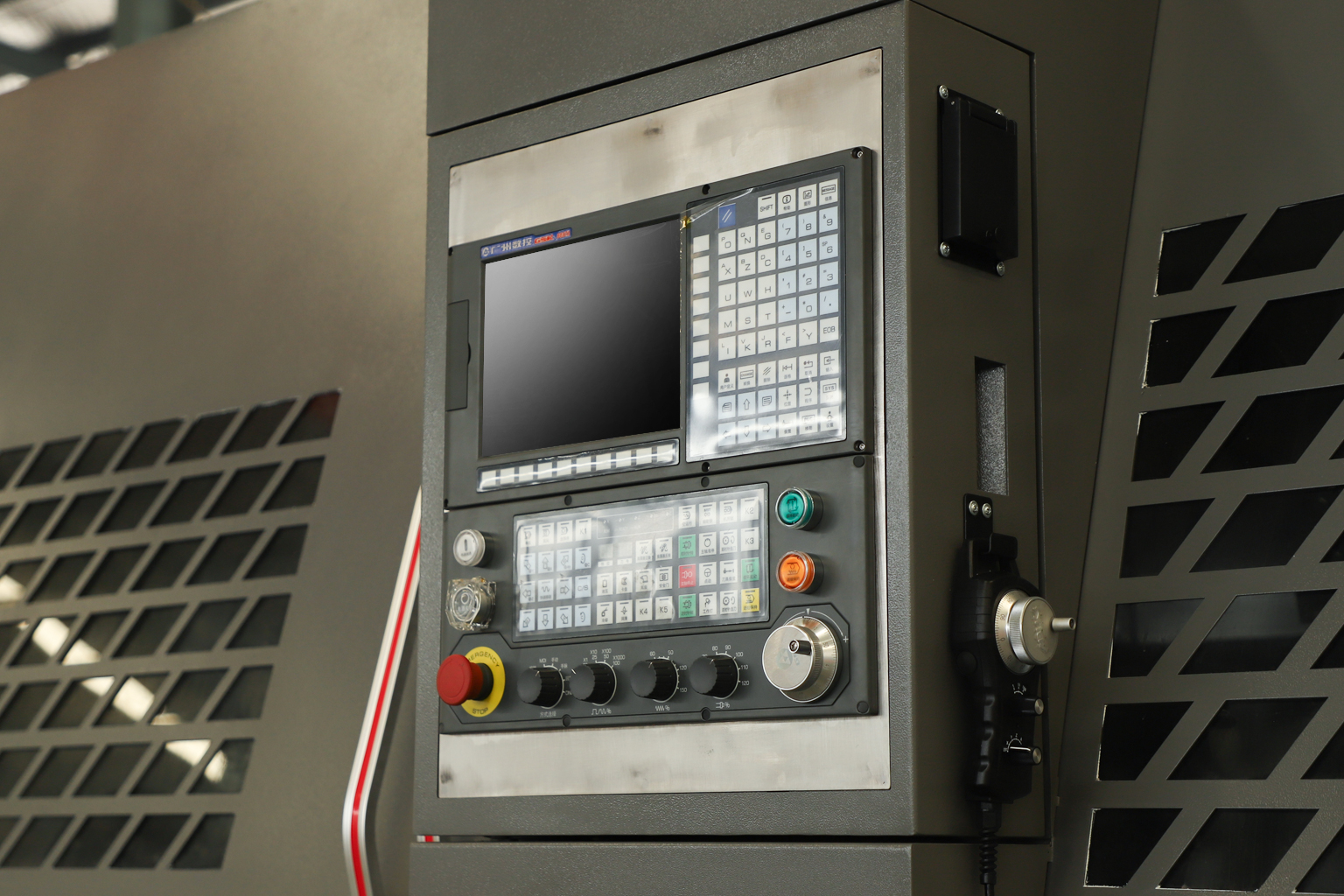

The TCK Series is equipped with precision roller linear guides, a high-precision spindle system and CNC control for stable tool movement, accurate positioning and efficient metal cutting.
Depending on production requirements, the machine can also be configured with a hydraulic chuck, power turret, automatic bar feeding system and driven tools.
| Category | Specification | TCK500 |
|---|---|---|
| Bed | Maximum upper rotation diameter of the bed surface (mm) | Φ460 |
| Maximum machining diameter (mm) | Φ220 | |
| Maximum processing diameter on the tool post (mm) | Φ400/500 | |
| Maximum processing length (mm) | 450 | |
| Distance between two peaks (mm) | 240 | |
| Spindle | Spindle | A2-6 |
| Chuck (mm) | Φ200 | |
| Recommended spindle motor power (kW) | 5.5 | |
| Spindle speed (rpm) | 20–3500 | |
| Spindle hole diameter (mm) | Φ66 | |
| Bar diameter (mm) | Φ72 | |
| Feed | X/Z axis screw specifications | Φ32×12 / 32×12 |
| X-axis limit travel (mm) | 260 | |
| X/Z axis motor torque (N·m) | 8/10 | |
| X/Z axis rail specifications | Φ32×12 / Φ32×12 | |
| Z-axis limit stroke (mm) | 400 | |
| Z-axis motor torque (N·m) | 21 | |
| X, Z axis connection mode | Direct | |
| Turret | Type | 8-tools |
| Size (mm) | 25×25 / Φ32 | |
| Tailstock | Socket diameter (mm) | Φ65 |
| Taper | Morse 4# | |
| Dimensions | L × W × H (mm) | 2950 × 1670 × 1660 |
| Weight | N.W. / G.W. (kg) | 3500 |

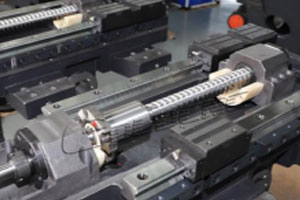

The high-precision ballscrew ensures smooth slide movement, minimal backlash, and high positioning accuracy during the machining process.

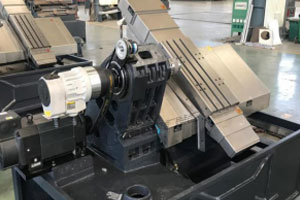

The one-piece cast bed features high rigidity and excellent vibration-damping properties, ensuring stable workpiece machining even under heavy loads.

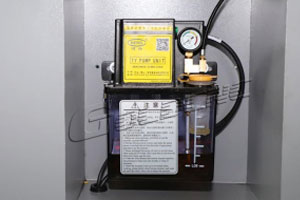

This automatic lubrication system ensures the uniform delivery of lubricant to the guide rails and drive mechanisms, thereby reducing wear and extending the equipment's service life.

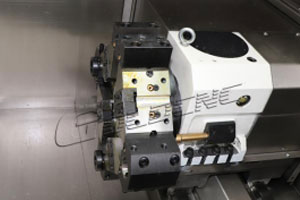

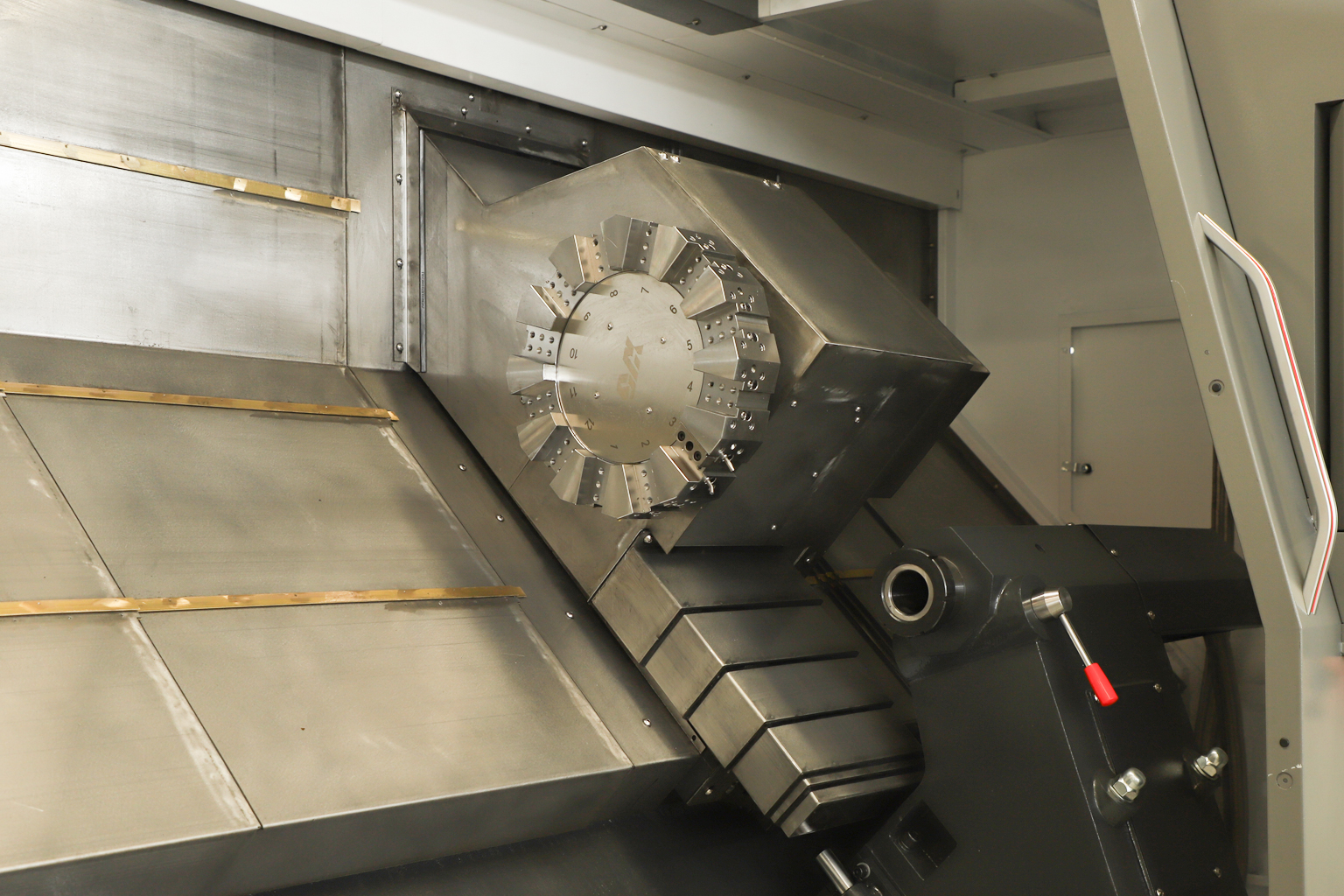

The hydraulic servo-driven turret ensures rapid tool changing, high positioning accuracy, and reliable clamping during the machining process.
The TCK Slant-Bed CNC Lathe is designed for machining:
Its slant-bed structure and efficient chip evacuation make it suitable for continuous machining and batch production.
A TCK slant bed CNC lathe is a CNC turning machine featuring a slant bed structure. It is designed for high-precision and efficient machining of shafts, discs, sleeves, flanges and other rotational metal components.
