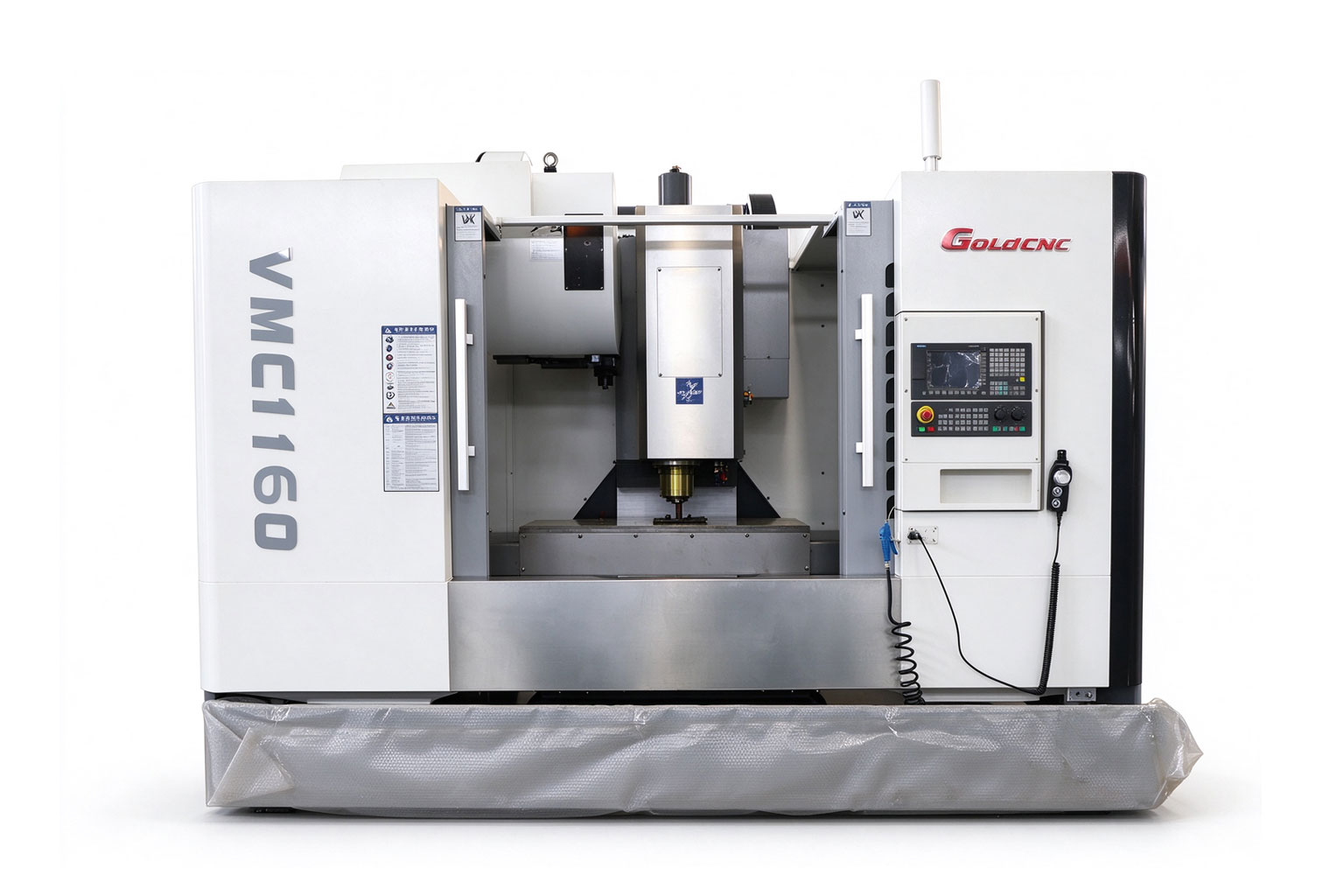

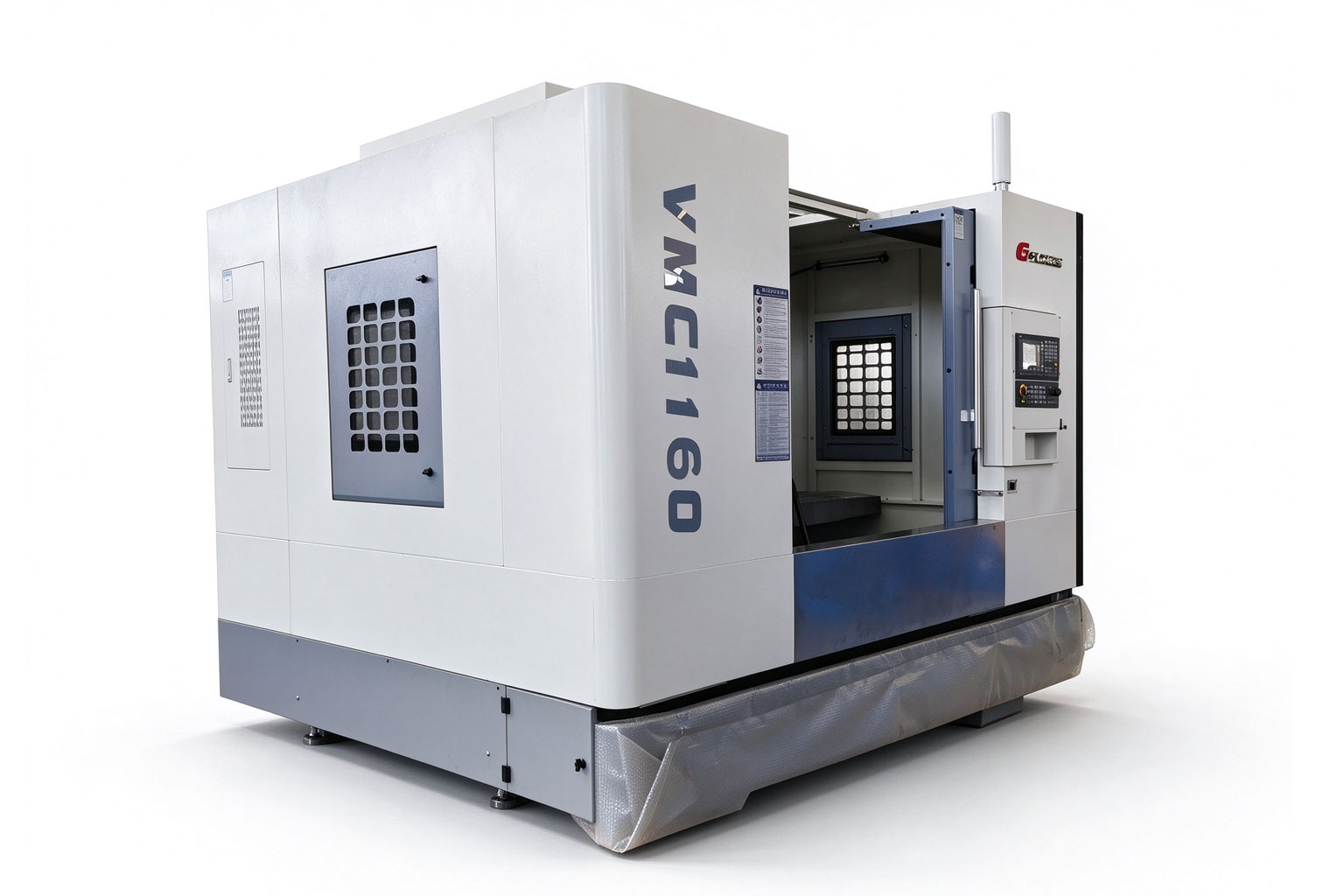

The VMC1160 CNC Machining Center is designed for efficient industrial part machining, combining a practical machining envelope and worktable capacity to perform milling, drilling, tapping, boring, and other operations in a single vertical machining center.
1.The VMC1160 CNC Machining Center provides a practical X/Y/Z machining envelope for medium-sized structural parts, mechanical components, mold components, and plate-type workpieces, while allowing space for fixturing and tool access.
2.For larger workpieces, worktable size affects not only whether the part can be mounted, but also fixture layout, positioning, and tool accessibility. The VMC1160 CNC Machining Center is suited to industrial applications requiring a practical fixturing area.
3.When a part must move repeatedly between milling, drilling, and tapping machines, additional handling, waiting time, and repositioning errors can occur. The VMC1160 CNC Machining Center can consolidate more related operations into one machining process.
4.Different factories have different requirements for the VMC1160 CNC Machining Center. Spindle speed, tool magazine capacity, CNC control, coolant system, chip removal, and fourth-axis options should be selected according to actual parts and production requirements rather than simply choosing the most features.
Offers a range of CNC system options, including FANUC, GSK, Siemens, Mitsubishi, and others. The operating interface supports multiple languages, such as Chinese, English, Spanish, and Russian.
High rigidity—stable, vibration-free operation during heavy-duty cutting. High speed—suitable for both roughing and finishing. High precision—helps reduce the scrap rate.
The use of high-precision linear guideways and ball screws from HIWIN (Taiwan) significantly enhances positioning accuracy. The system ensures exceptional motion smoothness—free from jerking or stick-slip—and supports rapid traverse speeds of up to 24, 36, or 48 m/min.
The equipment features an all-metal enclosure. With a sheet metal thickness of 2 mm—far exceeding market standards—it ensures maximum safety for operators during operation.
The VMC1160 CNC Machining Center is suitable for mechanical components, structural parts, mold components, flanges, brackets, pump and valve parts, and plate-type workpieces. It is particularly useful for parts requiring milling, drilling, tapping, or boring operations.
| Specification | Unit | VMC1160 |
| X axis travel | mm | 1100 |
| Y axis travel | mm | 600 |
| Z axis travel | mm | 600 |
| Distance from spindle center to column rail | mm | 673 |
| Distance from spindle end to worktable | mm | 120-720 |
| Worktable | ||
| Size | mm | 1200×600 |
| T-slot(Qty.-pitch-width) | mm | 5-18*100 |
| Maximum loading capacity | kg | 800 |
| Spindle | ||
| Speed | rpm | |
| Inner taper | mm | BT40-150 |
| Motor | KW | 11 |
| Motor connecting method | ||
| Feeding | ||
| XYZ fast moving | m/min | 24/24/24 (Optional:36,48) |
| Cutting feeding | m/min | 1-10 |
| XYZ Motor connection | Direct | |
| XYZ Guiderail | Linear guideway | |
| Tool Magazine | ||
| Type | Disc | |
| Quantity of tools | 24 | |
| Max. tool weight | kg | 8 |
| Max. tool length | mm | 300 |
| Max. tool diameter | mm | 78（adjacent）/ 120（separate） |
| Accuracy | ||
| XYZ positioning accuracy | mm | ±0.005/300 |
| XYZ repeated positioning accuracy | mm | ±0.003 |
1.Automotive Parts:Automotive brackets with multiple mounting holes, locating surfaces, and slots can be machined through integrated milling, drilling, and tapping operations.
2.Mold Manufacturing:Suitable for surface, hole, slot, and contour machining of small and medium-sized mold components while reducing repeated setups.
3.General Mechanical Parts:Different CNC programs allow quick changeovers between various mechanical components, making the machine suitable for high-mix and repeat production.
4.Pump & Valve Components:Suitable for components combining hole patterns, threaded holes, mounting surfaces, and slots, helping reduce errors caused by repeated positioning.
5.Jigs & Fixtures:Fixture plates with multiple locating and mounting holes can be produced with CNC-controlled hole positioning and machining sequences for consistent repeat production.
6.Electrical & Motor Components:Suitable for parts combining surfaces, holes, and threaded features, with multiple operations completed from a common setup.
7.Hardware & Custom Components:Suitable for job shops handling high-mix, low-volume orders as well as repeat batch production.
