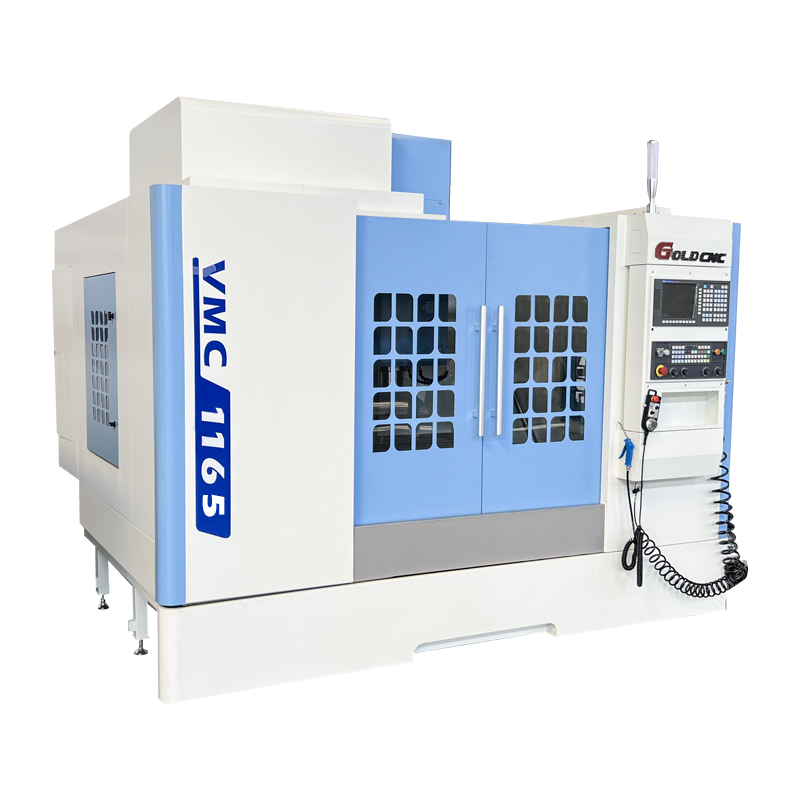

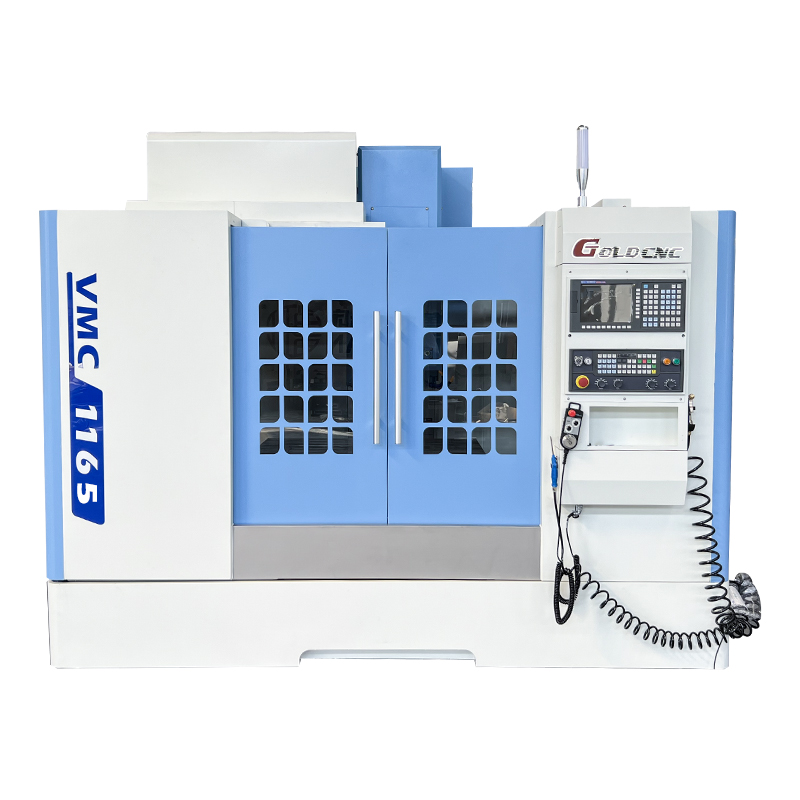

The VMC1165 CNC Milling Machine is an industrial vertical machining solution that balances a larger working range, structural rigidity and multi-process capability for automotive parts, mechanical components, molds, pump and valve components, fixtures and other production applications.
1.Industrial production often requires both material removal and finishing rather than high-speed finishing alone. The VMC1165 is suited to operations including face milling, slotting, drilling, tapping and finishing.
2.For steel, cast iron and other workpieces requiring higher cutting loads, machine rigidity directly affects machining stability. The VMC1165 is suitable for continuous production where consistent cutting and dimensional control are required.
3.With CNC programming and automatic tool changing, milling, drilling, tapping, reaming and chamfering can be combined on one machine, reducing workpiece transfers between different machines.
4.For parts requiring indexing, side machining or multi-face operations, configurations such as a fourth axis can be considered to extend the machine beyond conventional three-axis machining.

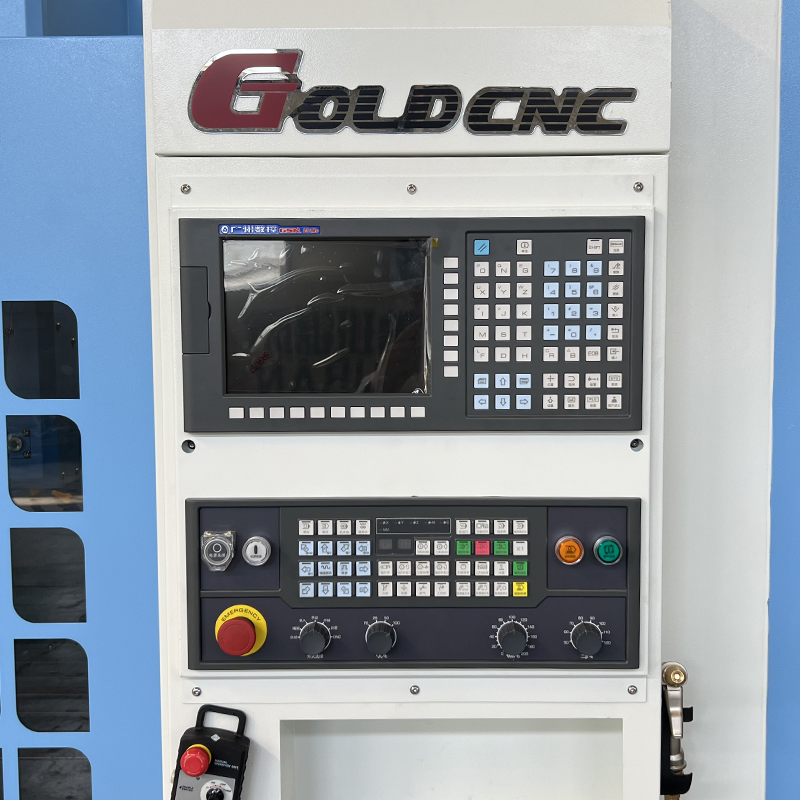

Offers a range of CNC system options, including FANUC, GSK, Siemens, Mitsubishi, and others. The operating interface supports multiple languages, such as Chinese, English, Spanish, and Russian.
High rigidity — stable, vibration-free operation during heavy-duty cutting. High speed — suitable for both roughing and finishing. High precision — helps reduce the scrap rate.
The equipment features an all-metal enclosure. With a sheet metal thickness of 2 mm, far exceeding market standards, it ensures maximum safety for operators during operation.
The use of high-precision HIWIN (Taiwan) linear guideways and ball screws significantly enhances positioning accuracy. The system ensures exceptional motion smoothness, free from jerking or stick-slip, and supports rapid traverse speeds of up to 24, 36, or 48 m/min.
1.Mechanical Component Machining
Suitable for brackets, mounting bases, connectors, supports and other mechanical components requiring milling, drilling and tapping.
2.Automotive Parts Machining
Suitable for aluminum and steel automotive components, brackets, connectors and other repeat-production parts.
3.Pump & Valve Component Machining
Suitable for pump and valve components, mounting surfaces, connection holes and flange-type parts requiring multiple machining operations.
4.Mold Component Machining
Suitable for mold bases, inserts, plates and other mold components requiring multi-process milling.
5.Fixture & Tooling Production
Suitable for production fixtures, positioning plates, mounting plates and customized tooling where repeatable positioning is important.
The VMC1165 CNC Milling Machine is suitable for larger mechanical components, plates, brackets, mold components and structural parts. The actual workpiece size should be evaluated based on table dimensions, X/Y/Z travel, workpiece weight, tool length and fixture space rather than the model number alone.
| Specification | Unit | VMC1165 |
| X axis travel | mm | 1100 |
| Y axis travel | mm | 650 |
| Z axis travel | mm | 600 |
| Distance from spindle center to column rail | mm | 673 |
| Distance from spindle end to worktable | mm | 120-720 |
| Worktable | ||
| Size | mm | 1200×600 |
| T-slot(Qty.-pitch-width) | mm | 5-18*100 |
| Maximum loading capacity | kg | 800 |

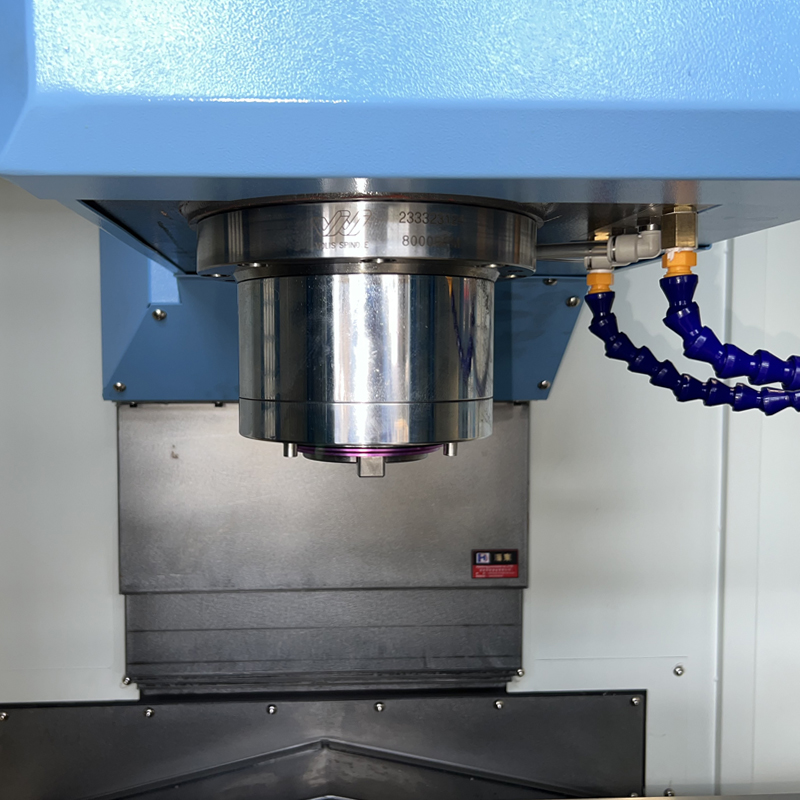

| Spindle | ||
| Speed | rpm | 8000 （Optional：10000/12000） |
| Inner taper | mm | BT40-150 |
| Motor | KW | 11 |
| Motor connecting method | Belt type(Optional：Direct) | |
| Feeding | ||
| XYZ fast moving | m/min | 24/24/24 (Optional:36,48) |
| Cutting feeding | m/min | 1-10 |
| XYZ Motor connection | Direct | |
| XYZ Guiderail | Linear guideway | |
| Tool Magazine | ||
| Type | Disc | |
| Quantity of tools | 24 | |
| Max. tool weight | kg | 8 |
| Max. tool length | mm | 300 |
| Max. tool diameter | mm | 78（adjacent）/ 120（separate） |
| Accuracy | ||
| XYZ positioning accuracy | mm | ±0.005/300 |
| XYZ repeated positioning accuracy | mm | ±0.003 |
