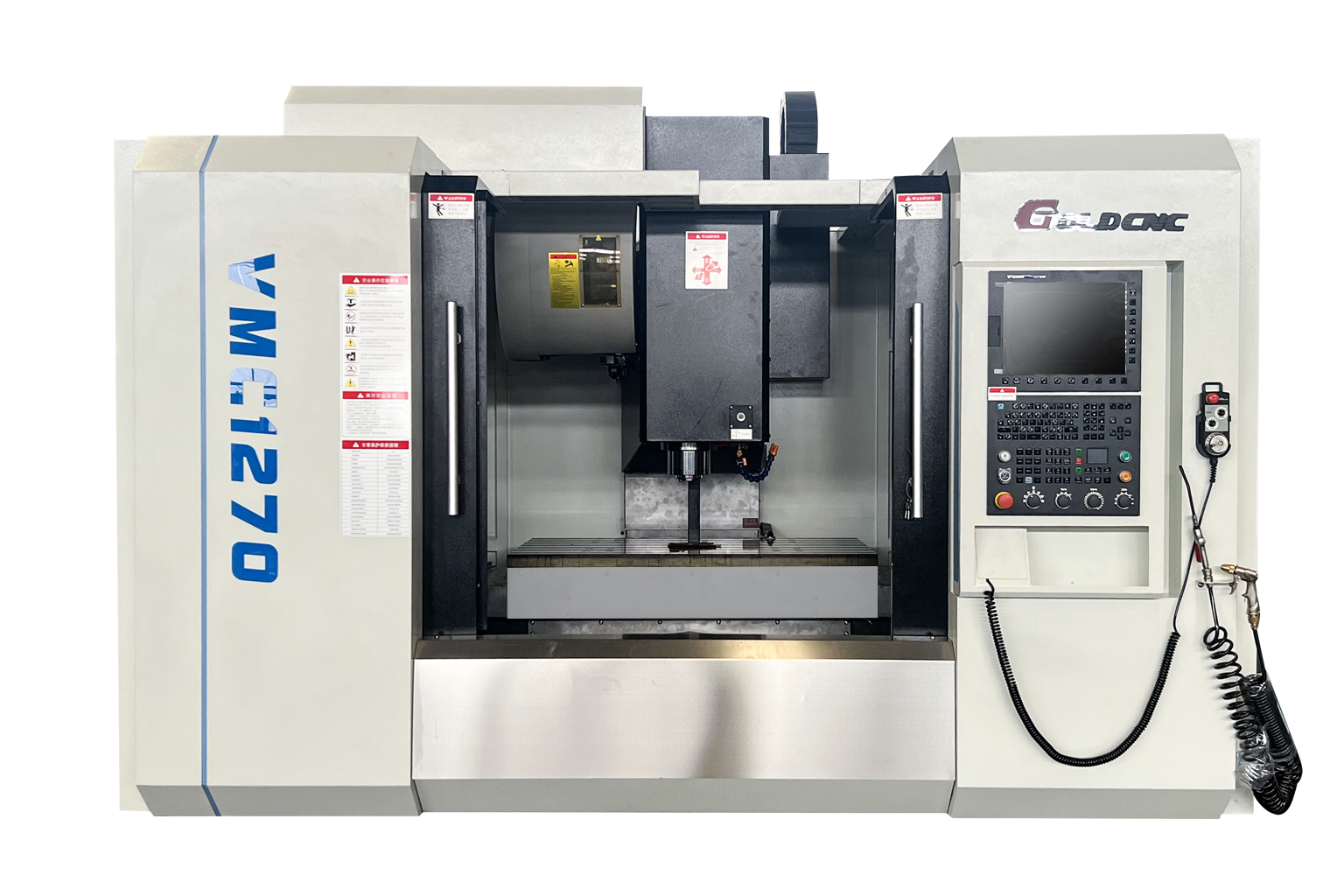

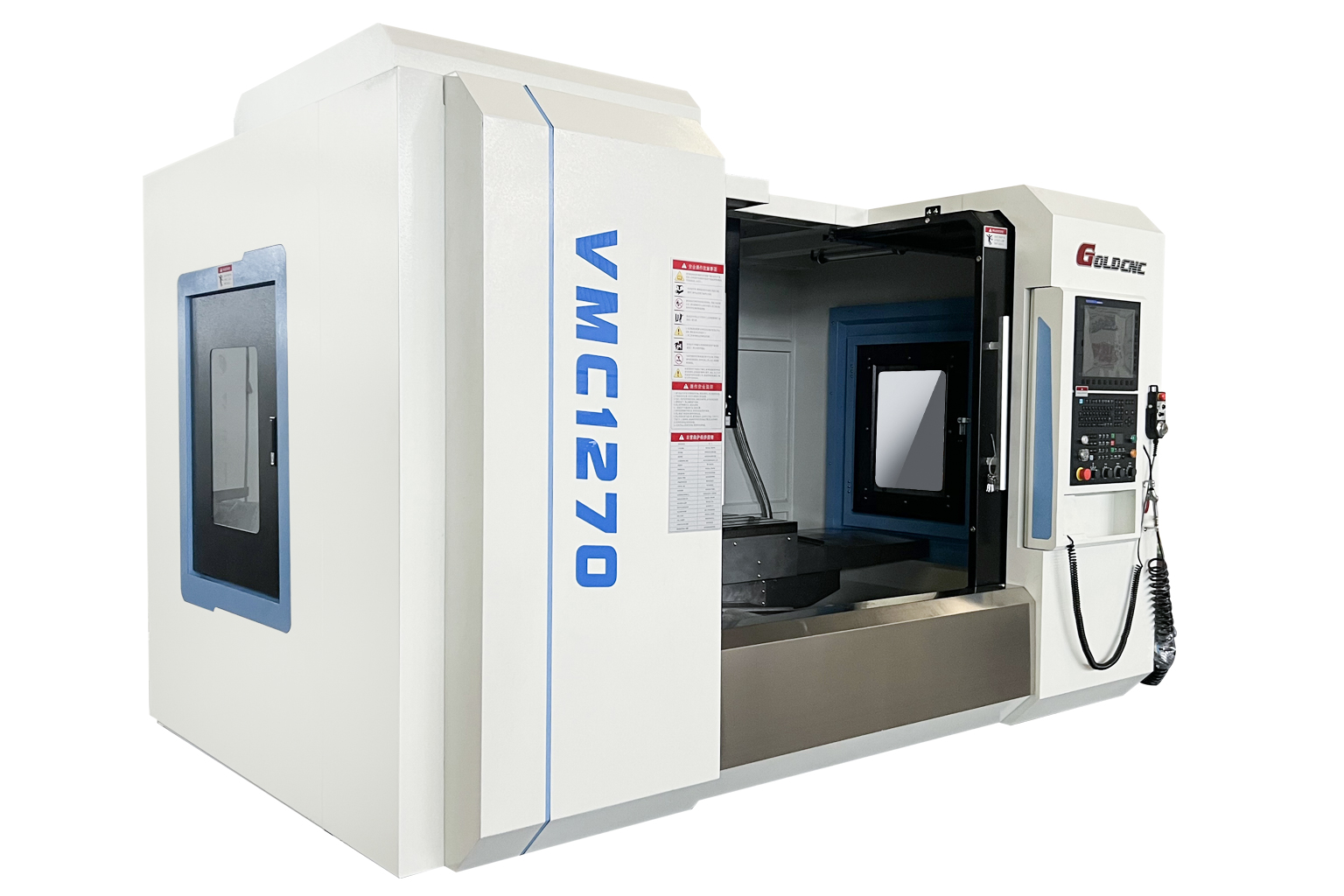

The VMC1270 CNC Machining Center is designed for medium-to-large industrial part production, combining a larger X/Y machining envelope and worktable capacity for integrated milling, drilling, tapping, boring, and contour machining with flexible configurations for batch manufacturing.
1.For machinery traders, the challenge is often finding a machine that can serve more than one customer application. The VMC1270 CNC Machining Center can address a wider range of parts, including mechanical components, mold components, pump and valve parts, automotive components, and plate-type workpieces.
2.For end users, machine value is not determined by cutting speed alone. By consolidating more operations on a VMC1270 CNC Machining Center, manufacturers can reduce transfers between milling, drilling, and tapping machines as well as positioning issues caused by repeated setups.
3.The main value of the VMC1270 CNC Machining Center is its larger machining envelope for bigger workpieces. For traders, this means one machine can cover a broader range of parts that may otherwise require smaller machines with more restrictive setups.

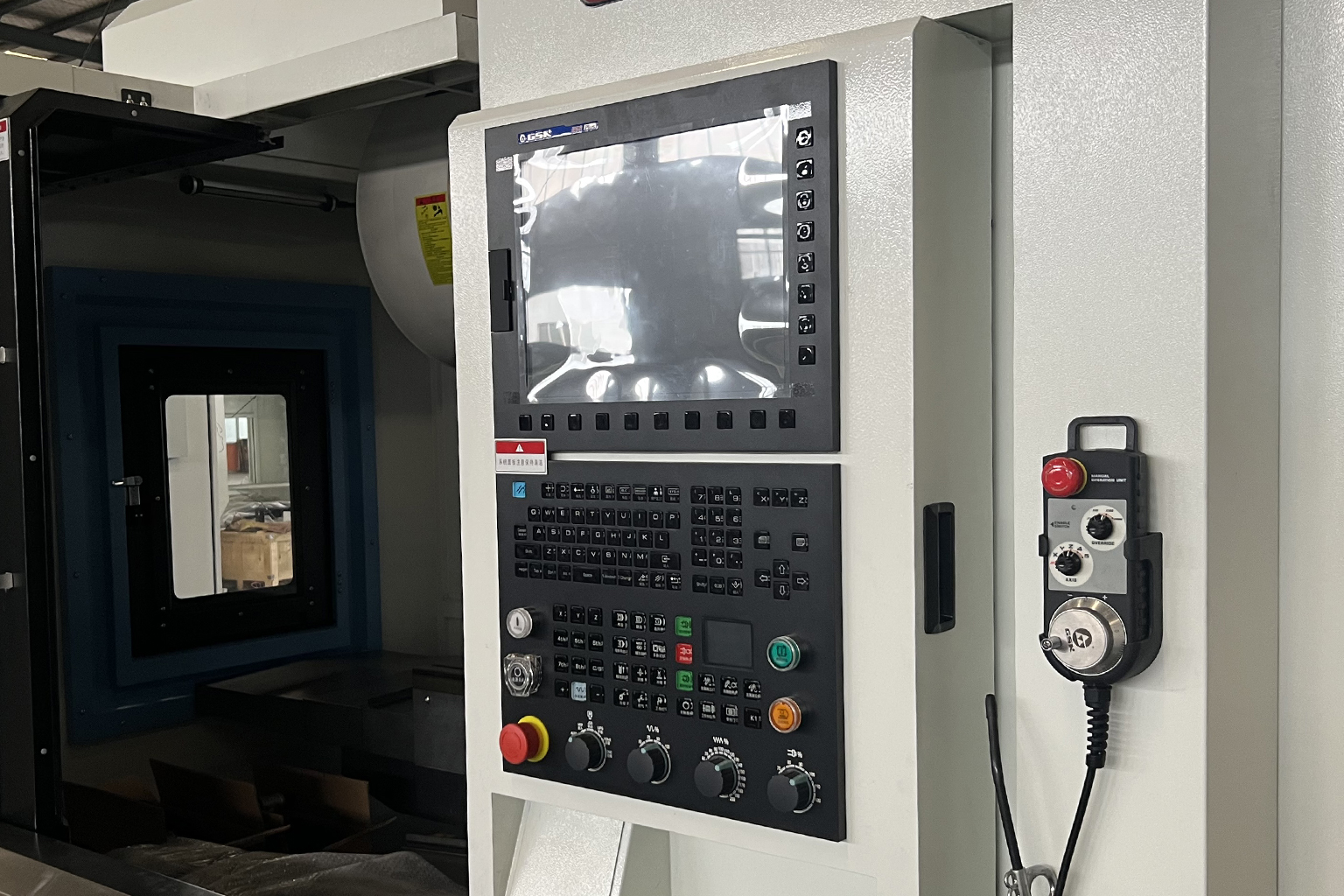

Offers a range of CNC system options, including FANUC, GSK, Siemens, Mitsubishi, and others. The operating interface supports multiple languages, such as Chinese, English, Spanish, and Russian.
High rigidity—stable, vibration-free operation during heavy-duty cutting. High speed—suitable for both roughing and finishing. High precision—helps reduce the scrap rate.
The use of high-precision linear guideways and ball screws from HIWIN (Taiwan) significantly enhances positioning accuracy. The system ensures exceptional motion smoothness—free from jerking or stick-slip—and supports rapid traverse speeds of up to 24, 36, or 48 m/min.
The equipment features an all-metal enclosure. With a sheet metal thickness of 2 mm—far exceeding market standards—it ensures maximum safety for operators during operation.
The VMC1270 CNC Machining Center is suitable for mechanical component manufacturers, mold shops, automotive suppliers, pump and valve manufacturers, engineering machinery suppliers, and general manufacturers requiring a larger machining envelope. Traders should target customers based on workpiece size and machining processes rather than limiting the machine to one industry.
| Specification | Unit | VMC1270 |
| X axis travel | mm | 1200 |
| Y axis travel | mm | 700 |
| Z axis travel | mm | 600 |
| Distance from spindle center to column rail | mm | 797 |
| Distance from spindle end to worktable | mm | 120-720 |
| Worktable | ||
| Size | mm | 1300×700 |
| T-slot(Qty.-pitch-width) | mm | 7-18*100 |
| Maximum loading capacity | kg | 900 |

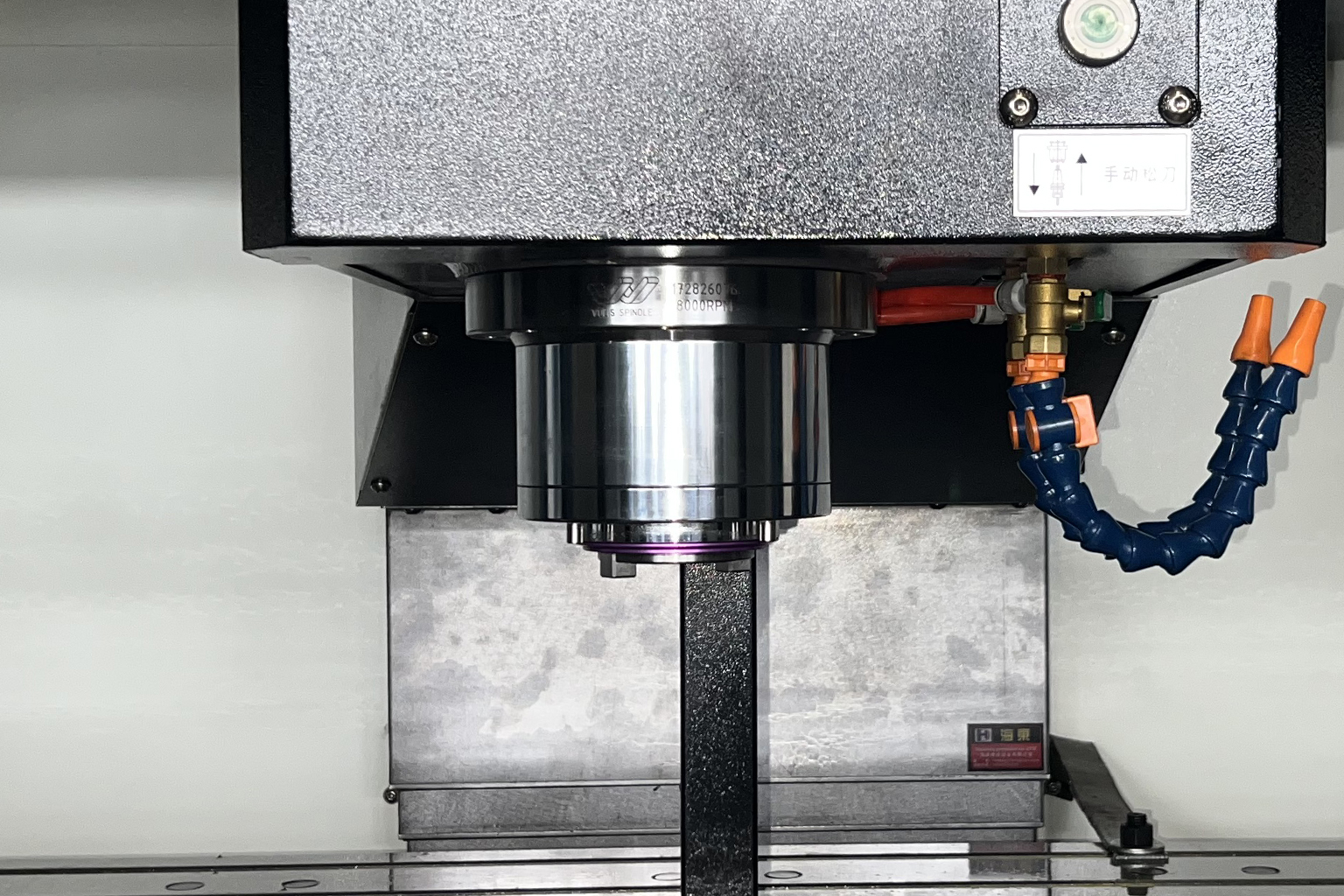

| Spindle | ||
| Speed | rpm | |
| Inner taper | mm | BT40-150 |
| Motor | KW | 11 |
| Motor connecting method | ||
| Feeding | ||
| XYZ fast moving | m/min | 24/24/24 (Optional:,36,48) |
| Cutting feeding | m/min | 1-10 |
| XYZ Motor connection | Direct | |
| XYZ Guiderail | Linear guideway | |
| Tool Magazine | ||
| Type | Disc | |
| Quantity of tools | 24 | |
| Max. tool weight | kg | 8 |
| Max. tool length | mm | 300 |
| Max. tool diameter | mm | 78（adjacent）/120（separate） |
| Accuracy | ||
| XYZ positioning accuracy | mm | ±0.005/300 |
| XYZ repeated positioning accuracy | mm | ±0.003 |
| Dimension | 3640**2920*3020 | |
| Weight | 8000kg | |
1.Automotive Parts
Engine brackets, transmission housings, mounting bases, connection plates, and brake components.
2.Mold Manufacturing
Mold plates, mold bases, mold frames, inserts, and tooling plates.
3.General Mechanical Parts
Brackets, bearing housings, mounting bases, connection blocks, and machine bases.
4.Electrical & Motor Components
Motor end covers, mounting bases, equipment housings, junction boxes, and mounting plates.
5.Hardware & Custom Components
Metal connectors, supports, locating blocks, and custom mechanical components.
Core Workflow:
Plates / housings / brackets → milling + drilling + boring + tapping → one setup → small-batch to repeat production
