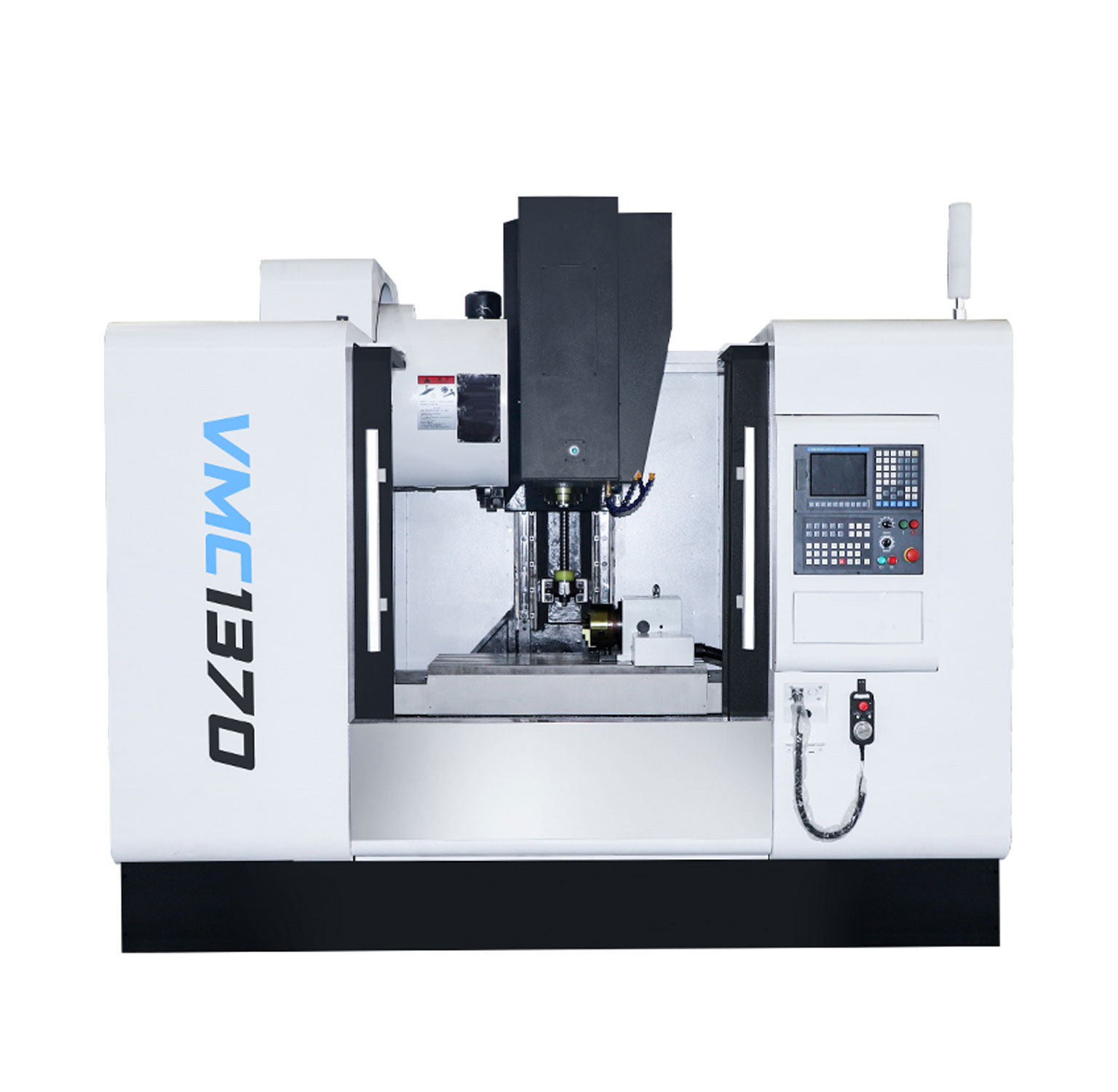

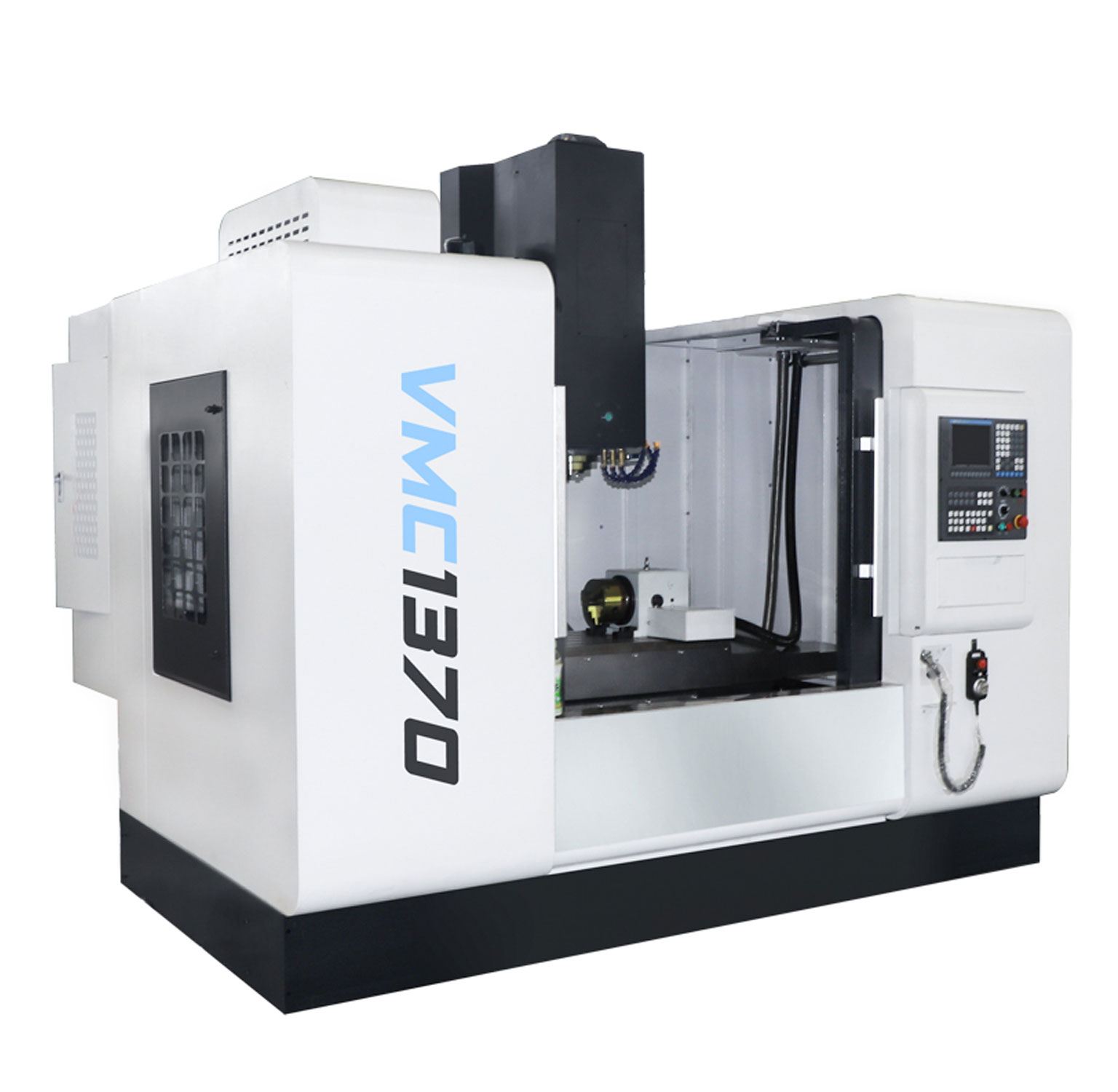

The VMC1370 Precision Vertical Machining Center combines a large machining envelope, rigid machine structure, and precision CNC capability for milling, drilling, tapping, and multi-process machining of medium-to-large molds, mechanical components, automotive parts, and industrial equipment components.
1.The value of the VMC1370 Precision Vertical Machining Center is not simply its larger size. Its machining envelope allows traders to cover a broader range of medium-to-large workpieces without immediately moving customers into oversized machining centers. Comparable VMC1370 models commonly fall within the 1300 × 700 × 700 mm travel class.
2.The “Precision” in the VMC1370 Precision Vertical Machining Center should be explained through positioning, repeatability, tool-path control, machine rigidity, and process stability rather than simply calling it a “high-precision machine.” This gives traders a more practical way to address customers’ quality requirements.
3.For machine bases, brackets, mold components, pump and valve parts, and similar components containing faces, holes, slots, steps, and contours, the VMC1370 Precision Vertical Machining Center can consolidate more operations through CNC programming and automatic tool changing, reducing repeated positioning.
4.VMC1370 customers can have very different applications: some machine aluminum, others steel; some produce molds, while others manufacture structural components. Spindle, tool magazine, coolant, chip removal, fourth-axis, and CNC control options should therefore be matched to the end user’s process.
Offers a range of CNC system options, including FANUC, GSK, Siemens, Mitsubishi, and others. The operating interface supports multiple languages, such as Chinese, English, Spanish, and Russian.
High rigidity—stable, vibration-free operation during heavy-duty cutting. High speed—suitable for both roughing and finishing. High precision—helps reduce the scrap rate.
The use of high-precision linear guideways and ball screws from HIWIN (Taiwan) significantly enhances positioning accuracy. The system ensures exceptional motion smoothness—free from jerking or stick-slip—and supports rapid traverse speeds of up to 24, 36, or 48 m/min.
The equipment features an all-metal enclosure. With a sheet metal thickness of 2 mm—far exceeding market standards—it ensures maximum safety for operators during operation.
The trader should not sell the VMC1370 simply because it is a larger model. Compare the customer's actual workpiece dimensions, fixture space, Z-axis clearance, materials, and production cycle. If parts are approaching the practical limits of a VMC1270 or require more process space, the VMC1370 may provide a meaningful capacity increase.
| Specification | Unit | VMC1370 |
| X axis travel | mm | 1300 |
| Y axis travel | mm | 700 |
| Z axis travel | mm | 700 |
| Distance from spindle center to column rail | mm | 797 |
| Distance from spindle end to worktable | mm | 100-800 |
| Worktable | ||
| Size | mm | 1400×700 |
| T-slot(Qty.-pitch-width) | mm | 5-18*110 |
| Maximum loading capacity | kg | 900 |

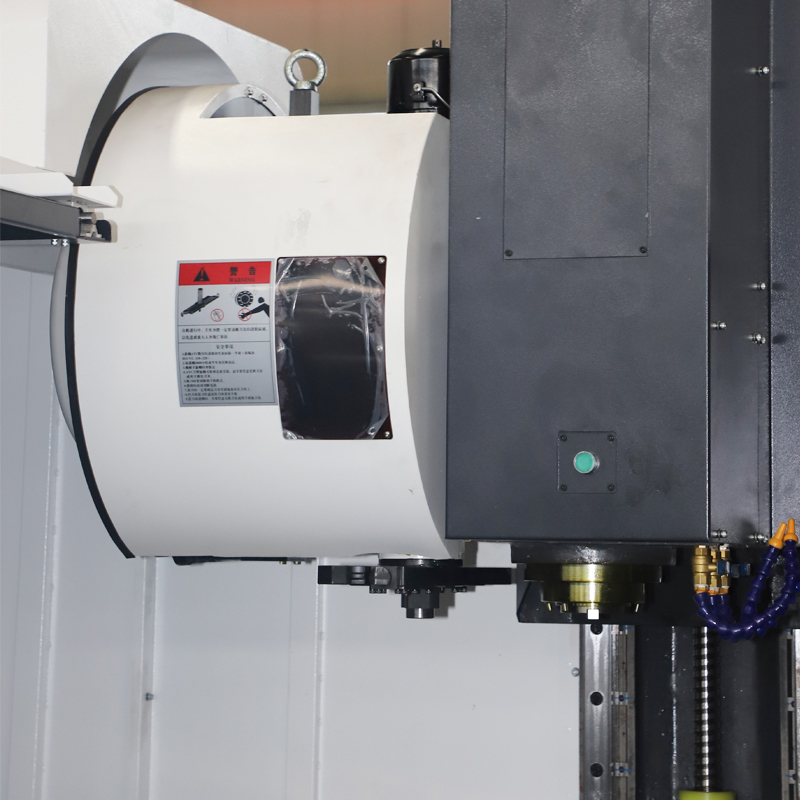

| Spindle | ||
| Speed | rpm | |
| Inner taper | mm | BT40-150 （Optional：BT50-155; BT50-190） |
| Motor | KW | 11 |
| Motor connecting method | ||
| Feeding | ||
| XYZ fast moving | m/min | 24/24/24 |
| Cutting feeding | m/min | 1-10 |
| XYZ Motor connection | Direct | |
| XYZ Guiderail | Linear guideway | |

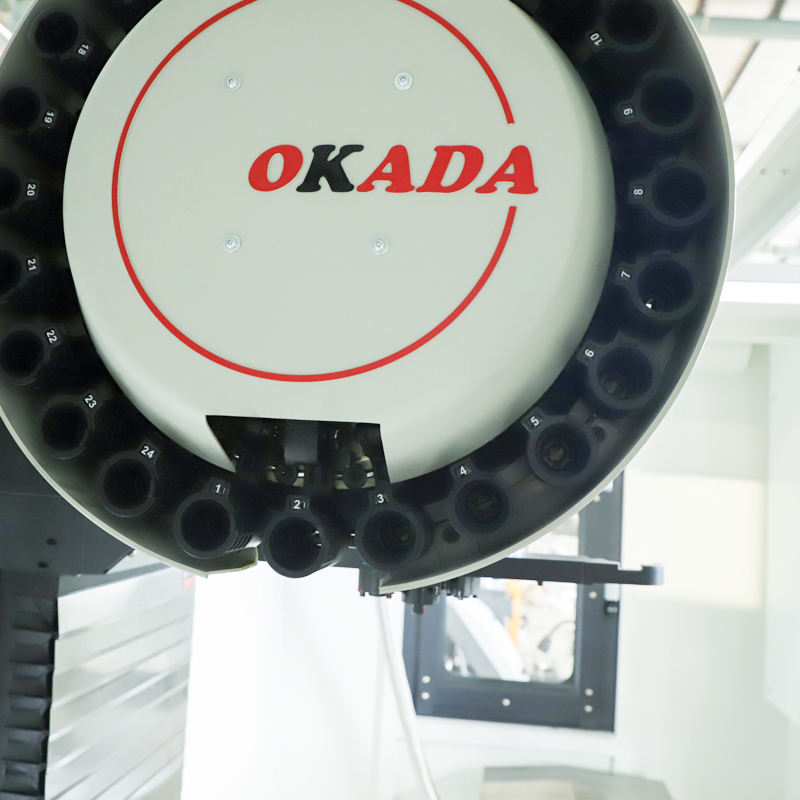

| Tool Magazine | ||
| Type | Disc | |
| Quantity of tools | 24 | |
| Max. tool weight | kg | 8 |
| Max. tool length | mm | 300 |
| Max. tool diameter | mm | 78（adjacent）/ 120（separate） |
| Accuracy | ||
| XYZ positioning accuracy | mm | ±0.005/300 |
| XYZ repeated positioning accuracy | mm | ±0.003 |
| Dimension | mm | 3740*3100*3320 |
| Weight | kg | 8500 |
1.Mold Manufacturing:Suitable for surface, cavity, hole-pattern, slot, and contour machining of larger mold components, supporting processes from roughing to finishing.
2.Automotive Components:Larger automotive components can be processed through milling, drilling, tapping, and boring operations, making the machine suitable for repeat production.
3.Construction Machinery:Suitable for larger construction machinery components combining multiple holes, machined surfaces, and slots.
4.General Machinery & Industrial Equipment:Suitable for machinery manufacturers producing multiple part types, with CNC programs enabling efficient changeover between different components.
5.Pumps, Valves & Hydraulic Equipment:Suitable for fluid-control components featuring multiple mounting surfaces, hole patterns, threaded holes, and slots.
6.Energy & Large Industrial Components:Suitable for industrial components requiring a larger machining envelope, helping reduce repositioning caused by insufficient working space.
