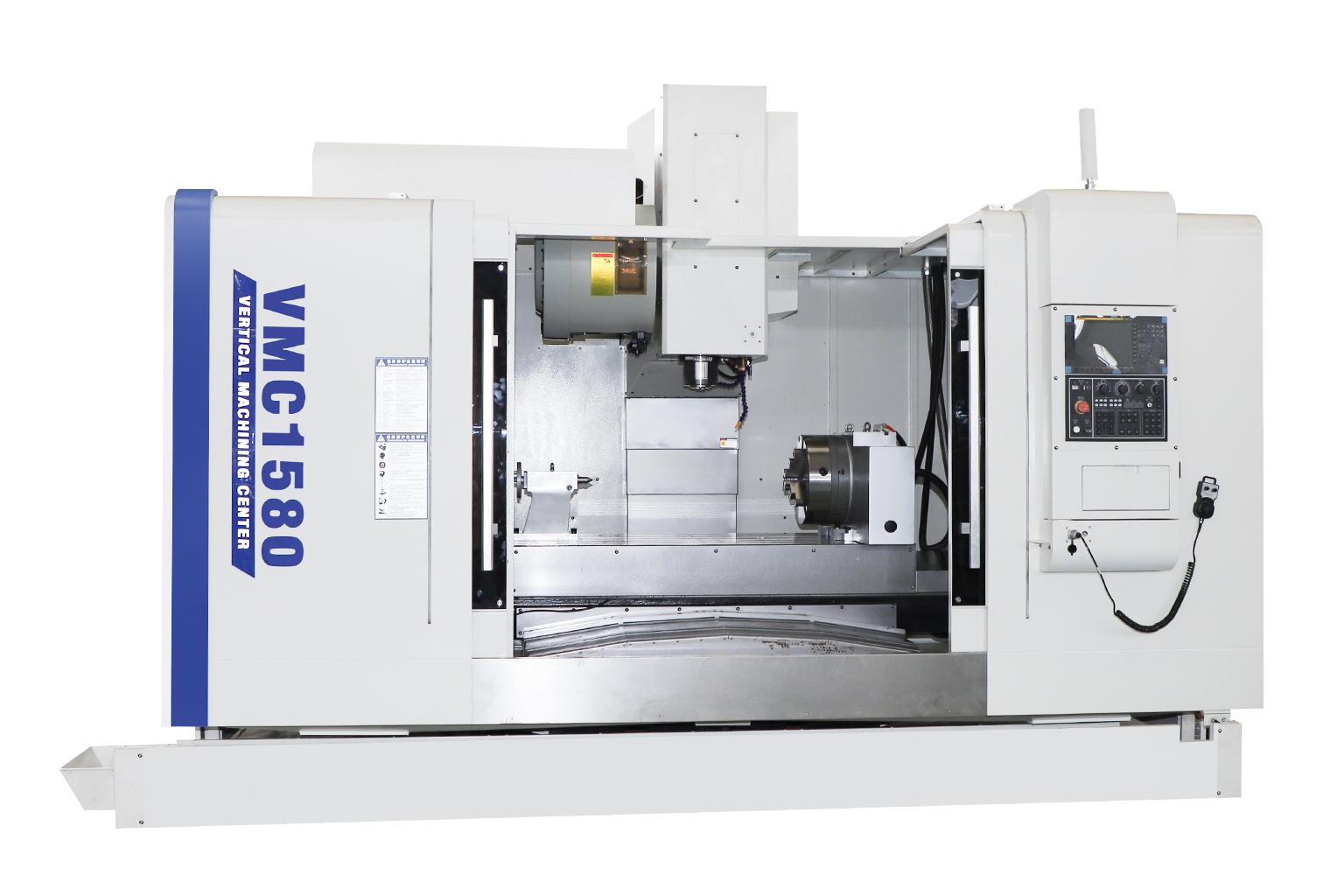

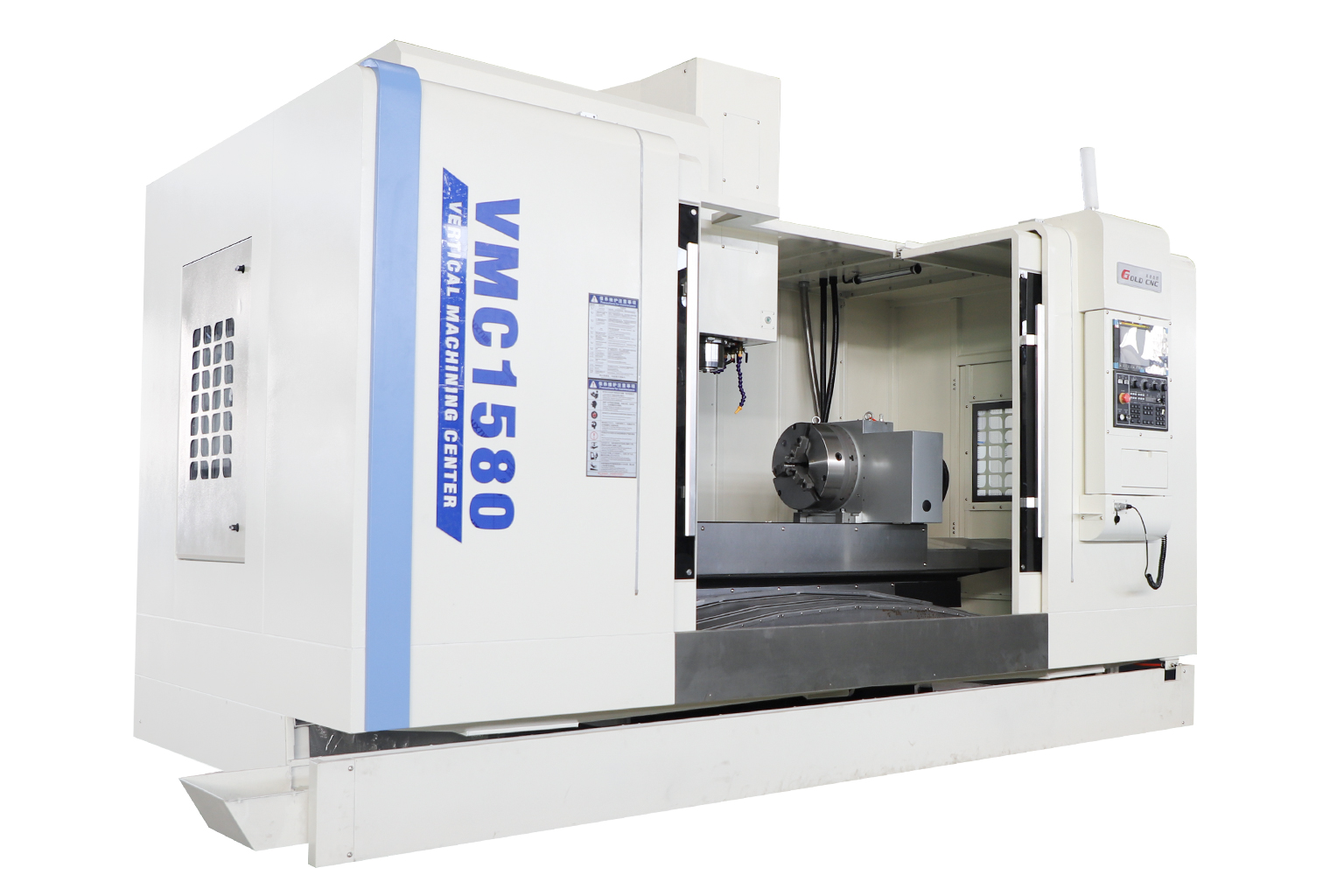

VMC1580 Vertical Machining Center is a large-travel CNC machining center designed for molds, structural components, machinery parts and other large workpieces, combining a spacious work area, BT50 spindle and automatic tool changing to perform milling, drilling, tapping and boring operations in one setup.

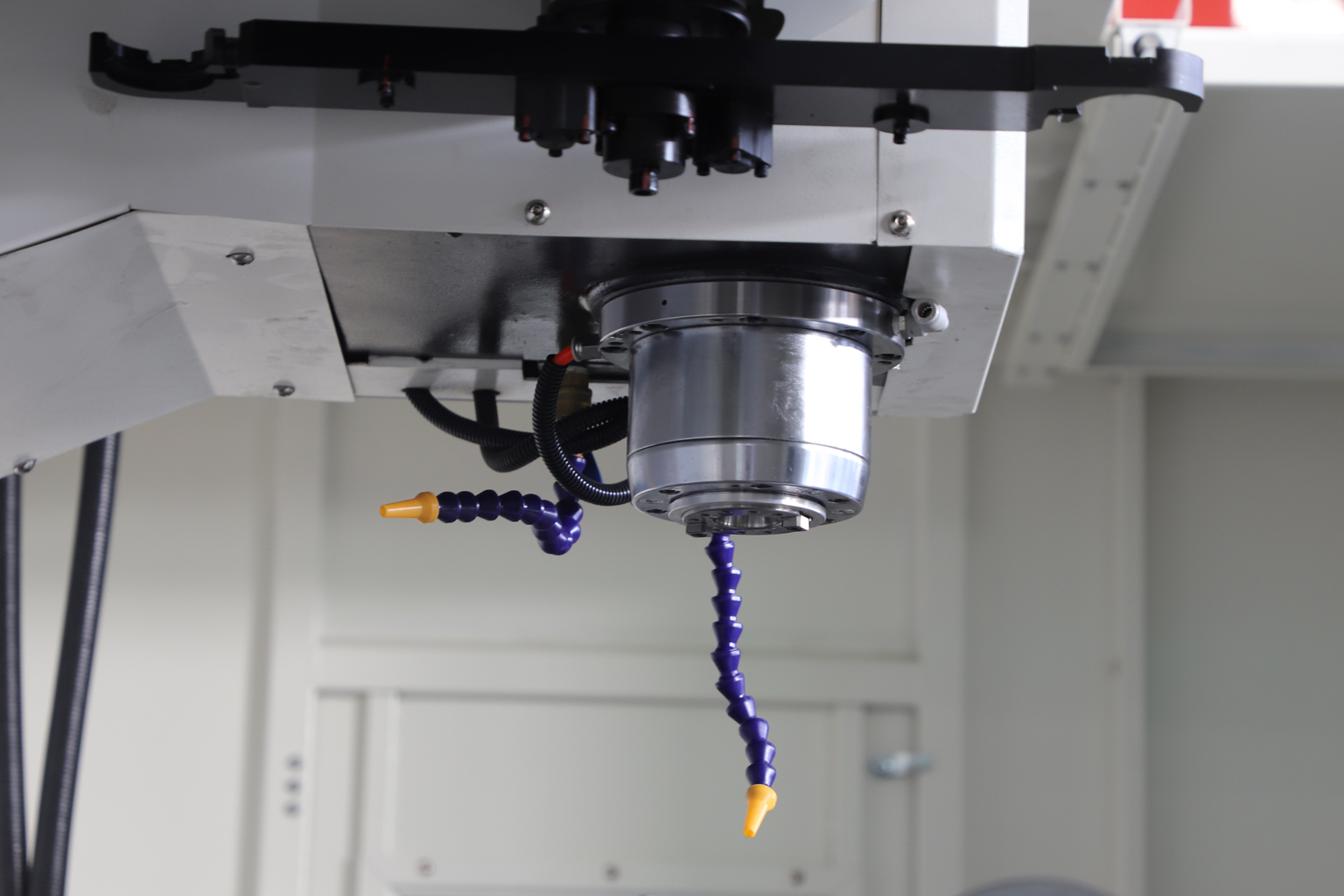

1.The BT50 spindle interface provides a robust tooling platform for larger cutters and heavier cutting conditions, making the VMC1580 suitable for demanding machining of large components.
2.VMC1580 can consolidate milling, drilling, tapping, boring and finishing operations into one setup, helping reduce workpiece repositioning and improve process consistency.
3.A rigid machine structure helps maintain cutting stability under demanding machining conditions, particularly when machining large components over extended production cycles.
4.VMC1580 can support both low-volume job-shop production and repeat manufacturing, making it suitable for workshops handling different large-part machining requirements.
Offers a range of CNC system options, including FANUC, GSK, Siemens, Mitsubishi, and others. The operating interface supports multiple languages, such as Chinese, English, Spanish, and Russian.
High rigidity—stable, vibration-free operation during heavy-duty cutting. High speed—suitable for both roughing and finishing. High precision—helps reduce the scrap rate.
The use of high-precision linear guideways and ball screws from HIWIN (Taiwan) significantly enhances positioning accuracy. The system ensures exceptional motion smoothness—free from jerking or stick-slip—and supports rapid traverse speeds of up to 24, 36, or 48 m/min.
The equipment features an all-metal enclosure. With a sheet metal thickness of 2 mm—far exceeding market standards—it ensures maximum safety for operators during operation.
VMC1580 is designed for large workpieces that require a larger X/Y/Z machining envelope. It is particularly suitable for mold bases, machine bases, structural plates, housings and other components that are too large for compact vertical machining centers. The actual workpiece size should be evaluated together with fixture dimensions, tool clearance and machining stroke.
| Specification | Unit | VMC1580 |
| X axis travel | mm | 1500 |
| Y axis travel | mm | 800 |
| Z axis travel | mm | 700 |
| Distance from spindle center to column rail | mm | 882 |
| Distance from spindle end to worktable | mm | 155-855 |
| Worktable | ||
| Size | mm | 1600×800 |
| T-slot(Qty.-pitch-width) | mm | 5-18*110 |
| Maximum loading capacity | kg | 1100 |
| Spindle | ||
| Speed | rpm | 6000 （Optional：8000/10000） |
| Inner taper | mm | BT50 |
| Motor | KW | 15 |
| Motor connecting method | ||
| Feeding | ||
| XYZ fast moving | m/min | 18/18/18 |
| Cutting feeding | m/min | 1-10 |
| XYZ Motor connection | Direct | |
| XYZ Guiderail | Linear guideway | |
| Tool Magazine | ||
| Type | Disc | |
| Quantity of tools | 24 | |
| Max. tool weight | kg | 18 |
| Max. tool length | mm | 300 |
| Max. tool diameter | mm | 112（adjacent）/ 200（separate） |
| Accuracy | ||
| XYZ positioning accuracy | mm | ±0.005/300 |
| XYZ repeated positioning accuracy | mm | ±0.003 |
| Dimension | mm | 4750*3350*3300mm |
| Weight | kg | 12000 |
1.Mold Manufacturing
Typical Parts: Mold bases, mold plates, mold frames, inserts, cores, and cavity components.
2.Automotive Components
Typical Parts: Transmission housings, engine-related components, mounting plates, structural brackets, and automotive fixtures.
3.Construction Machinery
Typical Parts: Connection brackets, mounting bases, hydraulic components, structural plates, and equipment bases.
4.General Machinery & Industrial Equipment
Typical Parts: Machine bases, housings, supports, bearing housings, and large mounting plates.
5.Jigs & Fixtures
Typical Parts: Large fixture plates, locating plates, assembly tooling, and inspection fixtures.
6.Pumps, Valves & Hydraulic Equipment
Typical Parts: Pump bodies, valve bodies, hydraulic valve blocks, flanges, and mounting plates.
7.Energy & Large Industrial Components
Typical Parts: Equipment mounting components, structural connectors, large supports, and industrial equipment housings.
