High-rigidity vertical machining center for precision milling, drilling, tapping and boring of metal parts, molds and industrial components.

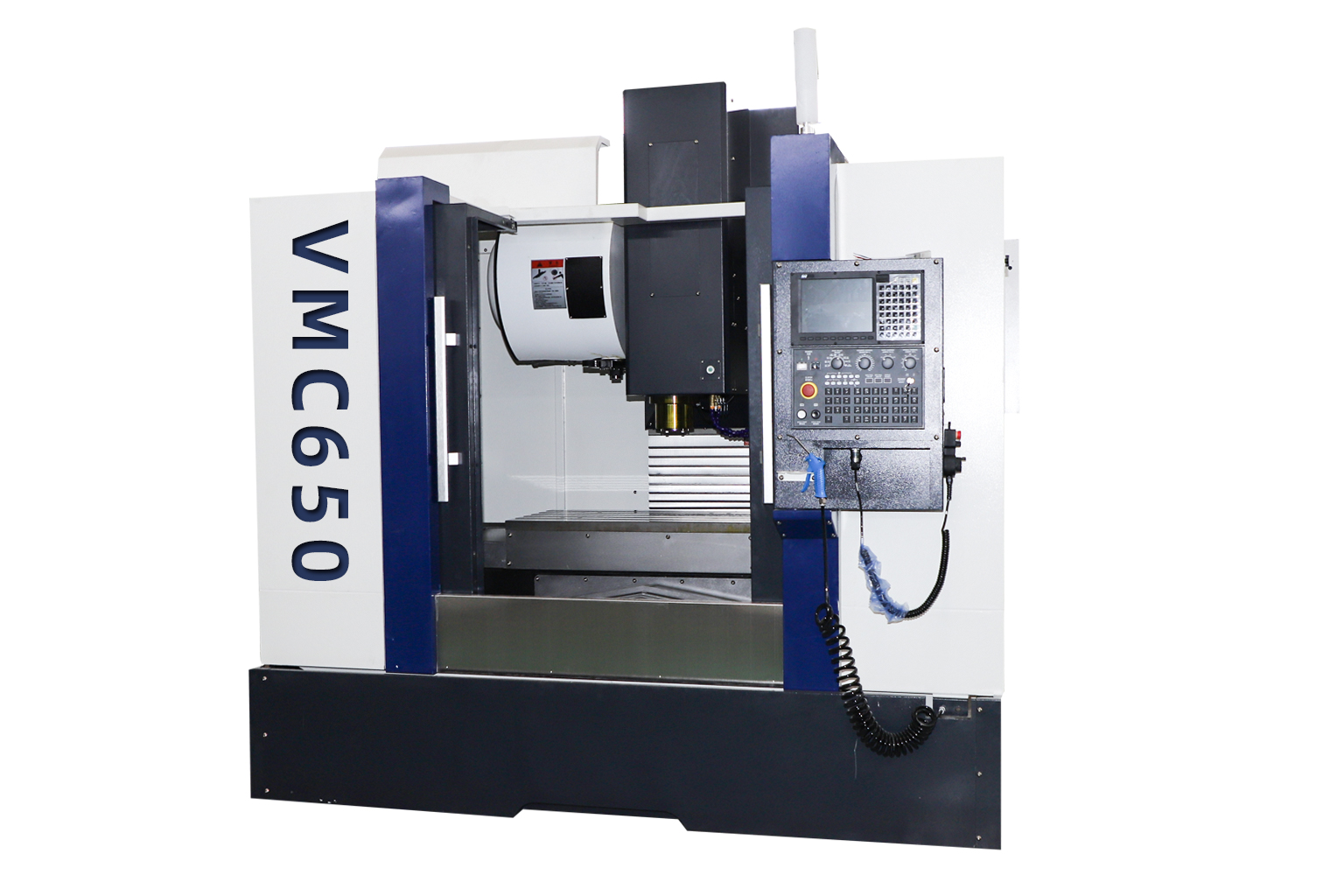

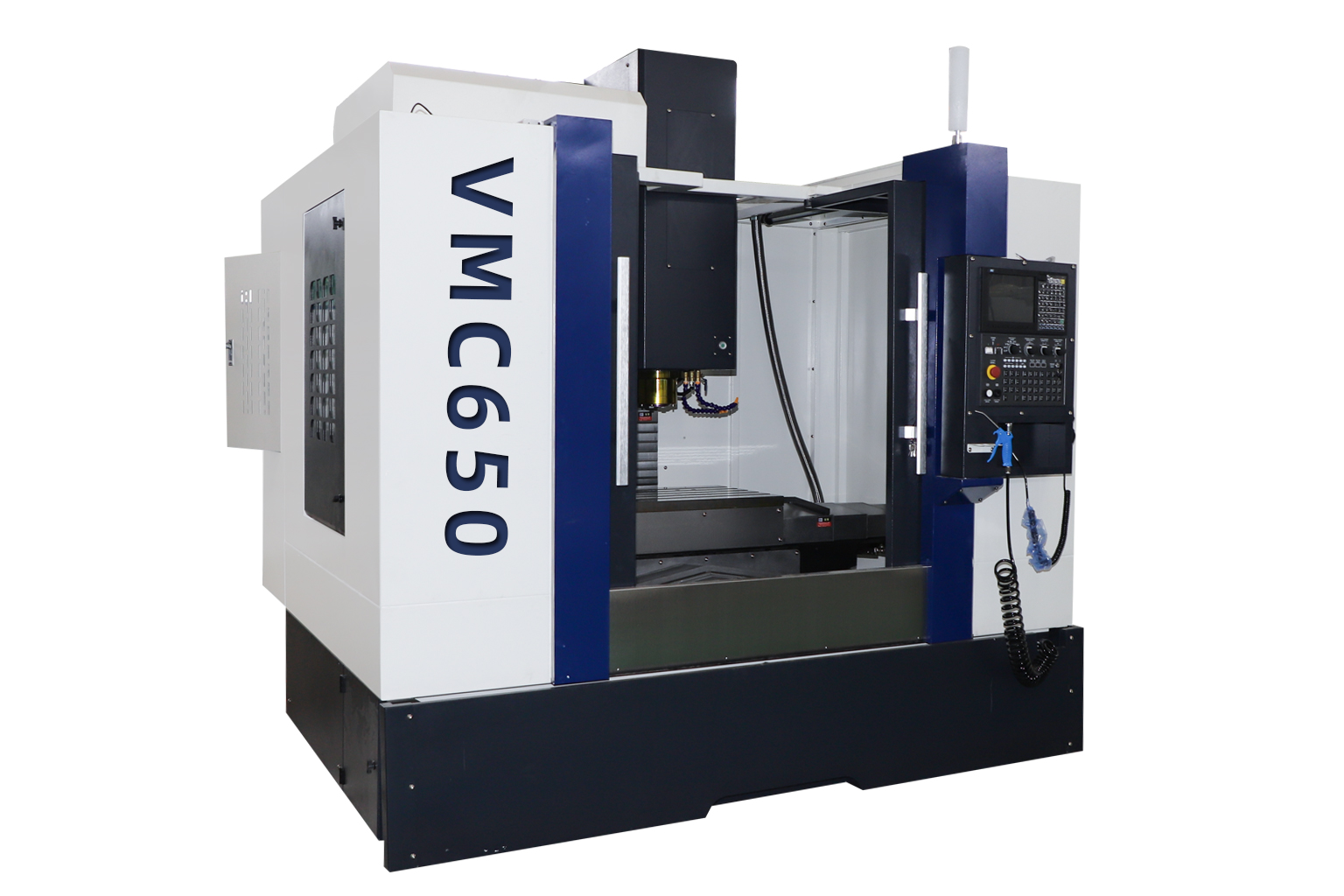

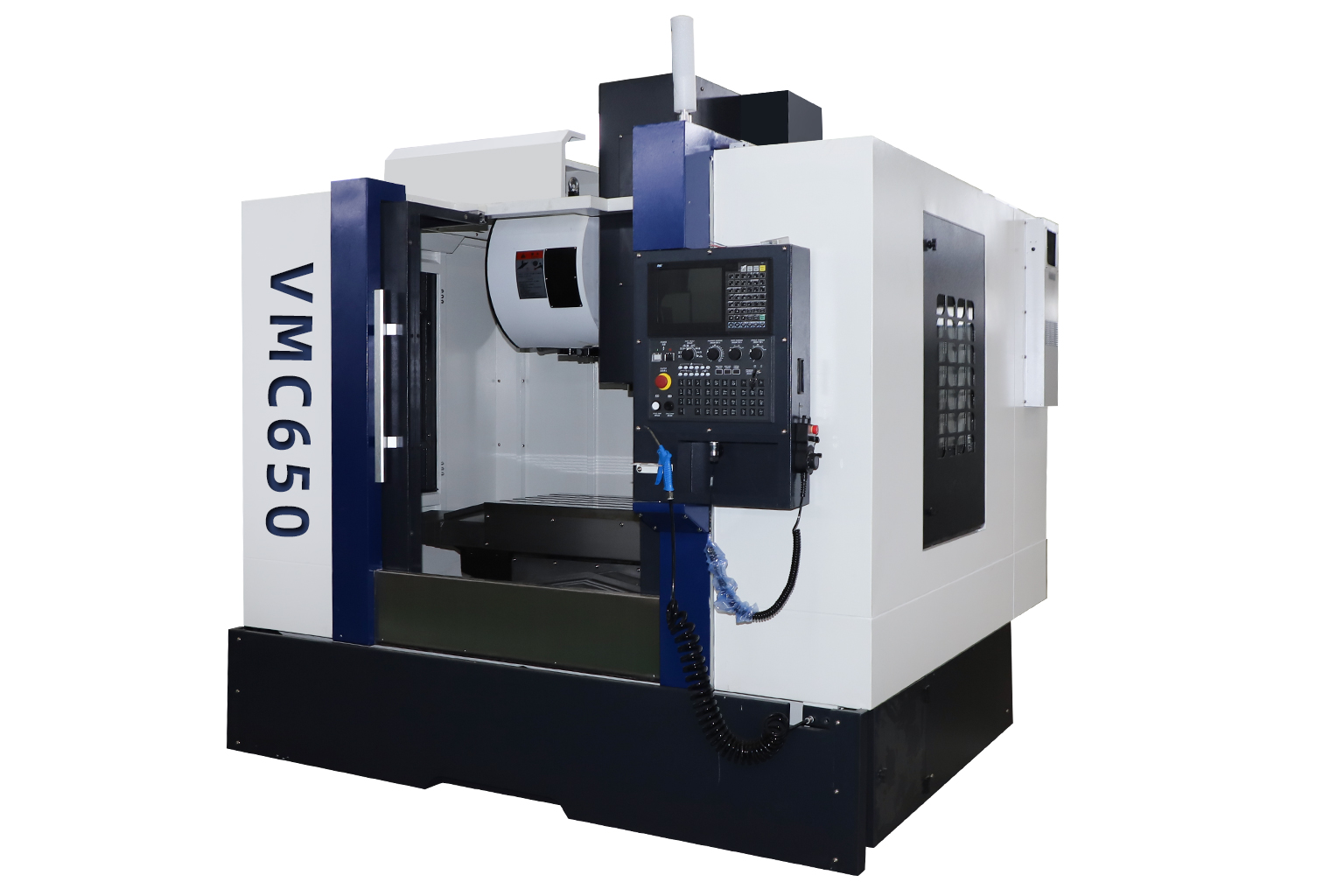

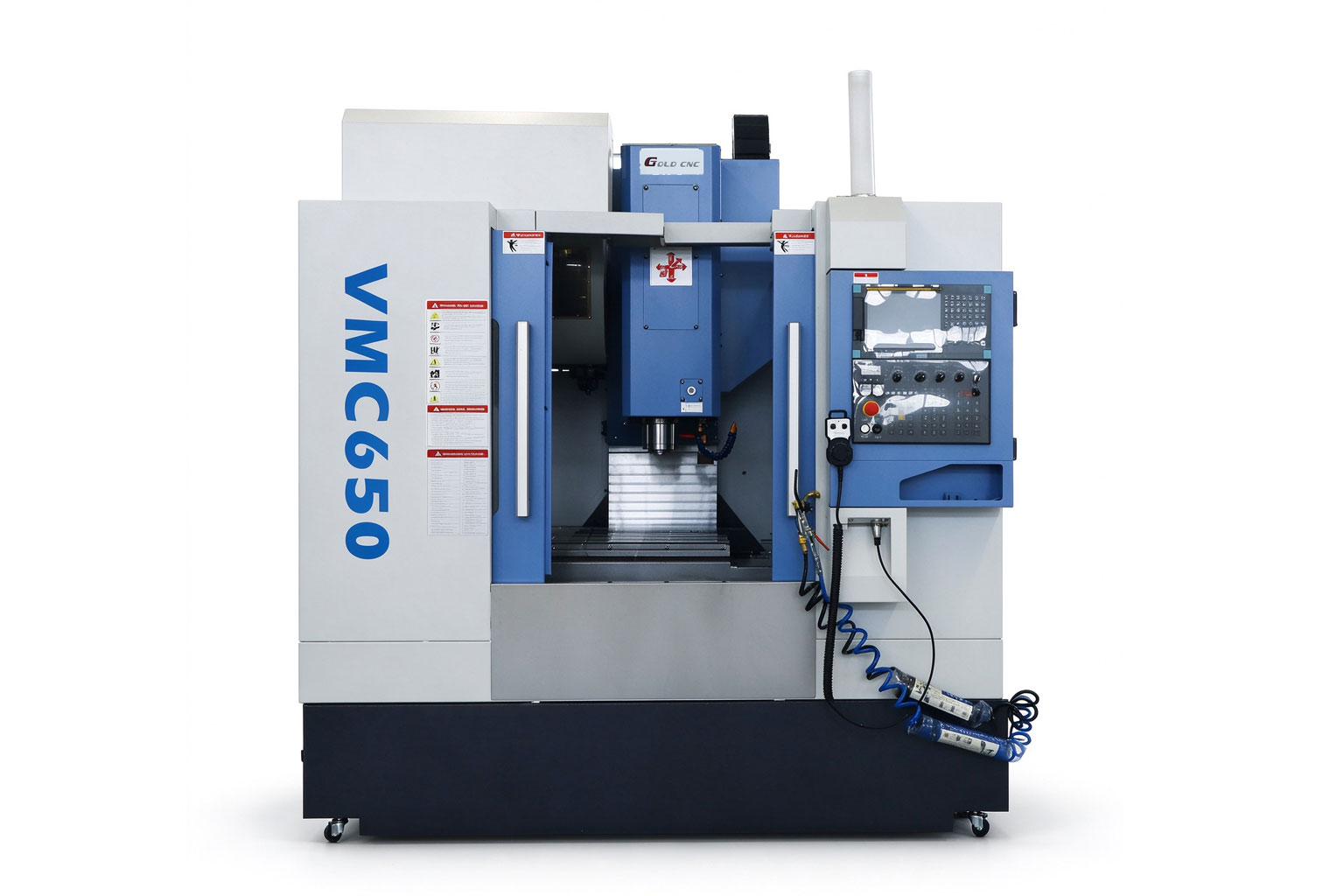

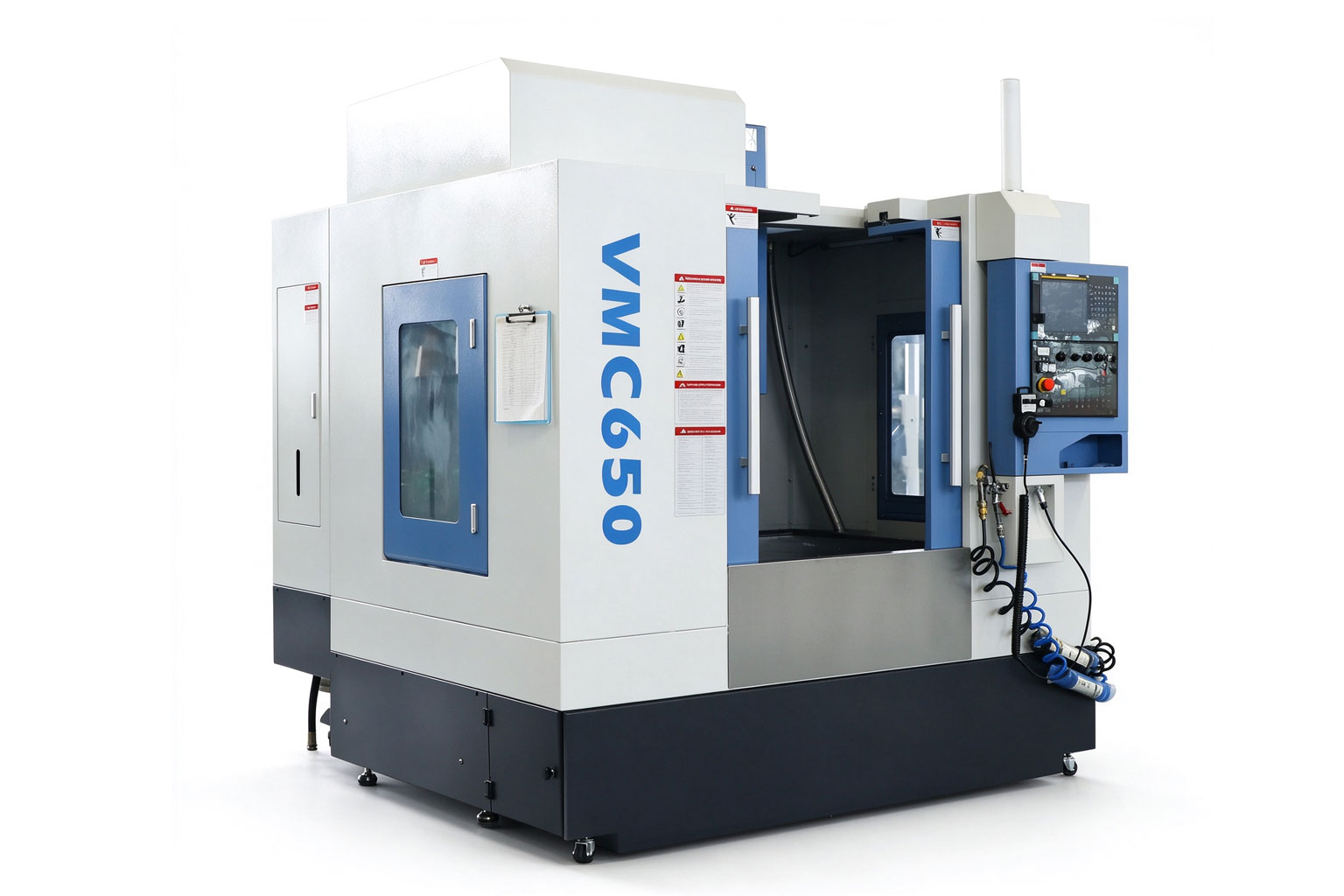

VMC650 Vertical Machining Center is a high-rigidity CNC machining center designed for precision and efficient machining of metal components. The machine features a solid cast iron structure, optimized reinforcement ribs and a heavy-duty full-support design to provide excellent mechanical rigidity and stability during machining.
VMC650 Machining Center is suitable for milling, drilling, tapping, boring and other CNC machining operations. It can be widely used for machining automotive components, machinery parts, molds, industrial equipment components, pump and valve parts, flanges, brackets, plates and other precision metal components.
| Specification | Value |
|---|---|

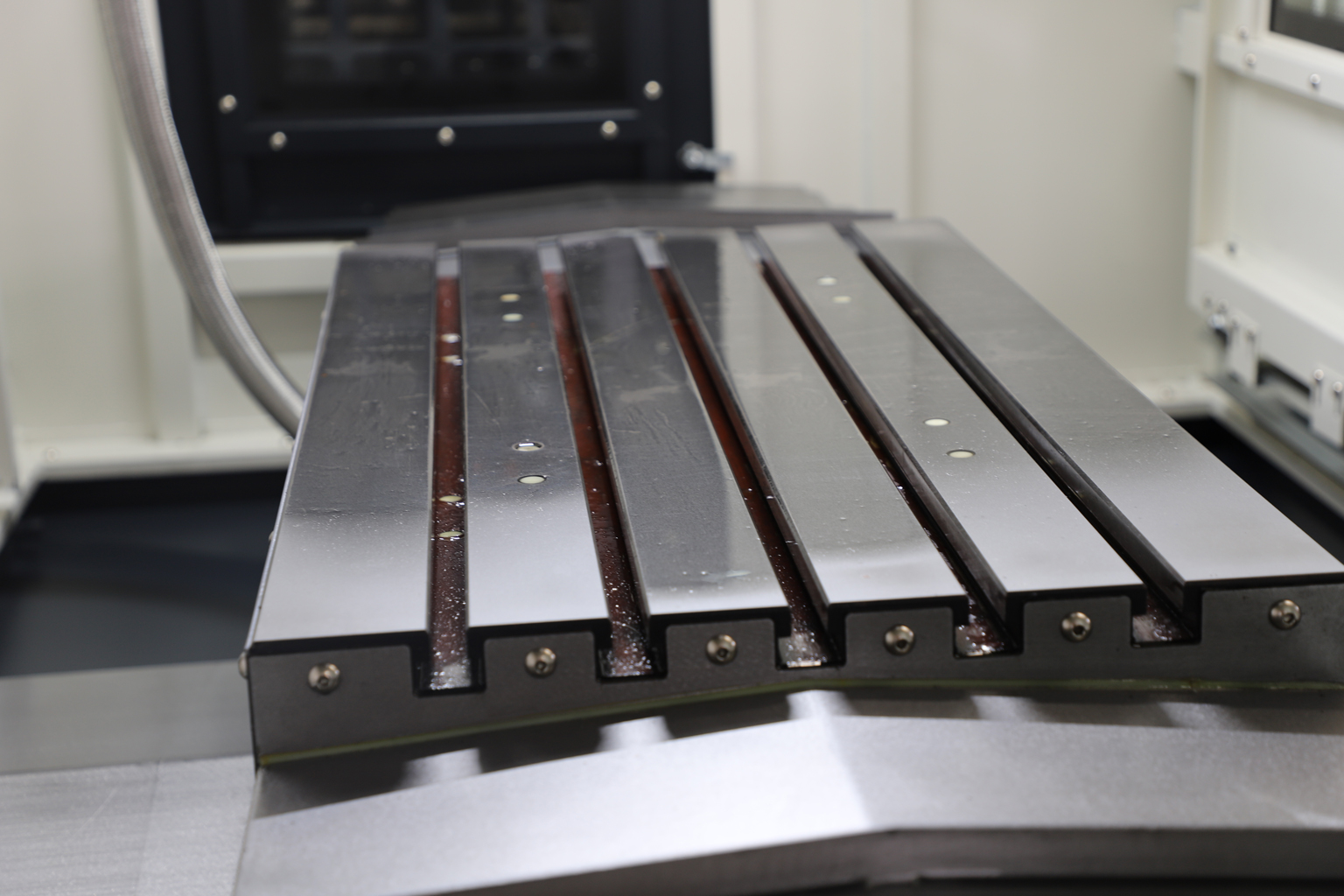

| Rotary Table Size | Ø650 mm |
| Maximum Load Capacity | 300 kg |
| Rotary Table Type | RAS-650 |
| Rotary Table Accuracy | ±15 arc sec |
| X-Axis Travel | 820 mm (Left: 500 mm, Right: 320 mm) |
| Y-Axis Travel | 520 mm |
| Z-Axis Travel | 500 mm |
| Distance from Spindle Center to Guideway | 187 mm |
| Distance from Spindle Nose to Table Surface | 150–650 mm |

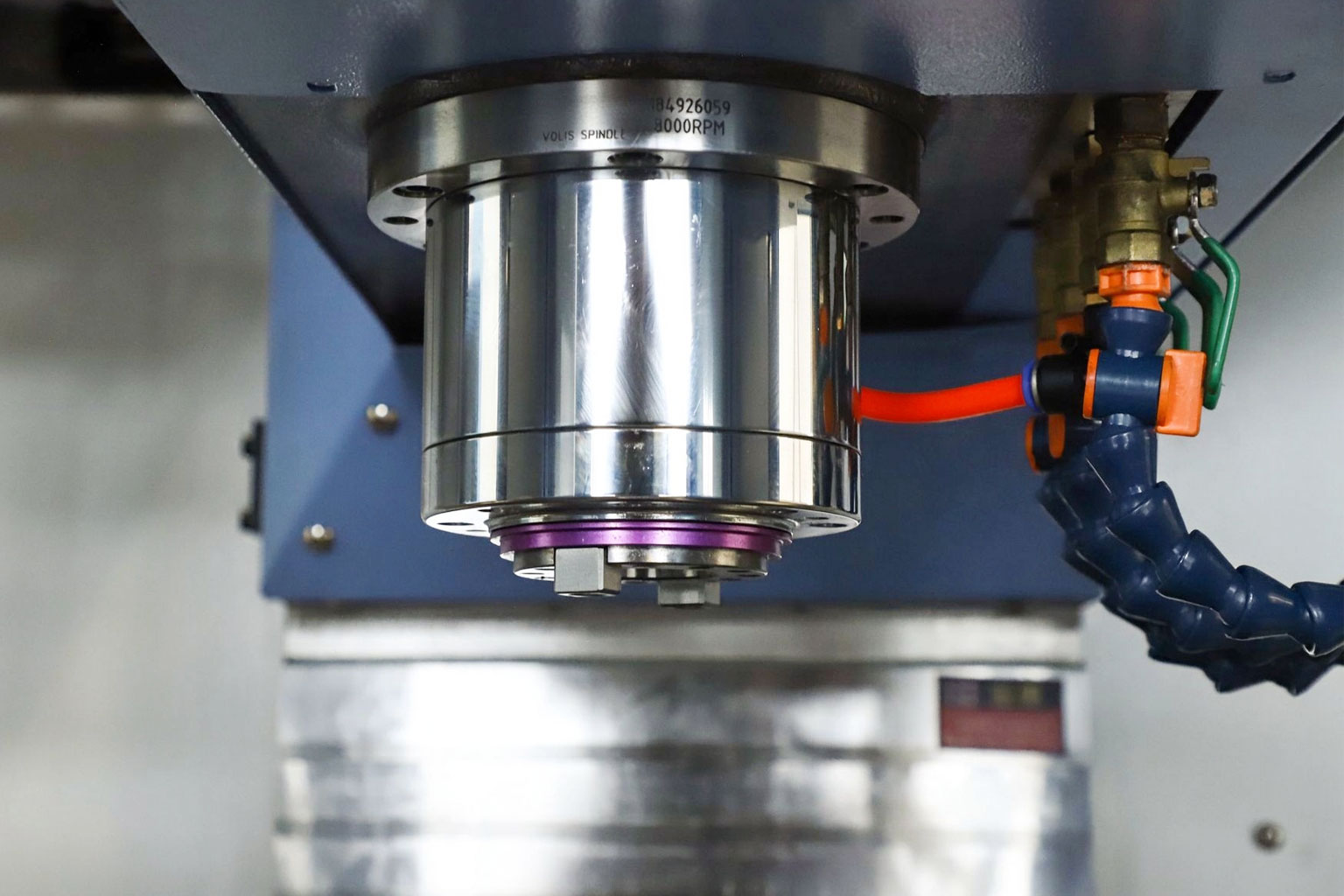

| Spindle Taper / Mounting Size | BT40-150 |
| Spindle Speed | 12,000 rpm |
| X/Y/Z-Axis Ball Screw Specification | 4012 |
| X/Y/Z-Axis Linear Guideway | 45 mm Roller Guideways |
| X/Y/Z-Axis Rapid Traverse Rate | 30 m/min |
| X/Y/Z-Axis Motor Connection | Direct Coupling |
| Main Motor Power | 9 kW |
| X/Y/Z-Axis Motor Torque | 16 / 16 / 20 N·m |

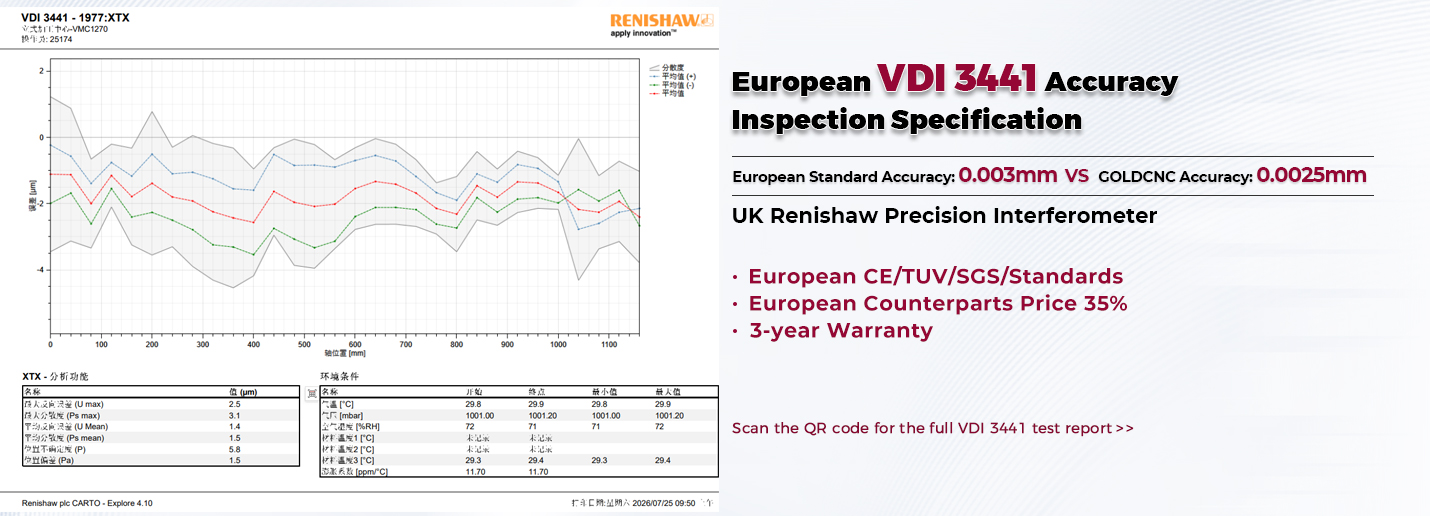

| Positioning Accuracy | 0.005 mm |
| Repeatability | 0.003 mm |

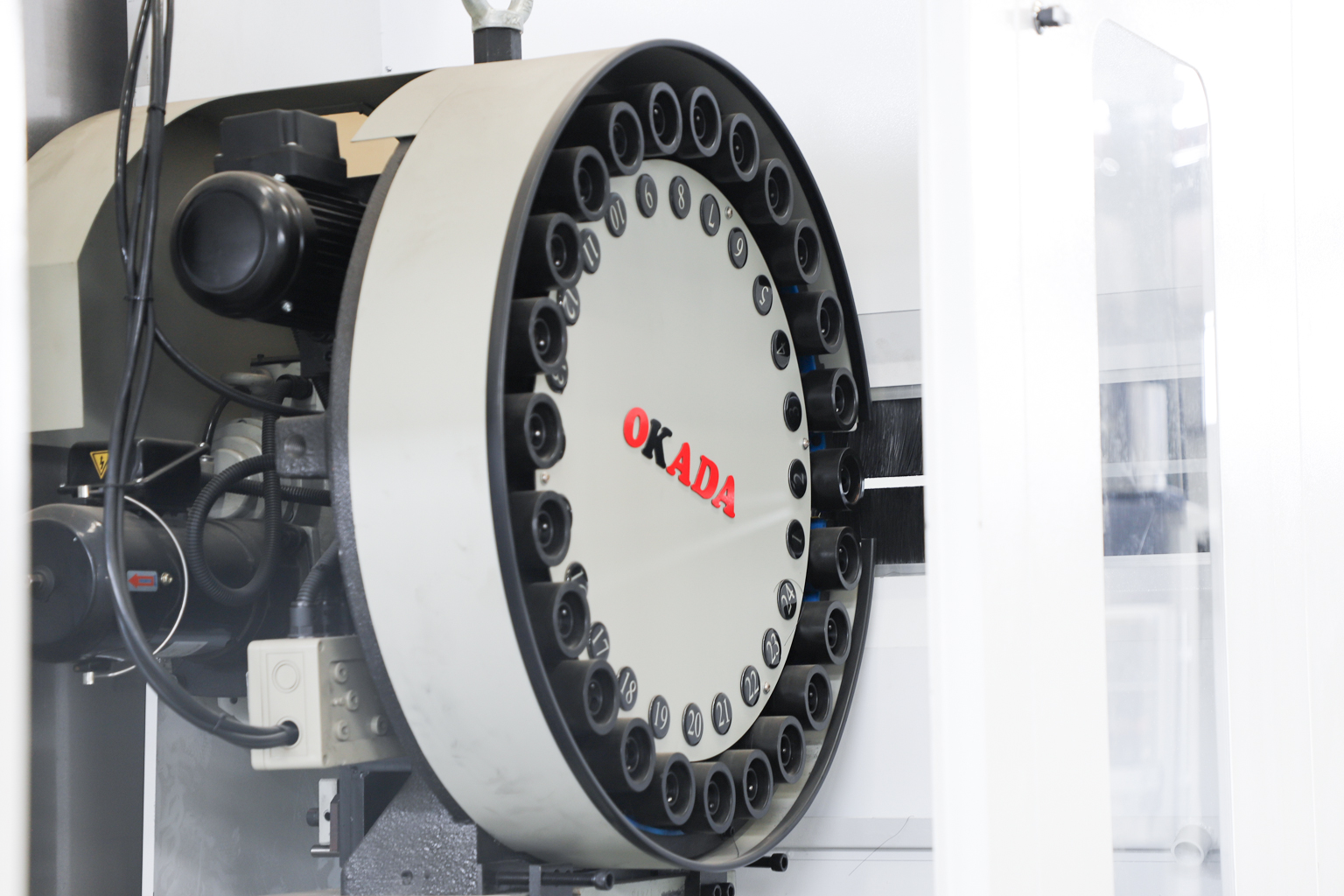

| Tool Magazine Specification | BT40-24T |
| Machine Bed Pad Height | 50 mm |
| Overall Dimensions (L × W × H) | 3900 × 3700 × 3100 mm |
| Machine Weight | 10,500 kg |

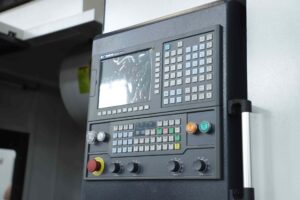

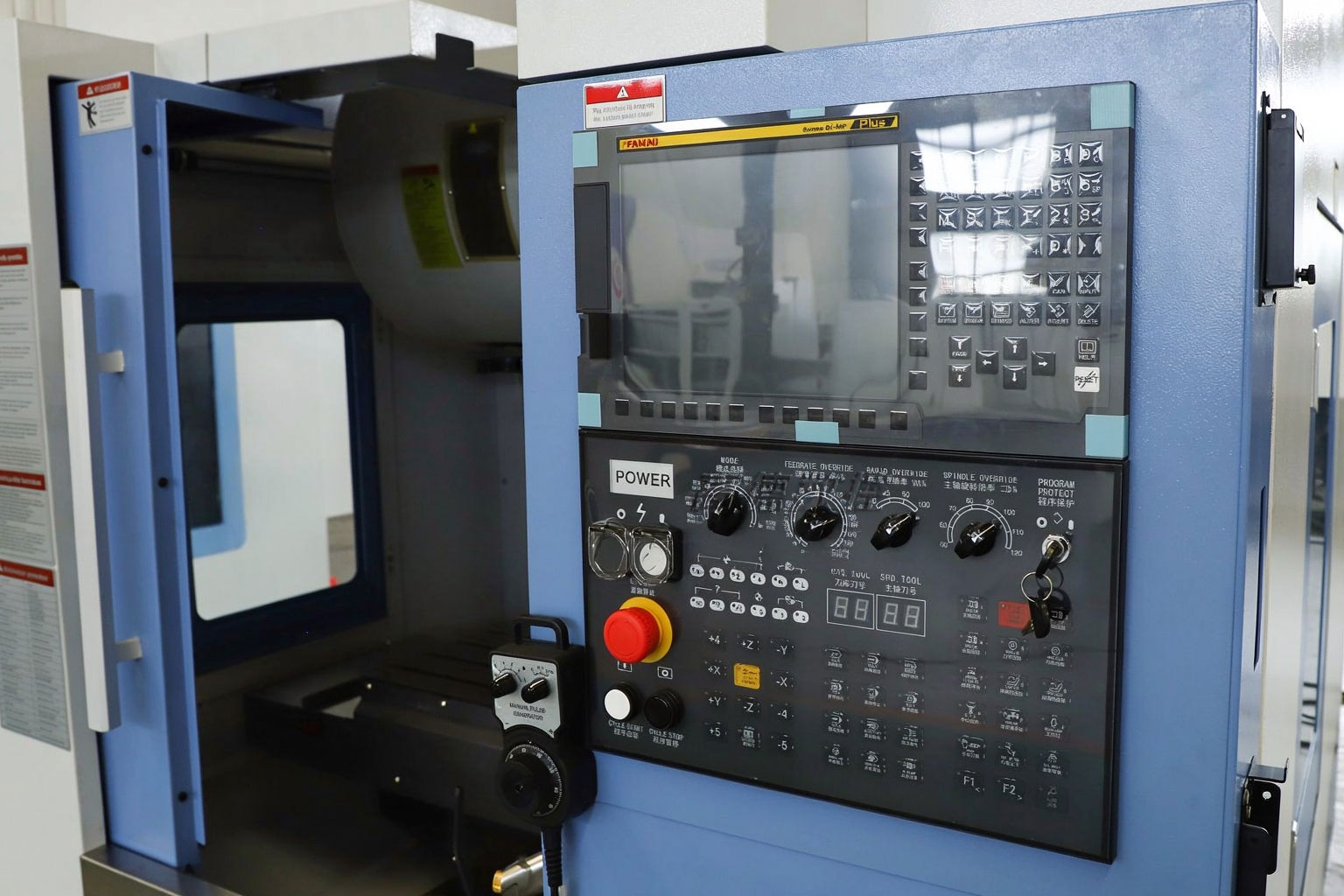

Offers a range of CNC system options, including FANUC, GSK, Siemens, Mitsubishi, and others. The operating interface supports multiple languages, such as Chinese, English, Spanish, and Russian.
High rigidity—stable, vibration-free operation during heavy-duty cutting. High speed—suitable for both roughing and finishing. High precision—helps reduce the scrap rate.
The equipment features an all-metal enclosure. With a sheet metal thickness of 2 mm—far exceeding market standards—it ensures maximum safety for operators during operation.
The use of high-precision HIWIN (Taiwan) linear guideways and ball screws significantly enhances positioning accuracy. The system ensures exceptional motion smoothness, free from jerking or stick-slip, and supports rapid traverse speeds of up to 24, 36, or 48 m/min.
The HMC Horizontal Machining Center is suitable for precision machining of various box-shaped, structural, and complex metal components. Its horizontal spindle configuration and multi-face machining capability make it suitable for:
The VMC650 is a vertical CNC machining center designed for milling, drilling, tapping, boring and other metal machining operations. It is suitable for precision machining of a wide range of industrial components.
