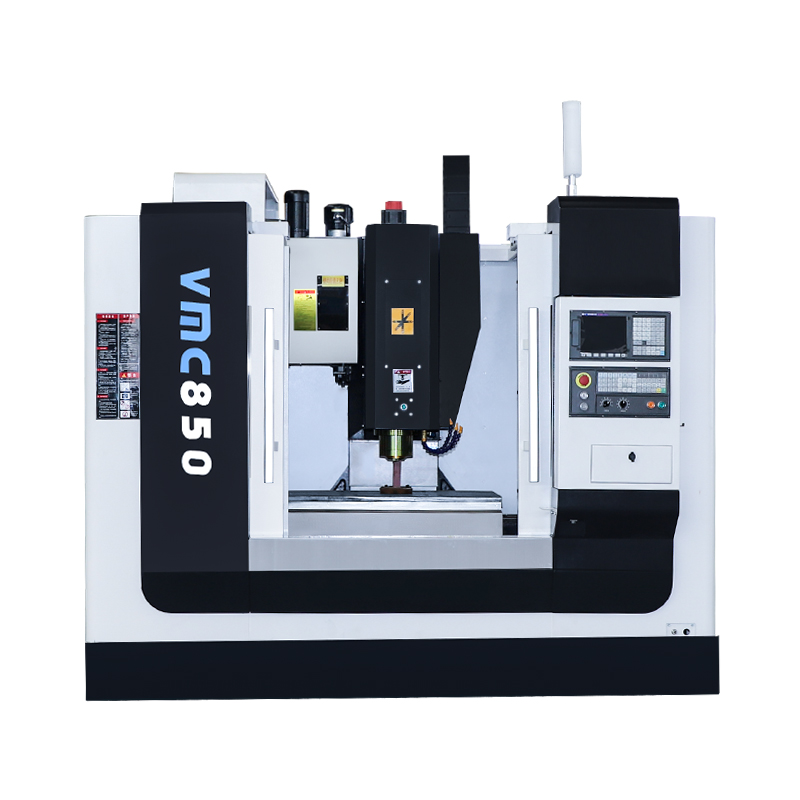

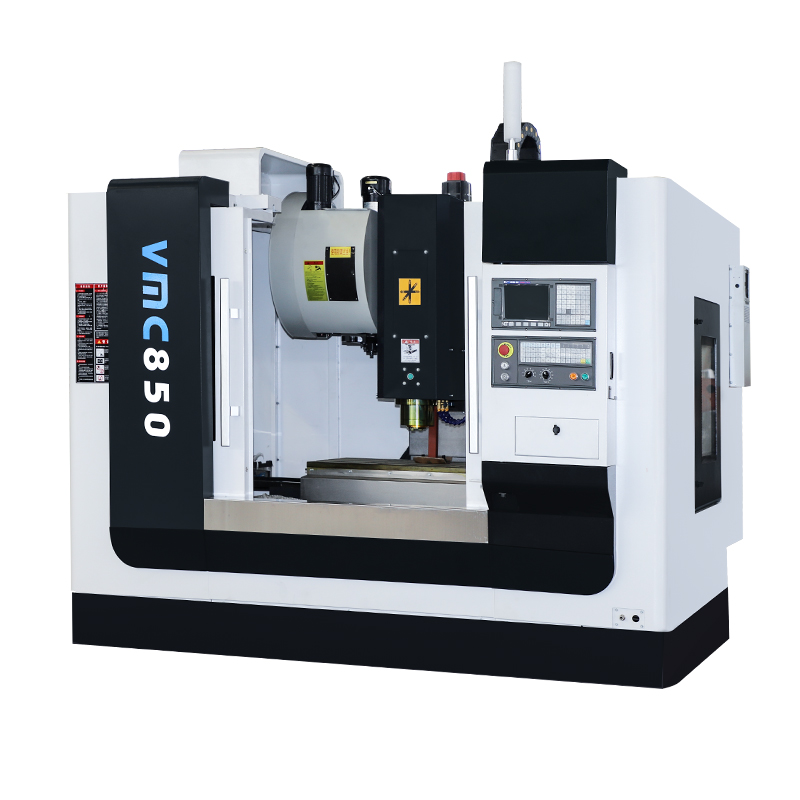

1.The VMC850 CNC vertical machining center provides X/Y/Z axis travels of 800/500/500 mm, giving manufacturers sufficient machining range for a wide variety of small and medium-sized metal parts.
2.The VMC850 CNC machining center uses a widened box-type base and column, together with a widened and lengthened saddle and heavy-duty full-support structure. This design provides a rigid foundation for stable machining.
3.The VMC850 vertical machining center is equipped with a BT40 spindle with a standard speed of 8000 rpm, providing a practical spindle configuration for general CNC milling applications.

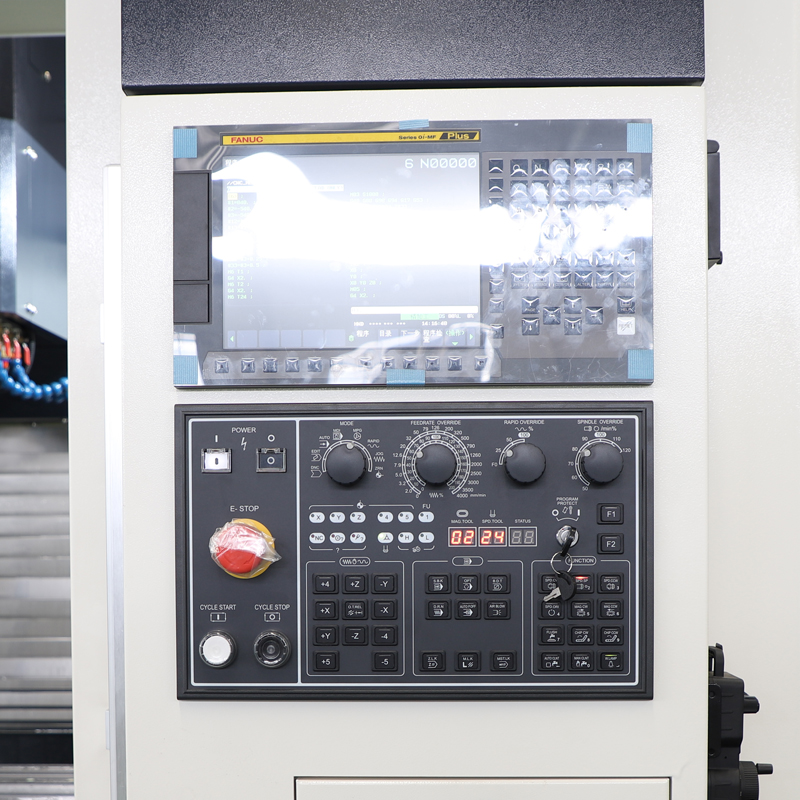

Offers a range of CNC system options, including FANUC, GSK, Siemens, Mitsubishi, and others. The operating interface supports multiple languages, such as Chinese, English, Spanish, and Russian.
High rigidity—stable, vibration-free operation during heavy-duty cutting. High speed—suitable for both roughing and finishing. High precision—helps reduce the scrap rate.
The use of high-precision linear guideways and ball screws from HIWIN (Taiwan) significantly enhances positioning accuracy. The system ensures exceptional motion smoothness—free from jerking or stick-slip—and supports rapid traverse speeds of up to 24, 36, or 48 m/min.
The equipment features an all-metal enclosure. With a sheet metal thickness of 2 mm—far exceeding market standards—it ensures maximum safety for operators during operation.
Yes. Depending on the workpiece and process requirements, the VMC850 CNC machining center can perform milling, drilling, boring, reaming and tapping in one setup. This can reduce repeated repositioning of the workpiece.
| Specification | Unit | VMC850 | VMC1160 |
| X axis travel | mm | 800 | 1100 |
| Y axis travel | mm | 500 | 600 |
| Z axis travel | mm | 500 | 600 |
| Distance from spindle center to column rail | mm | 571 | 673 |
| Distance from spindle end to worktable | mm | 150-650 | 120-720 |

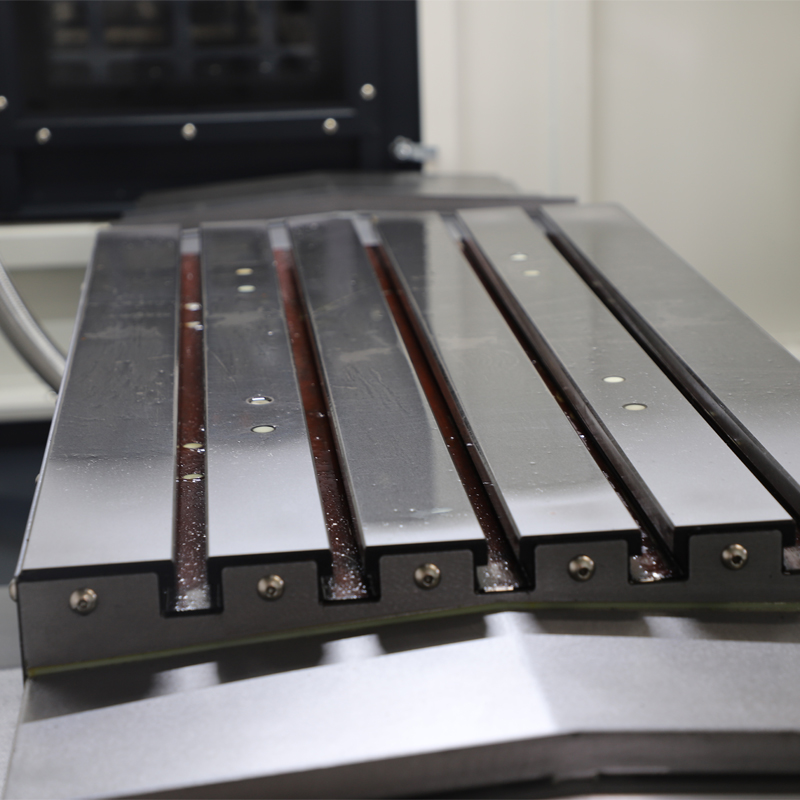

| Worktable | |||
| Size | mm | 1000×500 | 1200×600 |
| T-slot(Qty.-pitch-width) | mm | 3-18*90 | 5-18*100 |
| Maximum loading capacity | kg | 500 | 800 |
| Spindle | |||
| Speed | rpm | 8000（Optional：10000/12000） | |
| Inner taper | mm | BT40 | BT40-150 |
| Motor | KW | 7.5 | 11 |
| Motor connecting method | Belt type(Optional：Direct) | ||
| Feeding | |||
| XYZ fast moving | m/min | 24/24/24 (Optional:32,36,48) |
24/24/24 (Optional:32,36,48) |
| Cutting feeding | m/min | 1-10 | 1-10 |
| XYZ Motor connection | Direct | Direct | |
| XYZ Guiderail | Linear guideway | Linear guideway | |
| Tool Magazine | |||
| Type | Disc | Disc | |
| Quantity of tools | 24 | 24 | |
| Max. tool weight | kg | 8 | 8 |
| Max. tool length | mm | 300 | 300 |
| Max. tool diameter | mm | 78（adjacent）/ 120（separate） |
78（adjacent）/ 120（separate） |
| Accuracy | |||
| XYZ positioning accuracy | mm | ±0.005/300 | ±0.005/300 |
| XYZ repeated positioning accuracy | mm | ±0.003 | ±0.003 |
| Dimension | mm | 2600*2000*2200 | 3510*3020*3070 |
