1.800/550/550 mm Three-Axis Travel — The X/Y/Z travel provides sufficient machining range for milling, drilling, tapping and other operations.
2.Rigid Machine Structure — A rigid machine structure helps reduce vibration during cutting and supports stable machining performance.
3. Stable Machining Accuracy — A properly configured feed system and rigid structure help maintain consistent machining performance during production.
4.Configurable for Different Production Needs — Control systems, spindle options, tooling and other configurations can be selected according to the customer’s application.

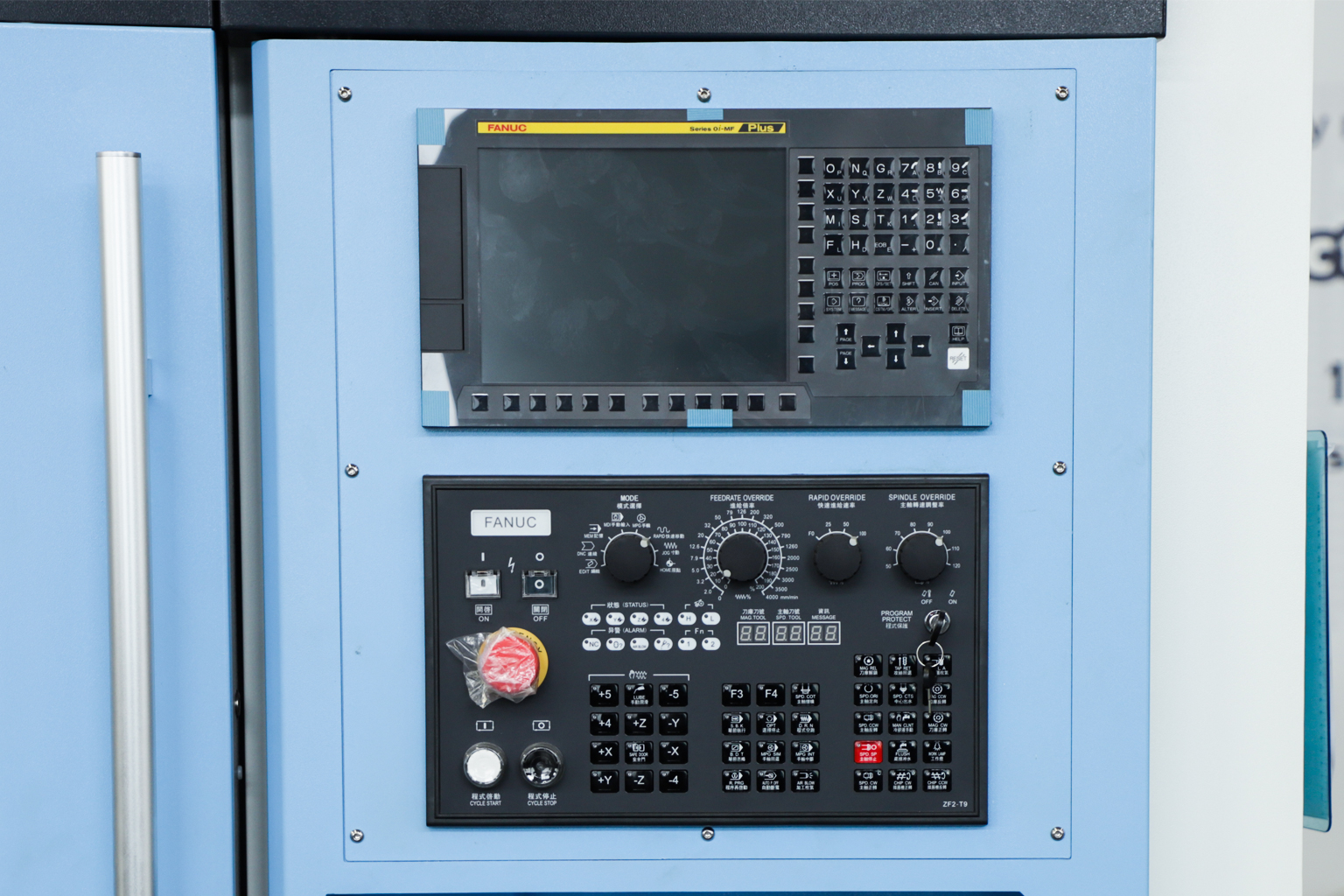

Offers a range of CNC system options, including FANUC, GSK, Siemens, Mitsubishi, and others. The operating interface supports multiple languages, such as Chinese, English, Spanish, and Russian.

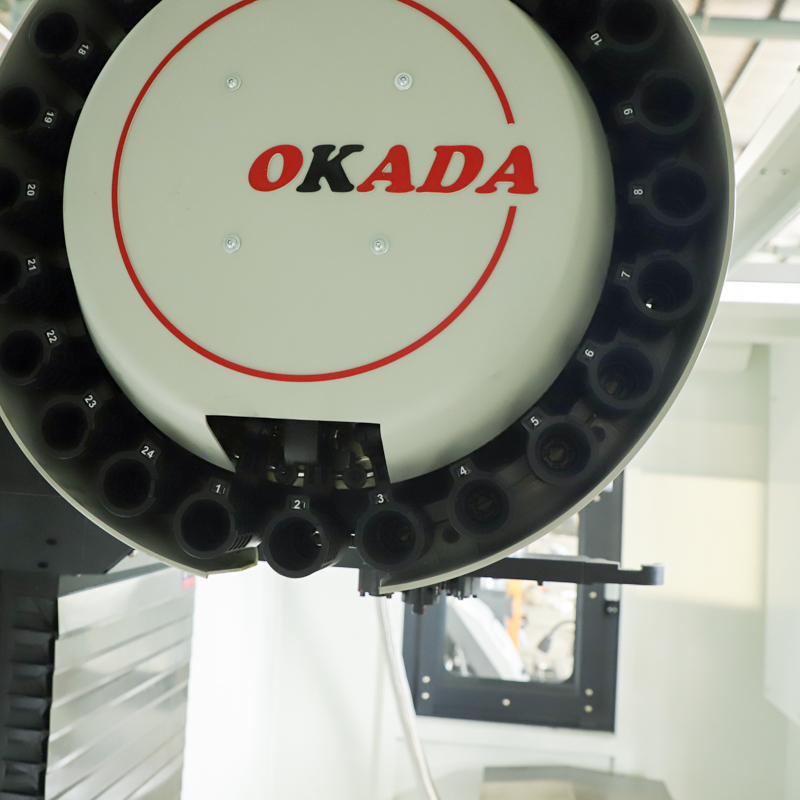

The tool magazine allows different cutting tools to be selected automatically, enabling milling, drilling, tapping and other operations in one machining setup.
The use of high-precision linear guideways and ball screws from HIWIN (Taiwan) significantly enhances positioning accuracy. The system ensures exceptional motion smoothness—free from jerking or stick-slip—and supports rapid traverse speeds of up to 24, 36, or 48 m/min.
The equipment features an all-metal enclosure. With a sheet metal thickness of 2 mm—far exceeding market standards—it ensures maximum safety for operators during operation.
The actual workpiece size depends on the machine's table dimensions, X/Y/Z travel, fixture, tool and machining requirements. Customers should evaluate the complete work envelope rather than looking at table size alone.
| Specification | Unit | VMC855 |
| X axis travel | mm | 800 |
| Y axis travel | mm | 550 |
| Z axis travel | mm | 550 |
| Distance from spindle center to column rail | mm | 613 |
| Distance from spindle end to worktable | mm | 120-670 |
| Worktable | ||
| Size | mm | 1000×550 |
| T-slot(Qty.-pitch-width) | mm | 5-18*90 |
| Maximum loading capacity | kg | 500 |
| Spindle | ||
| Speed | rpm | |
| Inner taper | mm | BT40-150 |
| Motor | KW | 7.5 |
| Motor connecting method | ||
| Feeding | ||
| XYZ fast moving | m/min | 24/24/24 (Optional:32,36,48) |
| Cutting feeding | m/min | 1-10 |
| XYZ Motor connection | Direct | |
| XYZ Guiderail | Linear guideway | |
| Tool Magazine | ||
| Type | Disc | |
| Quantity of tools | 24 | |
| Max. tool weight | kg | 8 |
| Max. tool length | mm | 300 |
| Max. tool diameter | mm | 78（adjacent）/ 120（separate） |
| Accuracy | ||
| XYZ positioning accuracy | mm | ±0.005/300 |
| XYZ repeated positioning accuracy | mm | ±0.003 |
| Dimension | mm | 2770*2280*2800 |
| Weight | kg | 4200 |
