01

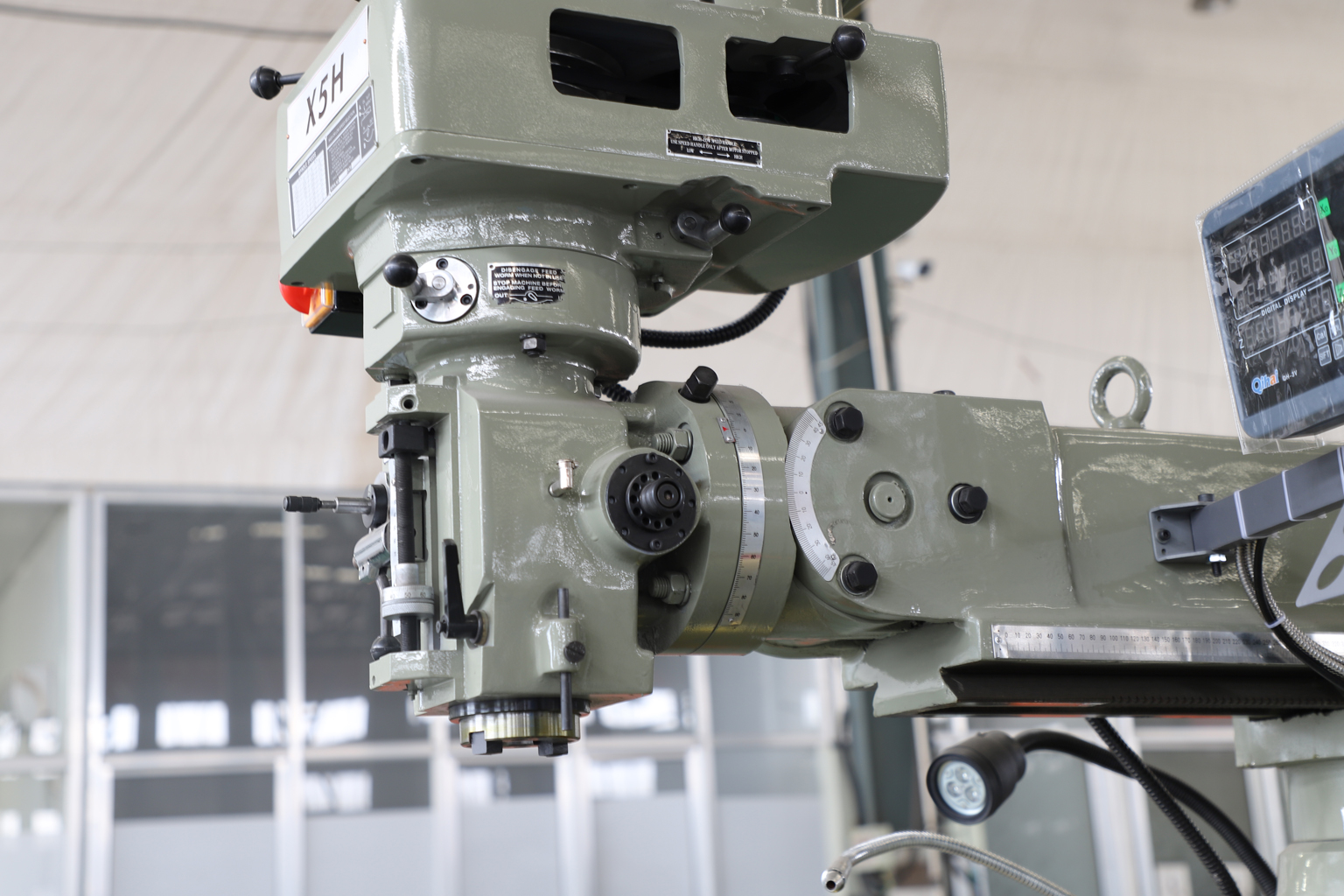

Milling Head
The milling head can swivel 90° to the left or right, and the ram can extend and retract, greatly expanding the machine's working range.
The X5H milling machine has a 1370 × 305 mm worktable and 810/420/500 mm X/Y/Z travel, making it suitable for components, tooling and repair work requiring a larger workholding area and machining envelope. The actual workpiece size should also be evaluated based on weight, fixturing and machining requirements.

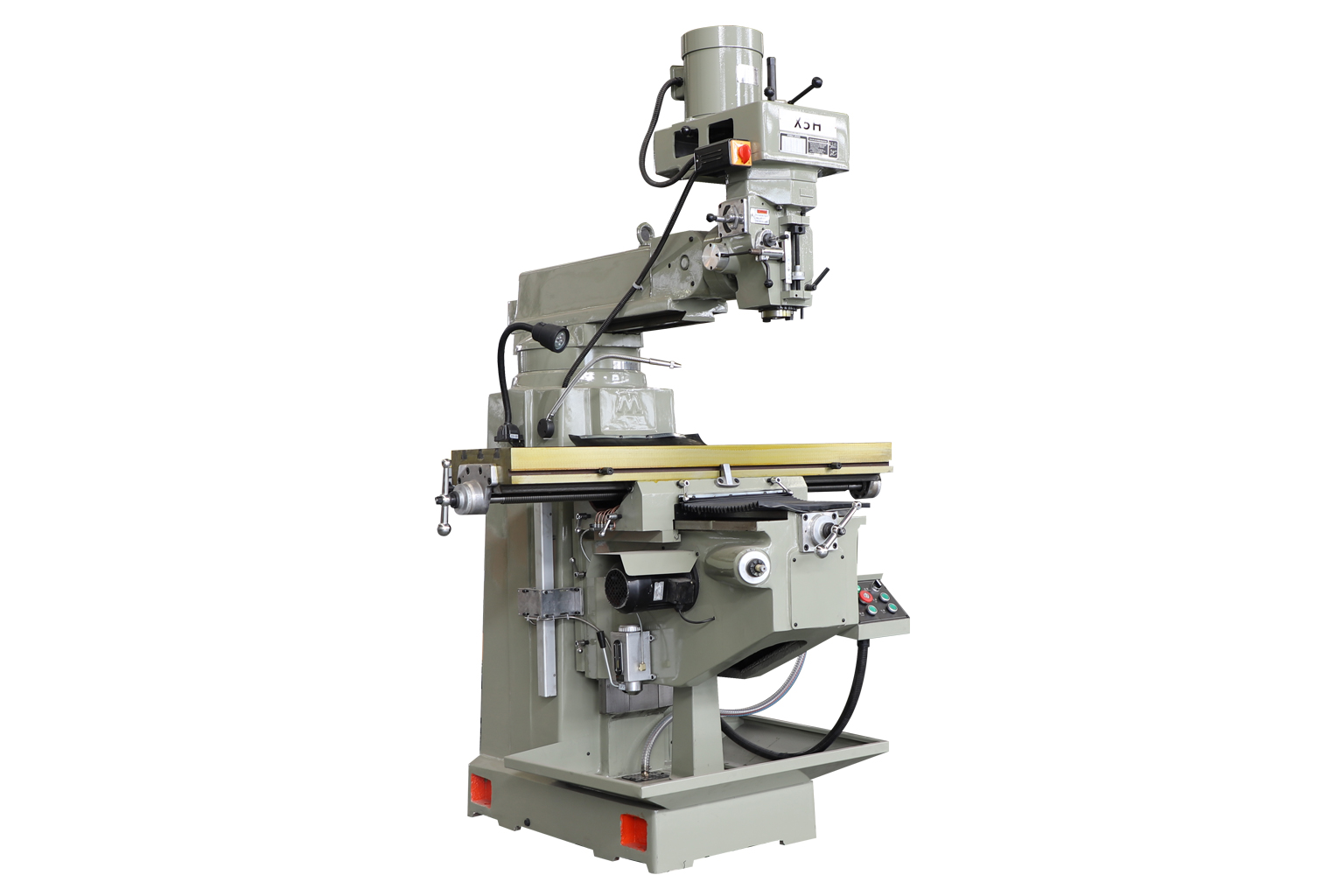

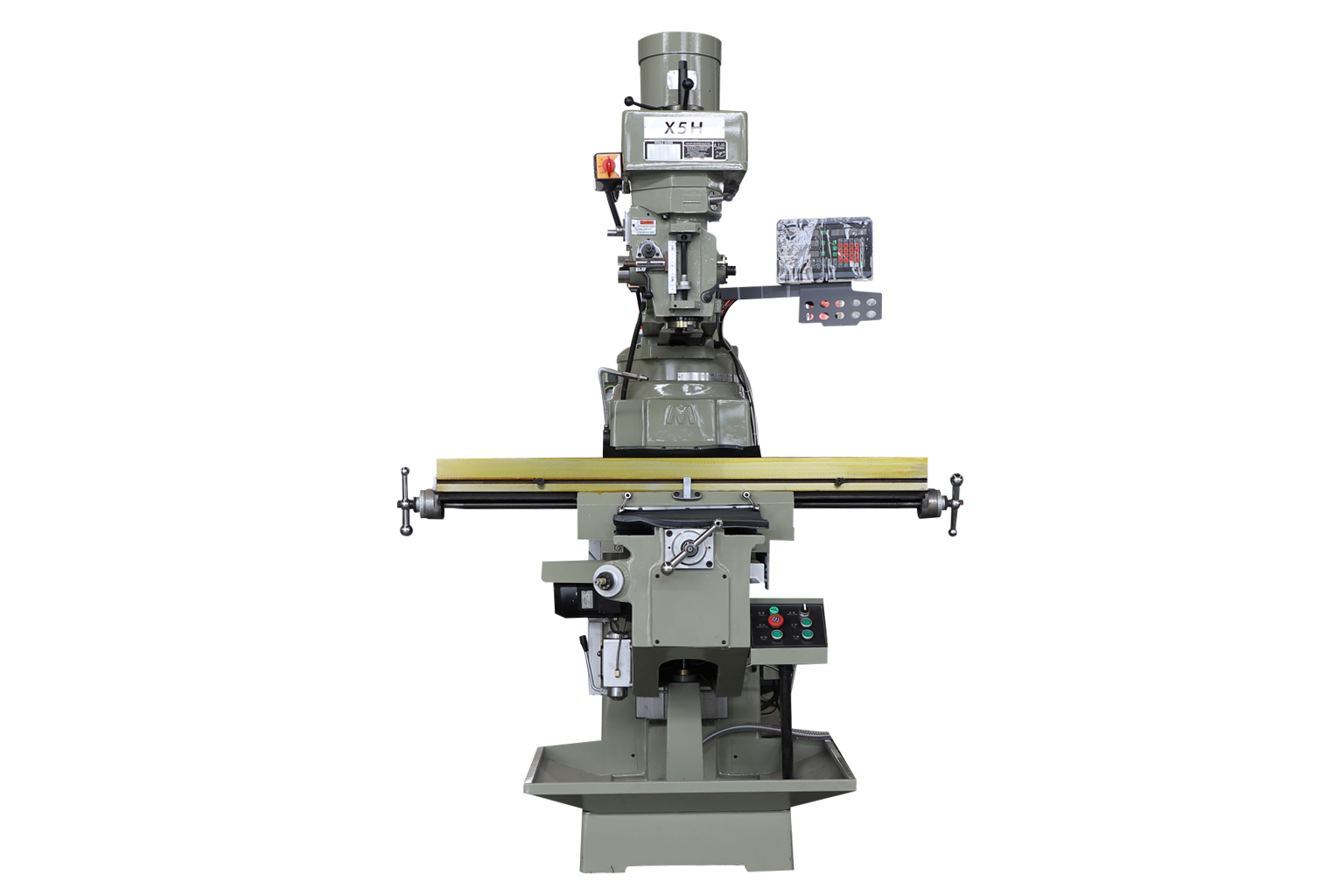

1.The X5H Turret Milling Machine features a 1370 × 305 mm worktable, providing more workholding space for larger components, tooling and repair parts than compact turret mills.
2.The X5H provides 500 mm telescopic boom travel, giving operators additional flexibility when positioning the spindle relative to the workpiece.
3.X5H Milling Machine supports manual, rapid and powered feed modes, with eight powered feed speeds available for different machining requirements.
|
Specifications |
X5H |
|
Spindle taper |
R8 |
|
Spindle speed range(r.p.m) |
50HZ:65-4500 60HZ:80-5440 (16 steps) |
|
Table size (mm) |
1370×305 |
|
Table travel (X/Y/Z) (mm) |
810/400/400 |
|
Spindle travel (mm) |
127 |
|
Distance from spindle end face to workbench（mm） |
0-350 |
|
Main motor (kw) |
2.2 |
|
Turn left and right of milling head Turn left and right of milling head |
90° |
|
Back and forth rotary milling head |
45° |
|
Machine weight (kg) |
1380 |
|
Overall dimension (mm) |
1750x1650x2250 |
The milling head can swivel 90° to the left or right, and the ram can extend and retract, greatly expanding the machine's working range.

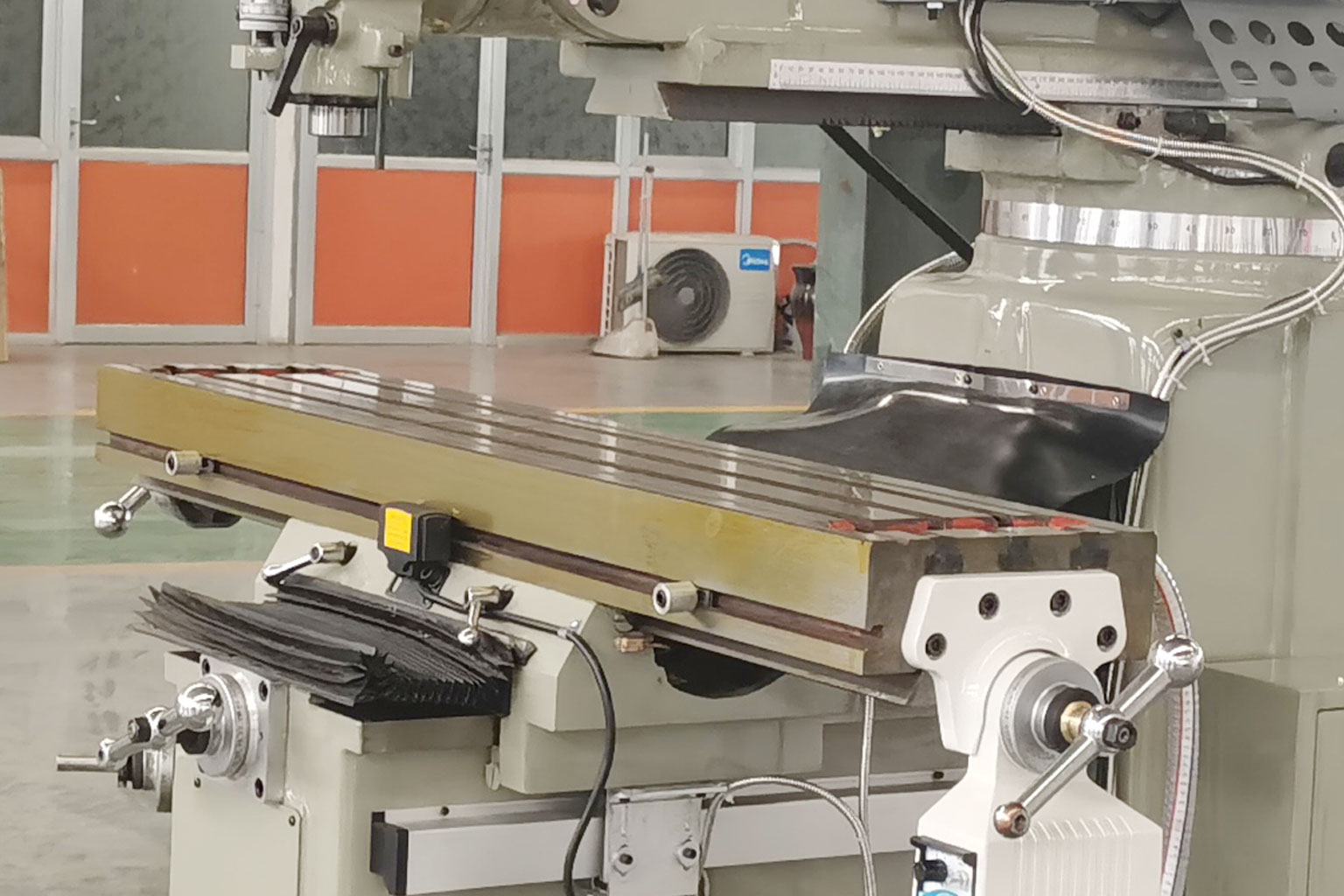

Power feed in X, Y, and Z axes;Worktable guideways undergo ultrasonic frequency quenching and precision grinding.

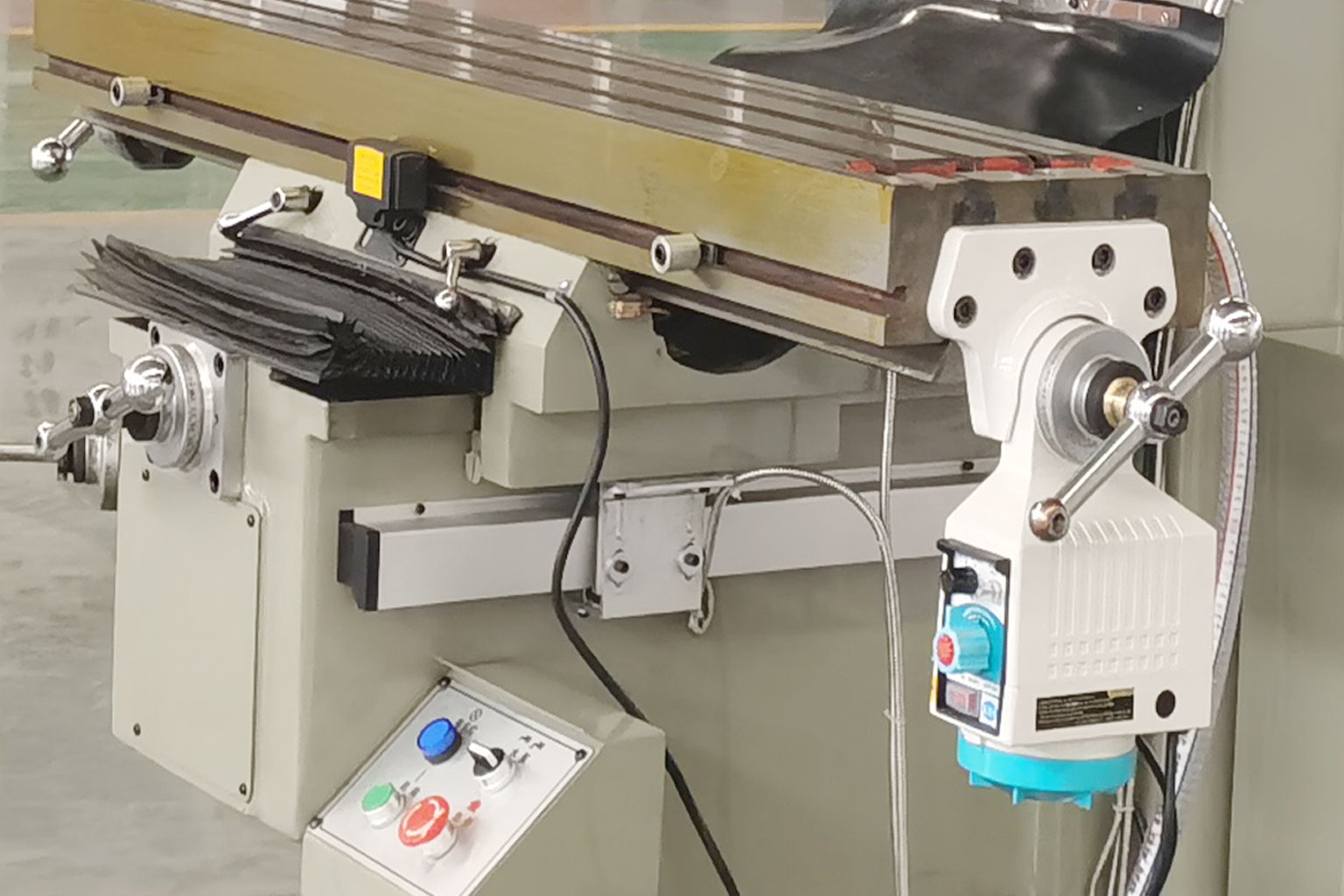

Manual and motorized feed are available in the X, Y, and Z axes,with feed speeds capable of meeting various machining requirements.
Yes. The X5H can handle drilling and related general-purpose machining operations. For complex, high-volume work involving extensive drilling, tapping and boring, a CNC machining center may be more appropriate depending on the application.
