01

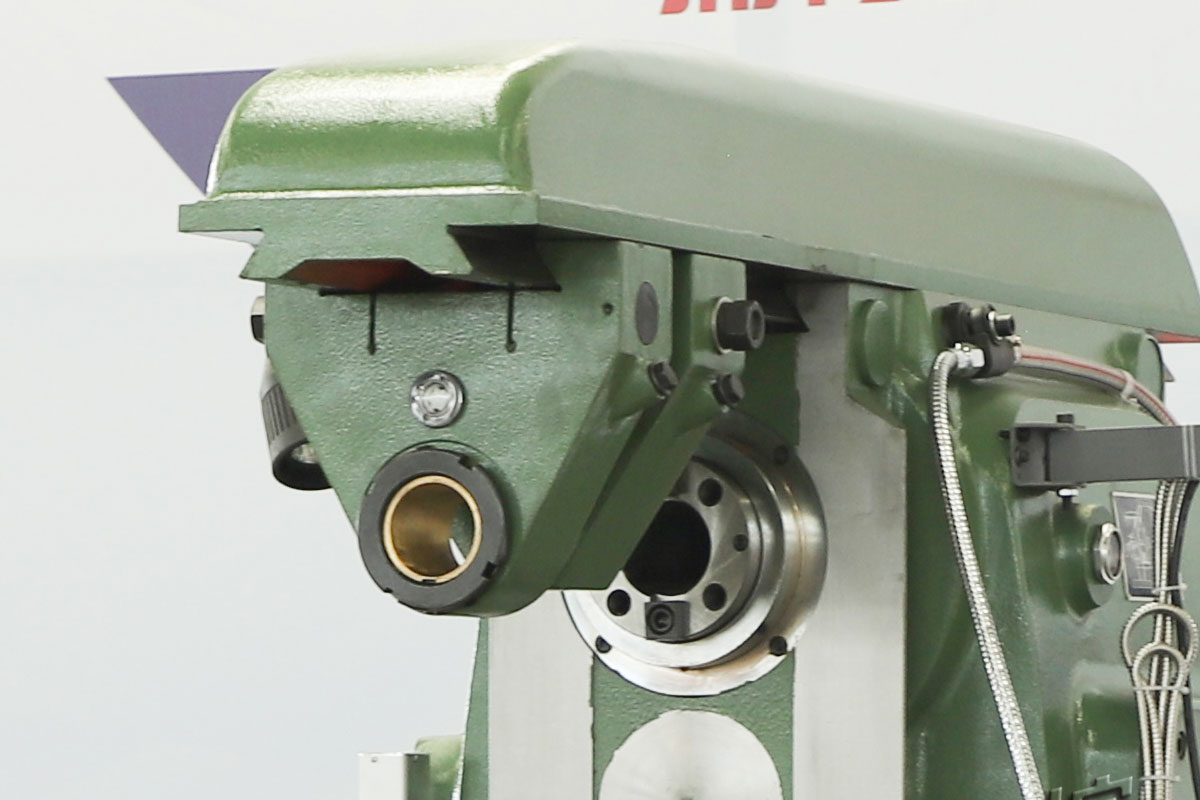

Spindle
The spindle utilizes tapered roller bearings, offering high system rigidity and strong load-bearing capacity.

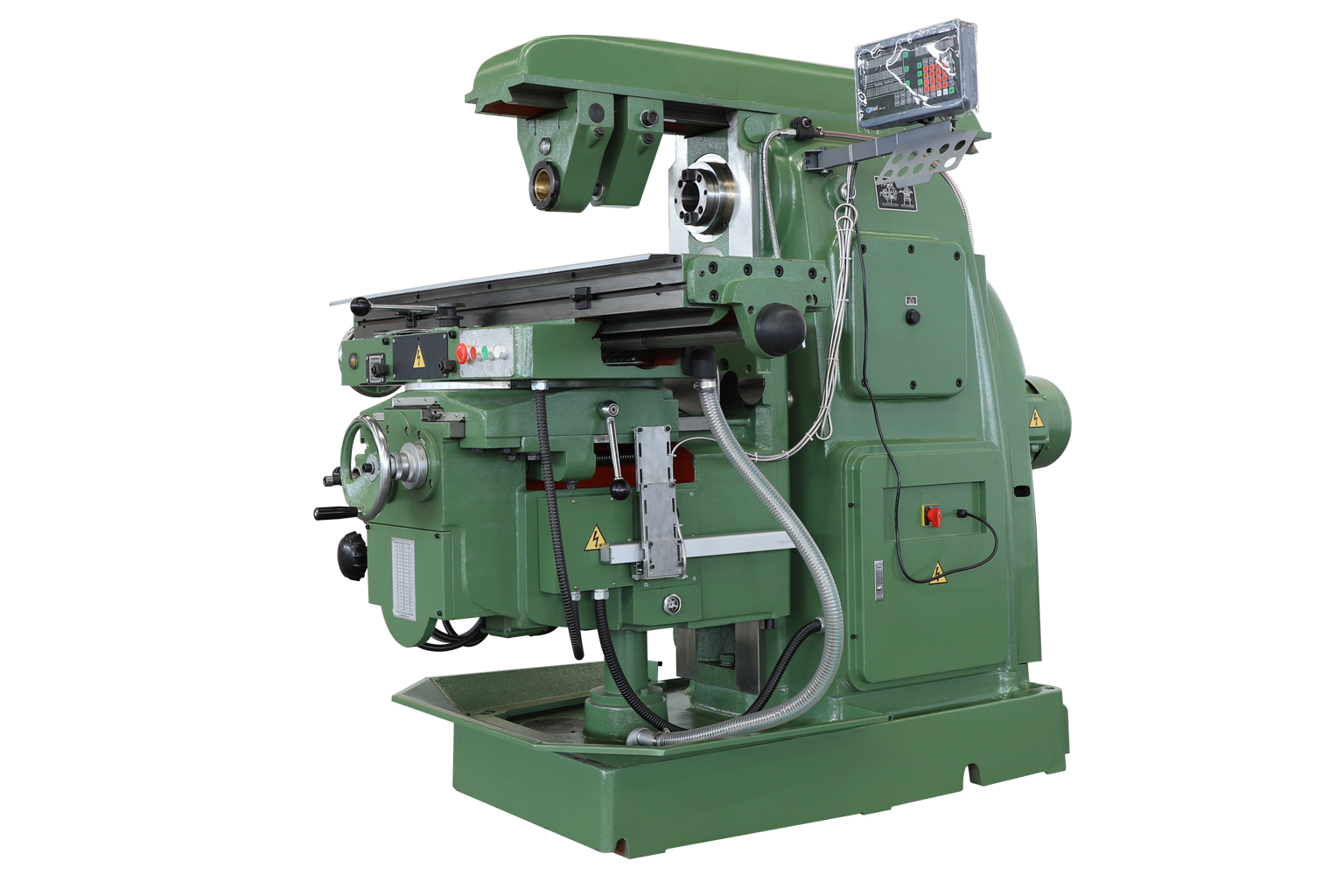

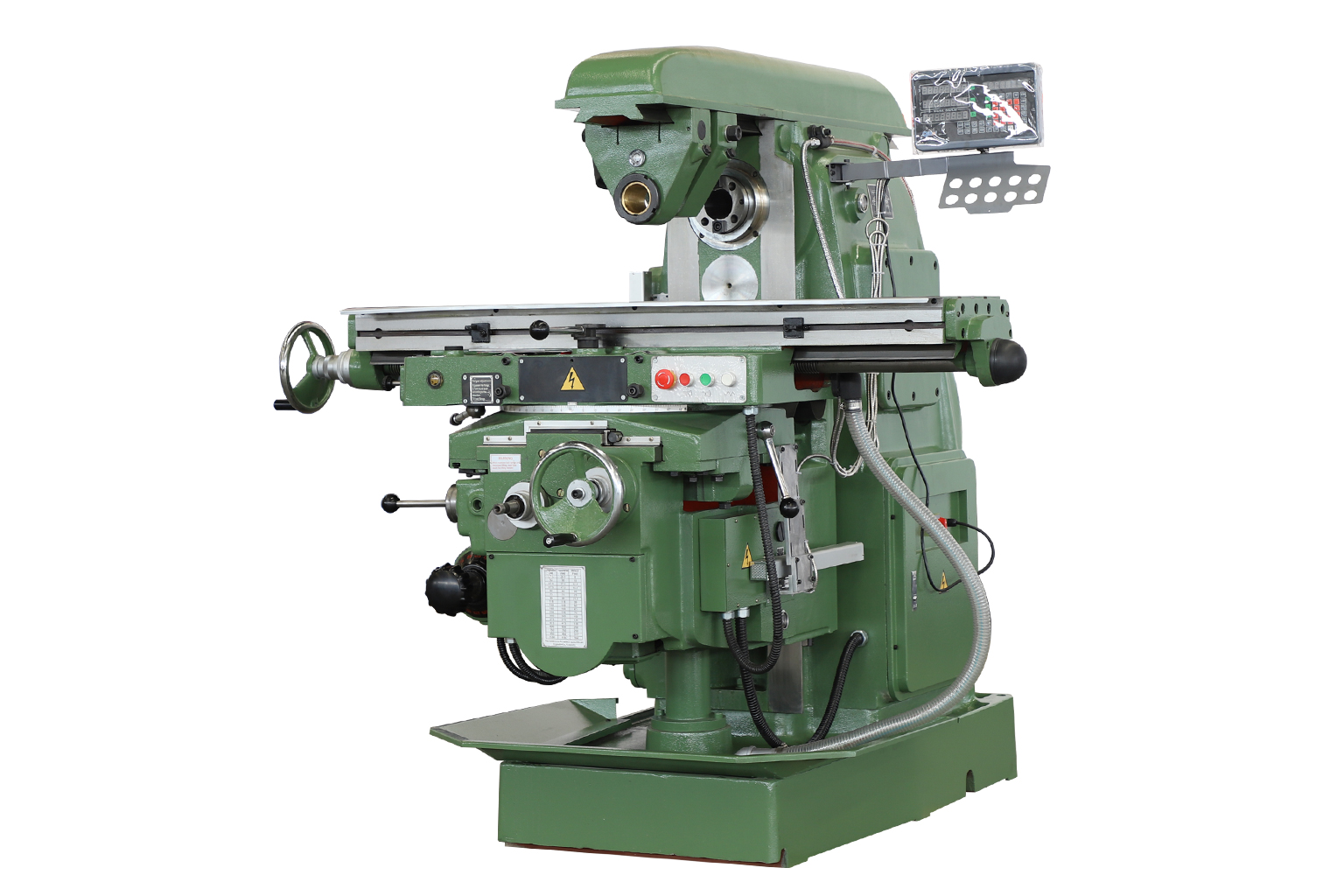

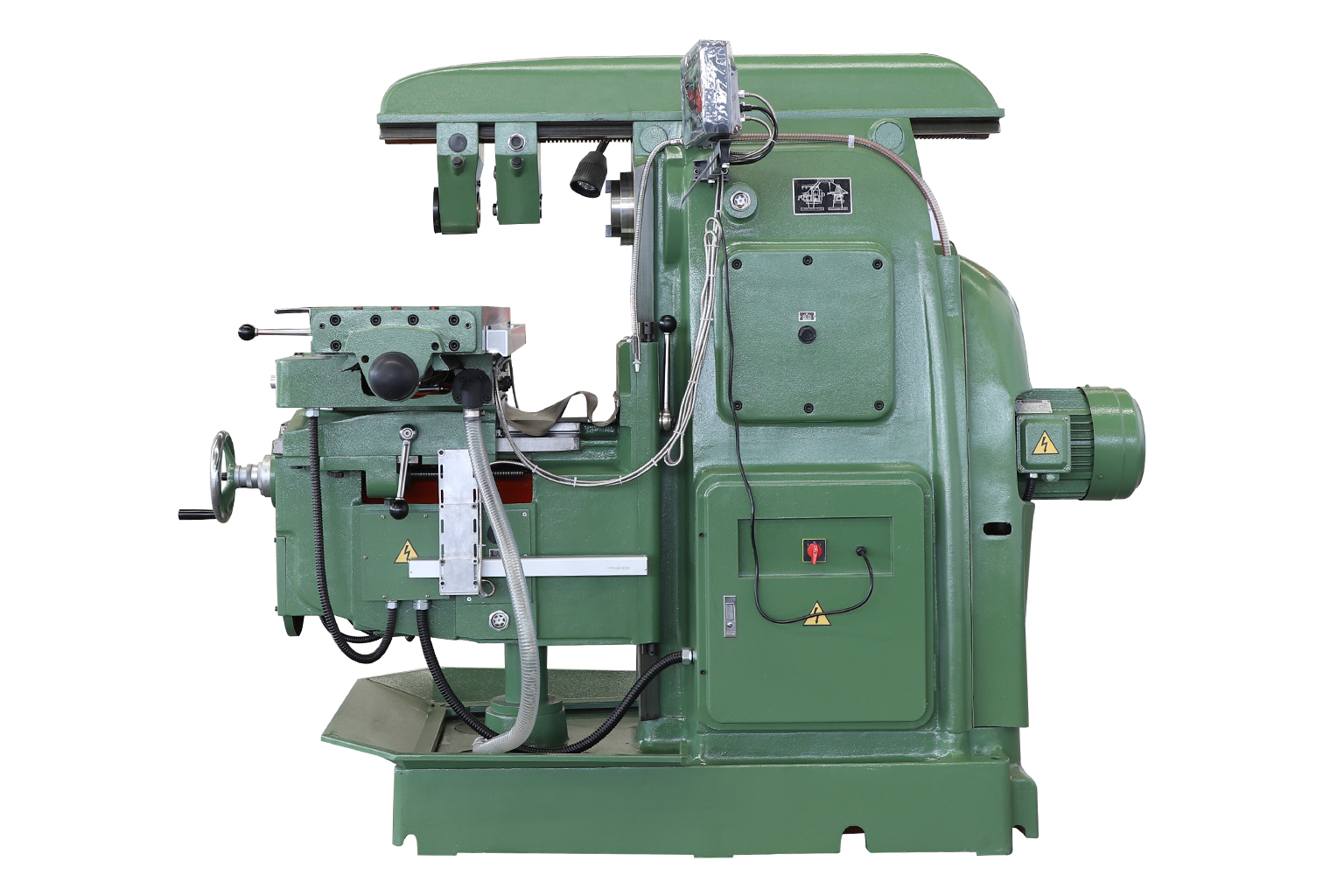

The X6132 Universal Milling Machine is a versatile workshop and industrial milling machine with a swiveling worktable, ISO50 spindle and flexible tooling options for machining planes, inclined surfaces, grooves, holes, gears and spiral surfaces.
1.X6132 Universal Milling Machine supports a broad range of milling cutters and machining operations, including plane milling, inclined-surface machining, slotting, drilling, gear machining and spiral-surface milling.
2.The X6132 features a 1325 × 320 mm worktable with a maximum load capacity of 500 kg, providing practical workholding capacity for general industrial components, tooling and repair parts.
The spindle utilizes tapered roller bearings, offering high system rigidity and strong load-bearing capacity.

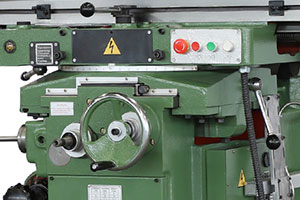

Manual and motorized feed are available in the X, Y, and Z axes,with feed speeds capable of meeting various machining requirements.
Three axis digital display;Processing is more accurate.

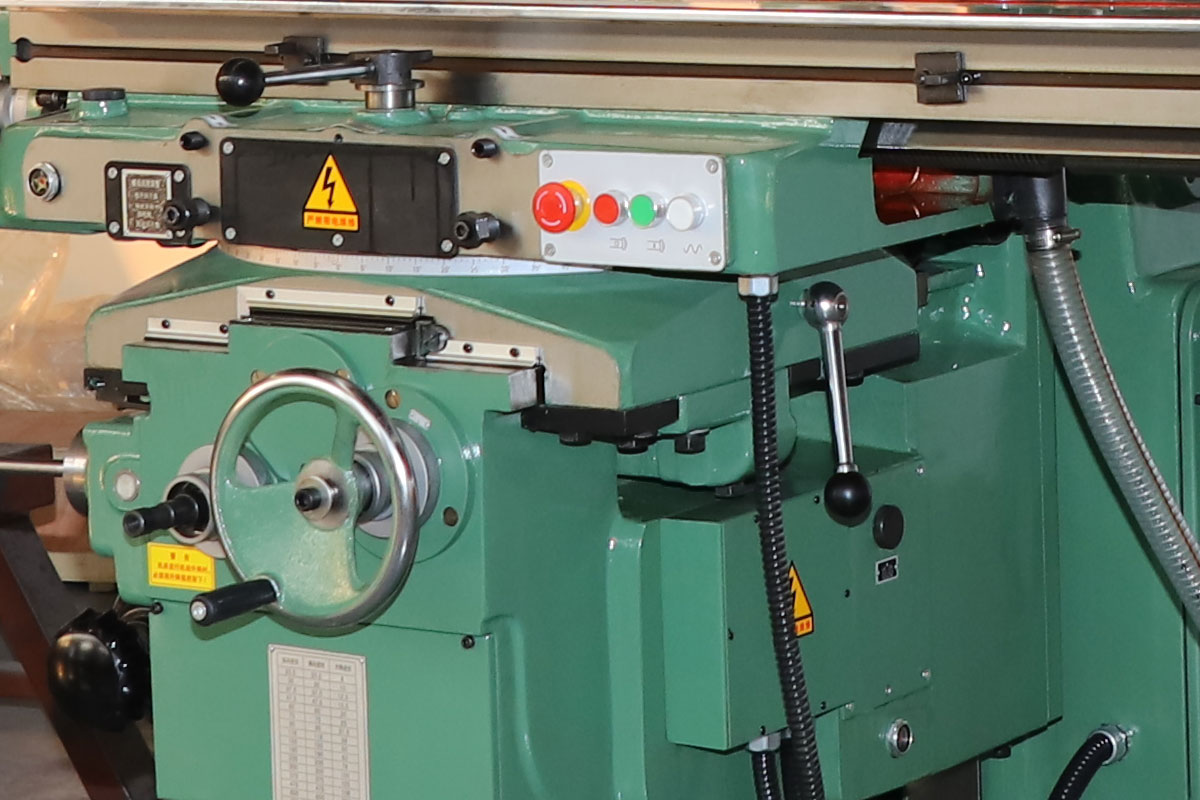

The table has three types of manual feed, manual feed and fast feed;Handwheel device, easy to operate.
The X6132 can machine mechanical components, fixtures, repair parts, gear-related components and other workpieces requiring plane, inclined-surface, slot, hole or spiral-surface machining. Additional accessories such as a dividing head can further expand its machining capabilities.
|
Specification |
units |
X6132 |
|
Table size |
mm |
1325×320 |
|
Max. load |
kg |
500 |
|
Numbers, width&distance between T-slot |
mm |
3/18/70 |
|
Longitudinal travel (manual/mobile) |
mm |
700/680 |
|
Cross travel (manual/mobile) |
mm |
255/240 |
|
Vertical travel (manual/mobile) |
mm |
320/300 |
|
Max.rotary angle of table |
|
±45° |
|
Spindle taper |
|
ISO50 7:24 |
|
Spindle bore hole |
mm |
29 |
|
Spindle nose to table surface |
mm |
30-350 |
|
Spindle speed range |
r/mm |
30-1500 |
|
Spindle speed step |
steps |
18 |
|
Spindle motor power |
kw |
7.5 |
|
Cutting feed speed |
mm/min |
X/Y:23.5-1180 |
|
|
|
Z:8-394 |
|
Rapid feed speed |
mm/min |
2300/2300/770 |
|
Overall dimensions(L×W×H) |
mm |
2294x1770x1665 |
|
Net weight /Gross weight |
kg |
2600 |
