01

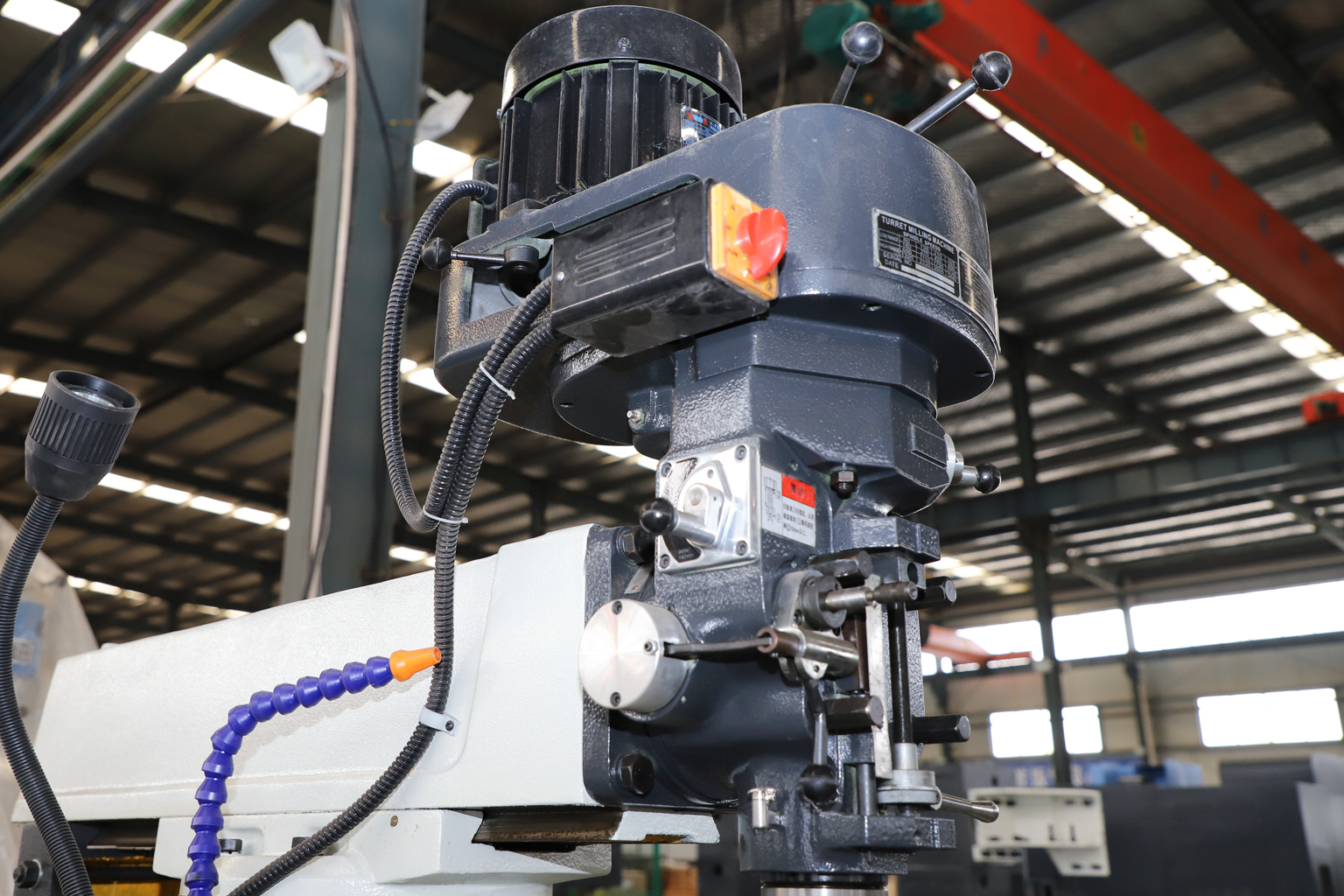

Milling Head
The milling head can swivel 90° to the left or right, and the ram can extend and retract, greatly expanding the machine's working range.

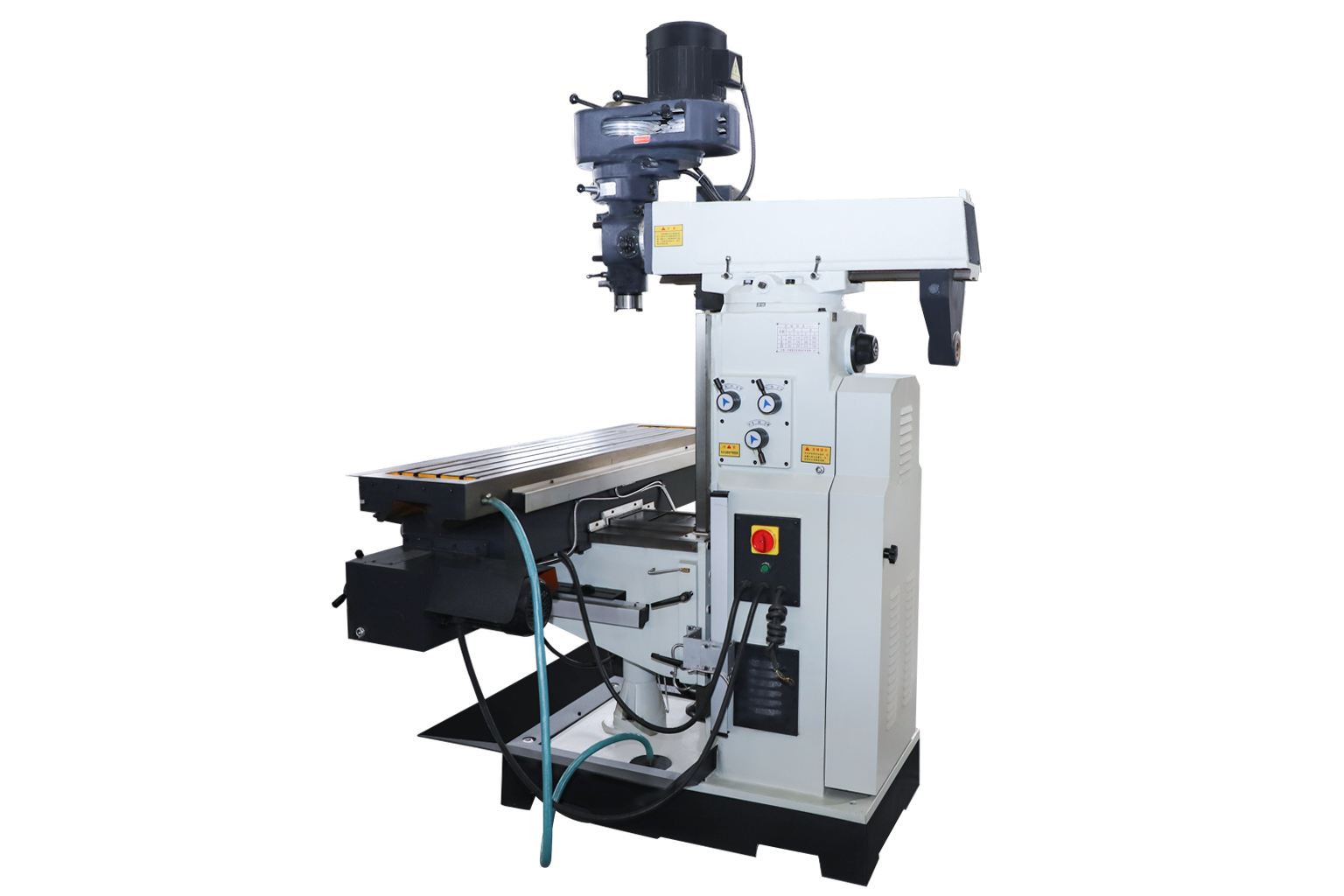

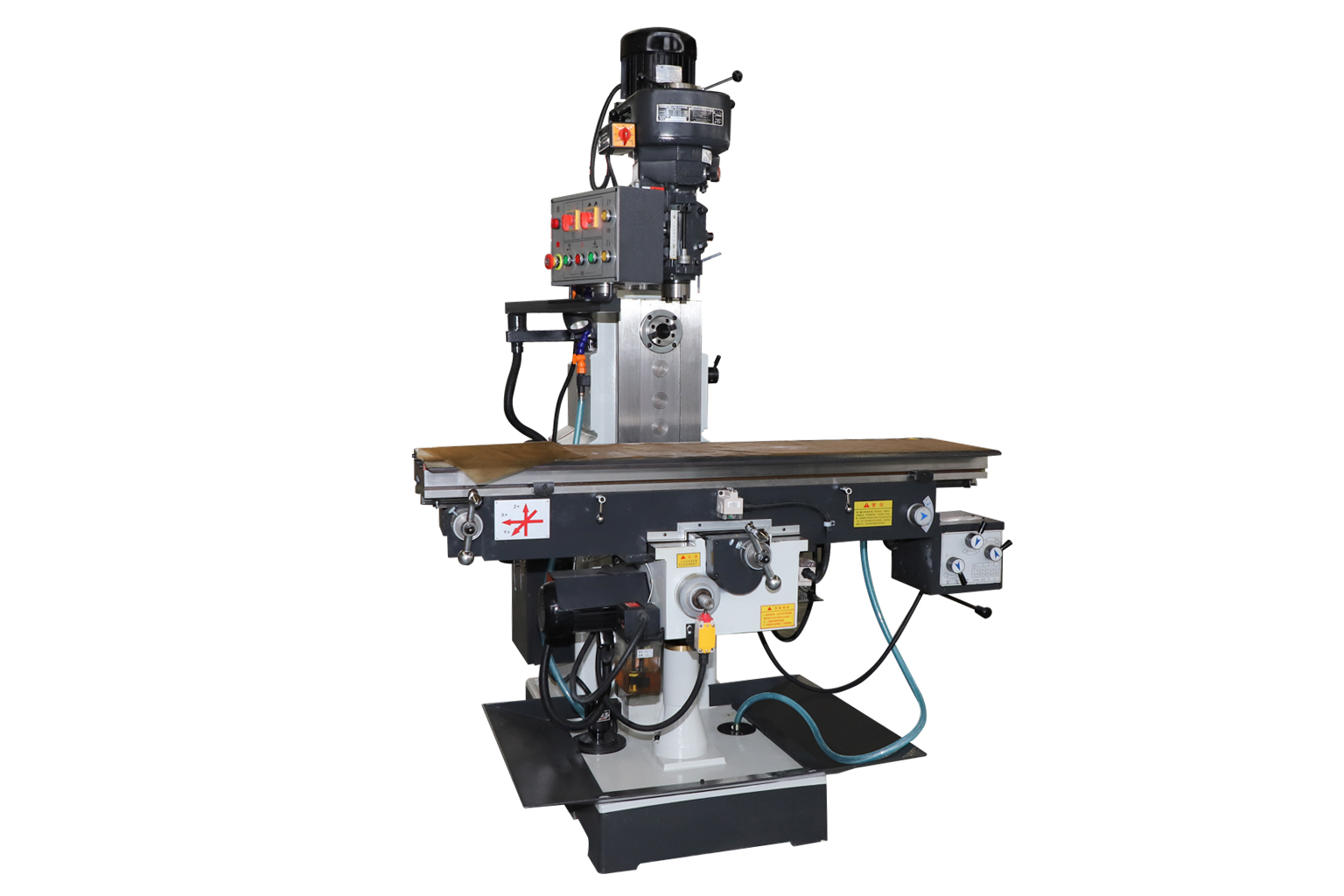

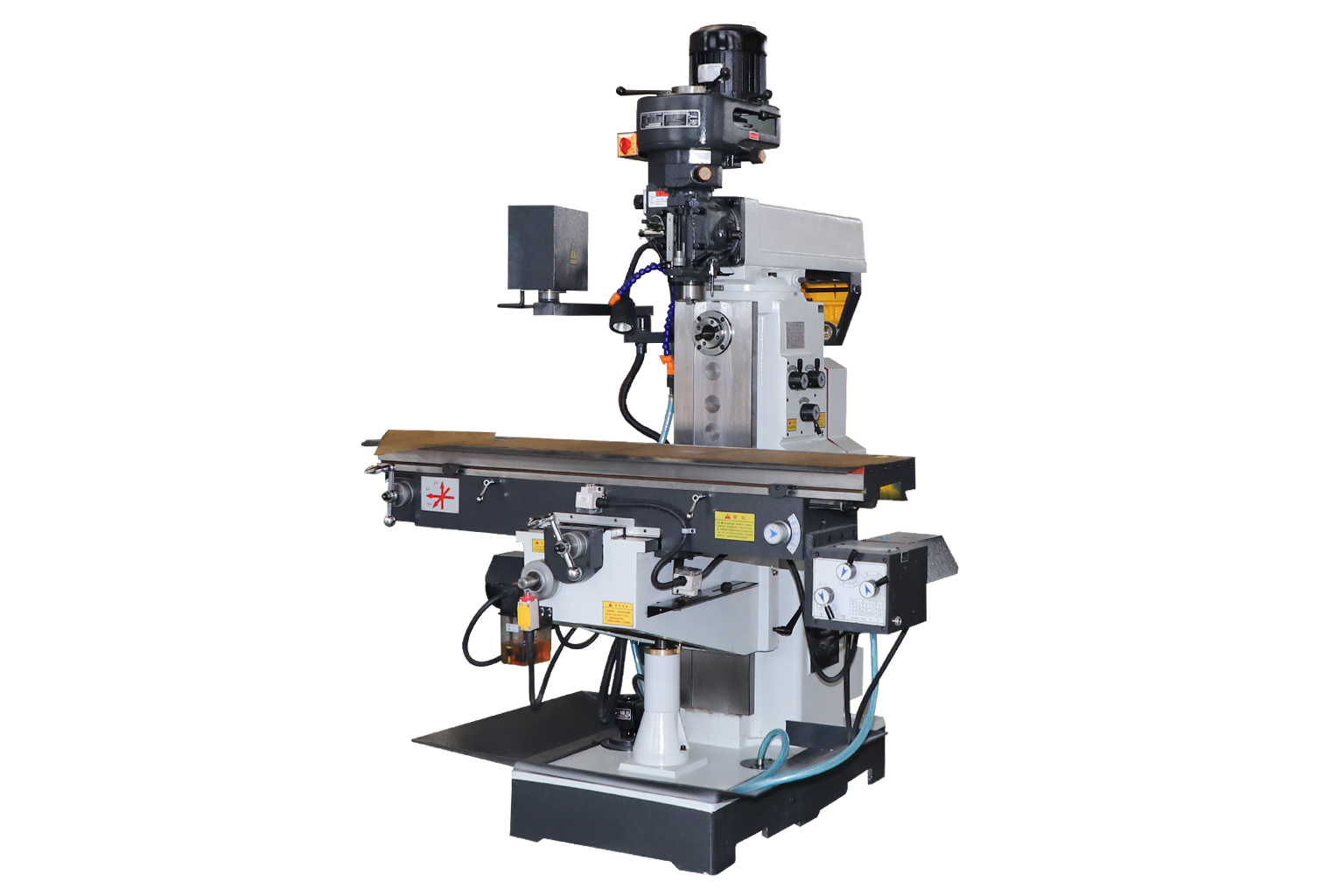

The X6332 Turret Milling Machine combines vertical and horizontal milling capabilities with an adjustable turret head, multiple feed options for flexible machining of varied components, tooling and repair parts.
1.X6332 Turret Milling Machine combines vertical and horizontal milling capabilities in one machine.
The vertical spindle is suitable for common face milling, surface milling, slotting and drilling operations, while the horizontal spindle provides an alternative cutting direction for different workpiece geometries and tooling requirements.
2.The X6332 turret milling head can be adjusted by ±45°, allowing the cutting direction to be adapted for angled surfaces and other non-standard machining requirements.

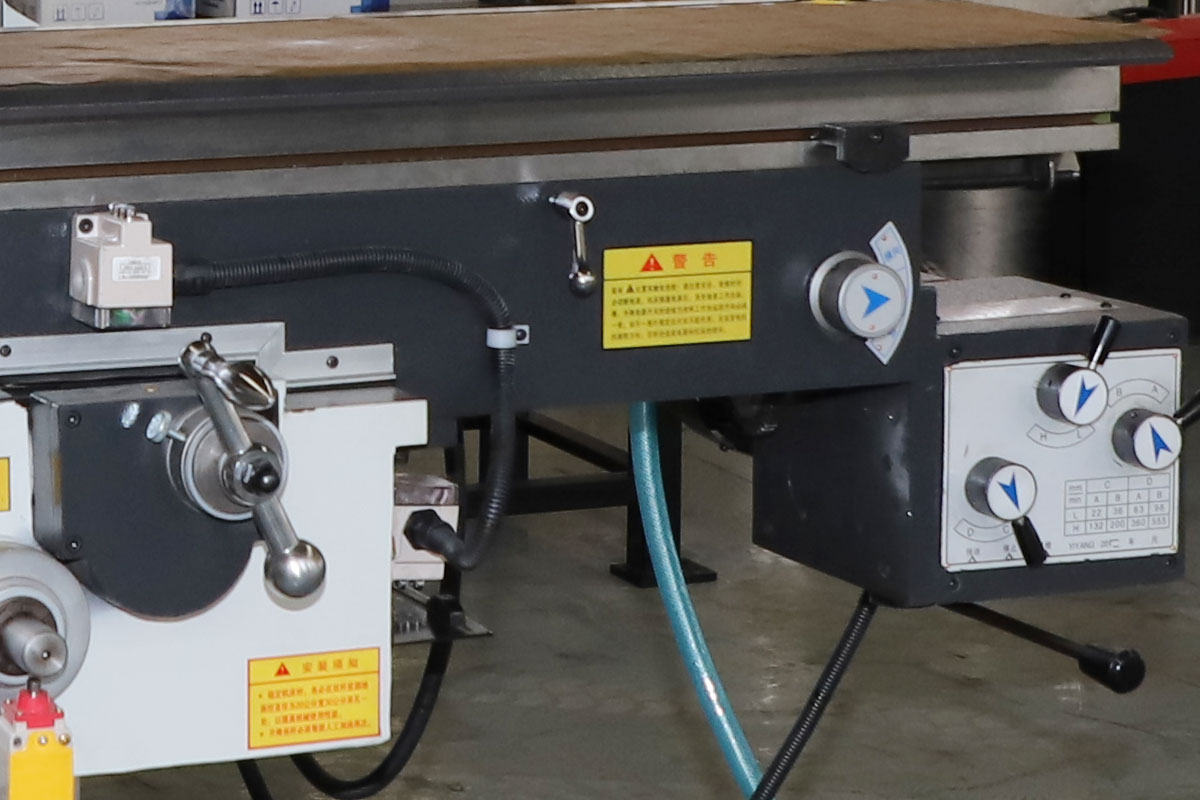

3.The X6332 supports multiple table-feed modes, including manual feed, rapid feed and powered feed. The powered feed provides eight feed speeds, allowing the operator to adapt table movement to different machining requirements.
The milling head can swivel 90° to the left or right, and the ram can extend and retract, greatly expanding the machine's working range.

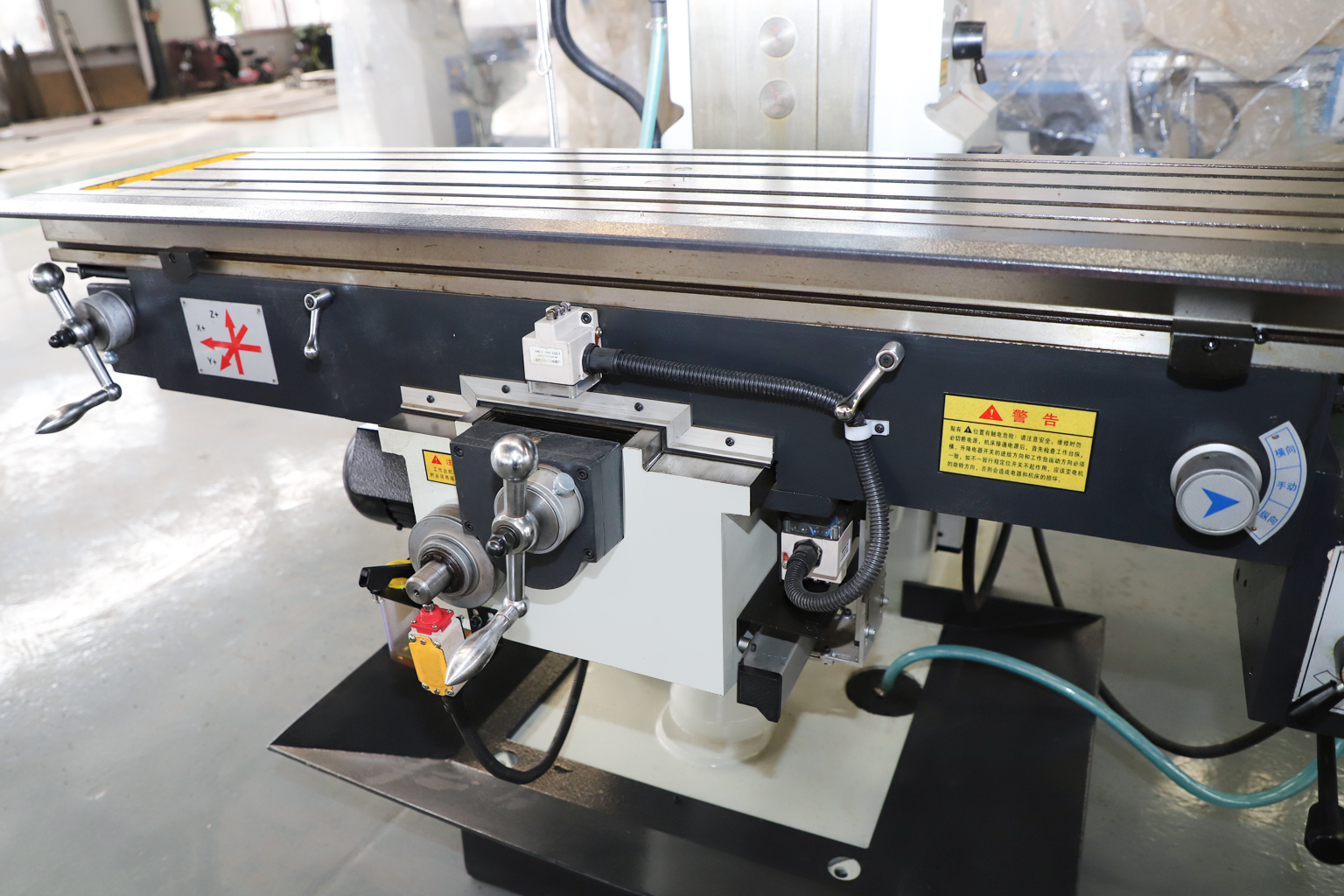

Power feed in X, Y, and Z axes;Worktable guideways undergo ultrasonic frequency quenching and precision grinding.
Manual and motorized feed are available in the X, Y, and Z axes,with feed speeds capable of meeting various machining requirements.
The X6332 milling machine is suitable for machine components, fixtures, repair parts, tooling-related components and general-purpose parts requiring surface, slot, hole or angled machining. Suitability for a specific part should be evaluated based on its dimensions, material, machining allowance and tolerance requirements.
|
Specifications |
X6332C |
|
Spindle taper |
7: 24 ISO40(vertical/horizontal) |
|
Spindle travel(mm) |
127(vertical) |
|
Spindle sleeve automatic feed stage and range (mm/r) |
(3 step)0.04/0.08/0.15 |
|
Spindle end to table distance (mm) |
155-550(vertical) |
|
Cantilever beam travel (mm) |
500 |
|
Distance from the center of the spindle hole to the guide surface of the bed (mm) |
155-550(vertical) |
|
Distance from the center of the spindle hole to the work surface (mm) |
0-350(horizontal) |
|
Spindle hole center to hanger plane distance (mm) |
190(horizontal) |
|
Spindle speed range (rpm) |
(16 step)60-4540(vertical) |
|
|
(12 step)40-1300(horizontal) |
|
Workbench size (mm) |
1500×320 |
|
Table travel (longitudinal / horizontal / vertical) (mm) |
1000/320/400 |
|
Work platform longitudinal/transverse maneuvering feed rate (mm/min) |
(8 stage)22-555(Fast forward 810) |
|
Worktable vertical maneuvering speed (mm/min) |
560 |
|
Workbench T-slot (groove number / width / spacing) |
3/14/70 |
|
Main motor power (kw) |
2.2(vertical)2.2(horizontal) |
|
Worktable machine feed motor power (w) |
750 |
|
Elevator lift motor power (w) |
1100 |
|
Machine size(mm) |
1720*1520*2225 |
