01

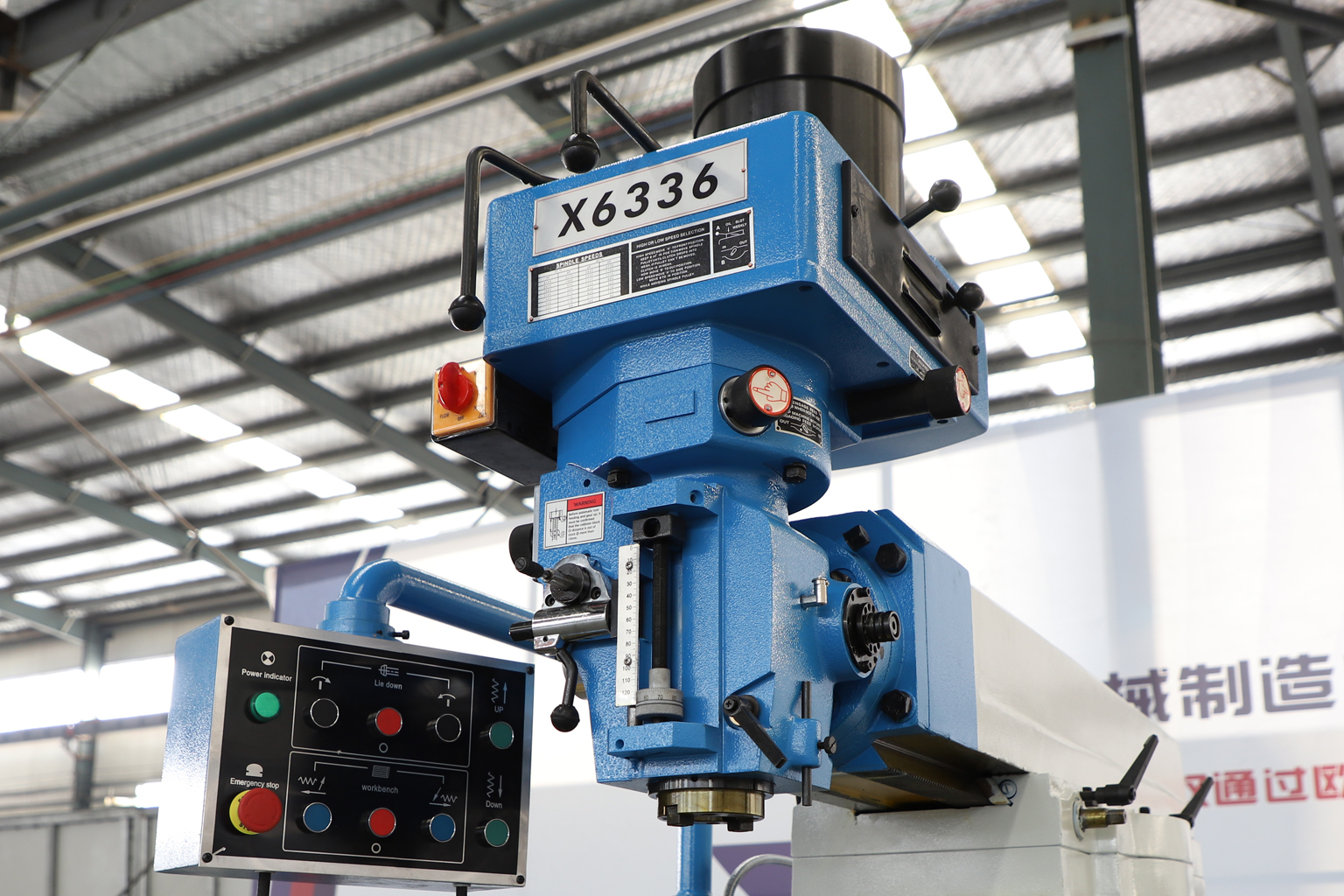

Milling Head
The head can rotate ±45° and features a 6-speed gear transmission.
This milling machine is a light-weight general-purpose metal cutting machine with both vertical and horizontal milling functions. It can mill planes, slopes, grooves and splines of small and medium parts. Widely used in machinery processing, molds, instruments, meters and other industries.

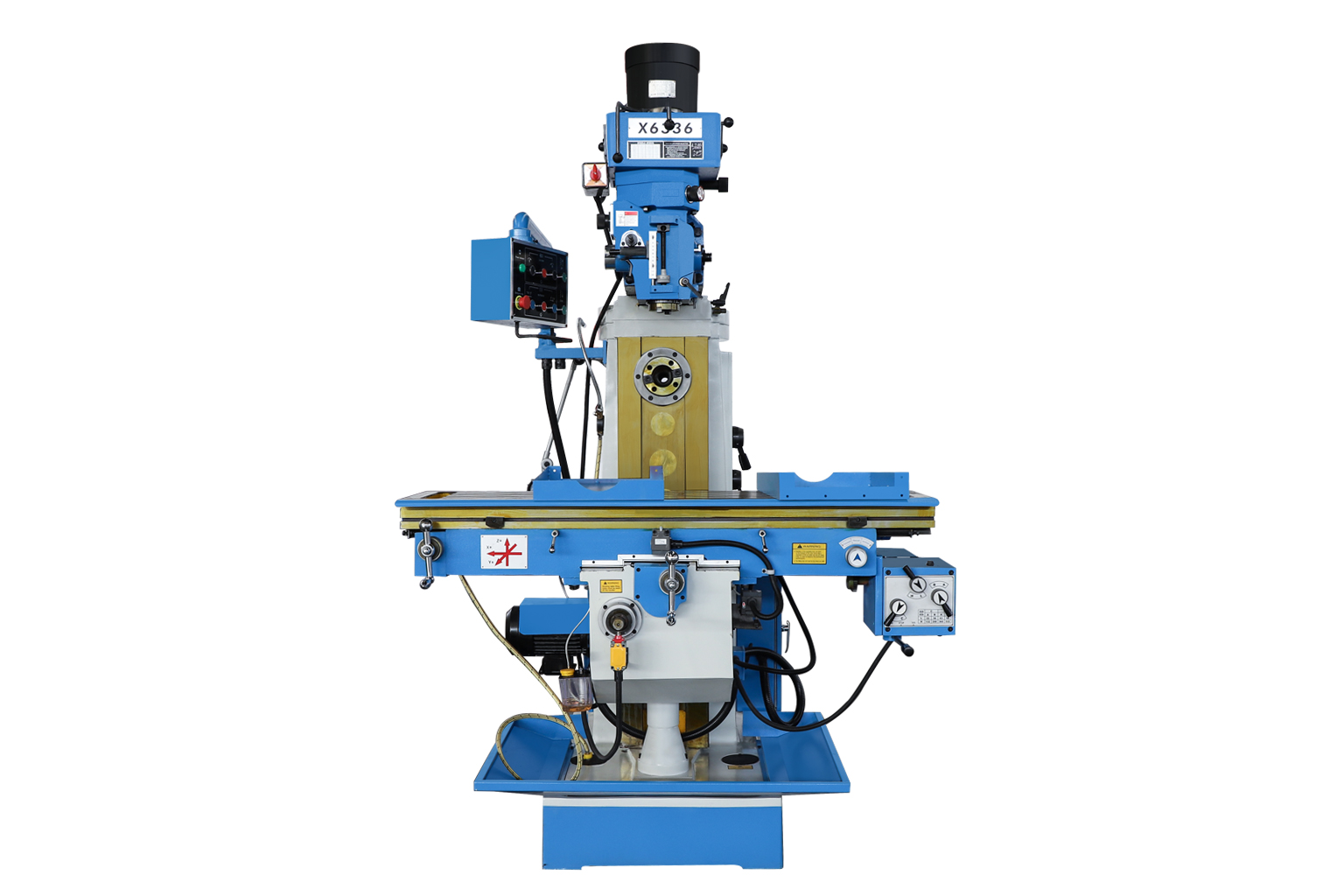

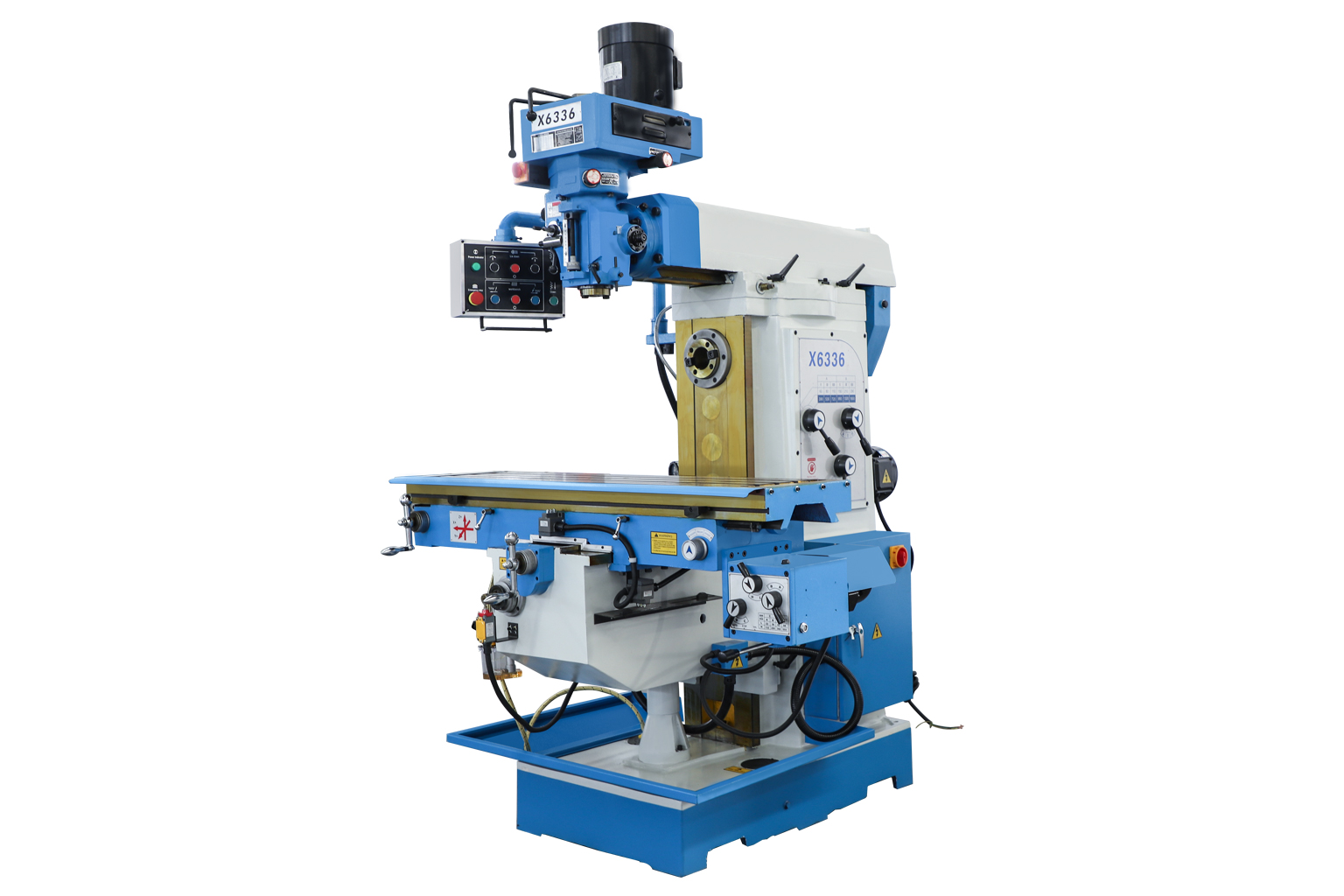

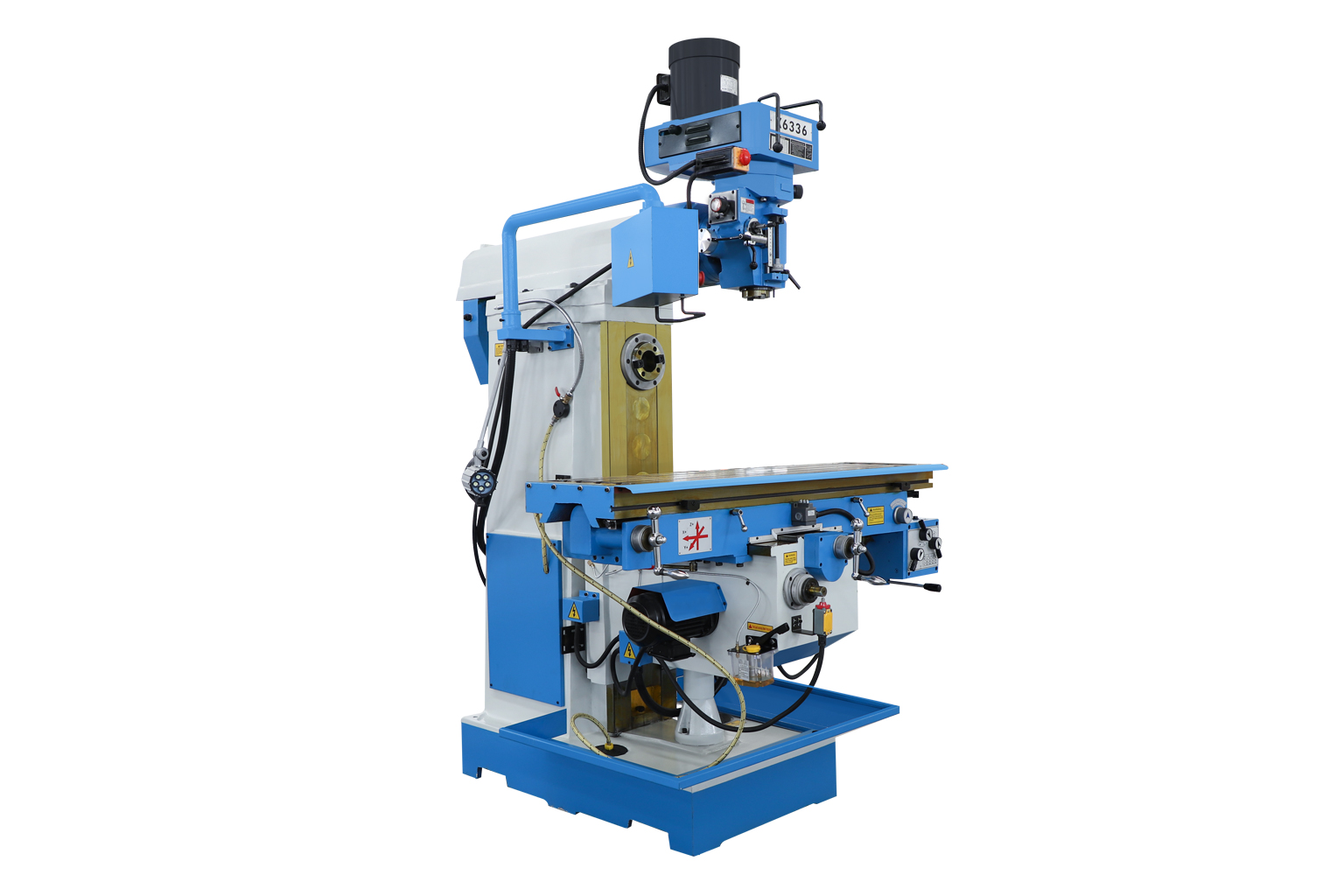

1.X6336 Turret Milling Machine combines vertical and horizontal milling capabilities, allowing operators to select the appropriate cutting direction according to the workpiece and machining operation.
2.The X6336 features a swiveling turret milling head with ±45° adjustment, allowing the spindle direction to be adapted for angled surfaces and other machining positions.
3.The X6336 supports manual, rapid and powered table feed, with eight powered feed speeds from 15 to 370 mm/min, allowing operators to adapt feed rates to different machining requirements.
The head can rotate ±45° and features a 6-speed gear transmission.

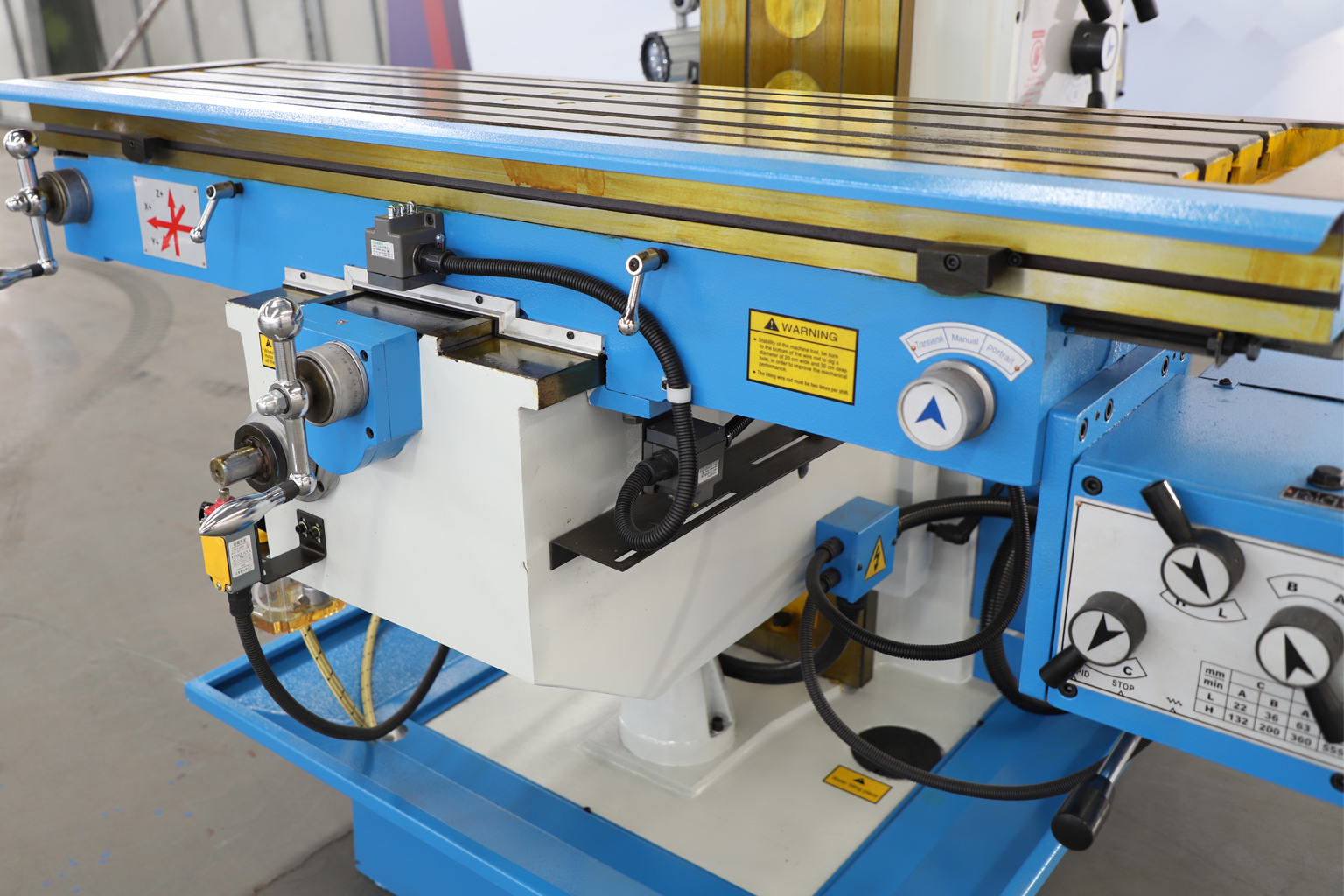

Power feed in X, Y, and Z axes; table guideways undergo ultrasonic frequency quenching and precision grinding.

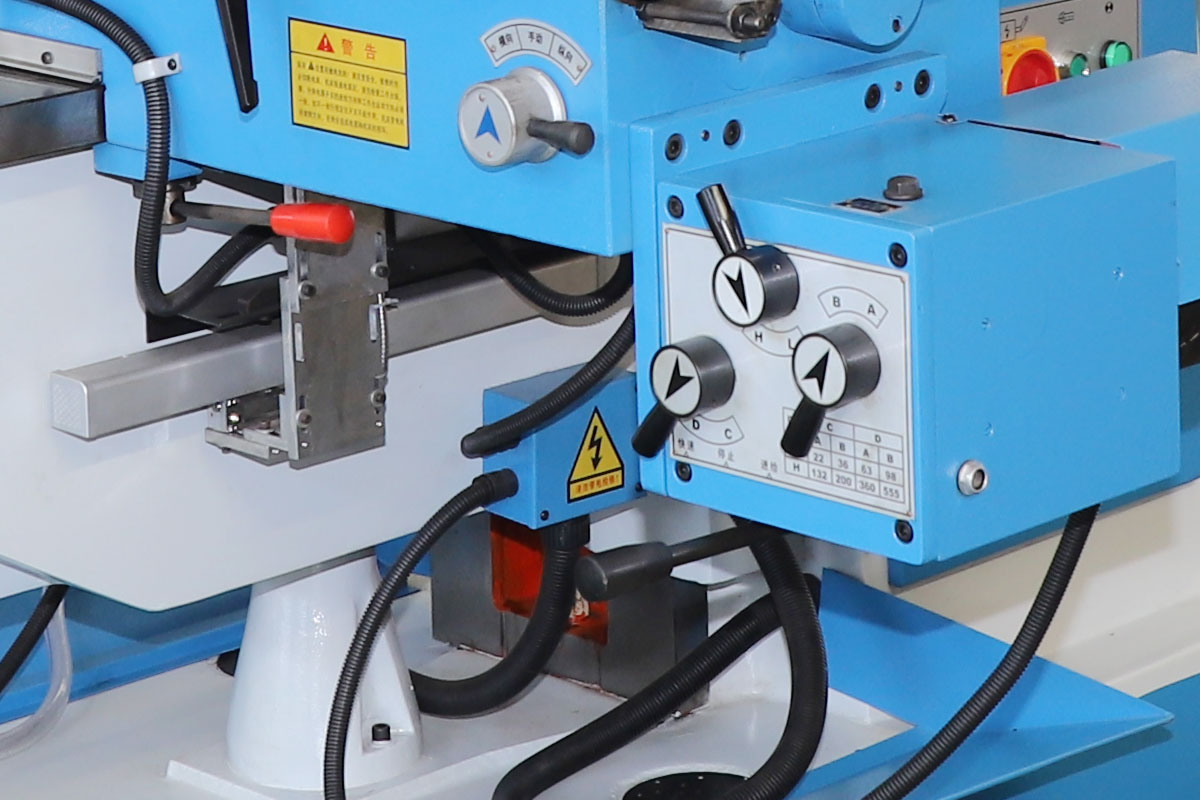

Manual and motorized feed are available in the X, Y, and Z axes,with feed speeds capable of meeting various machining requirements.
The two spindle configurations provide different cutting directions. The vertical spindle is suitable for common surface, slot, hole and face milling operations, while the horizontal spindle can be used when horizontal cutting is more suitable for the workpiece. This can reduce the need to move certain jobs between different machines.
|
Specifications |
X6332C |
|
Spindle taper |
7: 24 ISO40(vertical/horizontal) |
|
Spindle travel(mm) |
127(vertical) |
|
Spindle sleeve automatic feed stage and range (mm/r) |
(3 step)0.04/0.08/0.15 |
|
Spindle end to table distance (mm) |
155-550(vertical) |
|
Cantilever beam travel (mm) |
500 |
|
Distance from the center of the spindle hole to the guide surface of the bed (mm) |
155-550(vertical) |
|
Distance from the center of the spindle hole to the work surface (mm) |
0-350(horizontal) |
|
Spindle hole center to hanger plane distance (mm) |
190(horizontal) |
|
Spindle speed range (rpm) |
(16 step)60-4540(vertical) |
|
|
(12 step)40-1300(horizontal) |
|
Workbench size (mm) |
1500×320 |
|
Table travel (longitudinal / horizontal / vertical) (mm) |
1000/320/400 |
|
Work platform longitudinal/transverse maneuvering feed rate (mm/min) |
(8 stage)22-555(Fast forward 810) |
|
Worktable vertical maneuvering speed (mm/min) |
560 |
|
Workbench T-slot (groove number / width / spacing) |
3/14/70 |
|
Main motor power (kw) |
2.2(vertical)2.2(horizontal) |
|
Worktable machine feed motor power (w) |
750 |
|
Elevator lift motor power (w) |
1100 |
|
Machine size(mm) |
1720*1520*2225 |
