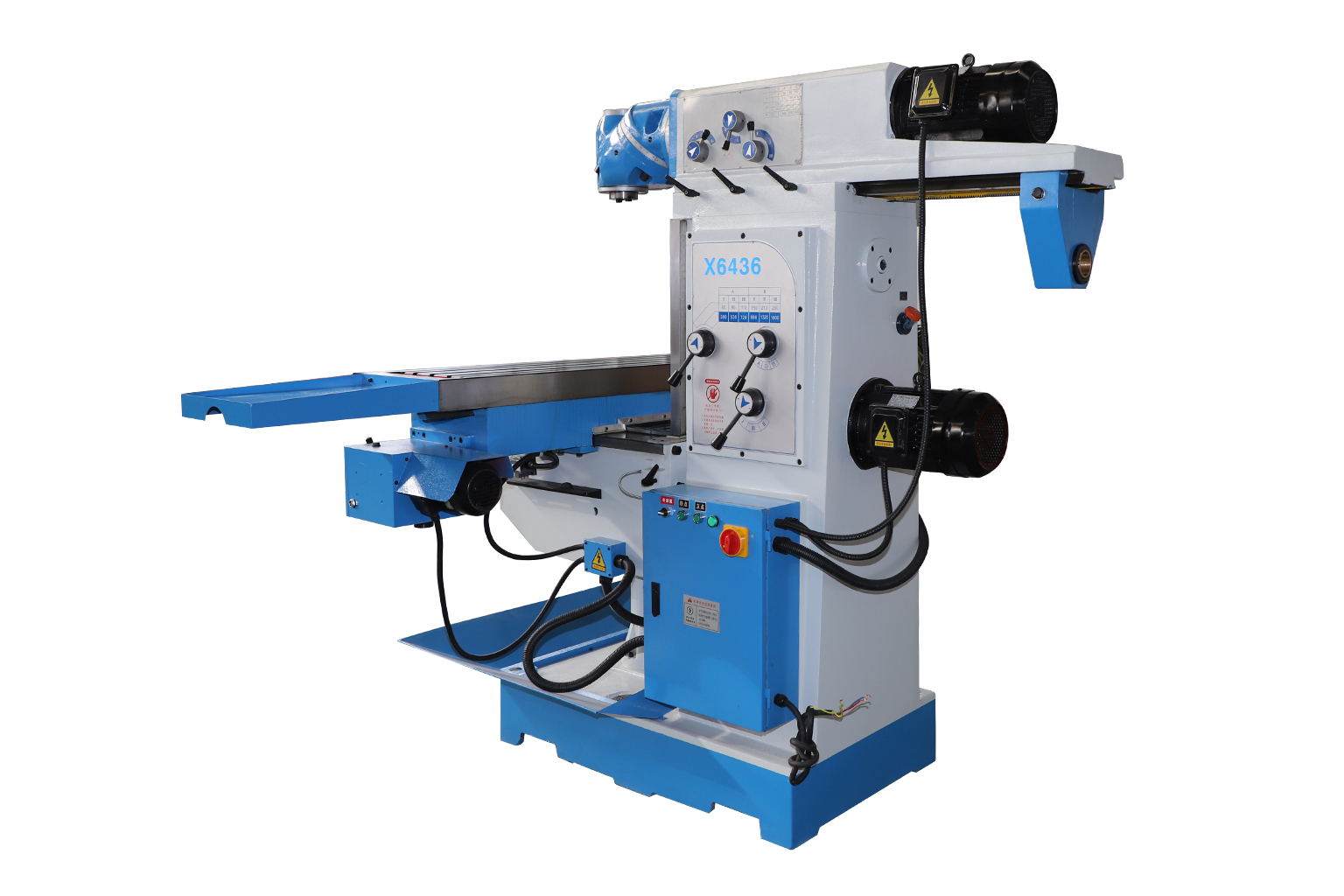

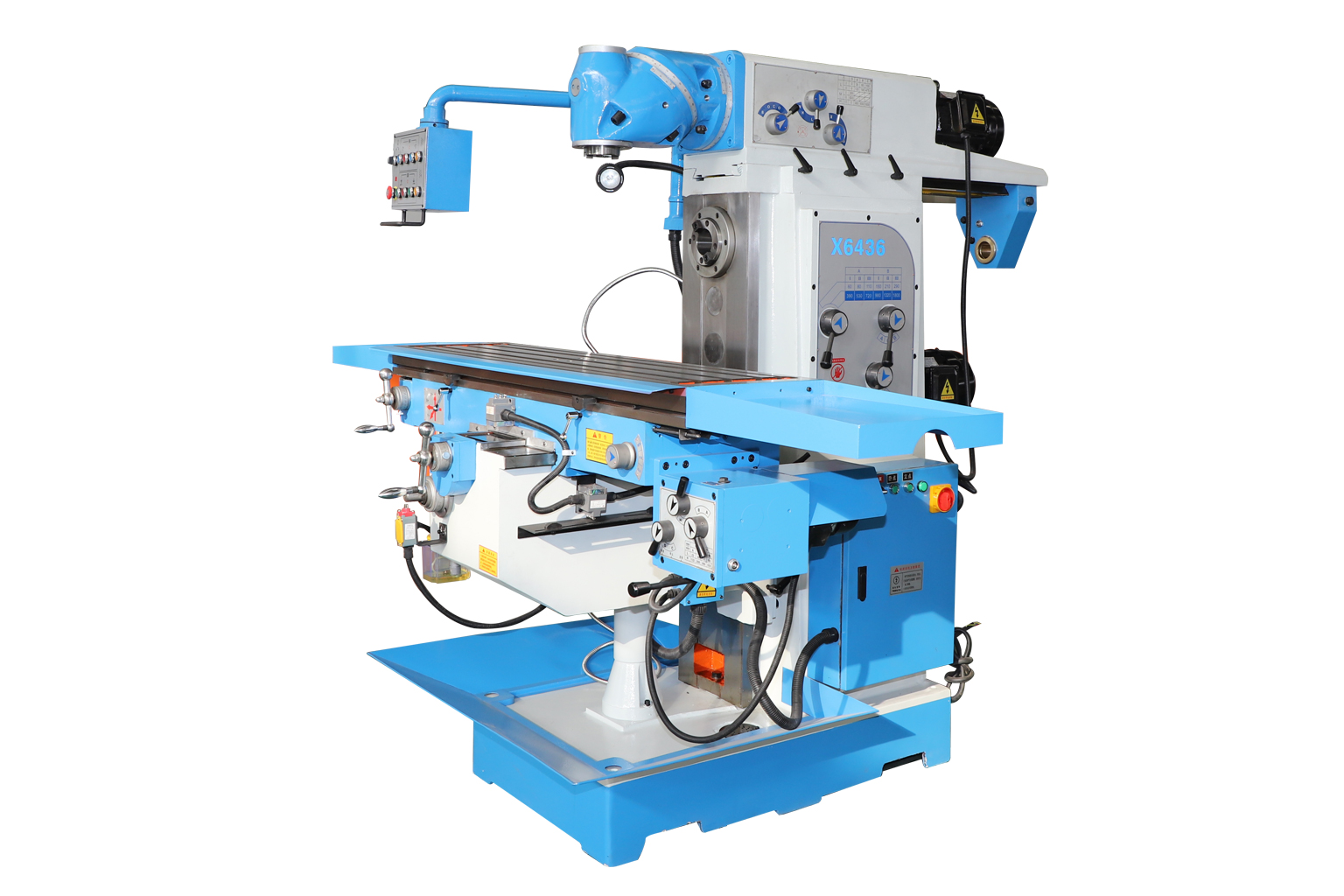

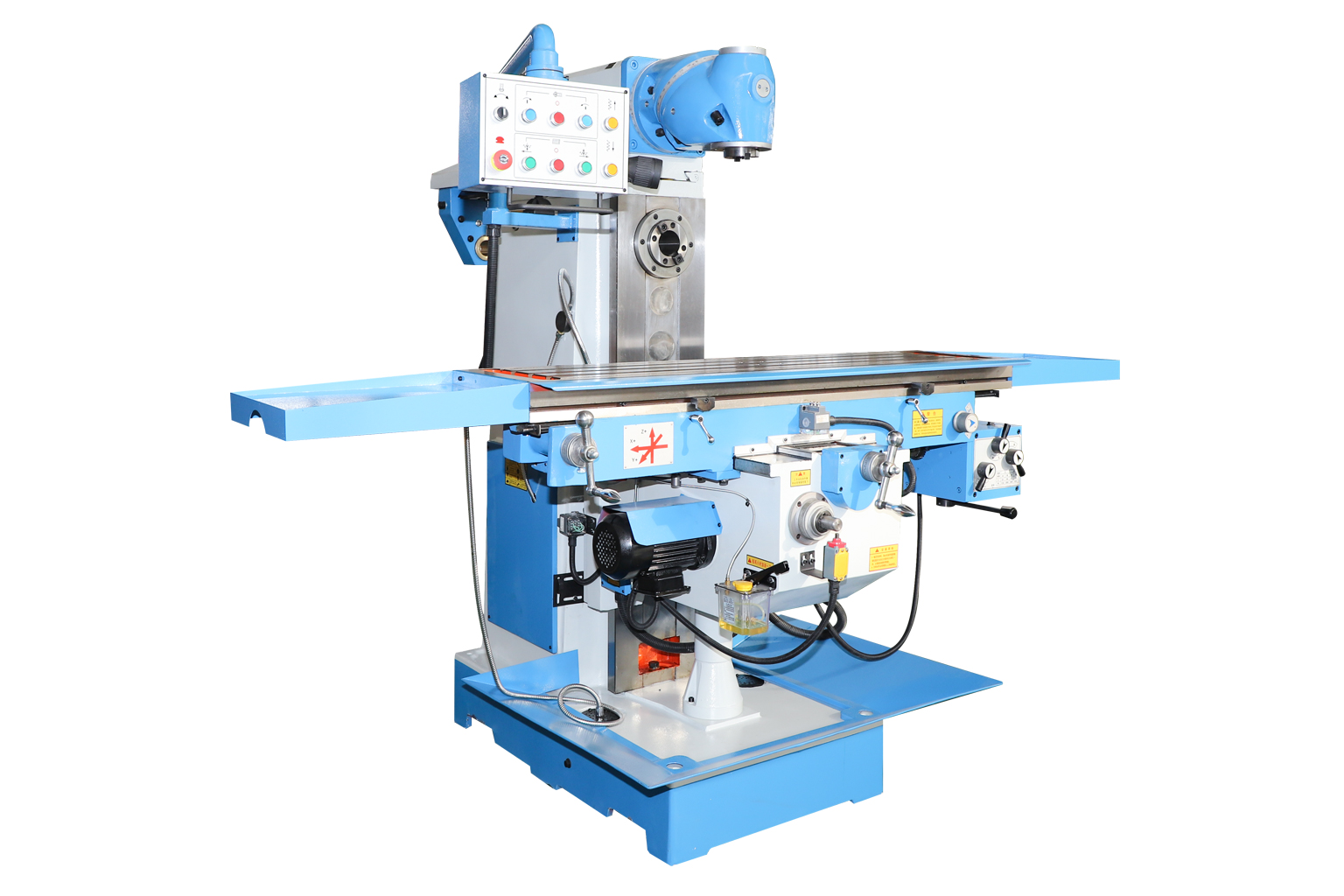

The X6436 Universal Milling Machine combines vertical and horizontal milling, a 360° universal milling head and powered three-axis feed, providing flexible multi-directional machining of planes, inclined surfaces, grooves, gears, T-slots, complex housings and molds with its large worktable, extended travels and ISO50 spindle.
1.The X6436 Universal Milling Machine supports both vertical and horizontal milling, reducing the need to move different machining operations between separate machines.
2.Powered X, Y and Z axis feeds improve operating convenience and provide consistent feed motion during continuous machining.
3.Its multi-directional milling capability makes the X6436 suitable for molds, housings, fixtures and mechanical components requiring varied cutting directions.
4.Compared with more specialized milling machines, the X6436 emphasizes machining flexibility, making it suitable for repair shops, mold work, tooling and fixture production, and varied part machining.

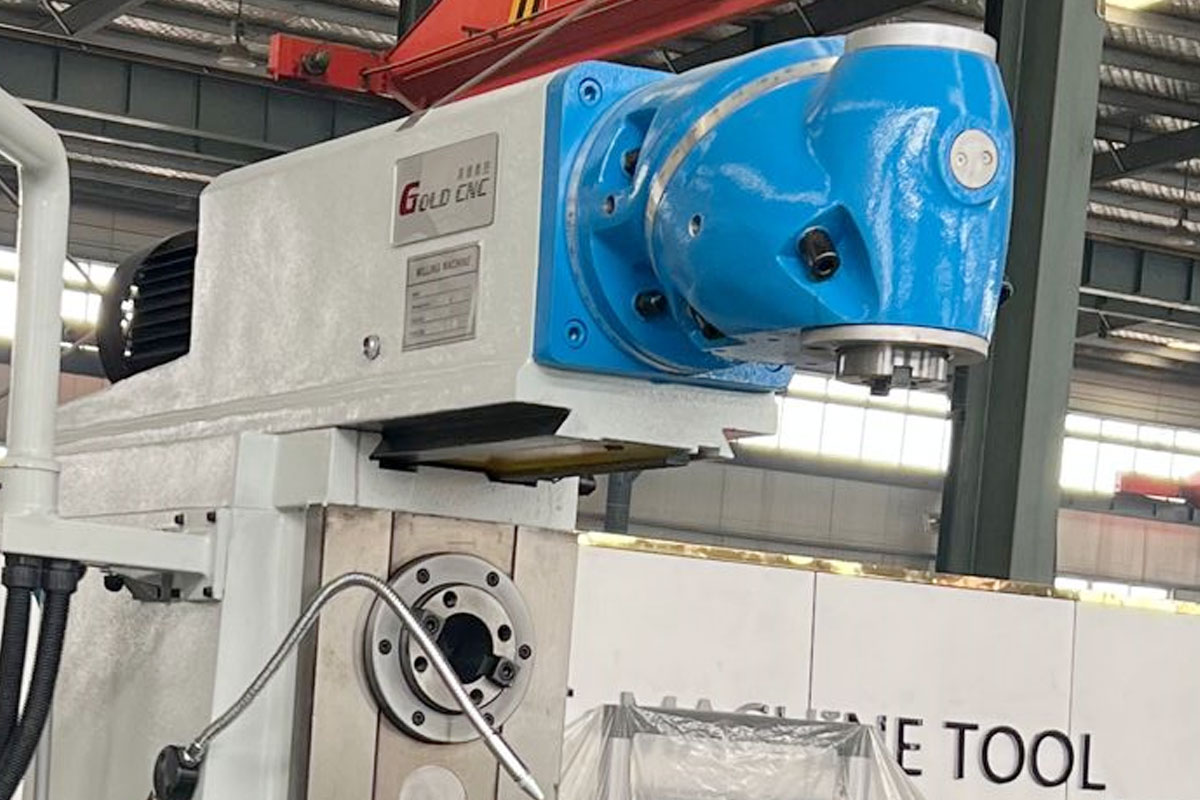

The milling head can be manually rotated to any angle for both vertical and horizontal operations, accommodating machining at various angles. The vertical milling head supports both milling and drilling; for horizontal milling, an overarm support can be installed to enable boring operations. The spindle is of the ISO50 type.

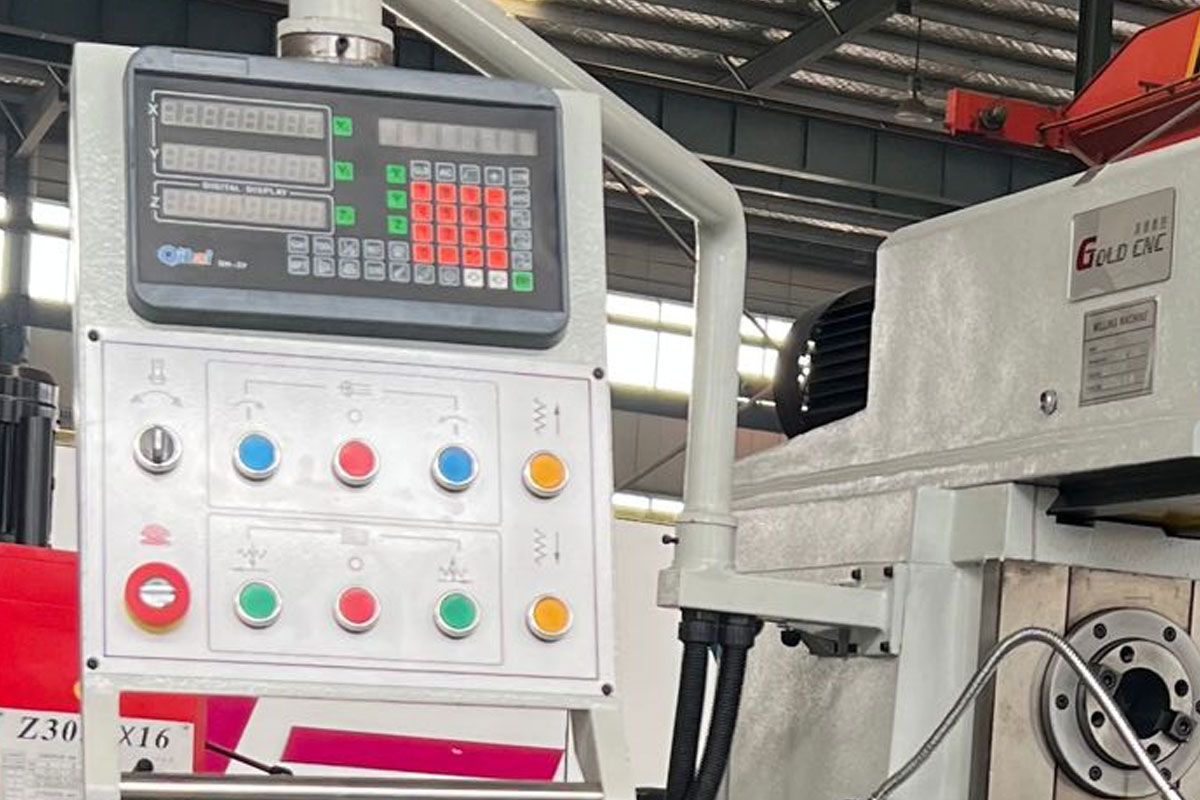

The control panel is suspended from an articulated arm above the side of the machine, adhering to ergonomic principles; an optional 3-axis digital readout (DRO) is available for precise machining.

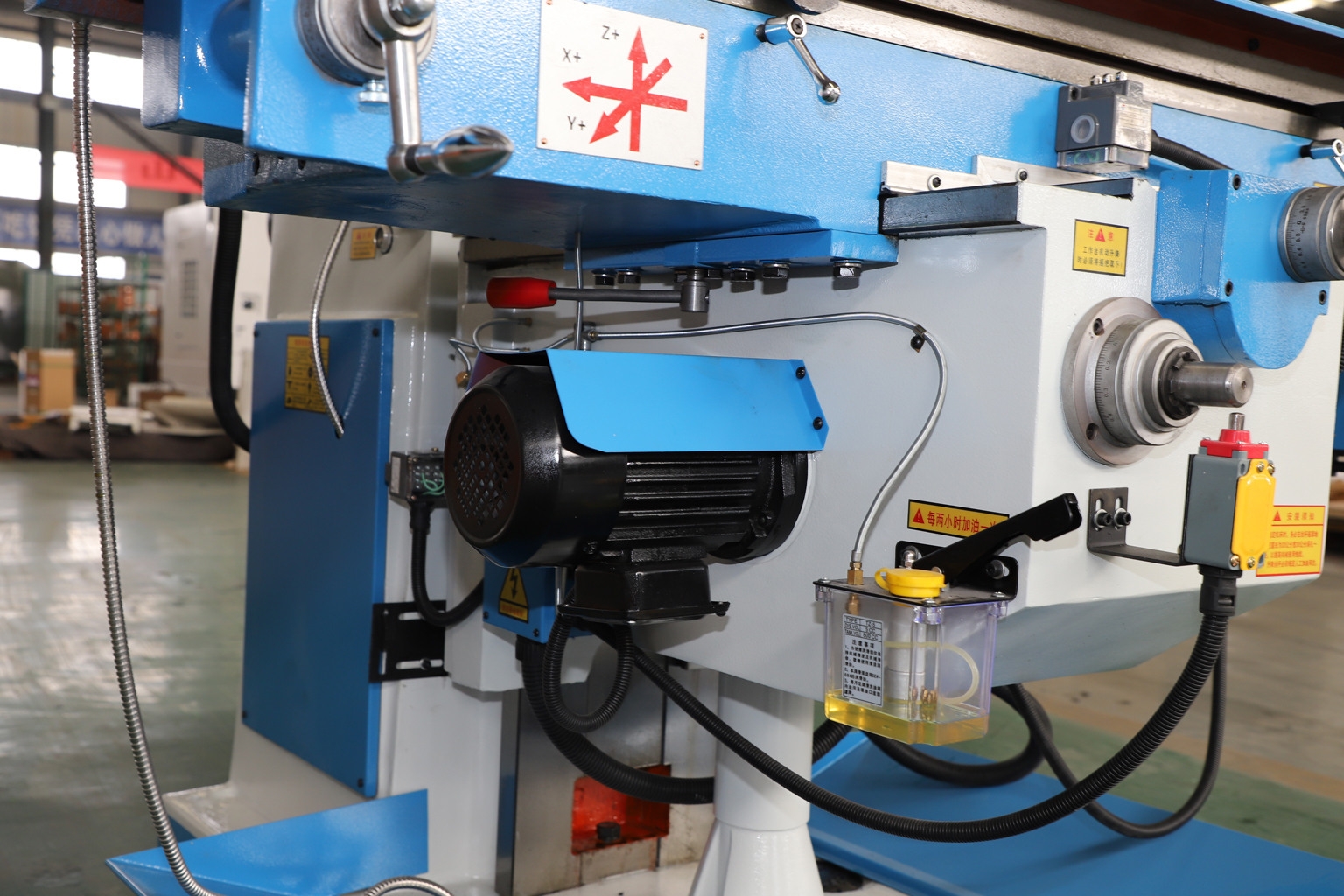

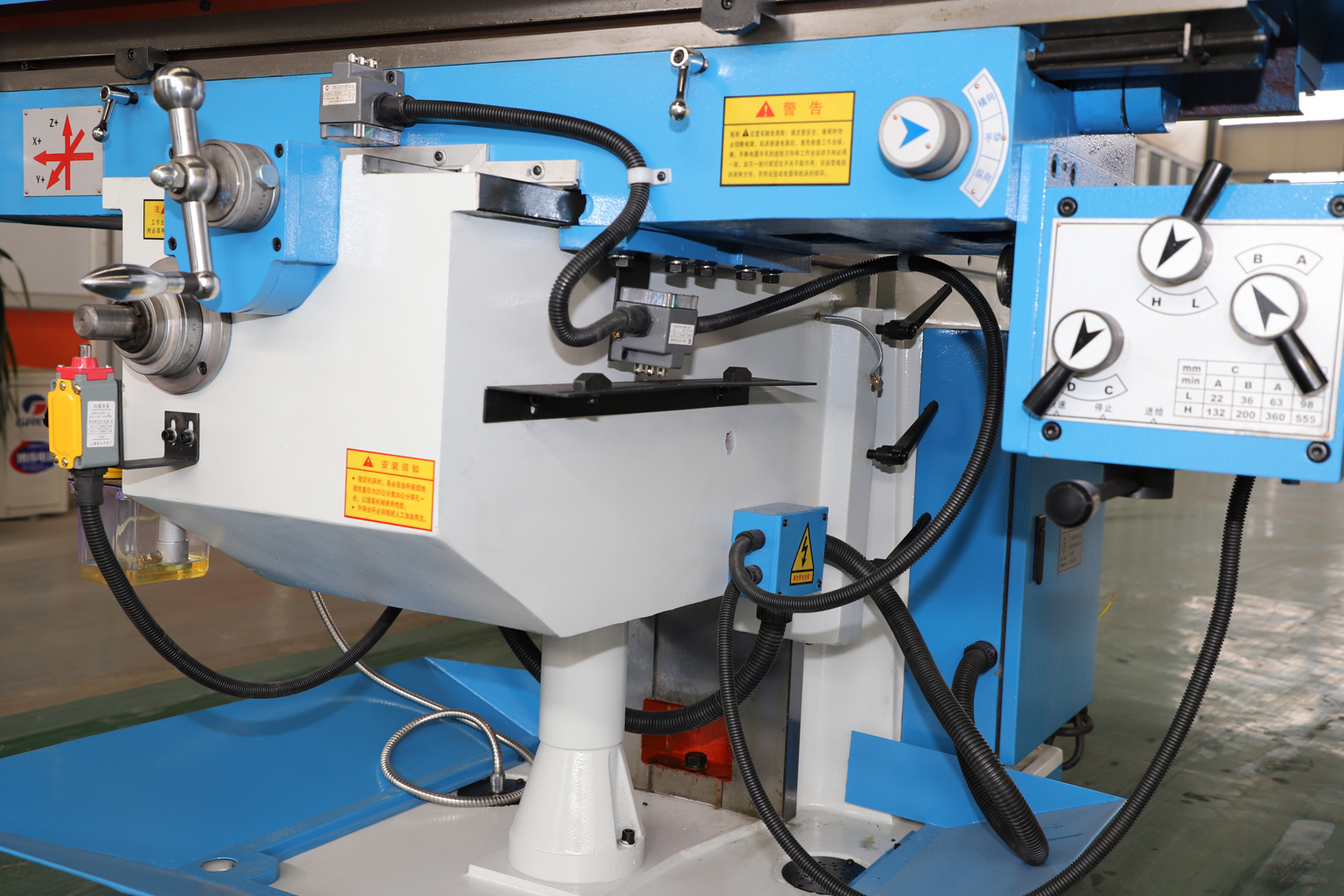

Two-axis mechanical feed (X/Y), electric Z-axis lift, and convenient manual handwheel controls for ease of operation.

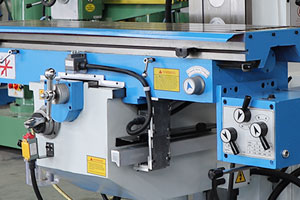

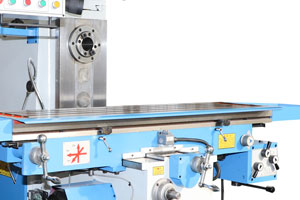

Manual and motorized feed are available in the X, Y, and Z axes,with feed speeds capable of meeting various machining requirements.
The X6436 Universal Milling Machine can process planes, inclined surfaces, grooves, T-slots, gears, housings and mold-related components. Its vertical and horizontal milling functions allow the cutting direction to be selected according to the workpiece structure.
|
Specifications |
Units |
X6436 |
|
Table size |
mm |
1500×360 |
|
Table stroke（Vertical/horizontal/vertical） |
mm |
1000×320×450 |
|
T-type slot numbers / width /space |
mm |
3-18-80 |
|
Distance from spindle axis to table surface |
mm |
70-400 |
|
Distance from spindle center to cantilever plane |
mm |
175 |
|
Cantilever stroke |
mm |
600 |
|
Spindle taper |
|
7：24 ISO50 |
|
Spindle speed range（steps） |
rpm |
Vertical：40-1660 Horizontal：60-1800 |
|
Vertical and horizontal motorized feed range of worktable |
Mm/min |
8 |
|
Vertical motor lifting speed of worktable |
Mm/min |
590 |
|
Milling head swivel range |
° |
360 |
|
Spindle motor power |
KW |
4 |
|
Motor power of worktable motorized feed |
KW |
1.1 |
|
Motor power of lifting platform |
W |
750 |
|
Cooling pump motor power |
W |
90 |
|
Cooling pump flow |
L/min |
25 |
|
Weight |
kg |
2480 |
|
Overall dimensions |
mm |
2070×2050×2020 |
