01

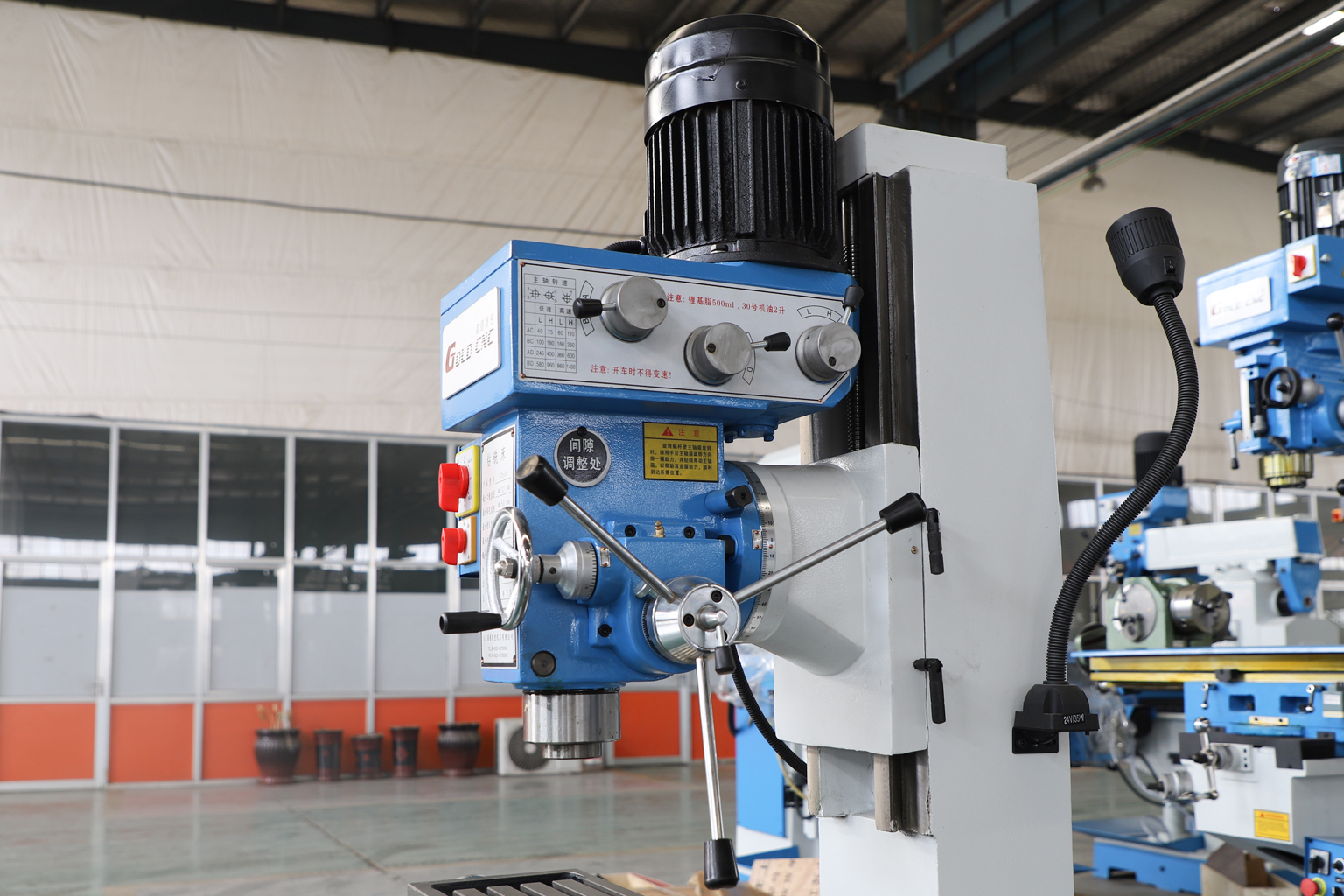

Machine Head
Machine head can be rotated by ± 45 degrees;Gear speed of the machine head can be changed in 16 steps.

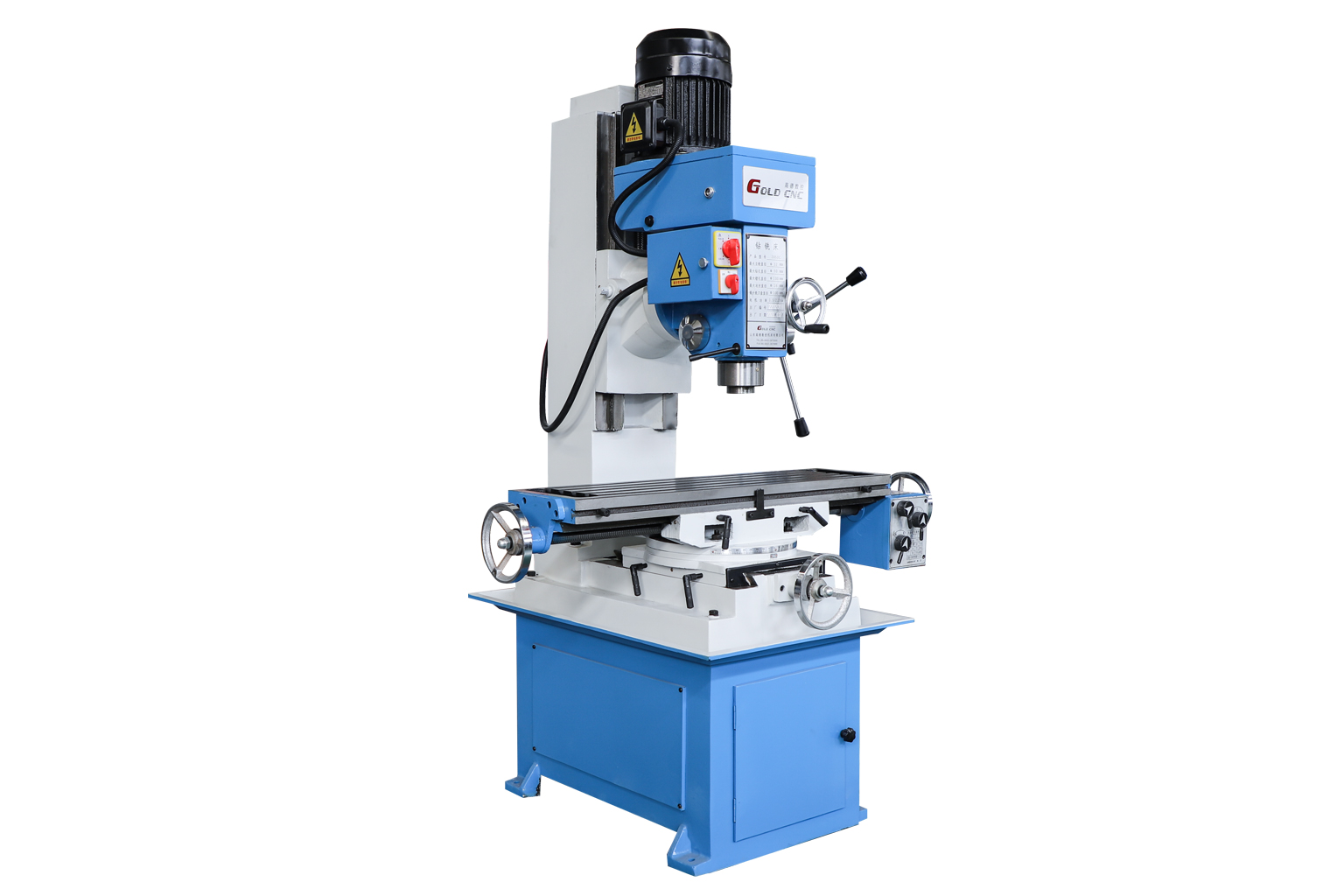

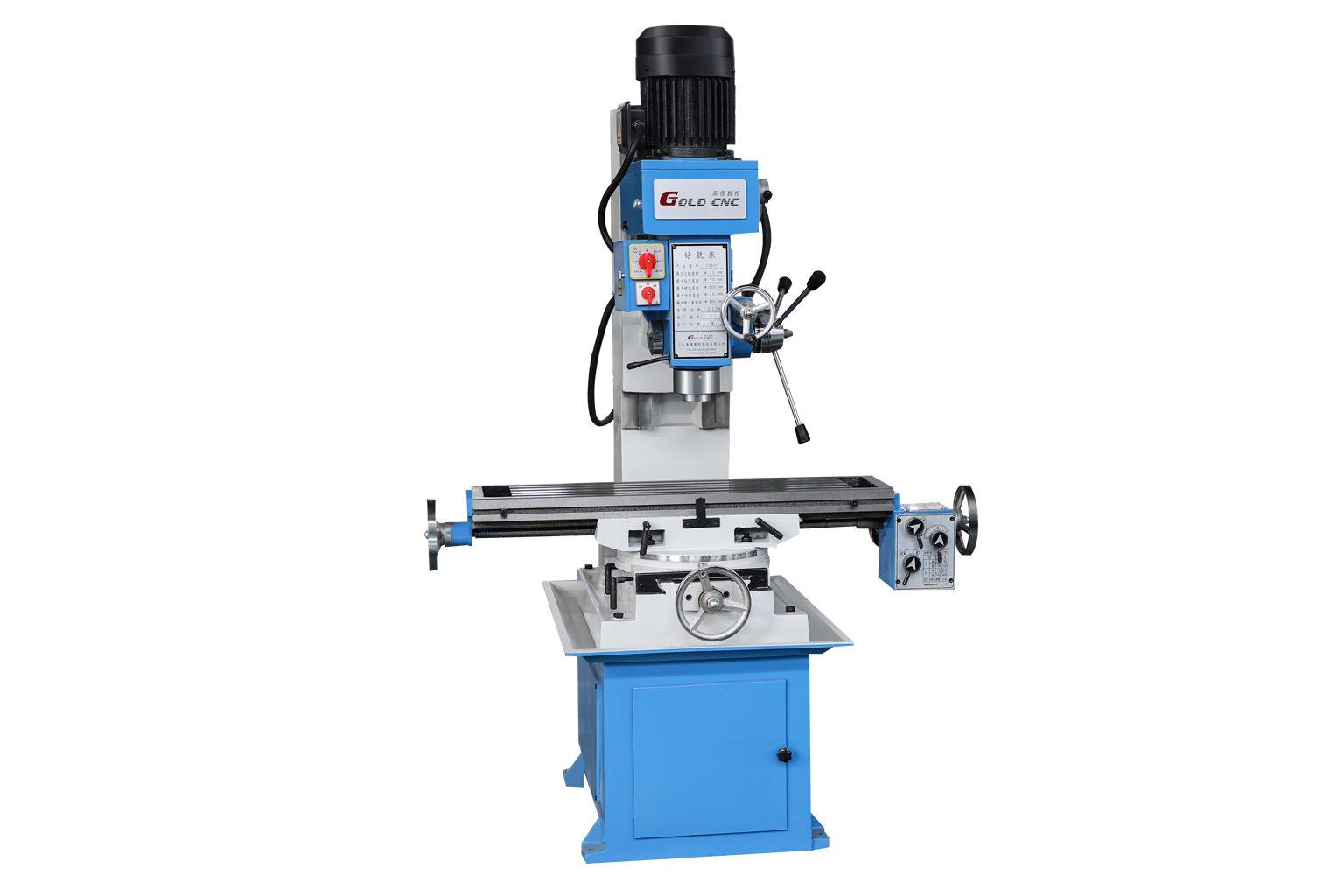

The ZX50C Drilling and Milling Machine is a compact multi-purpose machine tool for workshop and small-to-medium component machining, integrating drilling, milling, boring and tapping capabilities while providing flexible multi-operation machining in space-limited workshops.
1.The ZX50C Drilling and Milling Machine combines drilling, end milling, vertical milling, boring, reaming and tapping operations in one machine, reducing the need to move workpieces between different machines.
2.With a maximum drilling diameter of 50 mm, the ZX50C can handle a broad range of medium-sized and larger hole-making applications.
3.The ZX50C supports manual, rapid and powered feed modes, with eight powered feed speeds for adapting feed rates to different tools and machining operations.
Machine head can be rotated by ± 45 degrees;Gear speed of the machine head can be changed in 16 steps.
X,Y and Z direction guide rail sub-audio hardening and precision griding;X axis one-direction maneuvering feed Y/Z two -direction manual.

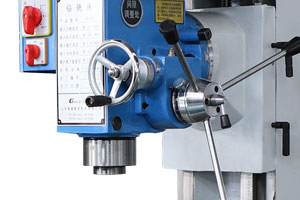

Spindle adopts energy-saving braking;Large starting torque, quick stop and reliable.

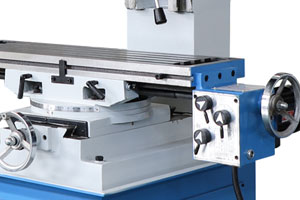

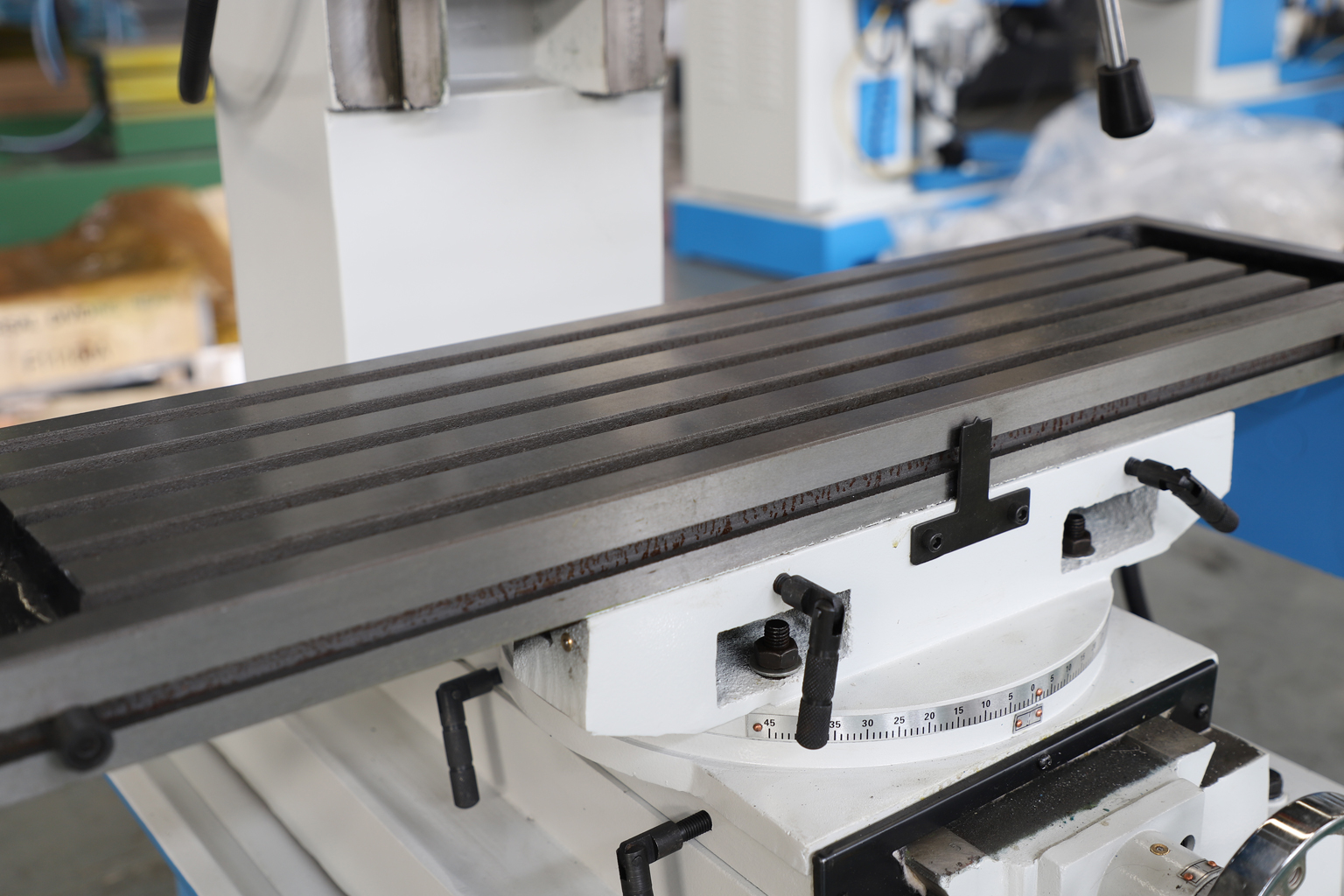

Table has three types of maneuvering feed, manual feed and fast feed;Motor feed can obtain 8 different feed speeds to meet different processing requirements.
The ZX50C Drilling and Milling Machine is suitable for mechanical repair, tooling and fixtures, hardware manufacturing, automotive components, equipment manufacturing, agricultural machinery parts and general mechanical component machining. It is particularly useful for workshops requiring both drilling and milling operations.
|
Specifications
|
ZX50C
|
|
Max diameter of bore hole(mm)
|
50
|
|
Max width of end milling(mm)
|
100
|
|
Max diameter of vertical milling(mm)
|
25
|
|
Max diameter of boring(mm)
|
120
|
|
Max tapping diameter(mm)
|
M16
|
|
Distance from spindle end to worktable(mm)
|
38-430
|
|
Spindle speed range(rpm)
|
40-1400
|
|
Spindle stroke(mm)
|
120
|
|
Worktable size(mm)
|
900×240
|
|
Worktable travel(mm)
|
500×250
|
|
Outer size(mm)
|
1100×970×1650
|
|
Motor power(kw)
|
2.2(V) / 1.5(H)
|
|
Weight(kg)
|
500/600
|
