01

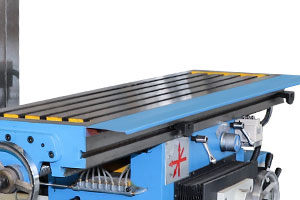

Worktable

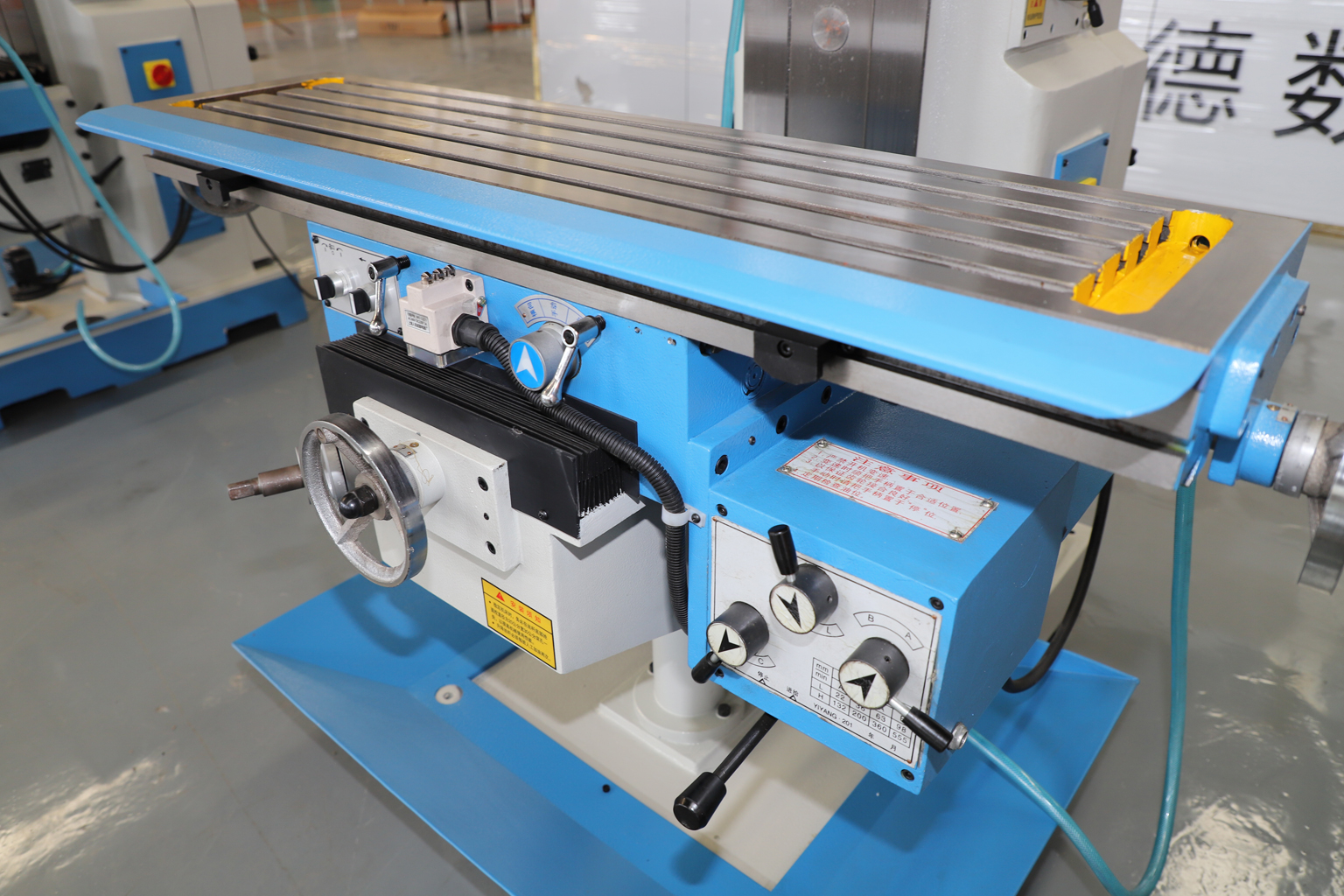

Power feed in X, Y, and Z axes; table guideways undergo ultrasonic frequency quenching and precision grinding.

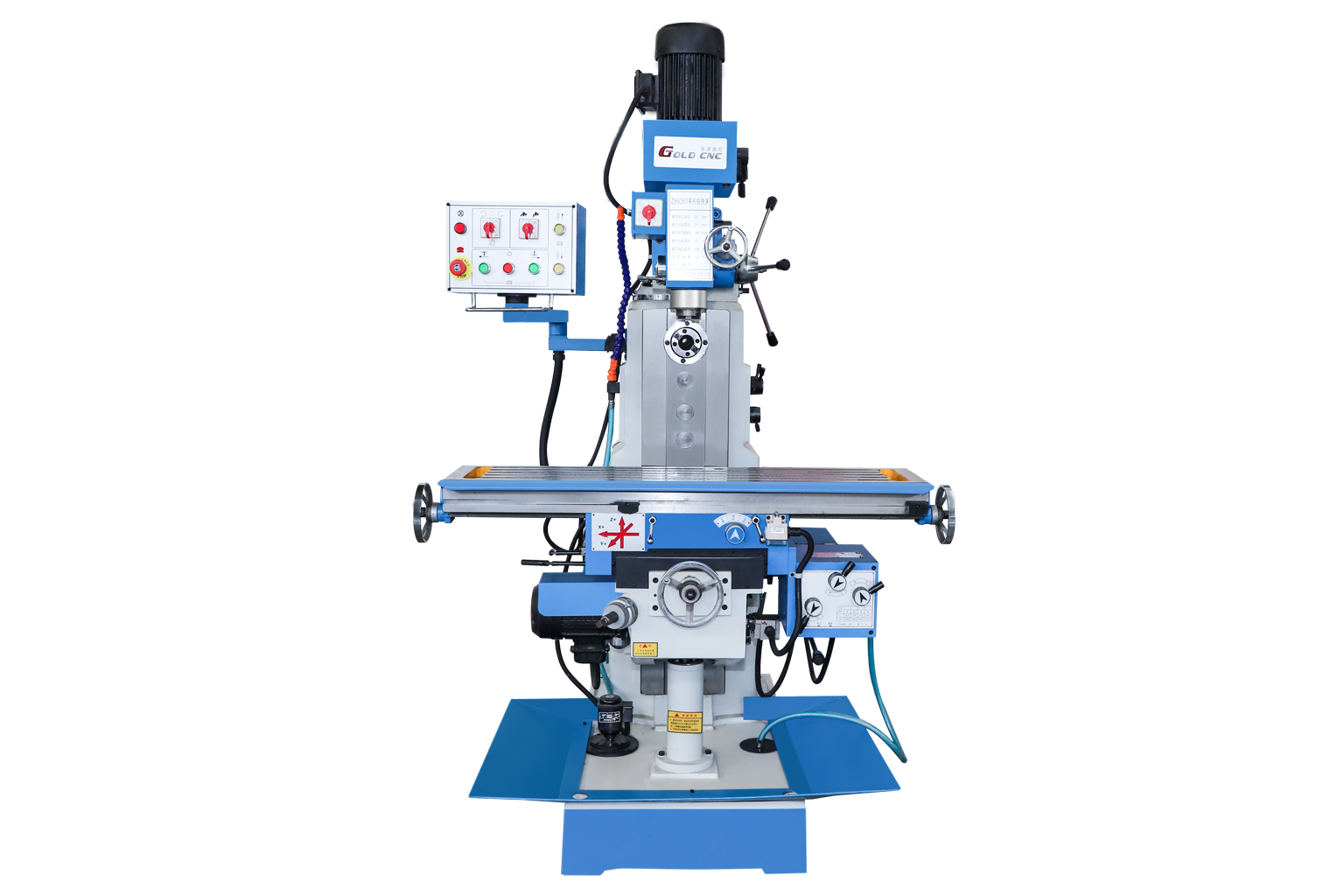

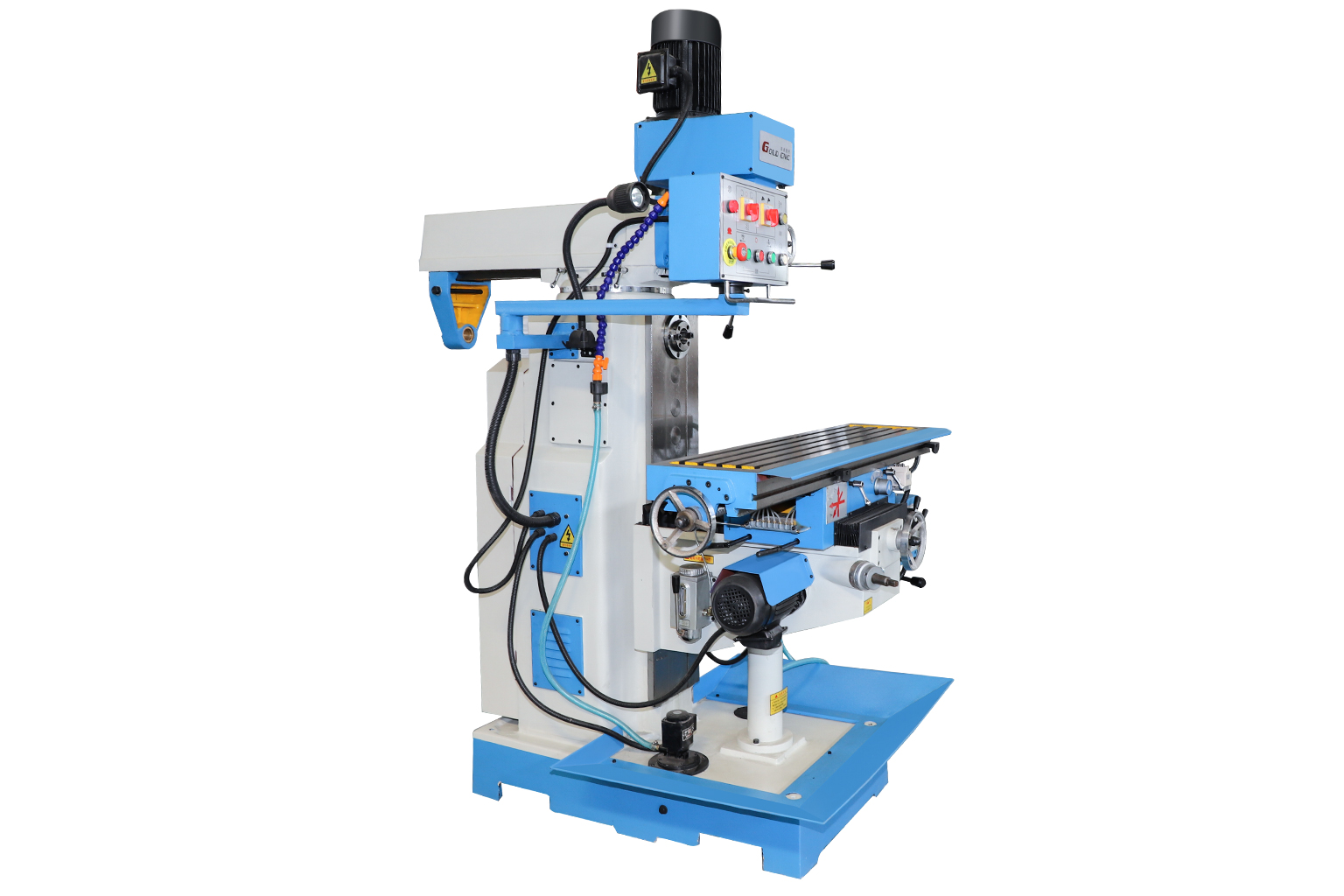

The ZX6350 is a versatile drilling and milling machine with both vertical and horizontal milling capabilities, handling drilling, reaming, boring and multi-directional milling for workshops that need multiple machining functions in one machine.
1.Vertical & Horizontal Milling in One Machine — Switch between vertical and horizontal milling according to the workpiece geometry, reducing the need for multiple machines.
2.Flexible Table Feed Options — Manual, rapid and motorized feed options provide flexibility for different machining requirements.
3.Versatile Milling Applications — Compatible with disc, angle, form and end mills for machining flat surfaces, inclined surfaces, vertical surfaces and grooves.
4.Expandable Workholding Options — Optional rotary tables and universal dividing heads extend the machine’s capability for circular grooves, arcs and gear-related machining.
Power feed in X, Y, and Z axes; table guideways undergo ultrasonic frequency quenching and precision grinding.

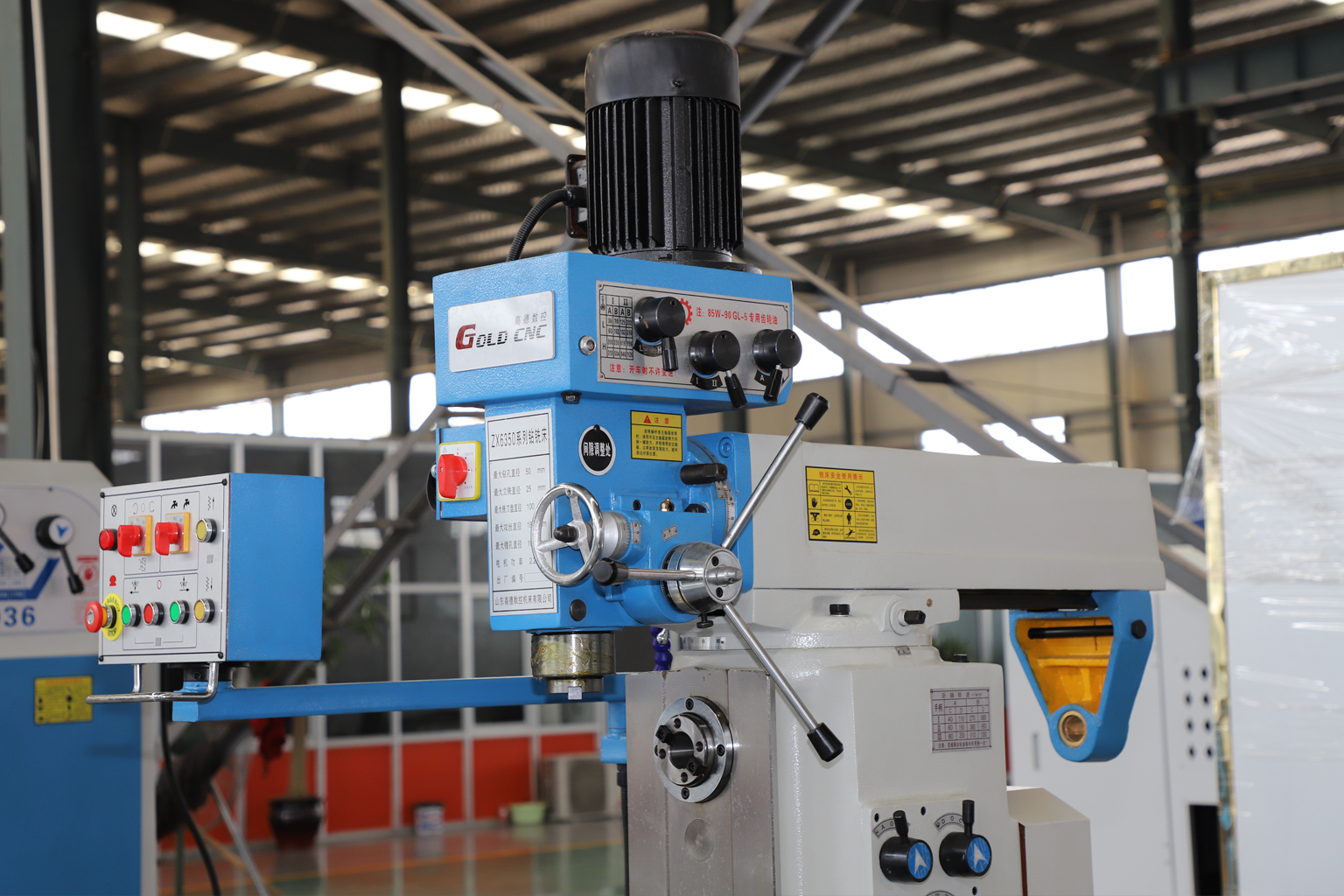

Milling head can be adjusted in the vertical plane;Gear speed of the machine head can be changed in 16 steps.

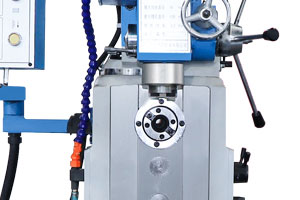

Spindle adopts energy-saving braking;Large starting torque, quick stop and reliable.

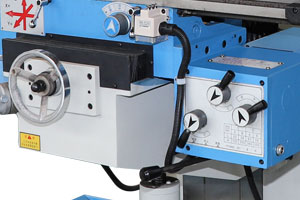

X,Y direction Motorized feed and Z axis electric lifting;Improve work efficiency.
The ZX6350 can perform drilling, reaming, boring and milling operations. It can also machine flat, inclined and vertical surfaces as well as grooves using suitable milling cutters, making it suitable for general-purpose machining workshops.
|
Specifications |
Unit |
ZX6350 |
|
Spindle taper |
|
MT4 |
|
Distance from spindle end to working table |
mm |
90-390 |
|
Distance from horizontal axis to working table |
mm |
0-300 |
|
Distance from vertical axis to vertical guide surface of bed |
mm |
200-500 |
|
Spindle speed range |
r/min |
(8steps)115-1750(V) |
|
|
|
(12steps)40-1300(H) |
|
Worktable size |
mm |
1200×280 |
|
Table travel |
mm |
600/320/400 |
|
Horizontal distance from horizontal axis to cantilever plane |
mm |
175 |
|
Working feed speed of worktable(X/Y) |
mm/min |
22-555(8steps)810(fast) |
|
Working table speed(Z) |
mm/min |
560 |
|
Max. load |
kg |
300 |
|
T groove number / width / spacing |
mm |
3/14/70 |
|
Main motor Power |
kw |
1.5/2.2(V);2.2(H) |
|
Table motor feed motor power |
W |
750 |
|
Lifting table feed motor power |
W |
750 |
|
Cooling pump motor power |
W |
40 |
|
Weight |
kg |
1450/1550 |
|
Package size |
mm |
1600×1580×2400 |
