01

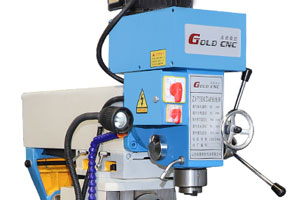

Milling Head
Milling head can be adjusted in the vertical plane ;Gear speed of the machine head can be changed in 16 steps.

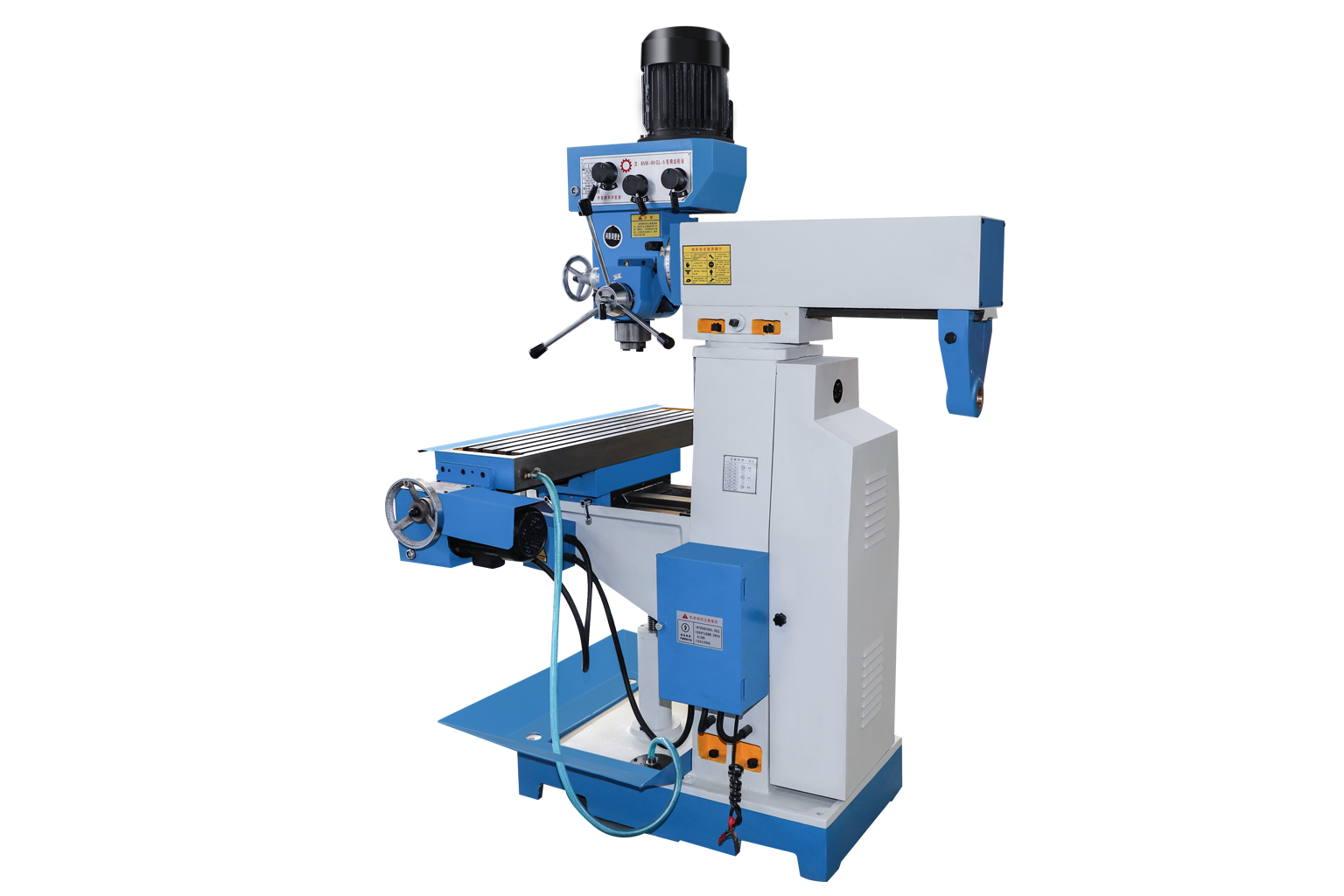

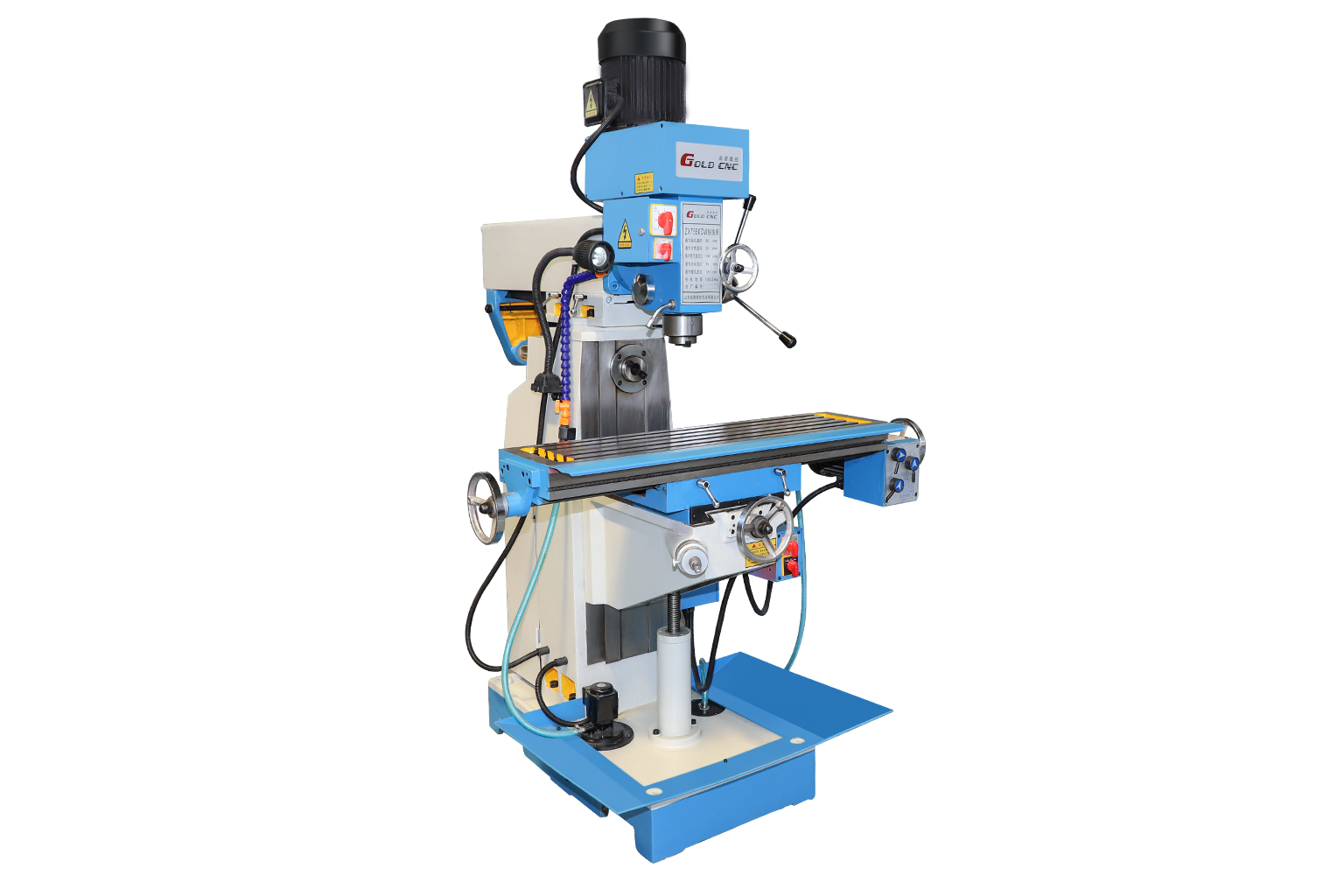

The ZX7550 is a versatile drilling and milling machine that combines drilling, vertical milling, horizontal milling, boring and tapping capabilities for repair shops, toolrooms and single-piece or small-batch machining.
1.Vertical & Horizontal Milling — The ZX7550 supports both vertical and horizontal milling, allowing operators to select the appropriate cutting direction for different workpieces.
2.Multiple Machining Functions — Drilling, milling, boring and tapping can be performed on one machine, reducing workpiece transfers between different machines.
3.Up to 50 mm Drilling Capacity — The machine supports drilling up to 50 mm in diameter for a broad range of general machining applications.
4.Flexible Configuration — Optional digital readout, Y-axis automatic feed, frequency speed control, machine vise and universal dividing head allow distributors to configure the machine for different end-user requirements.
Milling head can be adjusted in the vertical plane ;Gear speed of the machine head can be changed in 16 steps.

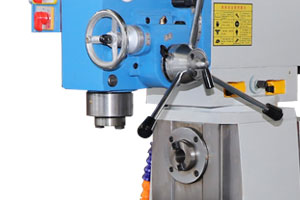

Spindle adopts energy-saving braking;Large starting torque, quick stop and reliable.

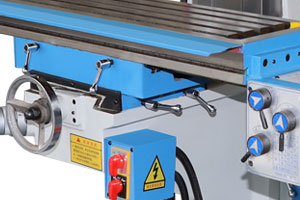

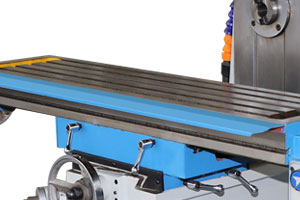

Power feed in X, Y, and Z axes; table guideways undergo ultrasonic frequency quenching and precision grinding.
Y, Zdirection electric lifting and X axis motorized feed;Improve work efficiency.
Yes. The ZX7550 combines drilling, milling, boring and tapping functions, allowing users to complete several common machining operations without moving the workpiece between different machines.
|
Specification
|
ZX7550CW
|
|
Max diameter of bore hole(mm)
|
50
|
|
Max width of end milling(mm)
|
100
|
|
Max diameter of vertical milling(mm)
|
25
|
|
Max diameter of boring(mm)
|
120
|
|
Max tapping diameter(mm)
|
M16
|
|
Distance from spindle end to worktable(mm)
|
90-490
|
|
Spindle speed range(rpm)
|
(V)115-1750/(H)80-1300
|
|
Spindle stroke(mm)
|
120
|
|
Worktable size(mm)
|
1000×240
|
|
Table travel(mm)
|
500×230
|
|
Outer size(mm)
|
1280×1100×2080
|
|
Motor power(kw)
|
2.2(V)/1.5(H)
|
|
Weight(kg)
|
1000/1100
|
