Precision is the lifeblood of high-end component manufacturing. Machine tools must deliver consistent accuracy under severe duty cycles. Structural thermal elongation often compromises tight part tolerances. Factory owners continuously look for ways to eliminate dimensional drifting. Choosing a poorly engineered machine leads to scrap parts and financial loss.
Investing in a cnc machining center is a major decision for any factory. While evaluating the vmc machine price, precision and stability must be your top priorities. Shandong GOLDCNC Machine Tool Co., Ltd. addresses these challenges through advanced industrial engineering. Backed by 43 proprietary patents, GOLDCNC builds premium **CNC Machining Centers** designed to minimize thermal drift. We verify every machine under strict VDI 3441 inspection standards to ensure long-term geometric reliability.
The Anatomy of Rigidity: Premium Hardware Configurations
To understand why a **CNC Machining Center** maintains accuracy, you must examine its physical foundation. Many suppliers reduce manufacturing costs by using lightweight cast iron. GOLDCNC eliminates structural twisting by utilizing premium global industrial components.
Every VMC system in our portfolio integrates the following core hardware:
– **HT300 High-Strength Castings:** The base, column, and spindle head rely entirely on HT300 meehanite cast iron. The castings undergo artificial thermal aging to minimize internal stress.
– **HIWIN Transmission Systems:** All three linear axes utilize Taiwan-made HIWIN premium P3-class heavy-duty roller linear guideways. Large-scale roller types offer superior load capacity and rigidity compared to standard ball bearings.
– **VOLIS Precision Spindle:** Every machine integrates a heavy-duty Taiwan Volis spindle assembly to handle continuous axial forces.
– **AirTAC Pneumatics:** We use reliable AirTAC pneumatic components to guarantee smooth tool unclamping and zero leakage in the tool pocket cylinder.
Demystifying the Renishaw Laser Inspection Report

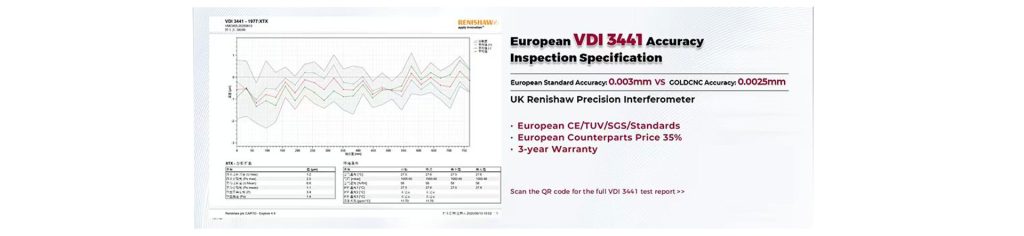

Every **CNC Machining Center** built by GOLDCNC undergoes laser interferometer calibration using professional Renishaw systems. We do not just claim precision; we prove it with official raw data. Let us analyze a real VMC855 test report under VDI 3441 standards to understand what top-tier accuracy means.
- 1. Positioning Accuracy (P) & Repeatability (Ps)
Our laser data reveals a Total Positioning Uncertainty (P) of only 3.2 to 3.4 micrometers. Meanwhile, the Repeatability (Ps mean) stays around a microscopic 1.1 to 1.8 micrometers.
– **What this means:** Positioning accuracy represents the machine’s ability to move exactly to a target dimension. Repeatability defines the machine’s capability to return to that exact coordinate thousands of times. For an industrial factory, these numbers mean you can run heavy batch production while keeping parts uniform.
- 2. Mean Reversal Error / Backlash (U Mean)
The Renishaw report confirms a Mean Reversal Error (U Mean) of just 0.4 to 0.6 micrometers.
– **What this means:** Reversal error (backlash) occurs when an axis changes its moving direction. It is caused by microscopic clearances between the ball screw and the nut ball tracks. A high reversal error destroys roundness during circular pocket milling.A U-Mean value under 1 micrometer proves our assembly precision. It shows our hand-scraped surfaces and preloaded screws successfully minimize reversal errors and kinetic lag. Your mold cores and complex aerospace contours will achieve mirror-like finishes without steps.
Get a Certified Precision Layout and Factory Quote
The clean manufacturing slot for a standard VMC configuration takes 45-60 days. This period covers precise mechanical alignments, geometric scraping, and a continuous 72-hour stress-testing cycle under load.
Have questions about **CNC Machining Centers** configurations or want to review our original Renishaw accuracy certificates? Contact GOLDCNC engineers today for a free solution and find the absolute best balance between machine capability and your factory budget!
