01
Gantry Double Column Structure
Good guidance and uniform force;High rigidity, high strength.

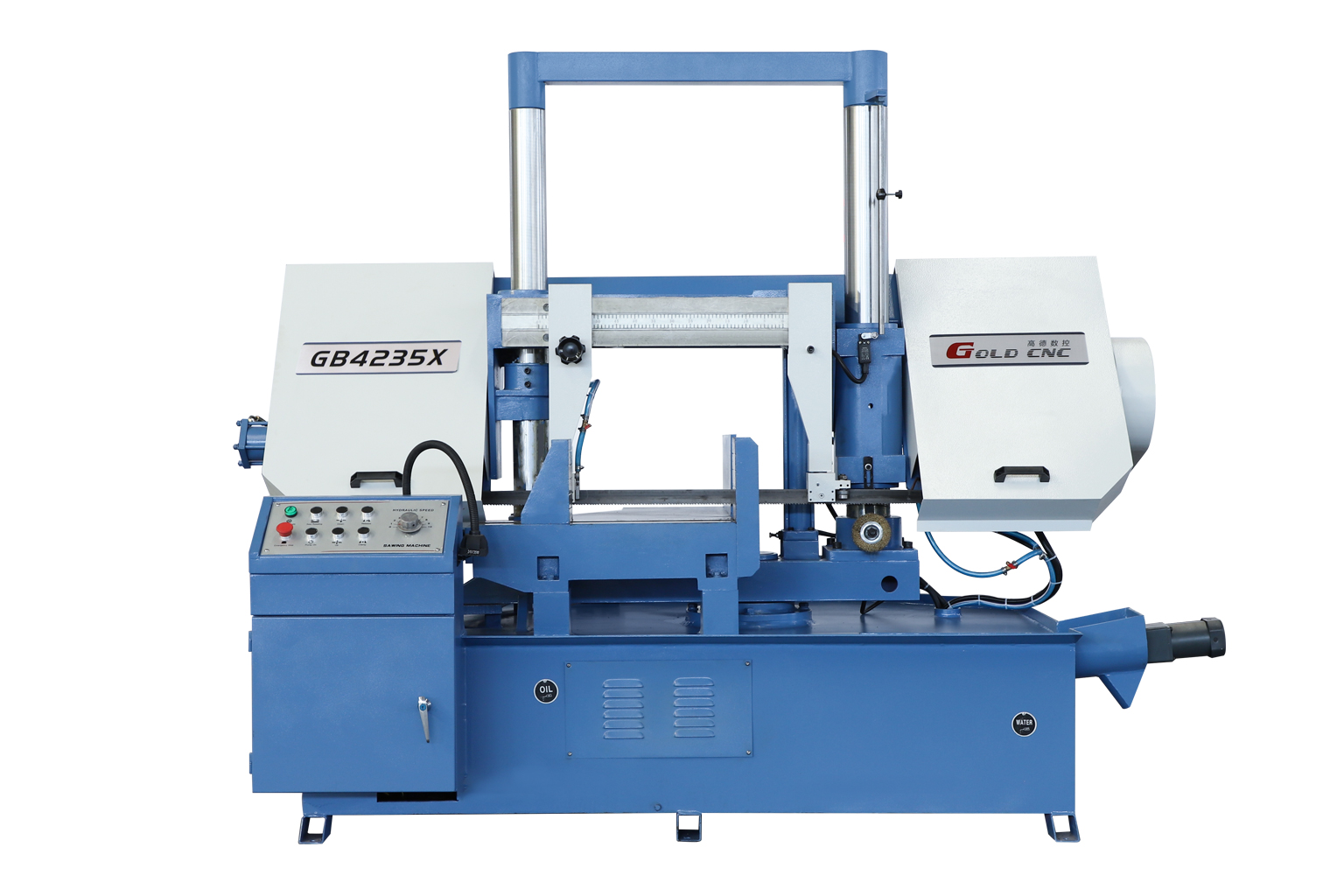

GB4235X is a semi-automatic miter band saw machine designed for both straight and 0–45° angle cutting, combining a double-column structure and hydraulic clamping for stable and flexible cutting of bars, tubes and structural profiles.
1.GB4235X Semi-Automatic Miter Band Saw Machine supports adjustable cutting angles from 0° to 45°, allowing users to produce straight and miter cuts on the same machine without changing to another cutting system.
2.The double-column structure guides the saw frame vertically with balanced loading, helping maintain stable cutting performance during both straight and miter sawing.
3.The semi-automatic design reduces repetitive operating steps while retaining manual flexibility for loading, unloading and workpiece adjustment, making it suitable for batch production and mixed-size workpieces.
4.Compared with a standard 90° band saw, the key advantage of GB4235X is its ability to perform miter cutting directly, reducing the need for secondary positioning and additional processing.
Good guidance and uniform force;High rigidity, high strength.
Manual operation of saw frame rotation;Accurate reading on the dial.
Button completed sawing process ;Easy to operate and efficient.
National standard pure copper motor;Low noise, long life.
The distributor should confirm the material type, maximum workpiece dimensions, cross-sectional shape, required cutting length, daily or monthly cutting volume and desired automation level.
| Specifications | GB4235X |
| Max.cutting（mm） | 0°●350■350W×350H |
| 45°●270■270W×270H | |
| 60°●120■120W×120H | |
| Saw blade speed（m/min） | 27/45/69 |
| Saw blade size（mm） | 34×1.1×4515 |
| Working clamping mode | Hydraulic vice |
| Main transmission structure | Worm gear transmission |
| Band saw blade tensioning method | Manual |
| Cleaning | Wire brush & flood coolant |
| Main motor（kw） | 4 |
| Hydraulic motor（kw） | 0.55 |
| Cooling motor power（kw） | 0.04 |
| Dimensions(mm) | 2000×1300×1700 |
