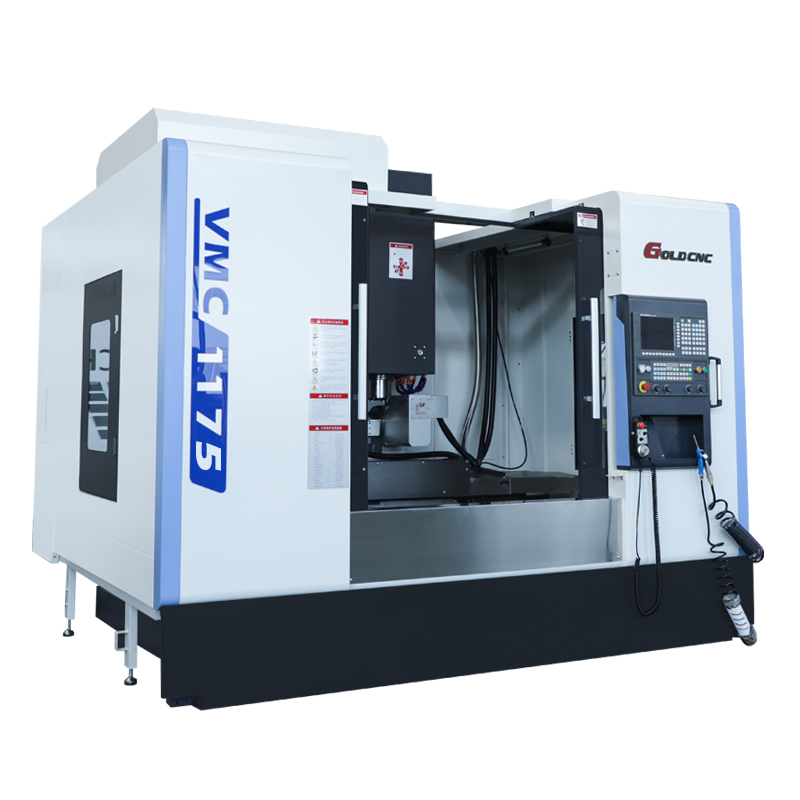

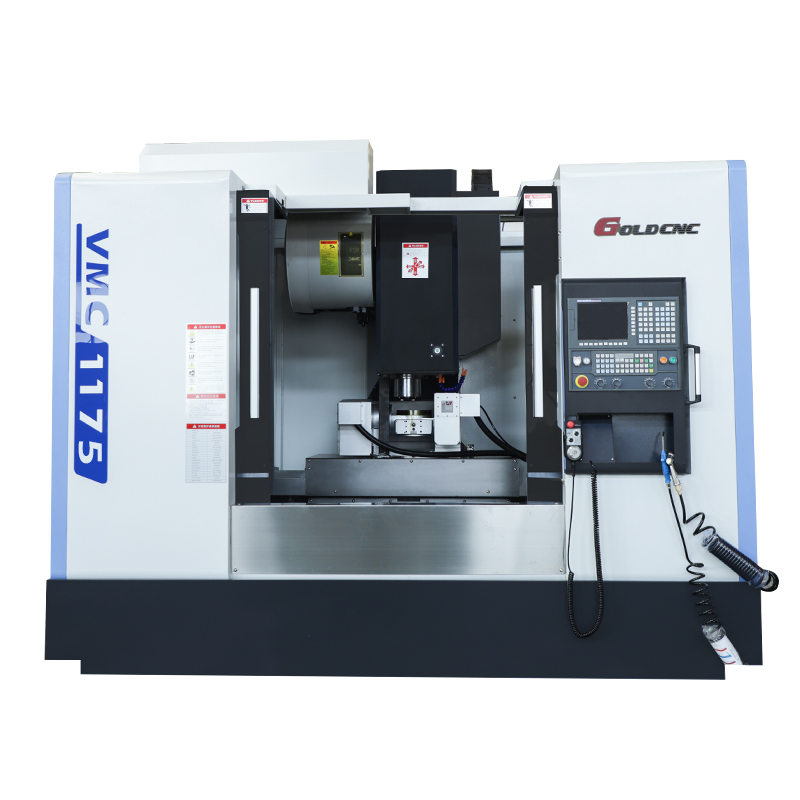

The VMC1175 CNC Vertical Milling Machine is designed for medium-to-large industrial components, combining an expanded machining envelope, stable vertical structure and multi-process capability to reduce repeated setups across mechanical parts, molds, automotive components, construction machinery and tooling applications.
1.The challenge for many workshops is not a lack of machines, but repeated transfers between milling, drilling and tapping equipment. The VMC1175 can consolidate face milling, slotting, drilling, tapping, reaming and chamfering into one machining process.
2.For mounting plates, flange plates, equipment bases and connection plates with multiple holes, slots and mounting surfaces, a larger machining envelope can reduce the need to reposition the workpiece during production.
3.Depending on the actual configuration and machining process, the VMC1175 can be applied to common industrial materials such as steel, cast iron, aluminum alloys and copper alloys. Material changes require appropriate adjustments to spindle speed, feed, cutting depth and coolant strategy.

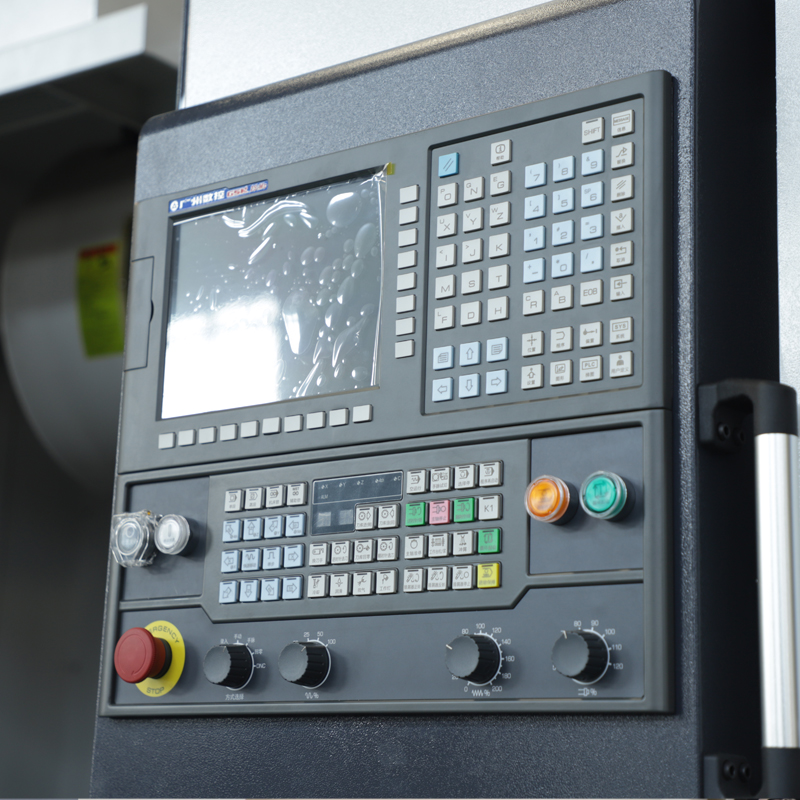

Offers a range of CNC system options, including FANUC, GSK, Siemens, Mitsubishi, and others. The operating interface supports multiple languages, such as Chinese, English, Spanish, and Russian.
High rigidity — stable, vibration-free operation during heavy-duty cutting. High speed — suitable for both roughing and finishing. High precision — helps reduce the scrap rate.
The equipment features an all-metal enclosure. With a sheet metal thickness of 2 mm, far exceeding market standards, it ensures maximum safety for operators during operation.
The use of high-precision HIWIN (Taiwan) linear guideways and ball screws significantly enhances positioning accuracy. The system ensures exceptional motion smoothness, free from jerking or stick-slip, and supports rapid traverse speeds of up to 24, 36, or 48 m/min.
1.Mechanical Equipment Components
Suitable for mounting bases, supports, connection plates, machine bases, flanges and structural components.
2.Automotive Components
Suitable for automotive brackets, connectors, mounting plates, housings and production fixtures.
3.Construction Machinery Parts
Suitable for connectors, supports and mounting structures used in excavators, loaders, lifting equipment and other construction machinery.
4.Pump & Valve Components
Suitable for valve bodies, pump components, flanges, connection surfaces and multi-hole mounting components.
5.Molds & Mold Bases
Suitable for medium-to-large mold bases, plates, inserts and structural components. Complex cavities and hardened materials should be evaluated according to the actual machining process and configuration.
6.Fixtures & Tooling
Suitable for production fixtures, positioning plates, inspection fixtures, welding fixture bases and customized tooling.
7.Agricultural Machinery
Suitable for brackets, connection plates, bearing housings and mounting bases used in agricultural machinery.
8.Maintenance & Spare Parts
For maintenance workshops, the VMC1175 can be used to manufacture discontinued or customized mounting plates, connectors and mechanical spare parts.
Yes. For plates with multiple holes, slots or mounting surfaces, a larger machining envelope can reduce workpiece repositioning and realignment. The actual plate dimensions and hole layout should be checked against the machine travel before purchase.
| Specification | Unit | VMC1175 |
| X axis travel | mm | 1100 |
| Y axis travel | mm | 750 |
| Z axis travel | mm | 600 |
| Distance from spindle center to column rail | mm | 797 |
| Distance from spindle end to worktable | mm | 120-720 |
| Worktable | ||
| Size | mm | 1200×600 |
| T-slot(Qty.-pitch-width) | mm | 5-18*100 |
| Maximum loading capacity | kg | 800 |

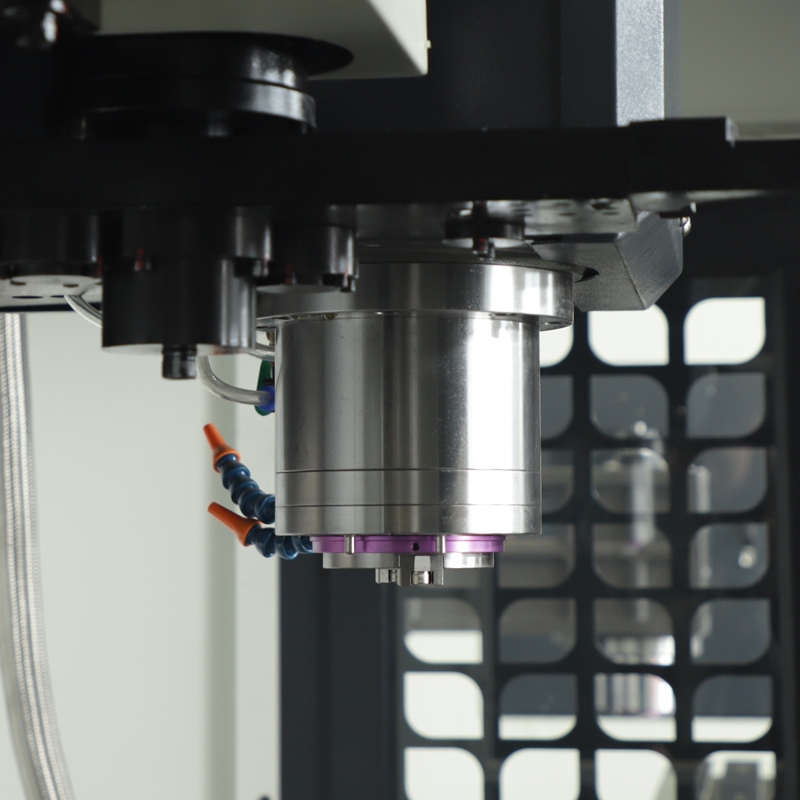

| Spindle | ||
| Speed | rpm | 8000 （Optional：10000/12000） |
| Inner taper | mm | BT40-150 |
| Motor | KW | 11 |
| Motor connecting method | Belt type(Optional：Direct) | |
| Feeding | ||
| XYZ fast moving | m/min | 24/24/24 (Optional:36,48) |
| Cutting feeding | m/min | 1-10 |
| XYZ Motor connection | Direct | |
| XYZ Guiderail | Linear guideway | |
| Tool Magazine | ||
| Type | Disc | |
| Quantity of tools | 24 | |
| Max. tool weight | kg | 8 |
| Max. tool length | mm | 300 |
| Max. tool diameter | mm | 78（adjacent）/ 120（separate） |
| Accuracy | ||
| XYZ positioning accuracy | mm | ±0.005/300 |
| XYZ repeated positioning accuracy | mm | ±0.003 |
