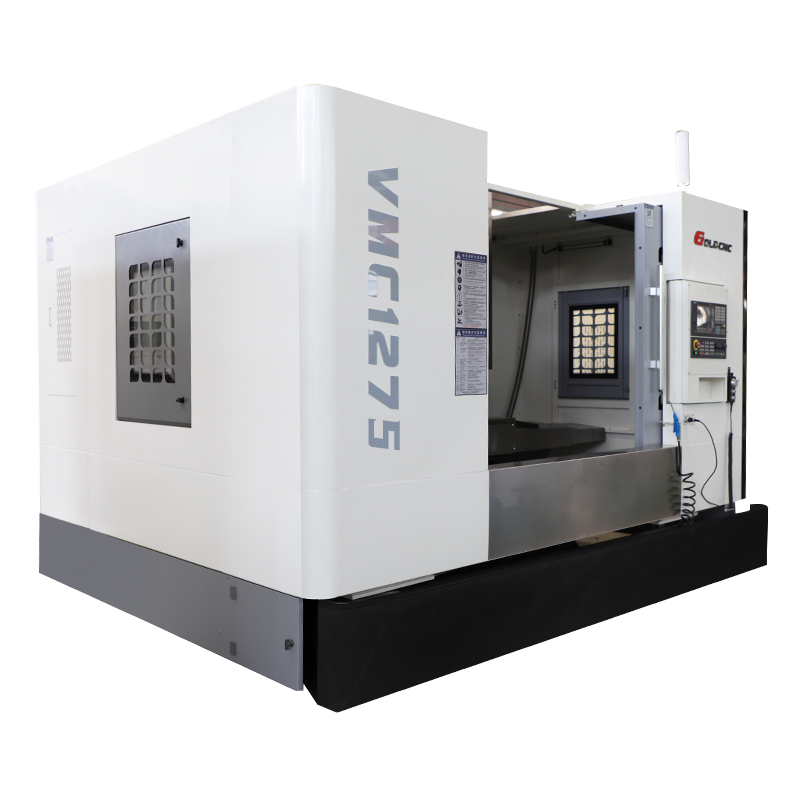

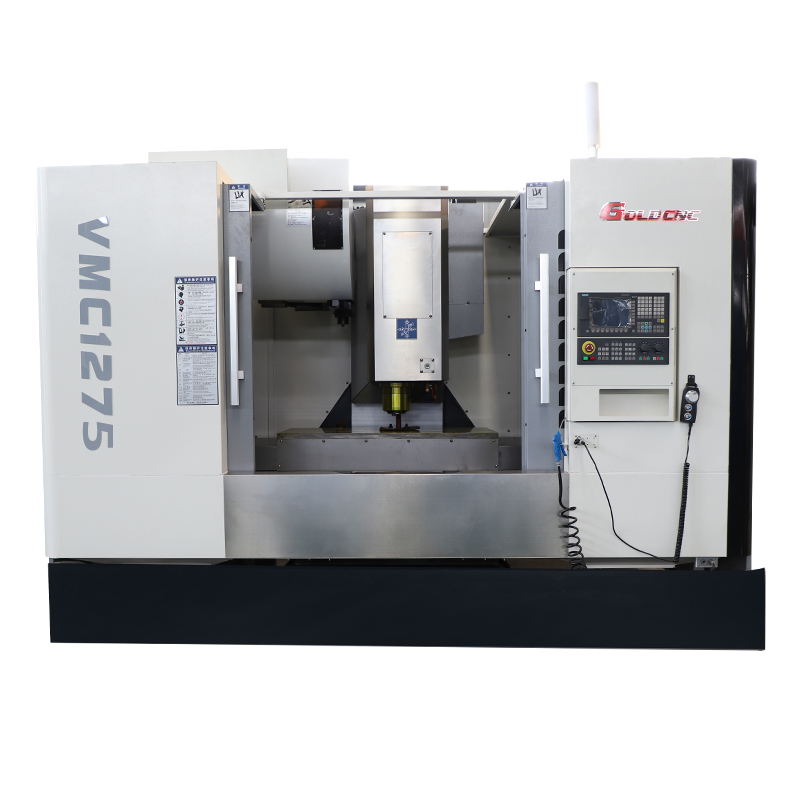

VMC1275 CNC Milling Machine is designed for medium-to-large mechanical parts, mold components, mounting plates, housings, and structural components, providing a practical balance between larger workpiece coverage and multi-process machining while reducing repeated setups and machine transfers.
1.The value of the VMC1275 CNC Milling Machine is not simply having a larger model in the lineup. It is intended for workpieces that are becoming too large for compact VMCs, such as base plates, mounting plates, machine bases, equipment components, and mold bases. The larger machining envelope helps reduce process splitting caused by limited travel.
2.Many industrial components do not require simultaneous 5-axis machining but contain numerous mounting holes, threaded holes, locating holes, pockets, slots, steps, and machined surfaces. VMC1275 CNC Milling Machine allows these features to be organized around a common datum and machining process, reducing unnecessary transfers between machines.
3.For larger mounting plates, flange plates, connection plates, machine bases, and fixture plates, the main challenge is often not cutting itself but workholding, alignment, and maintaining the relationship between multiple holes. VMC1275 CNC Milling Machine is well suited to machining these combinations of hole patterns, surfaces, and slots from an established datum.
4.Industrial parts often require material removal first, followed by machining of datum surfaces, holes, and mating features. VMC1275 CNC Milling Machine should therefore be positioned as a machine for the complete machining process—from roughing to finishing—rather than only for small precision components.

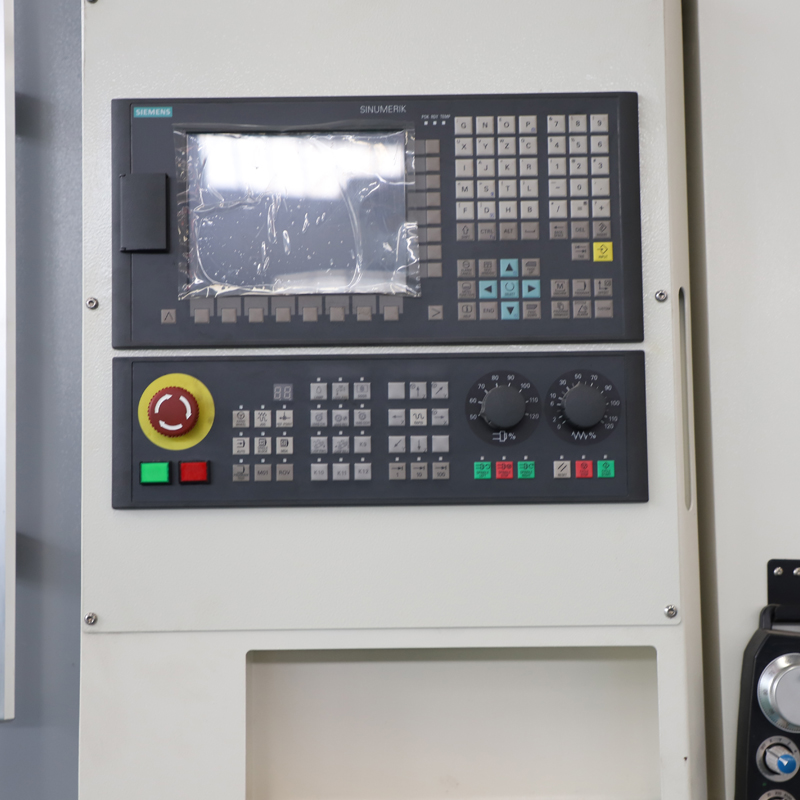

Offers a range of CNC system options, including FANUC, GSK, Siemens, Mitsubishi, and others. The operating interface supports multiple languages, such as Chinese, English, Spanish, and Russian.

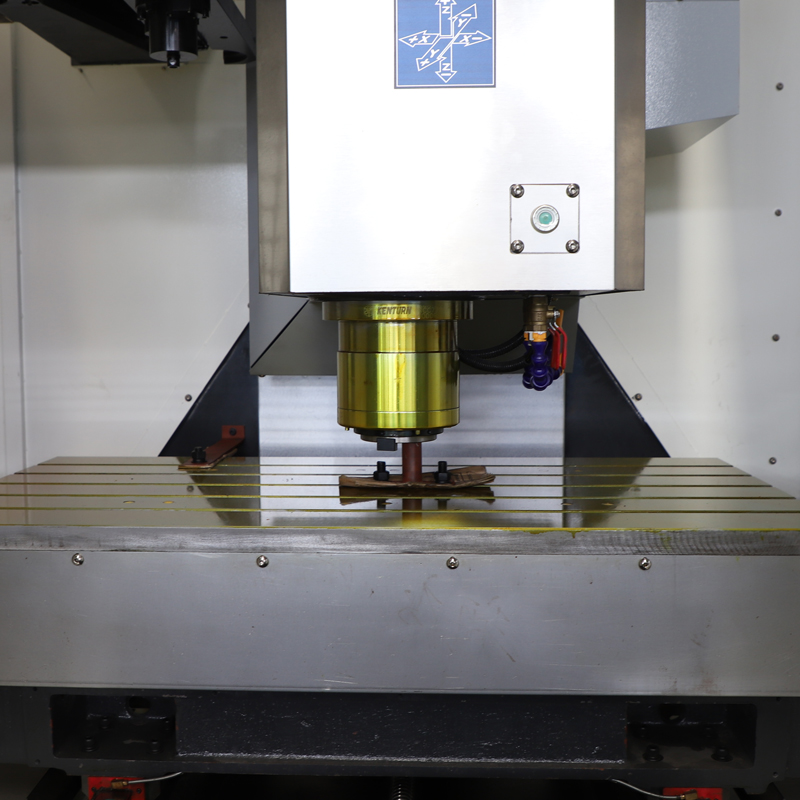

High rigidity — stable, vibration-free operation during heavy-duty cutting. High speed — suitable for both roughing and finishing. High precision — helps reduce the scrap rate.
The equipment features an all-metal enclosure. With a sheet metal thickness of 2 mm, far exceeding market standards, it ensures maximum safety for operators during operation.
The use of high-precision HIWIN (Taiwan) linear guideways and ball screws significantly enhances positioning accuracy. The system ensures exceptional motion smoothness, free from jerking or stick-slip, and supports rapid traverse speeds of up to 24, 36, or 48 m/min.
1.Mechanical Equipment Components:Base components, supports, mounting blocks, connection parts, and machine housings.
2.Construction Machinery:Hydraulic mounting plates, connection brackets, equipment bases, and structural components.
3.Automotive Components:Fixture plates, brackets, mounting plates, housings, and tooling-related components.
4.Pumps & Valves:Valve bodies, mounting surfaces, hole patterns, and flange-related components.
5.Mold & Die Making：Mold bases, plates, mold frames, and selected core/cavity components.
6.Fixtures & Tooling:Inspection fixture plates, welding fixtures, assembly fixtures, locating plates, and tooling bases.
7.Agricultural Machinery:Gearbox housings, mounting brackets, connection plates, and transmission components.
8.Energy & Industrial Equipment:Equipment mounting plates, structural connections, pump-related components, and replacement parts.
9.Maintenance & Replacement Parts:For non-standard replacement parts and small-batch maintenance components, VMC1275 CNC Milling Machine can support flexible production directly from engineering drawings.
Workpiece suitability should not be judged by length alone. Buyers should consider X/Y/Z travel, table size, workpiece weight, fixture dimensions, tool access, and whether repositioning is required. For larger mounting plates, machine bases, mold bases, and structural components, the value of VMC1275 CNC Milling Machine is to provide practical machining margin rather than simply making the workpiece fit.
| Specification | Unit | VMC1275 |
| X axis travel | mm | 1200 |
| Y axis travel | mm | 750 |
| Z axis travel | mm | 600 |
| Distance from spindle center to column rail | mm | 797 |
| Distance from spindle end to worktable | mm | 120-720 |
| Worktable | ||
| Size | mm | 1300×700 |
| T-slot(Qty.-pitch-width) | mm | 7-18*100 |
| Maximum loading capacity | kg | 900 |
| Spindle | ||
| Speed | rpm | 8000 （Optional：10000/12000） |
| Inner taper | mm | BT40-150 |
| Motor | KW | 11 |
| Motor connecting method | Belt type(Optional：Direct) | |
| Feeding | ||
| XYZ fast moving | m/min | 24/24/24 |
| Cutting feeding | m/min | 1-10 |
| XYZ Motor connection | Direct | |
| XYZ Guiderail | Linear guideway | |
| Tool Magazine | ||
| Type | Disc | |
| Quantity of tools | 24 | |
| Max. tool weight | kg | 8 |
| Max. tool length | mm | 300 |
| Max. tool diameter | mm | 78（adjacent）/ 120（separate） |
| Accuracy | ||
| XYZ positioning accuracy | mm | ±0.005/300 |
| XYZ repeated positioning accuracy | mm | ±0.003 |
| Dimension | mm | 3640*2920*3105 |
| Weight | kg | 8000kg |
