Gantry Double Column Structure
Good guidance and uniform force;High rigidity, high strength.

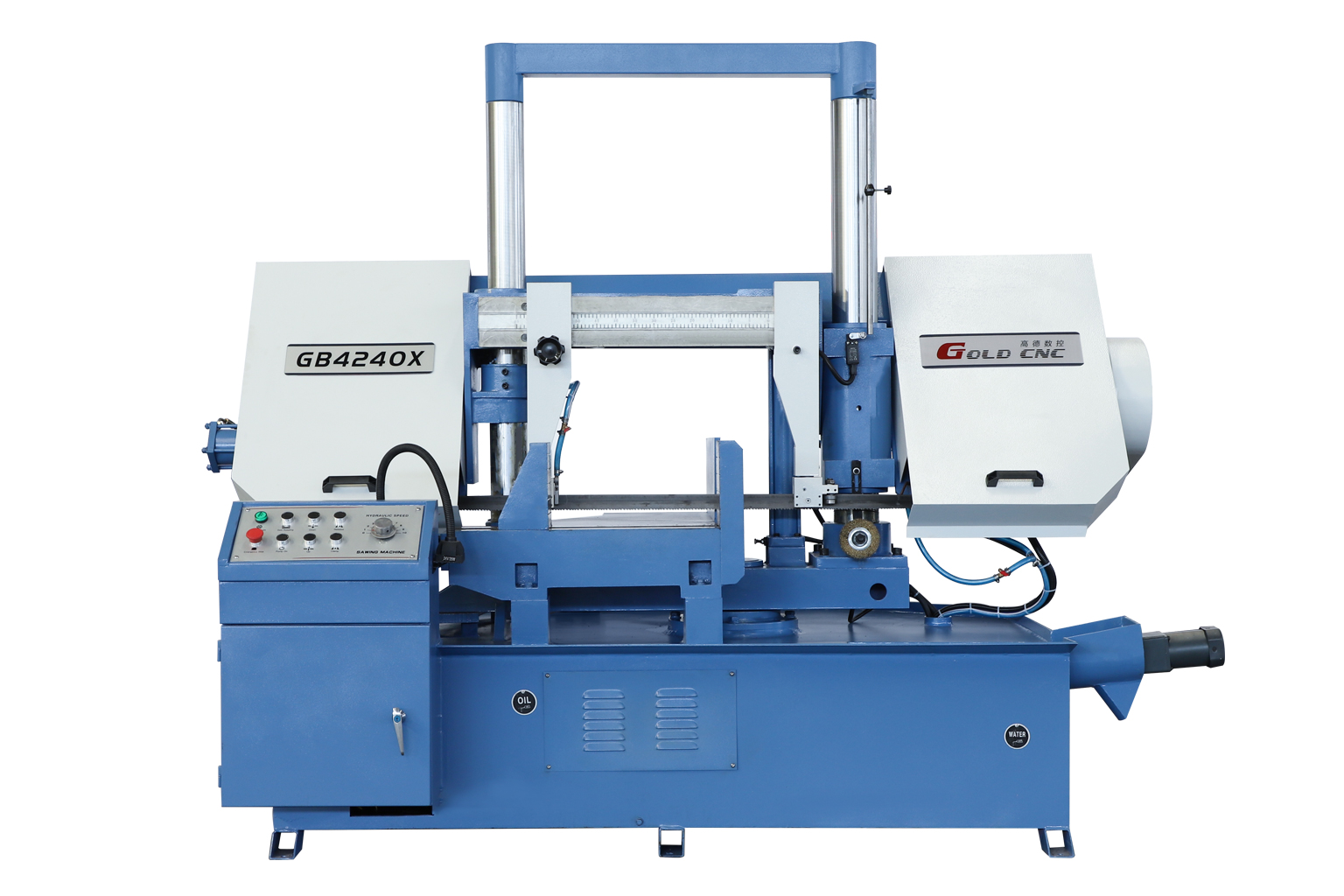

GB4240X 0–45° Angle Metal Band Saw Machine combines flexible miter cutting, 400×400 mm cutting capacity, double-column stability and semi-automatic operation for efficient preparation of bars, tubes and structural profiles.
1.GB4240X 0–45° Angle Metal Band Saw Machine allows adjustable cutting angles from 0° to 45°, enabling both straight and miter cutting on one machine and reducing the need for additional equipment or secondary positioning.
2.The double-column structure guides the saw frame vertically through two guide columns, distributing operating loads more evenly and helping maintain stability and consistency during miter cutting.
3.Hydraulic workpiece clamping provides stable holding force during sawing, making the machine suitable for bars, tubes, profiles and workpieces with different cross-sections.
4.GB4240X is designed for applications requiring mitered blanks, including steel structures, machinery components, tubes and profiles. Direct angle cutting helps prepare workpieces for subsequent welding, assembly and machining.
Good guidance and uniform force;High rigidity, high strength.

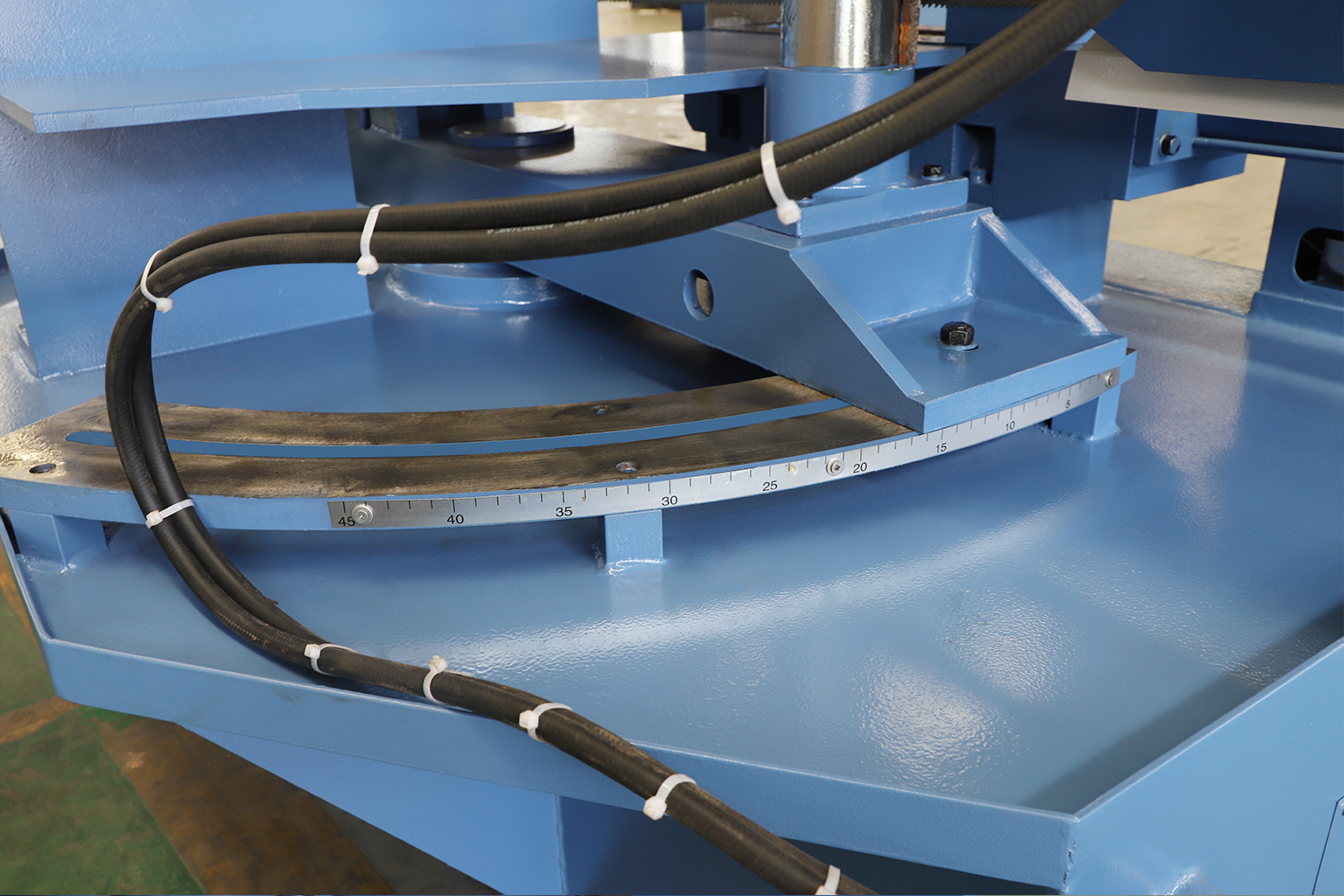

Manual operation of saw frame rotation;Accurate reading on the dial.

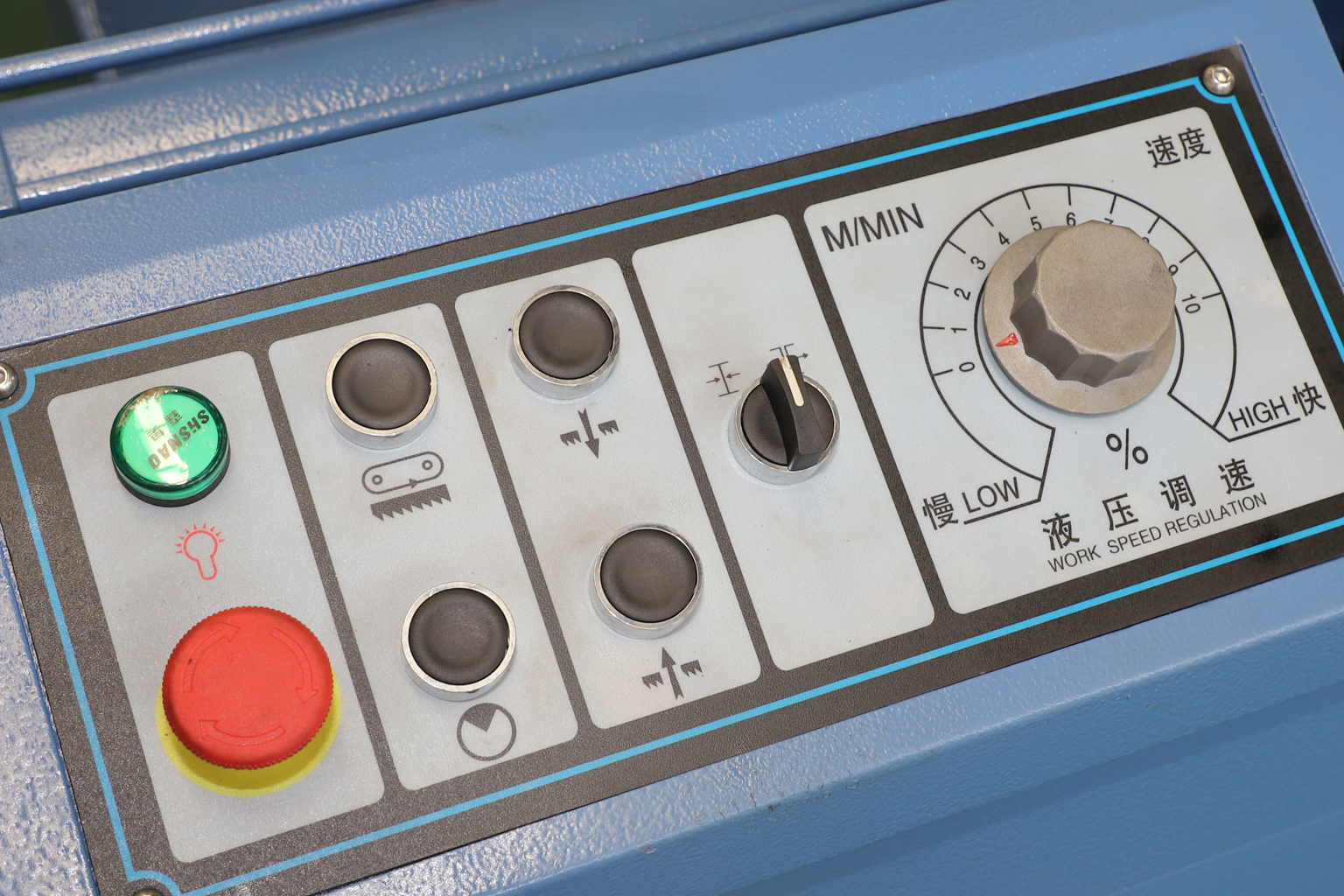

Button completed sawing process ;Easy to operate and efficient.
National standard pure copper motor;Low noise, long life.

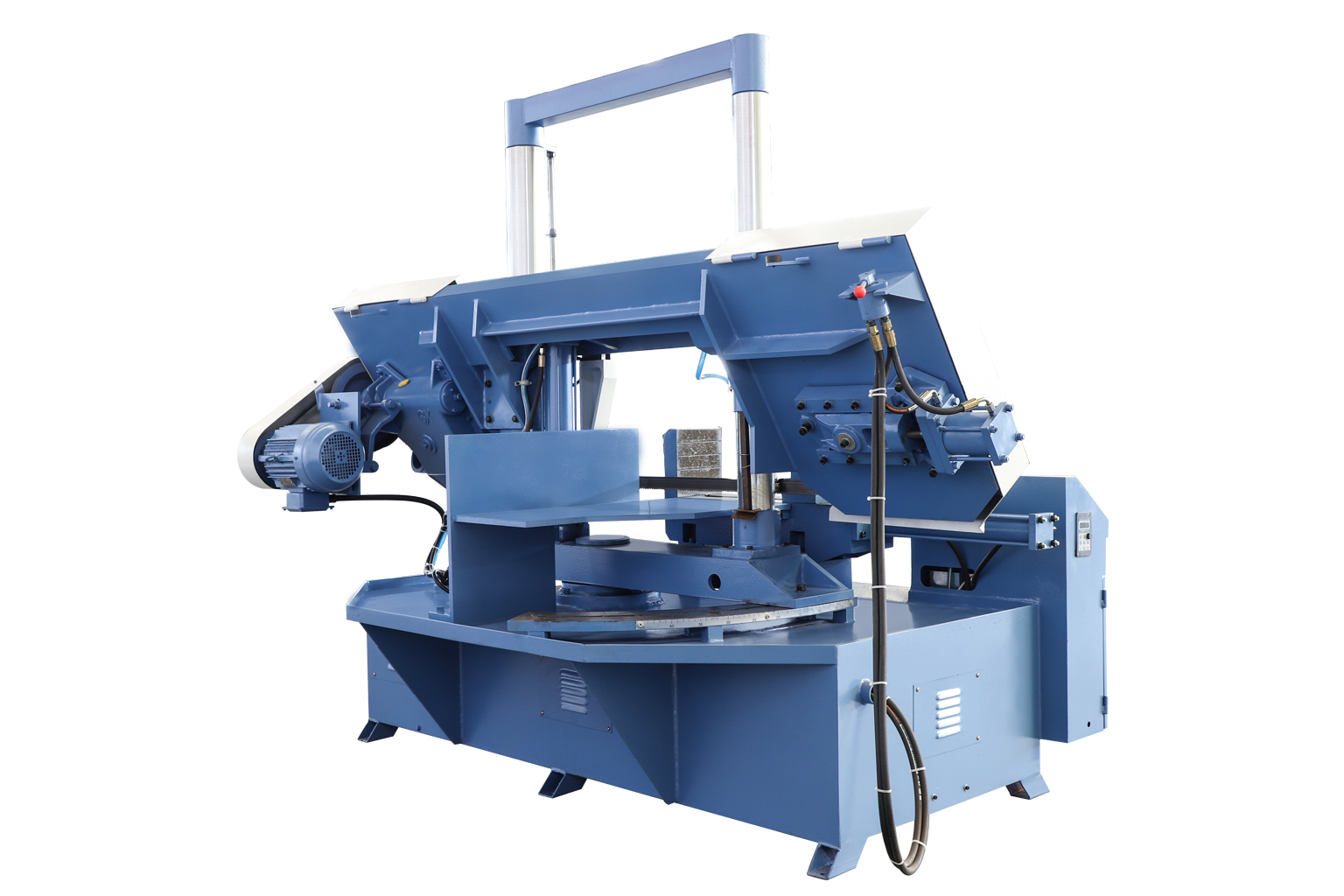

GB4240X supports adjustable cutting from 0° to 45°, making it suitable for straight cuts, miter cuts and different angle-cutting requirements. It can produce angled blanks directly for steel structures, tubes, profiles and machinery components, reducing secondary positioning.
| Specifications | GB4240X |
| Max.cutting（mm） | 0°●400■400W×400H |
| 45°●300■300W×300H | |
| 60°●200■200W×200H | |
| Saw blade speed（m/min） | 27/45/69 |
| Saw blade size（mm） | 34×1.1×5160 |
| Working clamping mode | Hydraulic vice |
| Main transmission structure | Worm gear transmission |
| Band saw blade tensioning method | Manual |
| Cleaning | Wire brush & flood coolant |
| Main motor（kw） | 4 |
| Hydraulic motor（kw） | 0.75 |
| Cooling motor power（kw） | 0.04 |
| Dimensions(mm) | 2400×1600×1800 |
