01
Gantry Double Column Structure
Good guidance and uniform force;High rigidity, high strength.

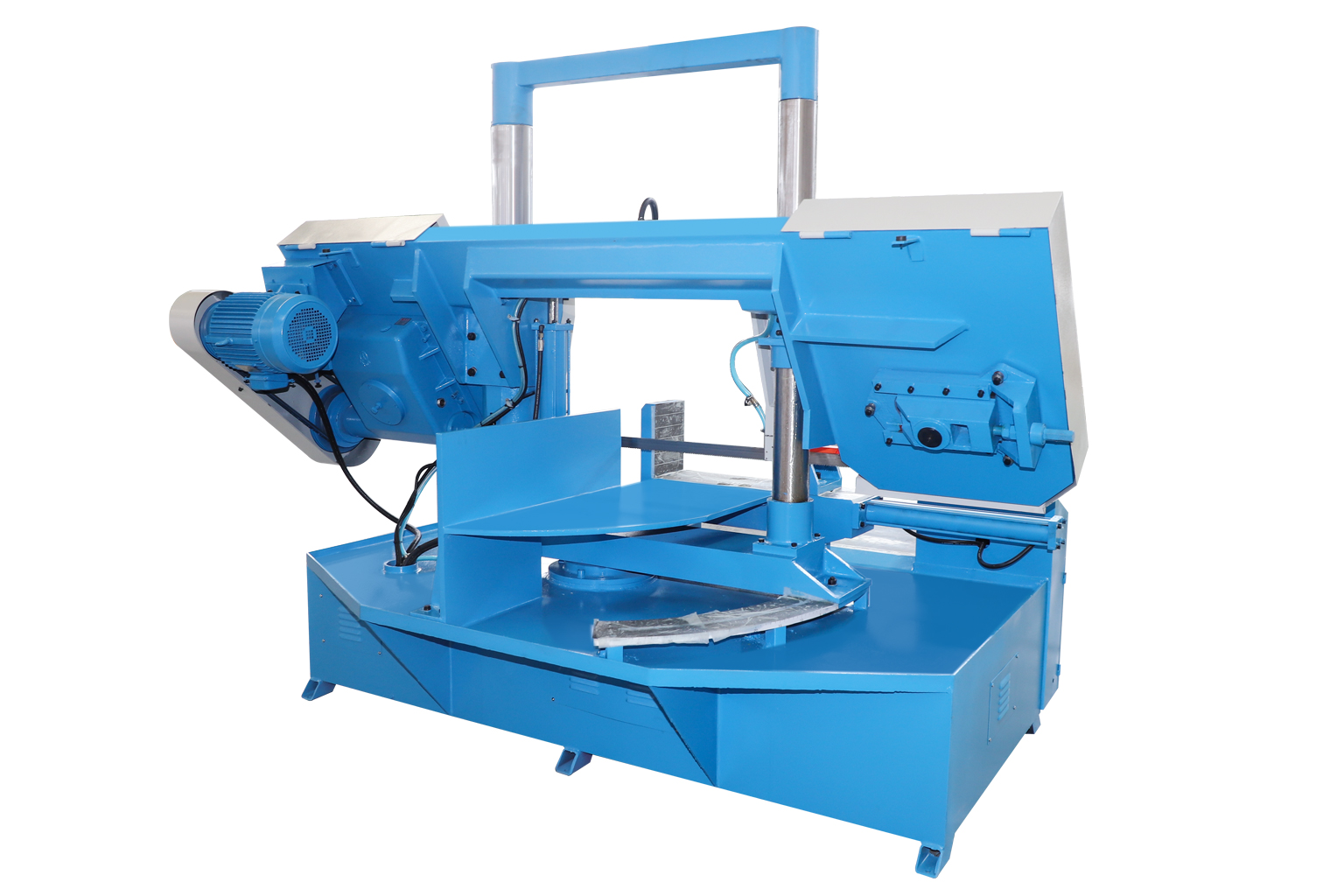

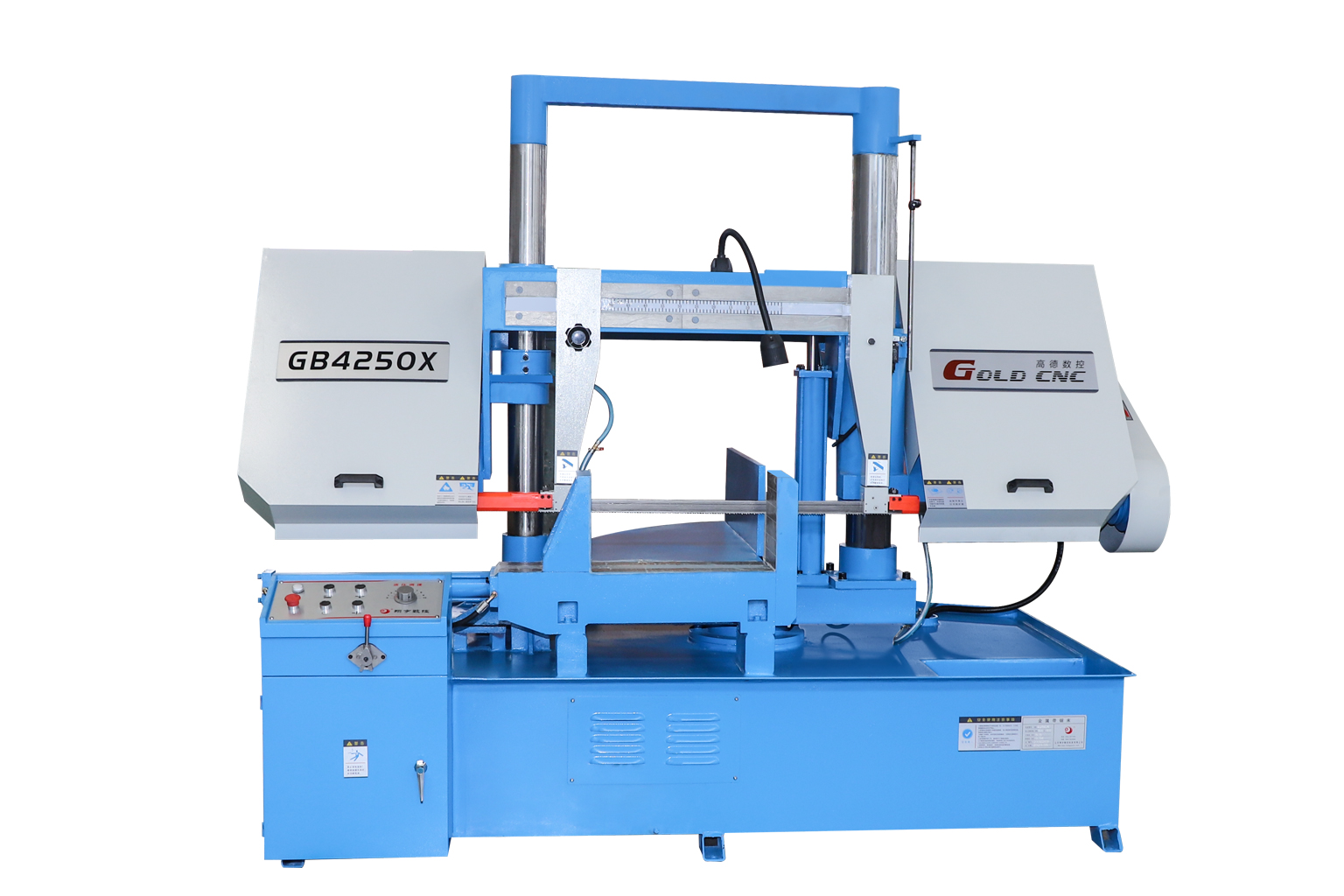

GB4250X Industrial Angle Metal Band Saw Machine combines 0–45° miter cutting, 500 × 500 mm capacity and double-column stability for flexible processing of large bars, tubes and structural profiles.
1.GB4250X supports adjustable cutting from 0° to 45°, allowing operators to produce angled blanks directly during stock preparation for welding, joining, assembly and structural fabrication.
2.GB4250X uses a double-column structure in which two guide columns control the saw frame movement. The balanced guidance provides stable support when sawing larger workpieces within the 500 × 500 mm capacity range.
3.GB4250X can process bars, tubes, H-sections, V-sections, plates and other special-shaped materials, providing stock preparation for steel fabrication, machinery manufacturing, equipment production and metal processing.
Good guidance and uniform force;High rigidity, high strength.
Manual operation of saw frame rotation;Accurate reading on the dial.
Button completed sawing process ;Easy to operate and efficient.
National standard pure copper motor;Low noise, long life.
Distributors should first confirm the customer's maximum workpiece size, need for miter cutting, material cross-section and production method. If workpieces approach or exceed 400 mm and miter cutting from 0° to 45° is frequently required, the GB4250X's 500 × 500 mm capacity provides a better fit than smaller miter band saw models.
| Specifications | GB4250X |
| Max.cutting（mm） | 0°●500■500W×500H |
| 45°●400■400W×400H | |
| 60°●260■260W×260H | |
| Saw blade speed（m/min） | 27/45/69 |
| Saw blade size（mm） | 41×1.3×5610 |
| Working clamping mode | Hydraulic vice |
| Main transmission structure | Worm gear transmission |
| Band saw blade tensioning method | Manual |
| Cleaning | Wire brush & flood coolant |
| Main motor（kw） | 5.5 |
| Hydraulic motor（kw） | 1.5 |
| Cooling motor power（kw） | 0.04 |
| Dimensions(mm) | 2800×1800×2000 |
