01

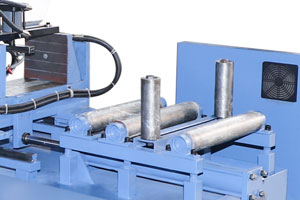

Automatic Feeding
Repeat multiple feedings avaliable;Simple and reliable operation.

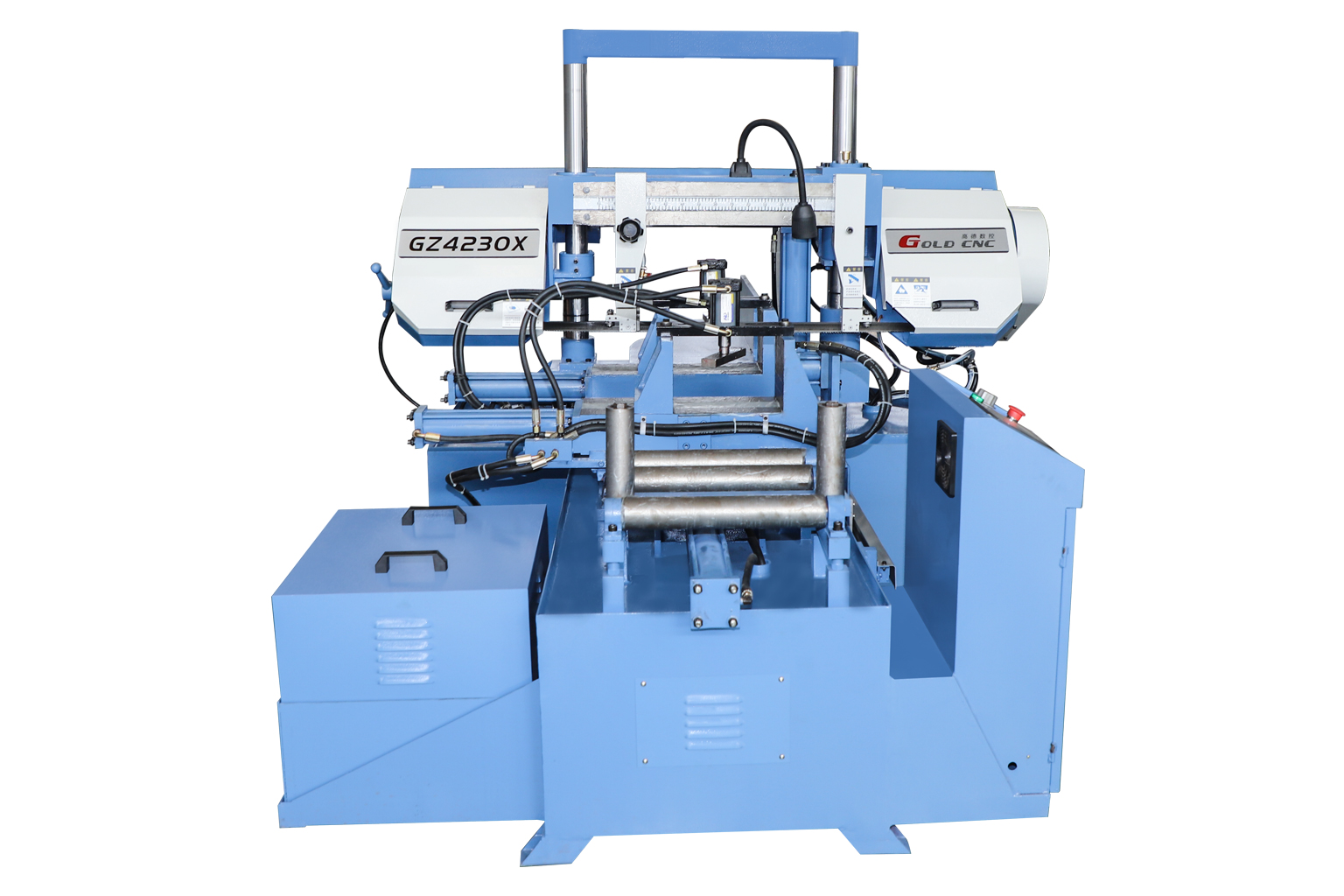

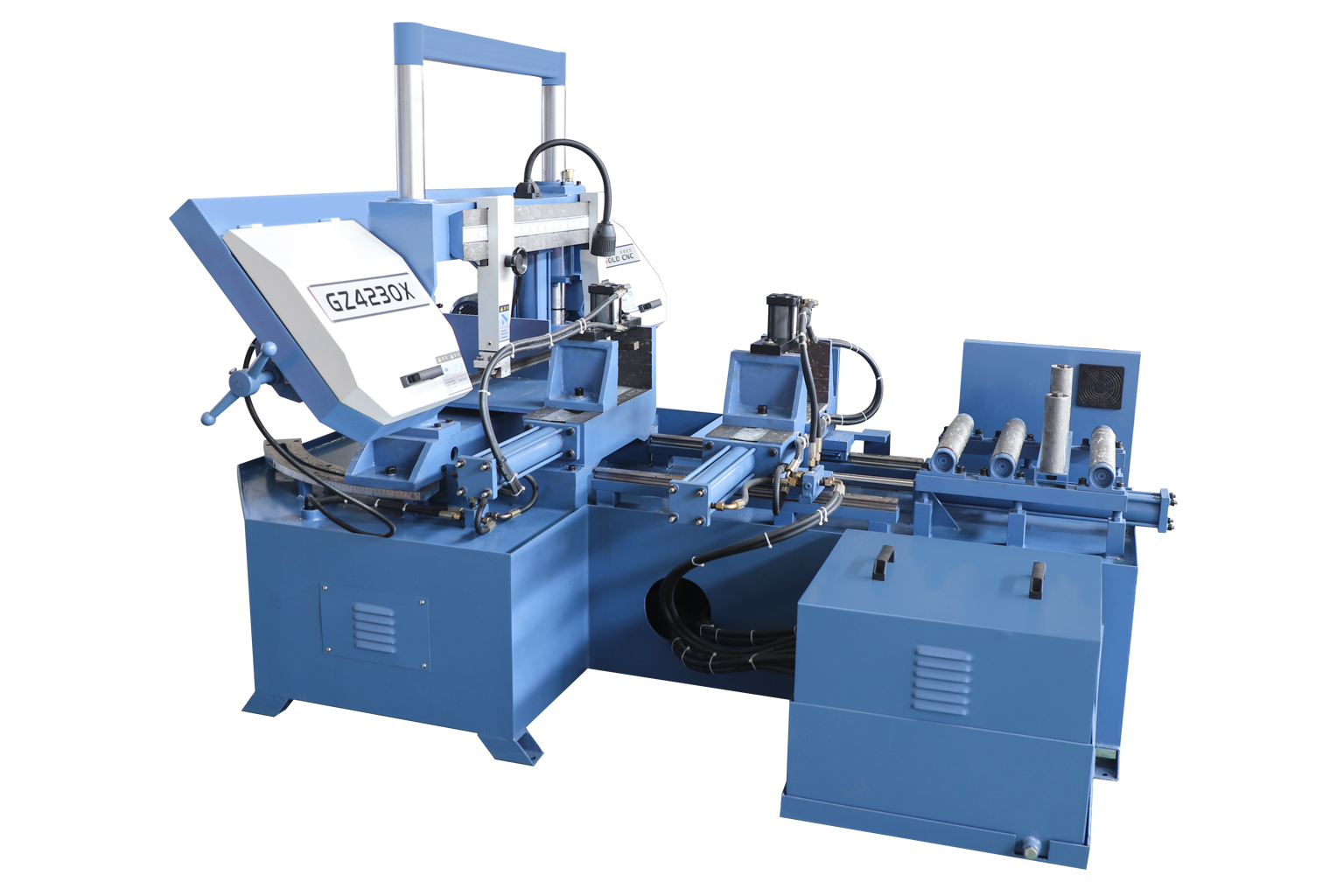

GZ4230X Automatic Angle Band Saw Machine combines 0–45° miter cutting with automatic measurement, feeding and sawing for consistent, repeatable production of bars, tubes and structural profiles.
1.GZ4230X Automatic Angle Band Saw Machine combines 0–45° miter cutting with automatic measurement, feeding, sawing and standby operation, turning repetitive angle cutting from manual handling into a continuous automated process.
2.GZ4230X supports adjustable cutting from 0° to 45°, allowing angled blanks to be prepared directly for subsequent welding, joining and assembly, reducing secondary cutting or manual preparation.
3.In batch production, labor is consumed not only by sawing but also by repeated measuring, positioning and feeding. GZ4230X integrates feeding into the automatic work cycle, reducing repetitive operator intervention.
4.GZ4230X uses a PLC control system to coordinate measurement, feeding, sawing and standby operations within an automated cycle, reducing manual operating steps.
Repeat multiple feedings avaliable;Simple and reliable operation.
Manual operation of saw frame rotation;Accurate reading on the dial.
10x999 sets of cutting data can be preset;Automatically complete the sawing process.

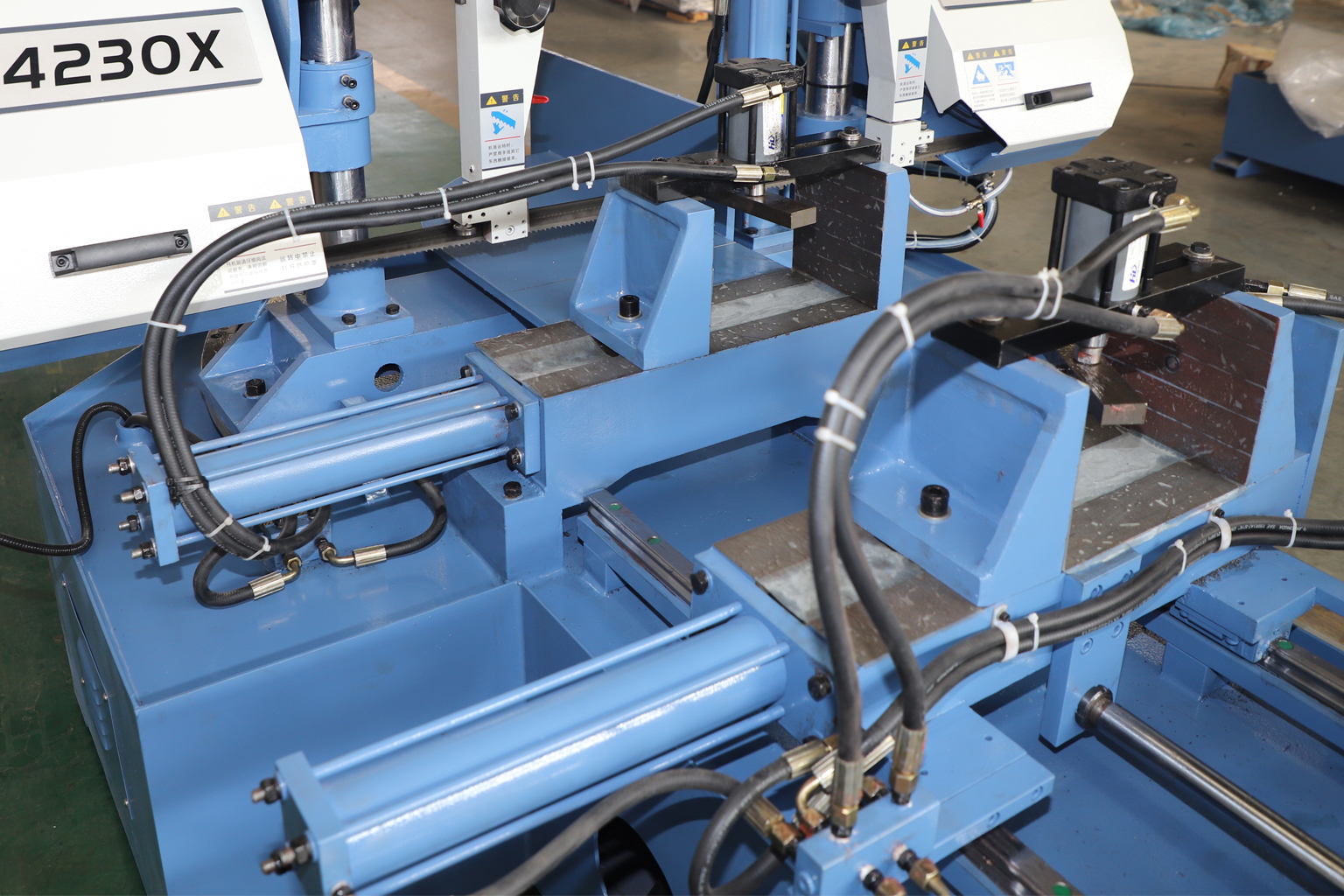

It can also be adjusted manually;The workpiece is clamped by hydraulic vice and controlled by hydraulic speed control valve.
A standard automatic band saw primarily handles automatic feeding and 90° straight cutting, while GZ4230X adds 0–45° miter cutting. If the customer's products require angled ends for welding, assembly or structural connections, GZ4230X can produce the required angle during stock preparation.
| Specifications | GZ4230X |
| Max.cutting（mm） | 0°●300■300W×300H |
| 45°●240■240W×240H | |
| 60°●80■80W×80H | |
| Saw blade speed（m/min） | 27/45/69 |
| Saw blade size（mm） | 27×0.9×3850 |
| Working clamping mode | Hydraulic vice |
| Main transmission structure | Worm gear transmission |
| Band saw blade tensioning method | Manual |
| Cleaning | Wire brush & flood coolant |
| Main motor（kw） | 3 |
| Hydraulic motor（kw） | 0.55 |
| Cooling motor power（kw） | 0.04 |
| Dimensions(mm) | 2400x2100x1600 |
