01
Gantry Double Column Structure
Good guidance and uniform force;High rigidity, high strength.

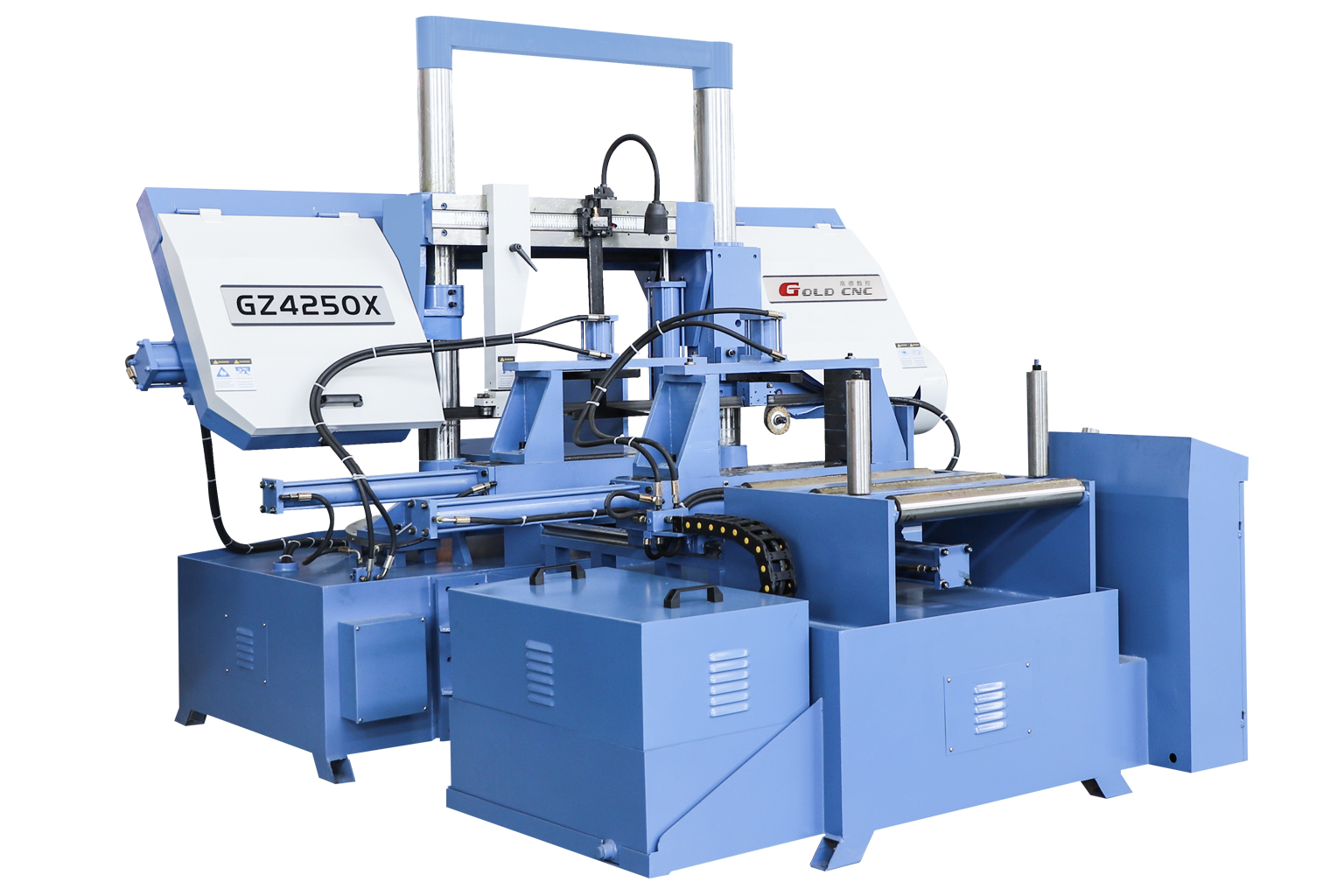

GZ4250X Automatic Miter Band Saw for Metal Cutting combines automatic feeding and sawing with adjustable miter cutting, providing a practical solution for repeatable angle cutting of large steel profiles, pipes, bars and structural components.
1.GZ4250X band saw combines automatic sawing with miter cutting, allowing production users to process repeated angled cuts without manually repositioning every workpiece.
2.The mitering system supports adjustable cutting angles from 0° to 45°, allowing one machine to handle both straight and angled cutting requirements.
3.Automatic measurement, feeding, sawing and standby functions reduce repetitive manual operations and help maintain a consistent production cycle.
4.With its larger cutting capacity, GZ4250X is positioned for workshops processing larger profiles, pipes, bars and structural components where compact saws may become restrictive.
Good guidance and uniform force;High rigidity, high strength.

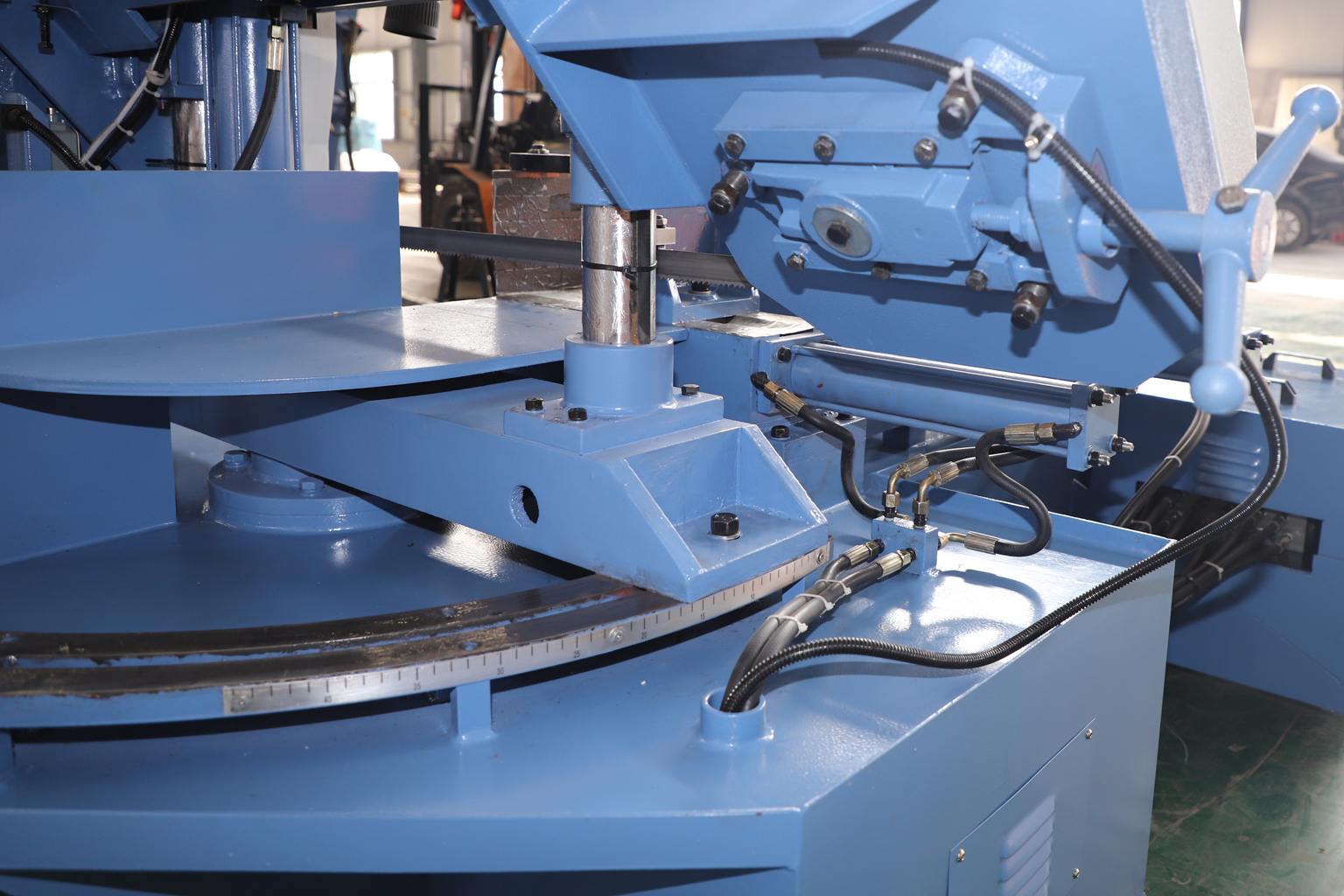

Manual operation of saw frame rotation;Accurate reading on the dial.

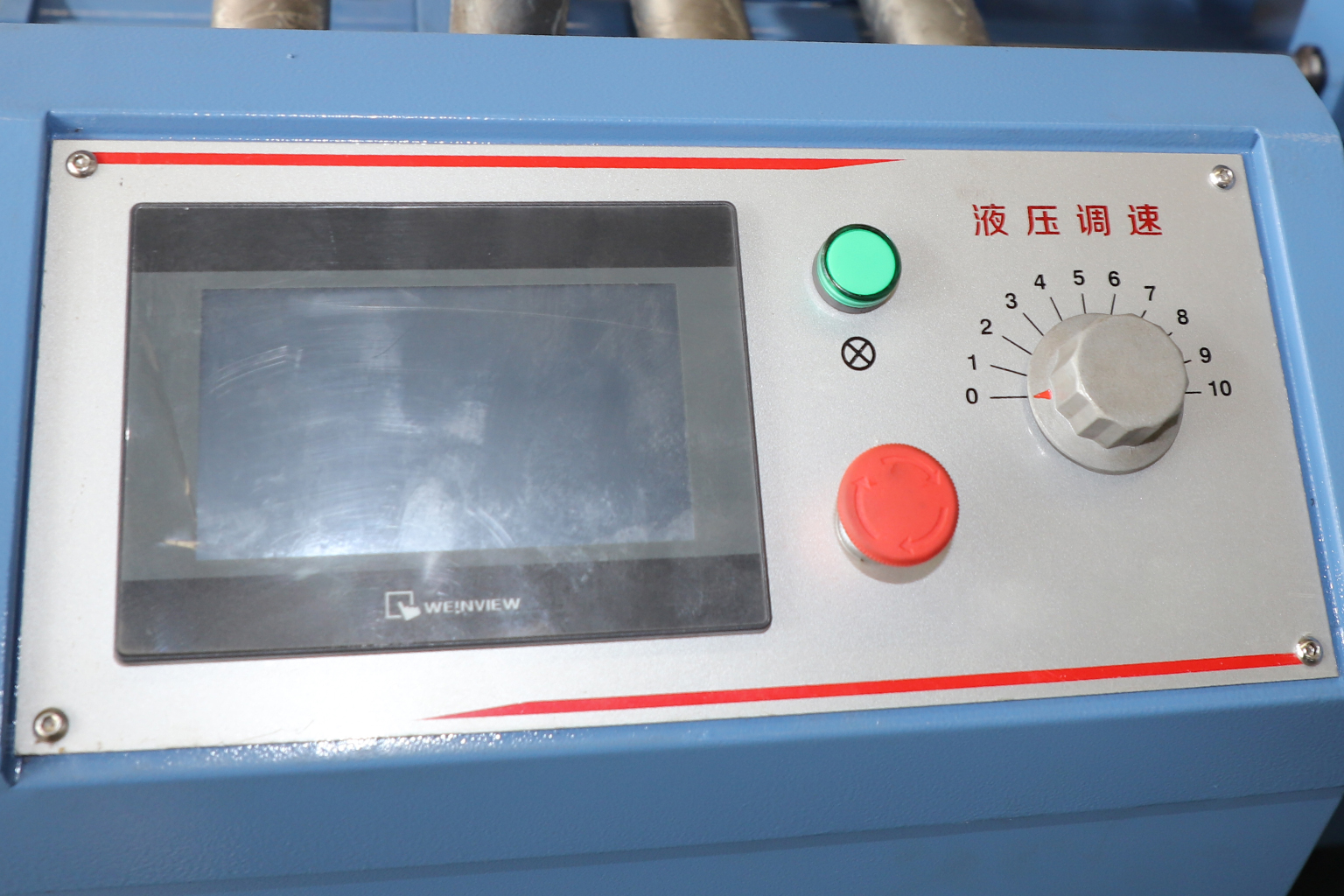

10x999 sets of cutting data can be preset;Automatically complete the sawing process.

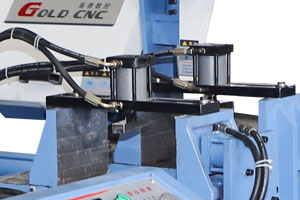

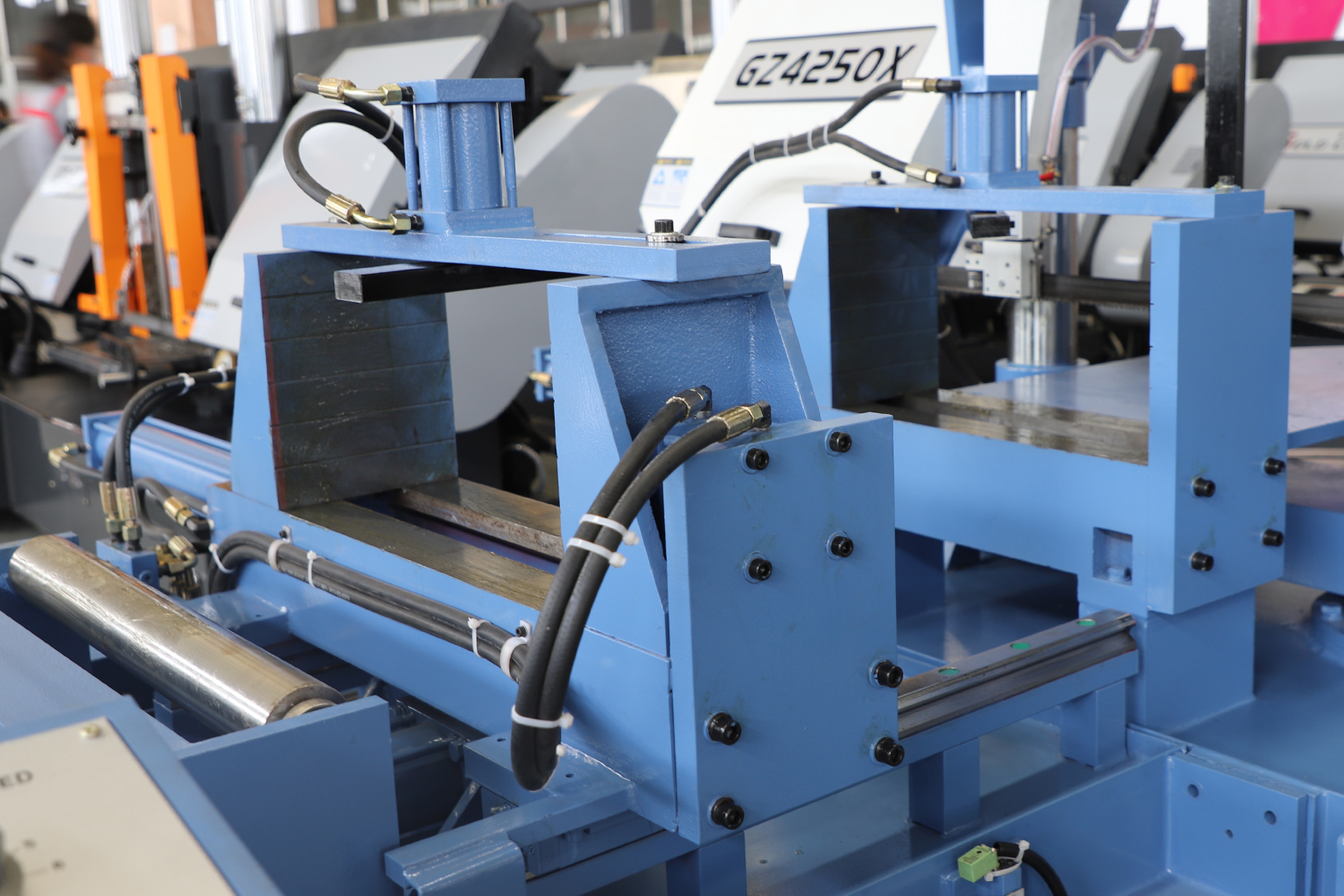

It can also be adjusted manually;The workpiece is clamped by hydraulic vice and controlled by hydraulic speed control valve.
GZ4250X is designed for automatic production cutting of steel profiles, pipes, bars and structural components where both straight and angled cuts are required. It is particularly suitable for workshops handling repeated miter-cutting jobs.
| Specifications | GZ4250X | GZ4260X |
| Max.cutting（mm） | 0°●500■500W×500H | 0°●600■600W×600H |
| 45°●400■400W×400H | 45°●450■450W×450H | |
| 60°●260■260W×260H | 60°●280■280W×280H | |
| Saw blade speed（m/min） | 27/45/69 | 27/45/69 |
| Saw blade size（mm） | 41×1.3×5800 | 54×1.6×6660 |
| Working clamping mode | Hydraulic vice | Hydraulic vice |
| Main transmission structure | Worm gear transmission | Worm gear transmission |
| Band saw blade tensioning method | Manual | Manual |
| Cleaning | Wire brush & flood coolant | Wire brush & flood coolant |
| Main motor（kw） | 5.5 | 5.5 |
| Hydraulic motor（kw） | 1.5 | 1.5 |
| Cooling motor power（kw） | 0.125 | 0.125 |
| Dimensions(mm) | 3200x2400x2000 | 3300x2400x2500 |
Tell us about your project and our engineering team will respond within 24 hours.
Shandong GOLD CNC Machine Tool Co., Ltd.
sales@goldcnc.com
+86 137 9370 5399
No. 999, Xizhong North Road, Economic Development Zone, Tengzhou, Shandong, China
7 × 24 Hours Global Support
Fill out the form and our sales team will get back to you shortly.

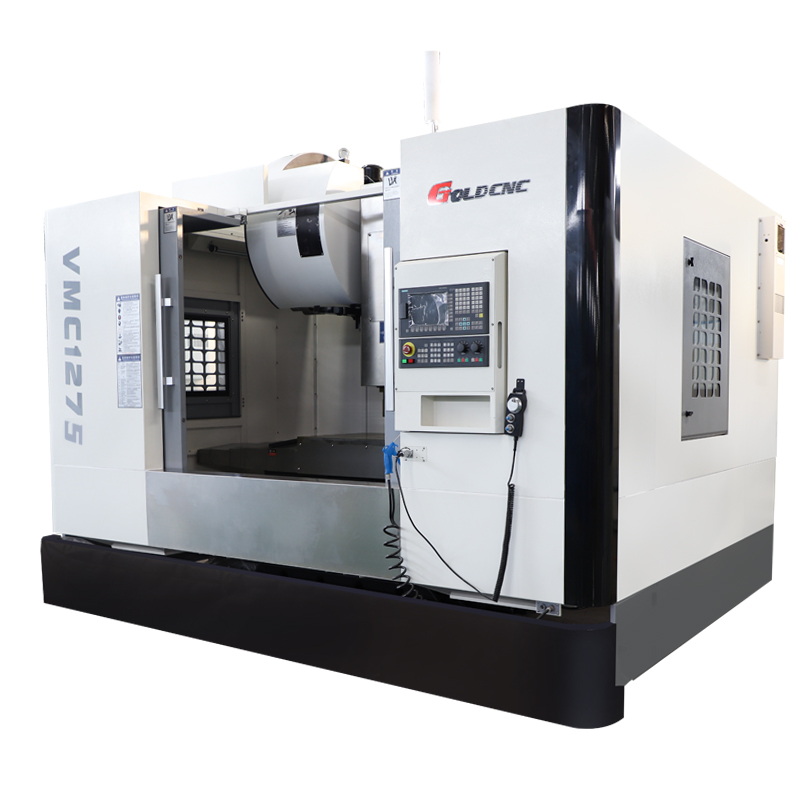

VMC1275 CNC Milling Machine is designed for medium-to-large mechanical parts, mold components, mounting plates, housings, and structural components, providing a practical balance between larger workpiece coverage and multi-process machining while reducing repeated setups and machine transfers.

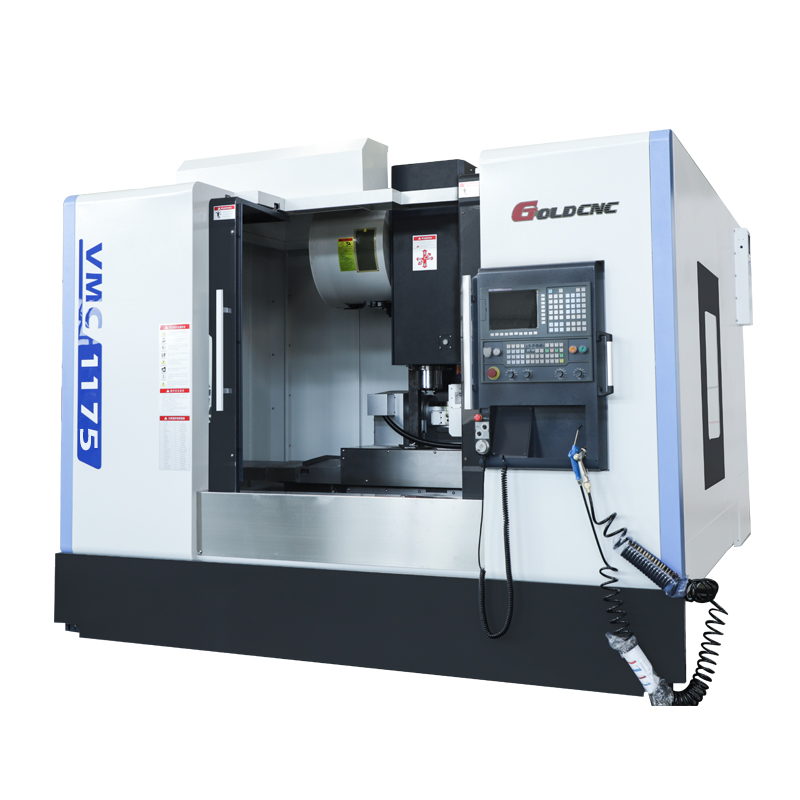

The VMC1175 CNC Vertical Milling Machine is designed for medium-to-large industrial components, combining an expanded machining envelope, stable vertical structure and multi-process capability to reduce repeated setups across mechanical parts, molds, automotive components, construction machinery and tooling applications.

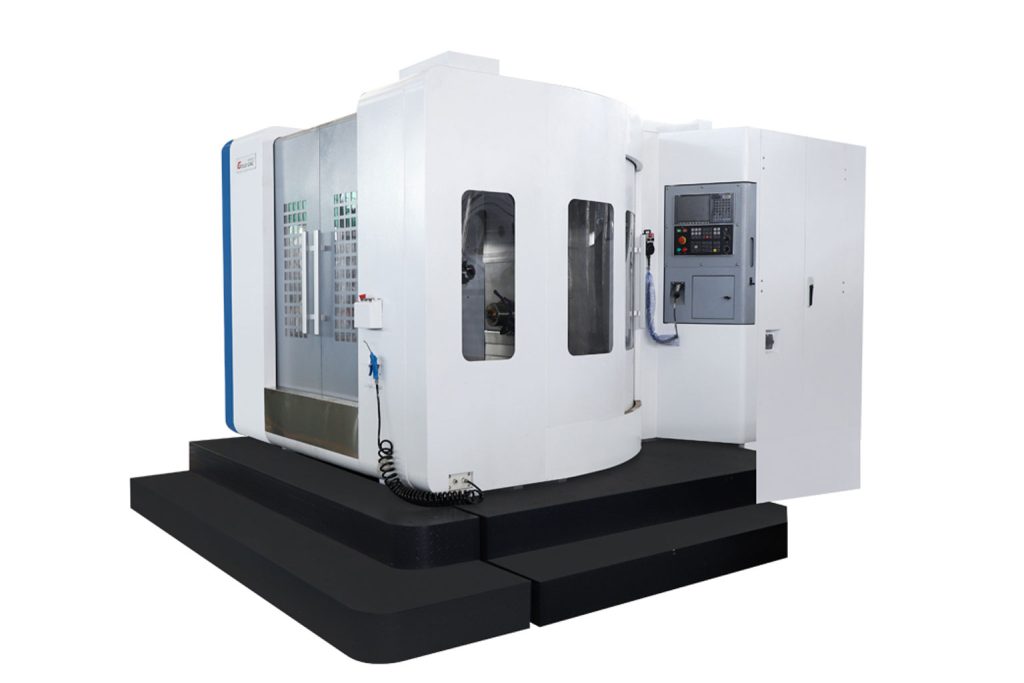

HMC Horizontal Machining Center features a horizontal spindle architecture designed for box-shaped, structural and multi-face components, combining efficient chip evacuation, rigid cutting and multi-side machining to reduce re-fixturing and improve machining consistency and production efficiency.

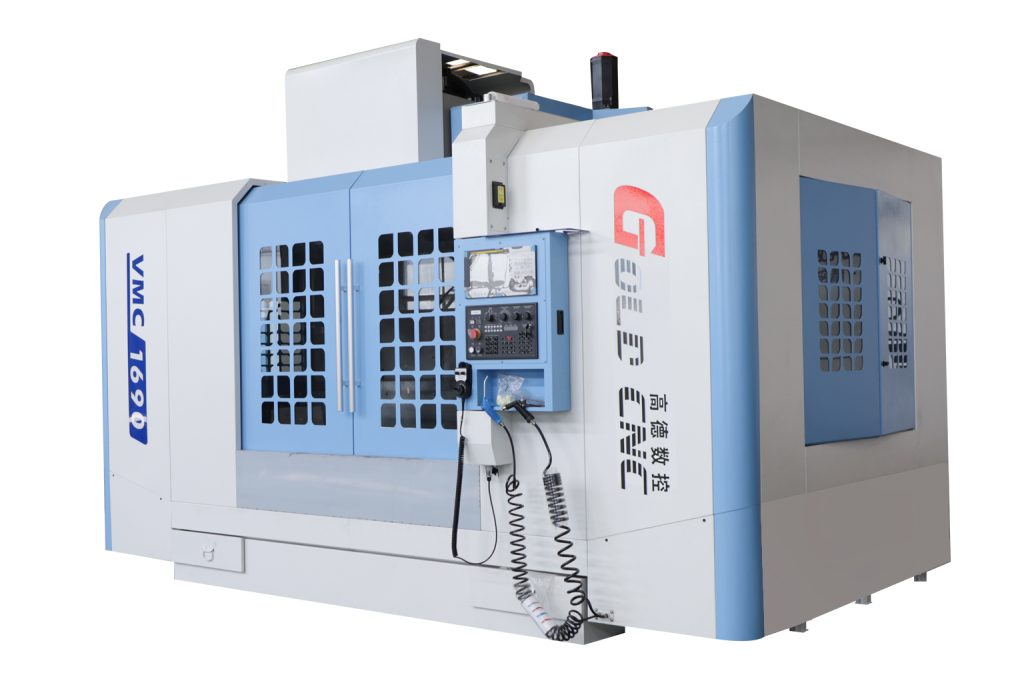

VMC1690 Heavy Duty Vertical Machining Center is engineered for large and heavy workpieces, combining long-axis travel, a 1600 kg table load capacity and a BT50 spindle for stable heavy-duty cutting and multi-operation machining in mold, automotive, construction machinery, energy and general industrial applications.
