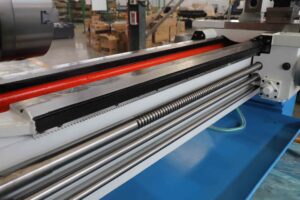

High-frequency hardened guideways
Wear-resistant cast iron and hardened guideways extend the service life of the machine tool.
CA Series Engine Lathe for general-purpose machining of shafts, discs, sleeves and other rotational metal parts.

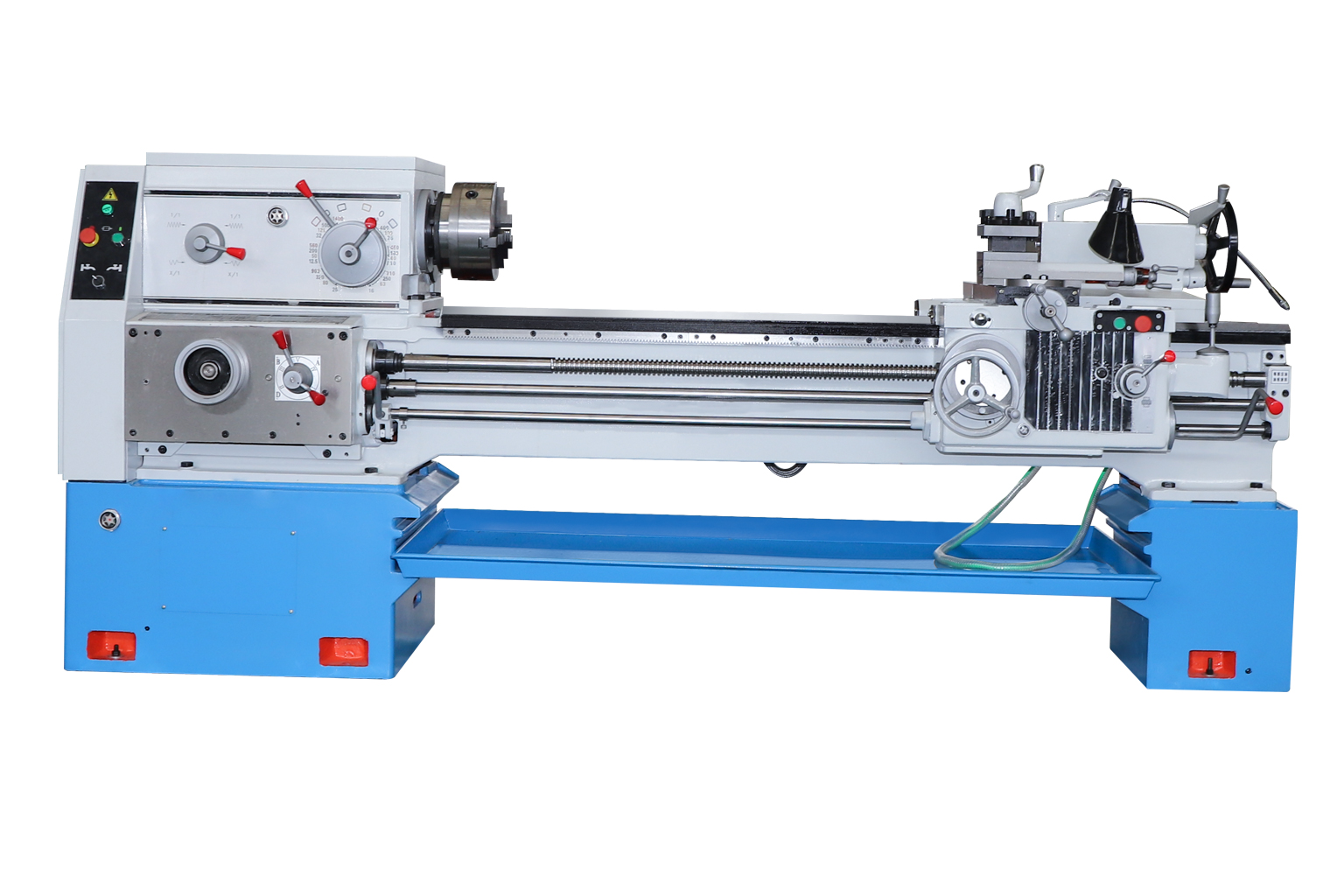

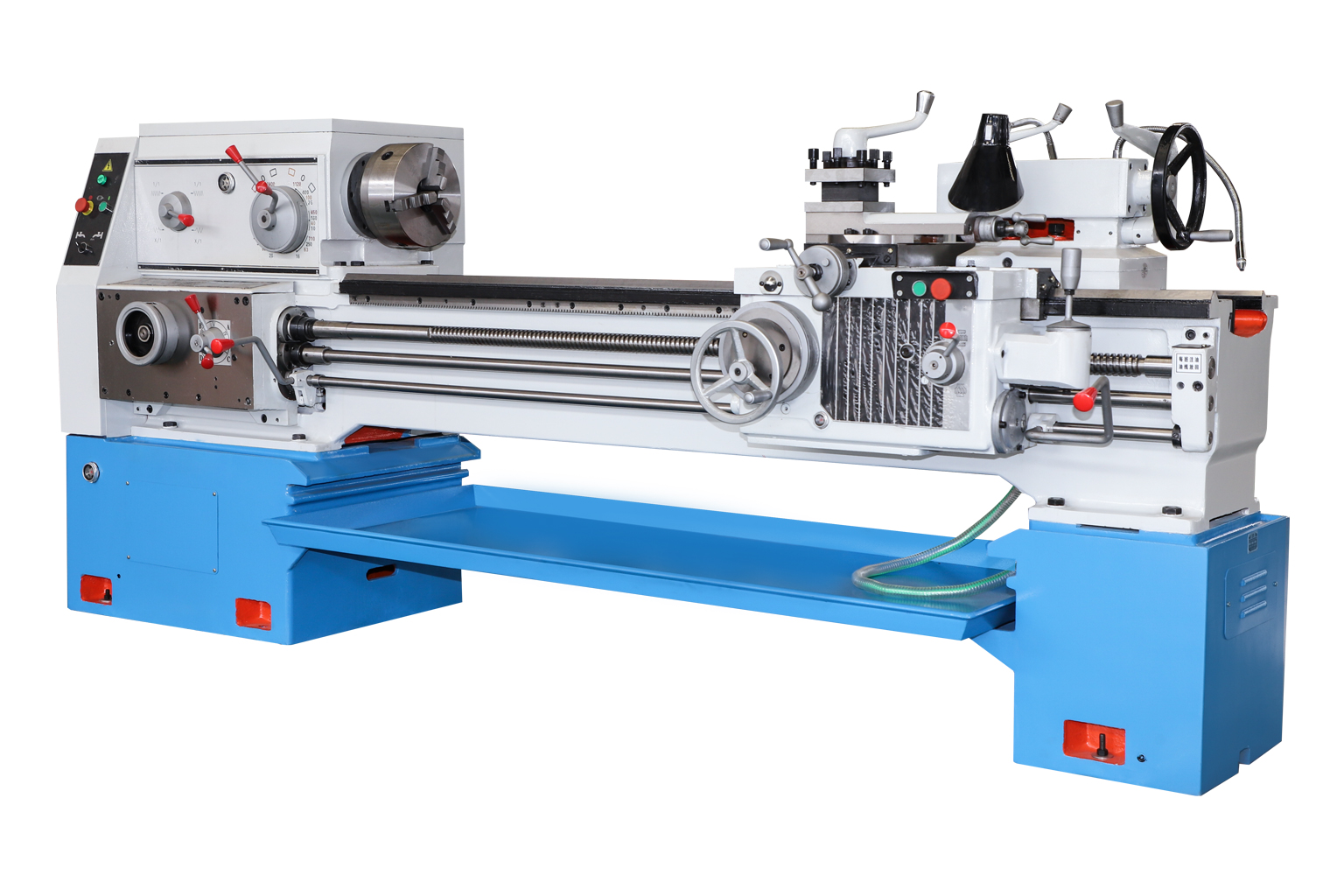

The CA Series Engine Lathe is a horizontal metal lathe designed for general-purpose machining of shafts, discs, sleeves and other rotational metal parts.
With a rigid machine structure, stable operation and reliable machining performance, it is suitable for mechanical manufacturing, automotive components, pumps and valves, agricultural machinery, equipment maintenance and general metal part production.
The CA engine lathe can perform a wide range of turning operations, including external turning, internal boring, facing, taper turning, thread cutting and drilling. It is suitable for single-piece production, small-batch manufacturing and versatile machining applications.
| Category | Specification | CA6140 |
|---|---|---|
| Main Technical Parameters | Maximum workpiece diameter of bed | 400 mm |
| Workpiece diameter of tool post | 210 mm | |
| Maximum workpiece length | 1500 mm | |
| Workpiece weight | 300 kg | |
| Bed width | 400 mm | |
| Tool bar section | 25 × 25 mm | |
| Spindle | Spindle speed range | Forward: 24, 10–1500 / 16–1500 r.p.m; Reverse: 12, 12.5–1500 / 20–1500 r.p.m |
| Spindle bore | 80 mm | |
| Spindle end model | ISO (GB) C6 | |
| Spindle hole taper | No.6 (MT6) (Φ90 1:20) [Φ113:20] | |
| Distance from spindle center to bed plane guide rail | 205 mm | |
| Spindle speed level | Forward rotation (level 24); Reverse rotation (level 12) | |
| Spindle motor power | 7.5 kW | |
| Tool Carrier | Tool carrier | Vertical square knife rest |
| Knife handle size | 25 × 25 mm | |
| Maximum stroke of upper/lower tool holder | 140 / 320 mm | |
| Rotation angle of tool holder turntable | ±90° | |
| Distance from spindle centerline to tool support surface | 26 mm | |
| Tailstock | Maximum stroke of tailstock spindle | 150 mm |
| Tailstock spindle diameter | 75 mm | |
| Taper of tailstock spindle hole | No.5 (MT5) | |
| Cooling Device | Cooling motor power | 90 W |
| Cooling water pump head | 5 m | |
| Cooling water pump flow rate | 25 L/min | |
| Power Supply | Power supply | 380V ±10%, 50Hz ±1%, three-phase AC |
| Working Environment | Ambient temperature | 0℃–40℃ |
| Relative humidity | ≤92% | |
| Size | Overall dimensions | 3150 × 1000 × 1267 mm |

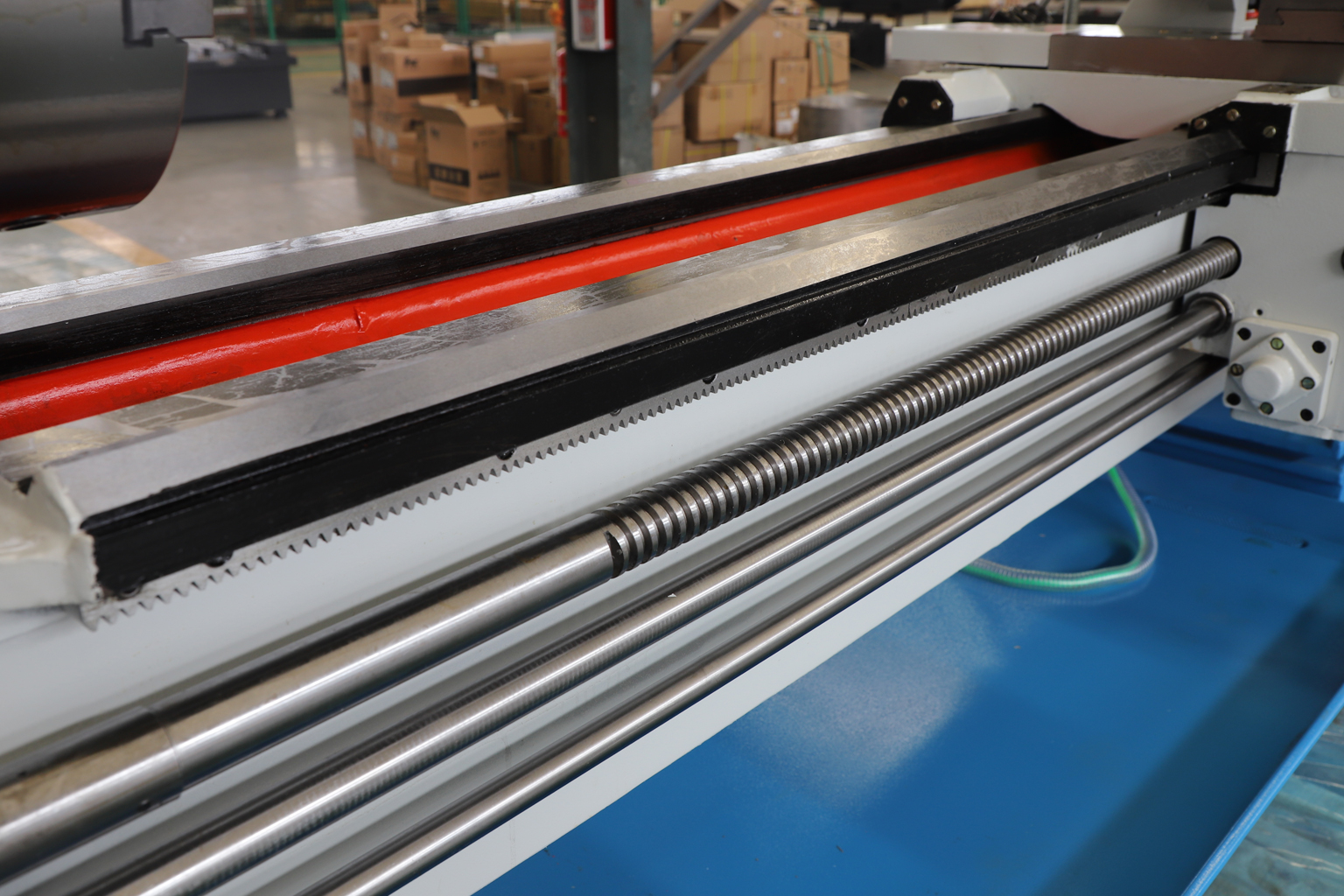

Wear-resistant cast iron and hardened guideways extend the service life of the machine tool.

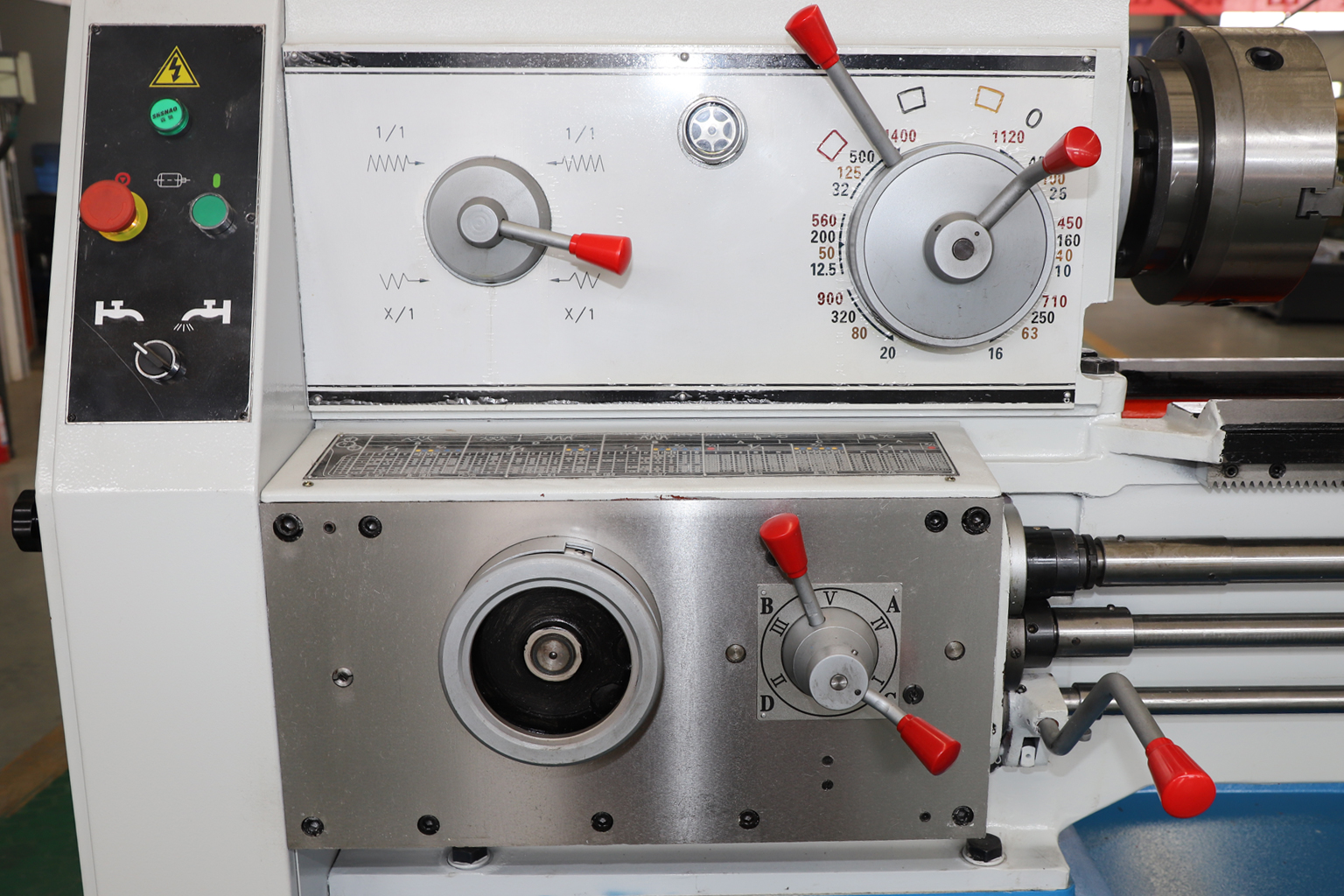

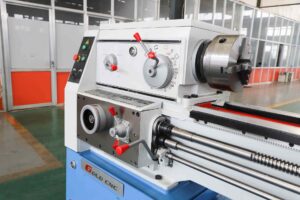

24- step gear speed change; high rigidity, low noise.

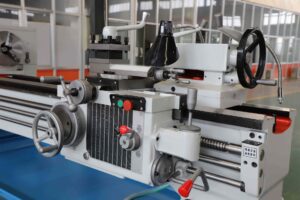

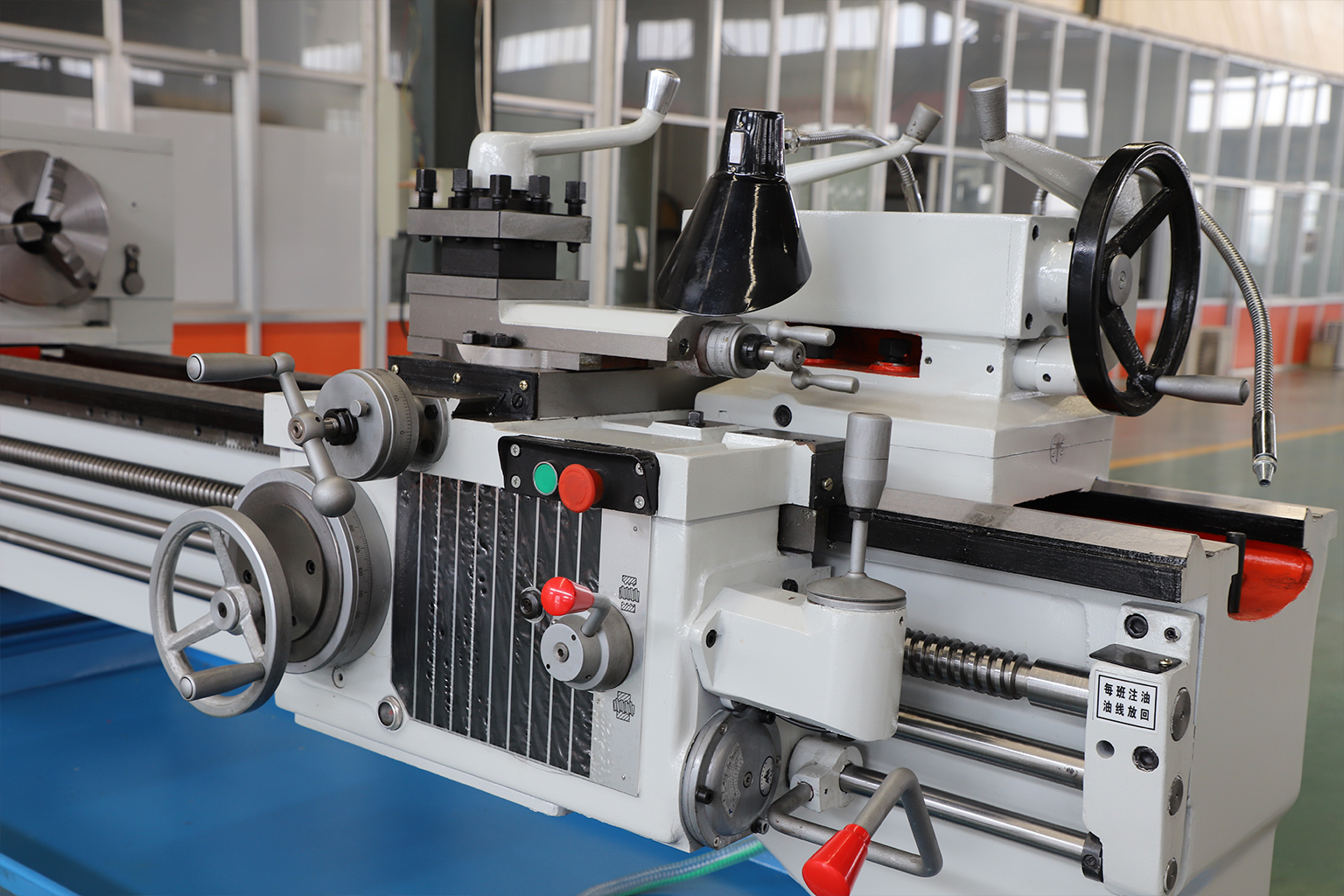

Equipped with a rapid-traverse mechanism and supports one-handed operation; an optional tool post guard is also available.

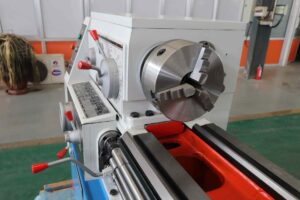

This lathe comes standard with a metal three-jaw chuck. Depending on the type of workpiece to be clamped, other types of chucks can also be installed.
The CA Metal Lathe Machine is suitable for:
Typical workpieces include drive shafts, stepped shafts, bushings, sleeves, flanges, discs, threaded shafts, pump shafts and various mechanical components.
A CA engine lathe can machine drive shafts, stepped shafts, bushings, sleeves, flanges, discs, threaded shafts, pump shafts and various mechanical components.
