01
Gantry Double Column Structure
High rigidity, high strength; High precision and good wear resistance; Smooth operation and long service life.

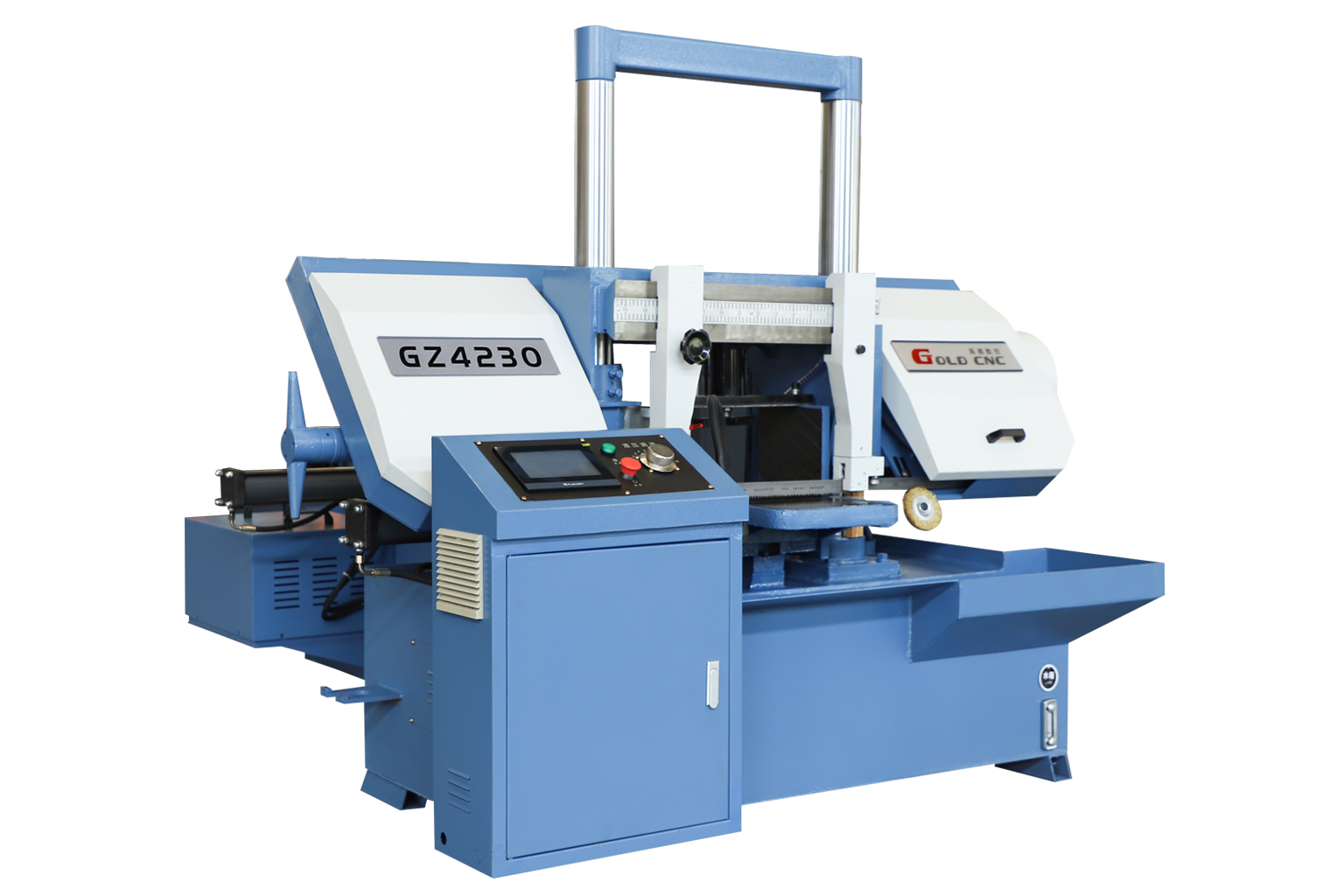

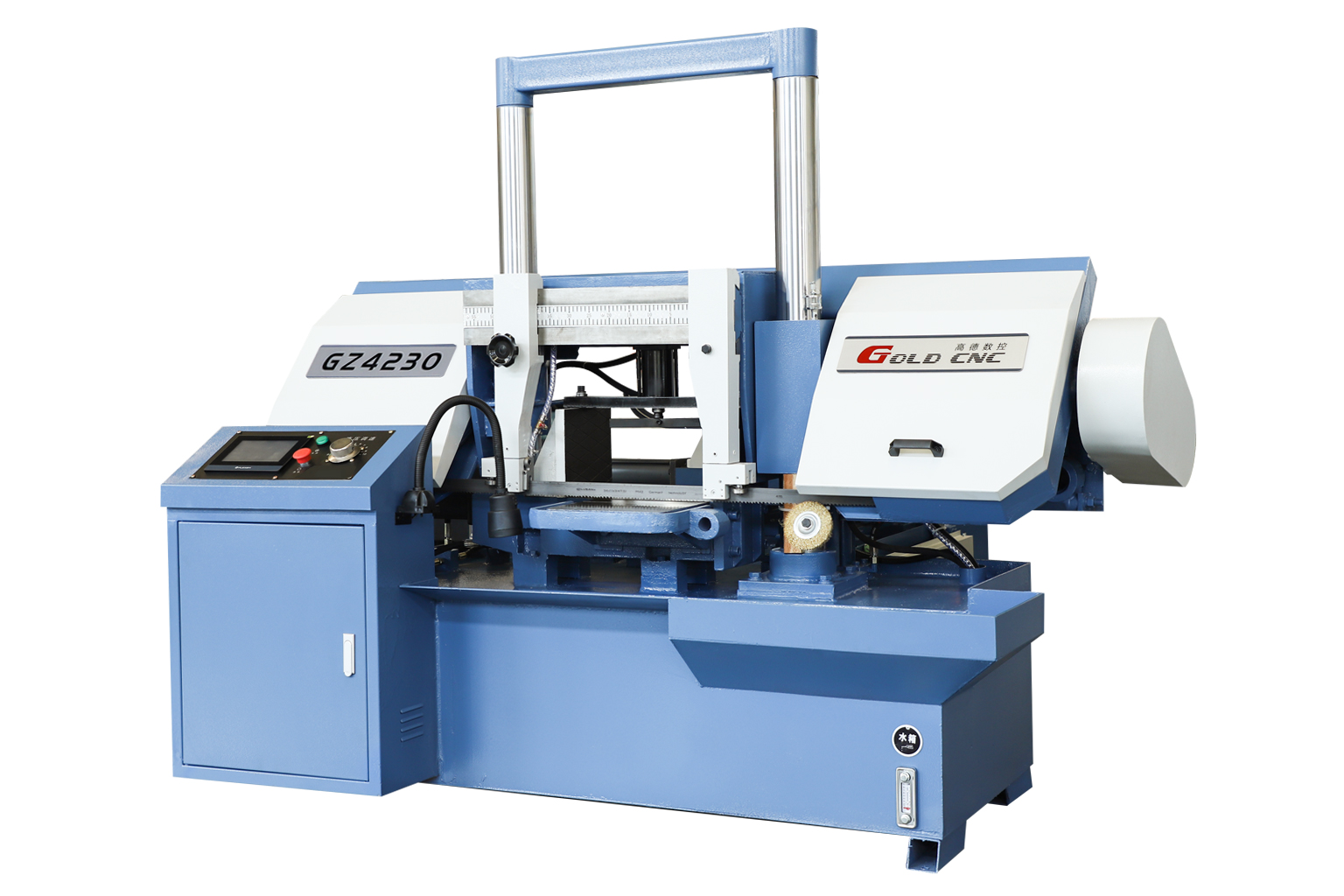

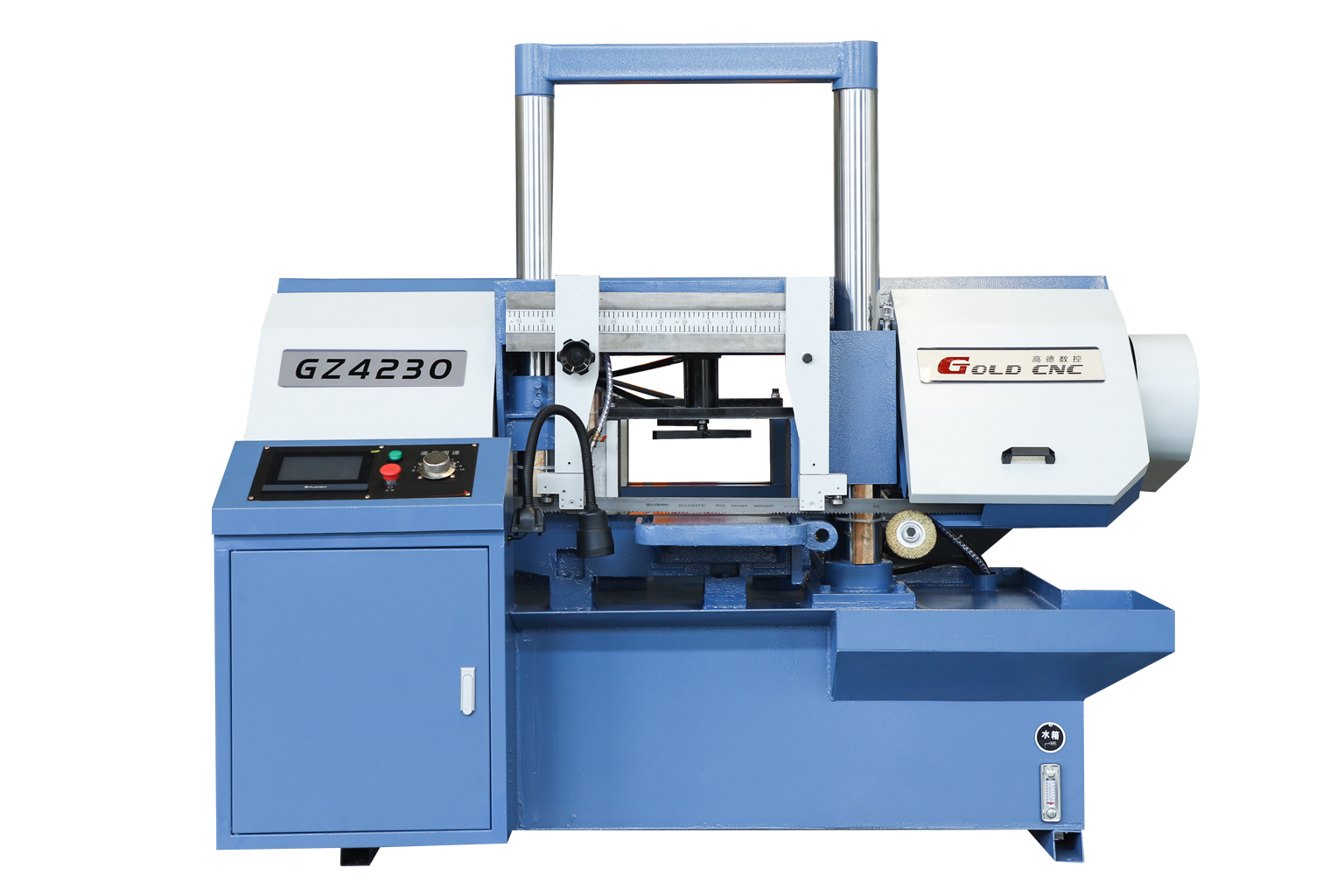

GZ4230 Automatic Band Saw Machine is designed for stable and precise horizontal sawing, with automatic material feeding, clamping and saw frame operation.
GZ4230 Automatic Band Saw Machine is designed for horizontal sawing with high machine stability and cutting precision. It detects and positions material feed length with a 500 mm precision stroke for high-accuracy repetition.
The machine performs automatic clamping, automatic feeding, and automated rapid saw frame ascent to reduce manual labor time. It uses thin bimetallic saw bands to achieve narrow cuts, minimizing raw metal scrap and reducing power loads.
| Specification | GZ4230 |
|---|---|
| Max. Cutting | 300 × 300 mm |
| Saw Blade Speed | 27 / 45 / 69 m/min |
| Saw Blade Size | 27 × 0.9 × 3800 mm |
| Main Motor | 3 kW |
| Hydraulic Motor | 0.75 kW |
| Cooling Motor Power | 0.04 kW |
| Single Feed Length | 500 mm |
| Main Transmission Structure | Worm Gear Transmission |
| Band Saw Blade Tensioning Method | Manual |
| Working Clamping Mode | Hydraulic Vice |
| Cleaning | Wire Brush & Flood Coolant |
| Package Weight | 1350 kg |
| Package Size | 2400 × 2120 × 1800 mm |
High rigidity, high strength; High precision and good wear resistance; Smooth operation and long service life.

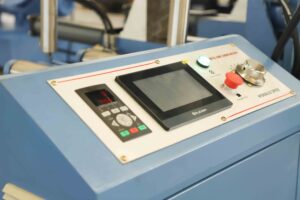

One click opening, intelligent sawing; Automatically complete the sawing process; 10 sets of cutting data can be preset (Sawing parameters for 10×99 sets).
High power and strong power; High power turbine reducer; Low noise, long life.

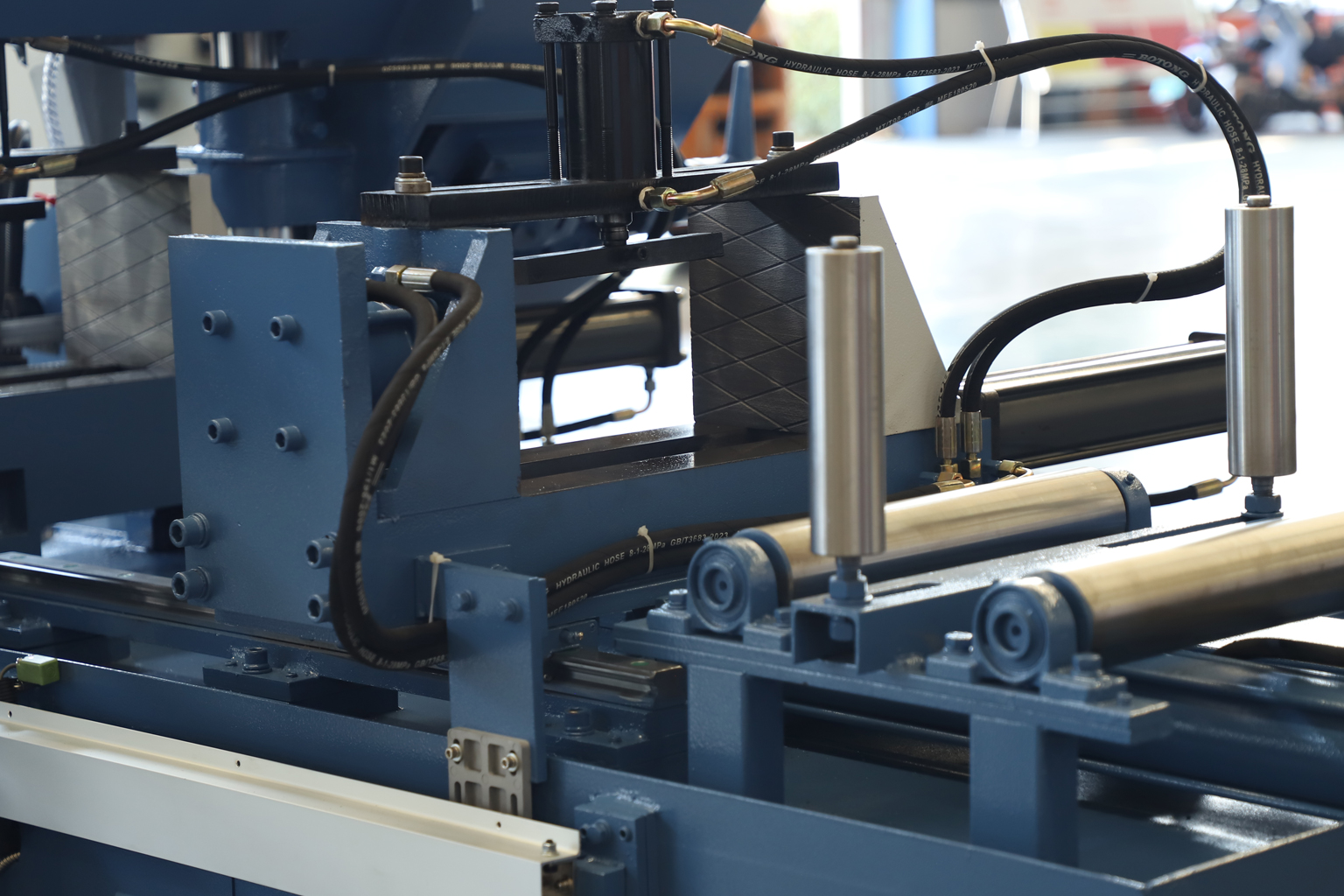

Repeat multiple feedings available; Simple and reliable operation.

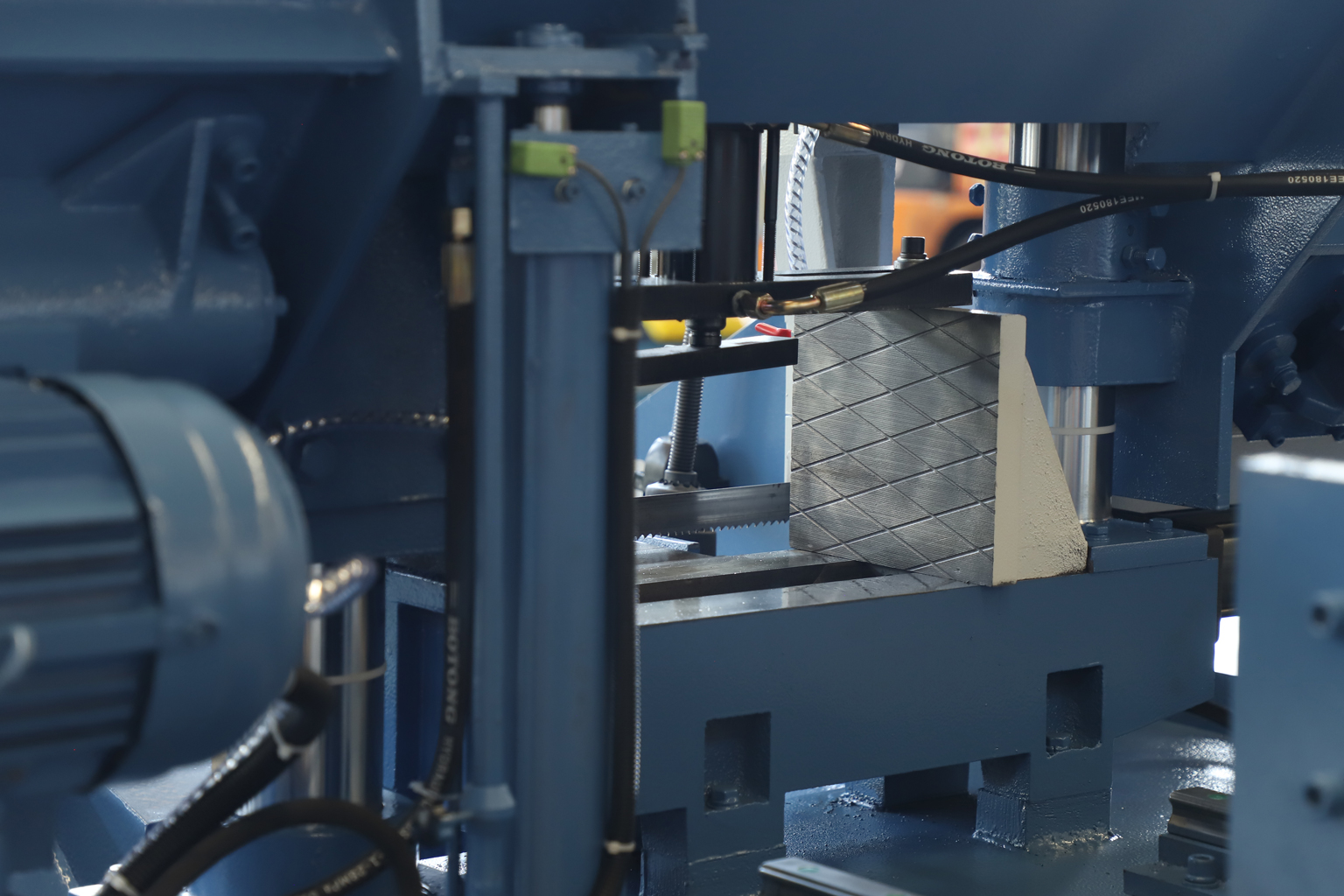

GOLDCNC uses a multi-material stack sawing mechanism powered by high-capacity hydraulic cylinder clamping. The gantry layout allows multiple bars or shapes to be stacked securely, while uniform hydraulic pressure prevents internal slippage during cutting.
