01
Gantry Double Column Structure
High rigidity, high strength; High precision and good wear resistance; Smooth operation and long service life;

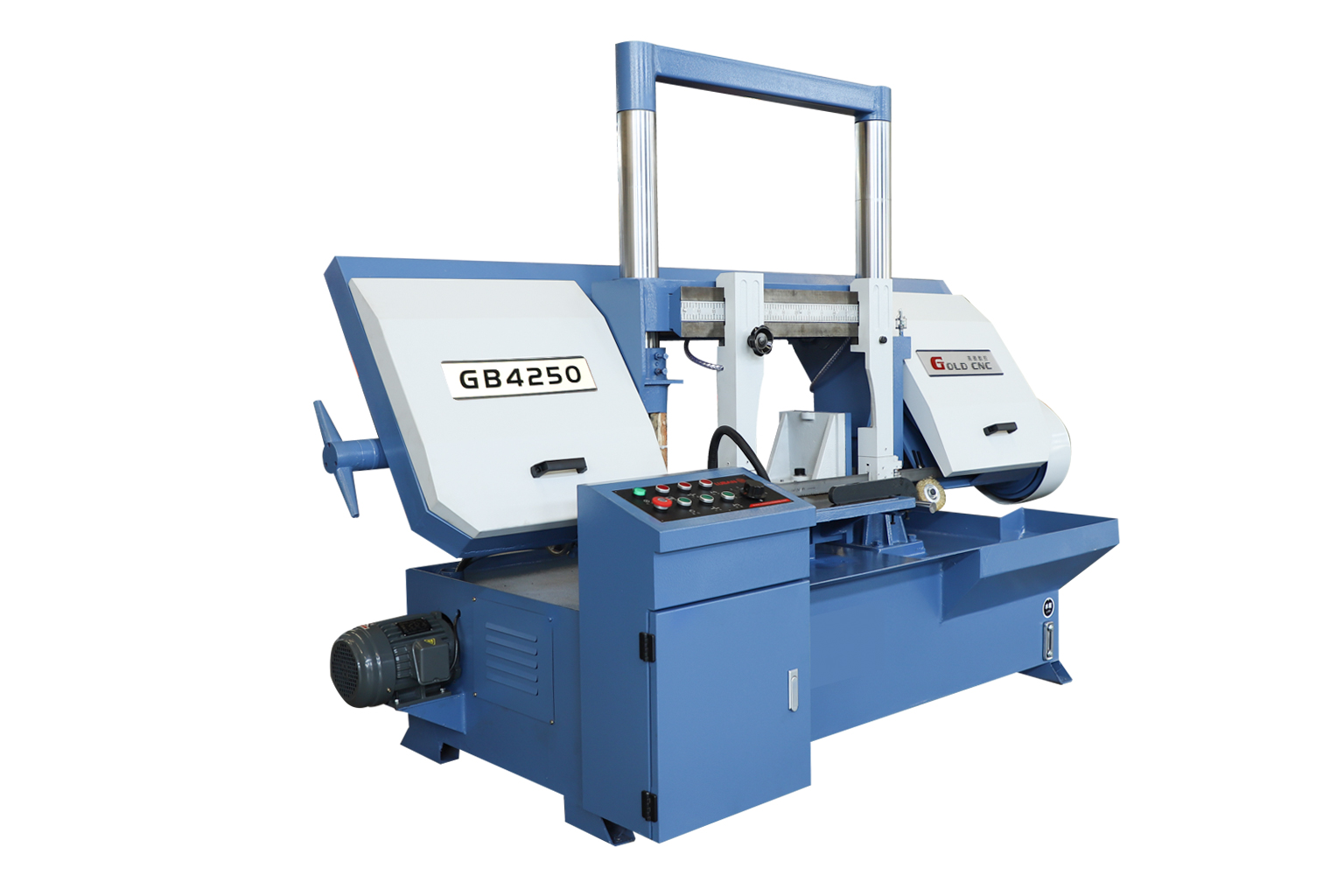

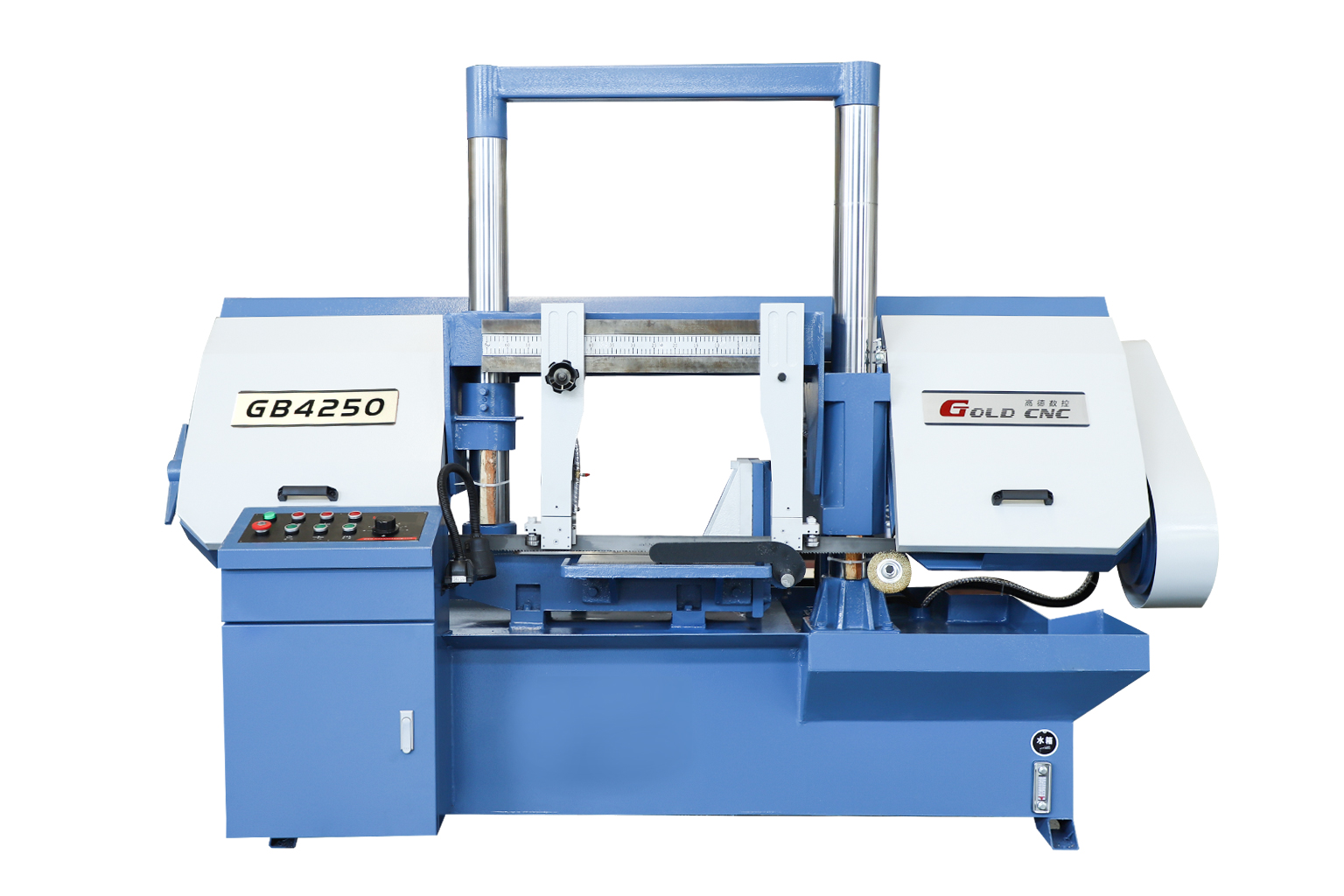

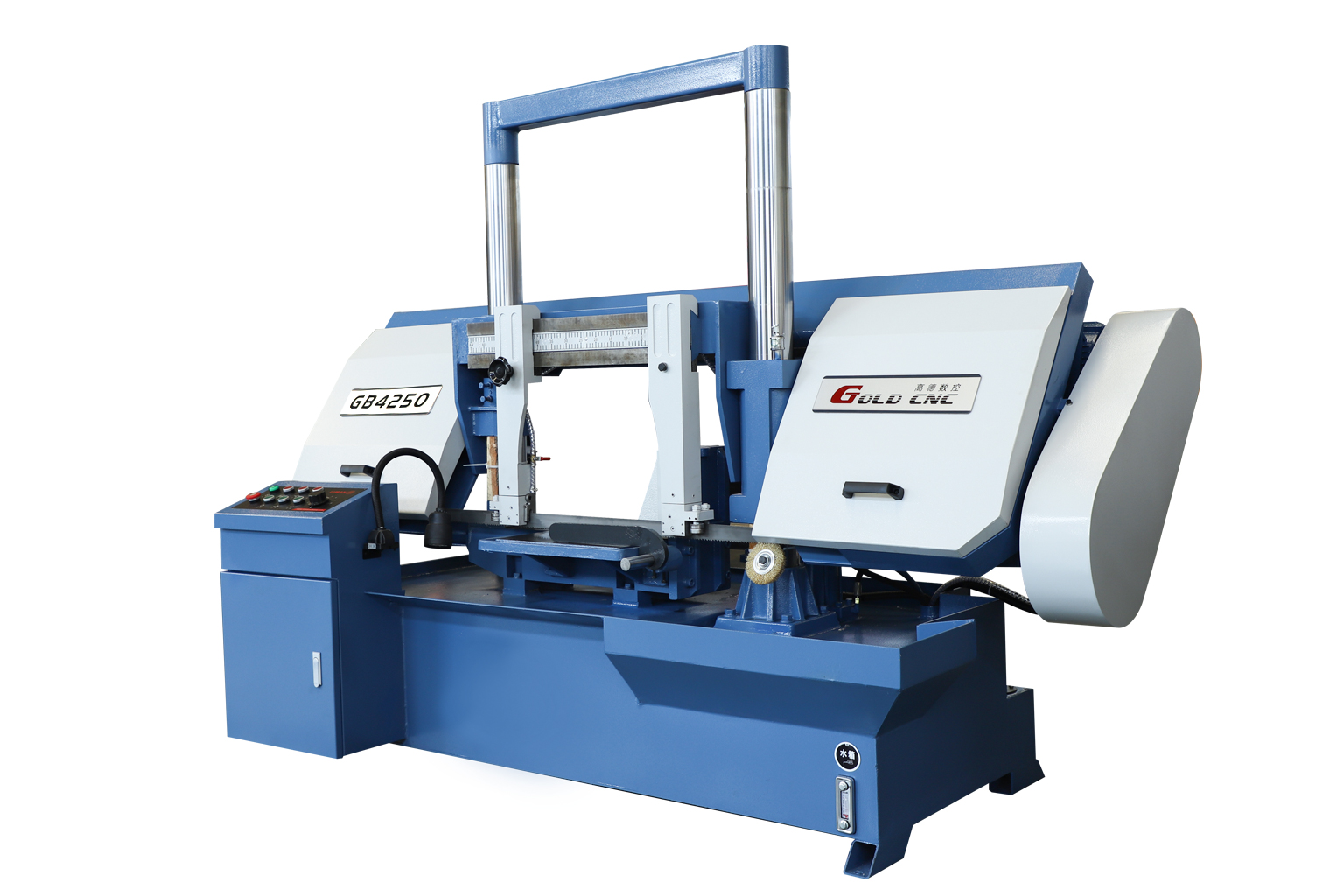

GB4250 Industrial Band Saw Machine is a heavy duty horizontal metal band saw machine designed for efficient and stable cutting of steel bars, pipes, profiles, square stock and other metal materials.
GB4250 Industrial Band Saw Machine is a Industrial horizontal metal band saw machine designed for efficient and stable cutting of steel bars, pipes, profiles, square stock and other metal materials.
The rigid machine structure, hydraulic clamping system and carbide-and-bearing blade guide system help improve cutting stability, blade life and overall operating efficiency.
| Specification | GB4250 |
|---|---|
| Max. Cutting | ●500 ■500W × 500H (20in) |
| Saw Blade Speed | 27 / 45 / 69 m/min |
| Saw Blade Size | 41 × 1.3 × 5800 mm |

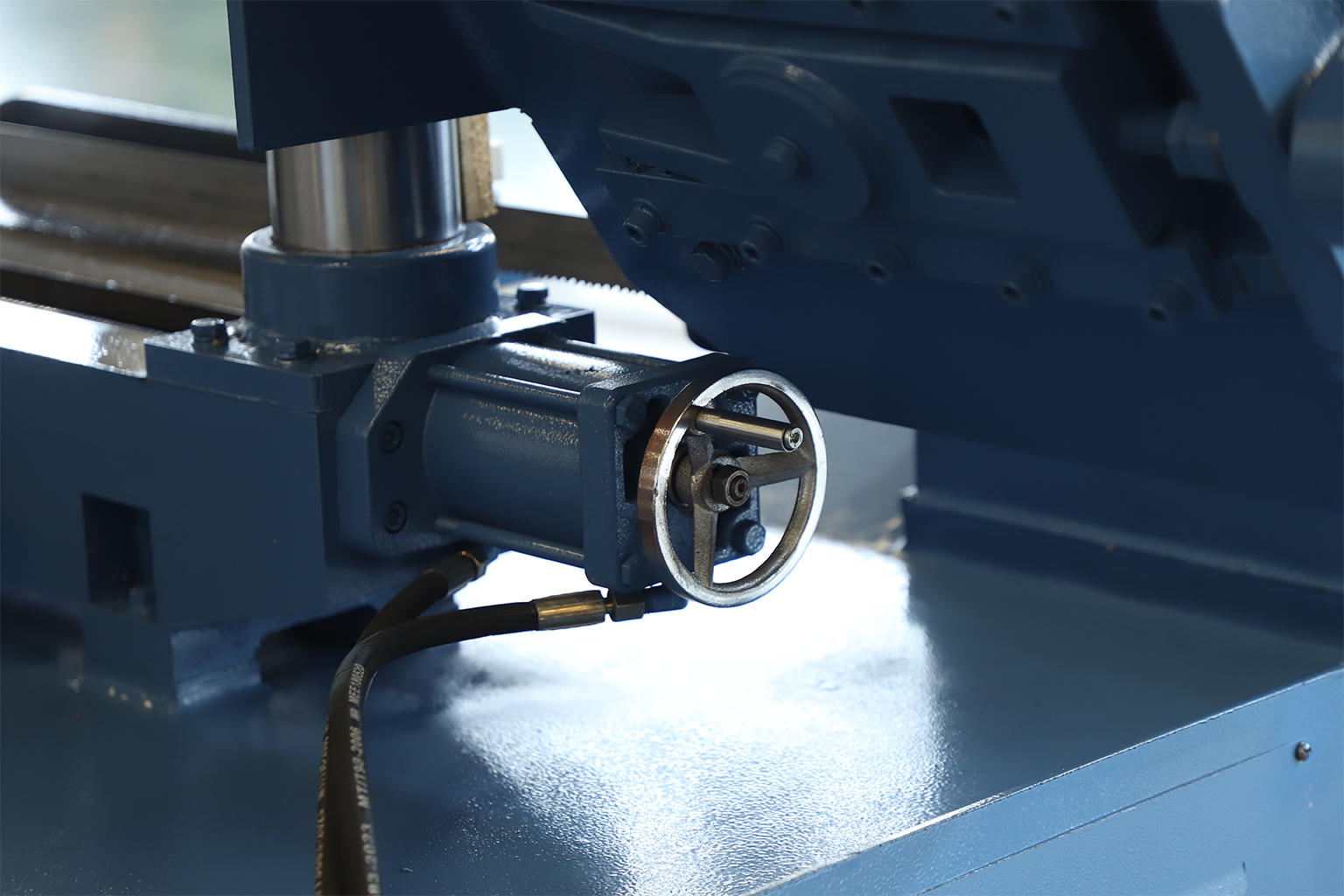

| Working Clamping Mode | Hydraulic Vice |
| Main Transmission Structure | Worm Gear Transmission |
| Band Saw Blade Tensioning Method | Manual |
| Cleaning | Wire Brush & Flood Coolant |
| Main Motor | 5.5 kW (7.38hp) |
| Hydraulic Motor | 1.5 kW (2.01hp) |
| Cooling Motor Power | 0.09 kW (0.121hp) |
| Weight | 2000 kg (2T) |
| Dimensions | 2900 × 1250 × 2000 mm (114.17 × 49.21 × 78.74 in) |
| Name | Brand | Country |
|---|---|---|
| Electric | SCHNEIDER / DELIXI | Germany |
| Bearings | NSK | Japan |
| Reduction Box | BOXIN | China |
| Hydraulic Pressure System | HANDA / YOUKUN | China |
| Oil Pump | HANDA / YOUKUN | China |
| Motor | NANJING GLOBAL | China |
| Name | Qty. |
|---|---|
| Semi-auto Band Saw | 1 set |
| Band Saw Blade | 1 piece |
| Toolbox | 1 set |
| Pallet Truck | 1 piece |
| User’s Manual | 1 copy |
High rigidity, high strength; High precision and good wear resistance; Smooth operation and long service life;
Manual operation panel,easy to operate and efficient; Button completed sawing process ;

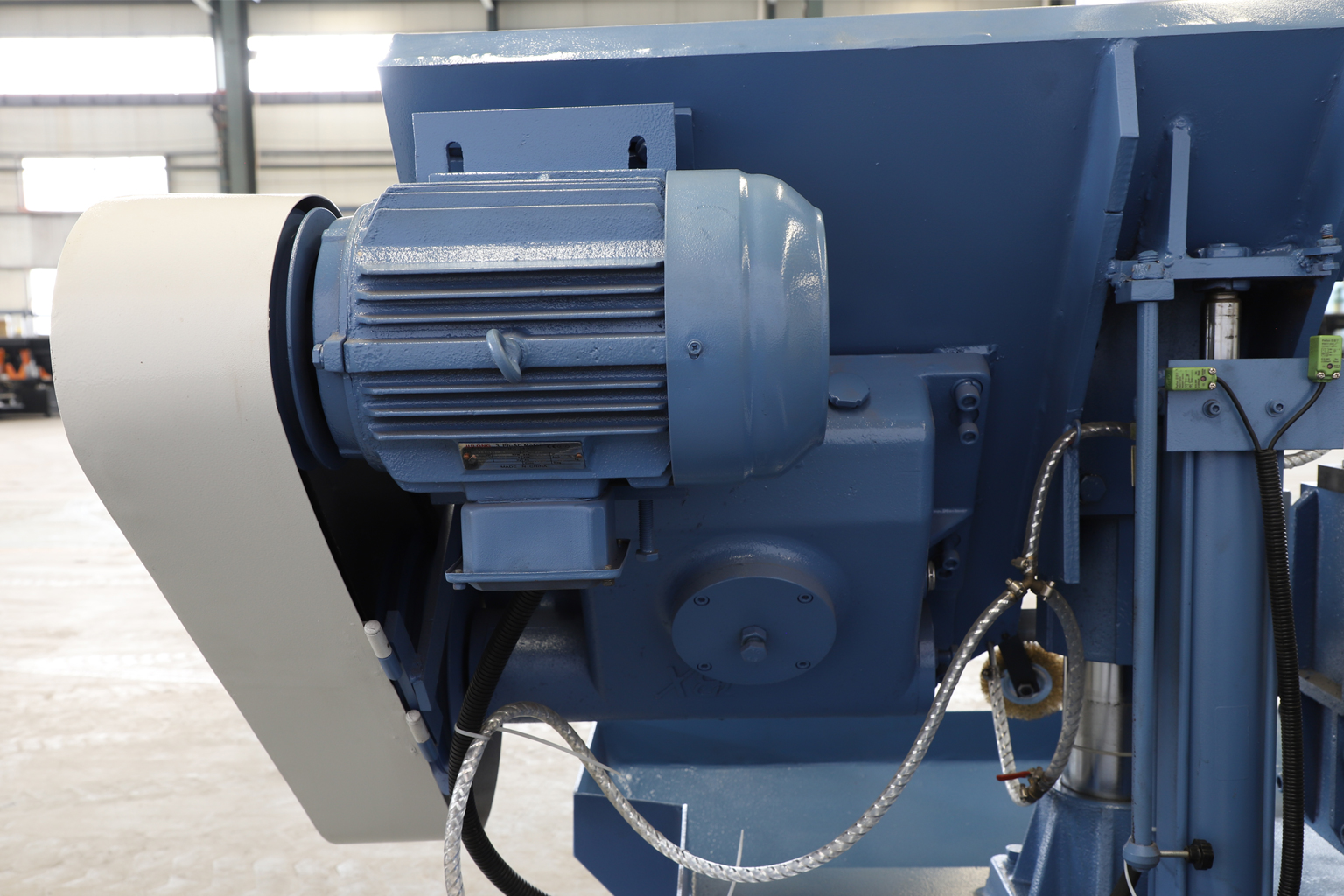

High power and strong power; High power turbine reducer; Low noise, long life;
Enhanced stability, reduced friction, improved cutting accuracy.
The standard GB4250 band saw has a maximum cutting capacity of up to 500 × 500 mm for square material and up to Ø500 mm for round material.
