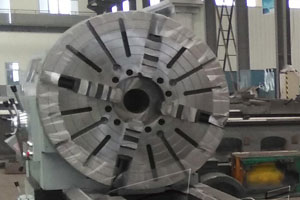

Metal three-jaw chuck
Provides stable clamping for large and heavy workpieces,Suitable for shafts, discs and other rotational workpieces;

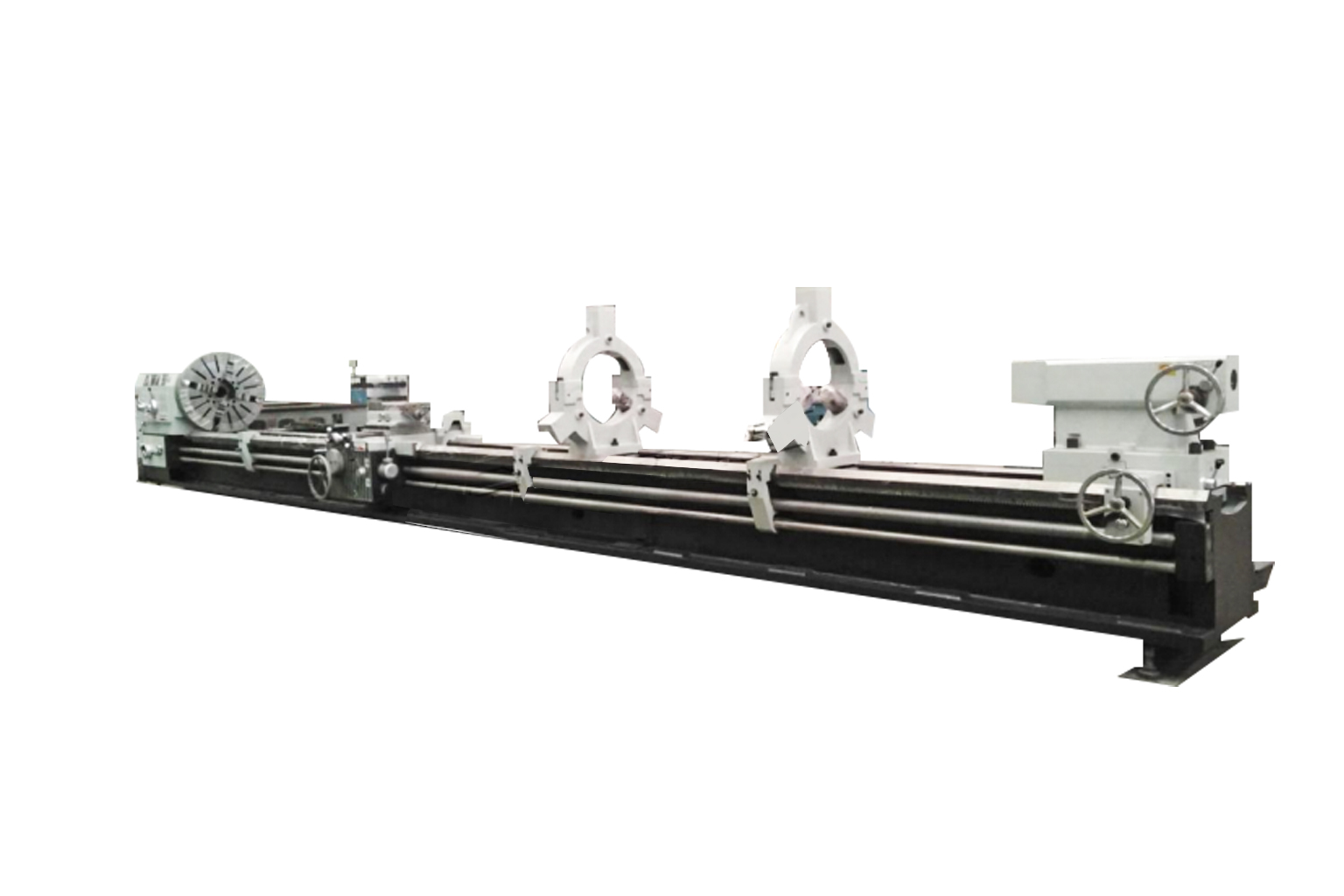

The CWK Heavy Duty Lathe is designed for turning large and heavy rotational components, combining a rigid machine structure, strong cutting capability and flexible workpiece capacity for demanding industrial machining applications. 1.Heavy-Duty Cutting Capability — Designed for demanding turning of large and heavy workpieces
2.High-Rigidity Structure — A rigid machine structure supports stable cutting under heavy loads
3.Long Workpiece Machining — Suitable for long shafts and other extended workpieces
4.Versatile Turning Operations — Supports external/internal turning, facing, taper turning and threading
Provides stable clamping for large and heavy workpieces,Suitable for shafts, discs and other rotational workpieces;

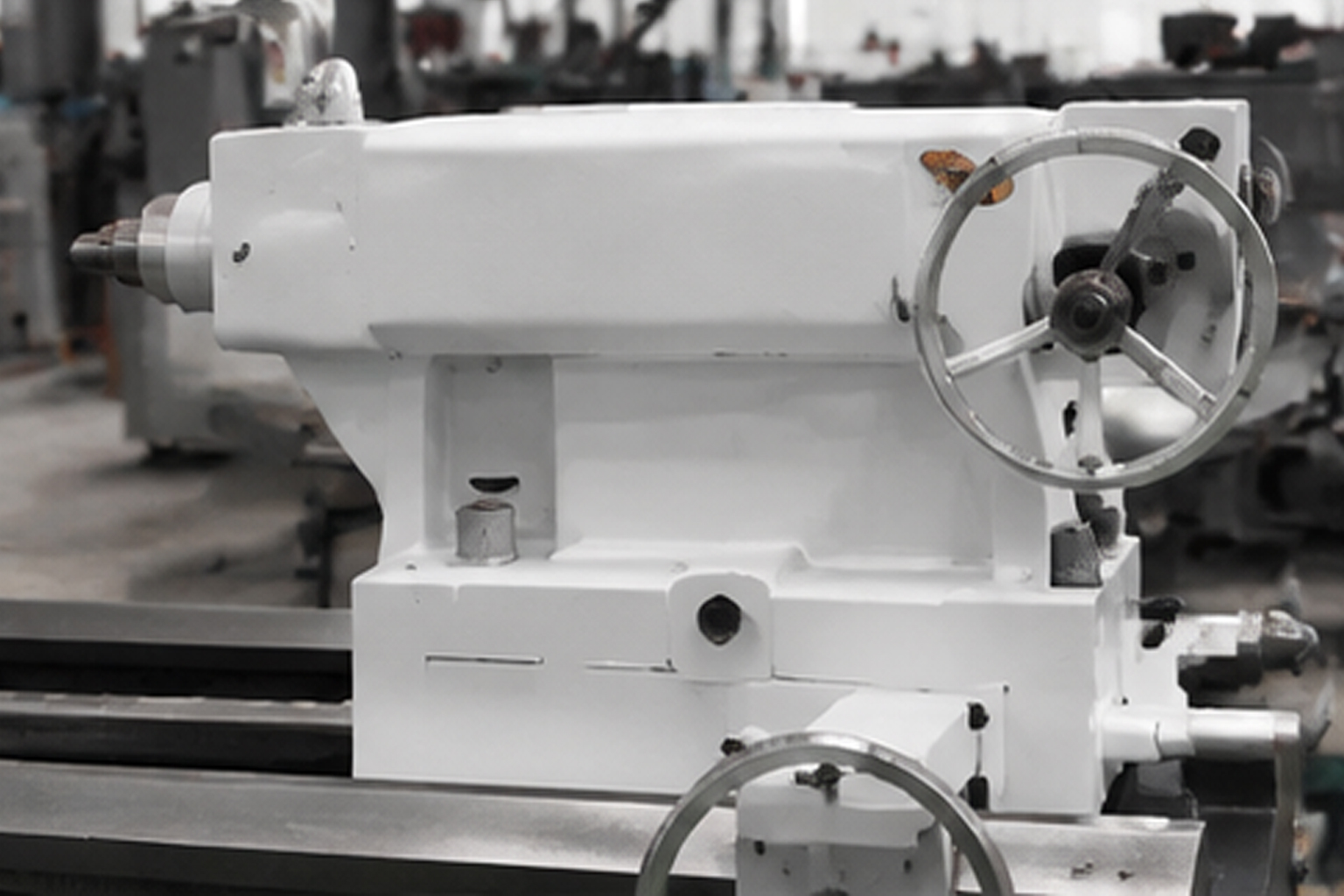

● The machine tool utilizes a high-strength, four-position tool post.

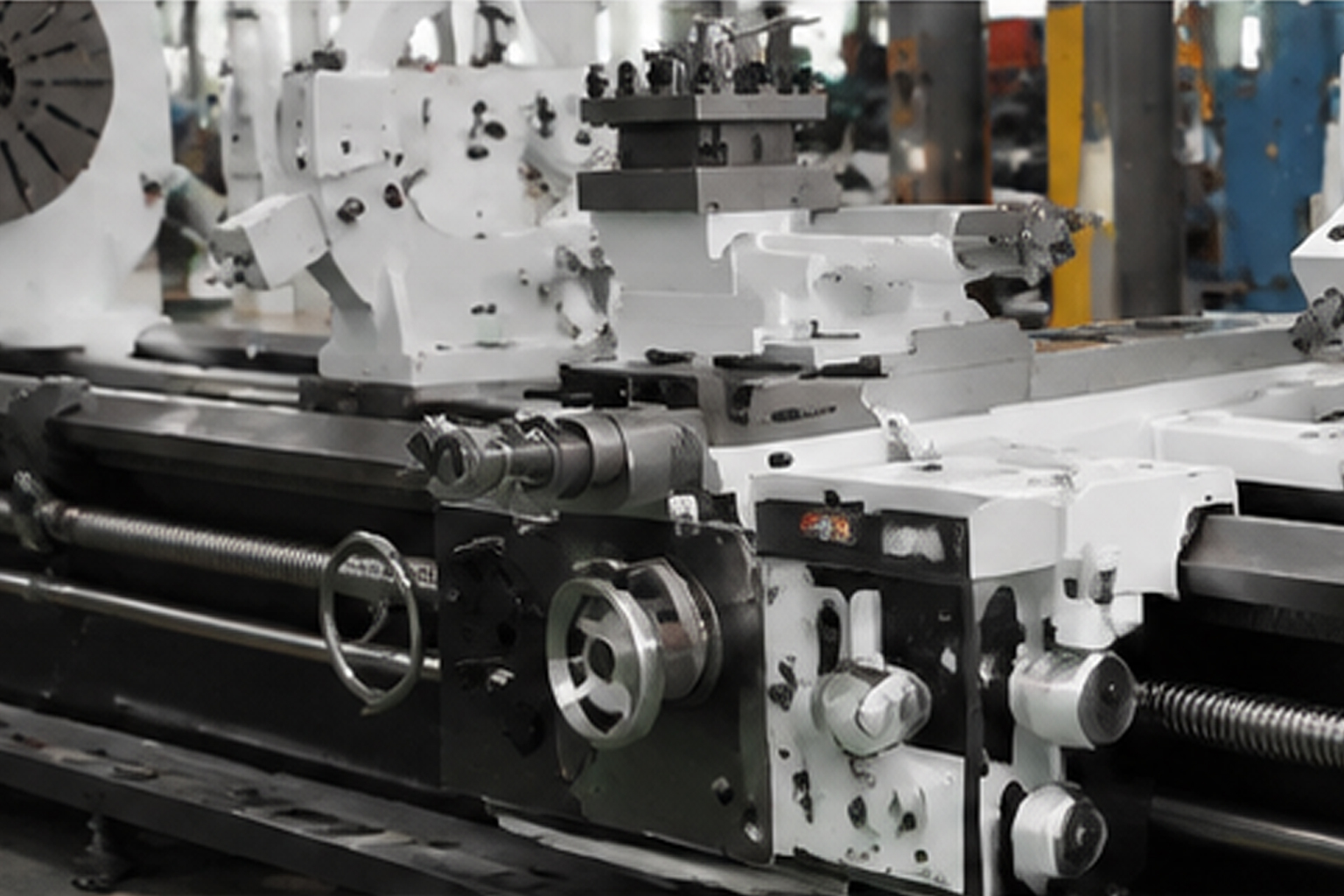

● High load-bearing capacity,wear-resistant design，stable machining performance；

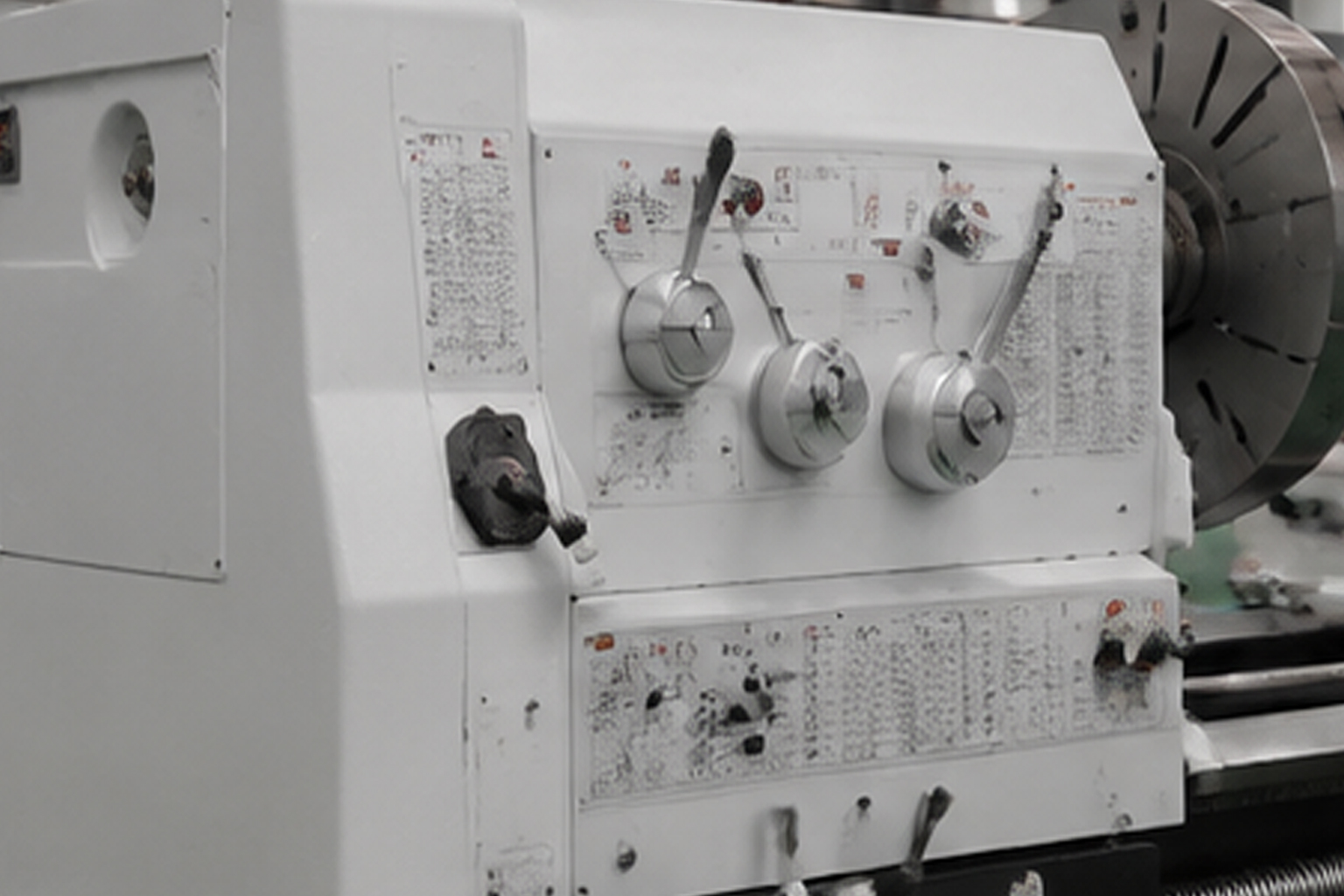

● Rigid headstock Structure,Stable Power transmission;
The CWK Heavy Duty Lathe is designed for large and heavy rotational components, including shafts, discs, sleeves and other parts that require substantial cutting capacity and rigid support.
| Item | Specification | Unit | CWK6163 | CWK6180 | CWK61100 |
| Capacity | Maximum swing diameter over bed | mm | Ф630 | Ф800 | Ф1000 |
| Maximum swing diameter of slide | mm | Ф350 | Ф480 | Ф680 | |
| Maximum turning length | mm | 850/1350/1850/2850 | 1350/1850/2850 | ||
| Maximum distance between centers | mm | 1000/1500/2000/3000 | 1500/2000/3000 | ||
| Max. spindle bar capacity | mm | Ф98 | Ф98 | ||
| Max. travel of X-axis (Transverse) | mm | 400（3-point pisitioning） | 560 | ||
| Max. travel of Z-axis (Longitudinal) | mm | 1000/1500/2000/3000 | 1500/2000/3000 | ||
| Bed | Bed structure | type | Separate bed base | Integral casting | |
| Width of bed guideways | mm | 550 | 600 | ||
| Width of cross slide | mm | 300 | 330 | ||
| Spindle | Spindle nose type | type | A2-11 | A2-11 | |
| Taper of spindle bore | MT No. | Metric No. 120 to MT5 adapter | Metric120（1：20） | ||
| Spindle bore diameter | mm | Ф100 | Ф100 | ||
| Spindle speed (3 gears) | r/min | 3-step gear speed change： 40-125 110-350 290-950 |
3-step gear speed change 40-125 110-350 290-950 |
||
| Ball Screw | X-axis screw model | 3205 | 3205 | ||
| Z-axis screw model | 5010(3m bed equipped with 6310) | 6310 | |||
| Tailstock | Tailstock sleeve diameter | mm | Ф100 | Ф100 | |
| Tailstock sleeve travel | mm | 150 | 250 | ||
| Taper of tailstock sleeve bore | MT No. | MT5 | MT6 | ||
| Dimensiom | Dimensions (Length) | mm | 3000/3500/4000/5000 | 2800/3700/4200/5200 | 2800/3700/4200/5200 |
| Dimensions (Width × Height) | mm | 1000*1600 | 1000*1600 | 1000*1600 | |
| Net weight | KG | 3400/3600/4200/4800 | 3400/4000/4500/5100 | 3600/4200/4700/5200 | |
