01

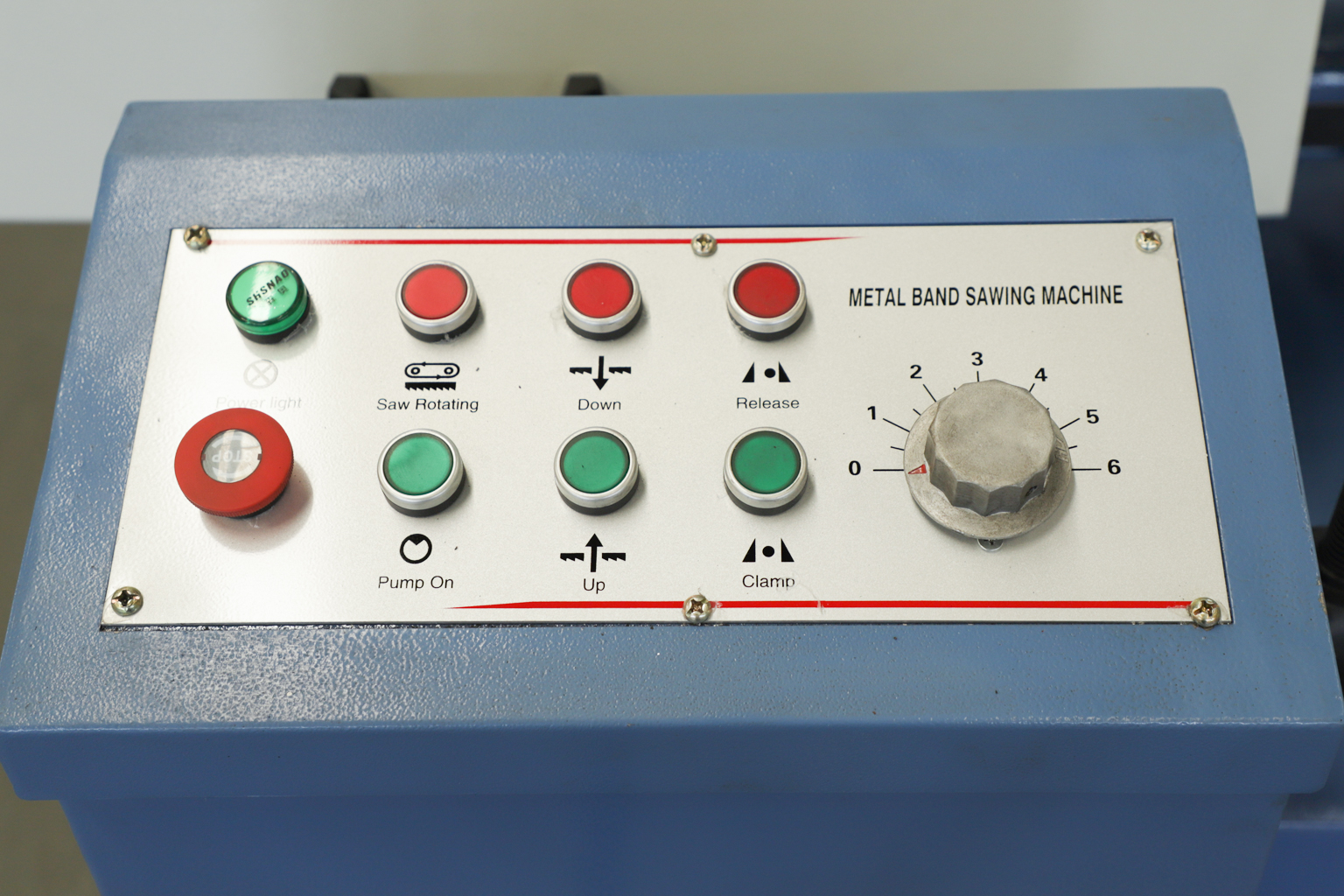

Operation Panel
Button completed sawing process,Easy to operate and efficient;

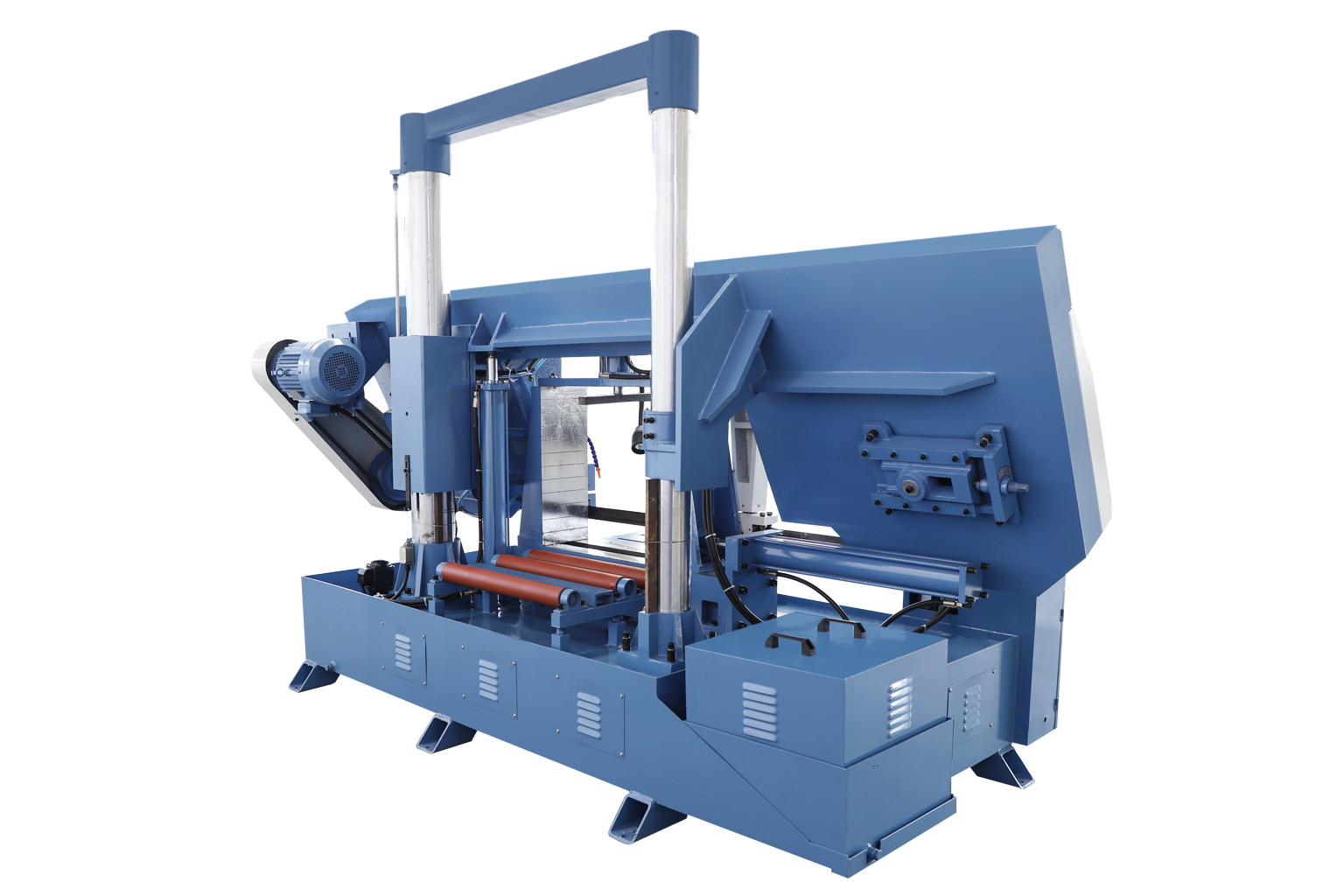

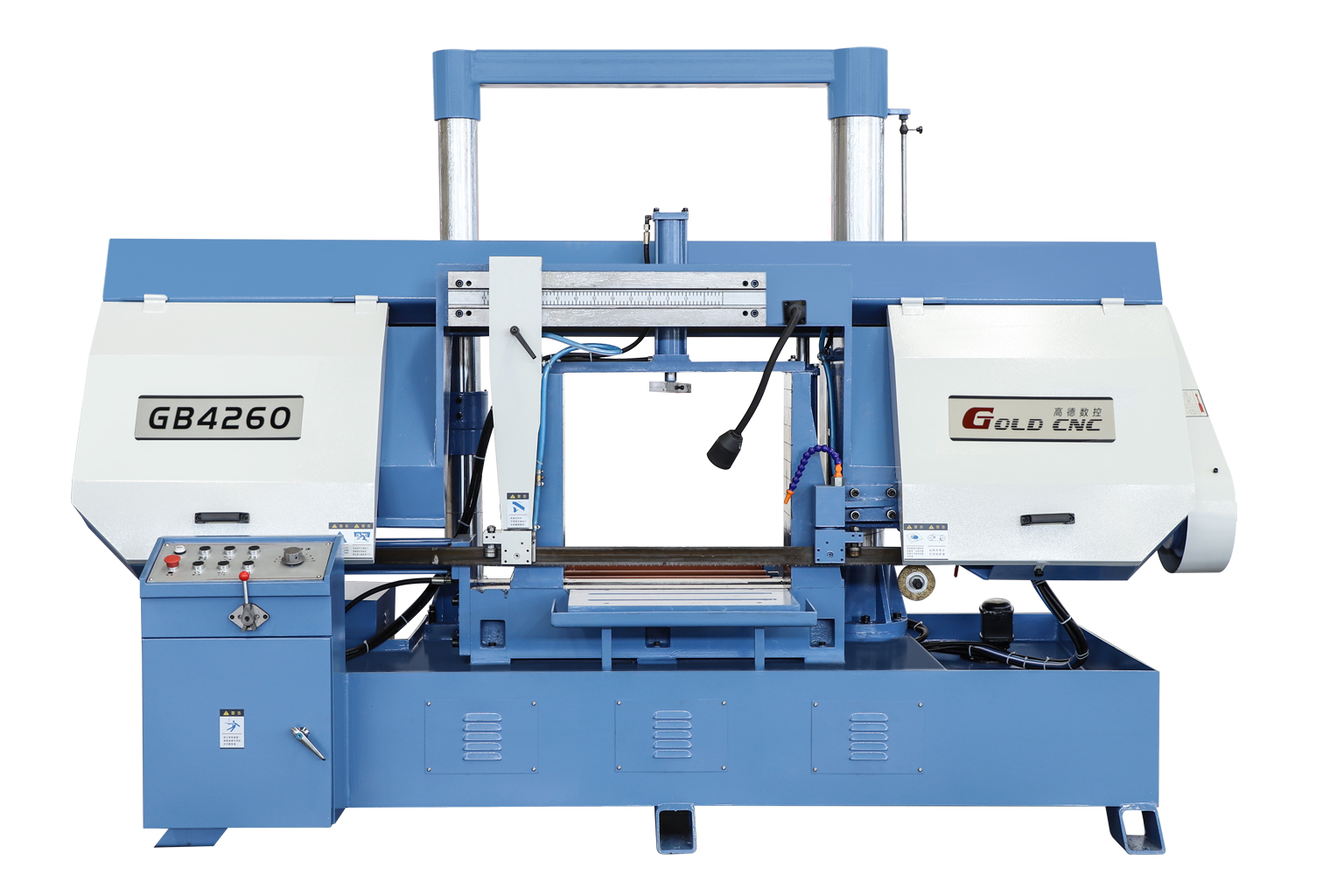

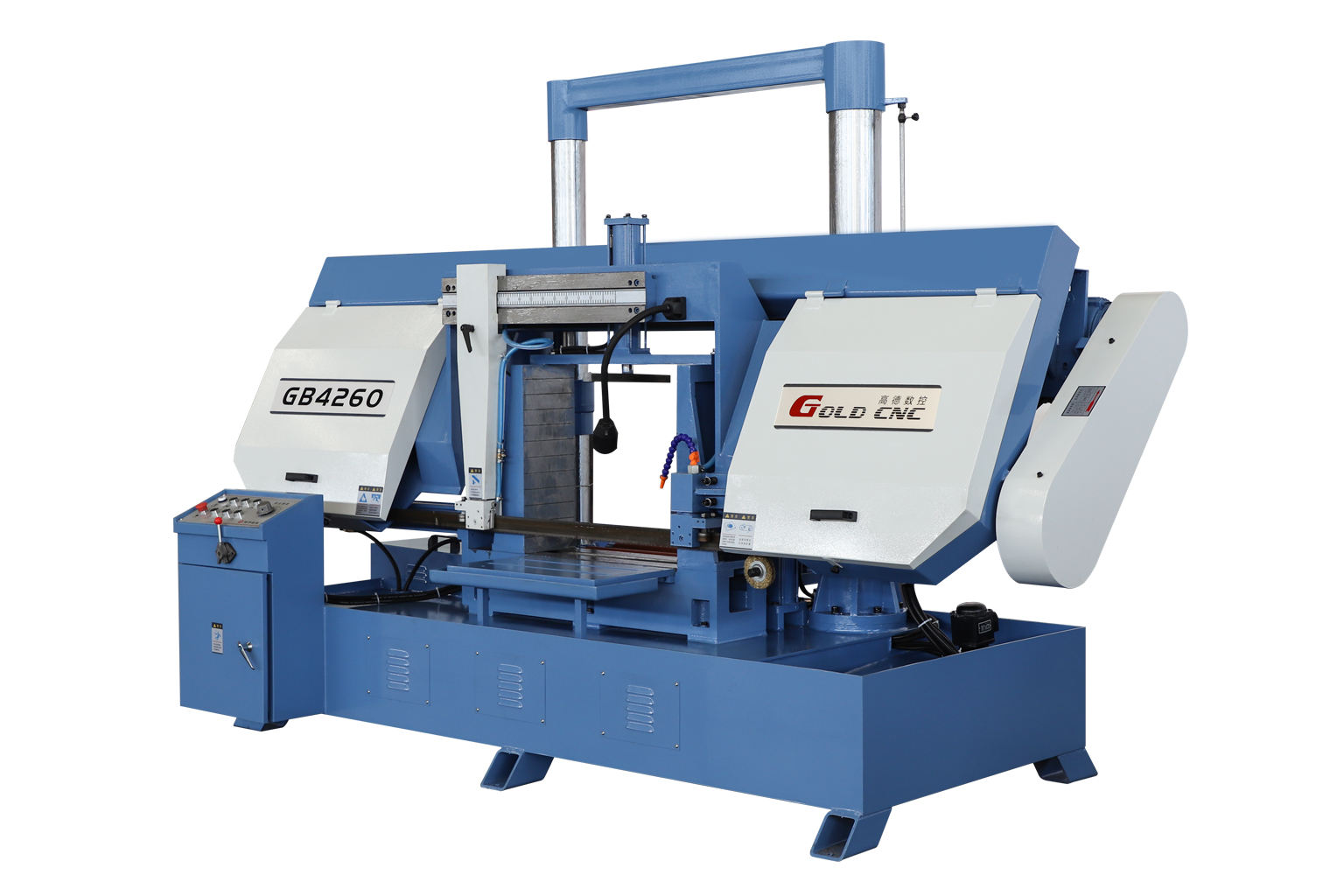

GB4260 Metal Band Saw is a heavy-duty double-column semi-automatic band saw designed for production cutting of large-section metal stock, with a maximum cutting capacity of Φ600 mm for round material and 600 × 600 mm for square material
1.The dual-column structure provides stable guidance for the lifting of the saw frame, maintaining excellent structural rigidity and operational stability when cutting large-section materials.
2.Hydraulic vises are used to clamp workpieces for cutting, reducing the need for manual clamping and ensuring stable positioning for larger-sized materials.

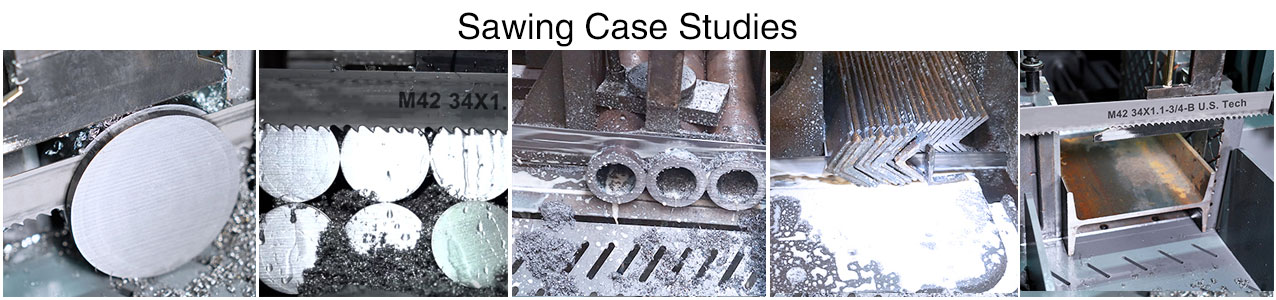

3.Suitable for cutting round bars, square stock, pipes, H-beams, angle steel, and other profiled materials.
|
Specifications |
GB4260 |
|
Max.cutting（mm） |
●600■600W×600H |
|
Saw blade speed（m/min） |
27/45/69 |
|
Saw blade size（mm） |
54×1.6×6640 |
|
Working clamping mode |
Hydraulic vice |
|
Main transmission structure |
Worm gear transmission |
|
Band saw blade tensioning method |
Manual |
|
Cleaning |
Wire brush & flood coolant |
|
Main motor（kw） |
5.5 |
|
Hydraulic motor（kw） |
1.5 |
|
Cooling motor power（kw） |
0.125 |
|
Weight（kg） |
3200 |
|
Dimensions(mm) |
3250×1400×2300 |
Button completed sawing process,Easy to operate and efficient;
Good guidance and uniform force;

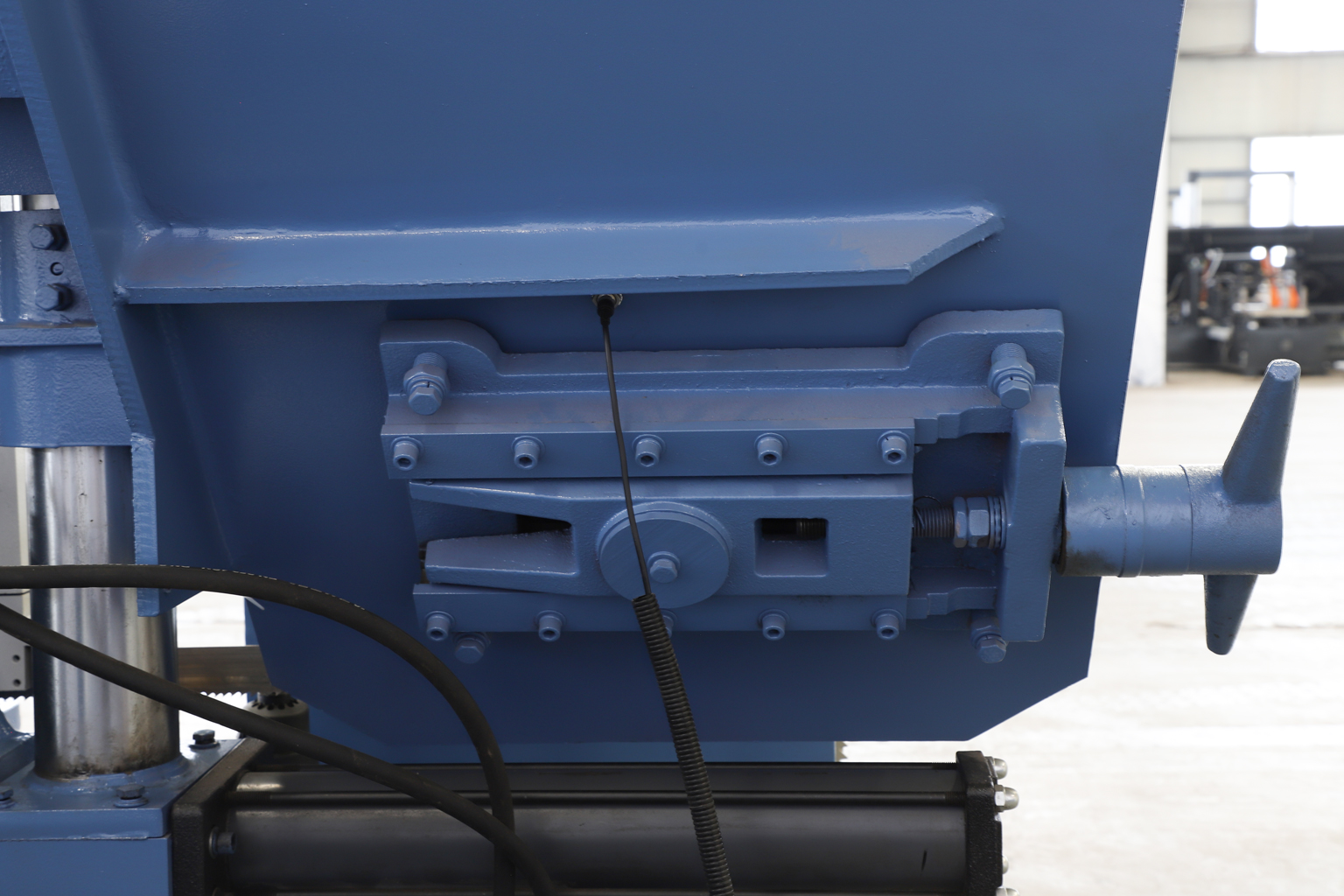

Manual tensioning, easy to operate,Optional hydraulic tensioning seat;

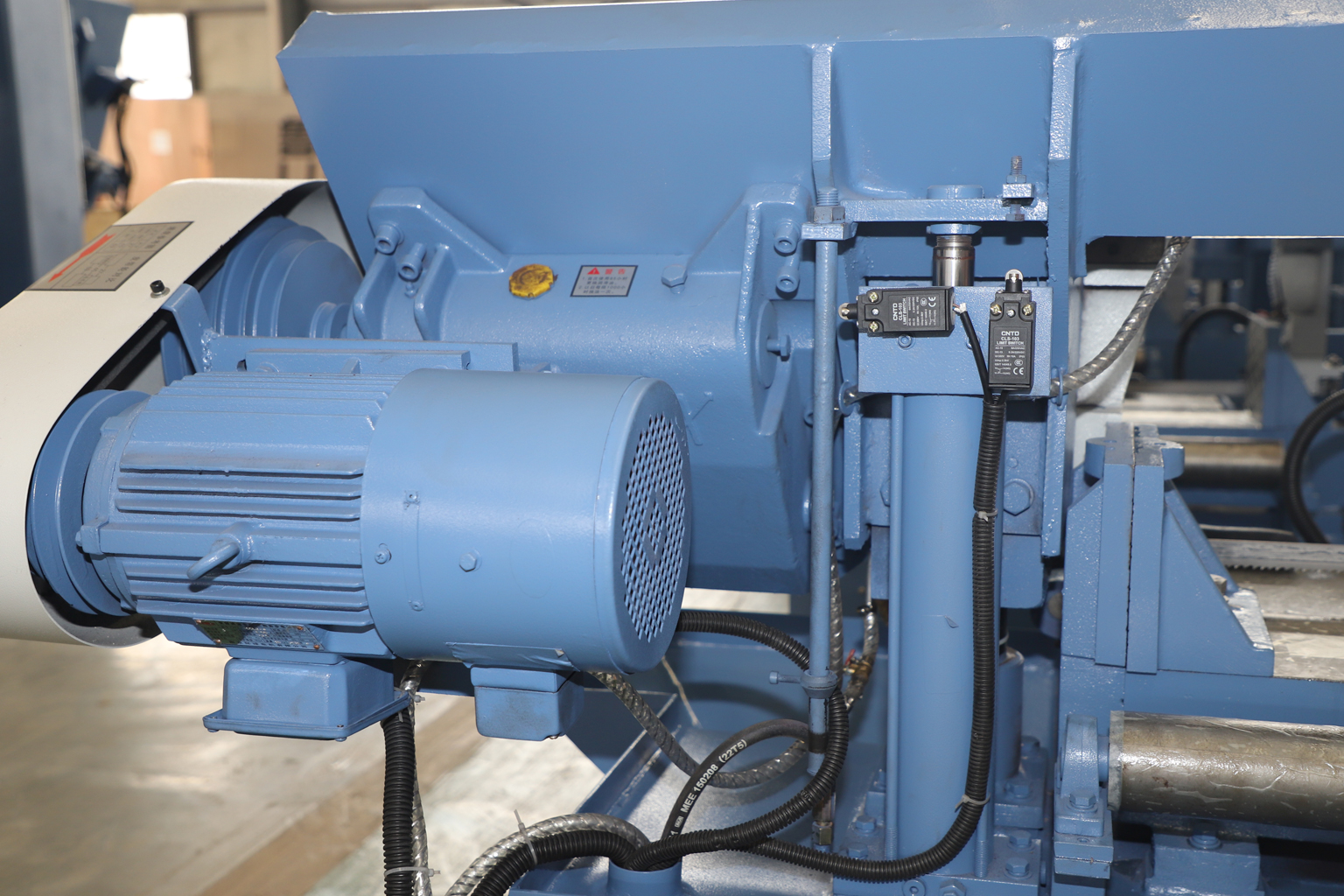

High power and strong power,keep a long-term cutting;
The GB4260 Metal Band Saw can cut round material up to Φ600 mm and square material up to 600 × 600 mm, making it suitable for large-section stock preparation.
