01

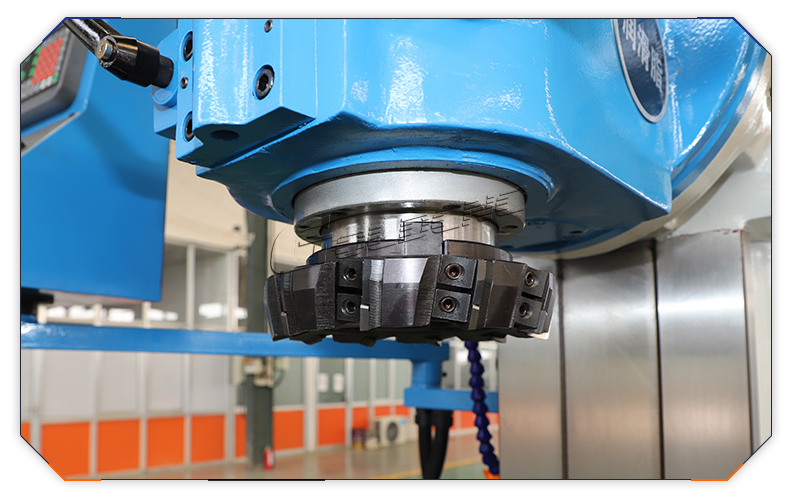

Spindle
Spindle adopts energy-saving braking. Energy consumption braking, large braking torque, fast and reliable stop.

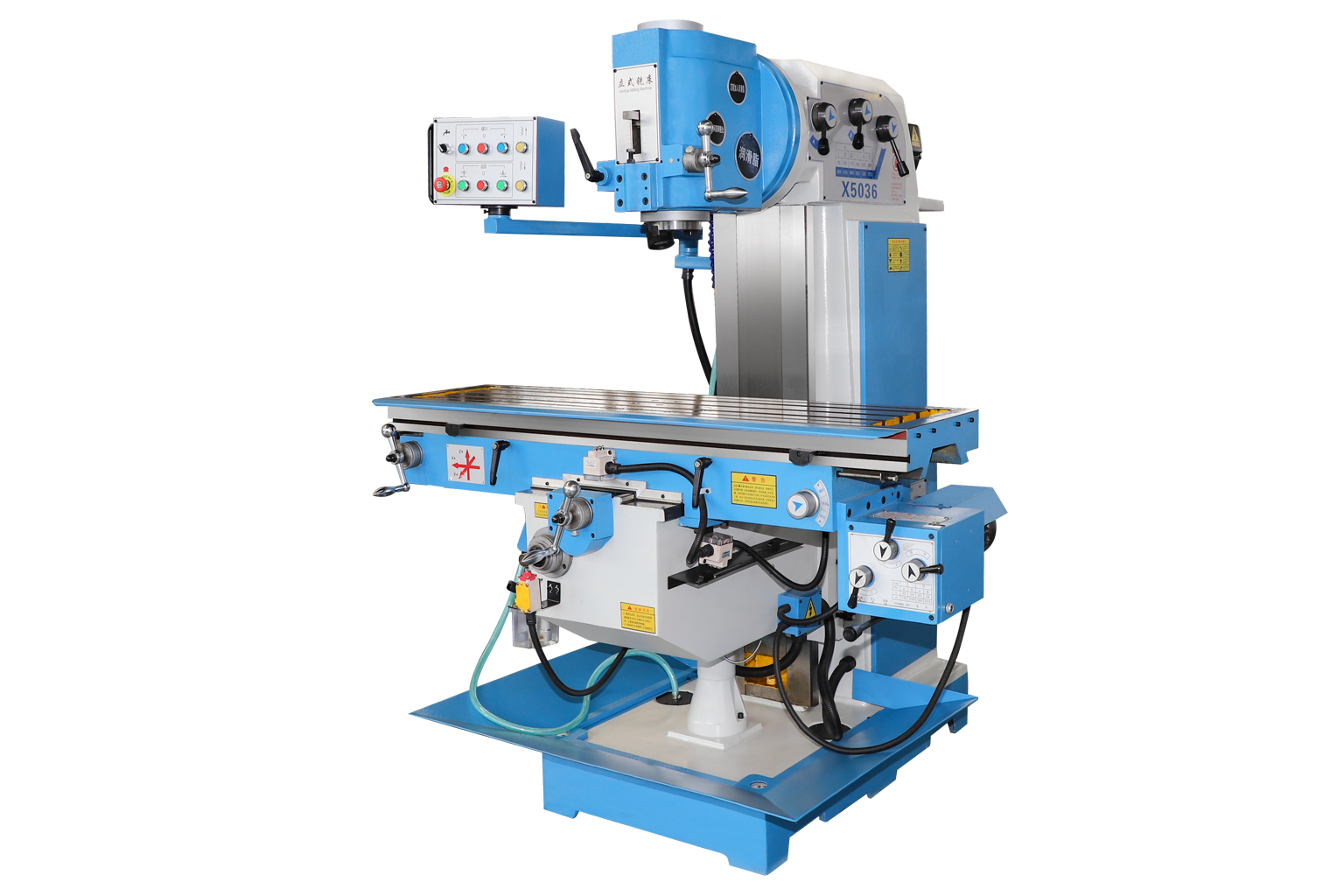

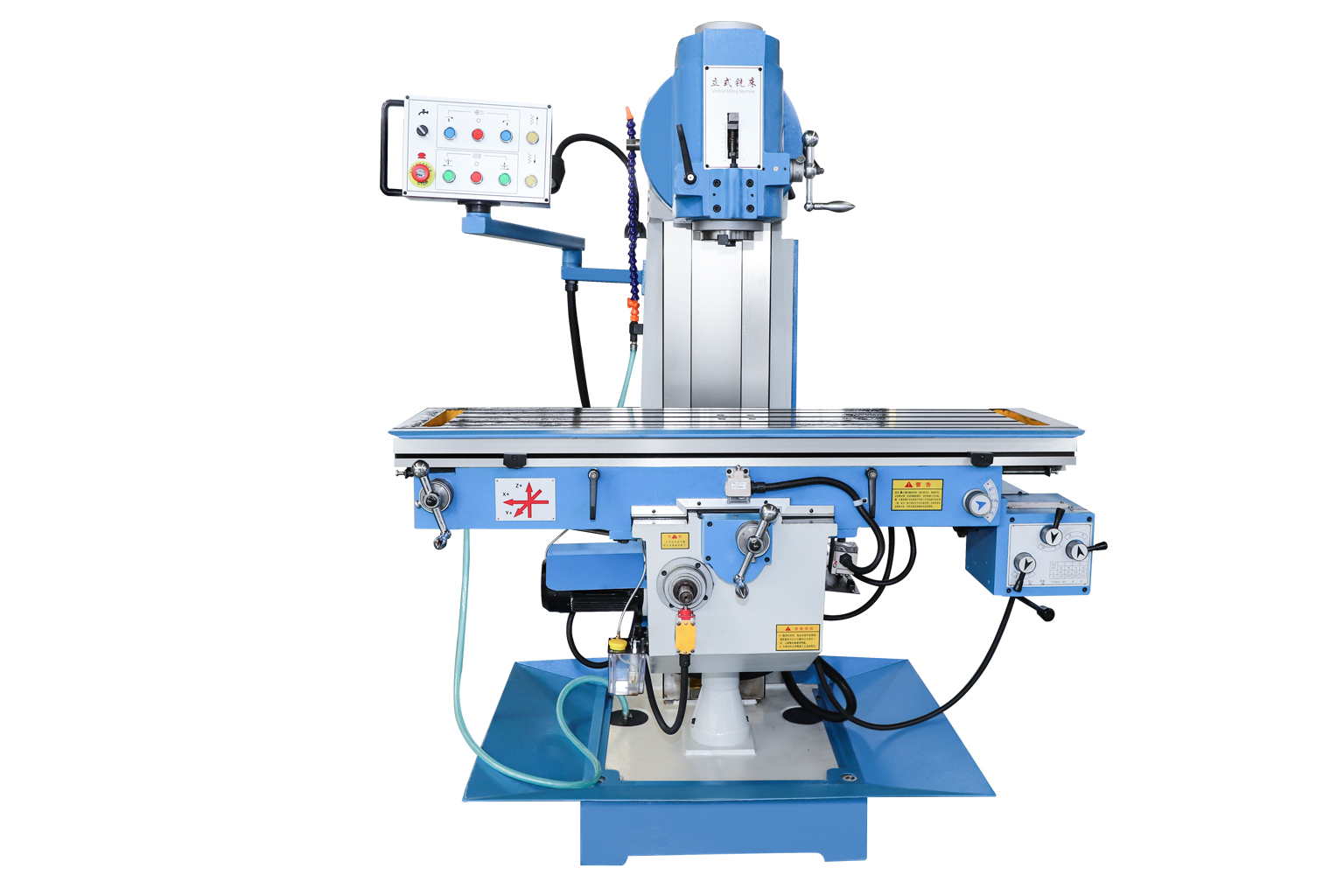

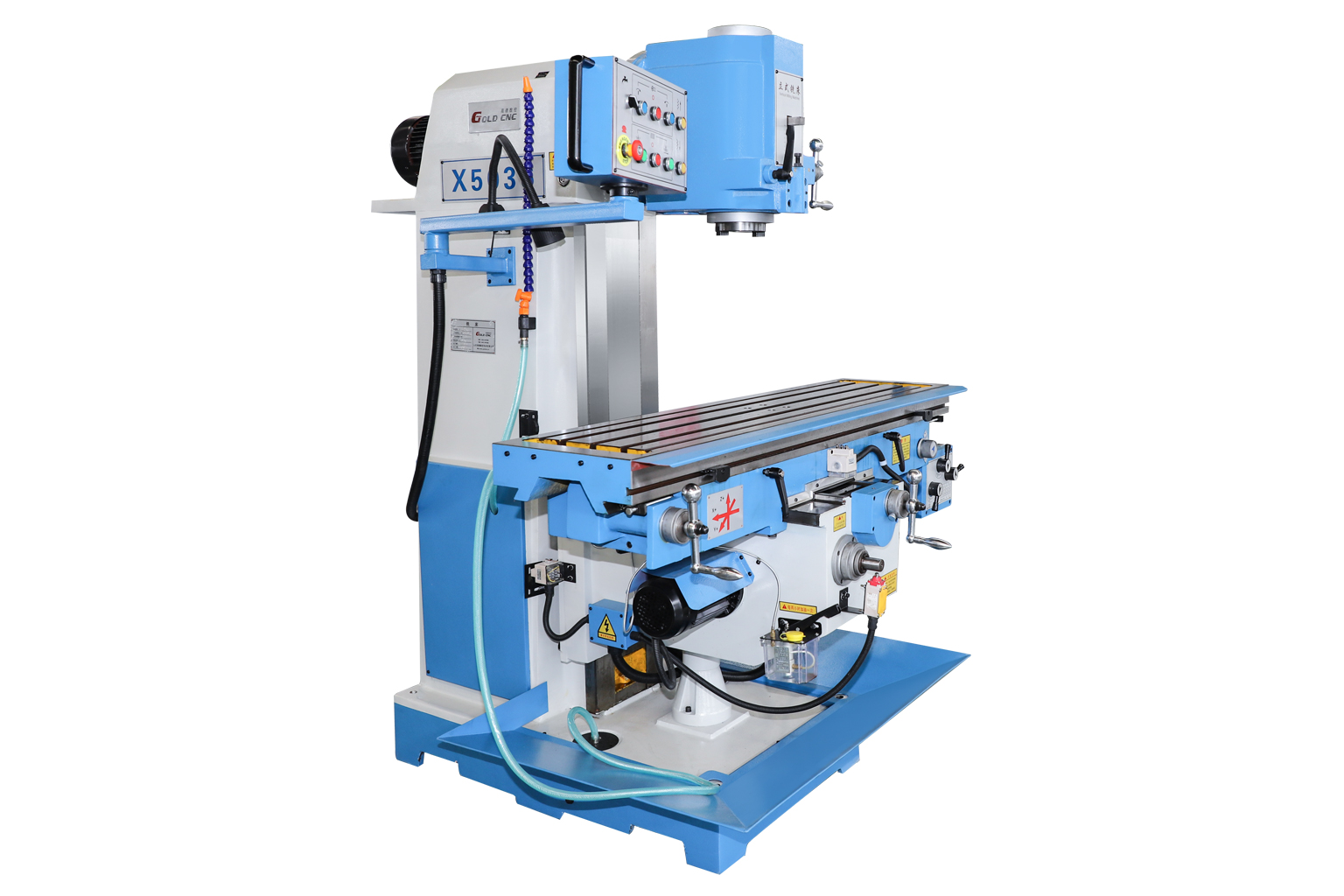

X5036 Vertical Milling Machine — Large-Table Conventional Milling for Versatile Industrial Machining
1. X5036 立式铣床提供高达 1000 毫米的纵向行程，使操作人员能够处理更长的工件并在更大的工作区域内进行加工。
2. X5036铣床可根据所选刀具和附件进行端面铣削、槽铣削、斜面铣削和孔加工。
3.X5036立式铣床采用刚性传统铣削结构设计，可在不同的加工条件下支持稳定的切削。
Spindle adopts energy-saving braking. Energy consumption braking, large braking torque, fast and reliable stop.

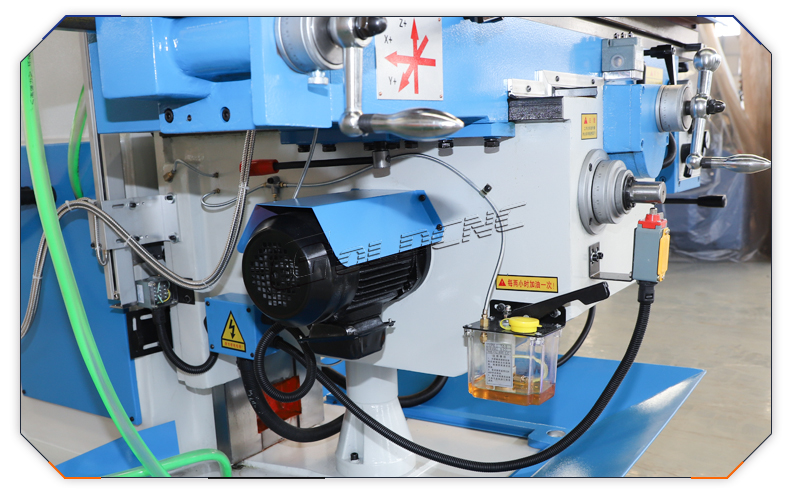

Lubricate the screw rod and guide rail. Centralized lubrication system using japanese technology.

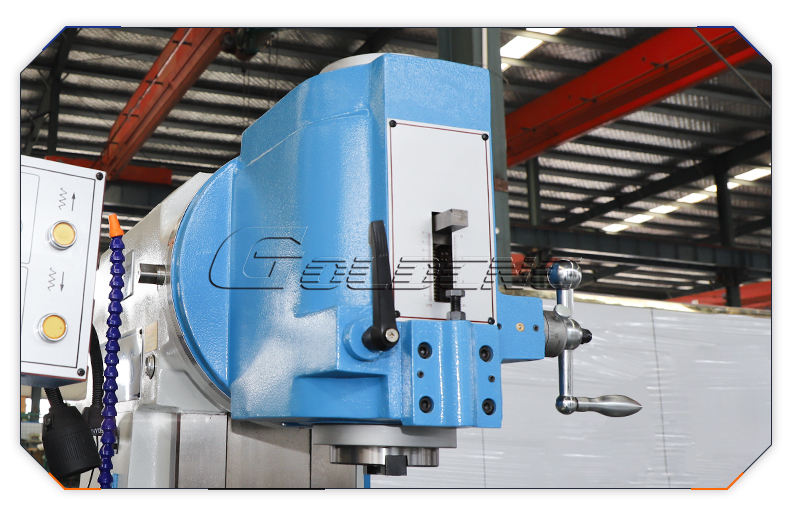

Machine head can be rotated by ± 45 degrees. Gear speed of the machine head can be changed in 16 steps.

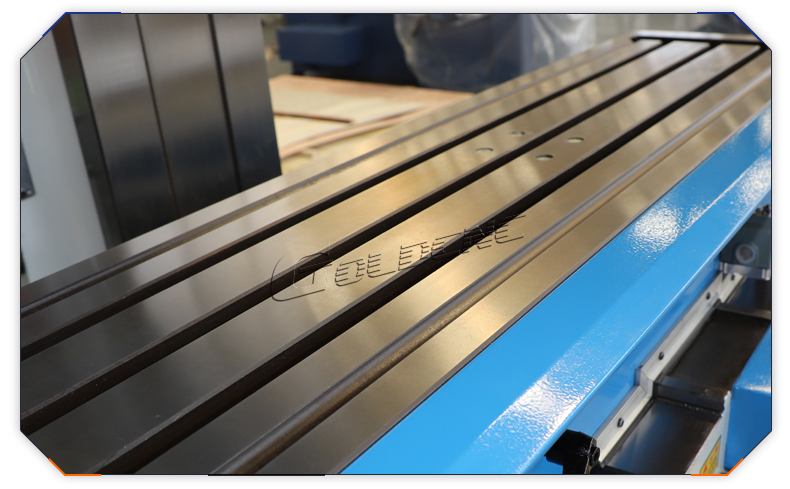

Super audio quenching, precision grinding. X,Y and Z direction guide rail sub-audio hardening and precision grinding.
Depending on the tooling and accessories, the X5036 can be used for face milling, slot milling, inclined-surface machining, drilling and other general machining operations.
|
Specifications
|
X5036A
|
X5036B
|
X5036C
|
|
Spindle taper
|
7:24 ISO50
|
7:24 ISO50
|
7:24 ISO50
|
|
Distance between spindle nose and table (mm)
|
80-440
|
70-450
|
70-450
|
|
Distance between spindle hole center and column surface
|
320
|
360
|
360
|
|
Spindle speed (r/min)
|
60-1700 (12steps)
|
60-1700 (12steps)
|
60-1800 (12steps)
|
|
Rotation angle of end milling head
|
±45°
|
±45°
|
±45°
|
|
Table size (mm)
|
1250×360
|
1500×360
|
1600×360
|
|
Table travel (X/Y/Z) (mm)
|
600/320/380
|
1000/320/380
|
1300/320/380
|
|
Number/width/spacing of T-grooves in worktable (mm)
|
3/18/80
|
3/18/80
|
3/18/80
|
|
Main motor (kw)
|
4
|
4
|
5.5
|
|
Power of Maneuverable Feed Motor of Workbench (kw)
|
0.75
|
0.75
|
0.75
|
|
Power of feed motor for lifting platform (kw)
|
1.1
|
1.1
|
1.1
|
|
Cooling pump motor power (kw)
|
0.09
|
0.09
|
0.09
|
|
Cooling pump flow rate (L/min)
|
25
|
25
|
25
|
|
weight (kg)
|
2200
|
2230
|
2600
|
|
overall dimension (mm)
|
1700×1680×1880
|
2220×1790×1980
|
2520×1890×2080
|
