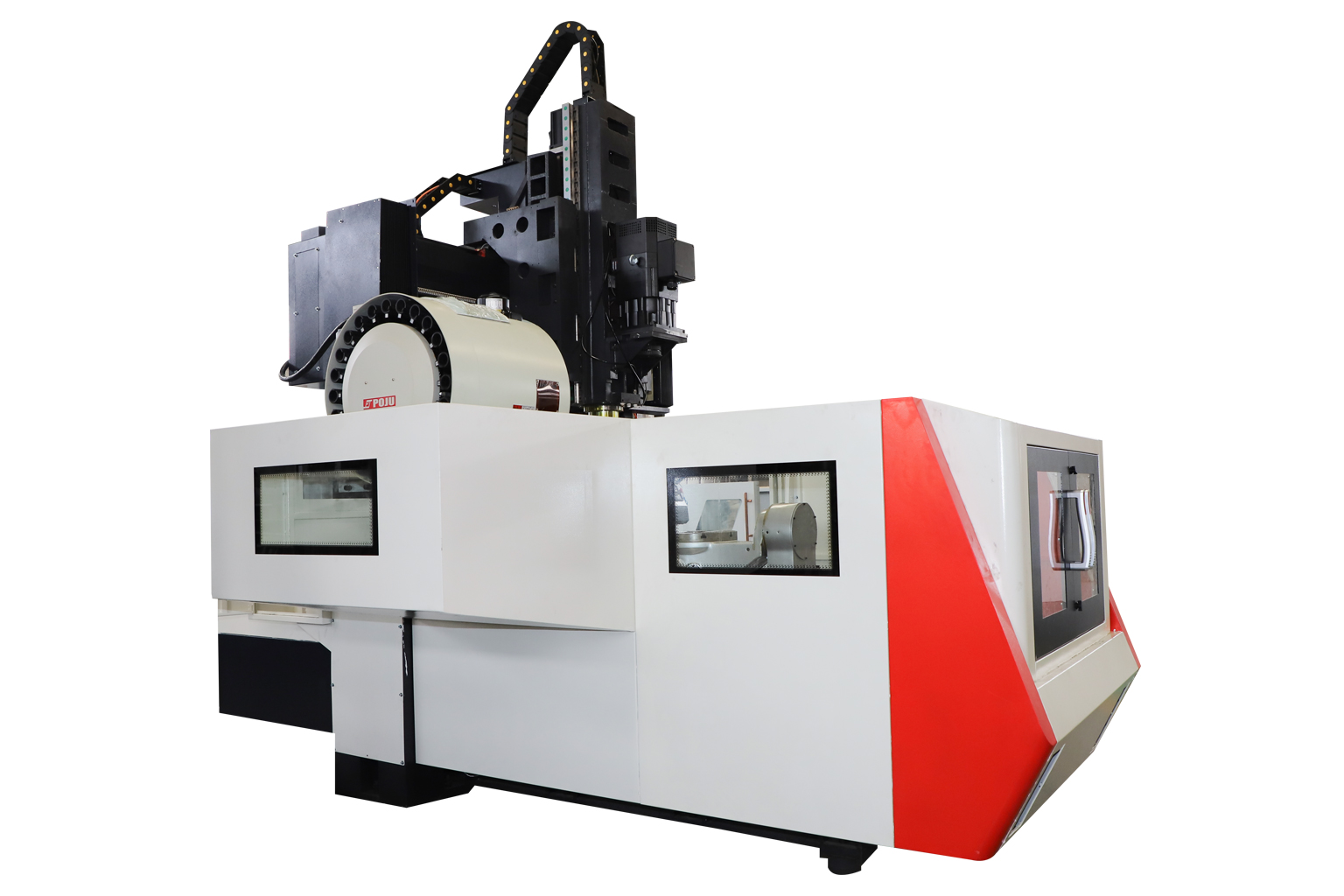

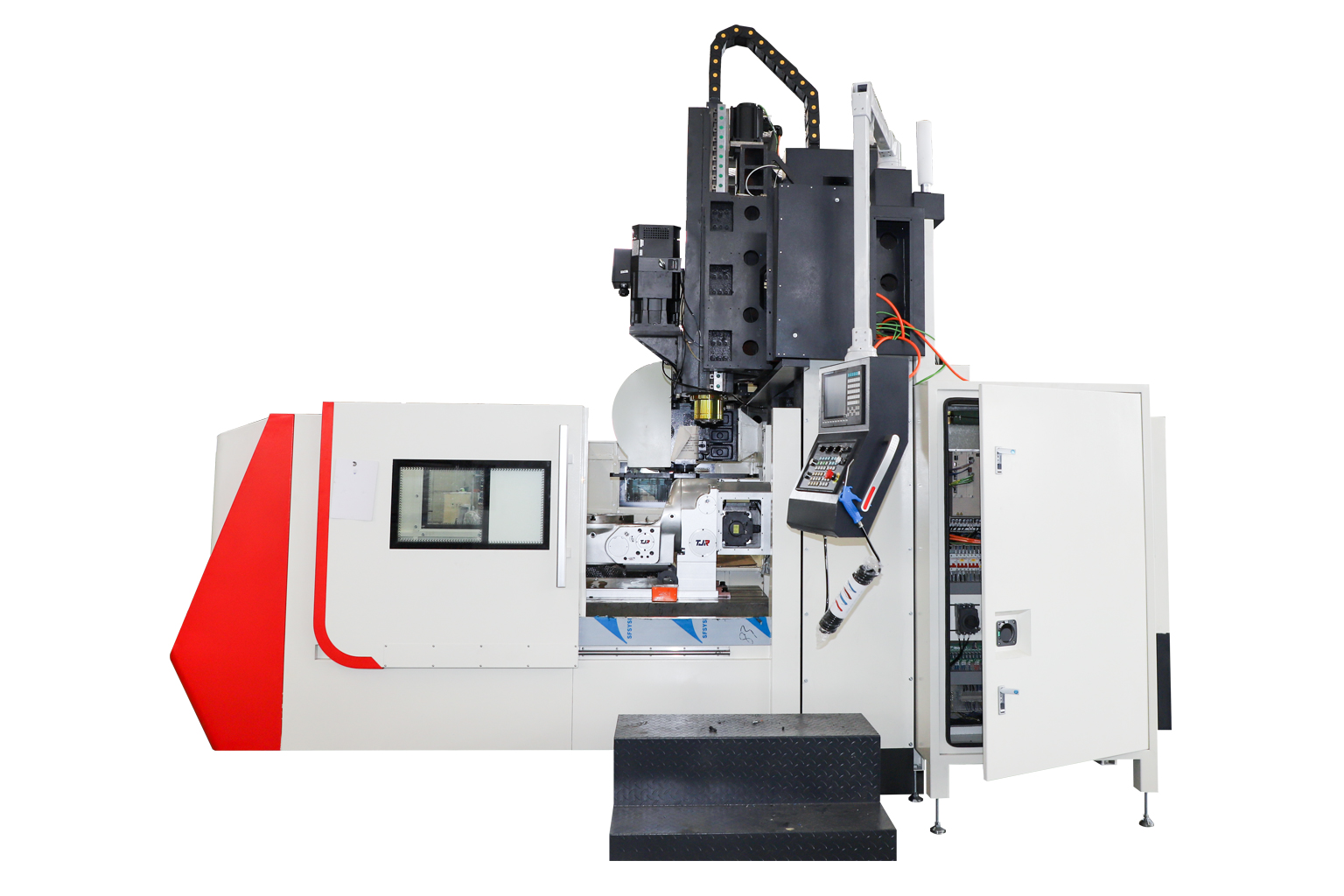

Double Column Machining Center is designed for stable and high-precision machining of large, heavy and complex metal components. Its high-rigidity machine structure provides strong support during demanding cutting operations and helps maintain consistent machining performance.
The main castings are made of high-quality Meehanite cast iron and optimized using Finite Element Analysis (FEA) to achieve a balanced structural design and high mechanical rigidity.
The extra-wide box-type base and column, together with a widened and lengthened saddle and heavy-duty full-support design, provide a solid foundation for machining large and heavy workpieces.

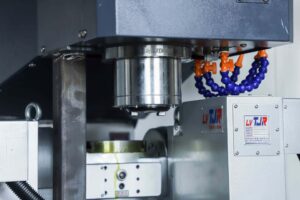

The reinforced spindle-head structure provides stable support for the spindle, helping improve machining stability during heavy-duty cutting.
|
Specification |
GMC3025 |
GMC4025 |
GMC3022 |
GMC4022 |
|
Worktable size(mm) |
2300*3000 |
2300*4000 |
1800*3000 |
1800*4000 |
|
X-axis travel (mm) |
3000 |
4000 |
3000 |
4000 |
|
Y-axis travel (mm) |
2500 |
2500 |
2200 |
2200 |
|
Z-axis travel(mm) |
1000 |
1000 |
1000 |
1000 |
|
Gantry width (mm) |
2550 |
2550 |
||
|
Spindle end-face to workbench (mm) |
215-1215 |
215-1215 |
||
|
T-slot (mm) |
9-22-180(For the outside 2 T- slots: :2-22*150) |
9-22-180 |
||
|
Spindle taper(spec.-dia.-transmission type) |
BT50-Φ190-Belt long nose end spindle |
BT50-Φ190-Belt long nose end spindle |
||
|
Spindle speed (r/min ) |
6000 |
6000 |
||
|

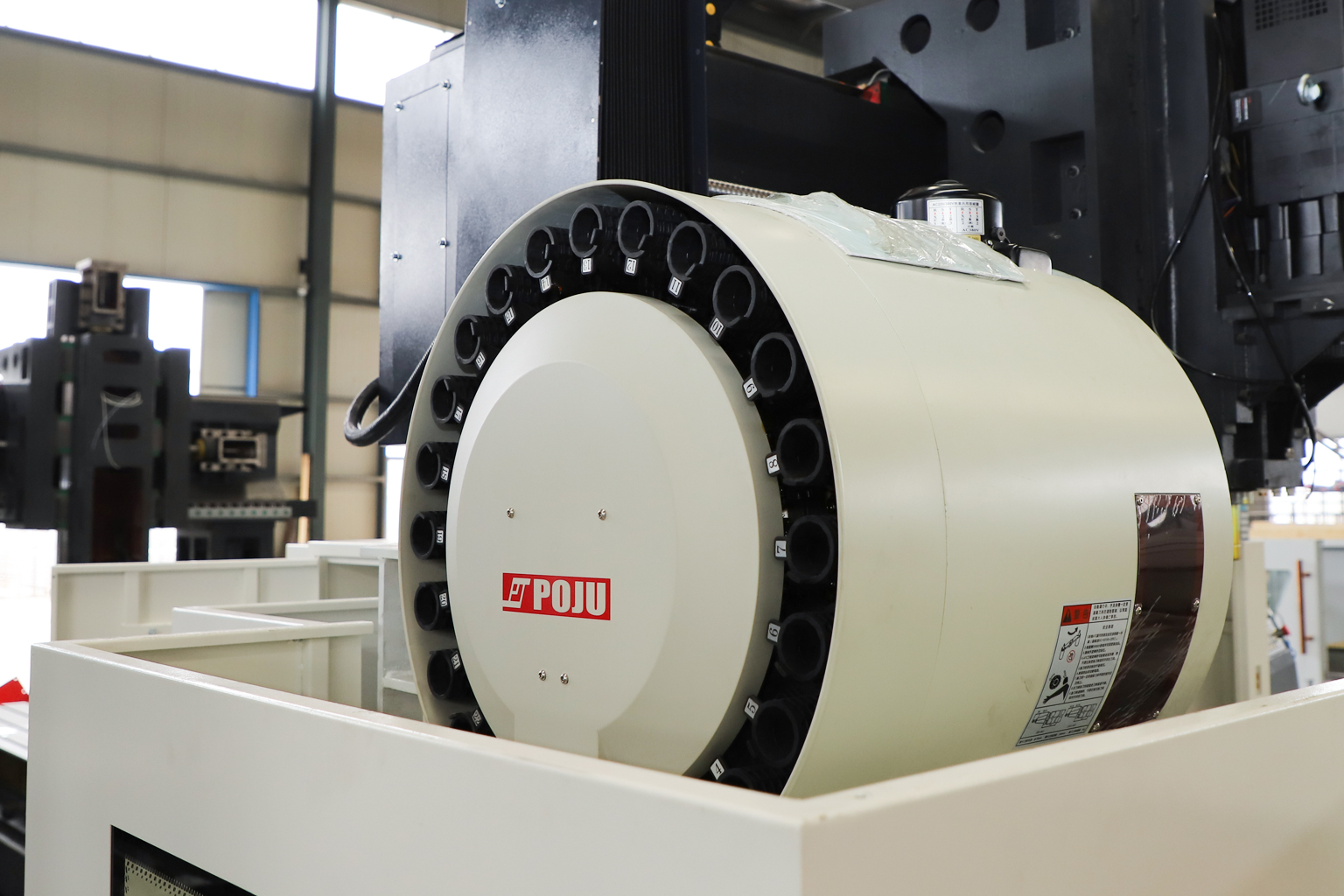

Tool magazine |
BT50-24T |
BT50-24T |
||
|
Maximum tool diameter |
112mm |
112mm |
||
|
Maximum tool length |
300mm |
300mm |
||
|
XYZ axis ball screw |
8016/6310/5010 |
8016/6310/5010 |
||
|
XYZ axis fast moving |
X:12;Y:12;Z:10 |
X:12;Y:12;Z:10 |
X:12;Y:12;Z:12 |
X:10;Y:12;Z:12 |
|
X-axis rail |
55 #Rollerrail (10 Slider ) |
55 #Rollerrail (10 Slider ) |
||
|
Y-axis rail |
55 # Rollerrail(5 Slider ) |
55 # Rollerrail(5 Slider ) |
||
|
Z-axis rail |
slide rail |
slide rail |
||
|
XYZ positioning accuracy |
X:0.024mm;Y:0.02mm;Z:0.014mm; |
X:0.024mm;Y:0.02mm;Z:0.014mm; |
||
|
Repeated positioning accuracy |
X:0.015mm;Y:0.013mm;Z:0.008mm; |
X:0.015mm;Y:0.013mm;Z:0.008mm; |
||
|
XYZ Motor connection method |
XYZ: Motor direct connection |
XYZ: Motor direct connection |
||
|
(For X axis,reducer is recommended) |
||||
|
Main motor (kw) |
30 |
30 |
||
|
XYZ axis Motor parameters(n.m) |
X:≥45+4:1Reducer;Y:30;Z:30 |
X:≥45+4:1Reducer;Y:30;Z:30 |
||
|
Height of bed cushion block（mm） |
30 |
30 |
||
|
Weight capacity (KG) |
8000 |
10000 |
10000 |
12000 |
|
Weight (KG) |
26000 |
30000 |
24000 |
28000 |

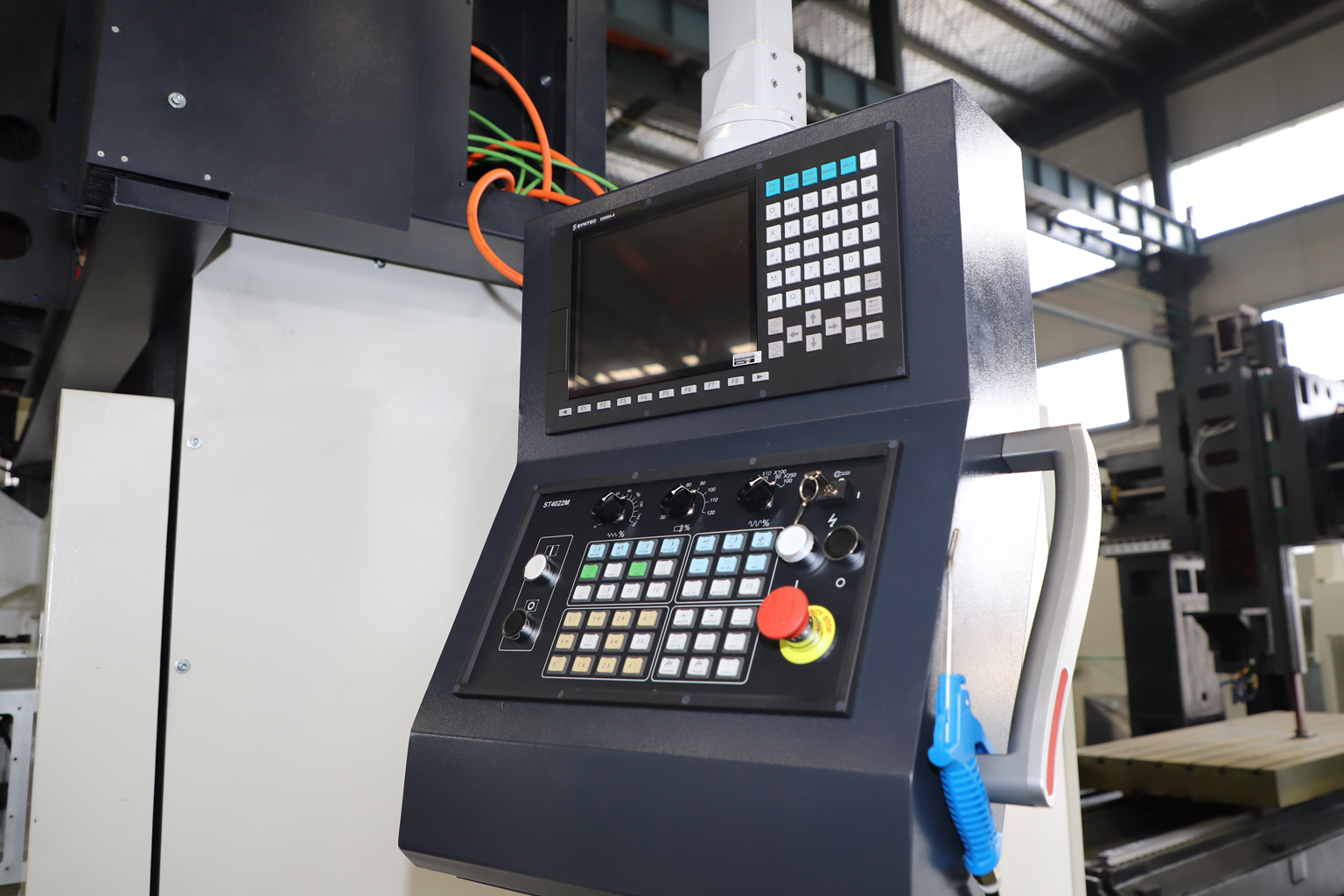

Offers a range of CNC system options, including FANUC, GSK, Siemens, Mitsubishi, and others. The operating interface supports multiple languages, such as Chinese, English, Spanish, and Russian.
High rigidity — stable, vibration-free operation during heavy-duty cutting. High speed — suitable for both roughing and finishing. High precision — helps reduce the scrap rate.
The equipment features an all-metal enclosure. With a sheet metal thickness of 2 mm, far exceeding market standards, it ensures maximum safety for operators during operation.

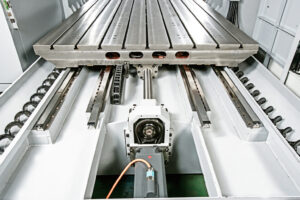

The use of high-precision HIWIN (Taiwan) linear guideways and ball screws significantly enhances positioning accuracy. The system ensures exceptional motion smoothness, free from jerking or stick-slip, and supports rapid traverse speeds of up to 24, 36, or 48 m/min.

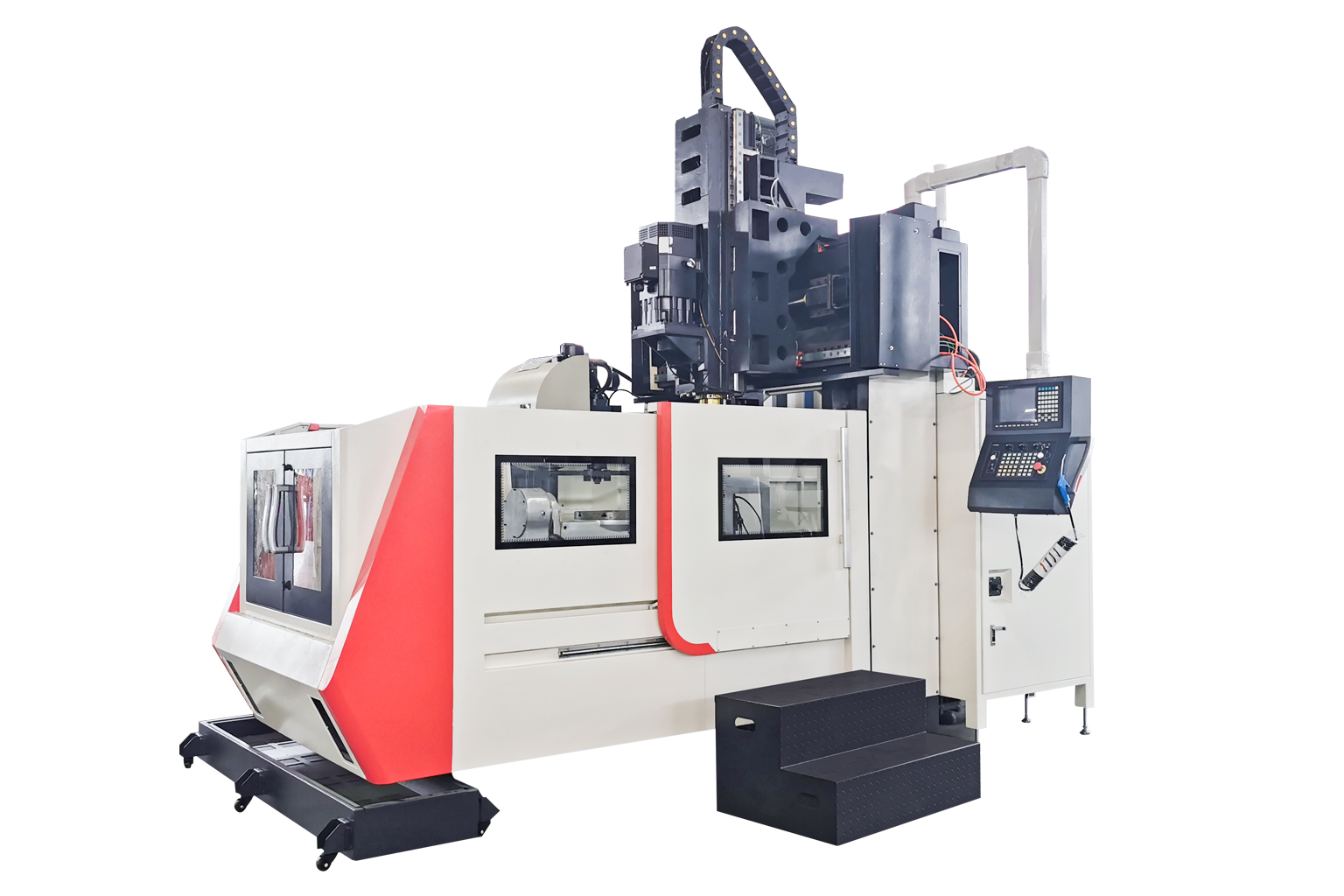

A gantry machining center is a CNC machine tool designed for machining large, heavy or complex metal components. Its gantry-type structure provides stable support and high rigidity for demanding machining applications.
