01
Gantry Double Column Structure
Good guidance and uniform force;High rigidity, high strength;

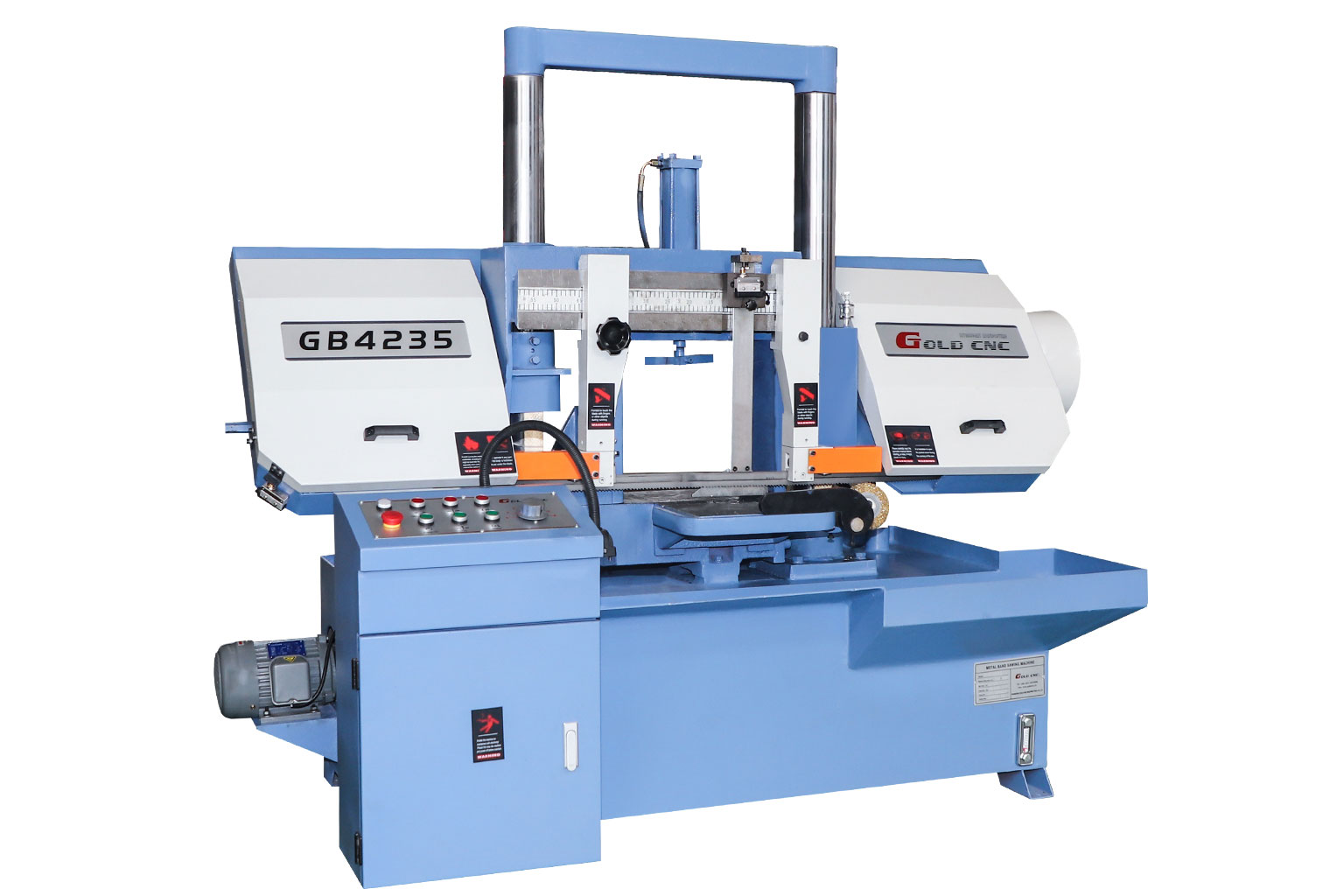

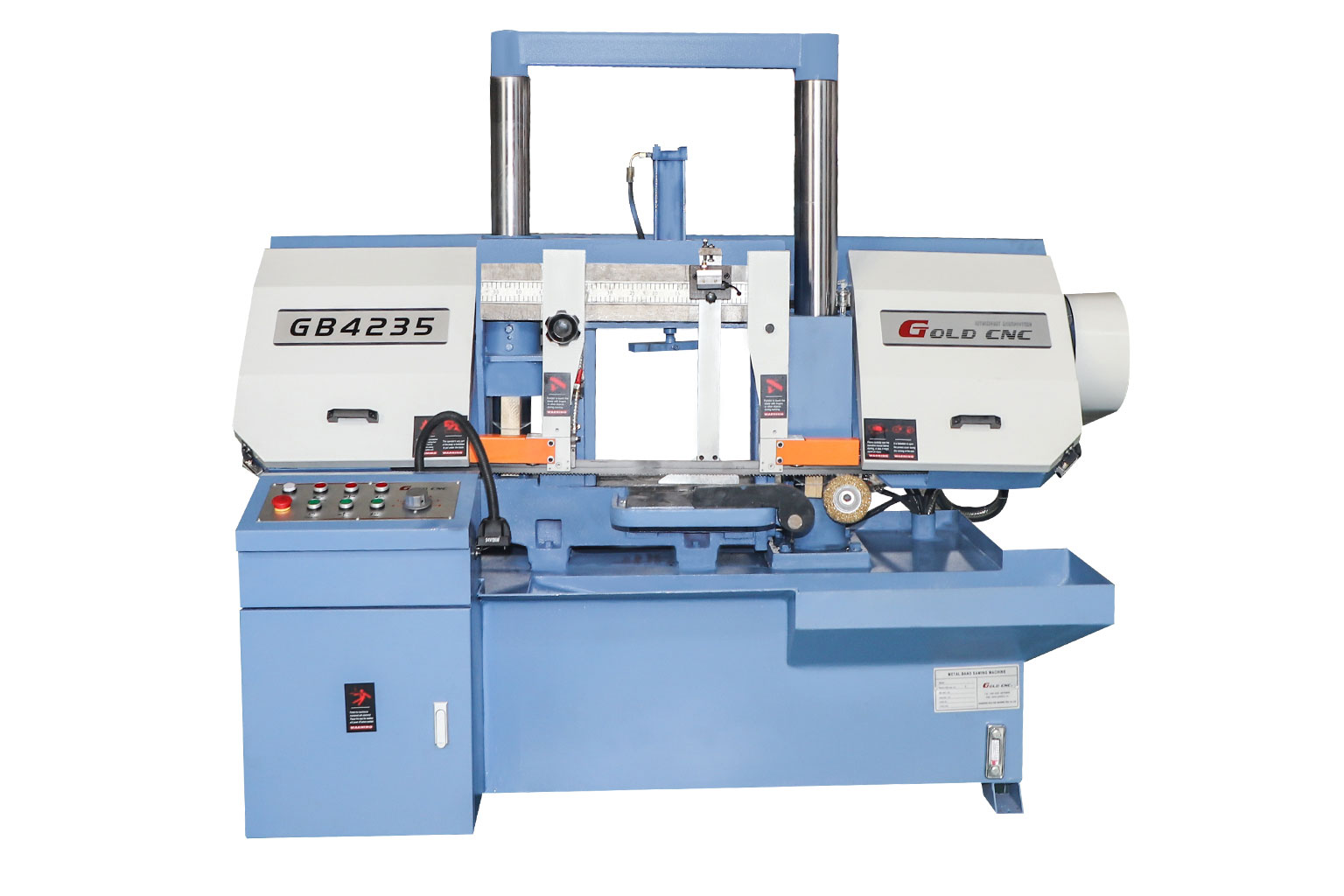

1.With a horizontal band saw design, the GB4235 is suitable for cutting round bars, square and rectangular stock, profiles and other workpieces, making it suitable for general metalworking and production cutting applications.
2.The semi-automatic operation is well suited to repetitive cutting tasks, reducing frequent manual handling and supporting a more consistent production workflow, particularly for batch material preparation.
3.Designed for industrial production environments, the GB4235 balances cutting efficiency, ease of operation and machine stability. It can be used in machinery manufacturing, steel processing, equipment production and general metalworking applications.
|
Technical Parameters |
|
|
Specifications |
GB4235 |
|
Max.cutting（mm） |
●350■350W×350H |
|
Saw blade speed（m/min） |
27/45/69 |
|
Saw blade size（mm） |
34×1.1×4115 |
|
Working clamping mode |
Hydraulic vice |
|
Main transmission structure |
Worm gear transmission |
|
Band saw blade tension |
Manual |
|
Cleaning |
Wire brush & flood coolant |
|
Main motor（kw） |
3 |
|
Hydraulic motor（kw） |
0.75 |
|
Cooling motor power（kw） |
0.04 |
|
Weight（kg） |
850 |
|
Dimensions(mm) |
2200×1100×1700 |
Good guidance and uniform force;High rigidity, high strength;
National standard pure copper motor,High power and strong power;

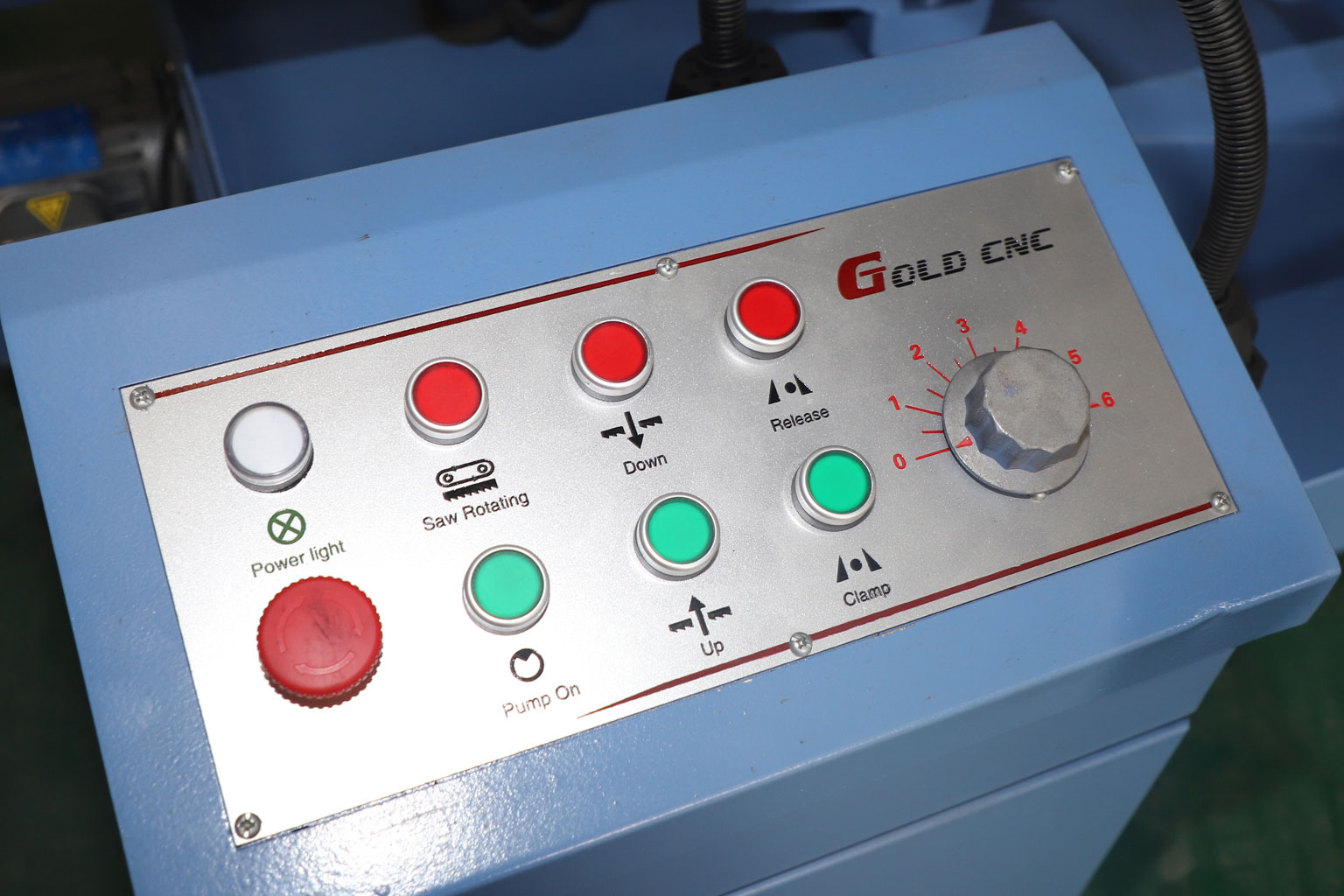

Button completed sawing process,Easy to operate and efficient;

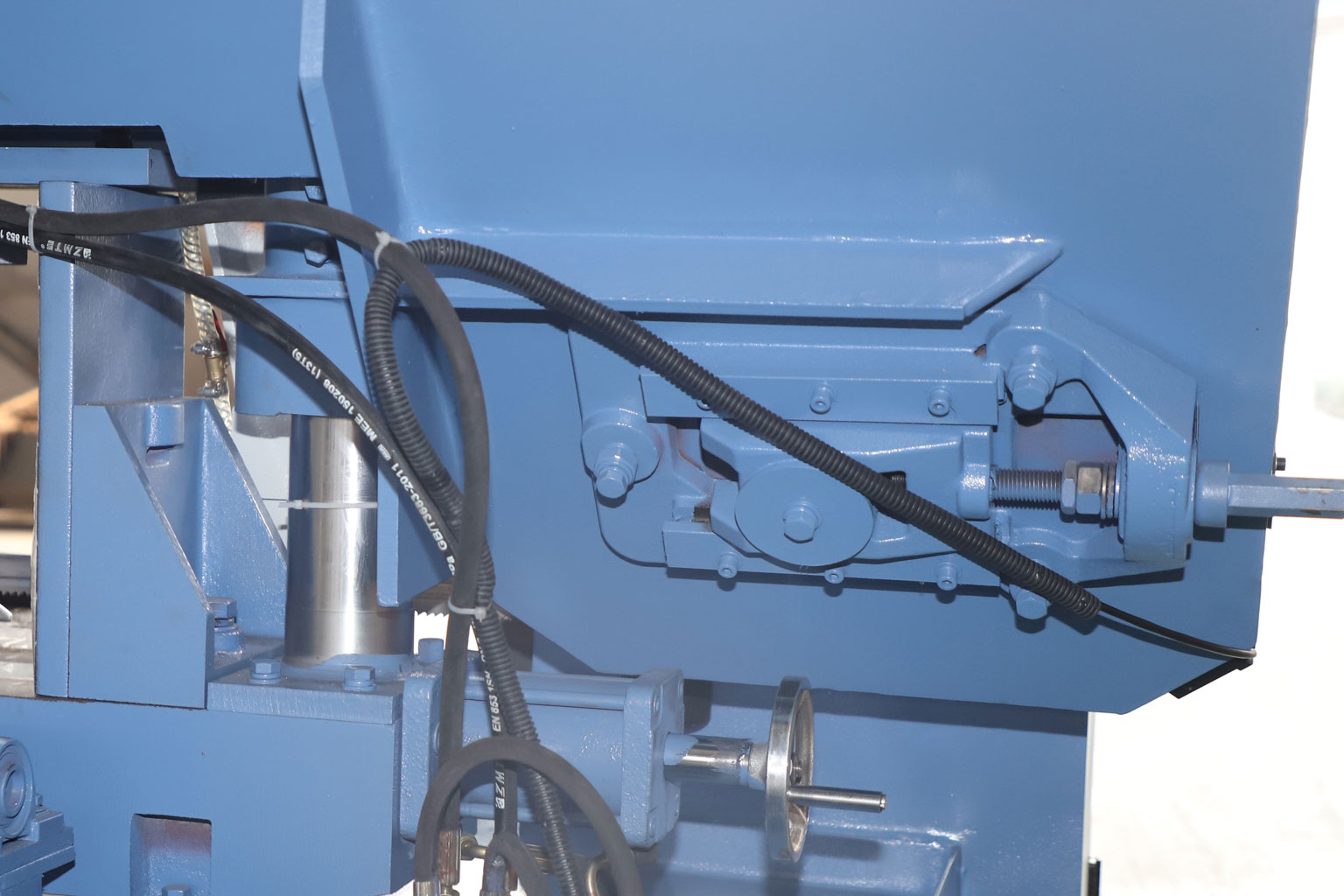

Manual tensioning, easy to operate,Optional hydraulic tensioning seat;
The GB4235 band saw can cut a variety of metal materials, including carbon steel, stainless steel, alloy steel and tool steel. Actual cutting performance depends on the material characteristics, workpiece dimensions, band saw blade specification and appropriate cutting parameters.
