Gantry Double Column Structure
Good guidance and uniform force;Smooth operation and long service life.

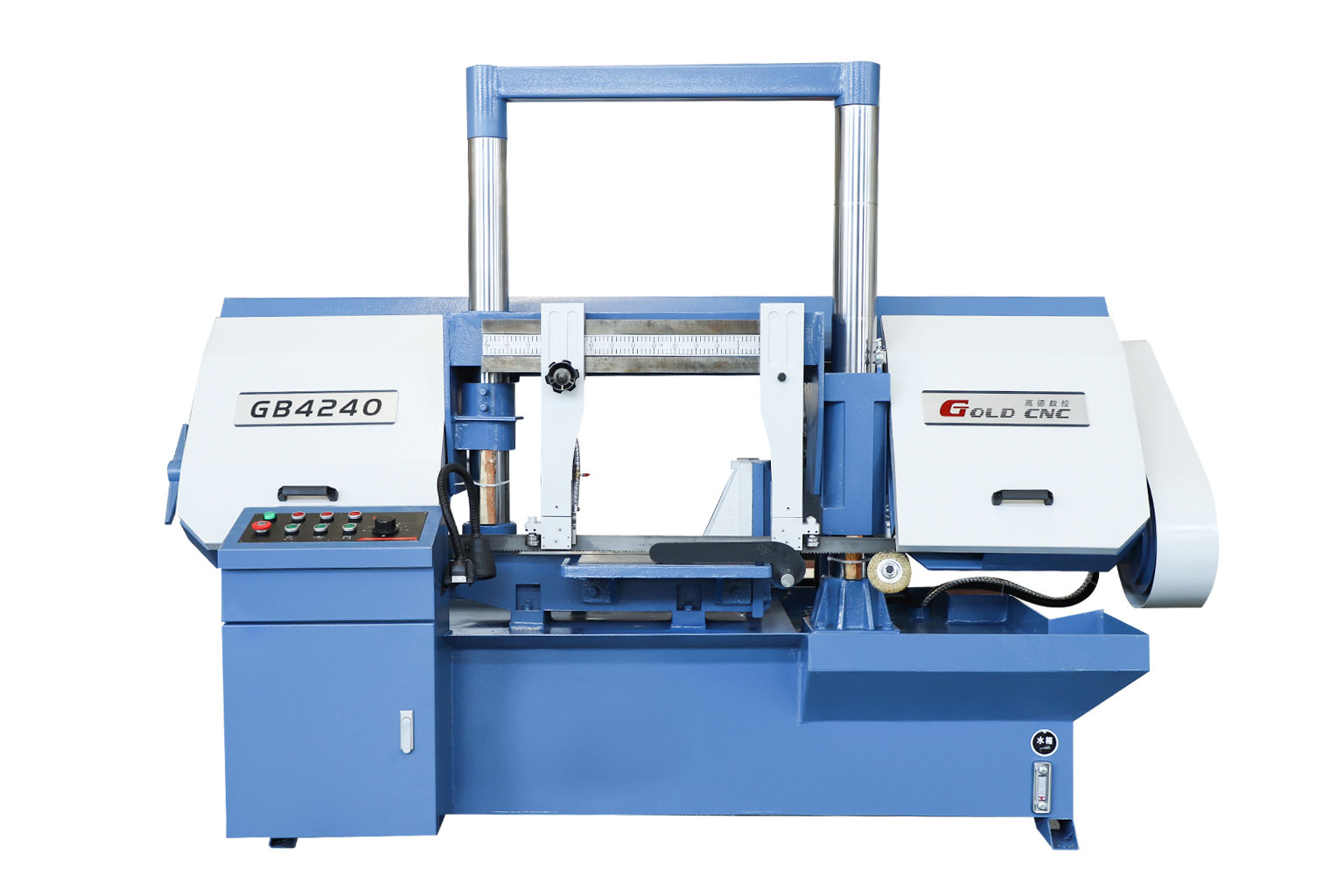

1.The GB4240 metal band saw machine provides a maximum cutting capacity of 400 × 400 mm, making it suitable for processing larger bars, square stock, rectangular profiles and other metal workpieces within its working range.
2.The GB4240 double-column band saw machine can be used for cutting different types of metal stock, depending on the material, section size and selected blade. It can handle round, square and rectangular workpieces within its cutting capacity.
3.The combination of the stable double-column guiding system, hydraulic clamping and semi-automatic operation helps maintain consistent sawing performance while meeting production requirements for efficiency and cutting stability.
|
Technical Parameters |
|
|
Specifications |
GB4240 |
|
Max.cutting（mm） |
●400■400W×400H |
|
Saw blade speed（m/min） |
27/45/69 |
|
Saw blade size（mm） |
41×1.3×5000 |
|
Working clamping mode |
Hydraulic vice |
|
Main transmission structure |
Worm gear transmission |
|
Band saw blade tensioning method |
Manual |
|
Cleaning |
Wire brush & flood coolant |
|
Main motor（kw） |
4 |
|
Hydraulic motor（kw） |
1.1 |
|
Cooling motor power（kw） |
0.09 |
|
Dimensions(mm) |
2400×1300×1800 |
Good guidance and uniform force;Smooth operation and long service life.
Button completed sawing process ;Easy to operate and efficient.

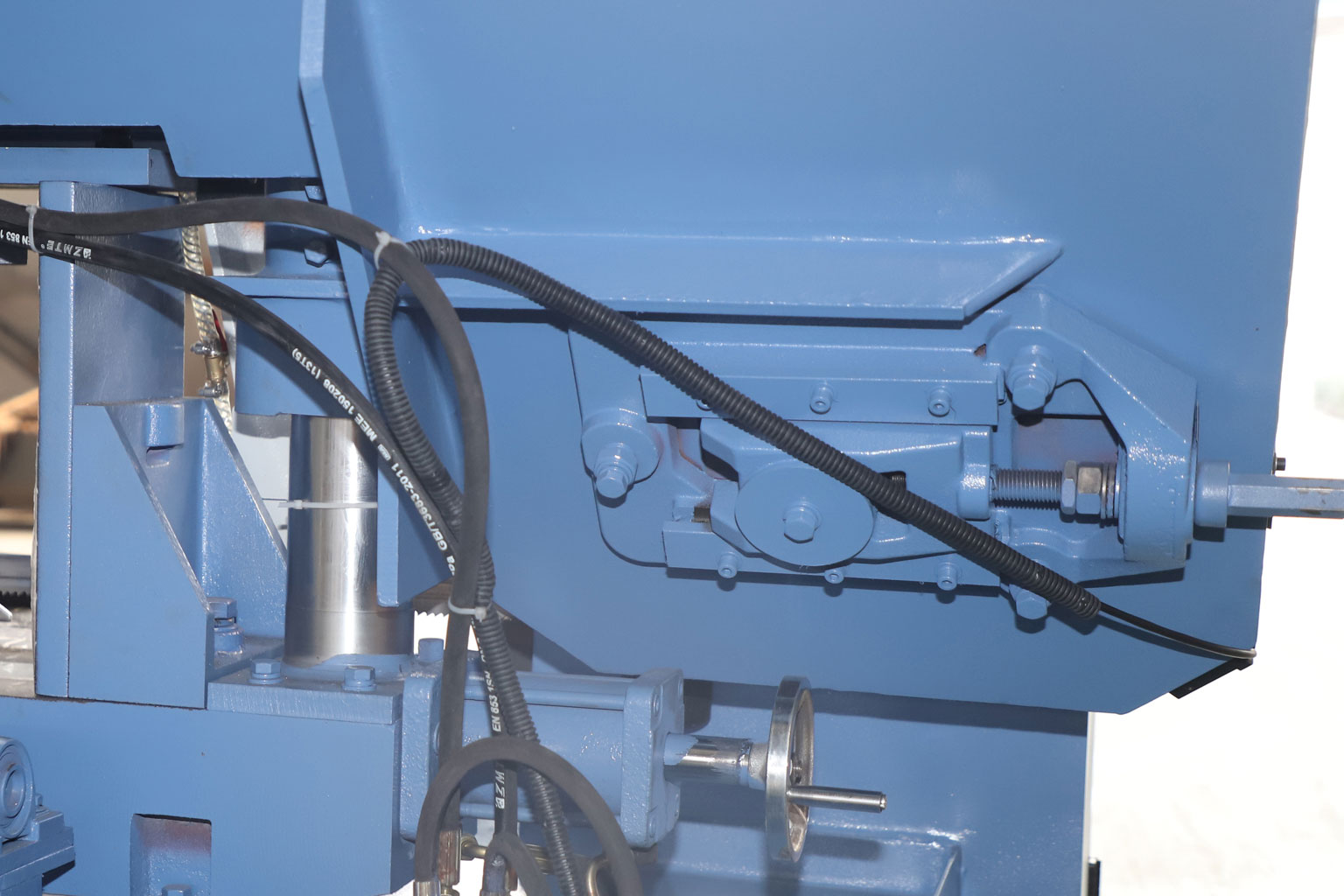

Manual tensioning, easy to operate;Optional hydraulic tensioning seat.

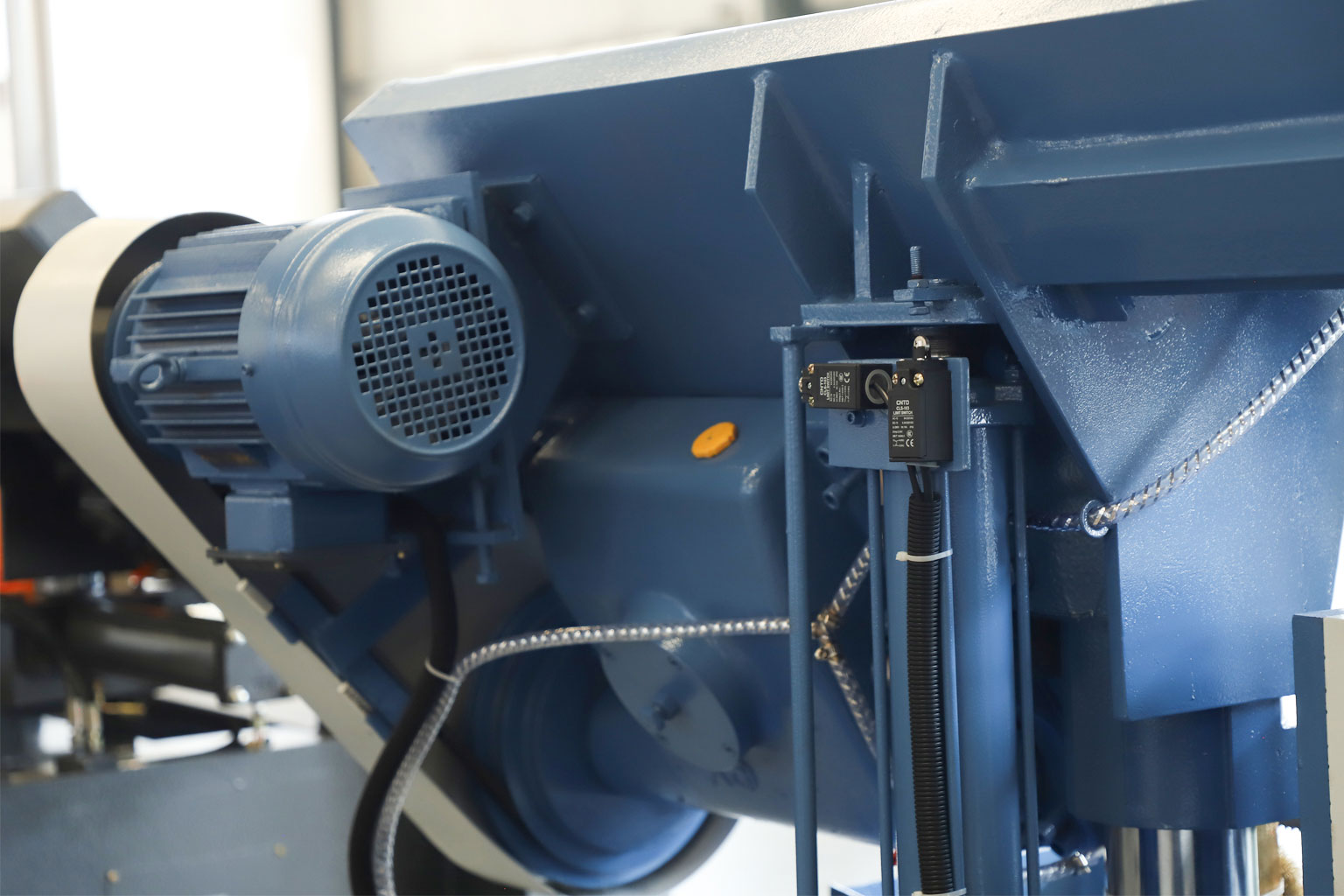

National standard pure copper motor;Low noise, long life.

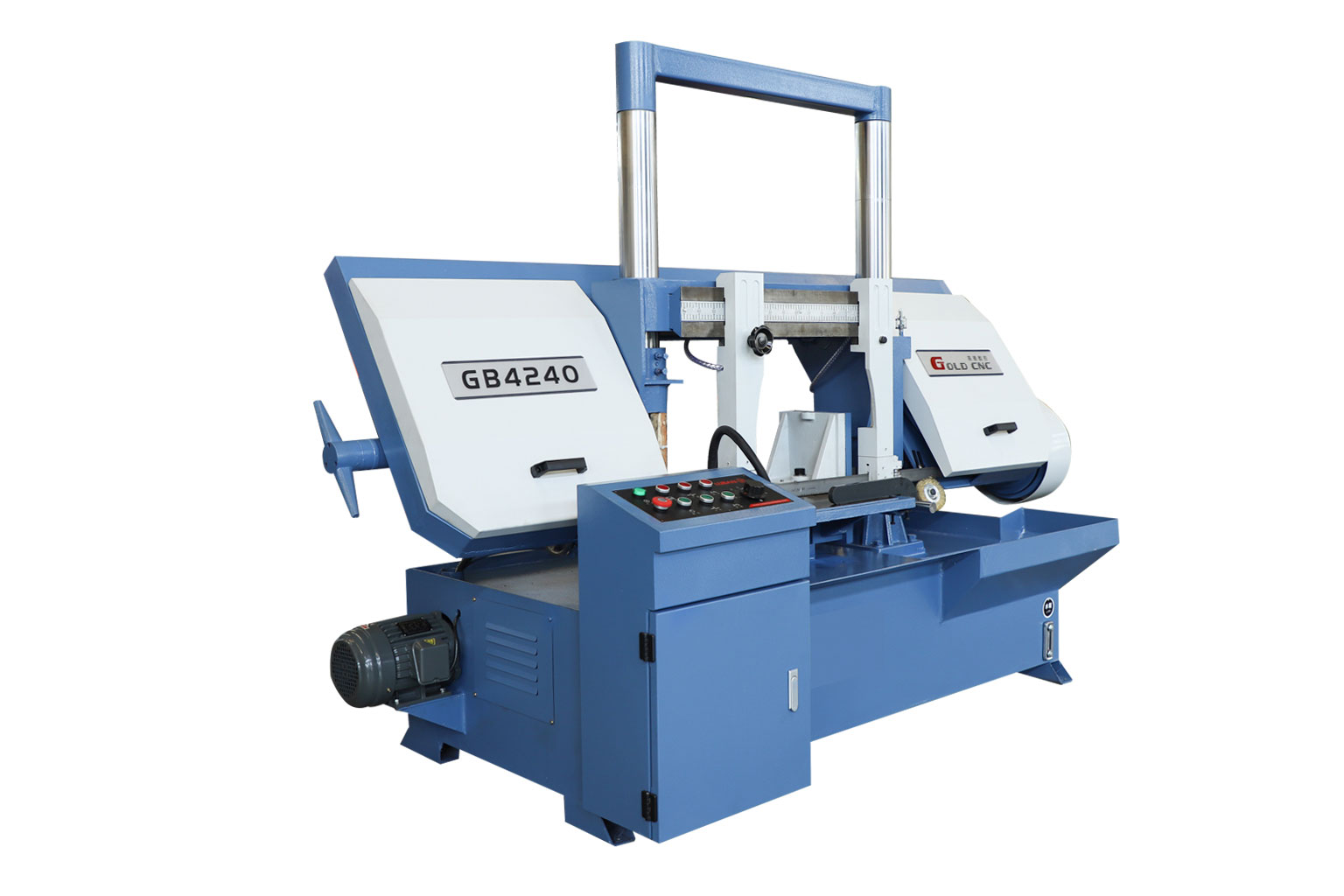

The GB4240 metal band saw is designed for cutting metal stock such as round bars, square stock and rectangular profiles. It is particularly suitable for workshops that need repeatable cutting for material preparation before machining or fabrication.
