01
Gantry Double Column Structure
Good guidance and uniform force;High rigidity, high strength.

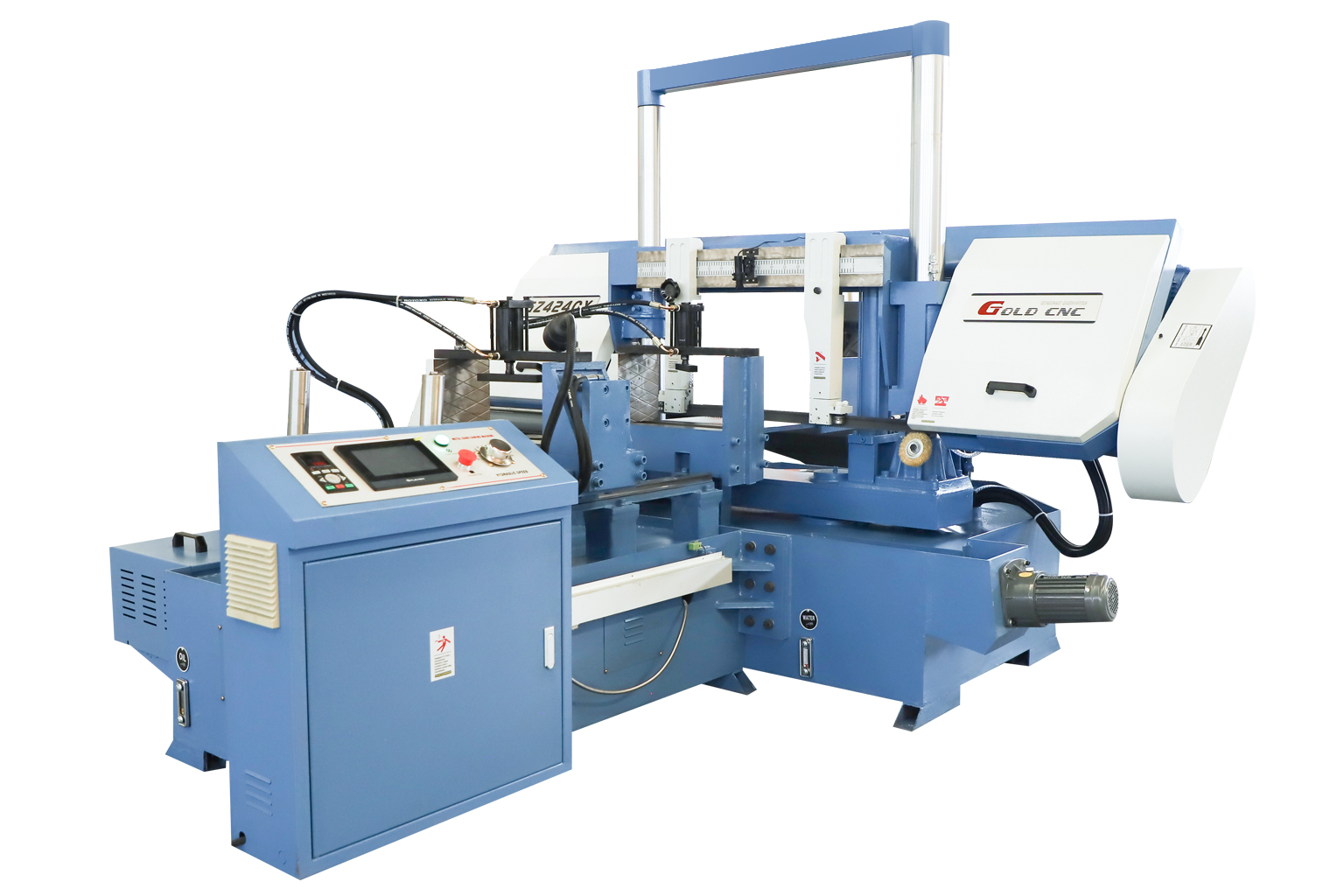

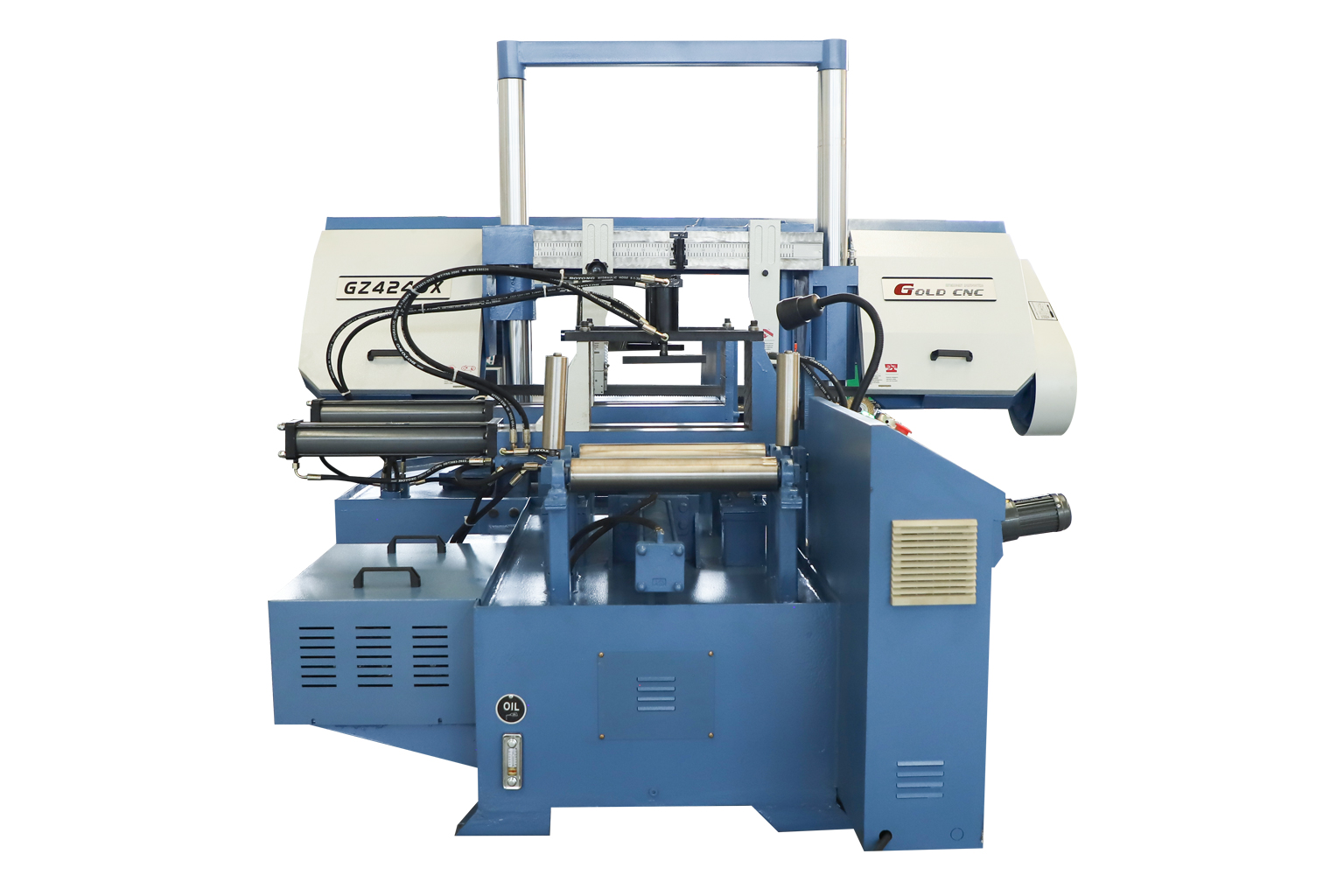

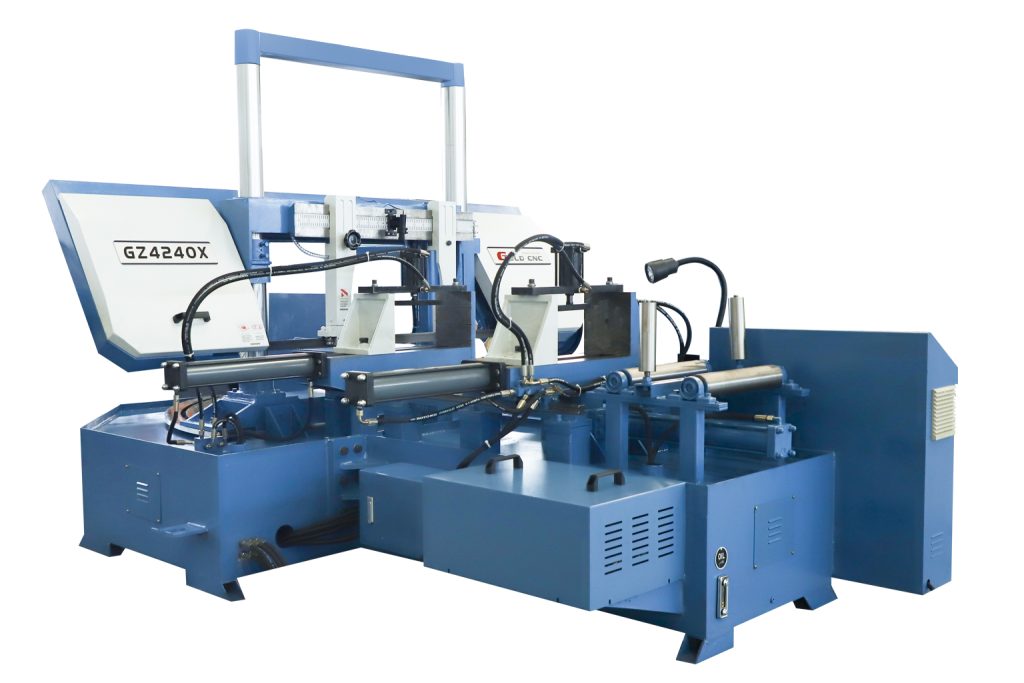

GZ4240X Automatic Miter Band Saw for Metal Cutting combines automatic operation and repeatable angle cutting to help fabrication shops process profiles, pipes and bars more efficiently with less manual intervention.
1.GZ4240X combines automatic band sawing with miter cutting, allowing operators to process repeated angled cuts without manually repositioning the workpiece for every cut.
2.The machine can handle both straight cutting and miter cutting, making it suitable for workshops that process different profiles, pipes, bars and structural components.
3.Automatic feeding, clamping and cutting sequences reduce repetitive manual operations and help operators maintain a consistent production cycle.
4.The mitering mechanism is designed for repeatable angle positioning, helping reduce variation between successive workpieces.
Good guidance and uniform force;High rigidity, high strength.
Manual operation of saw frame rotation;Accurate reading on the dial.
10x999 sets of cutting data can be preset;Automatically complete the sawing process.
It can also be adjusted manually;The workpiece is clamped by hydraulic vice and controlled by hydraulic speed control valve.
GZ4240X band saw is designed for automatic cutting of steel profiles, pipes, bars and structural materials where both straight and miter cuts are required. It is particularly suitable for workshops that need repeatable angled cutting in production work.
| Specifications | GZ4240X |
| Max.cutting（mm） | 0°●400■400W×400H |
| 45°●300■300W×300H | |
| 60°●200■200W×200H | |
| Saw blade speed（m/min） | 27/45/69 |
| Saw blade size（mm） | 41×1.3×5400 |
| Working clamping mode | Hydraulic vice |
| Main transmission structure | Worm gear transmission |
| Band saw blade tensioning method | Manual |
| Cleaning | Wire brush & flood coolant |
| Main motor（kw） | 4 |
| Hydraulic motor（kw） | 1.1 |
| Cooling motor power（kw） | 0.125 |
| Dimensions(mm) | 2600x2400x1900 |
Tell us about your project and our engineering team will respond within 24 hours.
Shandong GOLD CNC Machine Tool Co., Ltd.
sales@goldcnc.com
+86 137 9370 5399
No. 999, Xizhong North Road, Economic Development Zone, Tengzhou, Shandong, China
7 × 24 Hours Global Support
Fill out the form and our sales team will get back to you shortly.

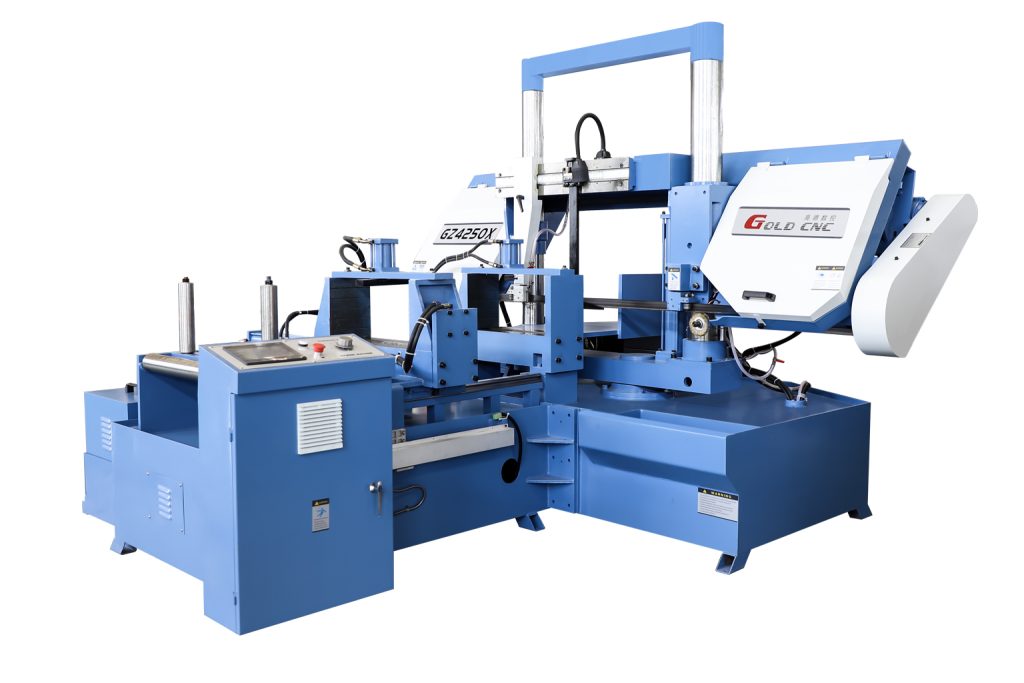

GZ4250X Automatic Miter Band Saw for Metal Cutting combines automatic feeding and sawing with adjustable miter cutting, providing a practical solution for repeatable angle cutting of large steel profiles, pipes, bars and structural components.
